Full Processing Line 200 500kg/h Panko Bread Crumbs Making Machine
- Category: >>>
- Supplier: Jinan Sunrising Machinery Co. Ltd.
Share on (1601057635357):
Product Overview
Description
Products Description
Name | China Industry Breadcrumbs grinding small panko bread crumb making machine |
Raw Material | Wheat flour,rice powder, corn powder, soya meal and other grains’ powder |
Energy | Electricity gas fuel |
Machine Material | Stainless steel 201 304 or according to customer's request |
Feature | Easy to operate and maintain,Perfect after-sales service |

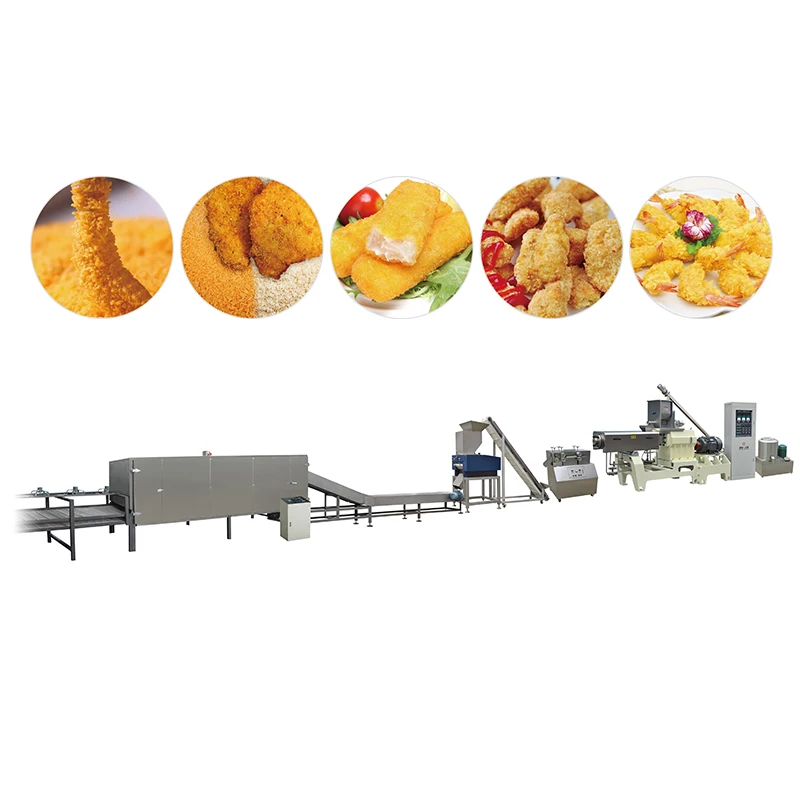

Introduction of bread crumb production line:
Bread crumb production line is commonly used for the products that need fried, crisp outside and soft inside. Replacing the traditional production technology, bread crumb production line is effective with less waste materials . Through mixing, cooking, crushing and screening , this production line can make various shapes of bread crumbs.Equipment Parameters:
Model | Electric heating Installed power | Gas Installed power | Output | Size |
SR65 | 85kw | 45kw | 100-150kg/h | 33000x1200x2500mm |
SR70 | 110kw | 83kw | 150-200kg/h | 33000x1200x2500mm |
SR57 | 120kw | 93kw | 180-220kg/h | 34000x1400x2800mm |
SR62 | 350kw | 230kw | 600-800kg/h | 54000x2500x3800mm |
SR75 | 320kw | 180kw | 300-350kg/h | 54000x2500x3800mm |

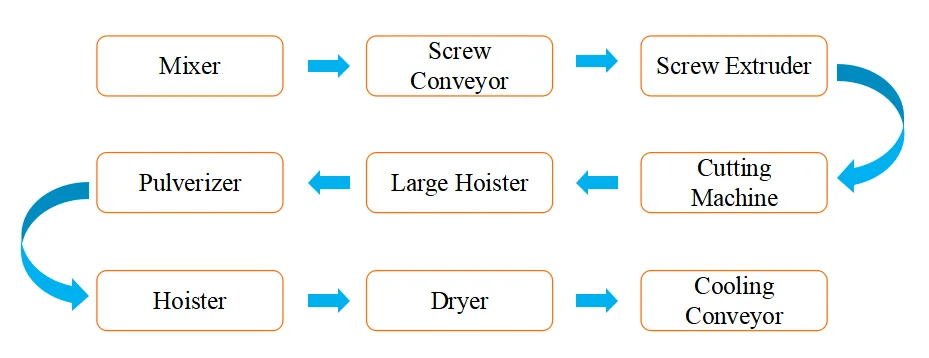

Work Flow:
Equipment Display
Name | Big Mixer | Small Mixer |
Installed Power | 7.5kw | 4kw |
Power Consumption | 6 kw | 3.2kw |
Output | 600kg/h | 400kg/h |
Size | 1.4x0.7x1.4m | 1.0x0.6x1.2m |
Energy | Electricity | Electricity |
Main Accessories | Function |
Anti-blocking feeder | Makes sure the even feeding and stable discharge of materials. |
Double shaft preconditioner | Enables the materials stay longer in the preconditioner and evenness in precondtioning, improves the precure degree and increases the capacity. |
Gearbox | Processed by internationally advanced process technology, ensuring the machines run in long time without malfunction. |
Lubrication and cooling system | Adopts refined filtration forced cooling, creating best working conditions for the bearings. |
The feeding system | Adopts double spiral forced feeding, feeding uniformly and widely. |
The screw | Segmented combined screw, suitable for a wide range of raw materials. With self-cleaning function. |
The rotary cutting device | Adopts a suspended mold (knife) assembly and a linear bearing tool adjusting device to adjust the tool safely, accurately and quickly. |
Key highlights of Sunrising dryer：
◆ Unique structure, high utilization rate of heat energy, high efficiency,environmental protection and energy saving;
◆ Circulation drying process, the moisture difference of the dried product is small, and the drying
effect is good.
◆ Horizontal overall layout, simple structure, reliable control, convenient and intuitive operation.
◆ The frequency motor controls the speed of the mesh belt, and the drying quality can be adjusted
flexibly.
◆ The food contact part is all stainless steel, corrosion resistant.
◆ Energy can be gas heating and steam heating.
effect is good.
◆ Horizontal overall layout, simple structure, reliable control, convenient and intuitive operation.
◆ The frequency motor controls the speed of the mesh belt, and the drying quality can be adjusted
flexibly.
◆ The food contact part is all stainless steel, corrosion resistant.
◆ Energy can be gas heating and steam heating.
Name | Pulverizer |
Working principle | The unit USES the relative motion between the active gear disc and the fixed gear disc, which can crush the material through the impact, friction and material impact.The crushed material is transported by negative pressure to the cyclone separator and dust is filtered and recycled by the bag. |
Recommend Products
Why Choose Us
Company & Certifications
Jinan Sunrising Machinery Co.,Ltd
Jinan Sunrising Machinery Co.,Ltd was founded in2006, located in the Intelligent Industrial Park of Lun Town, Yucheng City, Shandong Province. It has a modern assembly plant with a total area of more than 7,000 square meters. It is a supplier of extrusion and puffing equipment. The company has a design and R&D team with many years of experience. It can provide customers with strong technical support from twin-screw extruder design, puffing process, production process, development and application of complete projects, and automatic control.
At present, the company's puffing machinery and equipment are mainly used in snack puffed food, pet food, dog snacks, breakfast cereals, corn flakes, fortified rice, breadcrumbs, nutritional powder, modified starch, and so on. The products are exported to Southeast Asia, Africa, South America and other countries, and are sold in South America, We have established many long-term partners in Southeast Asia and South Africa and achieved good cooperation with them. The company will continue to explore and forge ahead, and create higher value for users with excellent products and services!
At present, the company's puffing machinery and equipment are mainly used in snack puffed food, pet food, dog snacks, breakfast cereals, corn flakes, fortified rice, breadcrumbs, nutritional powder, modified starch, and so on. The products are exported to Southeast Asia, Africa, South America and other countries, and are sold in South America, We have established many long-term partners in Southeast Asia and South Africa and achieved good cooperation with them. The company will continue to explore and forge ahead, and create higher value for users with excellent products and services!
FAQ
1. Q: Are you a trade company or a manufacturer?
A: we are a manufacturer, welcome to visit our factory and check it.
2. Q: What is your terms of payment ?
A: 30% T/T in advance , 70% balance before shippment after inspection.
3. Q: How about the after-service?
A: We will send 1 engineer to the buyer's factory for 7-14 days period installation and training to the operators.
4.Q: If the power supply is not 3ph 380V 50HZ, could you offer the suitable machine?
A: Yes, we can offer the suitable machine according to your power supply, for example 3ph 380V 60HZ, 3ph 415V 60 HZ, 3ph 220V 60HZ and so on.
5.Q:Do you supply packing machine?
A: We have long-term cooperation packing machine supplier, we will help to contact them.
A: we are a manufacturer, welcome to visit our factory and check it.
2. Q: What is your terms of payment ?
A: 30% T/T in advance , 70% balance before shippment after inspection.
3. Q: How about the after-service?
A: We will send 1 engineer to the buyer's factory for 7-14 days period installation and training to the operators.
4.Q: If the power supply is not 3ph 380V 50HZ, could you offer the suitable machine?
A: Yes, we can offer the suitable machine according to your power supply, for example 3ph 380V 60HZ, 3ph 415V 60 HZ, 3ph 220V 60HZ and so on.
5.Q:Do you supply packing machine?
A: We have long-term cooperation packing machine supplier, we will help to contact them.
