4x2 Dongfeng 16 tons High Pressure Jet Water Tank Spray Road Sweeper Truck for Road Clean
- Category: >>>
- Supplier: Hubei Itruck Import & Export Trading Co. Ltd.Hubei Ltd.
Share on (1601057659102):
Product Overview
Description

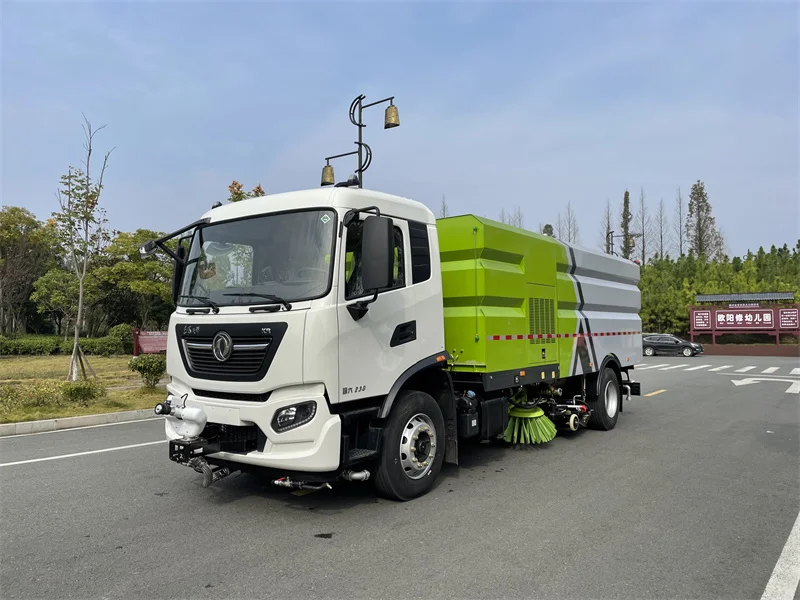

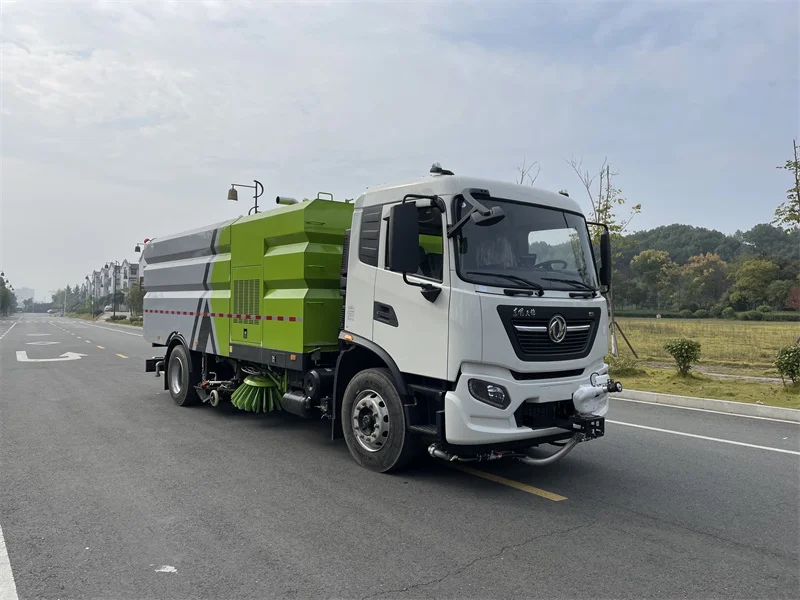

Dongfeng 9000 liters Clean Water Tank and 7000 liters Waster Water Tank High Pressure Road Sweeper
Products Description
Item name | High pressure road sweeper truck | ||||||
Dimension | 8580x2500x3100 mm | ||||||
Total weight | 18000 kg | ||||||
Curb weight | 11335 kg | ||||||
Loading capacity | 6455 kg | ||||||
Wheelbase | 4500 mm | ||||||
Chassis brand | Dongfeng | ||||||
Tire speficication | 10.00R20 | ||||||
Number of tires | 6 | ||||||
Fuel type | Diesel | ||||||
Engine model | B190-33 | ||||||
Engine displacement | 5900 cc | ||||||
Engine power | 140 kw/ 190 hp | ||||||
Engine rate speed | 2500 rpm | ||||||
Engine max torque / speed | 640 N.m at 1500 rpm | ||||||
Clean water volume | 9,000 liters | ||||||
Dust tank volume | 7,000 liters | ||||||
Clean pressure | 10-15 mpa | ||||||
Clean speed | 3-22 kn/h | ||||||
Clean width | 3.5 meters | ||||||
Lower pressure water pump | Weilong 40/50, 40 m3/h | ||||||
High pressure water pump | PF36 , 154L/min | ||||||
Sweeper clean efficiency | ≥95% | ||||||
Maximum suction size | 110 mm | ||||||
Maximum cleaning capacity | 70000 m³/h | ||||||
Dish brush extension siz | ≥400 mm | ||||||
Opening Angle of discharge door | ≥45° | ||||||

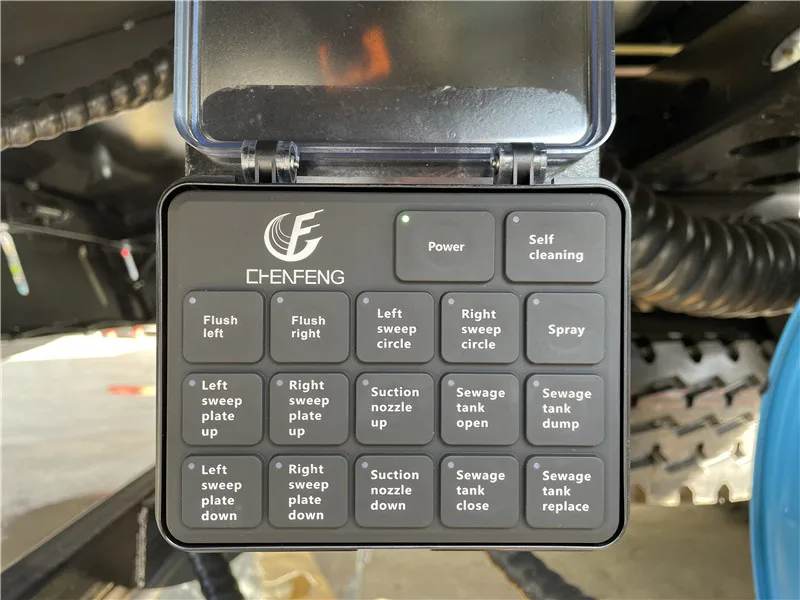

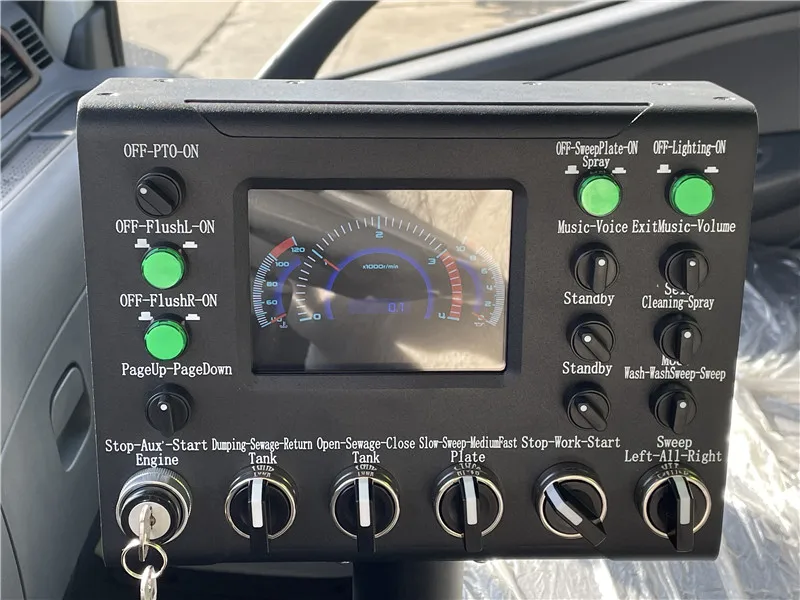

Function Display
Front water spray take power from lower pressure pump
Rear water spray take power from lower pressure pump

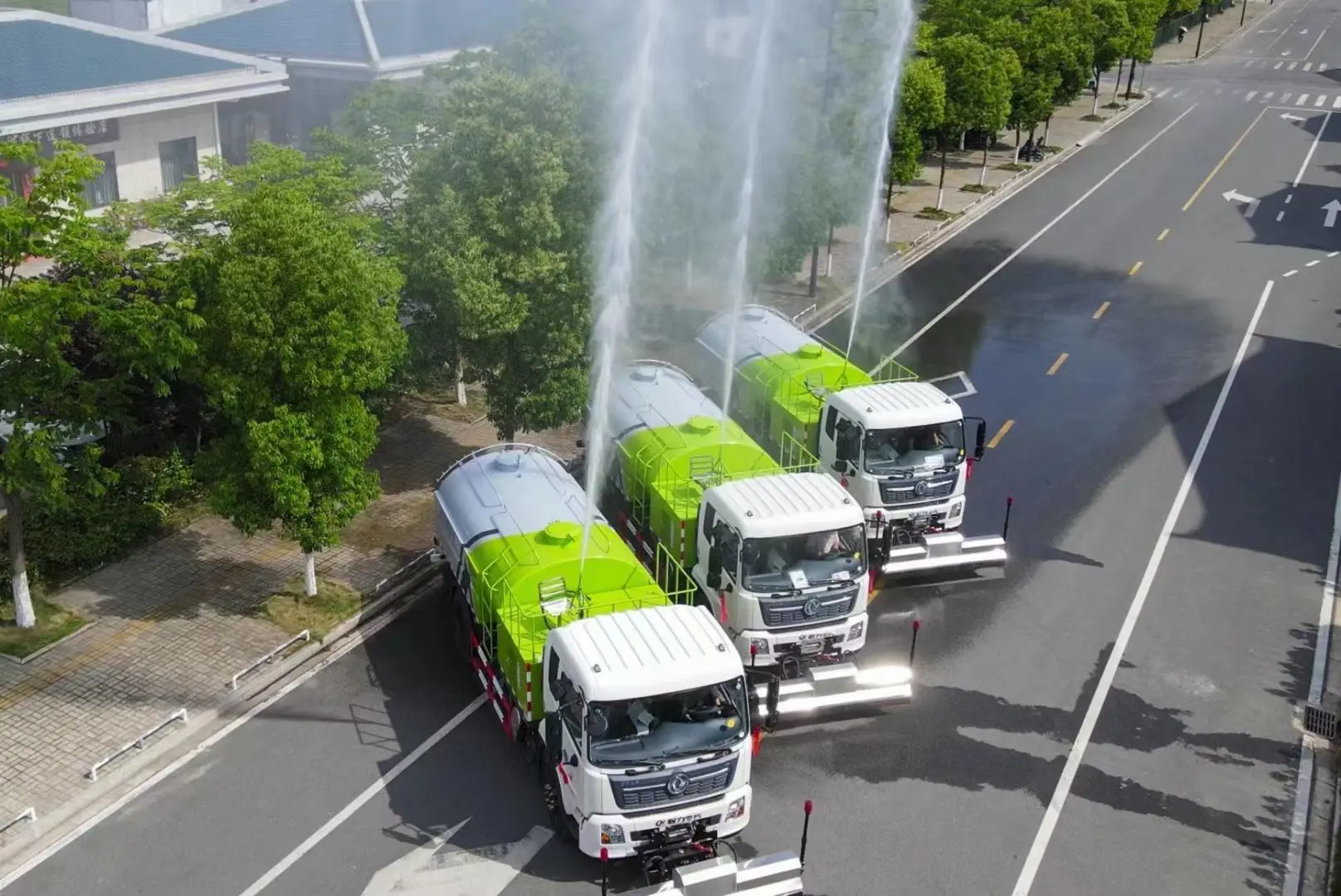

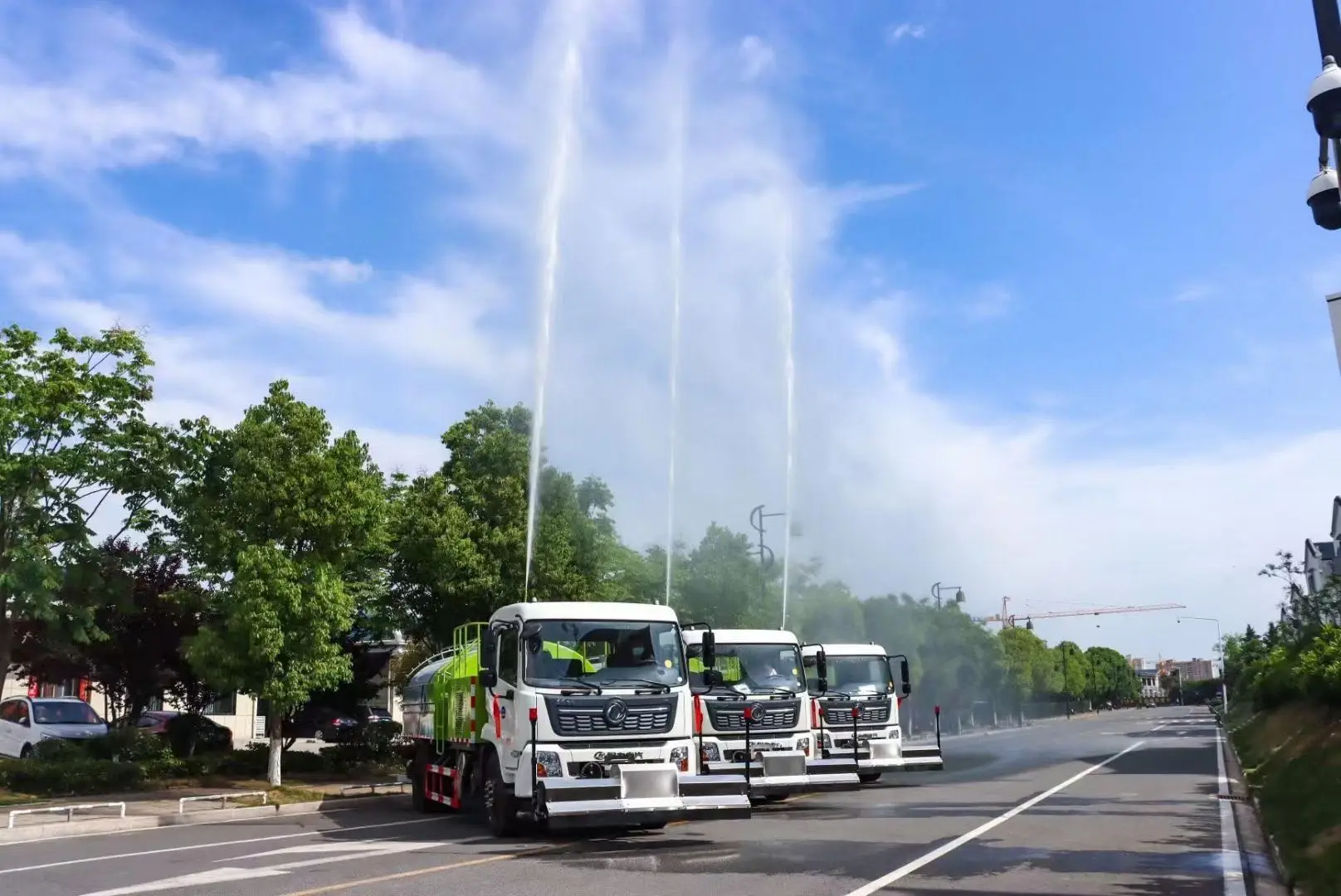

Front high pressure water spray, take power from high pressure pump
Rear high pressure water spray, take power from high pressure pump, dust fall with spray nozzles

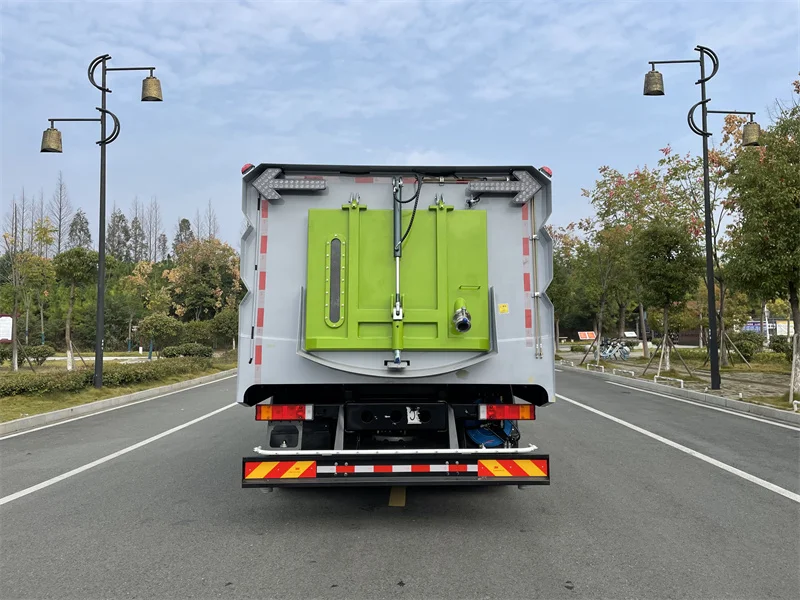

Rear waste water discharging
Self clean after discharging
Manual high pressure water gun
Standard high pressure sweeper cleaning
Working Principle

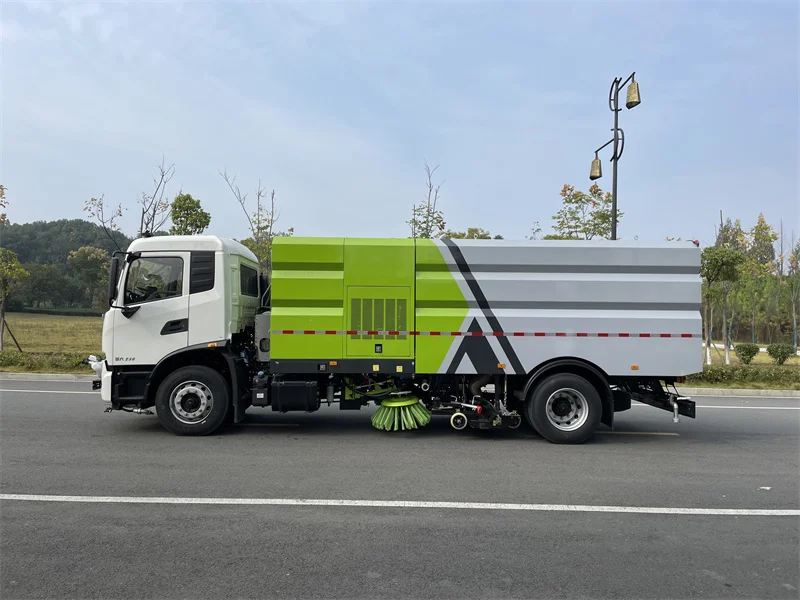

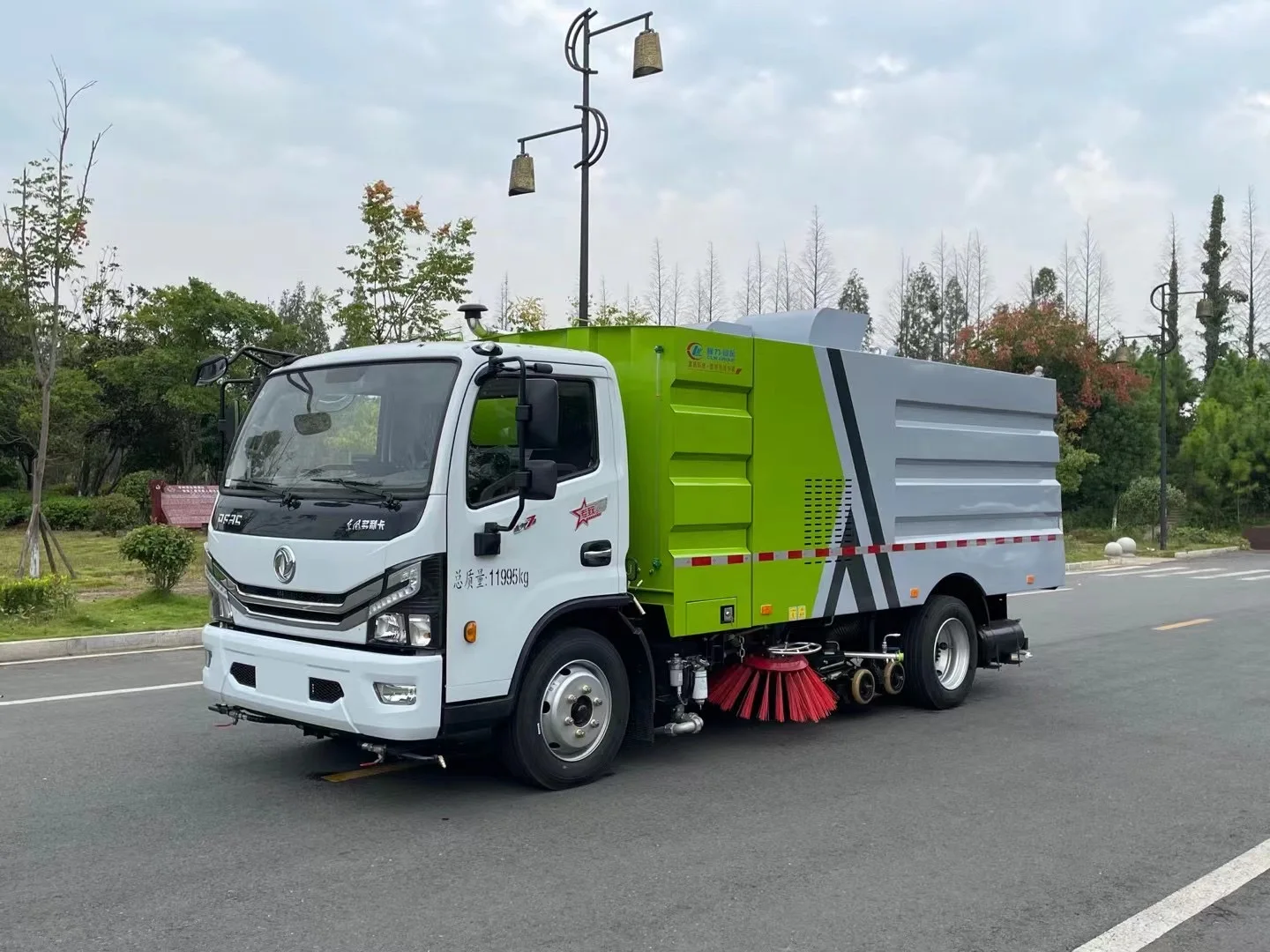

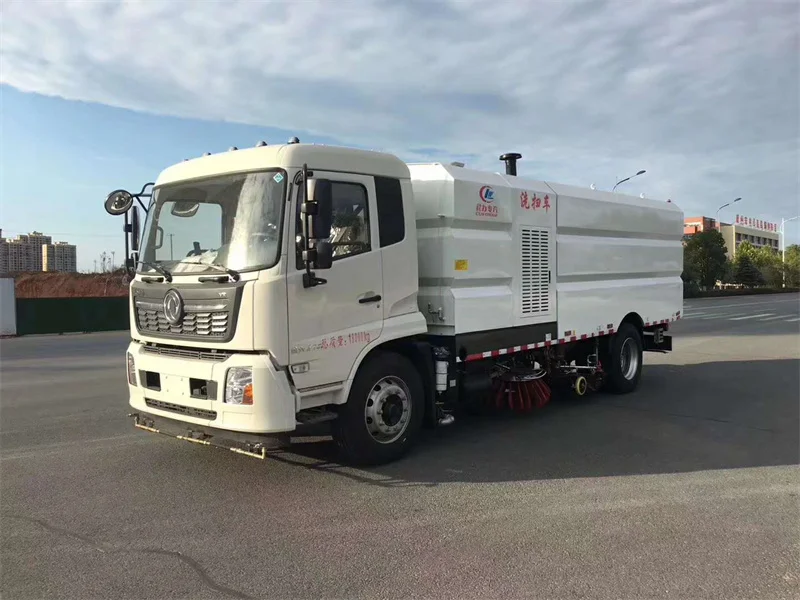

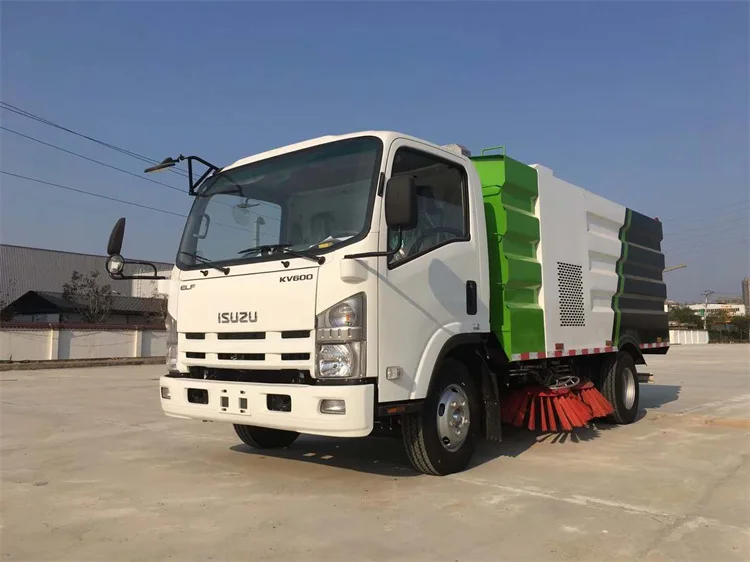

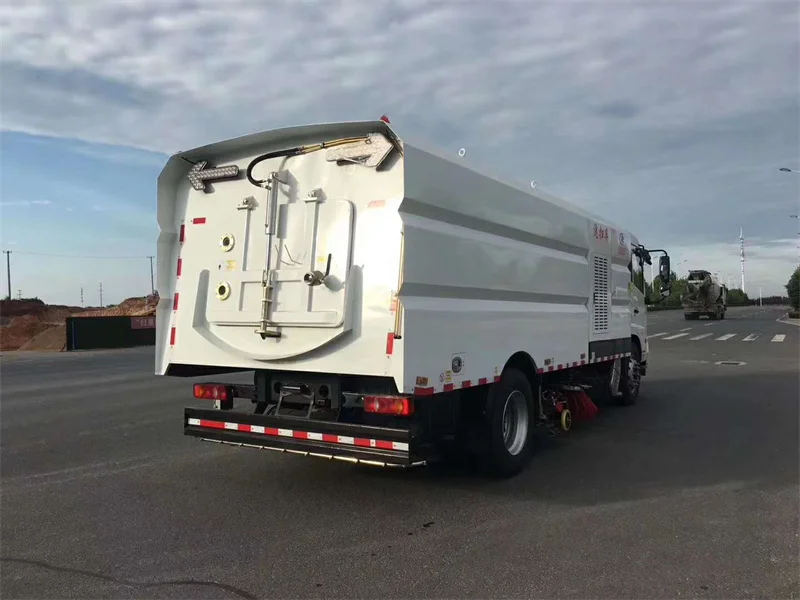

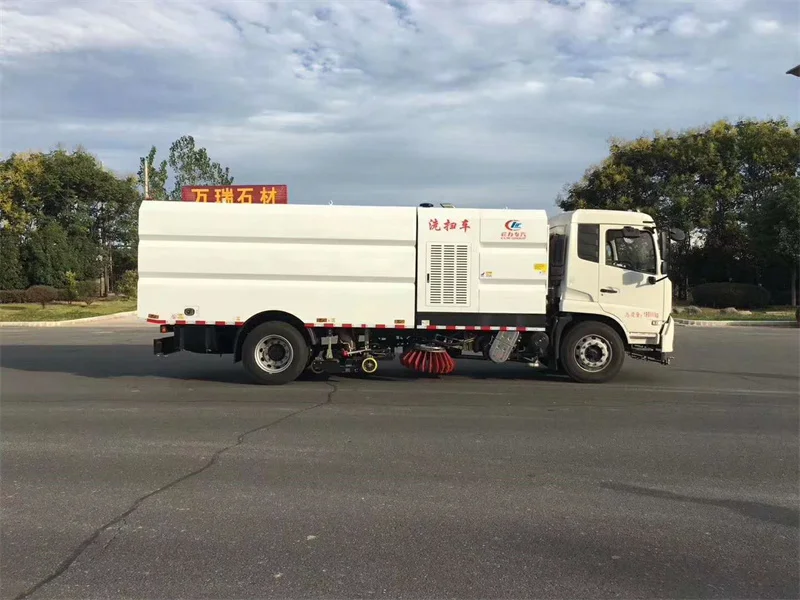

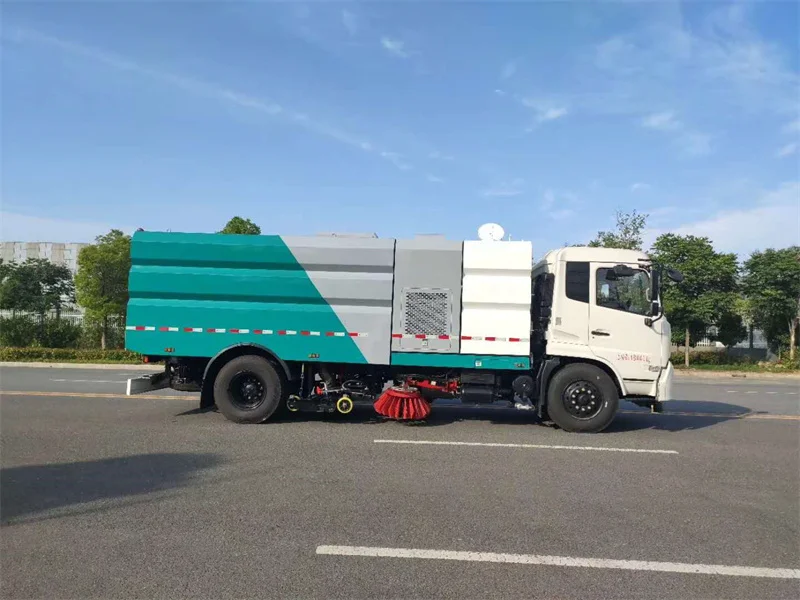

Road sweeper truck
1. Working principle of road sweeper

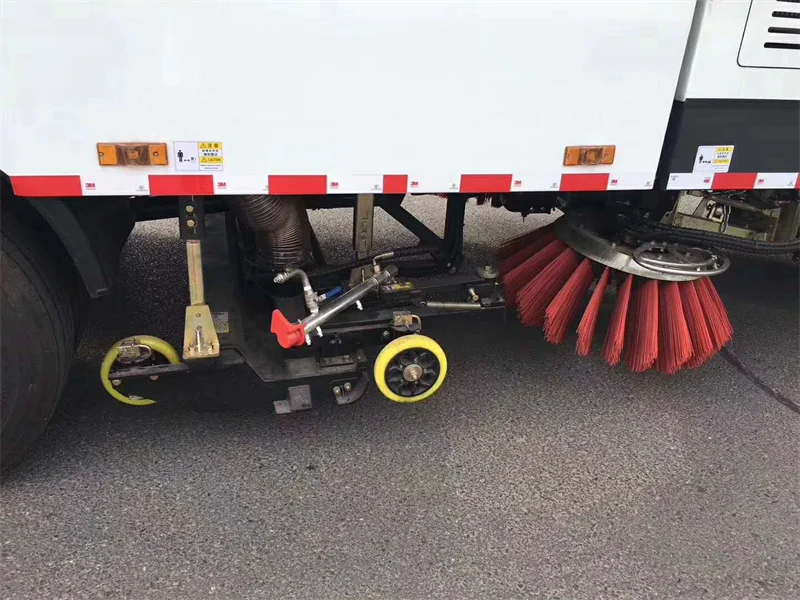

The road sweeper is equipped with four brushes, with a rear suction nozzle. The left and right front brushes concentrate the garbage in the corner from the outside to the inside, sweeping towards the range that the middle brush can reach. The middle brush sweeps the garbage to the front of the suction nozzle, and the garbage is sucked into the garbage bin by the suction nozzle for storage. In order to reduce the secondary dust pollution during the cleaning process, the road sweeper is equipped with water nozzles above the left and right front sweepers to generate spray for dust suppression.
2. Applicable environment for road sweeper
Due to the fact that the road sweeper only generates water mist through the water spray nozzle above the sweeping disc during cleaning, and there is no filtration system inside the box, some dust will be discharged from the fan outlet to generate secondary dust pollution. So road sweepers are more suitable for places with less dust on the road surface, such as urban main roads, highways, ring roads, airports, docks, etc. They are not suitable for places with too much dust on the road surface, such as cement plants and coal plants.
The road sweeper is equipped with four brushes, with a rear suction nozzle. The left and right front brushes concentrate the garbage in the corner from the outside to the inside, sweeping towards the range that the middle brush can reach. The middle brush sweeps the garbage to the front of the suction nozzle, and the garbage is sucked into the garbage bin by the suction nozzle for storage. In order to reduce the secondary dust pollution during the cleaning process, the road sweeper is equipped with water nozzles above the left and right front sweepers to generate spray for dust suppression.
2. Applicable environment for road sweeper
Due to the fact that the road sweeper only generates water mist through the water spray nozzle above the sweeping disc during cleaning, and there is no filtration system inside the box, some dust will be discharged from the fan outlet to generate secondary dust pollution. So road sweepers are more suitable for places with less dust on the road surface, such as urban main roads, highways, ring roads, airports, docks, etc. They are not suitable for places with too much dust on the road surface, such as cement plants and coal plants.

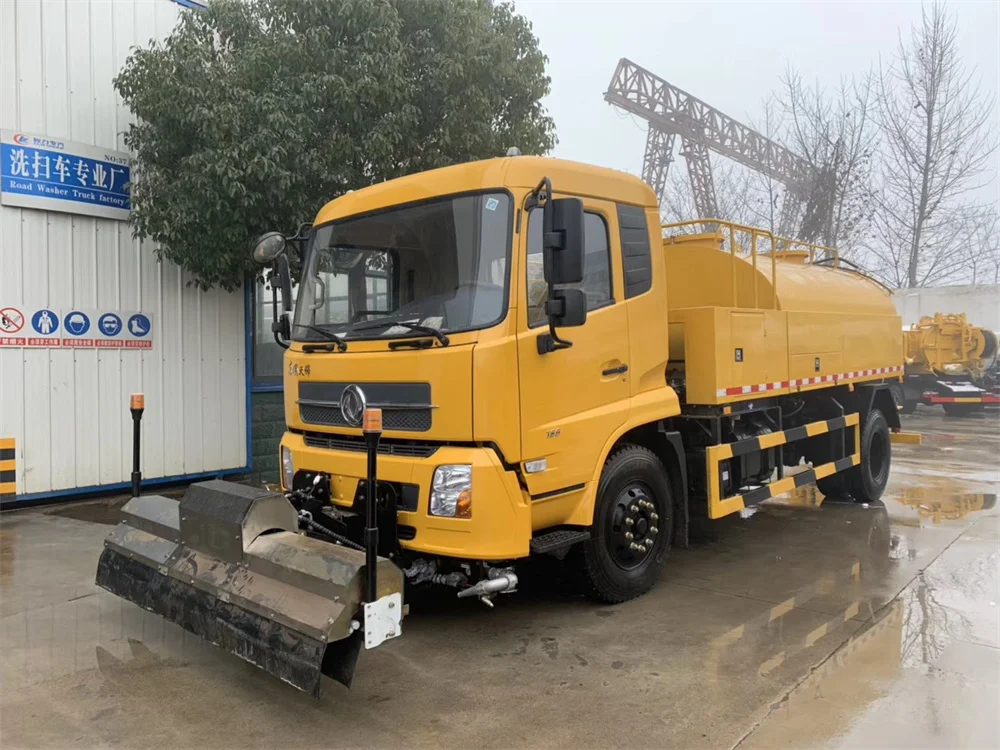

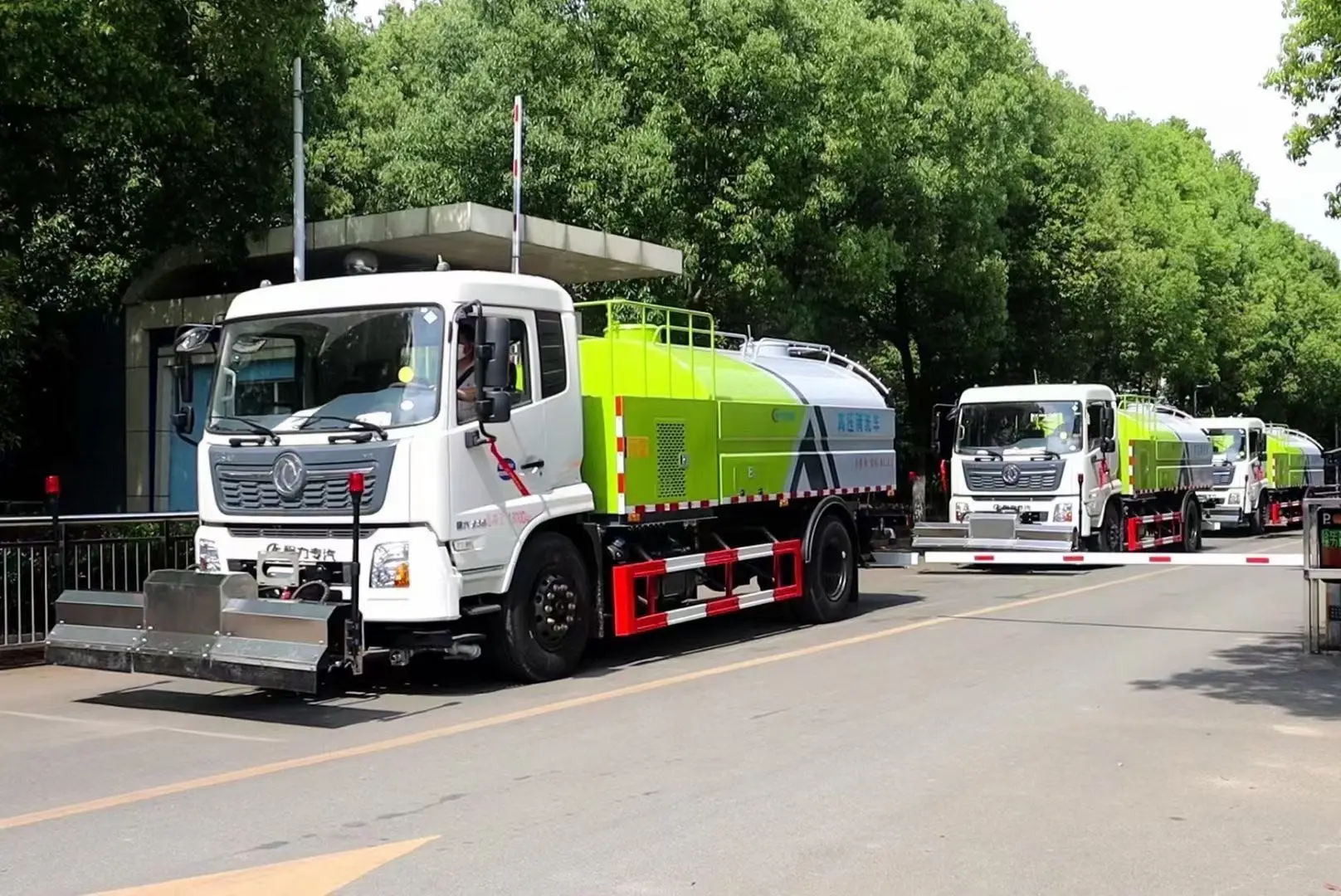

High pressure road washing truck.
1. Working principle of road sweeper
Equipped with a front spray rack, By compressing water molecules into small water droplets under high pressure, fast and efficient cleaning and cleaning effects can be achieved. This type of vehicle is usually used to remove dirt, grease, mud, and other stains from the surface of road.
Equipped with a front spray rack, By compressing water molecules into small water droplets under high pressure, fast and efficient cleaning and cleaning effects can be achieved. This type of vehicle is usually used to remove dirt, grease, mud, and other stains from the surface of road.
2. Applicable environment for road washing truck
In some industrial settings, such as factories, warehouses, etc., high-pressure cleaning vehicles can be used to remove harmful substances from the air to improve the air quality of the working environment. In addition to road cleaning, they are also widely used in building cleaning and other cleaning fields. In terms of vehicle cleaning, high-pressure cleaning vehicles can penetrate into the hidden corners of the vehicle, thoroughly remove various dirt and stubborn oil stains, and also have the effect of sterilization and disinfection, effectively ensuring the safety and hygiene of vehicle use

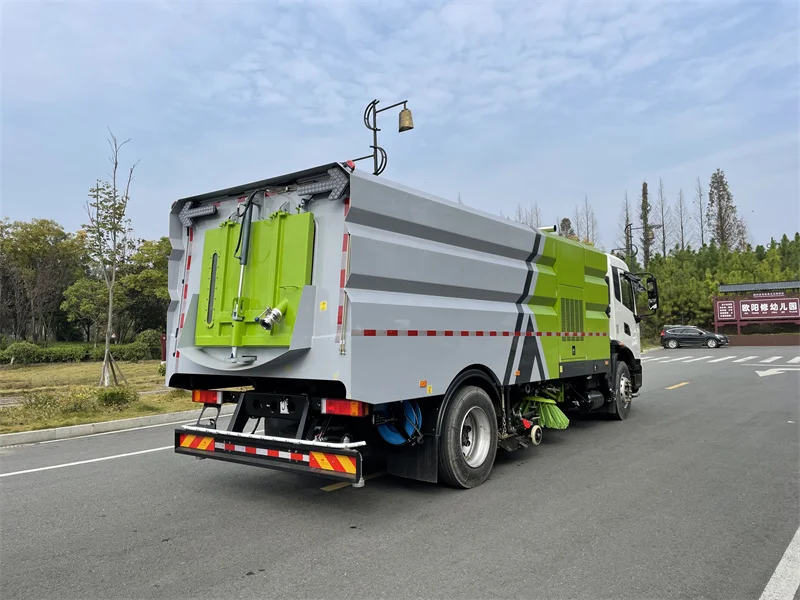

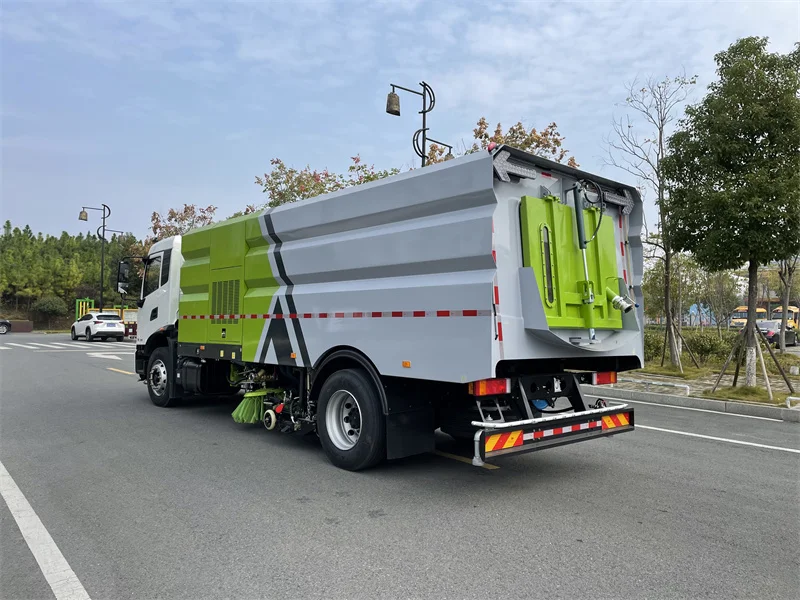

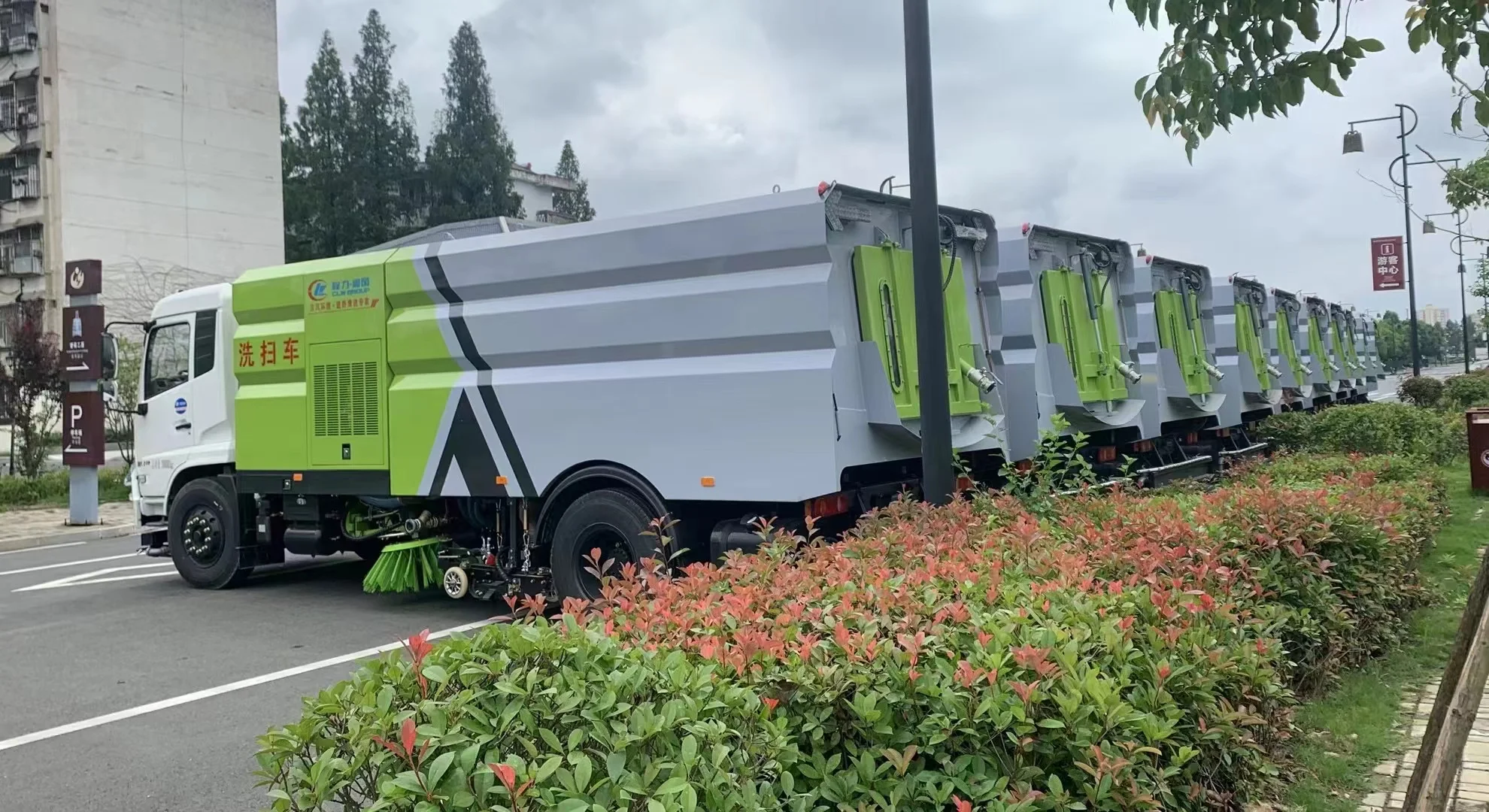

High pressure washing and sweeping truck.
1. Working principle of washing and sweeping truck
The cleaning and sweeping vehicle combines the functions of a road sweeperand a high-pressure cleaning vehicle. Generally, it comes standard with two center mounted brushes (equipped with a V-shaped high-pressure water spray rod in front of the brushes) and a center mounted suction nozzle (with a built-in high-pressure water spray rod). The washing and sweeping vehicle sprays high-pressure water from the high-pressure water spray rod during operation,
which can flush stubborn attachments on the road surface. The water and garbage are sucked into the garbage bin together with the suction nozzle. Due to the high water consumption of the washing and sweeping vehicles during the operation, the water tank is relatively large. Therefore, the washing and sweeping vehicles are all modified from chassis with a wheelbase of 3800mm or more. The washing and sweeping vehicle is equipped with a 17 meter high-pressure water flushing reel and a high-pressure water gun, making it more convenient and efficient to clean roads, sidewalks, and small advertisements.
which can flush stubborn attachments on the road surface. The water and garbage are sucked into the garbage bin together with the suction nozzle. Due to the high water consumption of the washing and sweeping vehicles during the operation, the water tank is relatively large. Therefore, the washing and sweeping vehicles are all modified from chassis with a wheelbase of 3800mm or more. The washing and sweeping vehicle is equipped with a 17 meter high-pressure water flushing reel and a high-pressure water gun, making it more convenient and efficient to clean roads, sidewalks, and small advertisements.
2. Applicable environment for washing and sweeping truck
The cleaning truck has good cleaning effect and convenient maintenance, and is suitable for mechanized cleaning, sweeping, spray dust reduction and other cleaning operations of urban roads, highways, squares, airports, docks, tunnels, bridges, separation walls, curbs and curb facades.
Wet and dry dual-purpose road sweeper.
Dry road sweeper: The dry road sweeper adopts a dry dust removal method, which means that the sweeper does not spray water during the dust removal process during cleaning operations. Therefore, a filter must be installed in the garbage bin or air duct of the dry road sweeper. During the cleaning operation of a dry road sweeper, the garbage with a high density that is sucked in from the suction port will naturally settle when entering the garbage bin due to the sharp decrease in wind speed in the bin. However, the small dust with a light density that is sucked in will be intercepted by the filter as it passes through the air flow. According to the different types of filters used by road sweepers, some dry road sweepers can use water spray to compress dust while others cannot use water spray to prevent filter blockage.
Wet sweeping vehicle: The wet sweeping vehicle adopts a wet dust removal method, which means that during the sweeping operation, in addition to using water spray to compress dust at the vertical sweeping
point, the sweeping vehicle uses water spray to remove dust at the suction nozzle and suction pipe. The purpose of spraying dust at the vertical sweeping point is to prevent dust from coming out during the sweeping operation of the road sweeper, and to spray water at the suction nozzle and suction pipe for dust removal. The purpose is to moisten and aggregate small dust sucked through the suction nozzle into larger volume particles in the water mist,
point, the sweeping vehicle uses water spray to remove dust at the suction nozzle and suction pipe. The purpose of spraying dust at the vertical sweeping point is to prevent dust from coming out during the sweeping operation of the road sweeper, and to spray water at the suction nozzle and suction pipe for dust removal. The purpose is to moisten and aggregate small dust sucked through the suction nozzle into larger volume particles in the water mist,
so as to settle in the garbage bin. So, a wet and dry dual-purpose road sweeper is a combination of the two, which can achieve waterless cleaning or sprinkle water to reduce dust in areas with high dust content before cleaning, achieving the function of wet road sweeping and reducing dust. It is widely used in road cleaning operations in urban streets, highways, airports, docks, and other places
Related Products
Delivery and Shipping
Concrete mixer truck shipping by RORO ship
Sewage suction truck shipping by RORO ship
Tipper truck shipping by bulk ship
Fire fighting truck shipping by bulk ship
Road sweeper shipping by flat rack
LPG tank trailer shipping by flat rack
Cargo truck shipping by 40 feet container
Wrecker truck shipping by 40 feet container
Company Profile

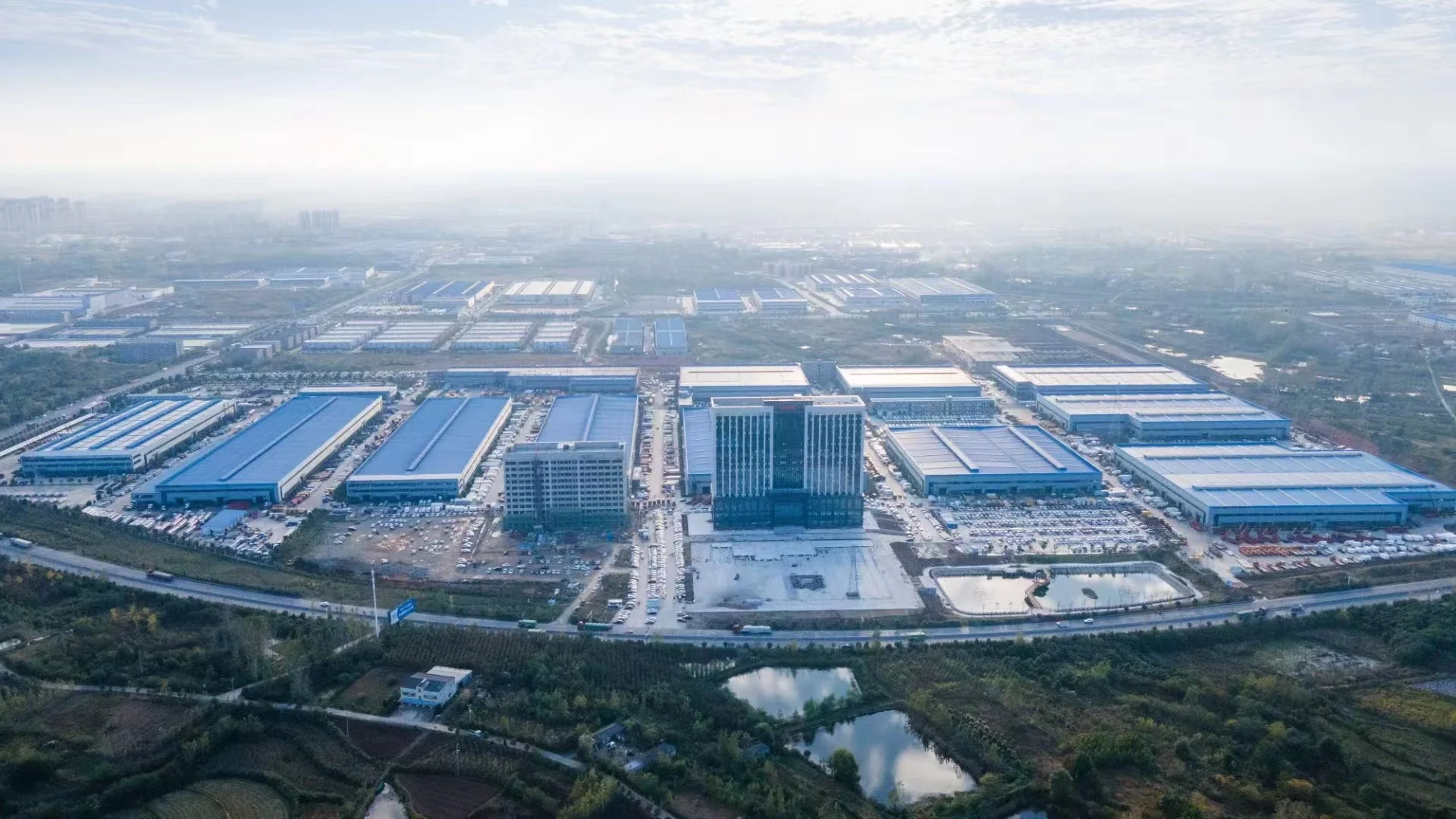

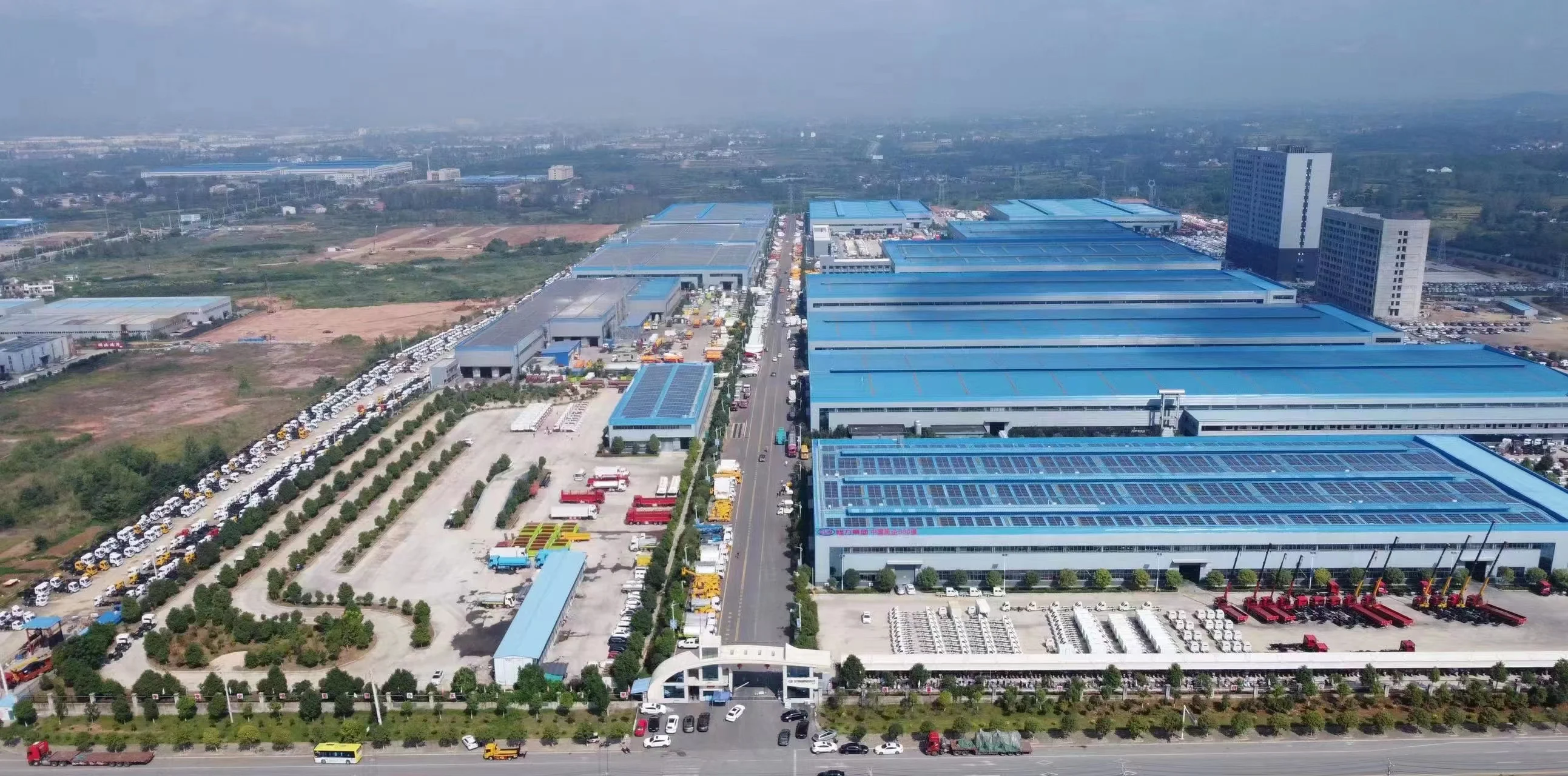

Itruck is a global leading special purpose vehicle manufacturer, located in center of China – Suizhou city, Hubei Province. It covers an area of 670,000 square meters, with over 800 workers and 80 technical engineers.
Over 10 years, Itruck has dedicated to special vehicles manufacturing and accumulated lots of experience on special vehicles’ manufacturing and management. Itruck products cover tanker series, sanitary series, garbage truck series, civic utility series, construction series, semi-trailer series, buses, caravans, etc., widely
used in environment and sanitation, virescence, architecture, transportation, oil mining and many other fields.
Itruck vehicles have been shipped to:
Asia: Myanmar, Vietnam, Cambodia, Sri Lanka, Philippines, Pakistan, Indonesia, Bangladesh, Afghanistan,
Mongolia, Laos, Armenia, Uzbekistan, Kazakhstan, Kirgizstan......
Africa: Malawi,CapeVerde,Malawi,Somalia,Angola,Nigeria,Ghana,Gambia,SierraLeone,Guinea,Mali,
Chad, Algeria, Egypt, Ethiopia, South Sudan, Tanzania, Zambia, Mozambique, South Africa, Botswana,
Morocco, Congo, Congo(K), ......
Europe: Gibraltar, Moldova, Albania......
Middle East: Jordan, Iraq, Qatar, Lebanon, UAE......
Oceania: PNG, Palau, Cook Islands......
Latin America: Saint Kitts and Nevis, Chile, Venezuela, Panama, Colombia, Peru, Bolivia, Uruguay, Trinidad & Tobago.
Over 10 years, Itruck has dedicated to special vehicles manufacturing and accumulated lots of experience on special vehicles’ manufacturing and management. Itruck products cover tanker series, sanitary series, garbage truck series, civic utility series, construction series, semi-trailer series, buses, caravans, etc., widely
used in environment and sanitation, virescence, architecture, transportation, oil mining and many other fields.
Itruck vehicles have been shipped to:
Asia: Myanmar, Vietnam, Cambodia, Sri Lanka, Philippines, Pakistan, Indonesia, Bangladesh, Afghanistan,
Mongolia, Laos, Armenia, Uzbekistan, Kazakhstan, Kirgizstan......
Africa: Malawi,CapeVerde,Malawi,Somalia,Angola,Nigeria,Ghana,Gambia,SierraLeone,Guinea,Mali,
Chad, Algeria, Egypt, Ethiopia, South Sudan, Tanzania, Zambia, Mozambique, South Africa, Botswana,
Morocco, Congo, Congo(K), ......
Europe: Gibraltar, Moldova, Albania......
Middle East: Jordan, Iraq, Qatar, Lebanon, UAE......
Oceania: PNG, Palau, Cook Islands......
Latin America: Saint Kitts and Nevis, Chile, Venezuela, Panama, Colombia, Peru, Bolivia, Uruguay, Trinidad & Tobago.
Certifications
FAQ
1. What size road sweeper truck you can manufacturer?
Standard smallest 4x2 model 3 to 5 cubic, medium 4x2 model 10 to 16 cubic and biggest 6x4 model 22 cubic, water tank and dust tank volume can be reasonable distribution.
2. What kind of road sweeper truck you have ?
We can manufacturer standard road sweeper truck , high pressure road sweeper truck, high pressure road washing truck, and dust suction truck etc .
3. What is the difference of all units above?
You can reference the details page working principle.
4. Can the color and LOGO be done as I want?
Yes. It can be done as required.
5. Can I just buy body parts and install on my own chassis?
Yes, we can customized based on your own chassis and provide install manual.
6. How many days manufacture?
25 days for brand new chassis producing , 10 days for superstructure installation, debugging, and inspection.
7. How does the payment work?
We start the manufacture after receiving 40% deposit. and ship after it is completed and balance done. Payment can be done via T/T or Alibaba trade assurance.
8. What is the shipping cost?
Ship to oversea countries , based on the size of your sweeper truck we will recommend you bulk ship , roro ship, container ship and flat rack, the ocean freight cost to your nearest port of your country will be informed.Ship to border countries , we can drive to the border or use semi trailer carry, the Logistics transportation cost will be informed.
Ship to oversea countries , based on the size of your sweeper truck we will recommend you bulk ship , roro ship, container ship and flat rack, the ocean freight cost to your nearest port of your country will be informed.Ship to border countries , we can drive to the border or use semi trailer carry, the Logistics transportation cost will be informed.
9. What else cost I have to pay to get the truck?
Except the road sweeper cost and shipping cost from China to your
country, you have cost for customs clearance, import tax at your local port, suggest you find a local agency.
country, you have cost for customs clearance, import tax at your local port, suggest you find a local agency.
10. Do you have operating instructions and maintenance manual?
Yes, those we will be provided whether you are inquiring, order confirming, or truck receiving.
11. What is the warranty period?
We provide one year warranty for the truck including chassis, engine and gearbox, free
replacement of superstructure vulnerable parts within one year as well, We will prepare consumables in advance.
replacement of superstructure vulnerable parts within one year as well, We will prepare consumables in advance.
12. Can I visit your factory? and any samples available to see?
Yes. Welcome to visit our factory. Workshop always has different sizes and models road sweeper for your reference.
