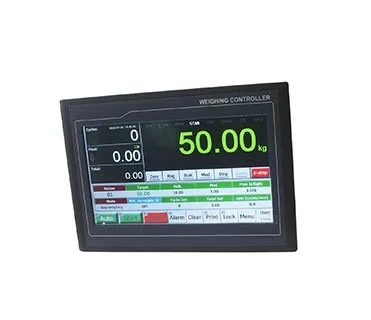

Weighing Controller Smart Touch Screen Indicator With RS232 RS485, High Speed Accurate Industrial Indicator
- Category: >>>
- Supplier: Changsha Supmeter Technological Co. Ltd.
Share on (1601057757066):
Product Overview
Description
Product Description
Main Features:
1.EMC design with high anti-jam for industrial environment.
2.DC24V power input with reverse polarity protection.
3.Cortex-A8 CPU with 600MHz Clock, 128M Flash.
4.7" [800×480] or 10.2" [1024×600] TFT touch panel.
5.24-bit ∑-△ADC with internal resolution 1/1,000,000.
6.High sampling frequency 800Hz.
7.Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
8.Auto Zero Tracking.
9.Fall Value Auto Correction.
10.Auto Pause for Deviation Alarm.
11.Auto Re-feed for Negative Deviation Alarm.
12.Target Batch Count & Target Batch Weight Control.
13.Definable DI/DO/AO/COM[Communication Port].
13.3-speed[high/medium/low] feeding control by DOs or AOs.
14.Recipe Number: 100.
Technical Specifications:
1.Power Supply: DC24V±20%, Max. 10W.
2.Loadcell Excitation Voltage/Current: DC5V/250mA.
3.16 Loadcells[350Ω] connectable.
4.Weighing Signal Input Range: 0~12.5mV.
5.9 Normally Open Switch Inputs [DI].
6.18 Normally Open Transistor Outputs [DO]: DC24V, 500mA.
7.2 Analog Signal Outputs [AO]: 0~10V, Max.50mA.
8.COM&COM1: RS232; COM2: RS485.
9.USB1: Connect mouse, software download, data backup.
10.LAN: Optional Ethernet.
10.LAN: Optional Ethernet.
11.Verification Accuracy: 0.02%.
12.Accuracy Grade: III.
13.Operating Temperature: -25℃~+45℃.
14.Protection Level of Front Panel: IP65.
15.Static Weighing Accuracy: 0.2%~0.5%.
13.Operating Temperature: -25℃~+45℃.
14.Protection Level of Front Panel: IP65.
15.Static Weighing Accuracy: 0.2%~0.5%.
16.Packing Accuracy: 0.2%~0.5%..
Detailed Images

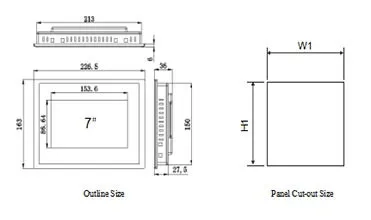

Demension:
7"
Outline Size: 226.5×163×36mm [W×H×D]
Front Panel Size: 226.5×163mm [W×H]
Panel Cut-out Size: 215×152mm [W×H]
Front Panel Size: 226.5×163mm [W×H]
Panel Cut-out Size: 215×152mm [W×H]
10"
Outline Size: 274×193×40mm [W×H×D]
Front Panel Size: 274×193mm [W×H]
Panel Cut-out Size:261×180mm [W×H]
Front Panel Size: 274×193mm [W×H]
Panel Cut-out Size:261×180mm [W×H]

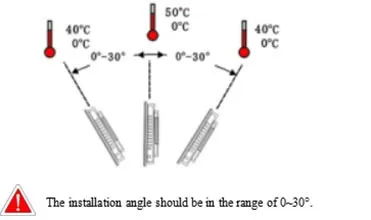

Installation Angle:
The installation angle should be in the range of 0~30°

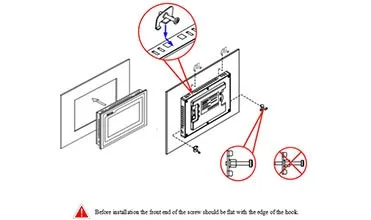

Installation Mode:
Before installation the front end of the screw should be flat with the edge of the hook.

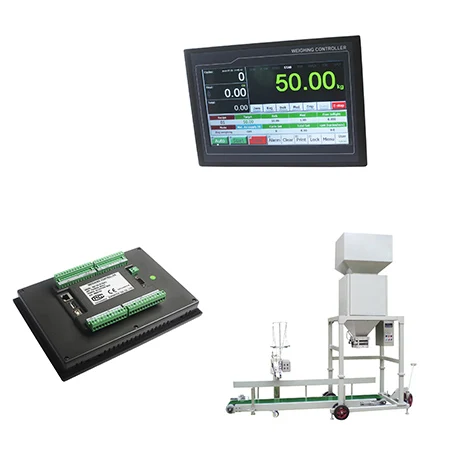

Application

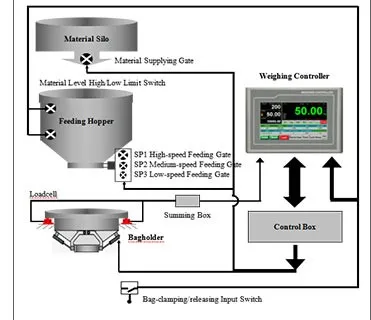

Hopper-weighing & Bag-weighing Modes
Loss-in weight Mode

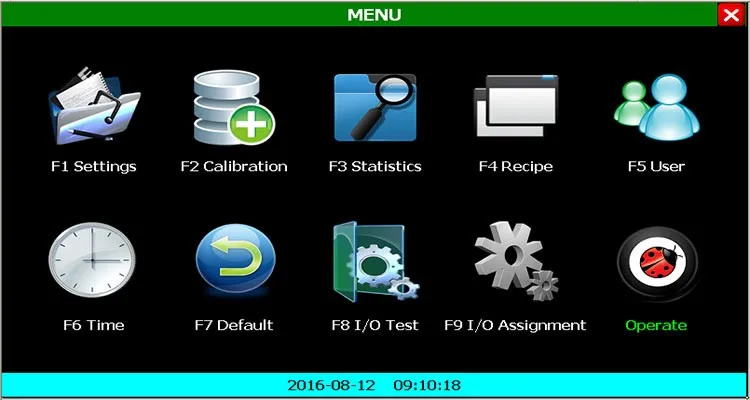

Main Menu Interface
Warranty
The warranty period for our products is 12 (twelve) months.
If the products from SUPMETER are proved to be unable to work normally due to unartificial reasons, and the problems can't be solved by customers under the technical support from SUPMETER, then customers can send the problematic items back to SUPMETER. SUPMETER is RESPONSIBLE to MEND (or REPLACE when necessary) them FREE OF CHARGE.
(Note: if after checking, the returned goods are proved to be in good condition, the trouble is resulted to be caused by improper operation by customers, SUPMETER is IRRESPONSIBLE to bear the shipping & other charges related to the returning.)

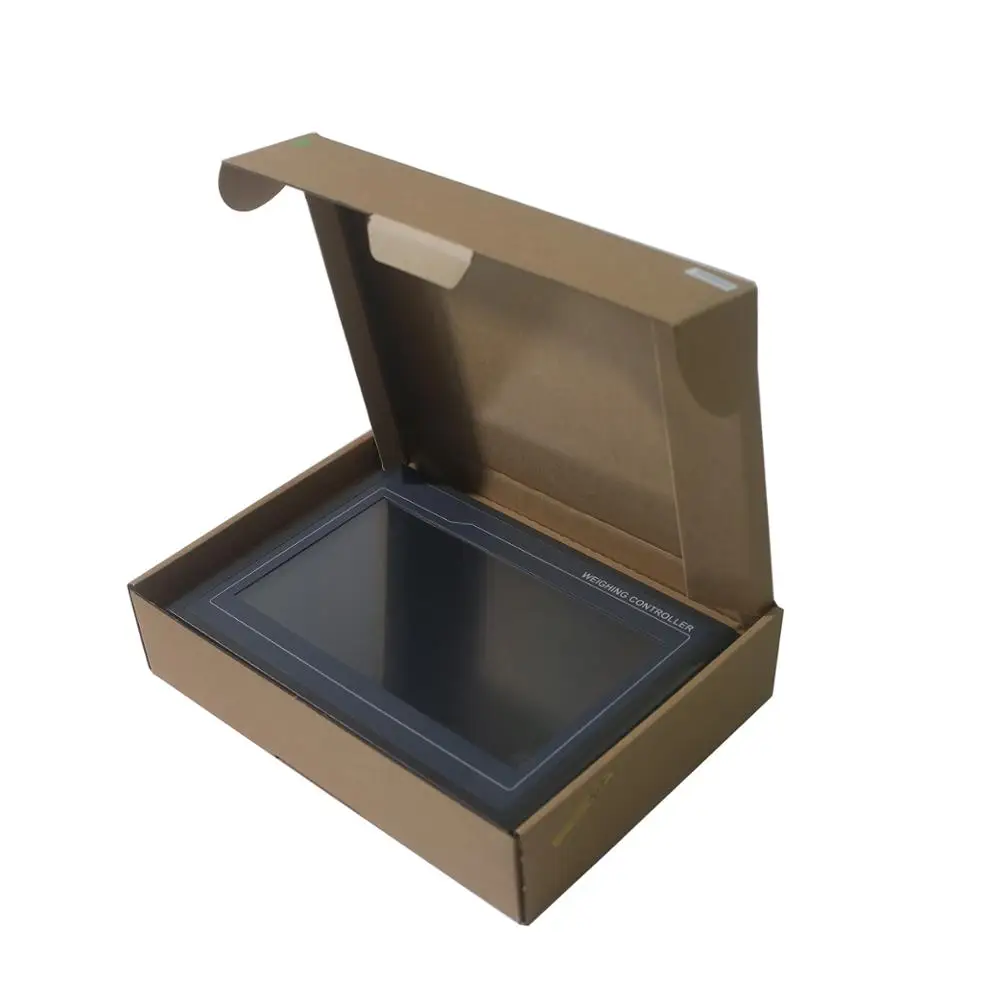

Packing & Delivery
Related Products
Belt Scale Indicator
Best-Selling Shovel Loader Weigher
Ration Packing Controller
FAQ
1. What detailed information do I need to provide if I want to place an order?
We need to know the following information: Capacity, Usage and other related parameters you need.
2. Do you have any discount?
Yes, if you buy large QTY, please send us a email, we will give you a big discount.
3. What terms of payment are available?
We accept T/T, L/C, Trade assurance,Western Union,etc.
4.When will you arrange the production?
We will arrange the production immediately after receiving your payment.
5. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
