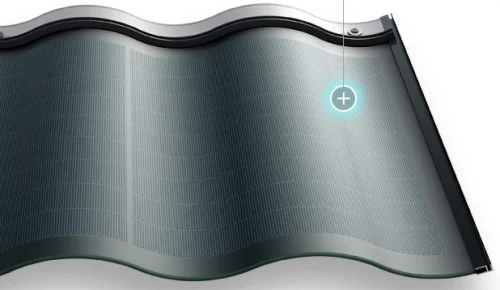

High Efficiency Solar Panel Roof Tile 100w 50w 30w 20w 10w Home Building
- Category: >>>
- Supplier: Rosen Solar Energy Co. Ltd.Rosen Ltd.
Share on (1601057803227):
Product Overview
Description
Product Description
Technical Specification
length: | 500mm | |
width: | 718mm | |
arch height: | 41mm | |
weight: | 10KG | |
color: | black，gray | |
junction box: | 39*46*16.6 (mm) IP67 | |
cable type: | 2.5mm solar cable 450 (+10/-0) mm | |
cable connector: | pv connector | |
Physical parameters | ||
chip type: | CIGS | |

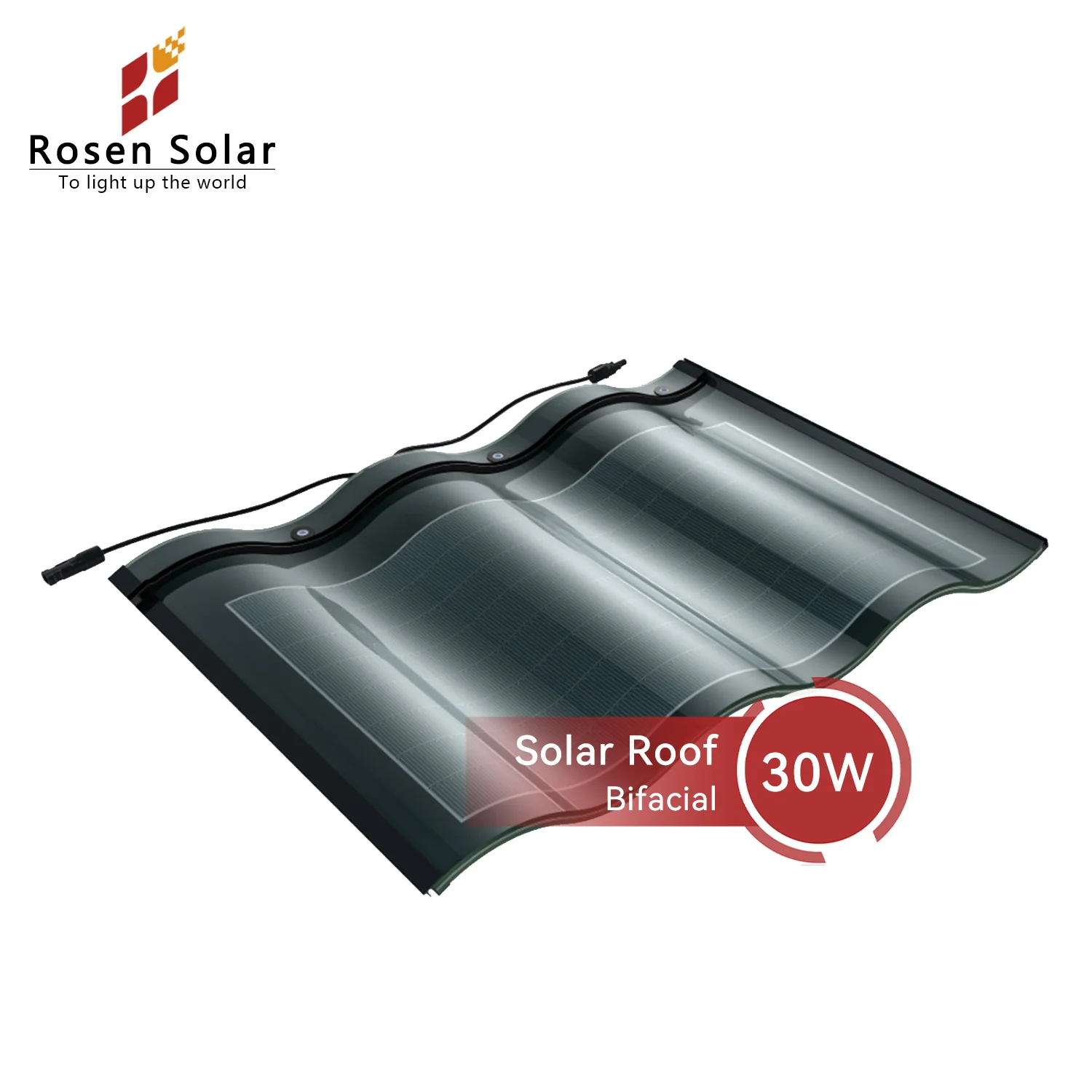

power: | 30W | |
short-circuit current: | 4A | |
open-circuit voltage: | 10.6V | |
current at PMPP: | 3.5A | |
voltage at PMPP: | 8.6V | |
Electrical parameters | ||
loading grade: | 2400Pa | |
waterproof grade: | IP67 | |
fire-proof grade: | A | |
hail-proof grade: working temperature: | level 4 (ANSI FM 4473) | |
-40°C to +85°C | ||
Really control the energy of the sun
The unique design of Han tiles combines with the ancient charm of the East and is comparable to China's glazed tiles. It is integrated with modern technology and uses thin-film solar energy to give the roof new life. Architectural tempered glass can withstand car crushing, has multiple tests and certifications and can withstand Category 12 typhoons, and is extremely durable for 40-60 years.
Efficient Operation

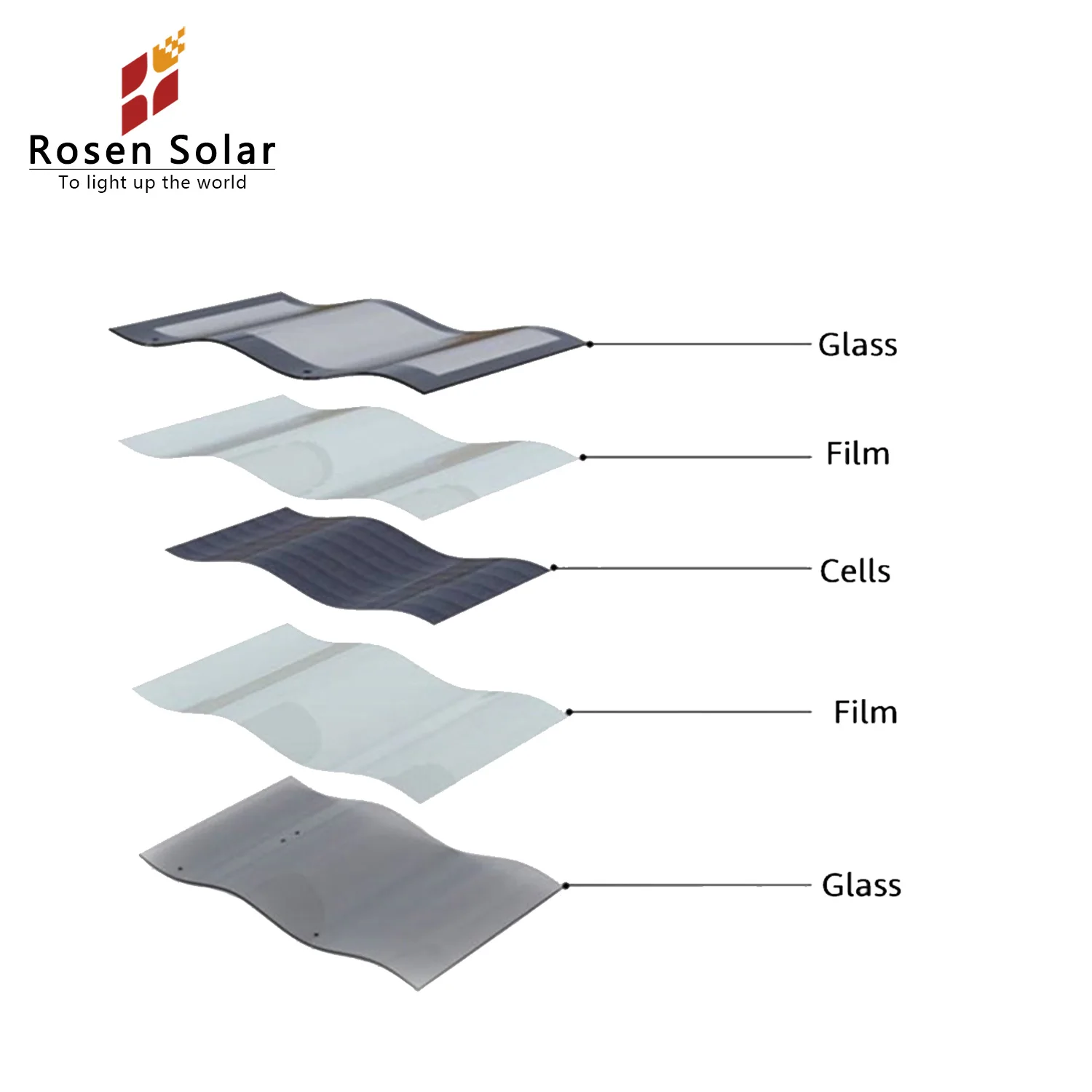

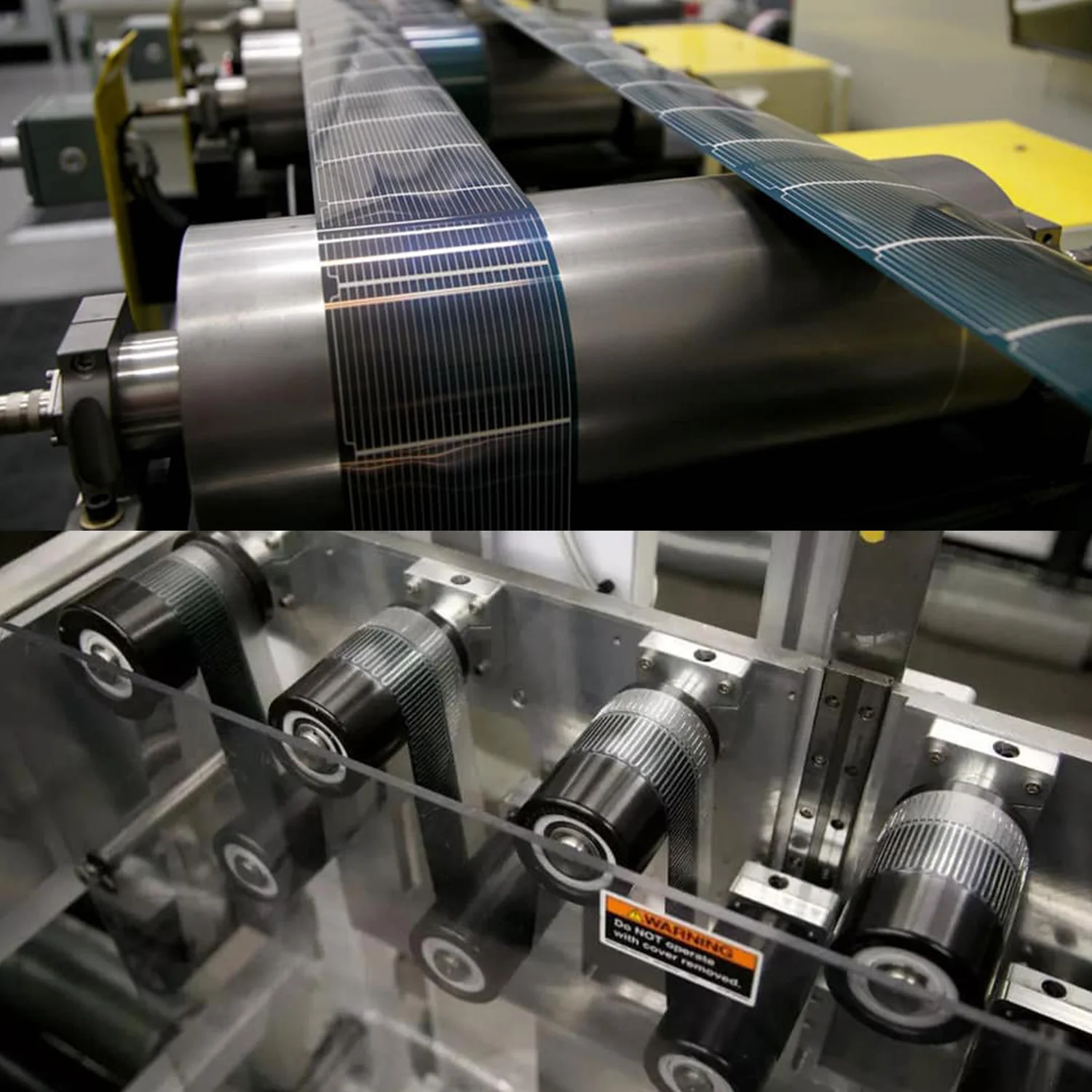

Thin-film solar energy has become a general trend. It adopts thin, efficient and flexible copper indium gallium selenide (CIGS) thin-film solar chips, and uses the industry-leading inner and outer double-layer lamination precision packaging process, which can maximize the stability of the High conversion rate, higher power generation, and glass with a light transmittance of over 91.5%, which can increase the conversion rate by up to 16.6%.
Technology and ancient charm, ultra-durable and convenient

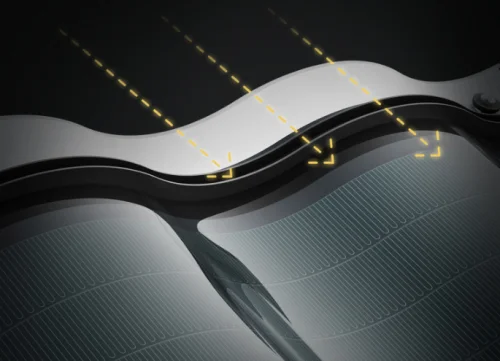

Using CIGS thin film solar chips, the stable lattice structure ensures that the solar cells are basically free of light degradation and can maintain stable power output even in harsh weather. The natural air circulation design from outside to inside provides better sun protection and heat insulation, and rainwater pours more quickly on the high-density glass surface.
Product Features

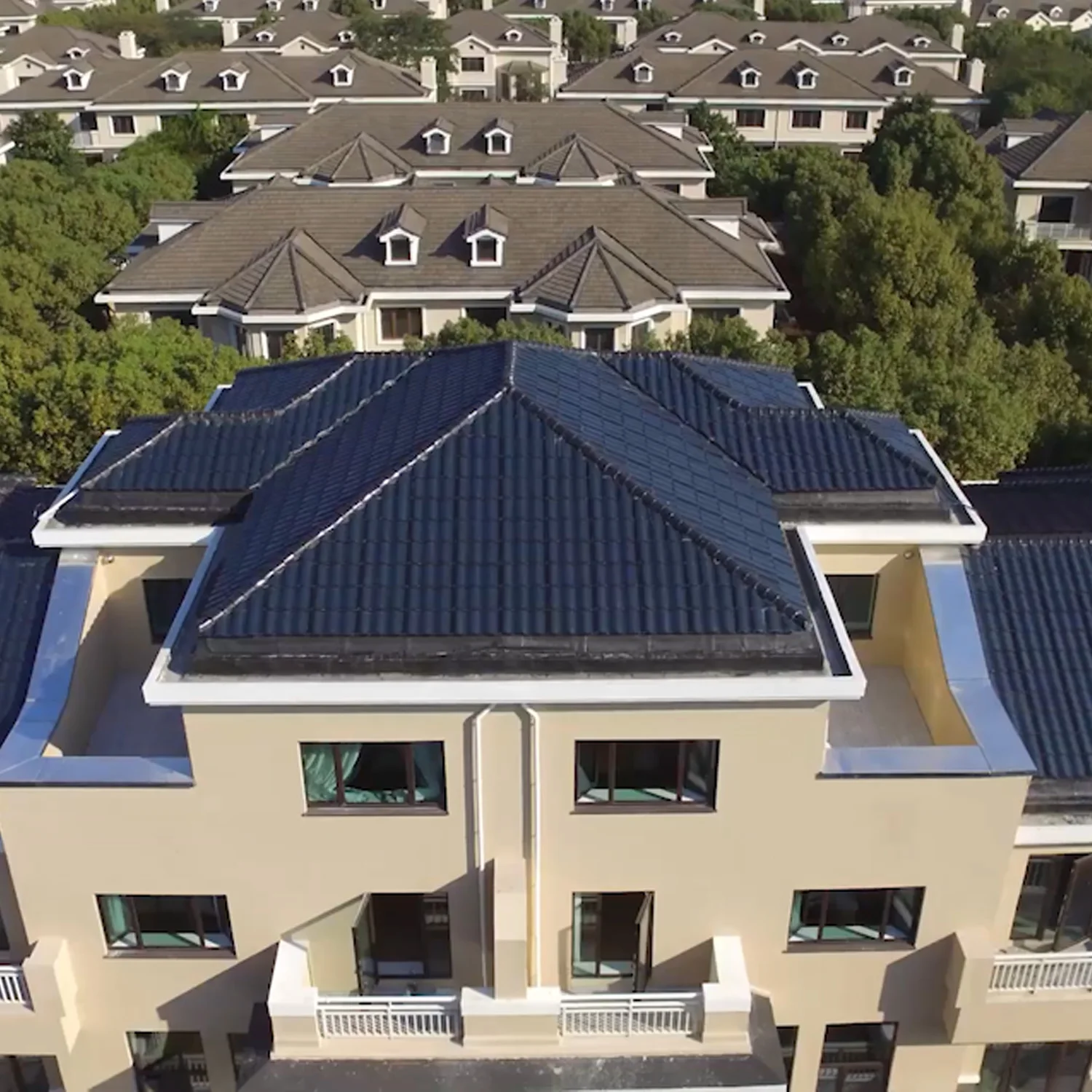

Demonstrative significance of the Hanwa Power Generation Project:
1. The roof of the building can be effectively used without occupying precious land resources;
2. It can effectively reduce building energy consumption, achieve building energy conservation, and meet green building standards;

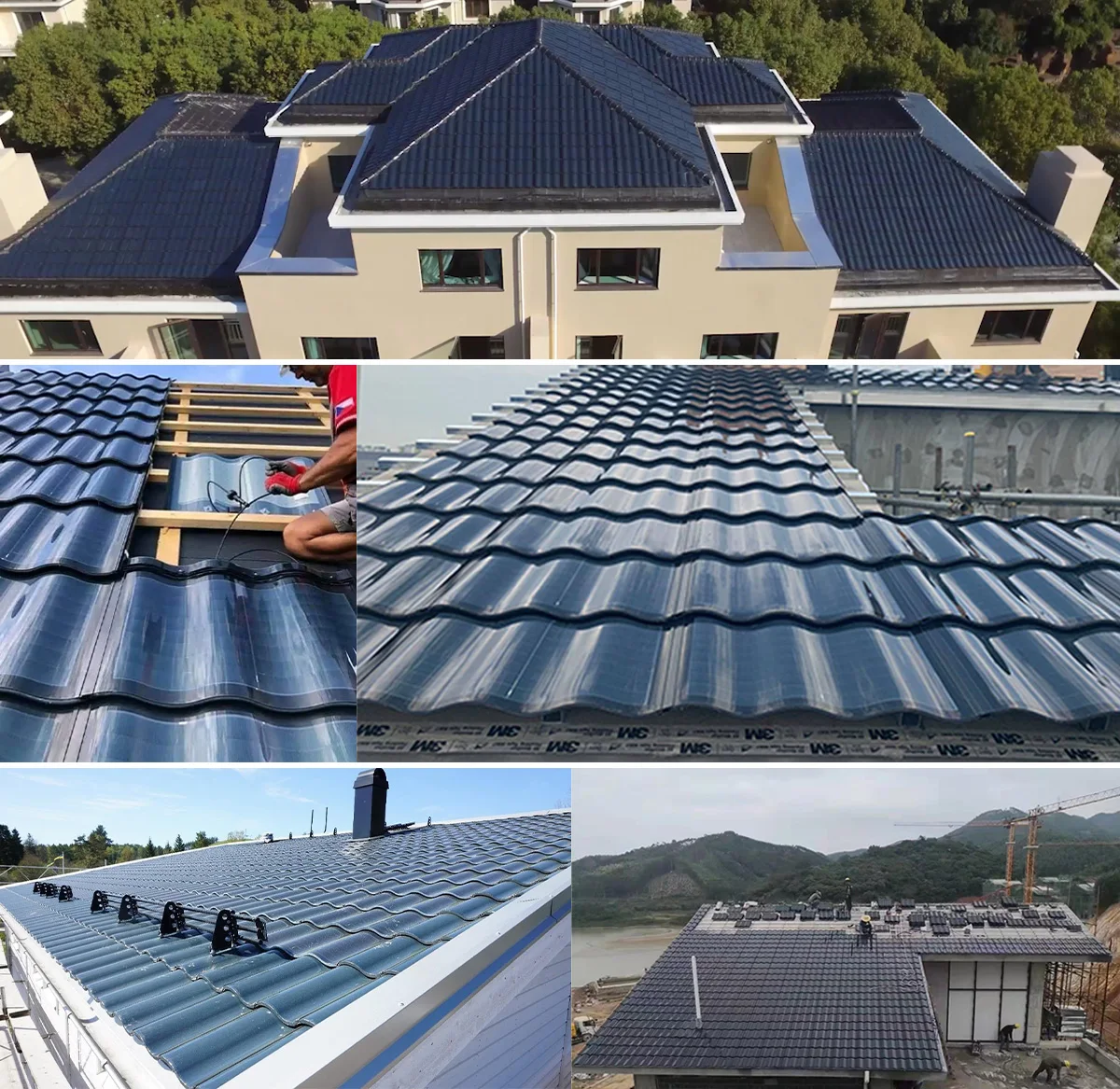

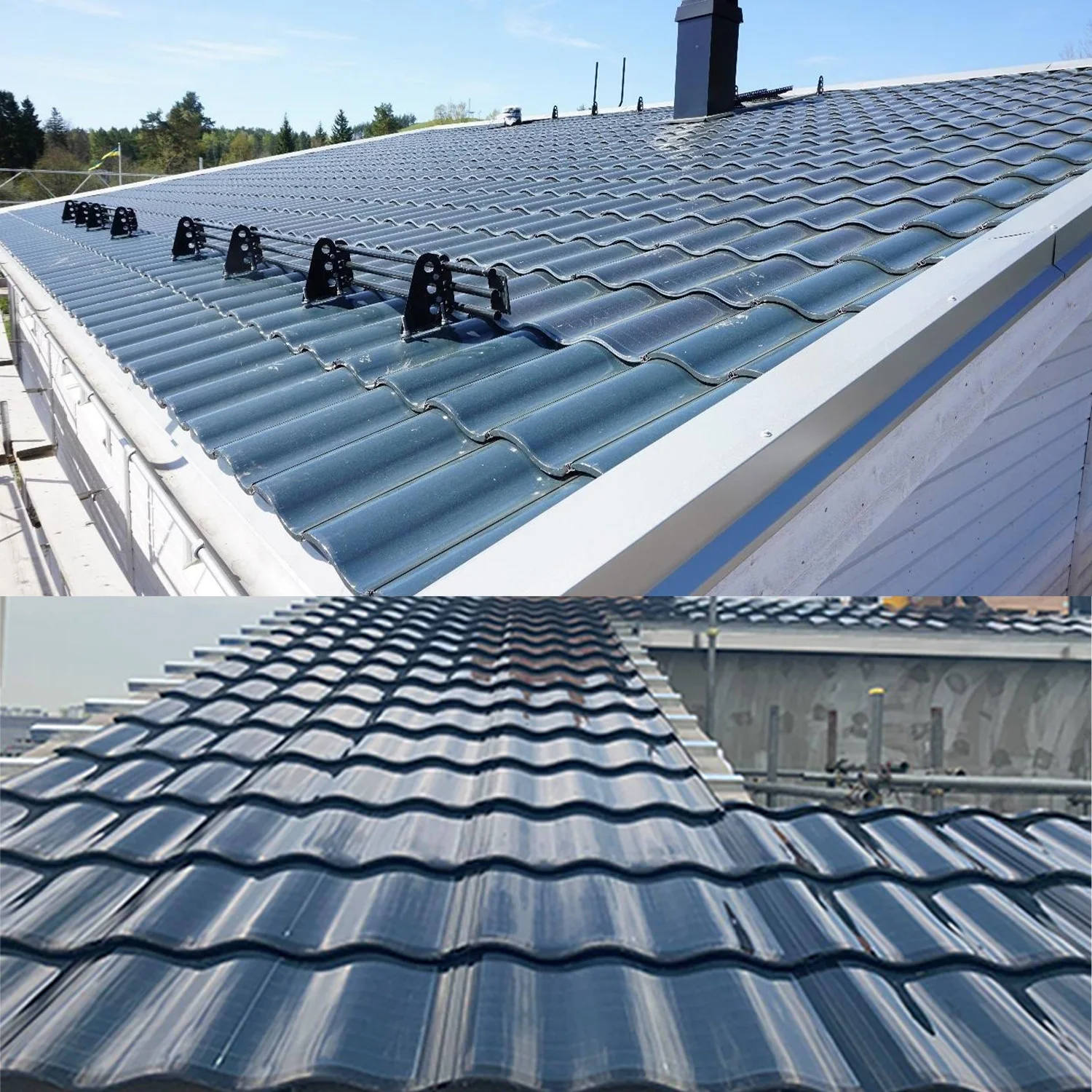

3. The thin-film solar power generation system is installed on the roof of the building to directly absorb solar energy and also has the function of heat insulation and noise prevention;
4. Han tiles can present the beauty of architecture, reflect architectural value, inherit architectural culture, and increase project marketing highlights;
2. It can effectively reduce building energy consumption, achieve building energy conservation, and meet green building standards;
3. The thin-film solar power generation system is installed on the roof of the building to directly absorb solar energy and also has the function of heat insulation and noise prevention;
4. Han tiles can present the beauty of architecture, reflect architectural value, inherit architectural culture, and increase project marketing highlights;
Hantile has "four subversions":
①, subverting the concept of traditional tiles. The previous concept and attribute of the tile was to protect it from wind and rain. Now it not only protects it from wind and rain, but also gives it a new power generation function.
②. A subversion of traditional building materials. "Han Tile" is not only a building material, but also an energy asset.
③, subverting the dependence of traditional buildings on fossil energy. At present, nearly 30% of the world's energy consumption is in buildings. In the past, buildings purely consumed energy. After the emergence of Hantile products, they can become active power generators and become energy generators, achieving zero-energy buildings.
④, Subverting the boundaries of solar energy applications, flexible chips are combined with other traditional industries to greatly extend the boundaries of solar energy applications.
②. A subversion of traditional building materials. "Han Tile" is not only a building material, but also an energy asset.
③, subverting the dependence of traditional buildings on fossil energy. At present, nearly 30% of the world's energy consumption is in buildings. In the past, buildings purely consumed energy. After the emergence of Hantile products, they can become active power generators and become energy generators, achieving zero-energy buildings.
④, Subverting the boundaries of solar energy applications, flexible chips are combined with other traditional industries to greatly extend the boundaries of solar energy applications.

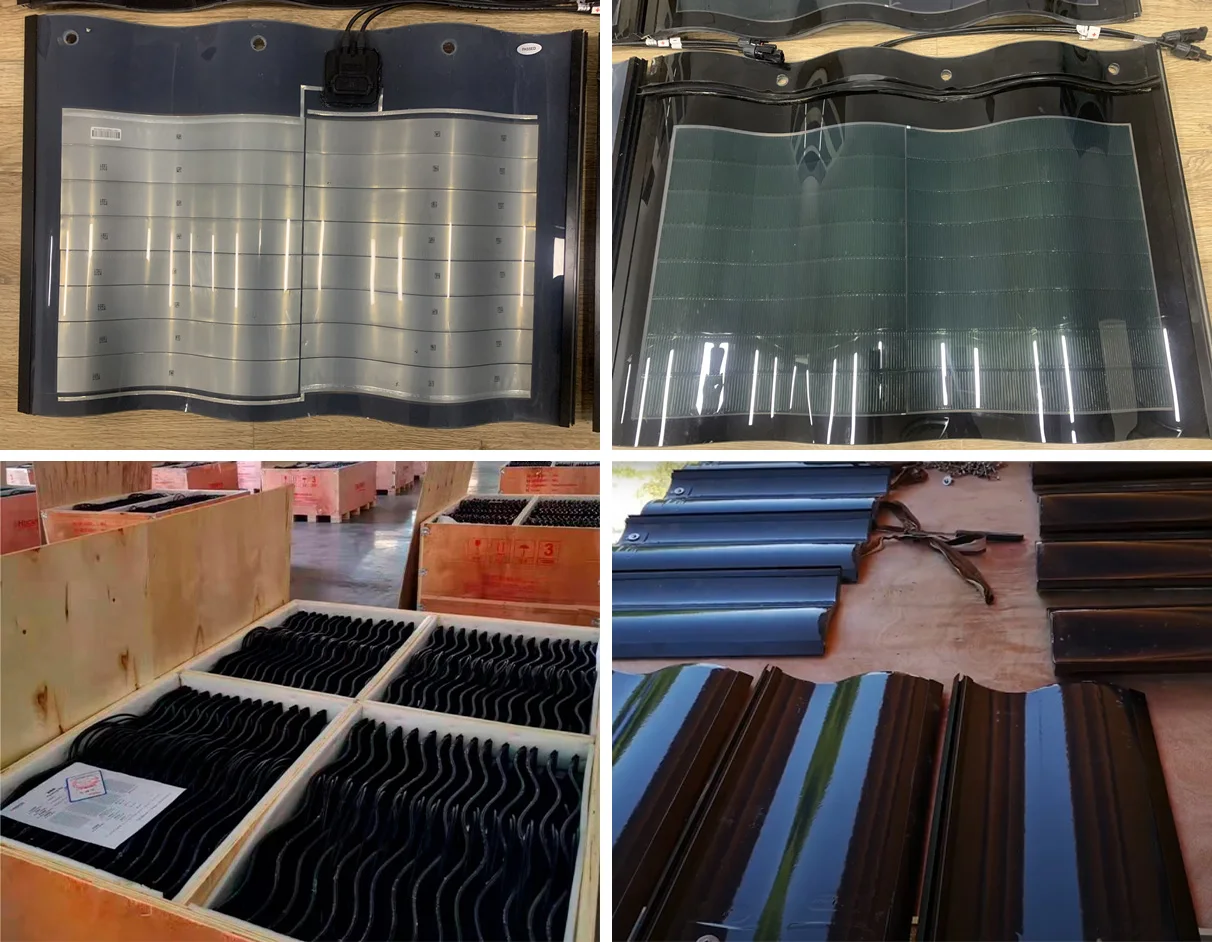

Package and Delivery
