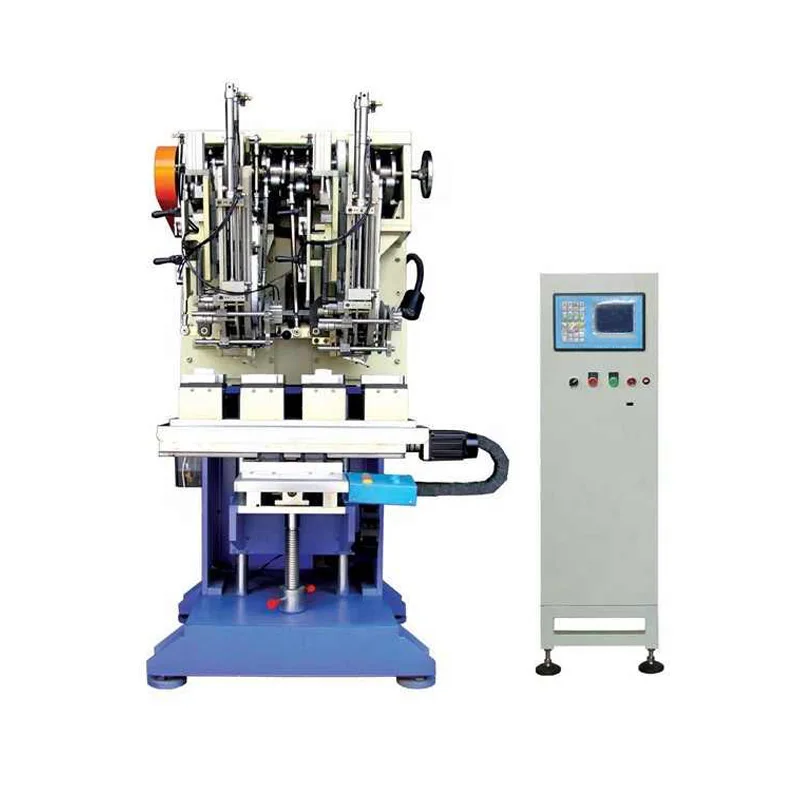

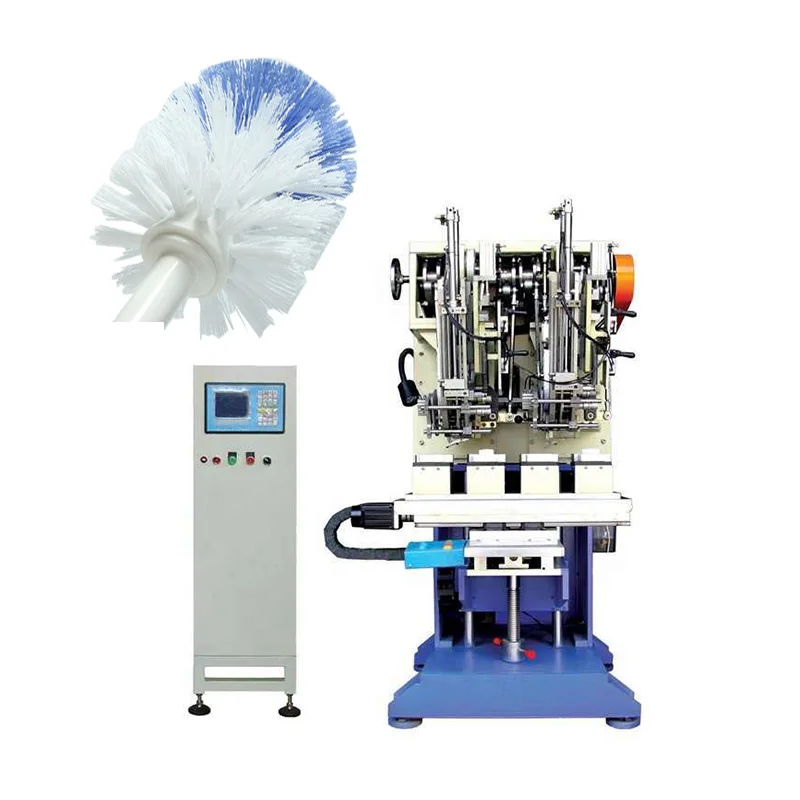

Toilet Brush 5 Axis Making Machine Rotary Machine Broom Brush Making Machine
- Category: >>>
- Supplier: Foshan Fanshun Machinery Co. Ltd.
Share on (1601057872028):
Product Overview
Description
Products Description
production size
1.Designed by 2 drillings and 1 tufting,equipped with 3 stations 3 or 6 fixtures machine works in continuous cycle, high efficiency.
2.Optional round flat or roller platforms for different types of brushes.
3.Touch screen control system,Chinese and English version, flexible and convenient operation.
4.Support synchronous drilling and tufting, single drilling, single tufting and other processing modes.
5.Single color and double colors are optional.
6.With insert,division, arrayoffset,modify and other functions, easy to program.
6.With insert,division, arrayoffset,modify and other functions, easy to program.
7.Can save 1000 different brushes programs, support external USB.
8.Tufting accessories are standardized designs, achieve multi-process finishingbeautiful and durable.
8.Tufting accessories are standardized designs, achieve multi-process finishingbeautiful and durable.
9.Automatic oil lubrication system,regularly and automatically lubricate the parts with high frequency operation,reduce wear and tear.
MODEL | FM-130P-TG3 | FM-180P-TG3L | |
Axes | 5 | 5 | |
Fixture | 3 | 3 | |
Tufting Type | Stapling wire | ||
speed | 450 | 420 | |
Length of fiber outside hole (mm) | 17~130 | 17~180 | |
Total length of fiber (mm) | 40~270 | 40~400 | |
Diameter of hole (mm) | 2.8~6.5 | 2.8~8.0 | |
Diameter of fiber (mm) | 0.07~1.5mm | ||
Total power (KW) | 11 | 11.5 | |
Voltage(V) | 380V/220V | 380V/220V | |
