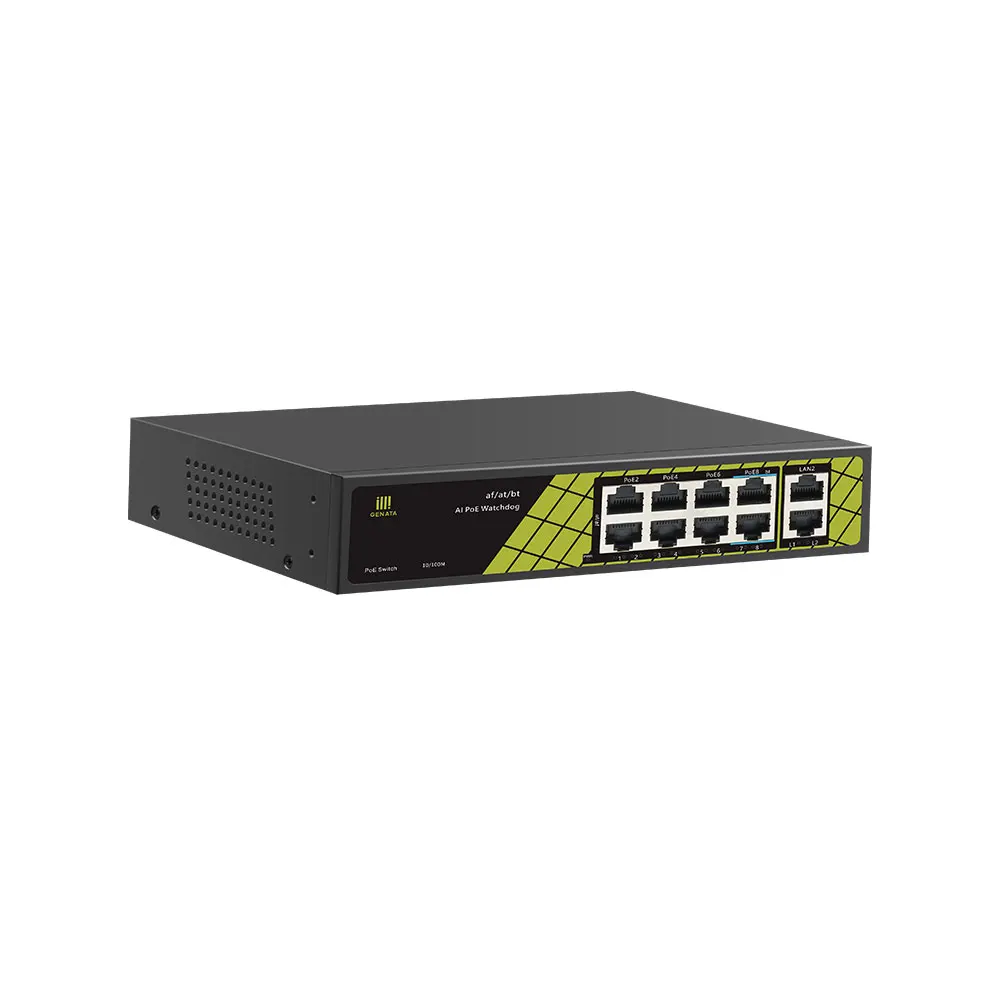

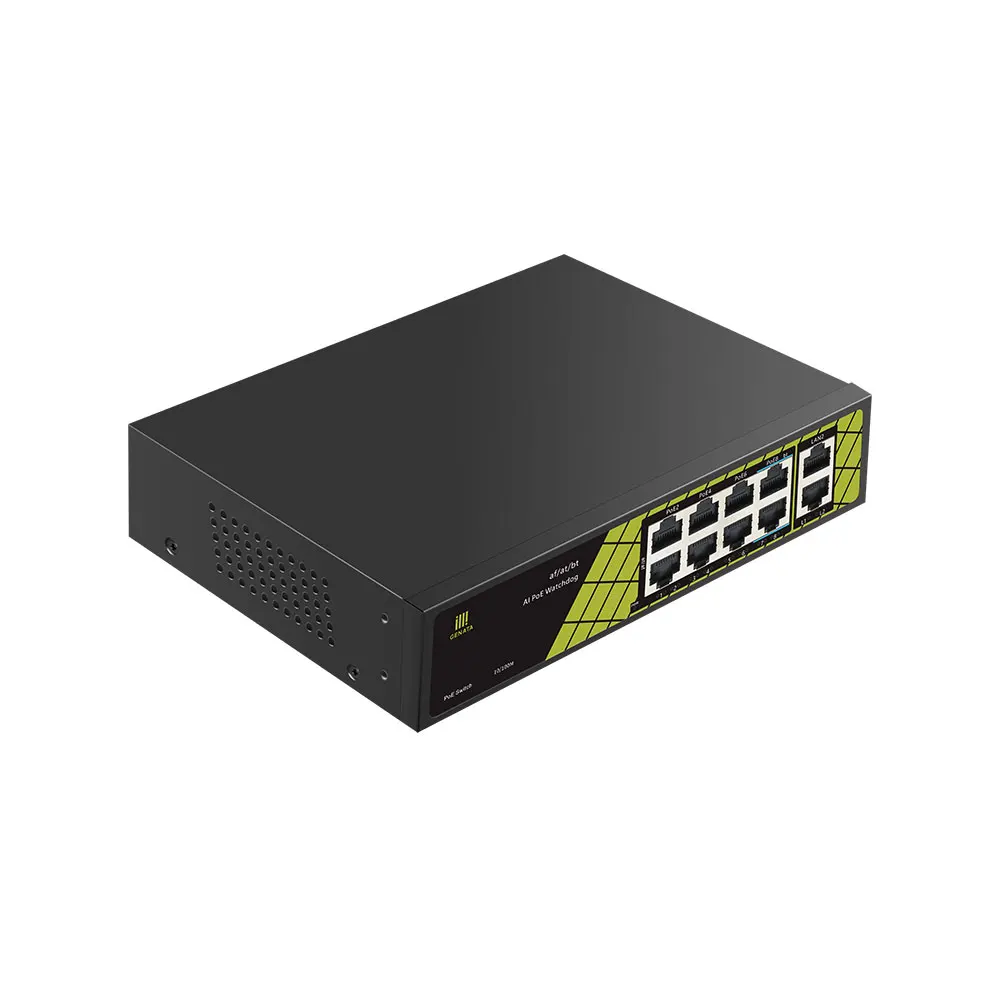

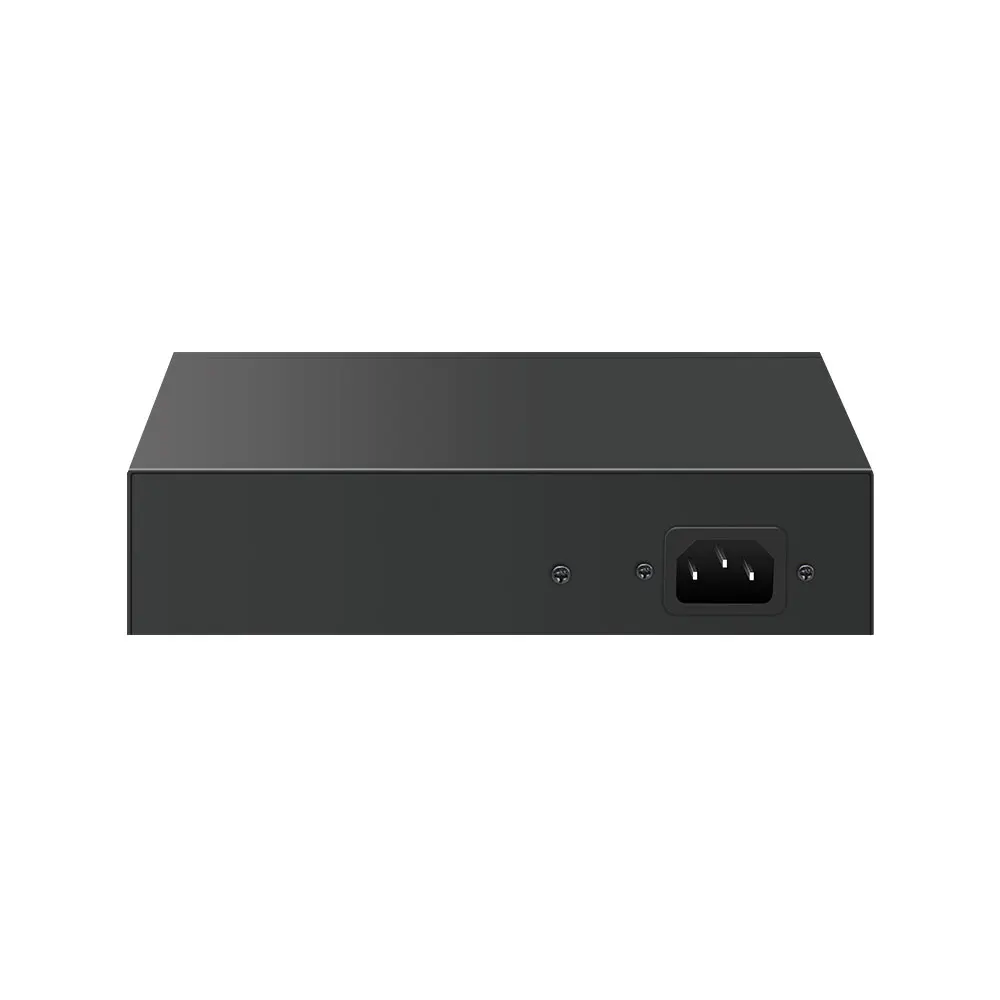

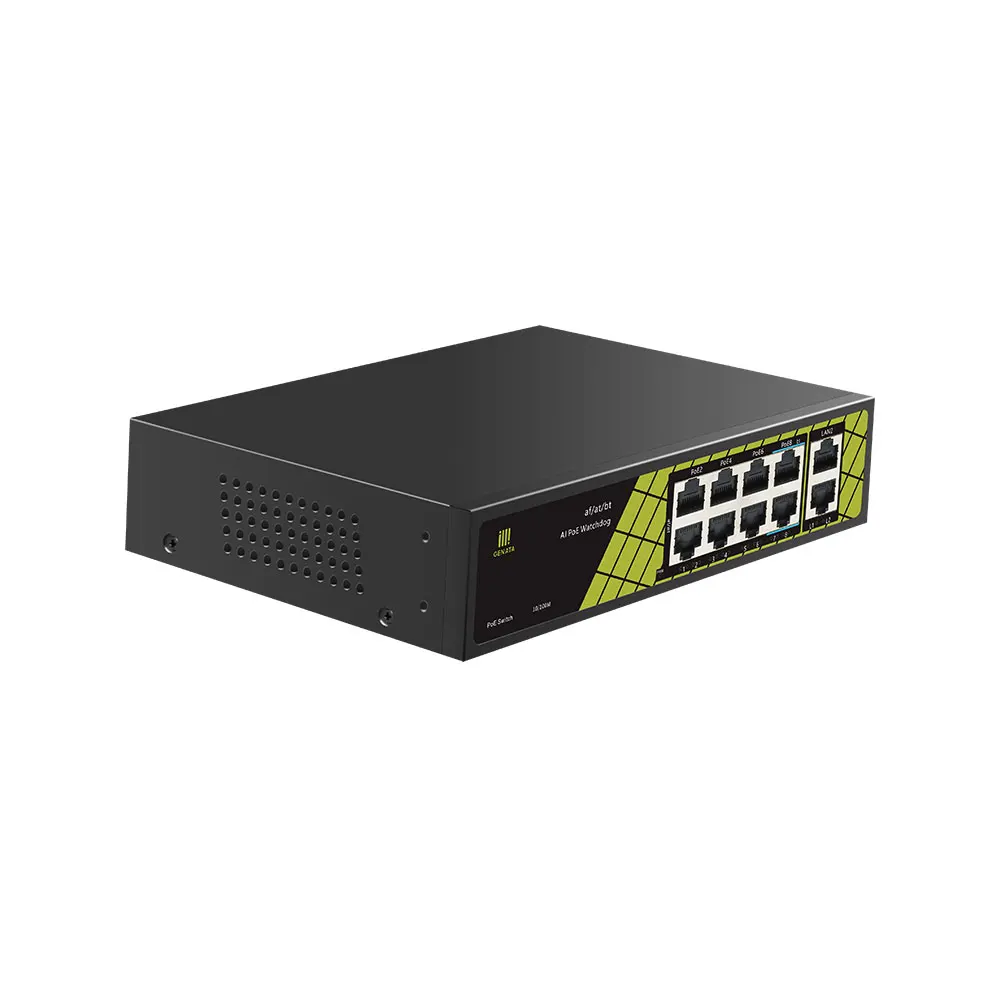

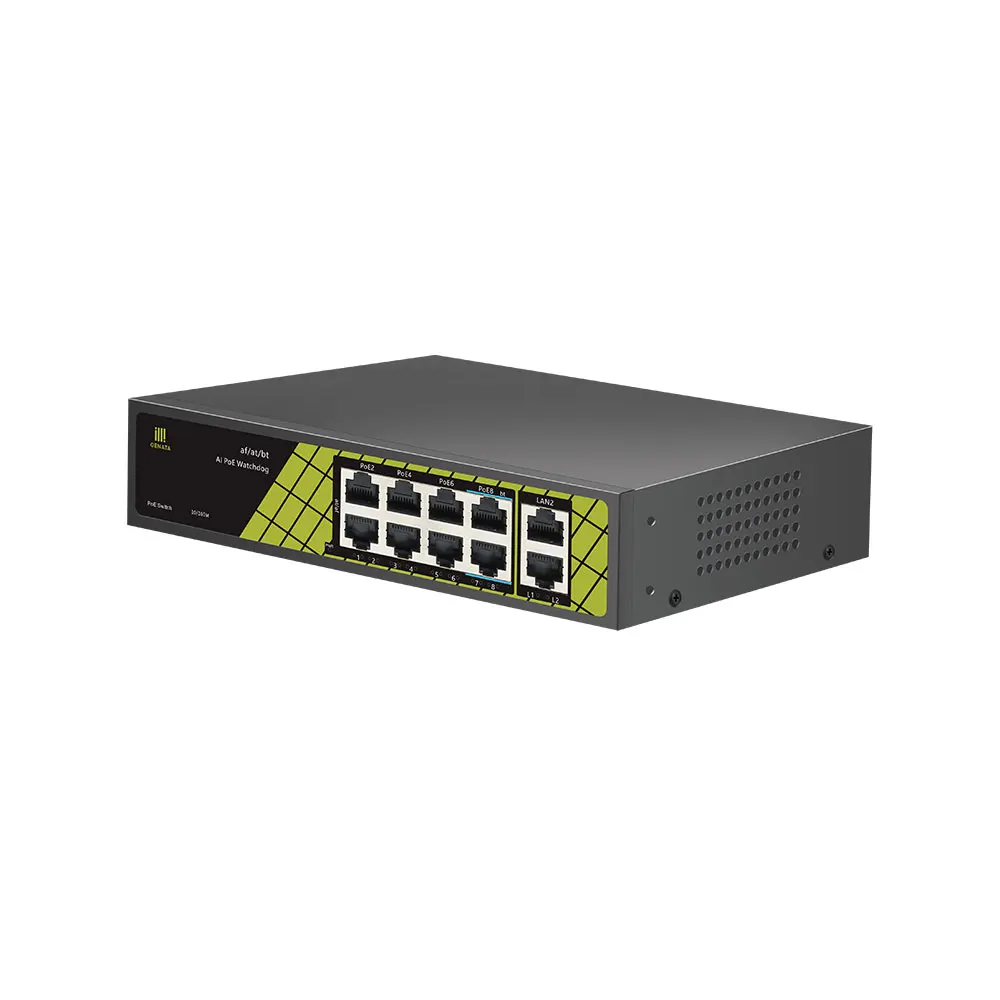

8FE(PoE) 2FE(UP LINK) network Witches PoE
- Category: >>>
- Supplier: Shenzhen Zhentong Electronics Co. Ltd.
Share on (1601057906385):
Product Overview
Description
Specifications
Model | GNT-P9828V6 |
Ports | PoE (1~6):10/100Mbps PoE ports (RJ45) PoE (7~8):10/100Mbps PoE ports (RJ45),Support bt 60W High Power LAN(1~2):10/100Mbps uplink ports (RJ45) |
Transmission Rate | 200Mbps Full Duplex; 10 or 100Mbps Half Duplex |
Transmission Distance | 1~2 ports 250m 10Mbps / 3~8 ports 130m 100Mbps |
Performance Specification | Bandwidth:2.0Gbps Network Latency (10 to 100Mbps):≤16μs (use the 64byte package size) MAC address table: 2K The Frame Filter & Transmission Rate: 14800pps the most for 10M port, 148800pps the most for 100M port |
Networking Standard | IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3xFlowControl IEEE 802.3af/at/bt Power over Ethernet |
Power Support | Power Input: AC 90~240V Total≤120W AI Watchdog: Port 1~8 Power Output: PoE 1~6 Port:1/2(+52V),3/6(GND)≤30W PoE 7~8 Port:1245(+53V),3678(GND) Compatible1/2(+52V),3/6(GND)≤60W |
Protection Level | Lightning Protection:6KV, Per: IEC61000-4-5 ESD Protection:8KV, Per: IEC61000-4-2 |
Physical Specifications | Size(L*W*H): 187mm*139mm*43mm, Weight: 0.5KG |
Working Environment | Operating Temperature: -30℃~60℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Certification | CE Mark FCC Part15,Class B RoHS 2.0 |
Warranty | Whole Device: 1 year |
Package Content | AC Power Cable,Installation Manual |
