IPC HFW2849T AS IL IP67 Outdoor Dual Light Audio built in Mic Smart AI Vehicle Human Detection Dahua 8mp ip camera 4k full color
- Category: >>>
- Supplier: Shenzhen Guowei Security Electronic Co. Ltd.
Share on (1601057906391):
Product Overview
Description
Products Proformance

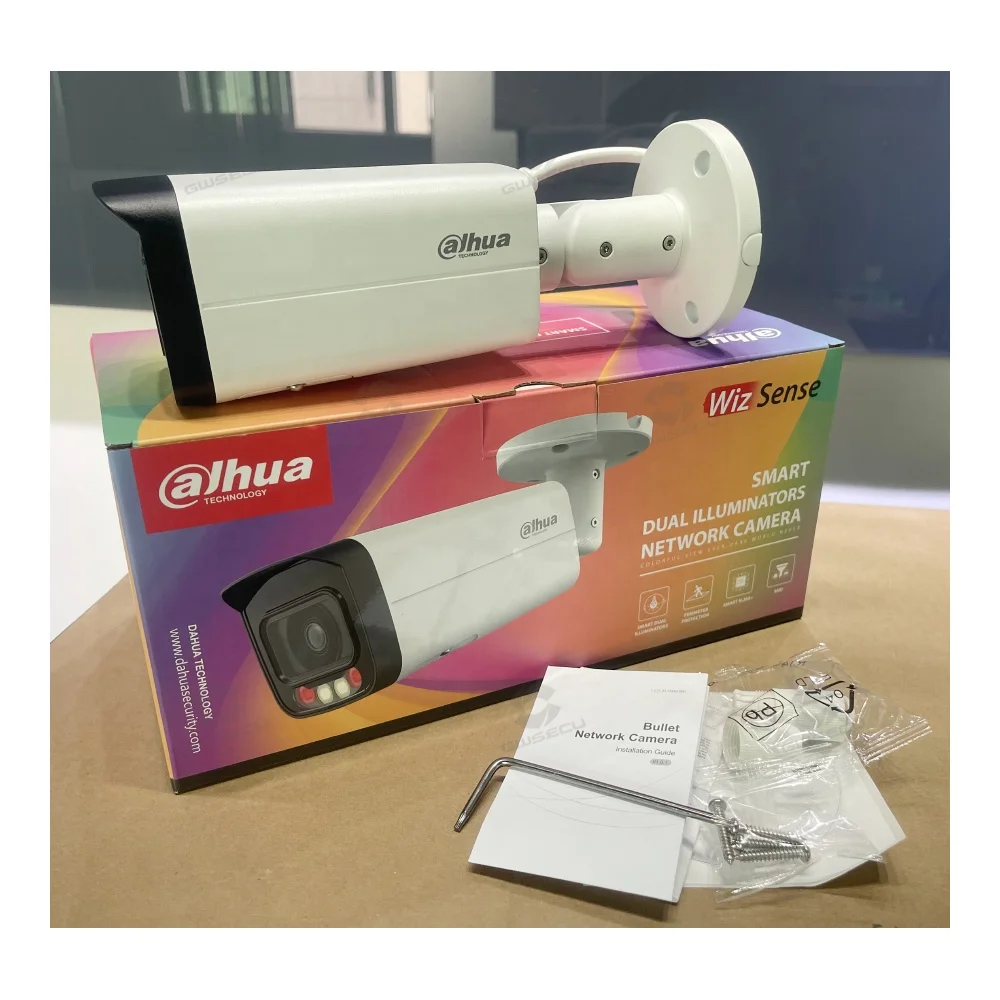

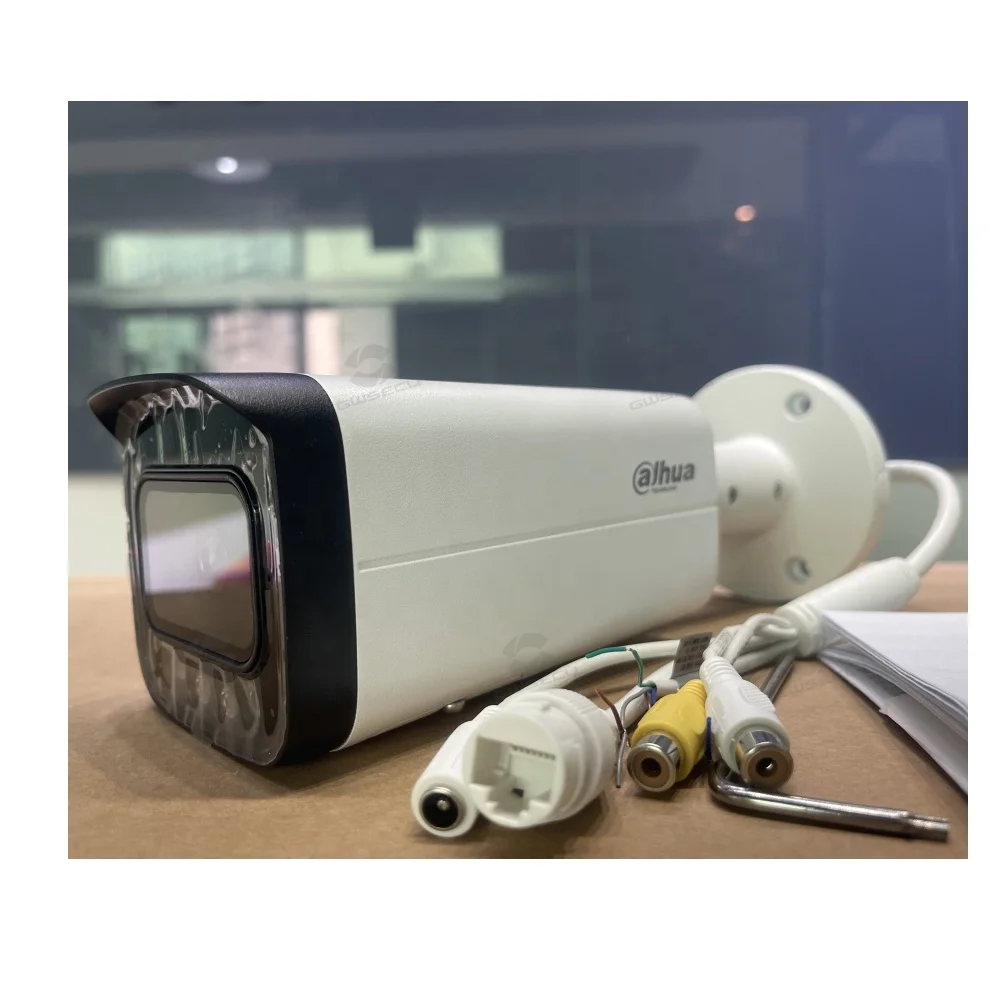

IPC-HFW2849T-AS-IL
8MP Smart Dual Light Fixed-focal Bullet WizSense Network Camera
> 8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160) @20 fps, and supports 2688 × 1520 (2688 × 1520) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.

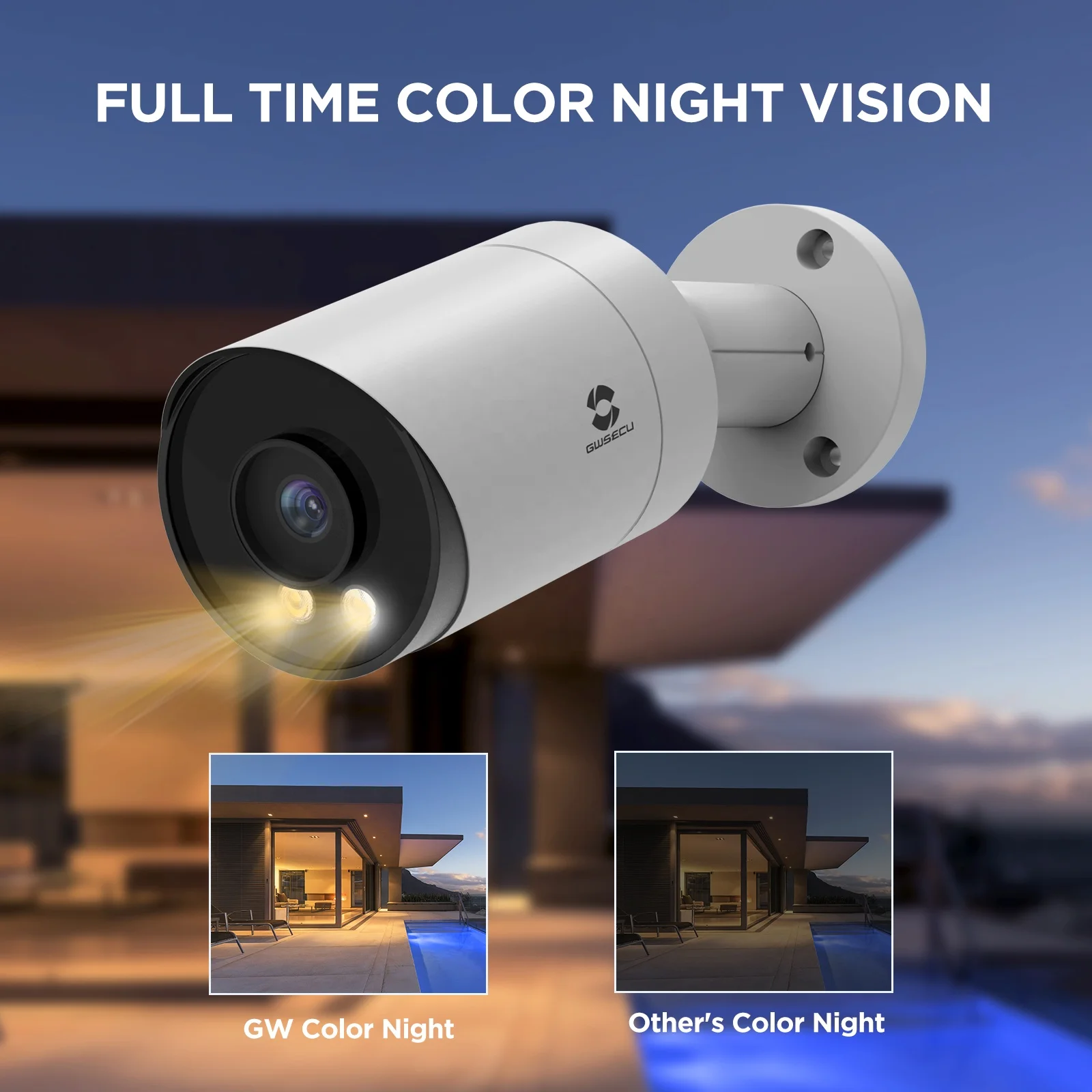

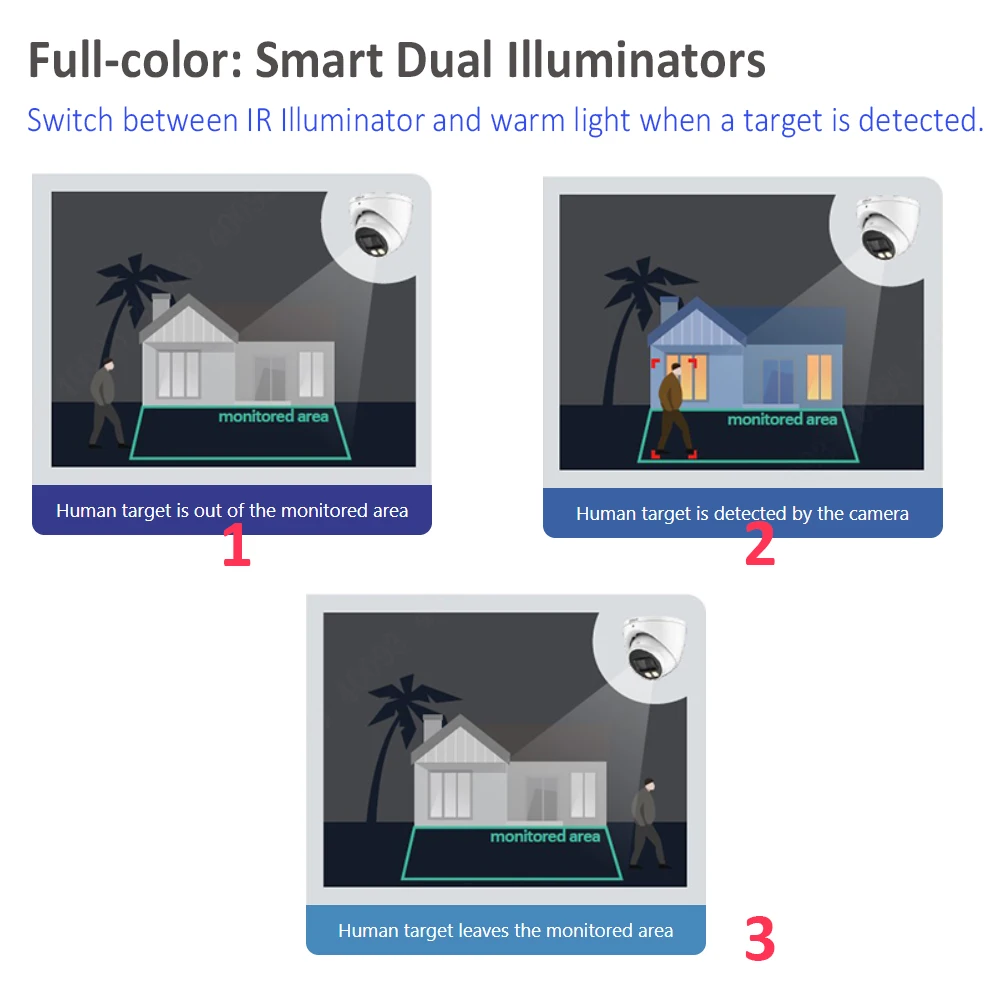

> Built-in warm light and IR LED, the max. IR light distance is 60 m and max. warm light is 50 m.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
> Outputs max. 8 MP (3840 × 2160) @20 fps, and supports 2688 × 1520 (2688 × 1520) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light and IR LED, the max. IR light distance is 60 m and max. warm light is 50 m.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
> Alarm: 1 in, 1 out ; audio: 1 in, 1 out ;
> Supports max. 256 G Micro SD card;
> Supports max. 256 G Micro SD card;
> built in MIC.
> 12 VDC/PoE power supply.
> IP67 protection
> SMD Plus.
> 12 VDC/PoE power supply.
> IP67 protection
> SMD Plus.
With advanced deep learning algorithm, WizSense 2 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance.
SMD Plus
With intelligent algorithm, Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.

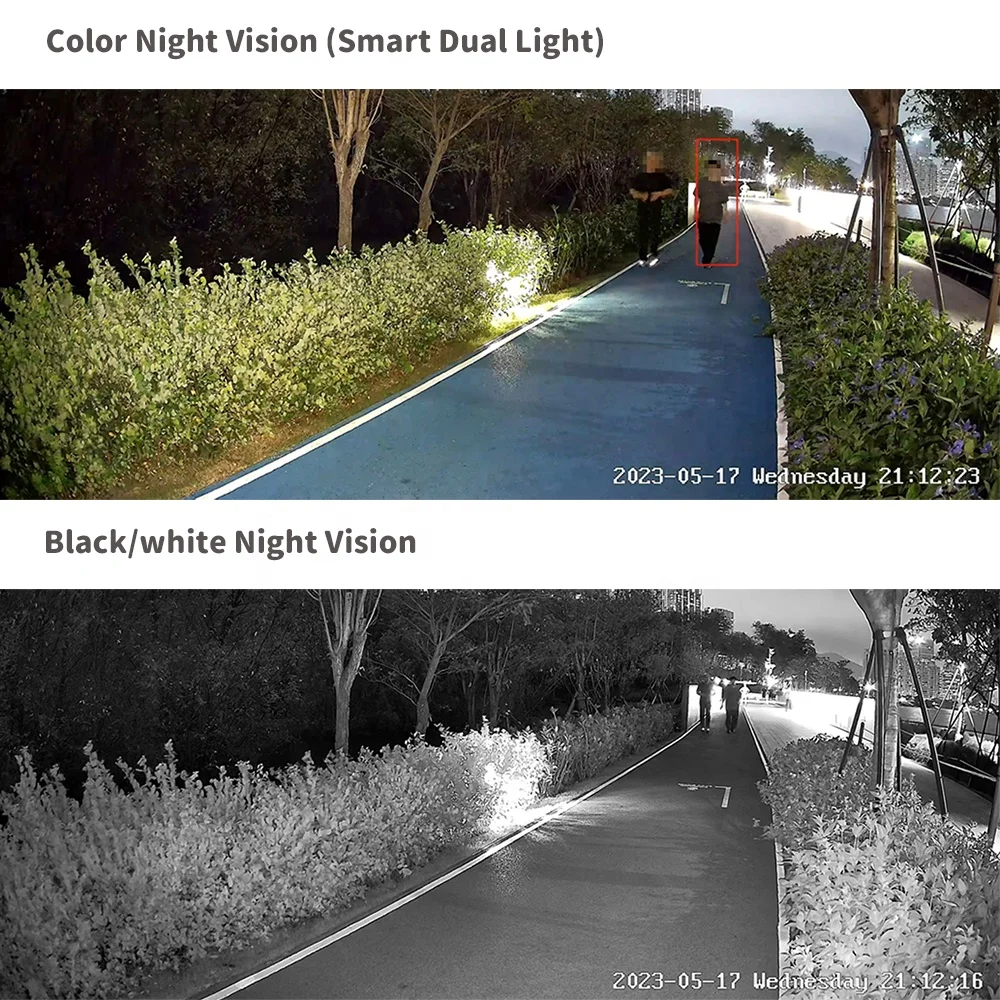

Starlight Technology
For challenging low-light conditions, Dahua's Starlight Ultra-low Light Technology offers the best in light sensitivity, capturing color in vivid detail, even in lighting as low as 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, producing clear images in dark environments.

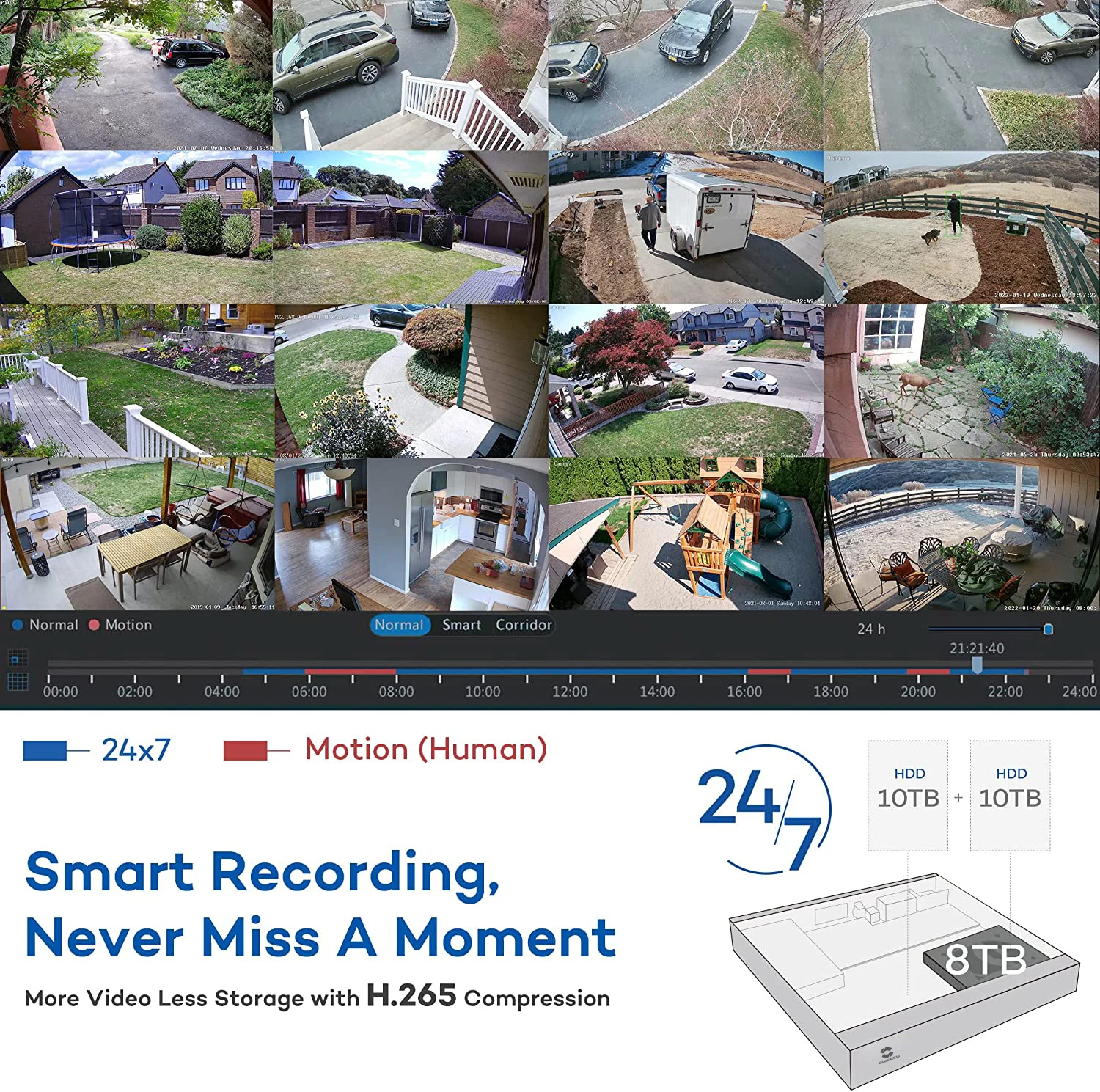

Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, a flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality videos without straining the network. Smart H.265+ technology outranks standard H.265 video compression, reducing bit rate and storage requirements by up to 70%.
Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, a flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality videos without straining the network. Smart H.265+ technology outranks standard H.265 video compression, reducing bit rate and storage requirements by up to 70%.

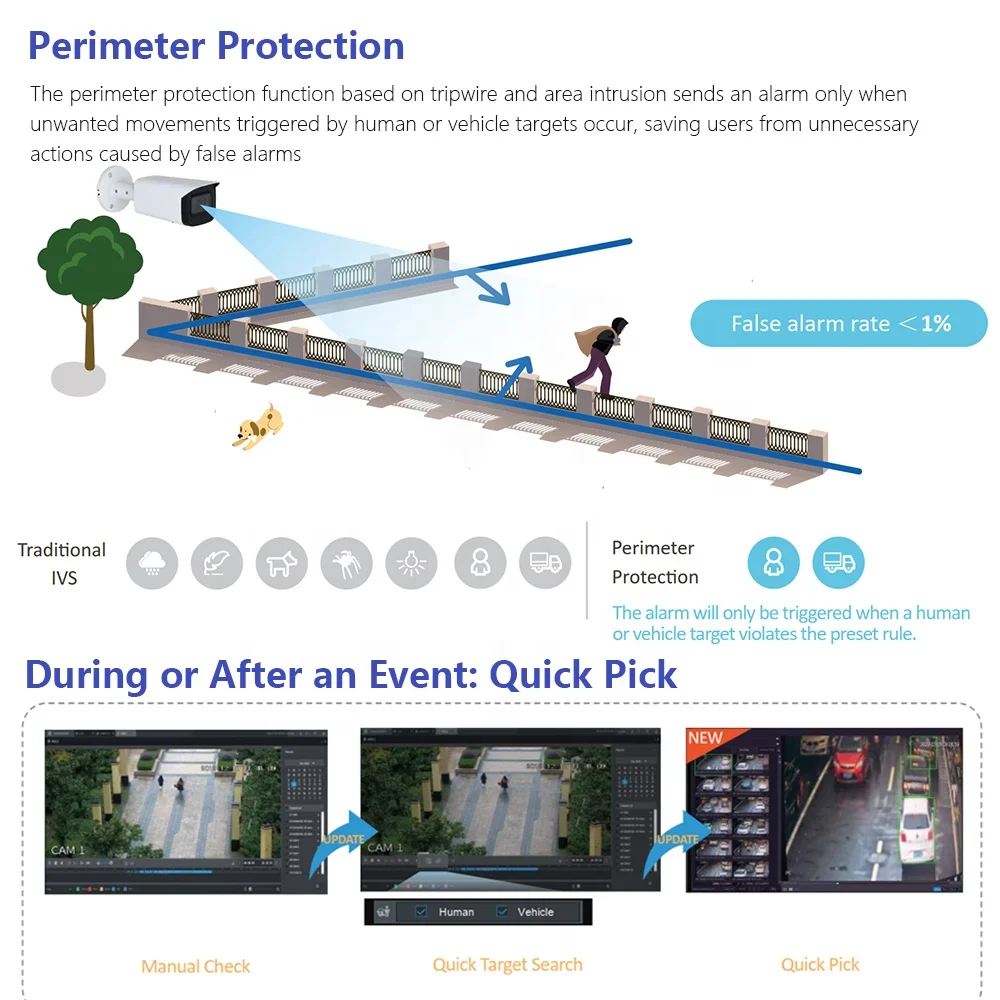

Perimeter Protection
Automatically filters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system
to act secondary recognition for the targets to improve alarm accuracy.
to act secondary recognition for the targets to improve alarm accuracy.
WDR
With advanced Wide Dynamic Range (WDR) technology, Dahua network camera provides clear details in the environment of strong brightness contrast. The bright and dark area can get clear video even in high brightness environment or with backlight shadow.
Protection (IP67, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and
the enclosure can work normally after soaking in 1 m deep water for 30 minutes.
the enclosure can work normally after soaking in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable
voltage.
voltage.

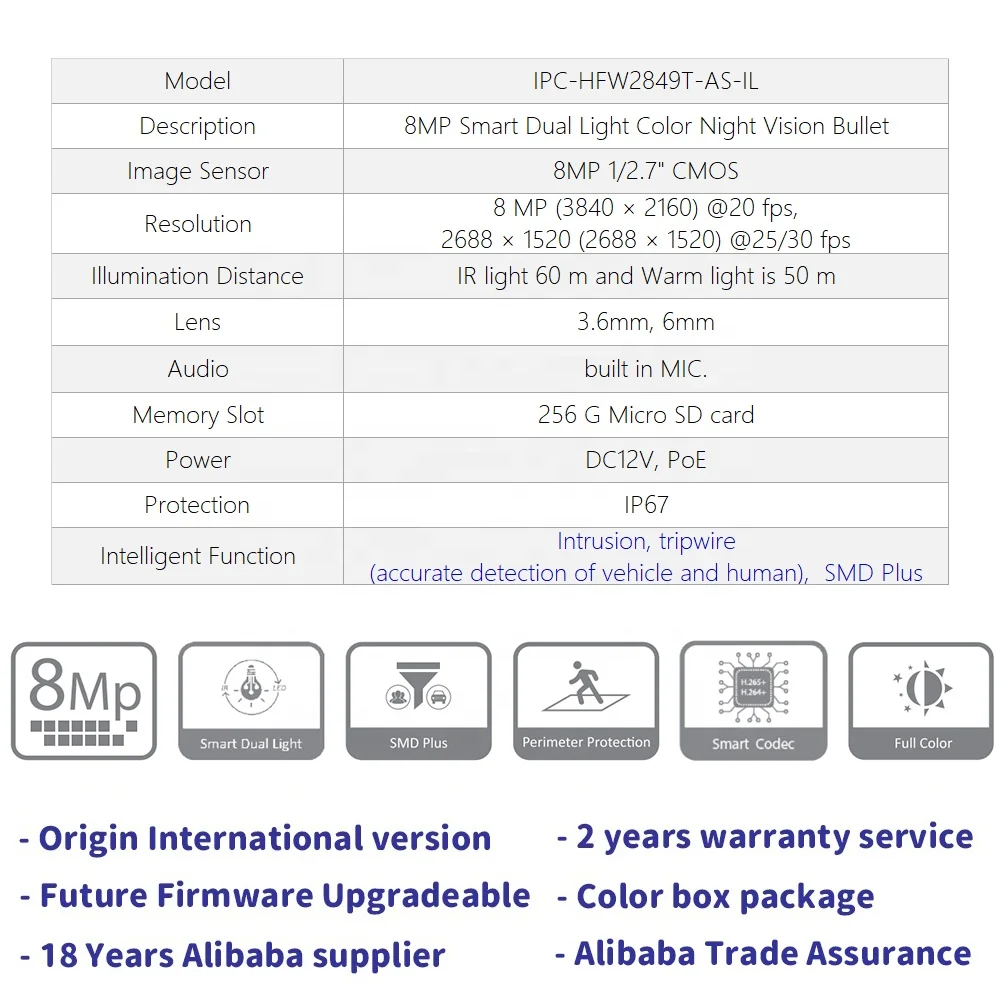

Technical Datasheet
Brief specifications for a quick acknowledge of this item, for further detailed parameters or technical consult, please feel free to contact us at HERE.
Camera | ||
Image Sensor | 1/2.7" CMOS | |
Max. Resolution | 3840 (H) × 2160 (V) | |
Min. Illumination | 0.008 Lux@F1.6 (Color, 30 IRE) 0.0008 Lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) | |
Illumination Distance | up to 60 m (195.85 ft) (IR); up to 50 m (164.04 ft) (Warm light) | |
Illuminator Number | 2 (IR LED); 2 (Warm light) | |
Lens Type | Fixed-focal | |
Focal Length | 3.6 mm, 6mm | |
Field of View | 3.6 mm: H: 88°; V: 46°; D: 104° 6 mm: H: 55°; V: 31°; D: 62° | |
Intelligence | ||
IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) | |
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos | |
Video | ||
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) | |
Smart Codec | Smart H.265+; Smart H.264+ | |
Video Frame Rate | Main stream: 3840 × 2160@(1–20 fps)/2688 × 1520@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) | |
Resolution | 3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2880 × 1620 (2880 × 1620); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | |
BLC | Yes | |
HLC | Yes | |
WDR | 120 dB | |
Smart Illumination | Yes | |
Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) | |
Mirror | Yes | |
Audio | ||
Built-in MIC | Yes | |
Audio Compression | G.711a; G.711Mu; PCM; G.726 | |
Port | ||
Audio Input | 1 channel (RCA port) | |
Audio Output | 1 channel (RCA port) | |
Alarm Input | 1 channel in: 5 mA 3–5 VDC | |
Alarm Output | 1 channel out: 300 mA 12 VDC | |
Network | ||
Network Port | RJ-45 (10/100 Base-T) | |
SDK and API | Yes | |
Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour | |
Management Software | Smart PSS; DSS; DMSS | |
Mobile Client | iOS; Android | |
General | ||
Power Supply | 12 VDC/PoE (802.3af) | |
Power Consumption | Basic: 2.7 W (12 VDC); 3.4 W (PoE) Max. (H.265+ max. resolution + max. stream+ WDR + IR intensity + IVS): 4.5 W (12 VDC); 5.4 W (PoE) | |
Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | |
Protection | IP67 | |
Casing Material | Metal | |
Product Dimensions | 238.5 mm × 90.7 mm × 90.7 mm (9.39" × 3.57" × 3.57") (L × W × H) | |
Gross Weight | 0.96 kg | |
Successful Projects
1- This a Surveillance Projects installed in Melborne, Australia.
Customer preferred to have a long range visible 4K PTZ camera and people counting 4K Bullet camera. So we suggested DH-SD8A840-HNF-PA which is 8MP 4K 40X zoom with 500m laser IR and auto-tracking function, and IPC-HFW71242H-Z which is 12MP Wizmind Series with face recognition, people counting, ANPR etc intelligent AI camera. Besides that, there also other accessories like PoE switch, camera bracket and cables suggested to customer. The whole system running very well.
Why Choose Us
Our company
As a professional project-base structure designed hd cctv camera manufacturer, GWSecu had passed ISO9001-14001 quality management system authentication, all products have been successfully certificated by CE, FCC, ROHS.
We're also Da hua distributor for the brand products as always. Origin English firmware version and 2 years warranty service. Welcome to contact us for more information.
1- Original international version products and support future firmware upgrade if necessary.
2- Online technical support to help you design the system and recommend most cost-effective and suitable products.
3- Fast delivery within 1-10 working business day base on models in stock.
4- 18 years golden supplier with Alibaba Trade Assurance to protect your purchase.
3- Fast delivery within 1-10 working business day base on models in stock.
4- 18 years golden supplier with Alibaba Trade Assurance to protect your purchase.
5- OEM Service available to put your company brand on the products and package box.
6- Two years worry-free warranty service.

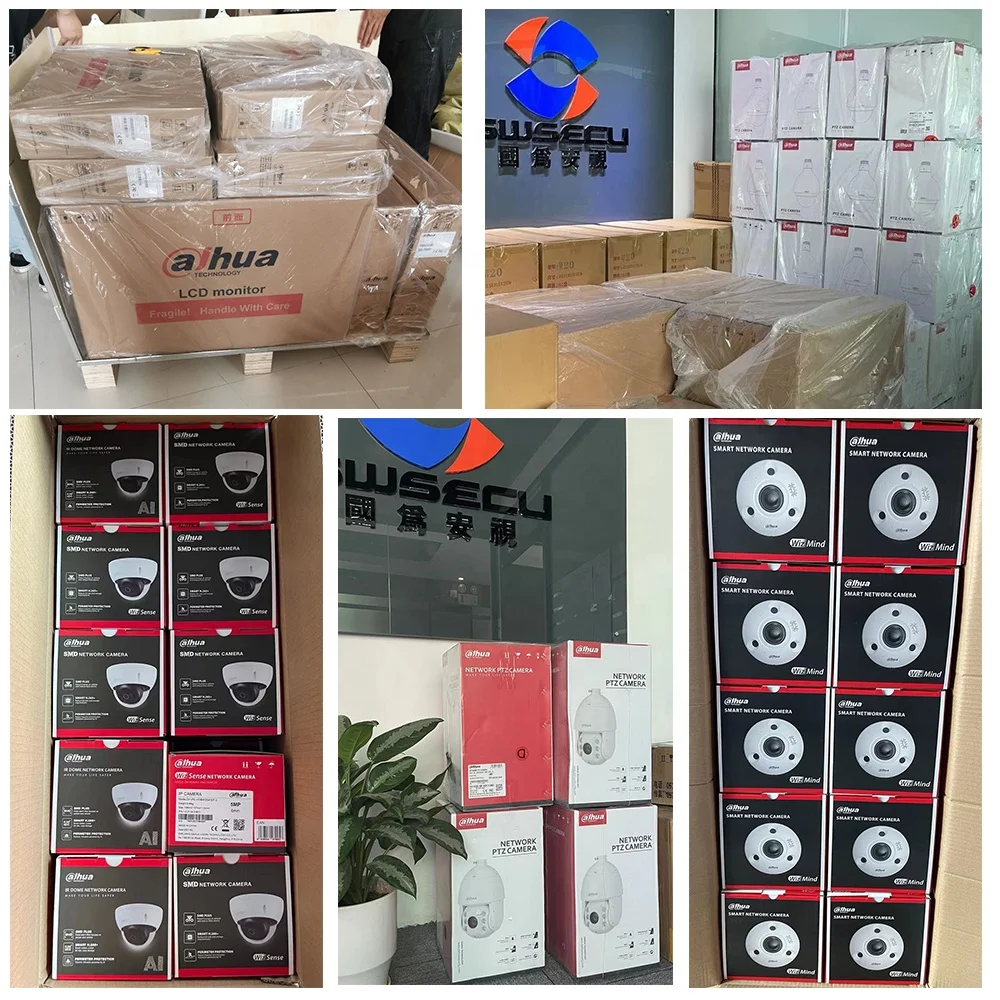

We pack the goods well just make sure our customer receive all items in good condition.
