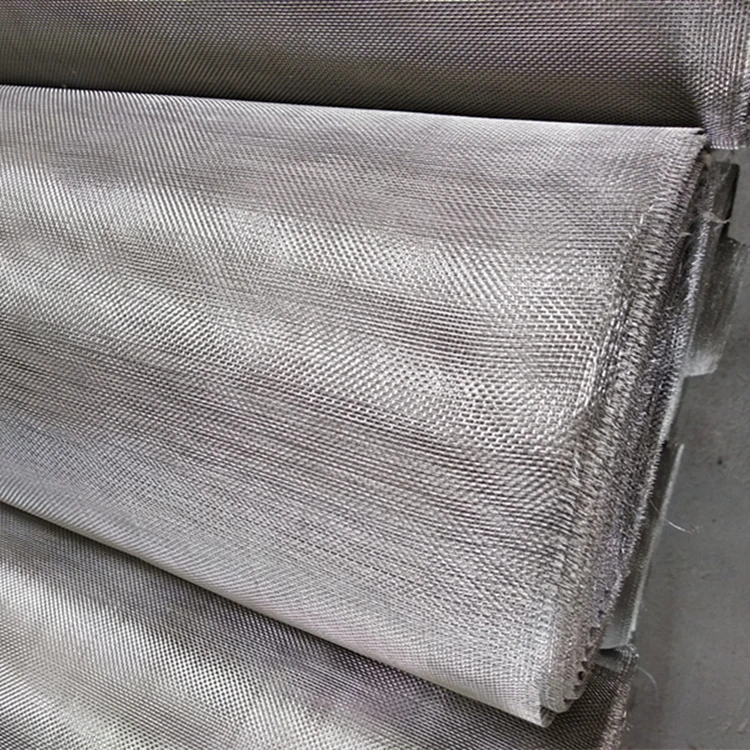

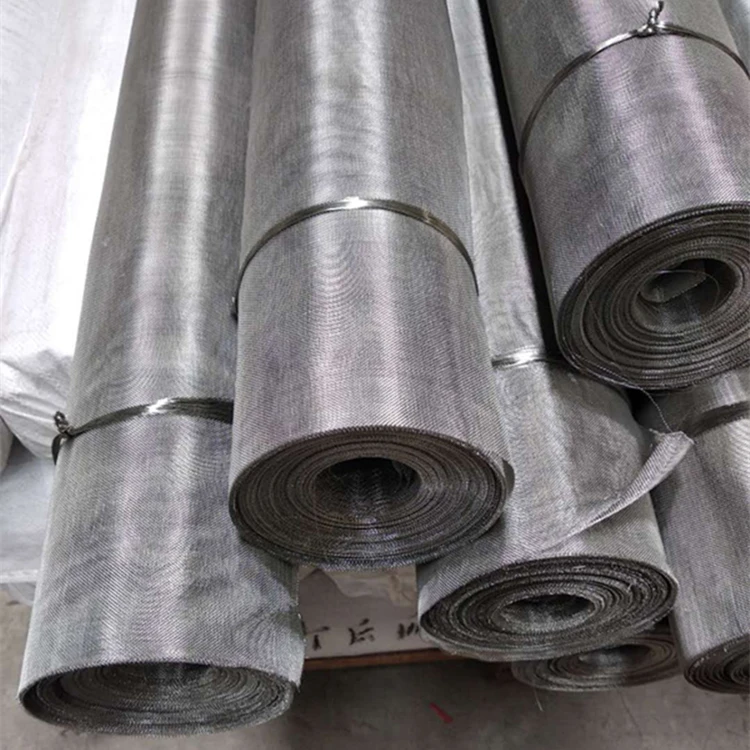

High precision Wire Mesh 20 40 60 80 Mesh stainless steel wire mesh cloth

Product Overview

Description

High precision Wire Mesh 20 40 60 80 Mesh stainless steel wire mesh cloth







Contact us for more information

Product Description

We produce stainless steel wire mesh from first class stainless steel wire material in SUS/AISI 201 202 302 304 310 310S 316 316L 321 430 etc.
Stainless steel wire mesh with its excellent resistance against acid, alkali, heat and corrosion, find extensively uses in processing of oil, chemical, food, making wire mesh filter, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace and machine making etc.

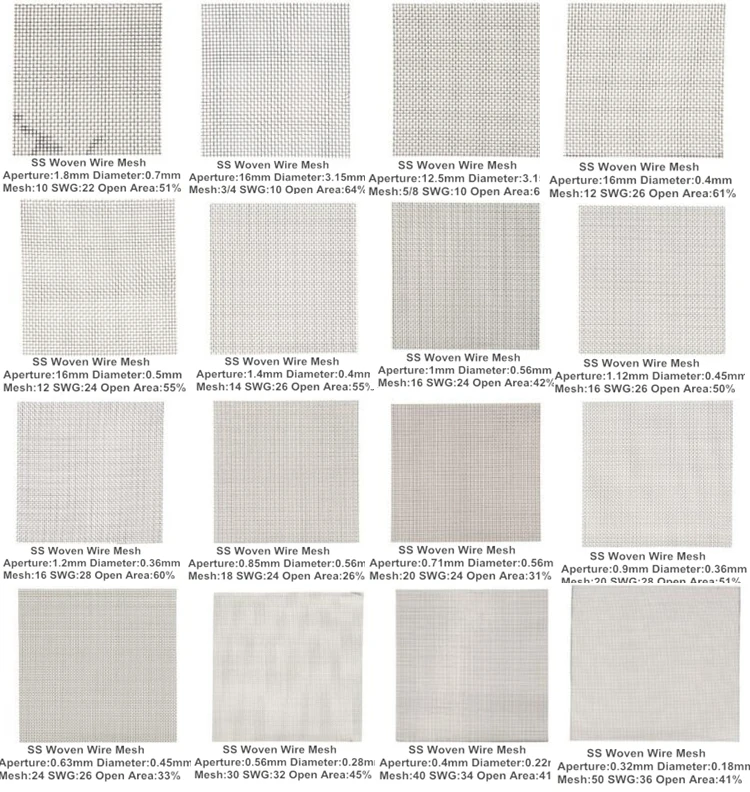

Stainless steel wire mesh
Mesh/inch	Wire diameter mm	Aperture mm		Mesh/inch	Wire diameter mm	Aperture mm
2mesh	1.80	10.90		60mesh	0.15	0.273
3mesh	1.60	6.866		70mesh	0.14	0.223
4mesh	1.20	5.15		80mesh	0.12	0.198
5mesh	0.91	4.17		90mesh	0.11	0.172
6mesh	0.80	3.433		100mesh	0.10	0.154
8mesh	0.60	2.575		120mesh	0.08	0.132
10mesh	0.55	1.990		140mesh	0.07	0.111
12mesh	0.50	1.616		150mesh	0.065	0.104
14mesh	0.45	1.362		160mesh	0.065	0.094
16mesh	0.40	1.188		180mesh	0.053	0.088
18mesh	0.35	1.060		200mesh	0.053	0.074
20mesh	0.30	0.970		250mesh	0.04	0.061
26mesh	0.28	0.696		300mesh	0.035	0.049
30mesh	0.25	0.596		325mesh	0.03	0.048
40mesh	0.21	0.425		350mesh	0.03	0.042
50mesh	0.19	0.318		400mesh	0.025	0.0385
Width of stainless steel wire mesh:0.6m-1.5m

Product infomation:
1) product range : usually,manufactured in 30m ( up to 200) long and in width of 36 48 1m 1.2m 1.5m 2.0m etc. or cut to length panels as per client’s requirement.
2) Packing: water-proof paper ,woven bag and also can be made as per client requirement

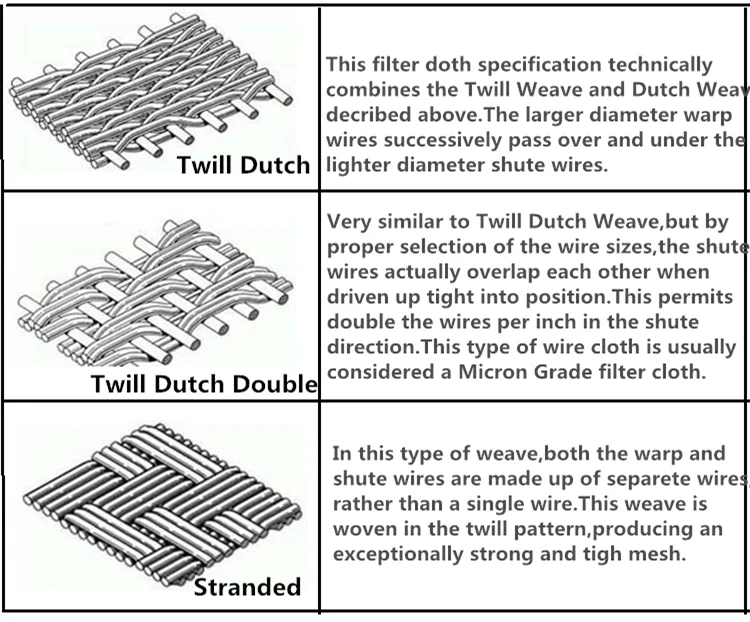

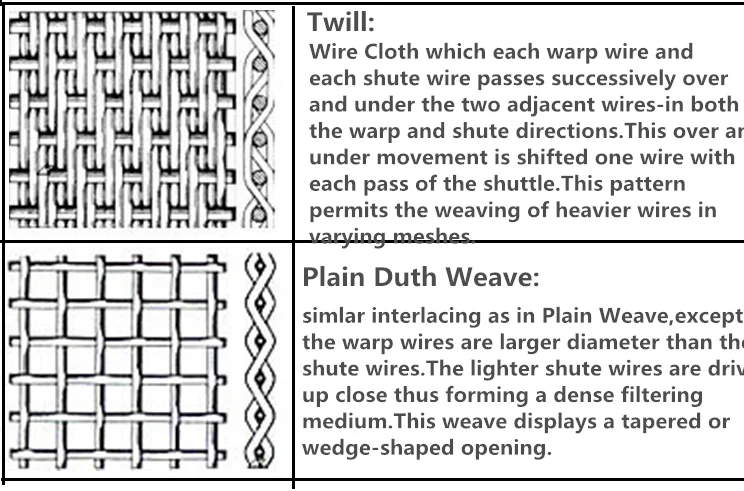

3) weave:This type of mesh is available in Plain Weave, Twill Weave ; Plain Dutch Weave, Dutch Twill Weave.
4) mesh counts: 1 mesh to 635 mesh.
5) sample: available.

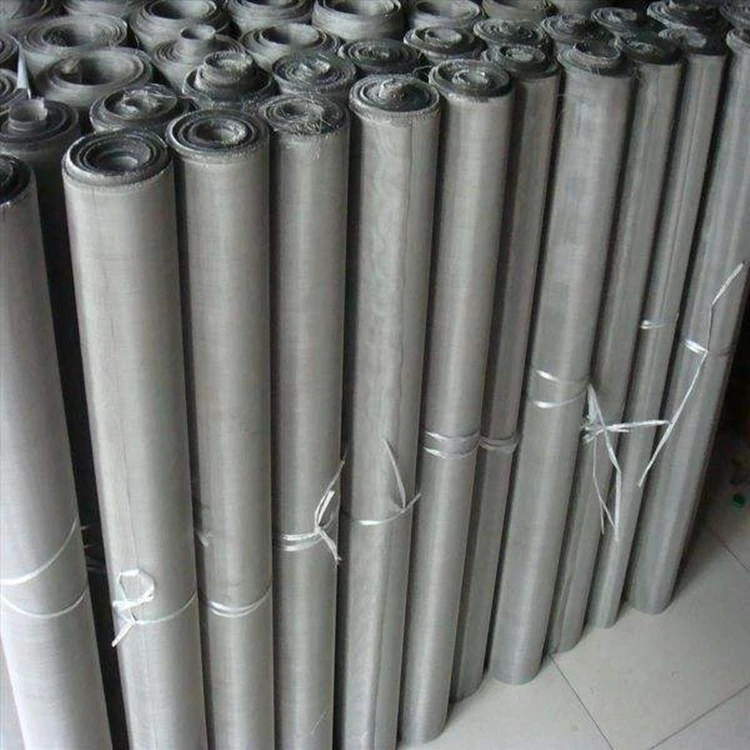

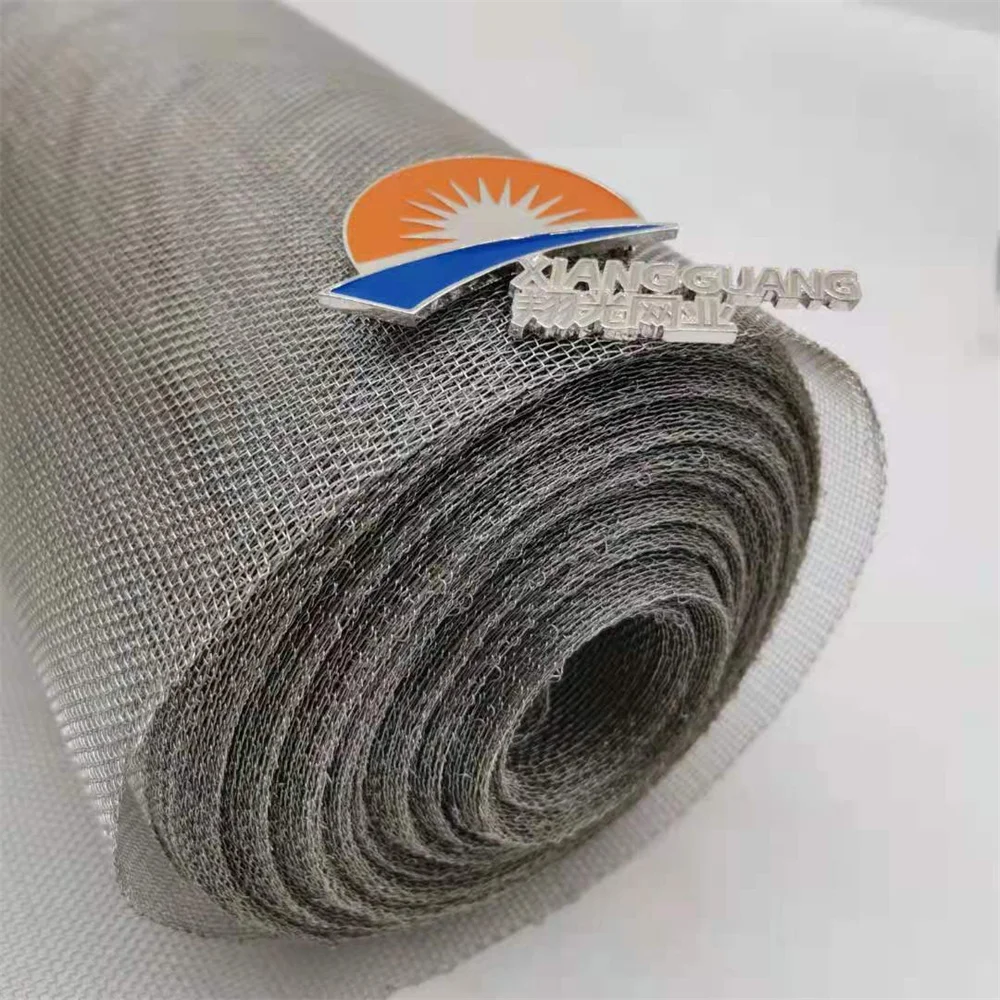

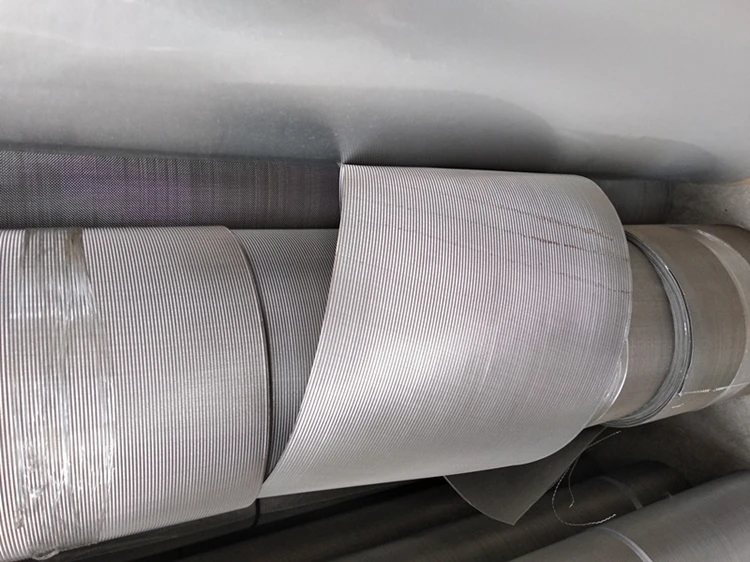

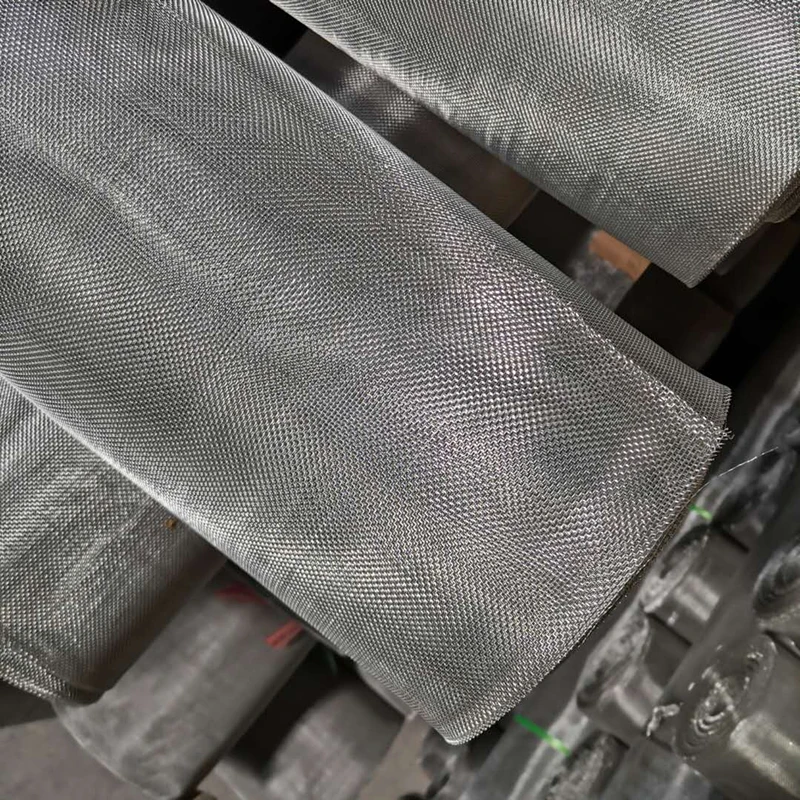

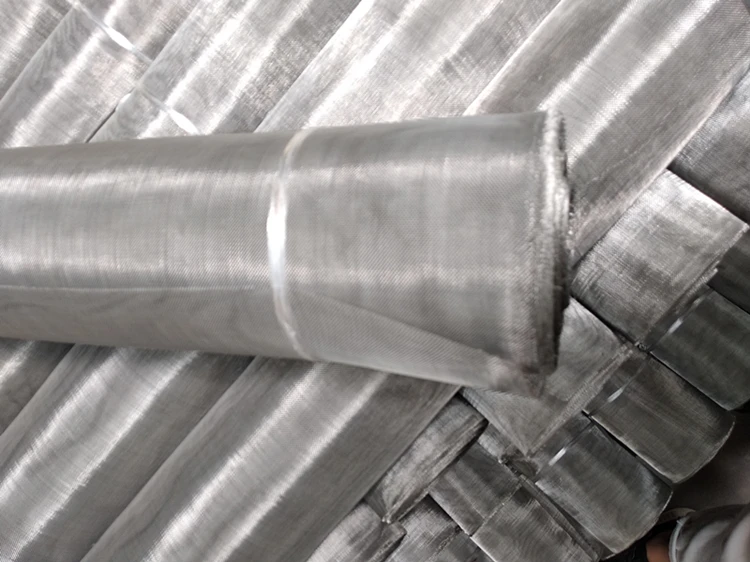

Product Show

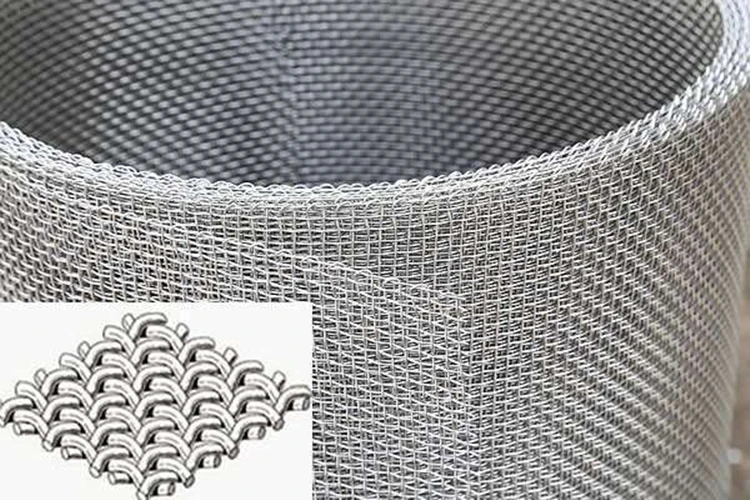

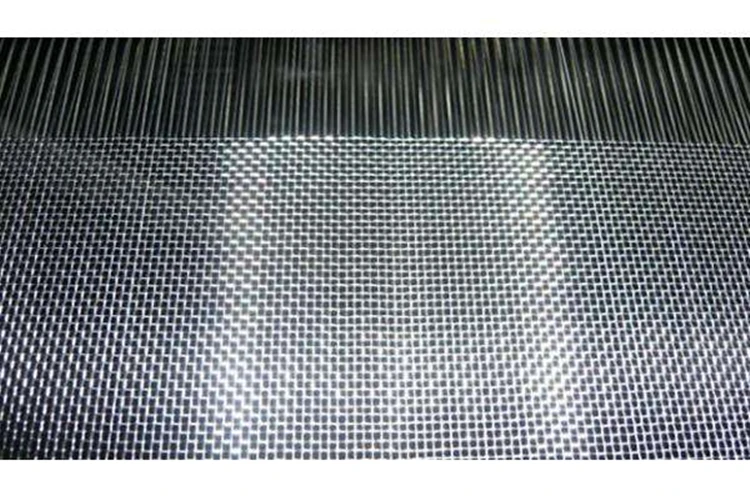

Stainless steel wire mesh weaving

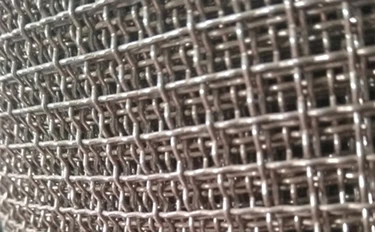

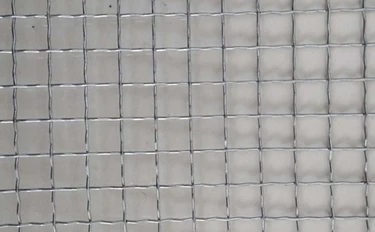

Plain Weave: Each weft wire passes over one and under one warp wire,and each warp wire passes over one and under one weft wire,every weft wire have and warp wire the same diameter.

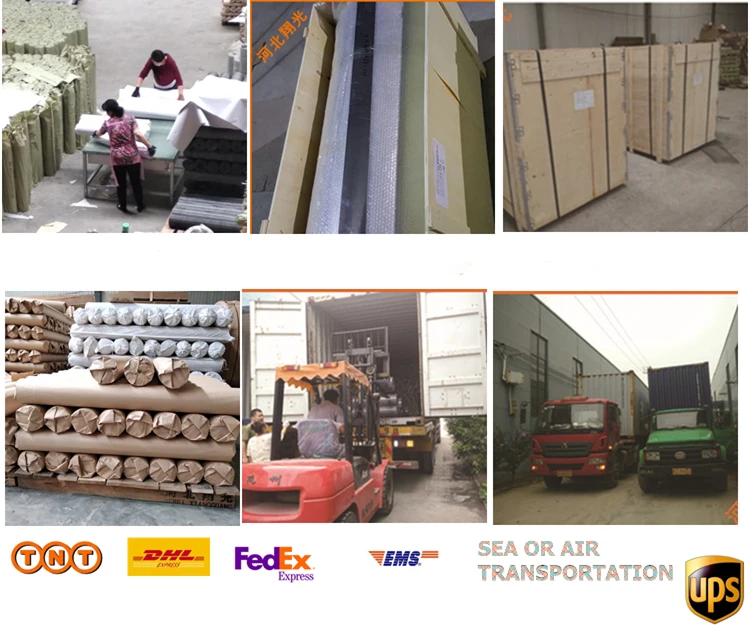

  Packing & Shipping

 FAQ

Q: Are you trading company or manufacture?

A:  We are manufacturer.

Q: Do you cut stainless steel wire mesh to size?

A: Yes,we will cut anything in our inventory to your specifications,including stainless steel wire mesh.In some cases,we have a large of stainless steel wire mesh in stock.

Q: Will stainless steel wire mesh rust over time?

A: Stainless steel wire mesh have stronger rust resistace than iron wire mesh,but no wire mesh  is rust-proof forever,stainless steel wire mesh could be last for more longer time.

Q: Do you provide samples?is it free or extra?

A: Yes,we could offer the sample for tree charge but do not pay the cost of fteight.

Q: What is your term of payment?

A: Usually 30% as deposit, 70% against BL copy by T/T,western unoin acceptable for small account and L/C acceptable for large amount.

Q: What items is needed for a quotation?

A: Mesh,size,width,length,wire diameter and weight,or different product for no same of item.

Q: What size can be order requirement for stainless steel wire mesh?

A: No,you can order any size wire mesh that you need.
