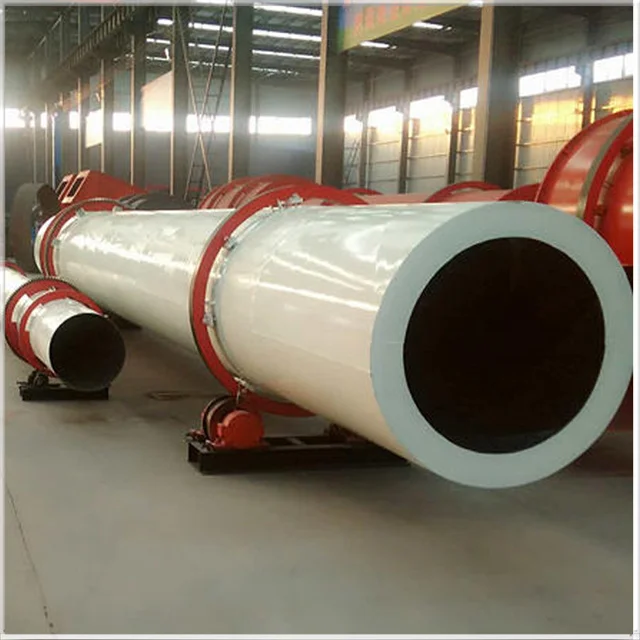

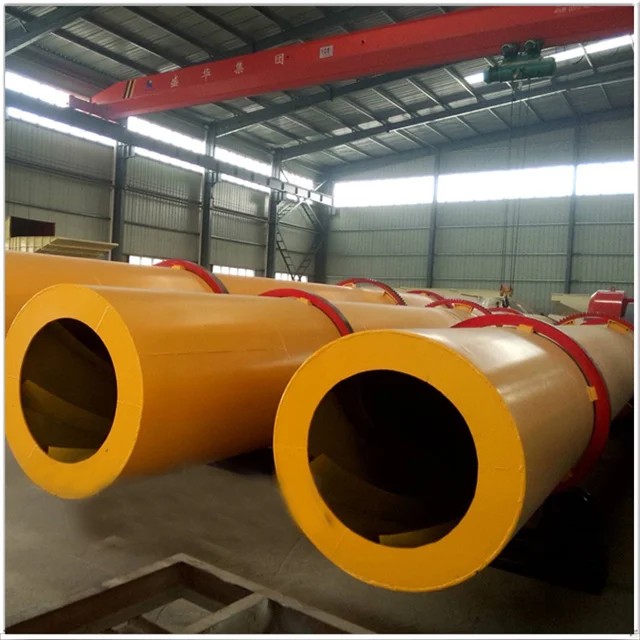

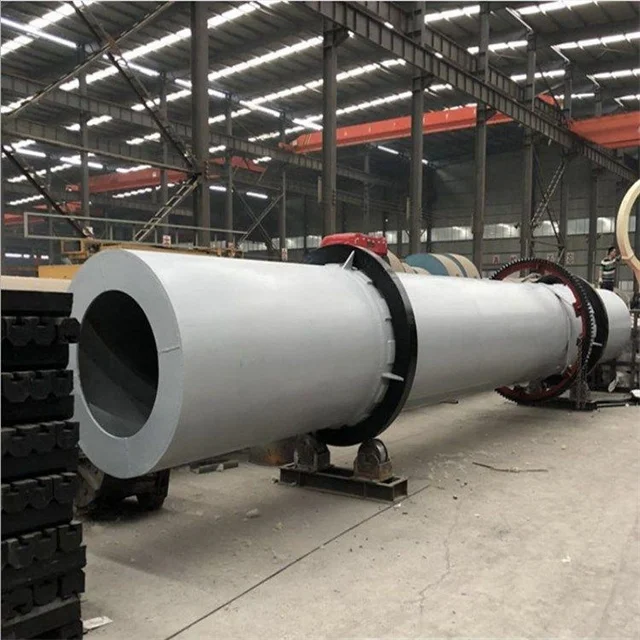

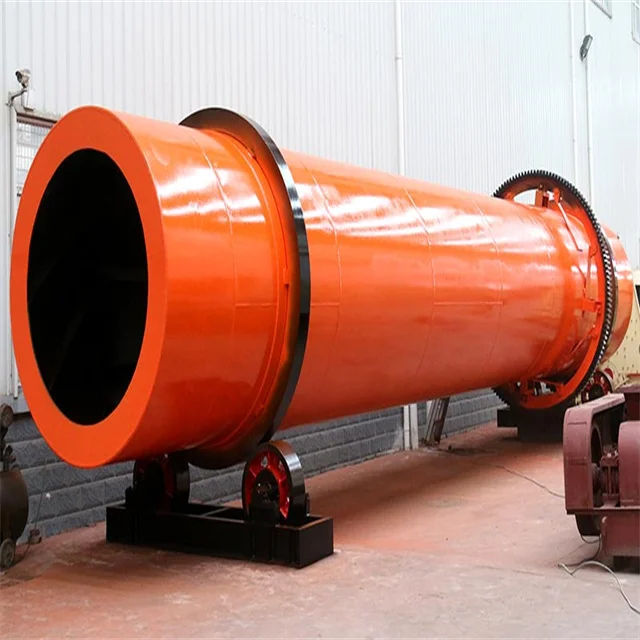

China Top Quality High Efficiency Cement Industry Used Granulated Industrial Dryer Rotary Drum Dryer
- Category: >>>
- Supplier: Henan Huayuan Machinery Equipment Co. Ltd.
Share on (1601058302869):
Product Overview
Description
Work principle:

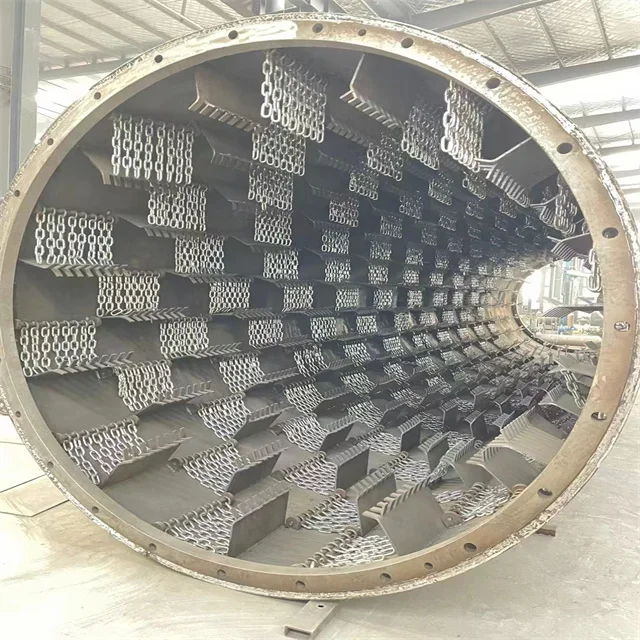

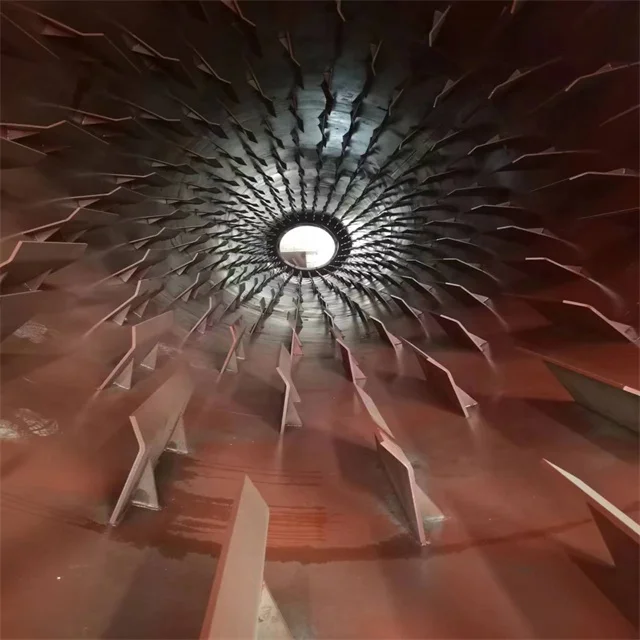

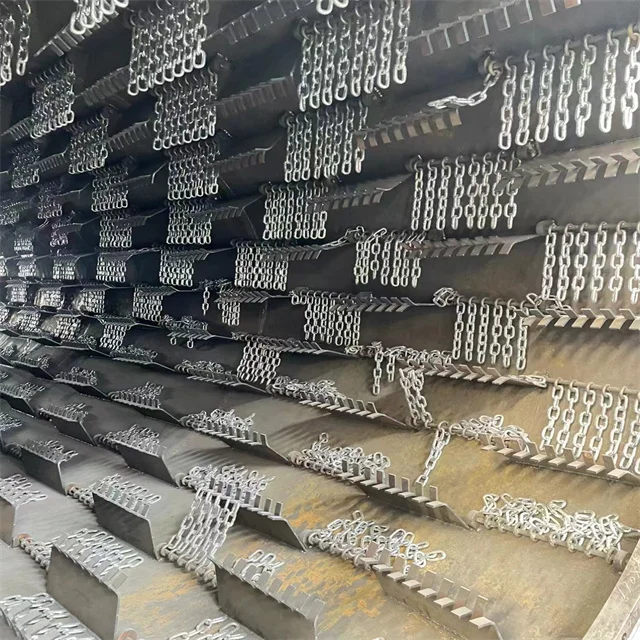

1. The material first goes into the inside drum, because there are spiral-shaped boards fixed in the drum, When the dryer makes rotary work, the spiral-shaped board will stir the material and make the material do the movement.
2. When the material reaches the right side of the drum, it will go into the second drum for further drying.
3. The same working principle, the material then goes into the outside drum, During the drying working process, the material will be made three times drying, so the material can be dried completely in this process.
2. When the material reaches the right side of the drum, it will go into the second drum for further drying.
3. The same working principle, the material then goes into the outside drum, During the drying working process, the material will be made three times drying, so the material can be dried completely in this process.
Model | Gradient(%) | Rotation speed | Inter air (℃) | Power (kw) | Capacity (t/h) | Weight (t) |
Φ600*6000 | 3-5 | 3-8 | ≤700 | 3 | 0.5-1.5 | 3.2 |
Φ800*8000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.0 | 4 |
Φ800*10000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.5 | 5 |
Φ1000*10000 | 3-5 | 3-8 | ≤700 | 5.5 | 1.0-3.5 | 7.8 |
Φ1200*12000 | 3-5 | 3-8 | ≤700 | 11 | 2-6 | 14.8 |
Φ1500*12000 | 3-5 | 2-6 | ≤800 | 18.5 | 3.5-9 | 17.8 |
Φ1800*18000 | 3-5 | 2-6 | ≤800 | 22 | 5-12 | 31 |
Φ2000*18000 | 3-5 | 1.5-6 | ≤800 | 30 | 6-15 | 43 |
Φ2200*18000 | 3-5 | 1.5-6 | ≤800 | 37 | 10-18 | 52 |
Φ2400*20000 | 3-5 | 1.5-5 | ≤800 | 45 | 18-30 | 60 |
Φ2800*20000 | 3-5 | 1.5-5 | ≤800 | 55 | 25-35 | 72 |
Φ3000*20000 | 3-5 | 1.5-5 | ≤800 | 55 | 32-40 | 91 |
Φ3000*25000 | 3-5 | 1.5-5 | ≤800 | 75 | 40-55 | 104.9 |
Widely Applications:

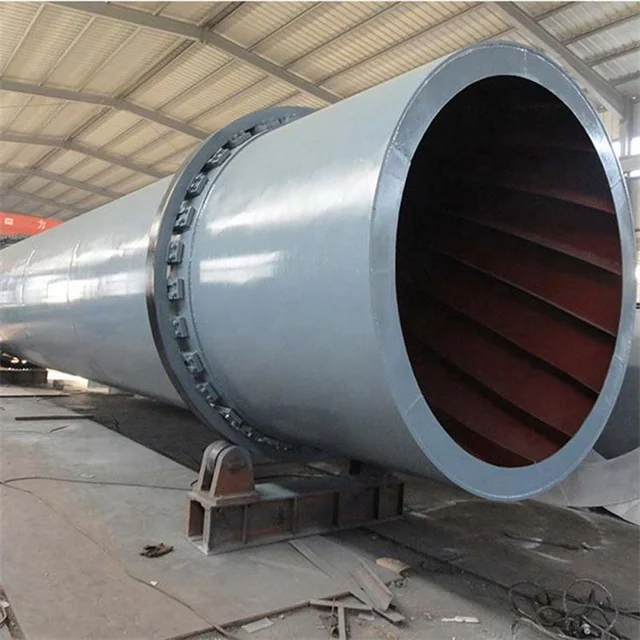

The Rotary Drier is widely used in the field of building materials, metallurgies, the chemical industry, cement, and so on. It can dry slag, coal powder, mining powder, clay, sand, limestone, and so on. It is made of a rotary body, lifting blade, driving device, supporting device, etc. The dryer has the advantages of reasonable structure, high efficiency, low energy consumption, and convenience for transportation.

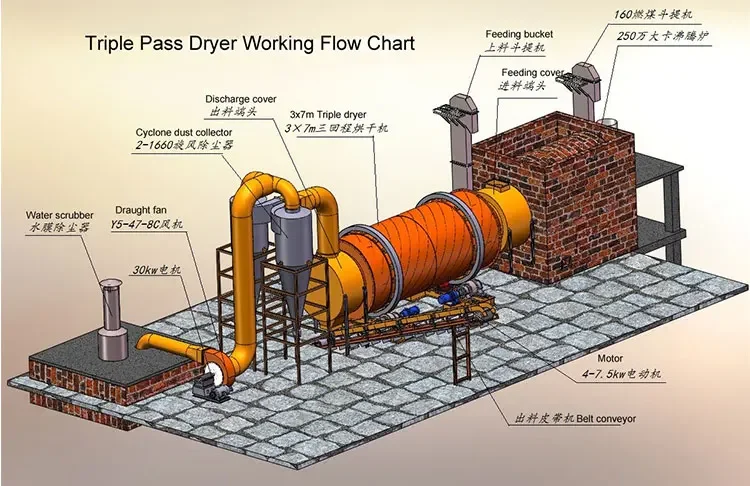

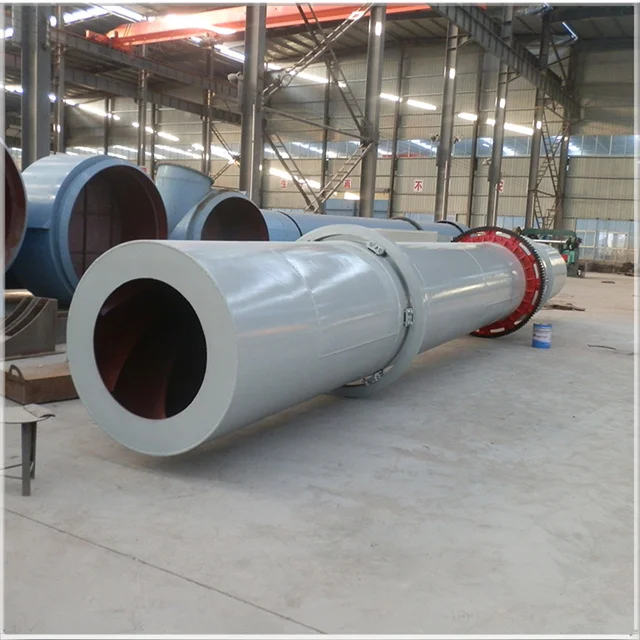

Three-cylinder rotary dryer is mainly applied for stoving slag, sand, coal, fly ash, iron powder, ore, quartz sand, and other particle materials. It has the following characteristics:
1. The cylinder protects itself, and thermal efficiency can be up to 95%. The whole length of the dryer was reduced to 50% approximately than mono-cylinder and reduced land investment to 50% approximately
2. Cylinder adopts heat-resistant and wear-resistant steel plate welding with long service life and easy maintenance. High thermal efficiency, the temperature of the outer cylinder is 60or below(the temperature of the outer mono-cylinder is high to 150°C)
3. Low temperature of outlet, long service of dust removal machine. It also can be directly connected to the air box pulse bag filter.
4. Without gear and pinion drive, but with wheel rotation applied, level operation of the complete machine makes the system simple and reasonable.
5. An air heater could match a boiling furnace or an oil furnace can also be applied, which can dry materials with sizes below 20mm.
6. The final moisture index can be adjusted according to the requirements of customers.
1. The cylinder protects itself, and thermal efficiency can be up to 95%. The whole length of the dryer was reduced to 50% approximately than mono-cylinder and reduced land investment to 50% approximately
2. Cylinder adopts heat-resistant and wear-resistant steel plate welding with long service life and easy maintenance. High thermal efficiency, the temperature of the outer cylinder is 60or below(the temperature of the outer mono-cylinder is high to 150°C)
3. Low temperature of outlet, long service of dust removal machine. It also can be directly connected to the air box pulse bag filter.
4. Without gear and pinion drive, but with wheel rotation applied, level operation of the complete machine makes the system simple and reasonable.
5. An air heater could match a boiling furnace or an oil furnace can also be applied, which can dry materials with sizes below 20mm.
6. The final moisture index can be adjusted according to the requirements of customers.
