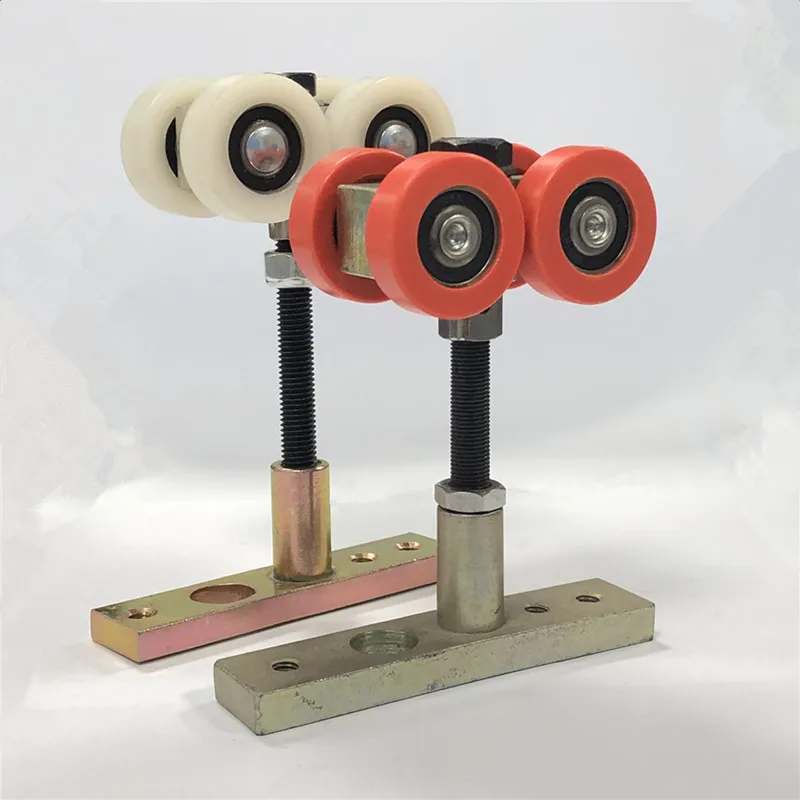

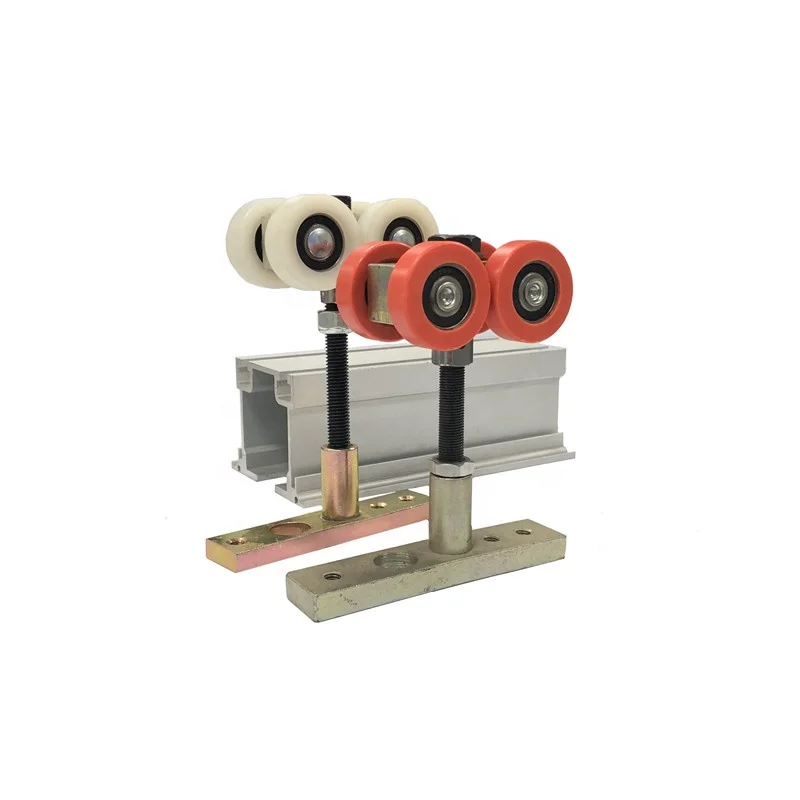

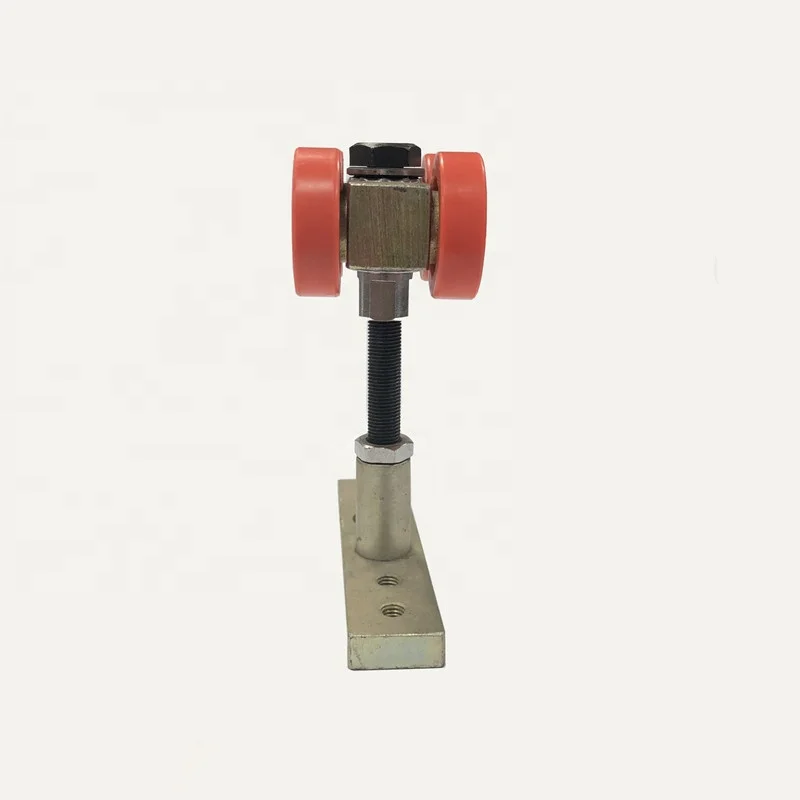

Movable Partition Wall Component Aluminium Profile Accessories Bearing Pulley Sliding Partitions Roller Hanging Roller
- Category: >>>
- Supplier: Guangdong Bunge Building Material Industrial Co. Ltd.
Share on (1601058439705):
Product Overview
Description

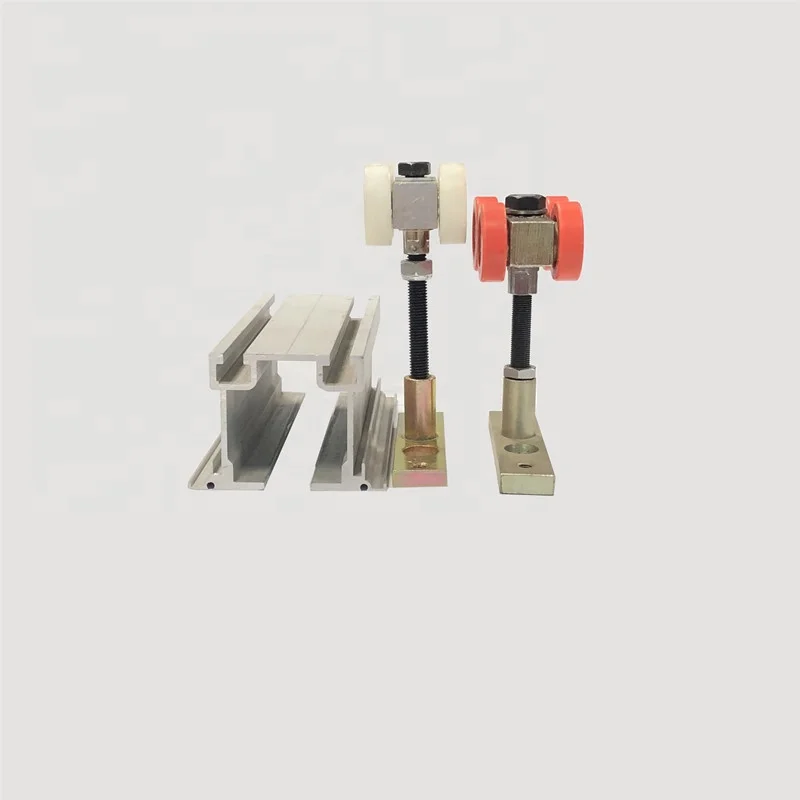

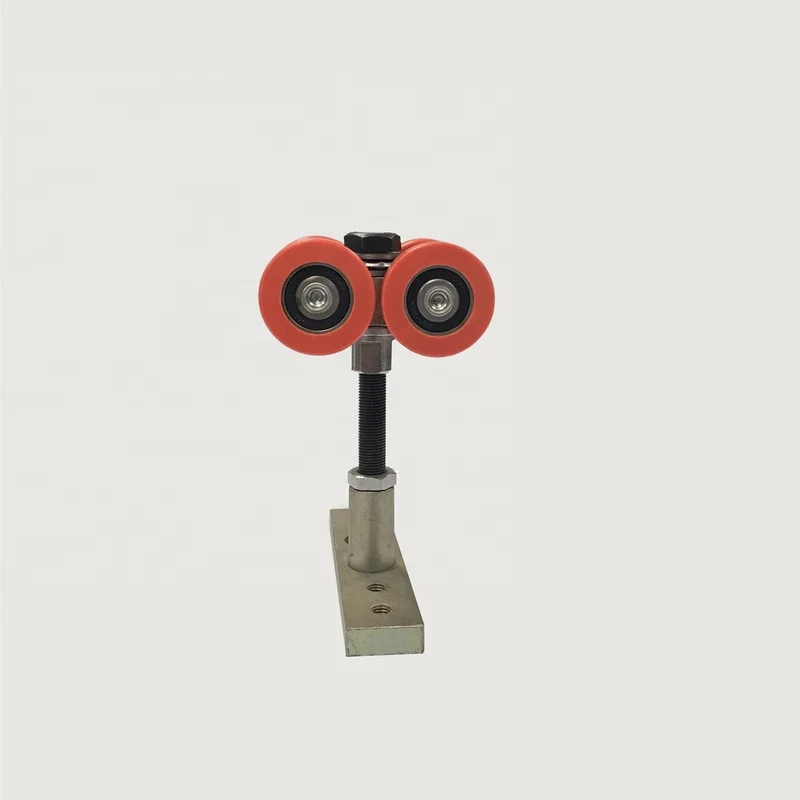

Hanging Roller Movable Partition Wall Track Sliding Partition Aluminium Profile Accessories
Specification
 | Features 1) 6063-T5 national standard aluminium profile. 2) 95% pure 3)The aluminium track is thermal-barrier strip. 4)Lengths: 3-6meters ,also as customer require 5)Recycle material, it in favor of protect environment. 6)Flexible size and shape. 7)Top hanging system without the need for a floor track. |
Sliding Partition Wall Feature
Our movable and operable partition system accessories are custom for each client and project,and they are also made of superior material.Track system for right-angled configurations with cross- roller carriers for element weights up to 500 kg. Support rollers in the junctions guarantee easy operation when sliding the elements across intersections.
Click here to send an inquiry!
Accessories Specification
Operation:Partitions shall be top supported, manually operated panels stacked in an area nominated in the plans. When closed, the operable wall shall provide a complete sound retardant barrier. No floor track shall be used.

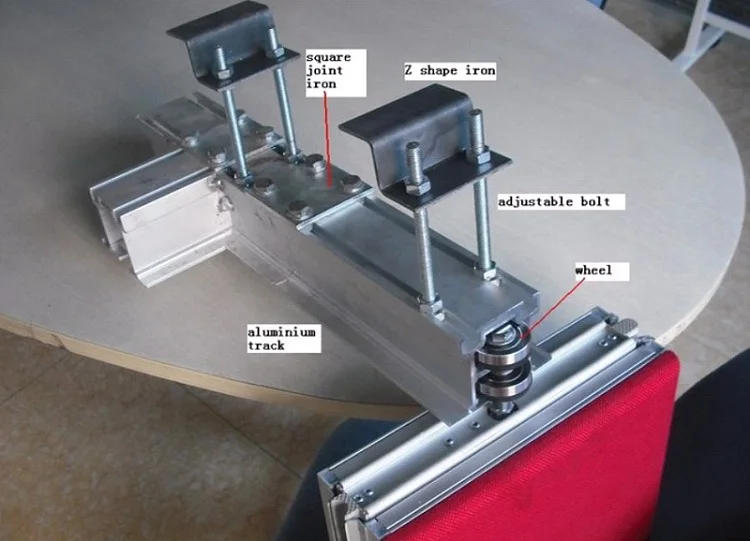

Track: The tracks are made from extruded 6063 - T5 anodized aluminium. The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead by drop rod brackets. Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track.
Aluminium trim: The panel trims will be standard series with exposed Aluminium trims of 10mm thickness finished in 6063 - T5 Anodized Aluminium shall be used.
Panels:The Panels will be made from 12mm MDF boards and shall be 100mm thick and 1230mm maximum width, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminium frames with interlocking corner construction .The panel faces shall be finished with selected material.
Seals: vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system.Retractable seal drop will be 23mm.
Technical informatio
Item | Aluminium profile |
Material | Alloy:6063-T5 |
Brand Name | BUNGE |
Thickness | General profiles thickness:0.8-5.0mm |
Anodizing film thickness: over 13 μm; | |
Length | General length: 3m-6m |
Shape | Square,flat,round,hollow,oval,triangle,U-profiles,L-profiles,T-profiles,H-profiles,irregular,or customized available |
Surface Treatment | Mill,anodized,powder coated,wood grain,PVDF paint,crystal paint, sand blasting,polishing,burnished, mat, brushed |
Color | Silver,bronze,black,champagne,gold,black,white,bronze, iron gray,platinum,green,etc. or customized |
Application | Windows and doors, thermal insulation windows, curtain wall,curtain track,furniture,ceiling,kitchen, |
Deep Process | CNC:drilling,milling,tapping,cutting,welding,bending,assembling |
MOQ | 500kgs for each item |
Production Capacity | Approx.3000 tons monthly,approx.50,000 tons annually |
Standard Packing | Inside:packed with plastic film to protect each piece |
Outside:Wrap to be bundles by waterproof craft paper or EPE film | |
Customized request available | |
Lead time | Mould developing &Sample testing: 12-15 days after receiving the full of mounds cost |
Mass Production:15-20days after sample confirmed & down payment | |
FOB Port | Guangzhou |
Payment Terms | T/T or Paypal 30% for deposit,balance before delivery |
Settlement Terms | Charge by final actual weight or drawing theoretical weight |
Accessories

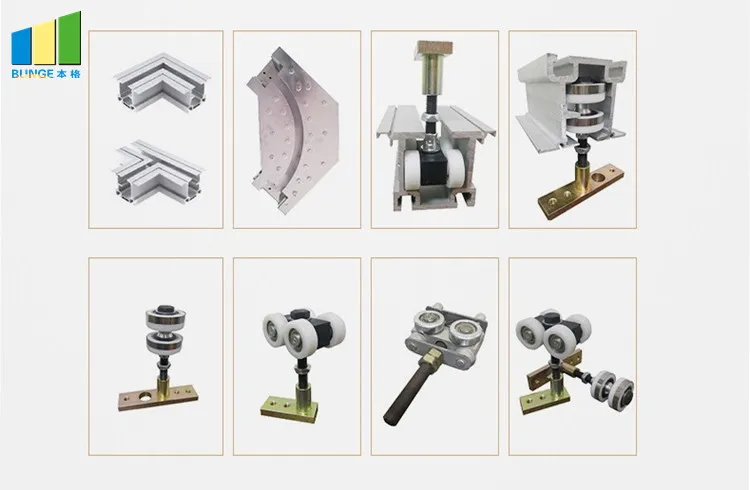

We can also provide sliding aluminium profile samples for client.Such as sliding aluminium track,roller,connector,aluminium frame,top and bottom seal rubber,retractable mechanism and etc.
Click here to send an inquiry!
Related products
Click here to send an inquiry!

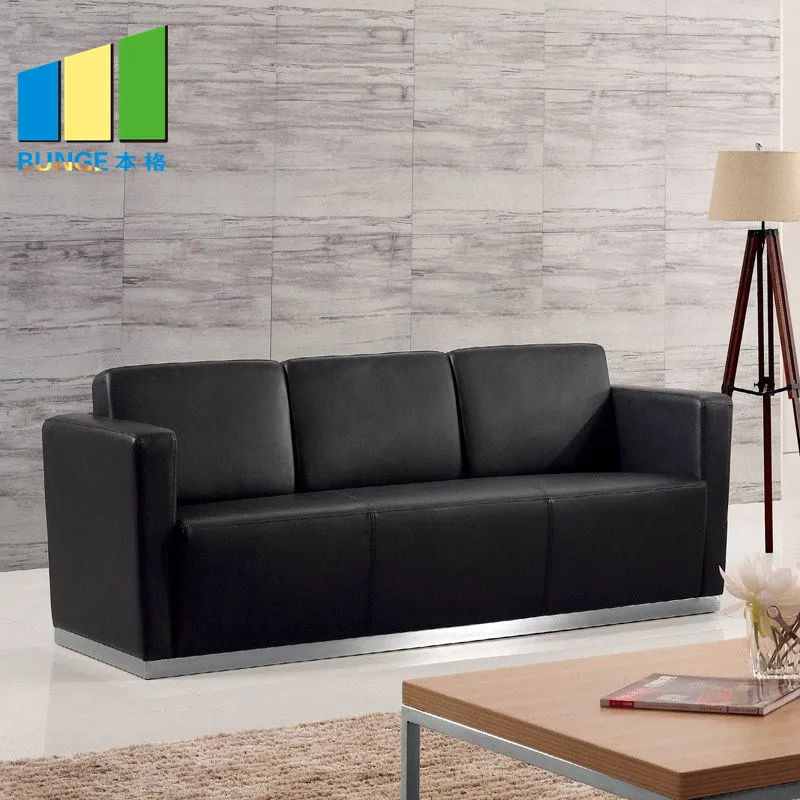

Wooden Office Sofa Furniture Office Sofa Chair for Conference Room |

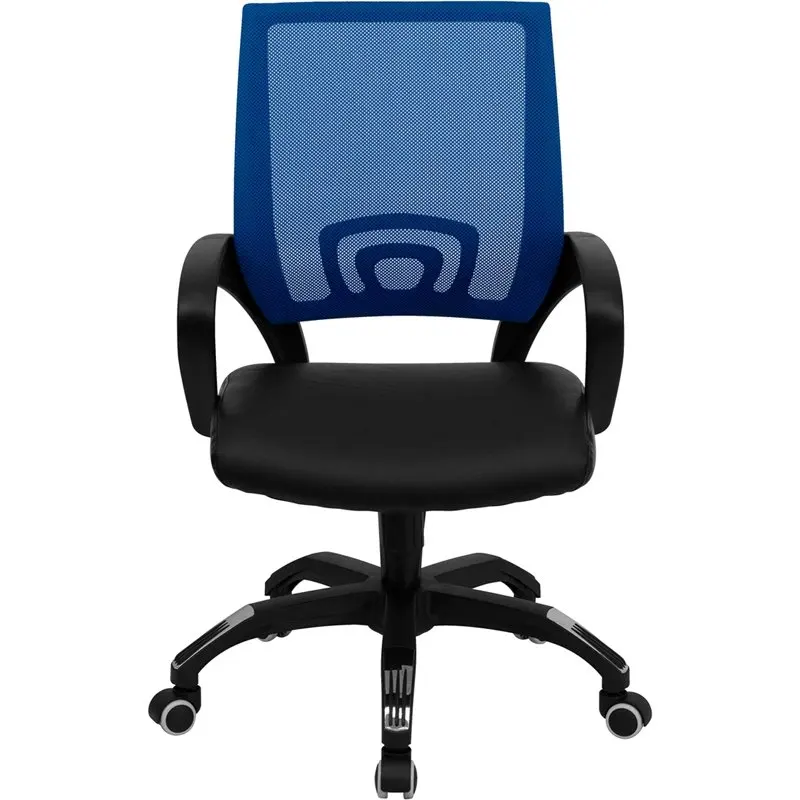

Office Furniture Office Chair Metal Frame Comfortable Office Mesh Chair Executive |

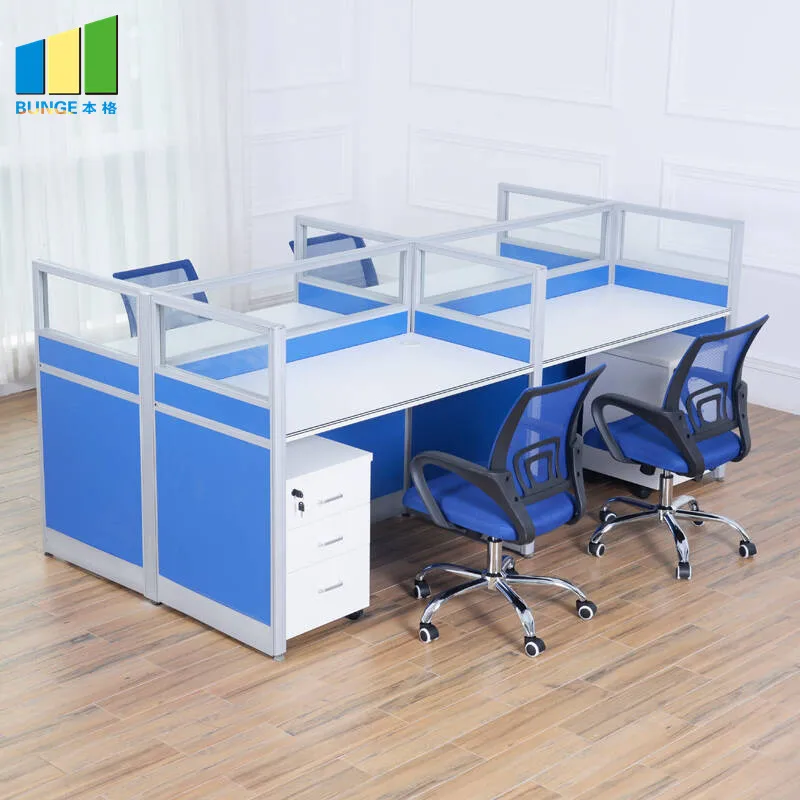

Commercial Funiture 4 Seater Conference Table Office Cubicles Workstation |
Acoustic Soundproof Movable Dividers Office Partition Wall Material |

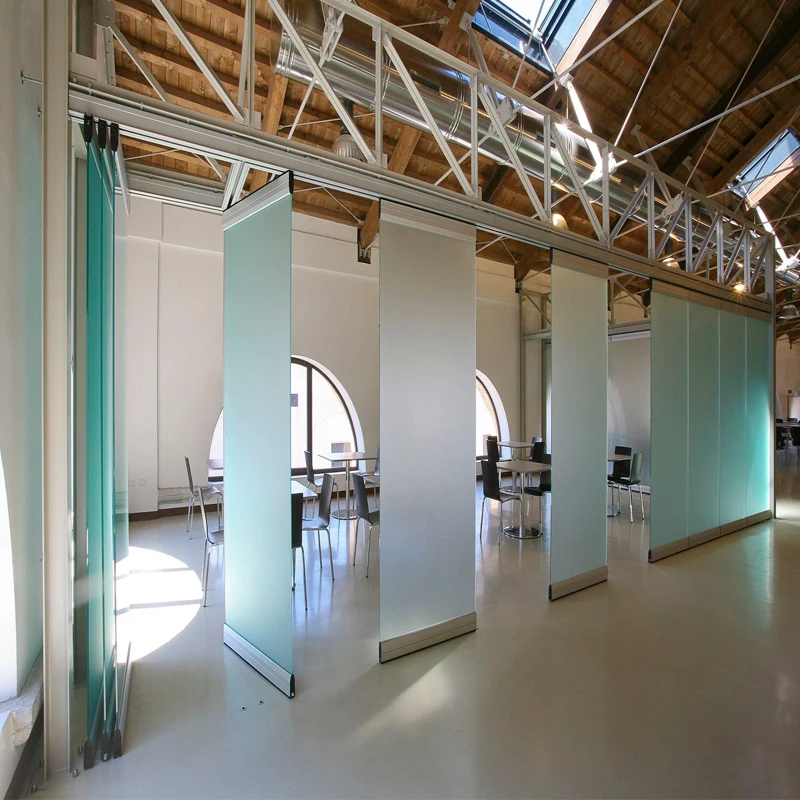

Spotless Room Dividers Aluminium Frame Sliding Glass Office Partition Walls |
Mesh Office Chair Painting Glass Modern Wooden Office Reception Desk |

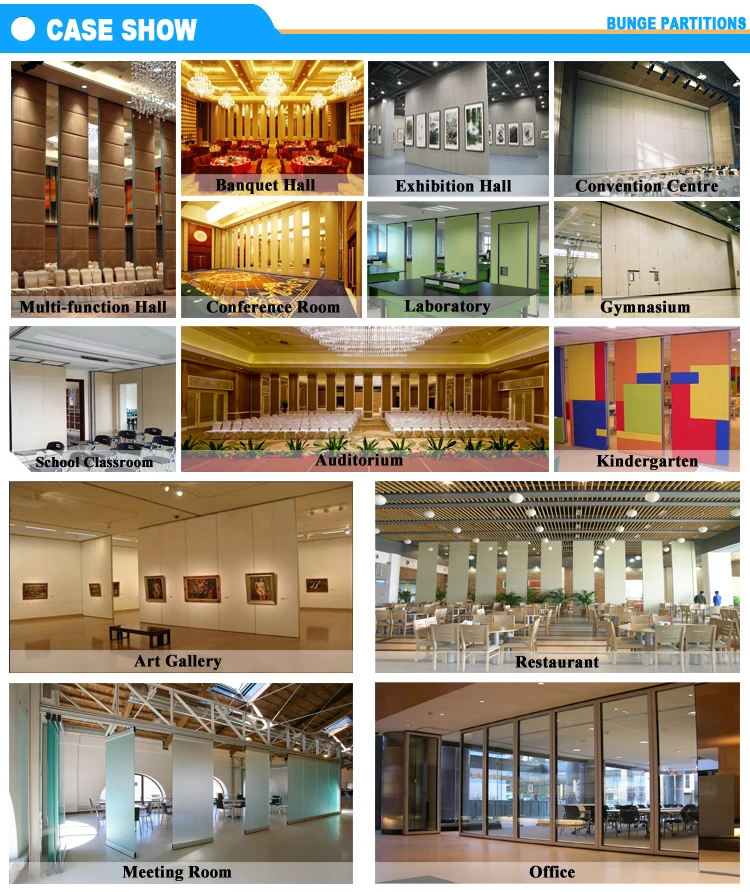

Case show
Click here to send an inquiry!
We Offer:
A full professional design service.
Survey and installation guide.
Using top quality materials and components.
A fully experienced work team.
Maintenance contracts to ensure your valuable asset remains in full work order.

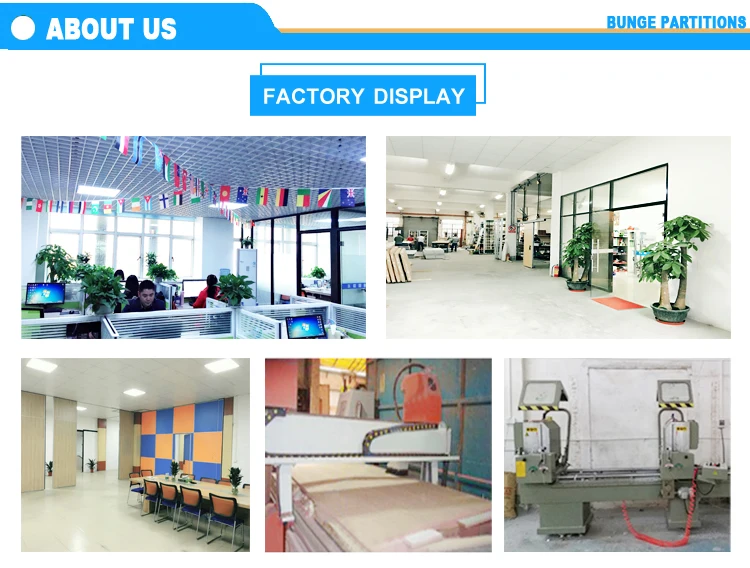

About us
