Industrial Chiller CW 5000 For CO2 Glass Laser Tube
- Category: >>>
- Supplier: Xuzhou Vank Cnc Machinery Co. Ltd.
Share on (1601058459482):
Product Overview
Description
Product Description

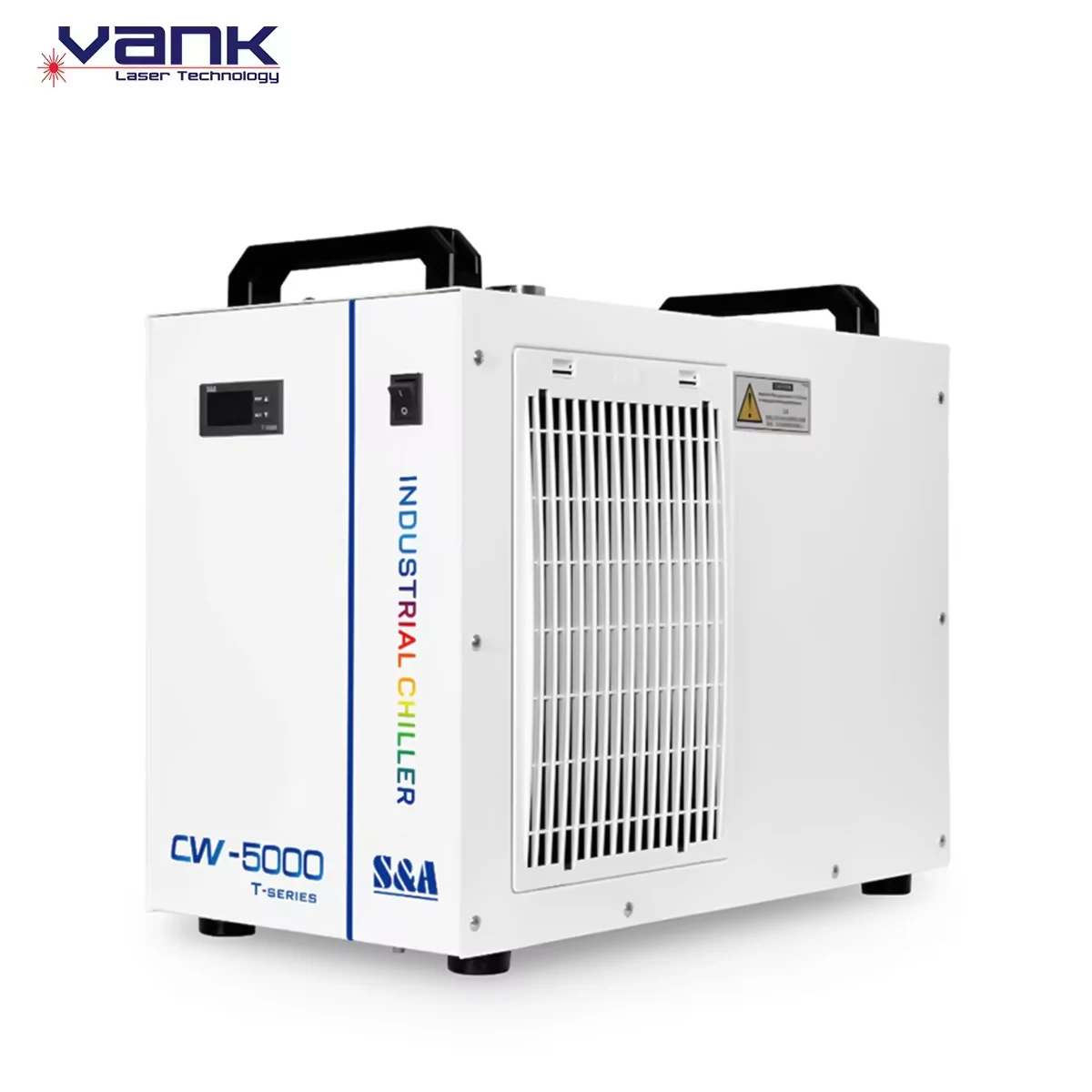

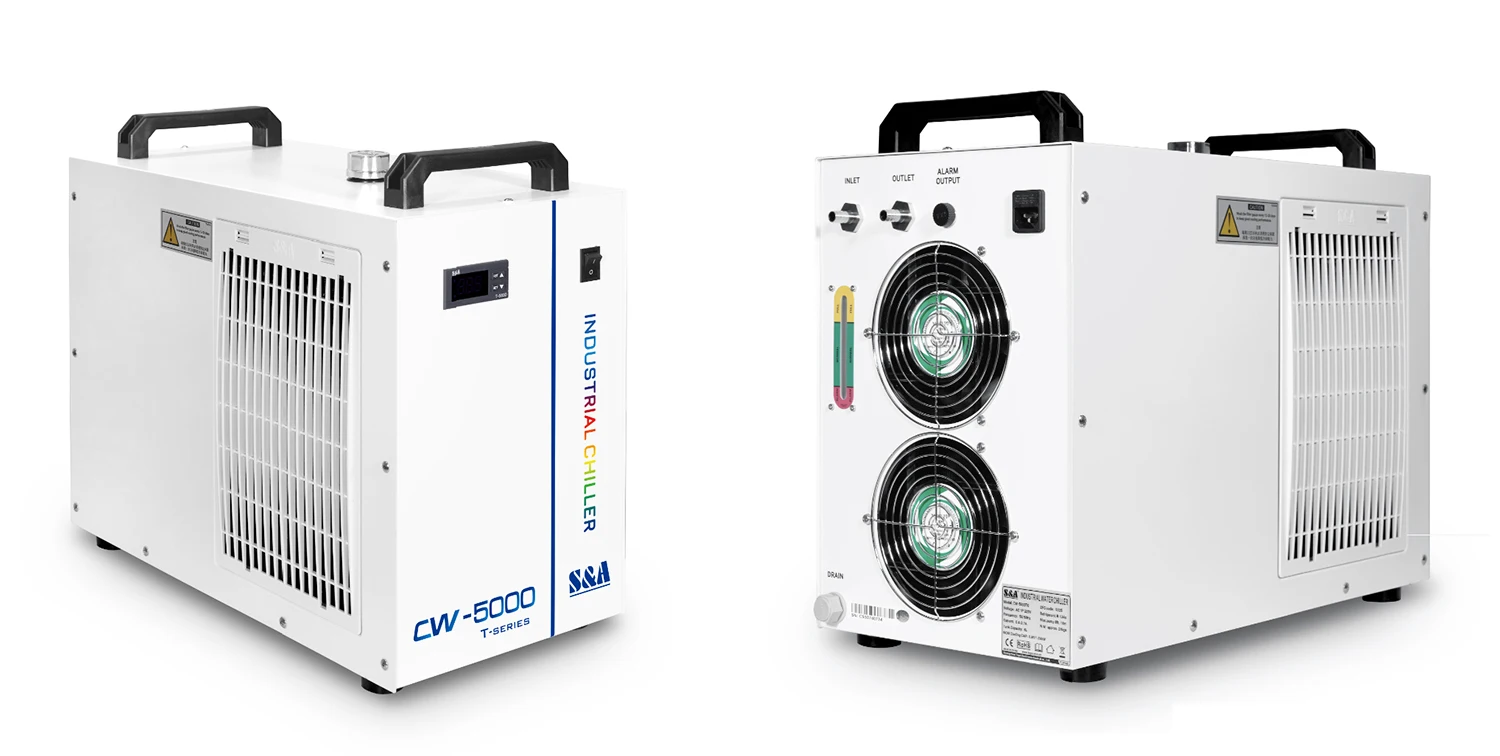

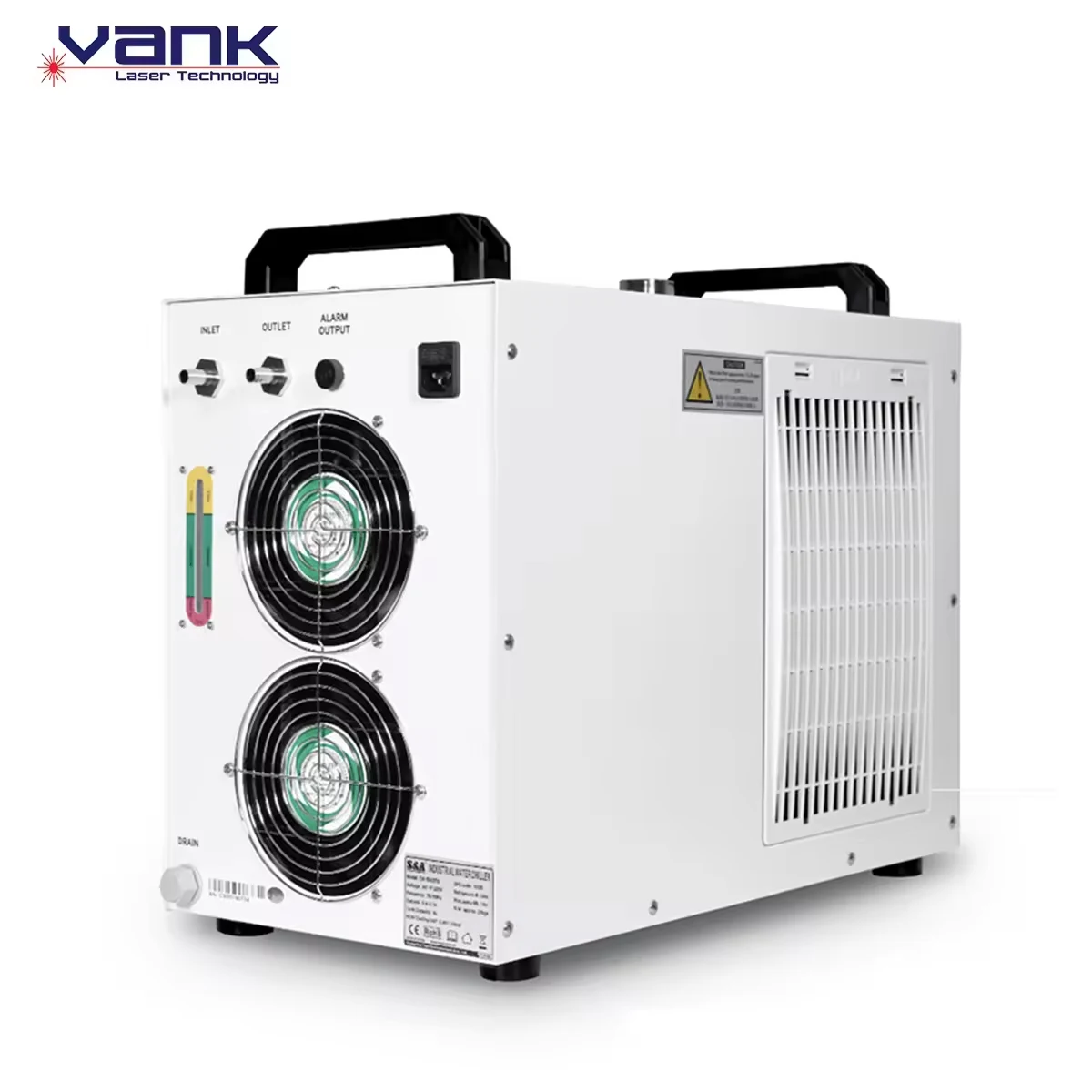

Industrial Chiller CW-5000 for CO2 Glass Laser Tube
With S&A industrial chiller cw 5000, your CO2 glass laser tube can be perfectly cooled. Up to 120W DC laser tube, this small water chiller is capable of providing superior cooling. It features high control accuracy of ±0.3°C with cooling capacity up to 1080W.
Having a small footprint, CW5000 chiller takes up less floor space for CO2 laser engraving cutting machine users and it has multiple choices of water pumps and optional 220V or 110V powers. Designed with intelligent temperature control function, this portable water chiller unit can keep your CO2 laser tube at a water temperature you preset, automatically adjusting the temperature for you to avoid the occurrence of condensate water.
Having a small footprint, CW5000 chiller takes up less floor space for CO2 laser engraving cutting machine users and it has multiple choices of water pumps and optional 220V or 110V powers. Designed with intelligent temperature control function, this portable water chiller unit can keep your CO2 laser tube at a water temperature you preset, automatically adjusting the temperature for you to avoid the occurrence of condensate water.
Product details
Intelligent temperature controller
The temperature controller offers high precision temperature control of ±1°C and two user-adjustable temperature control modes - constant temperature mode and intelligent control mode.
Easy-to-read water level indicator
The water level indicator has 3 color areas - yellow, green and red.
Yellow area - high water level.
Green area - normal water level.
Red area - low water level.
Yellow area - high water level.
Green area - normal water level.
Red area - low water level.
Four caster wheels offer easy mobility and unmatched flexibility.
Product Features
* Cooling Capacity: 1080W
* Active cooling
* Temperature stability: ±0.3°C
* Temperature control range: 5°C ~35°C
* Refrigerant: R-134a
* Compact, portable design and quiet operation
* High efficiency compressor
* Top mounted water fill port
* Integrated alarm functions
* Low maintenance and high reliability
* 50Hz/60Hz dual-frequency compatible available
* Optional dual water inlet & outlet
* Cooling Capacity: 1080W
* Active cooling
* Temperature stability: ±0.3°C
* Temperature control range: 5°C ~35°C
* Refrigerant: R-134a
* Compact, portable design and quiet operation
* High efficiency compressor
* Top mounted water fill port
* Integrated alarm functions
* Low maintenance and high reliability
* 50Hz/60Hz dual-frequency compatible available
* Optional dual water inlet & outlet

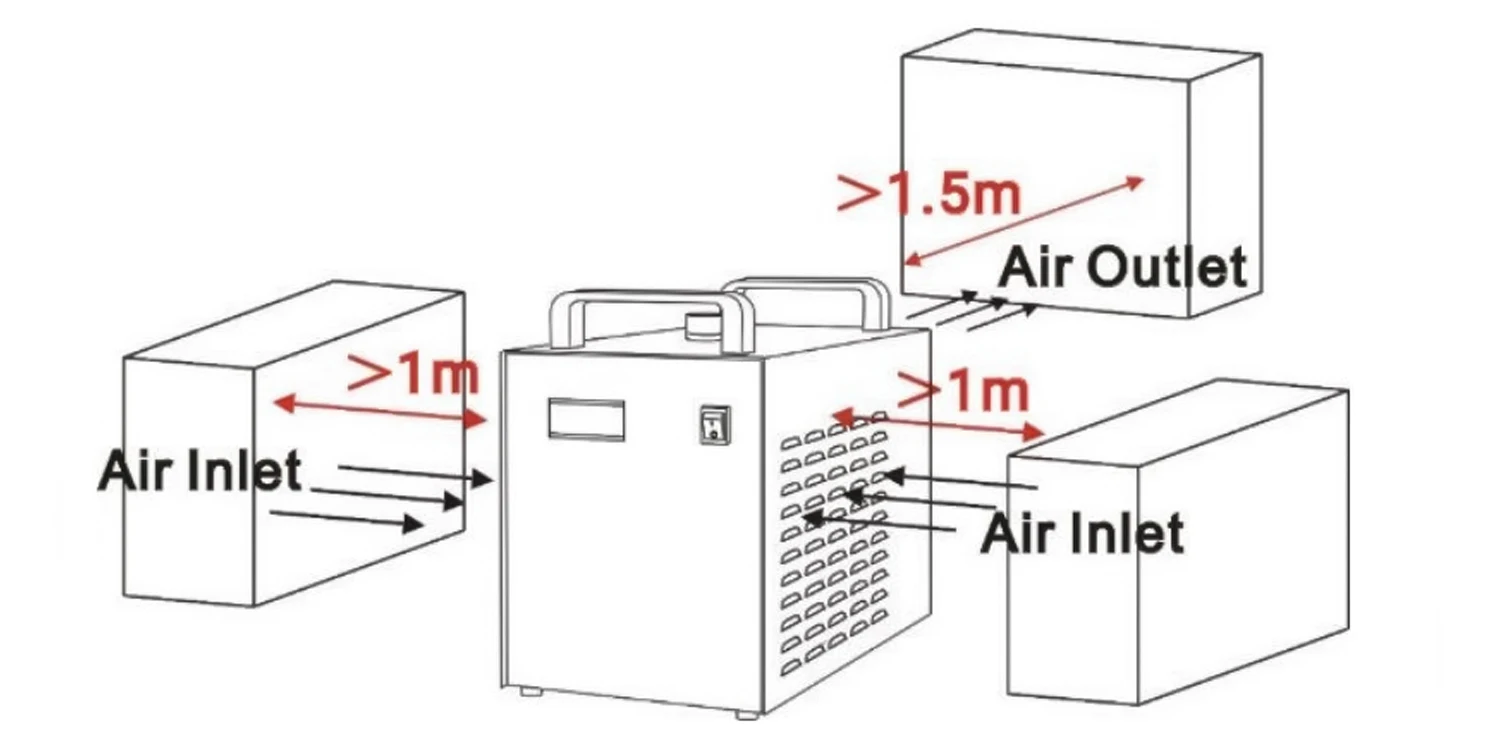

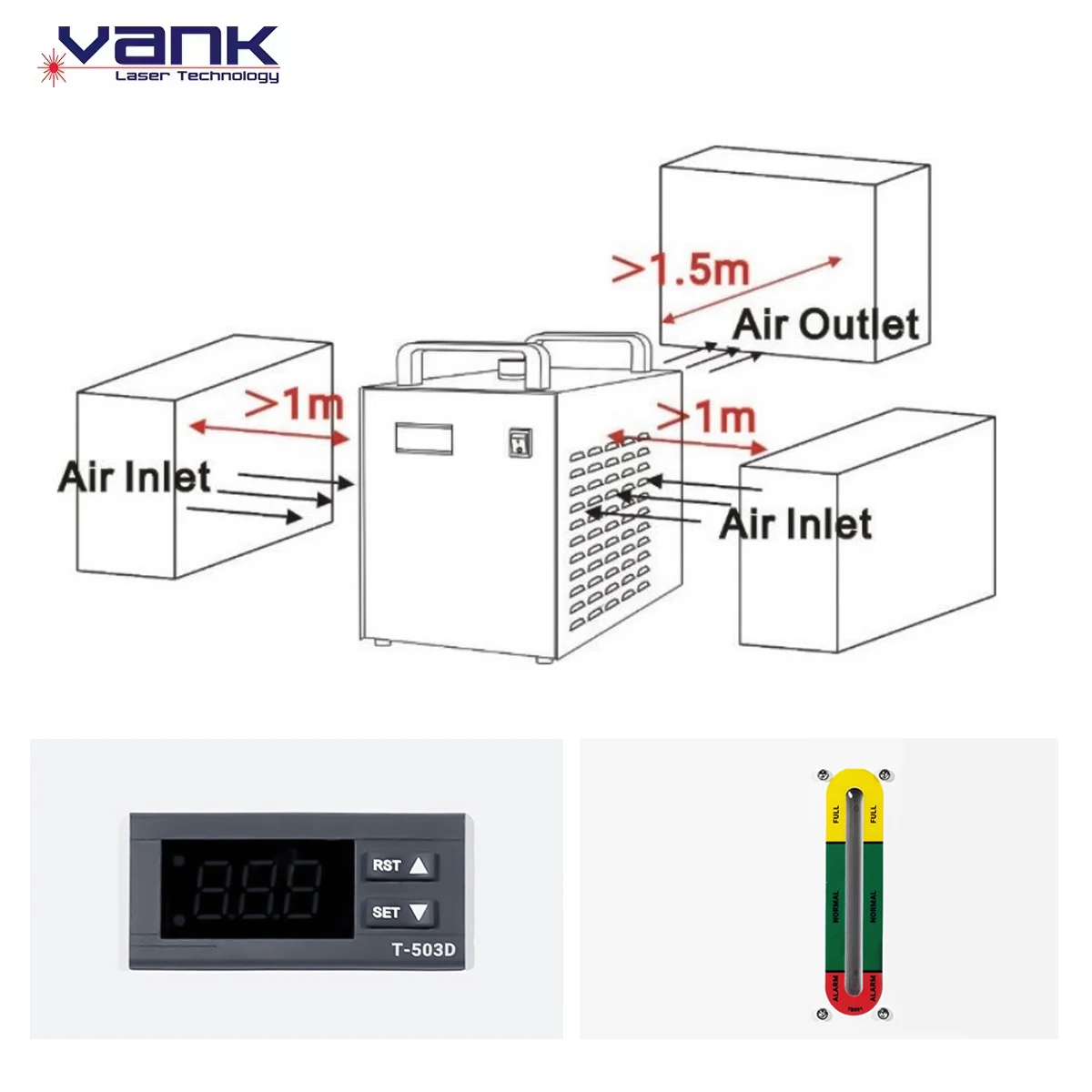

Ventilation Distance

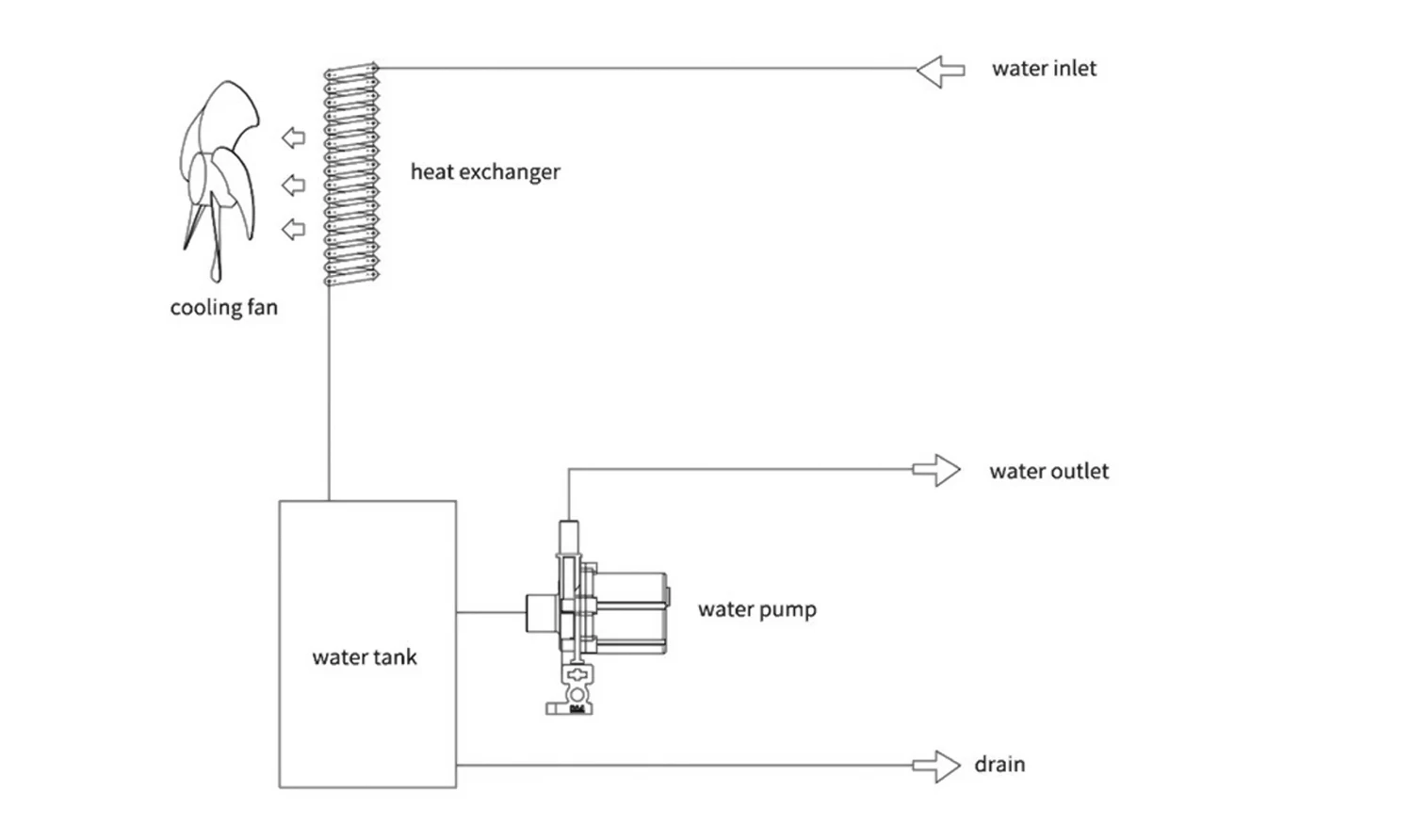

Product Working Principle
Product parameters
Model | CW-5000TG | CW-5000DG | CW-5000TI | CW-5000DI | |||
Voltage | AC 1P 220~240V | AC 1P 110V | AC 1P 220~240V | AC 1P 110V | |||
Frequency | 50/60Hz | 60Hz | 50/60Hz | 60Hz | |||
Current | 0.4~2.7A | 0.4~5.18A | 0.6~2.9A | 0.6-5.38A | |||
Max. power consumption | 0.45/0.47kW | 0.49kW | 0.5/0.51kW | 0.51kW | |||
Compressor power | 0.37/0.39kW | 0.38kW | 0.37/0.39kW | 0.38kW | |||
0.5/0.53HP | 0.51HP | 0.5/0.53HP | 0.51HP | ||||
Nominal cooling capacity | 3037/3686Btu/h | 3514Btu/h | 3037/3686Btu/h | 3514Btu/h | |||
0.89/1.08kW | 1.03kW | 0.89/1.08kW | 1.03kW | ||||
765/928Kcal/h | 885Kcal/h | 765/928Kcal/h | 885Kcal/h | ||||
Pump power | 0.03kW | 0.09kW | |||||
Max. pump pressure | 10M | 25M | |||||
Max. pump flow | 10L/min | 15L/min | |||||
Refrigerant | R-134a | ||||||
Precision | ±0.3℃ | ||||||
Reducer | Capillary | ||||||
Tank capacity | 6L | ||||||
Inlet and outlet | OD 10mm Barbed connector | 10mm Fast connector | |||||
N.W. | 20Kg | 21Kg | 24Kg | 23Kg | |||
G.W. | 23Kg | 24Kg | 27Kg | 26Kg | |||
Dimension | 58X29X47cm (L X W X H) | ||||||
