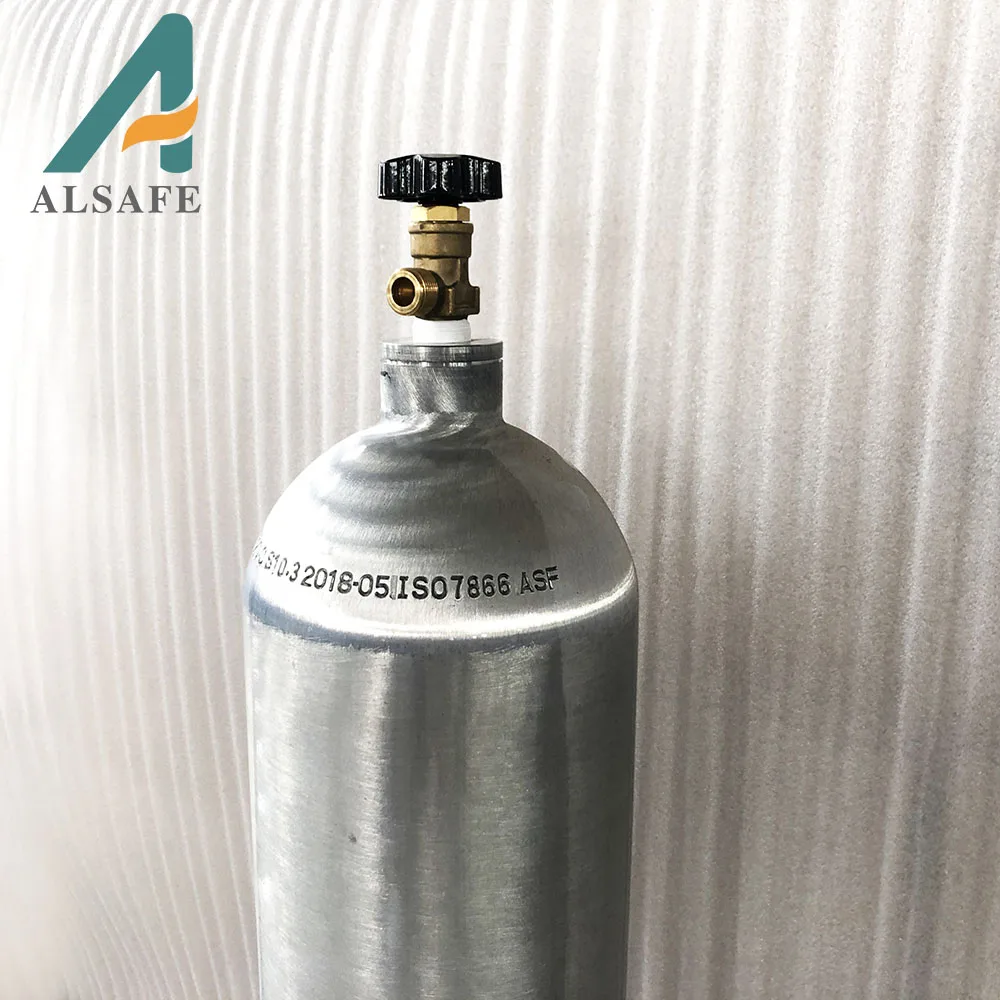

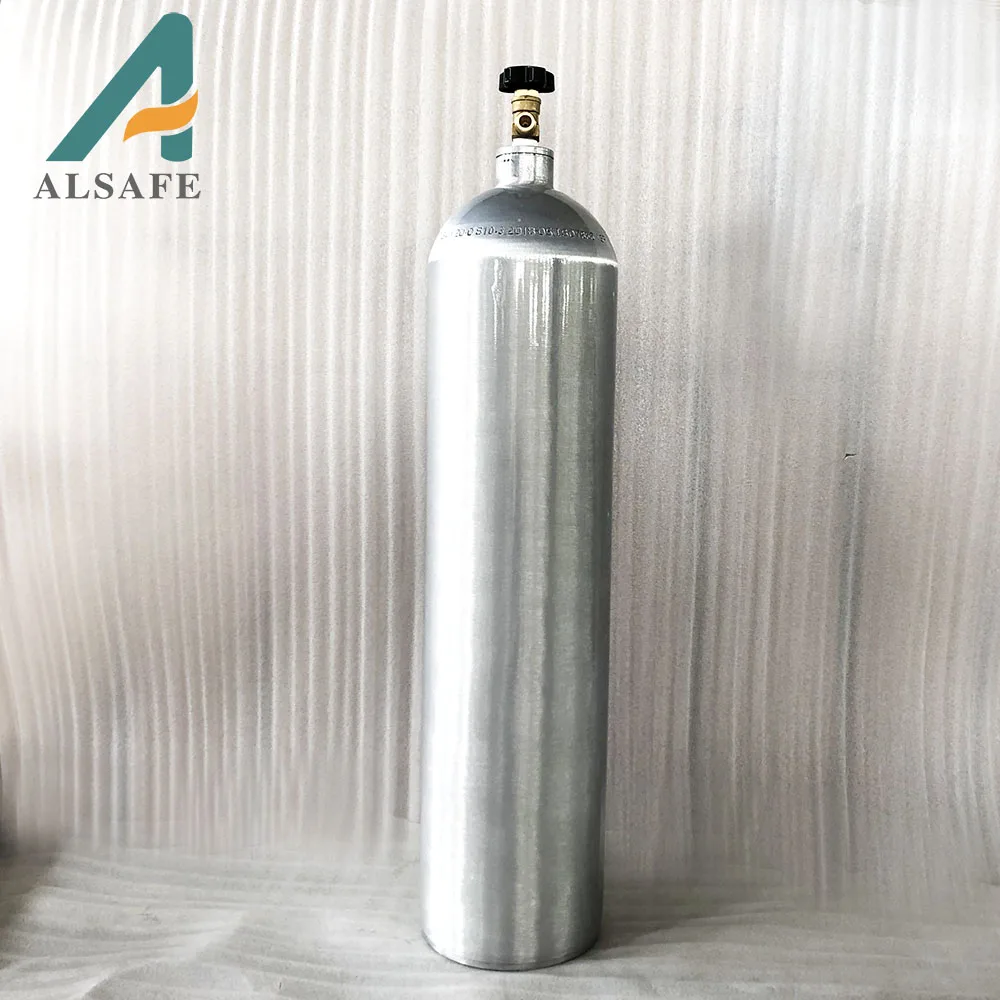

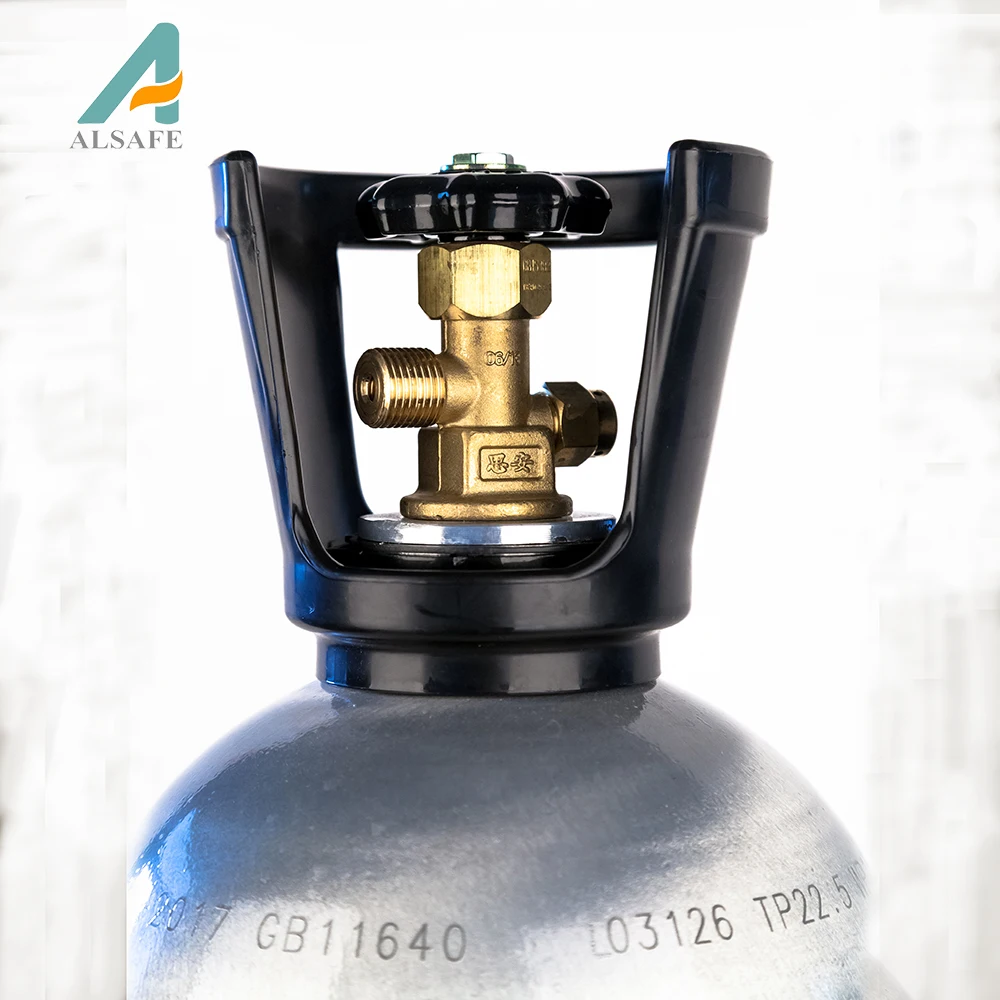

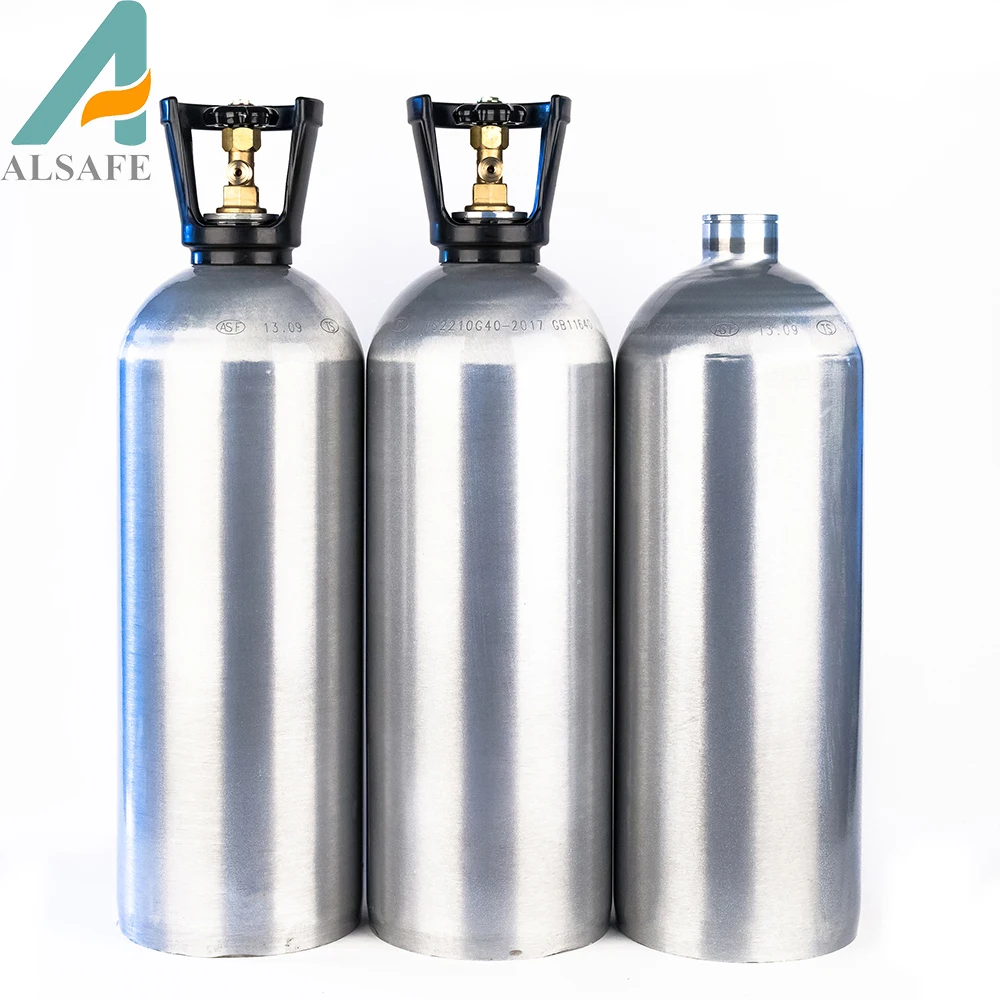

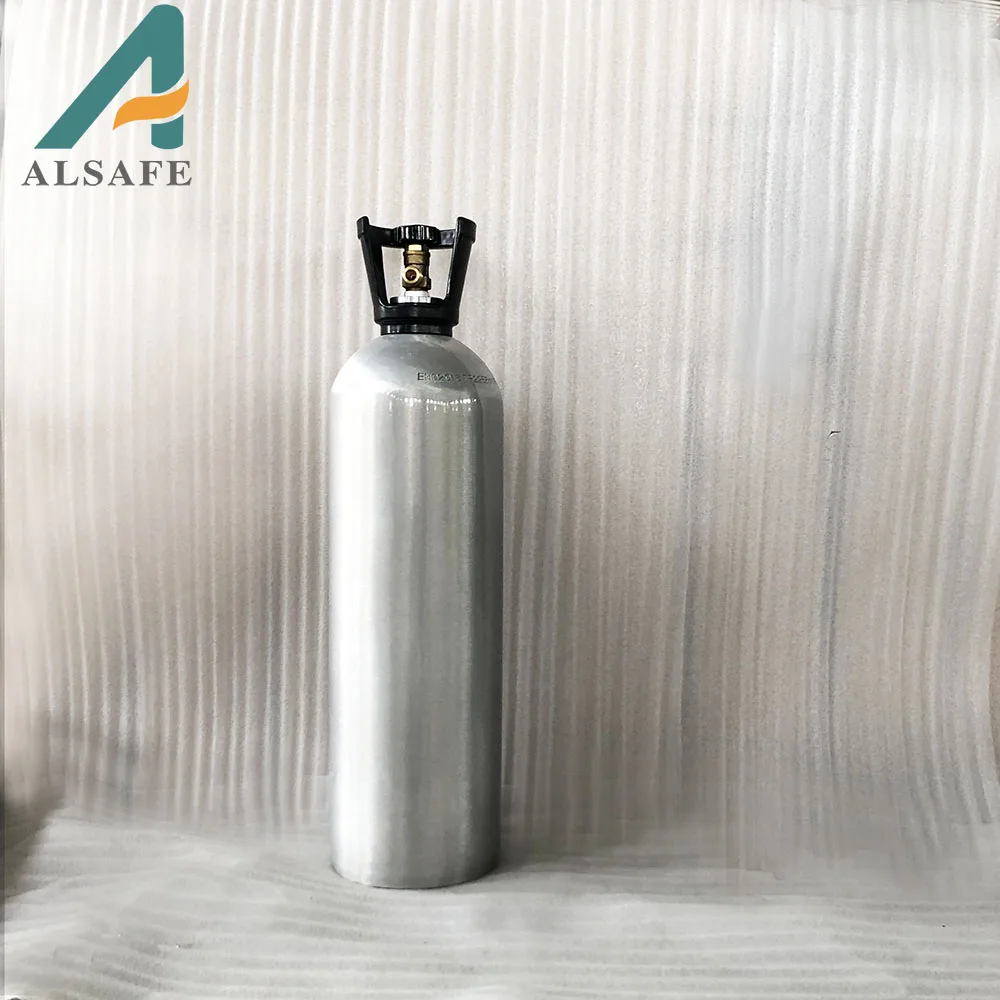

Alsafe Competitive Hot Product oxygen Gas Cylinder 15l 20l Aluminum Seamless Co2 Cylinder With Handle Co2 Tank

Product Overview

Description

Product Name:air cylinder  carbon fiber air cylinder composite gas cylinder    Manufacturer: Liaoning Alsafe Technology Co., Ltd.   Standard: ISO11119, DOT CFFC, EN12245 or GB28053   Certificate: CE, TS   Third party Inspectors: TUV, CSEI, SGS   Filling content: Air, O2   Color: As shown in the picture or custom.   Thread: M18×1.5 or custom.   Form A, Form E available.   Ideal choice of composite gas cylinder.   Features:   · Seamless aluminum ally 6061 liner wound with high strength Japan-imported carbon fiber and glass fiber reinforced plastic full composite layers and subjected to an autofrettage pressure. The high strength and safety-assured construction provides up to 300bar service pressure, which enlarges gas storage capacity to 1.5~2 times than that of aluminum or steel cylinders;   · Extremely Light weight, up to 60%-70% lighter than steel cylinders and 30-40% lighter than aluminum cylinders;   · No magnetism;   · High corrosion resist and special inner surface treatment, ensure storage gas clean and smelless;   ·  Stable performance;   · The specifications of carbon fiber composite cylinders behind covers a wide range of applications such as Self-contained breathing apparatus (SCBA), paintball , home oxygen therapy, aircraft oxygen, ELSA escape sets, and other applications that require lighter weight, stronger corrosion-resistance inner surface, and higher gas storage capacity.;   · Choice of worldwide top brands and enterprises.





                                                   Composite gas cylinders being wrapped with carbon fiber





      Composite gas cylinders in the heating furnace             Composite gas cylinders waiting for packing









Specification	Outside Diameter	Water Volume	Length	Weight	Working Pressure
CRPIII-106-1.6-20-T	115mm	1.6L	270mm	1.6kg	200bar
CRPIII-120-2.4-20-T	128mm	2.4L	302mm	1.8kg	200bar
CRPIII-120-2.5-20-T	128mm	2.5L	312mm	1.9kg	200bar
CRPIII-124-2.7-20-T	132mm	2.7L	310mm	1.9kg	200bar
CRPIII-145-6.8-30-T	157mm	6.8L	528mm	4.1kg	300bar
CRPIII-161-9.0-30-T	174mm	9.0L	560mm	5.2kg	300bar



Note: The specifications above are popularly used in Oxygen breathing apparatus and Self-contained breathing apparatus. However, if you need other size or specifications, please contact us directly. We would be happy to discuss your further requirements.

 composite gas cylinder | composite gas cylinder | composite gas cylinder | composite gas cylinder | composite gas cylinder | composite gas cylinder | composite gas cylinder | composite gas cylinder | composite gas cylinder | composite gas cylinder







 gas cylinder | composite gas cylinder | gas cylinder | composite gas cylinder | gas cylinder | composite gas cylinder | gas cylinder | composite gas cylinder | gas cylinder | composite gas cylinder | gas cylinder | composite gas cylinder





Quality & safety



1. Liaoning Alsafe Technology Co., Ltd. has esteablished the quality guarantee system according to the Requirements for Boiler and Pressure Vessel Manufacturing Licencsing of China and abtained the certificate issued by General Administration of Quality Supervision, Inspection and Quarantine of the P.R.C (AQSIQ), qualified to manufacture B1 and B3 grade pressure vessels.



2. Each new type of cylinders before mass production has to pass type tests held in qualified laboratories approved by third party inspector (TUV, CSEI for example), including bend test, drop test, hydrostatic test, etc. according to relevant standards.



3. Every batch of cylinders (200 pieces as one batch normally) are manufactured and tested under supervision of local special equipment inspection and research institute and then issued batch test report.



4. Each finished cylinder before delivery to customers has to pass leakage test to ensure no leakage occurs.



5. Alsafe are honored to supply quality products to worldwide top brands and enterprises, and sets long term and stable cooperation due to quality products, friendly service and knowledgeable advice, which help us to gain good reputation among home and overseas customers.

   gas cylinder | composite gas cylinder | gas cylinder | composite gas cylinder | gas cylinder | composite gas cylinder | gas cylinder | composite gas cylinder | gas cylinder | composite gas cylinder | gas cylinder | composite gas cylinder





Valves and fittings are supplied together with cylinders if needed. We offer free assembling and free leakage testing to assure safety. QF-H30B is one of valves that we supply to our SCBA customers. If you need other types, please feel free to contact us.   Product name: High pressure valve for SCBA Type: QF-H30B Medium : Air Certificate: TSF, ISO9001 Nominal working pressure: 300bar DN mm: 3 Inlet thread: M18*1.5 Outlet thread:  G5/8mm ,M22*1.5 Pressure of Safty Device: 390~450bar



Note: we cooperate with qualified manufacturers and supply full set of Self-contained breathing apparatus, Oxygen breathing apparatus and Airline breathing apparatus since 2012. Since we are parts supplier (composite cylinders) and have strong cooperation with SCBA and OBA manufacturers, we can get a better price and service. If you are interested, please visit SCBA set, OBA set, and Airline BA or contact us directly for details.

 gas cylinder | composite gas cylinder | gas cylinder | composite gas cylinder | gas cylinder | composite gas cylinder | gas cylinder | composite gas cylinder | gas cylinder | composite gas cylinder | gas cylinder | composite gas cylinder







                                        Workshop 1                                                                                                       Workshop 2
