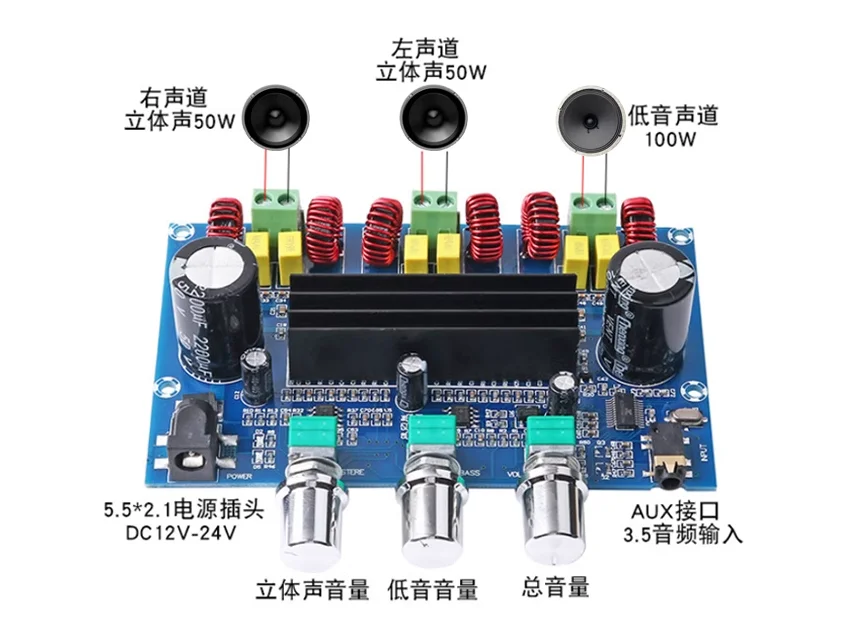

TPA3116D2 Bluetooth amplifier module 2.1 channel 100W 2*50W dual core chip digital amplifier board

Product Overview

Description

Product description:
2.1 channel Bluetooth 5.0 digital amplifier board TPA3116D2 audio amplification power, bass 100W+50W * 2

Product Name: Bluetooth Digital Amplifier Board
Input voltage: DC12-24V
Product model: 011287
Output power: 2 * 50W+100W
Chip type: Class D
Output impedance: 4-8 Ω
Chip model: TPA3116D2 * 2
Power efficiency: over 90%
Audio input: Bluetooth input · AUX

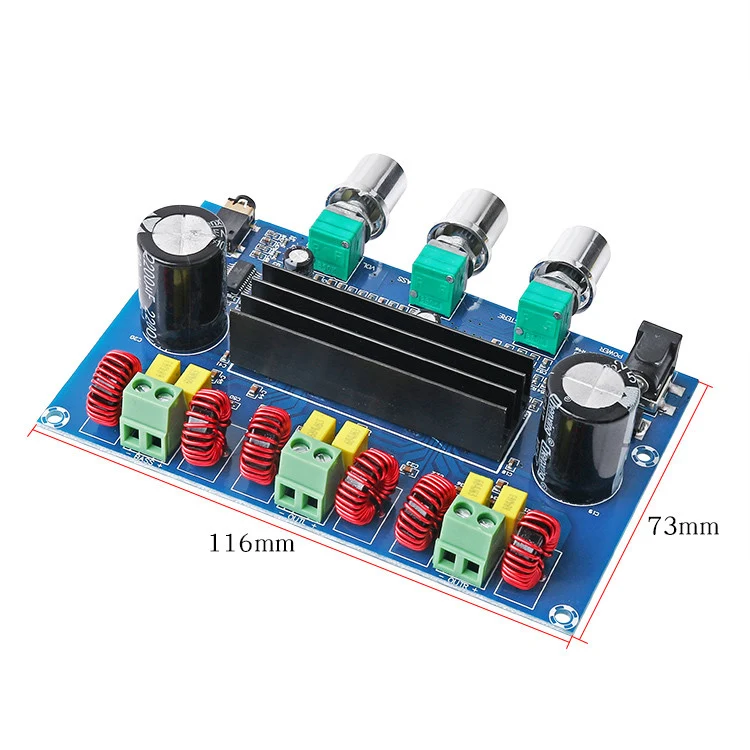

Product size: 116 * 73 * 30mm
Number of channels: 2.1 channels
Installation size: 110 * 45mm
Voltage interface: DC5.5 * 2.1
Installation aperture: 3mm
Standby current: around 60mA

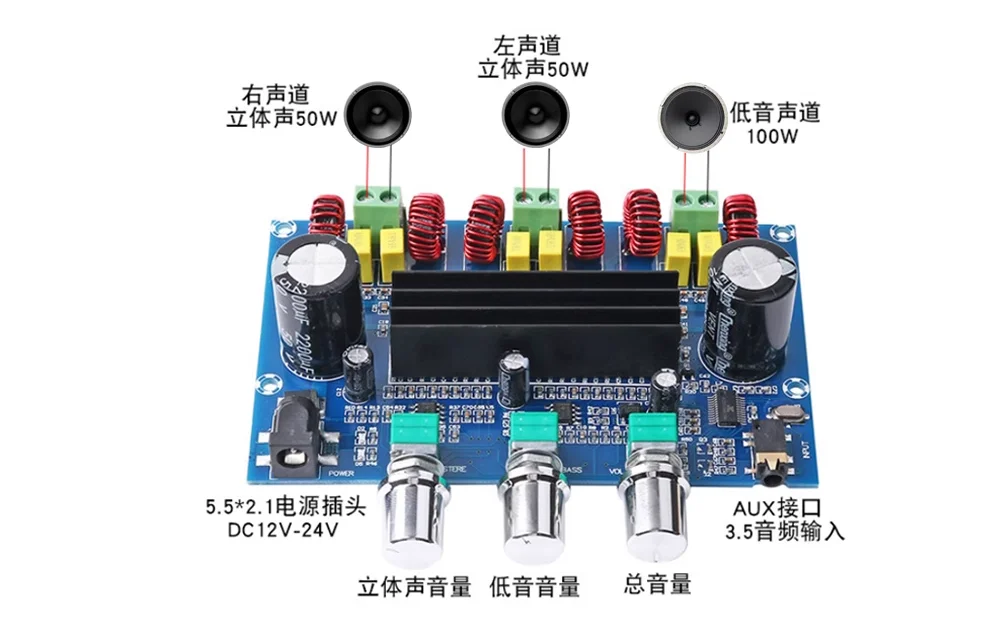

Product details:
The TPA3116D2 chip uses imported power amplifier chips and has a three-dimensional sound effect.
2. Equipped with dual channel output, output impedance of 4-8 Ω, and output power of 2 * 50W
3. Efficient radiator. On board heat sink with powerful heat dissipation function.
4. The potentiometer adjusts the volume and comes with a switch for easy volume control, making it very suitable for DIY speakers
