Product Overview
Description
Product Overview

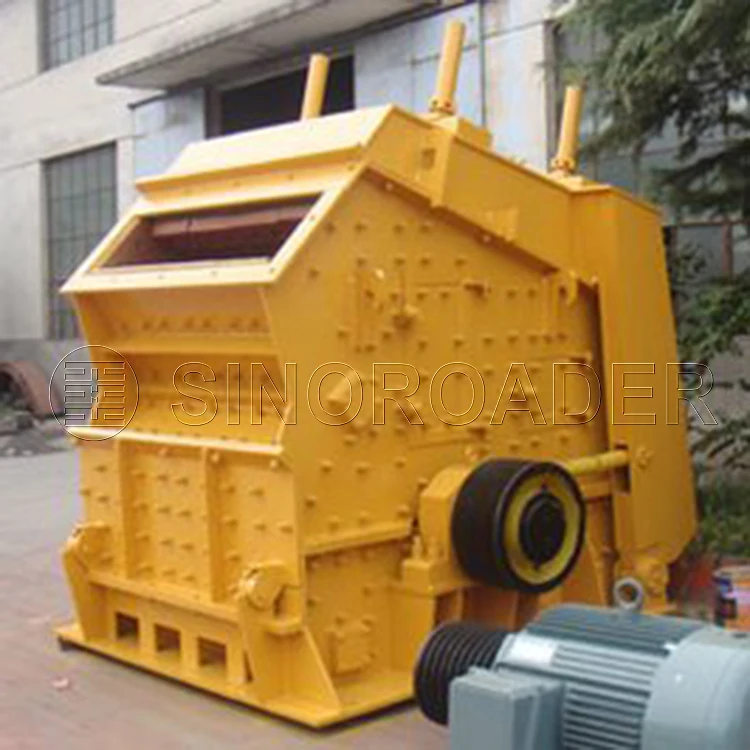

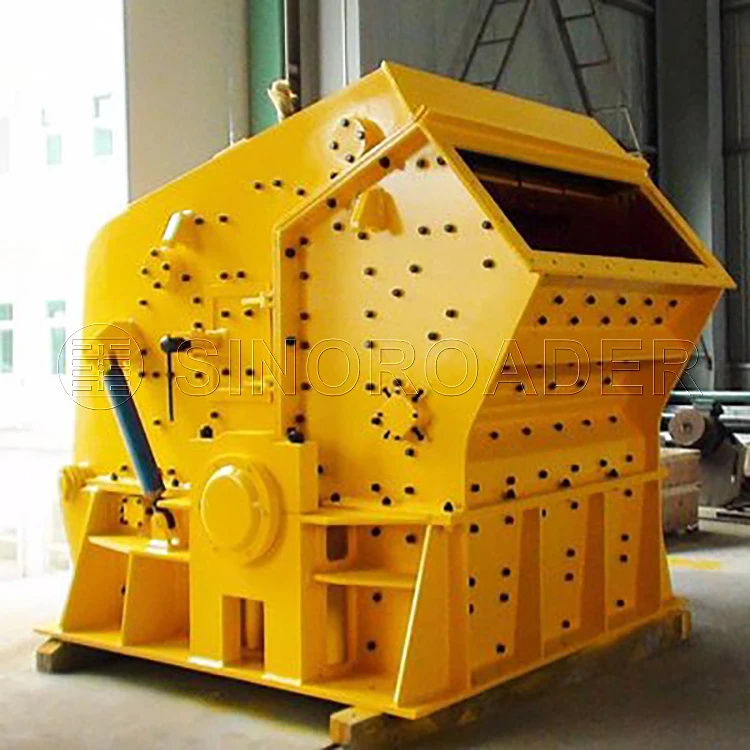

Impact Crusher
Impact Crusher can crush the large, medium and small size materials (granite, limestone, concrete, etc).With max feed size less than 500mm and compression strength less than 350Mpa.
It is widely used in metallurgy, mine, cement, chemical engineering, fire resistant materials, ceramics and other industrial sectors, as well as in the expressway construction, water conservancy project, building crushed stone, and machine-made sand process fields, etc.
Impact crusher is commonly used secondary crushing equipment or tertiary crushing equipment for medium or fine crushing, which is suitable for medium hardness and soft materials (limestone, coal gangue, etc.), using impact to crush materials, repeated impact between the blow bar and the impact plate for crushing, the new structure design. The machine has strong rigidity, and the rotor has a large Moment of inertia. The finished product is cubic, without tension and cracks.
Impact crusher is a kind of stone crusher using impact energy. After turn on,the motor drives the rotor rotate at a high speed .When the material get into the blow bar working area,they will be stroke by the blow bar and thrown to the impact devices around the rotor.The material will come out from the discharge hole until they are crushed to the required size. The clearance between the impact rack and the rotor can adjust the size and shape of the end product.

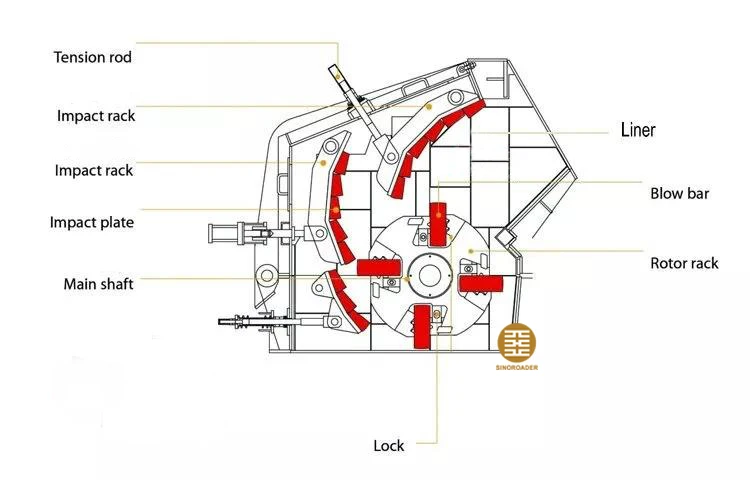

Product Structure
Model | Specification (mm) | Feed opening (mm) | Max. feeding size (mm) | Capacity (tph) | Power (kw) |
PF-1007 | Φ1000×700 | 400x730 | 300 | 30-70 | 37-45 |
PF-1010 | Φ1000×1050 | 400x1080 | 350 | 50-90 | 45-55 |
PF-1210 | Φ1250×1050 | 400x1080 | 350 | 70-130 | 110 |
PF-1214 | Φ1250×1400 | 400x1430 | 350 | 80-180 | 132 |
PF-1315 | Φ1320×1500 | 860x1520 | 500 | 100-280 | 200 |
PF-1320 | Φ1300×2000 | 993x2000 | 500 | 140-380 | 250 |
PF-1520 | Φ1500×2000 | 830x2040 | 700 | 200-550 | 315-400 |
PF-1820 | Φ1800×2000 | 1260x2040 | 800 | 300-800 | 630-710 |
Why Choose Us

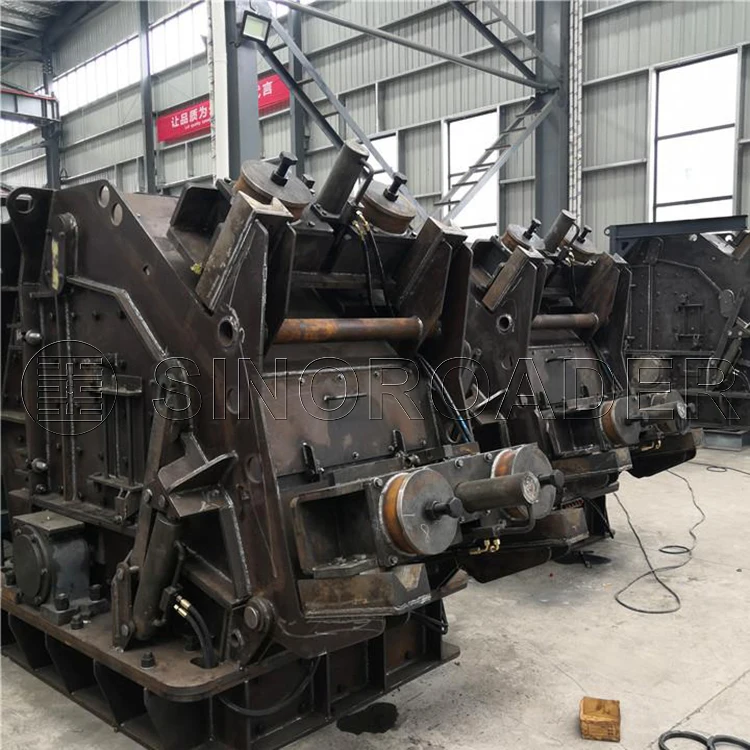

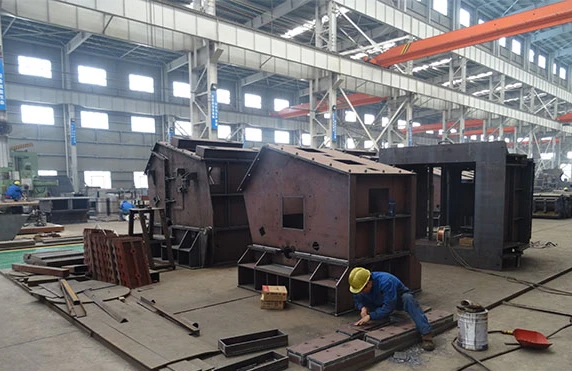

Company Profile
Henan Sinoroader Heavy Industry Corporation focuses on a modern enterprise integrating R&D, design, production, sales and after-sales service.
Since its establishment, the company has always been committed to the professional and experienced R&D team and production of mining crushing equipment, including Jaw Crusher, Impact Crusher, Scapling Screener, Tracked Crusher and some Road Construction Equipment etc., which Widely used in mining, quarry, metallurgy, chemical industry, building materials, highways, railways, tunnels and bridges, airport construction and other industries at home and abroad.

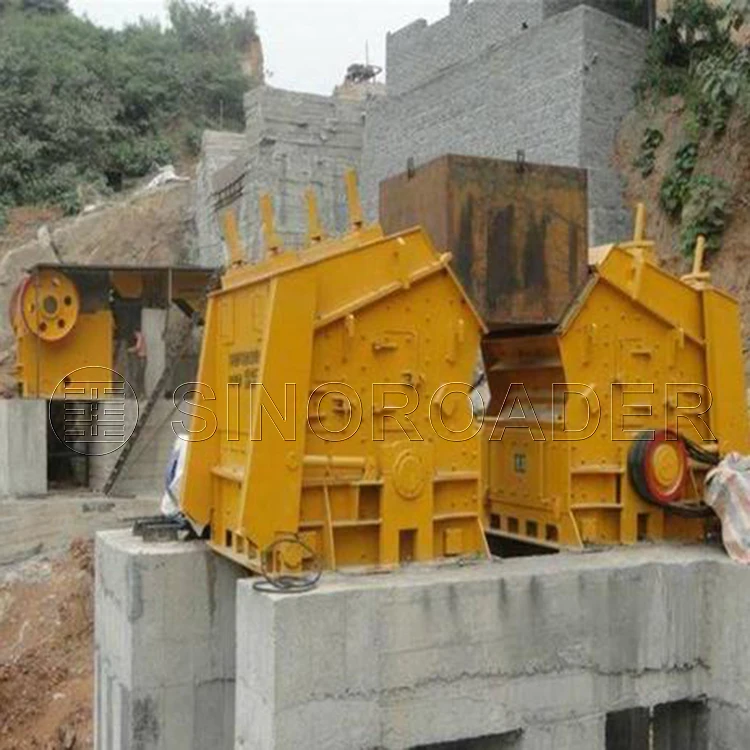

Customer Photos
Certifications
FAQ
Q1: What is your main product?
A1: Jaw Crusher, Impact Crusher, Cone Crusher, Hammer Crusher, Tracked Mobile Crusher, Scapling Screener, Concrete Self-loading Mixer Truck, Asphalt Mixing Plant, etc.
Q2: How is the product quality?
A2: The products provided by our company is the first-class, and we can provide the quality guarantee.
Q3: How is your price comparing with factory one?
A3: We are in a leading position in construction equipment manufacturers and continue to provide our customers with better and lower price so as to making us more competitive in the same industry.
Q4: Where is your company location?
A4: Our company is located in Zhengzhou, Henan Province. You can visit it when you have time.
Q5: What is the payment term?
A5: If we establish the long-term business partnership, there will be more choices of payment terms.
A1: Jaw Crusher, Impact Crusher, Cone Crusher, Hammer Crusher, Tracked Mobile Crusher, Scapling Screener, Concrete Self-loading Mixer Truck, Asphalt Mixing Plant, etc.
Q2: How is the product quality?
A2: The products provided by our company is the first-class, and we can provide the quality guarantee.
Q3: How is your price comparing with factory one?
A3: We are in a leading position in construction equipment manufacturers and continue to provide our customers with better and lower price so as to making us more competitive in the same industry.
Q4: Where is your company location?
A4: Our company is located in Zhengzhou, Henan Province. You can visit it when you have time.
Q5: What is the payment term?
A5: If we establish the long-term business partnership, there will be more choices of payment terms.
