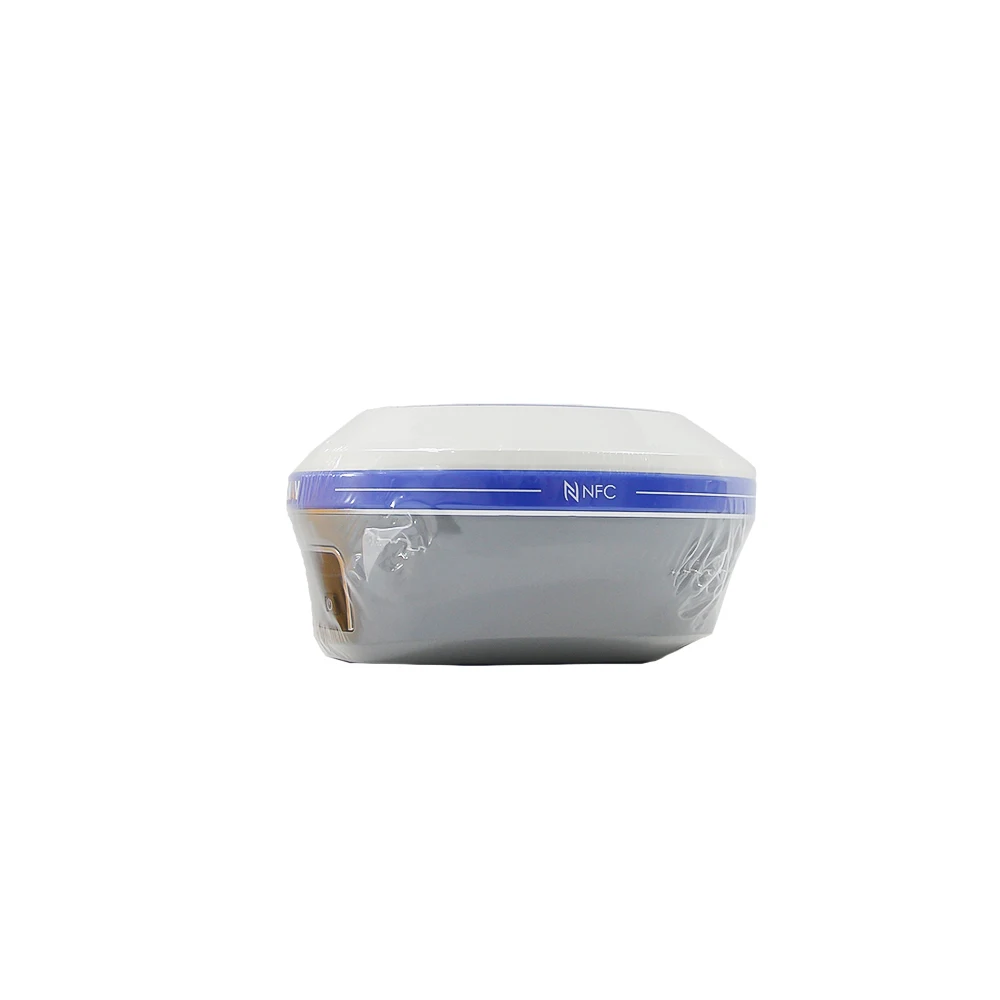

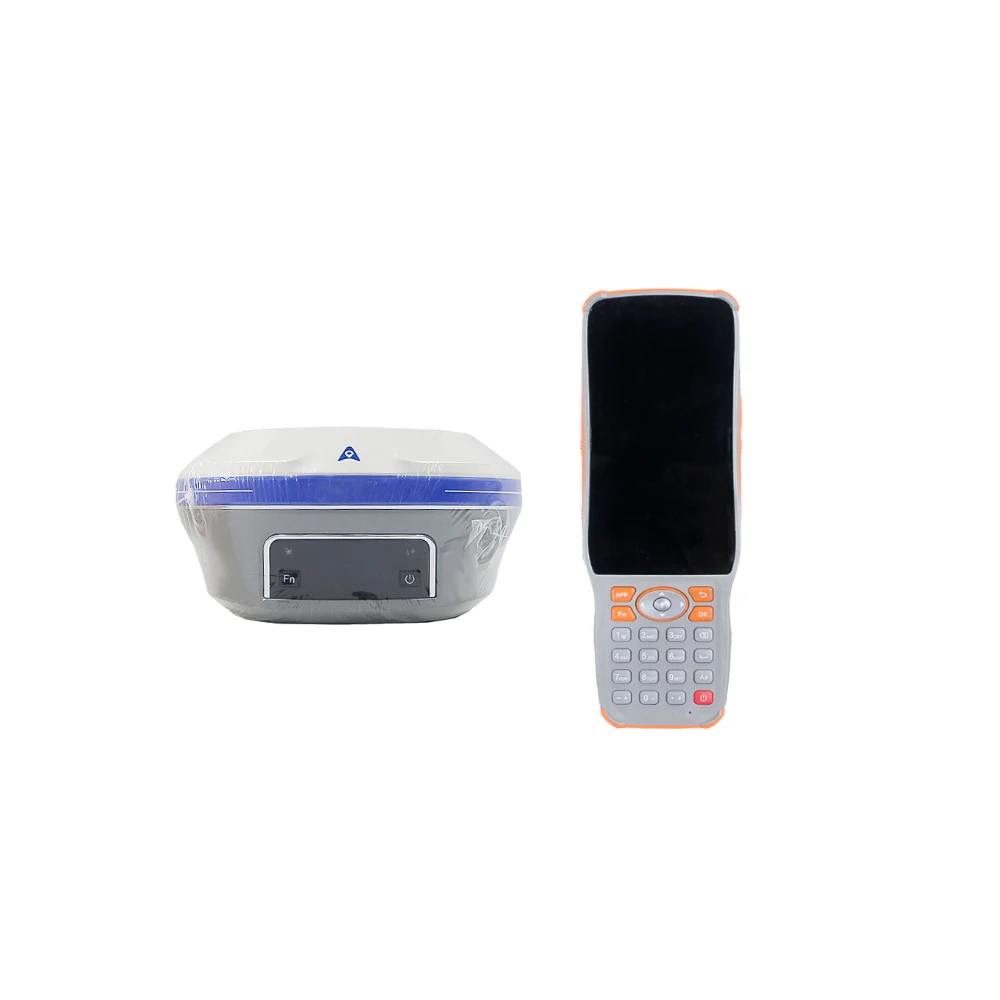

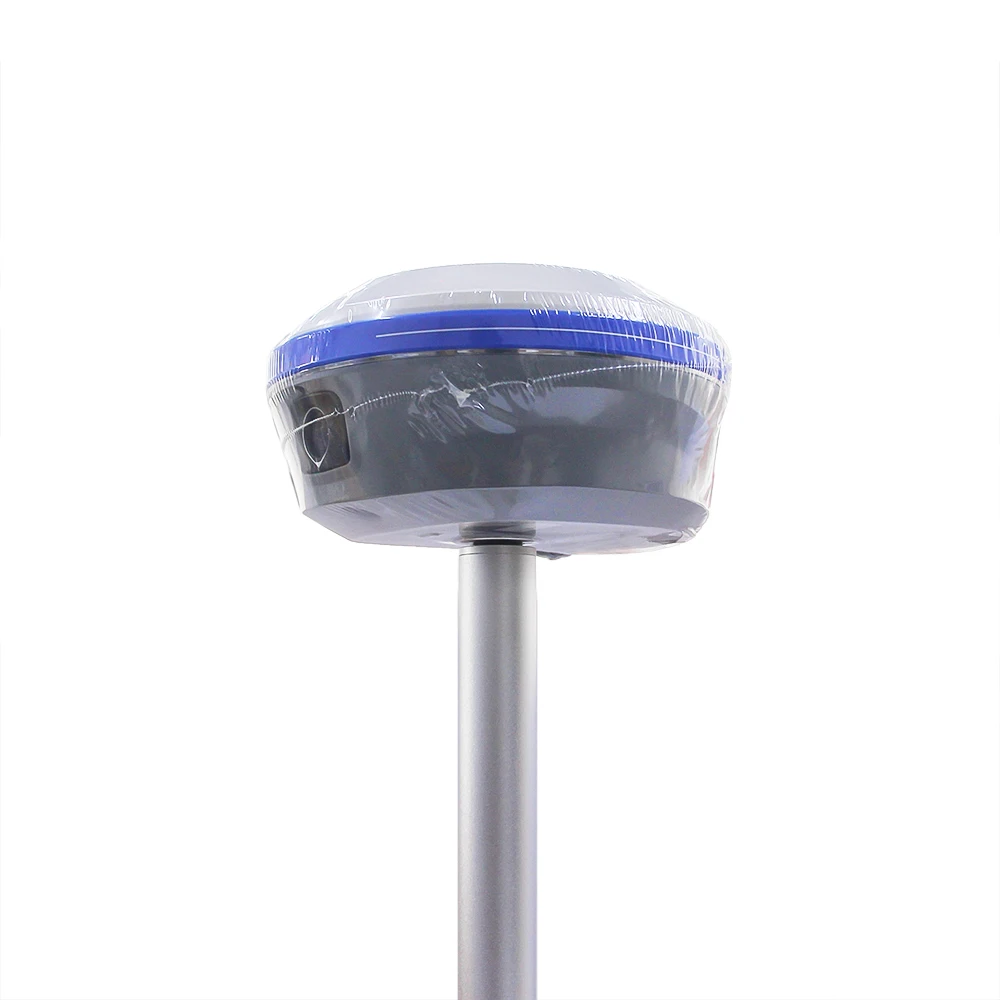

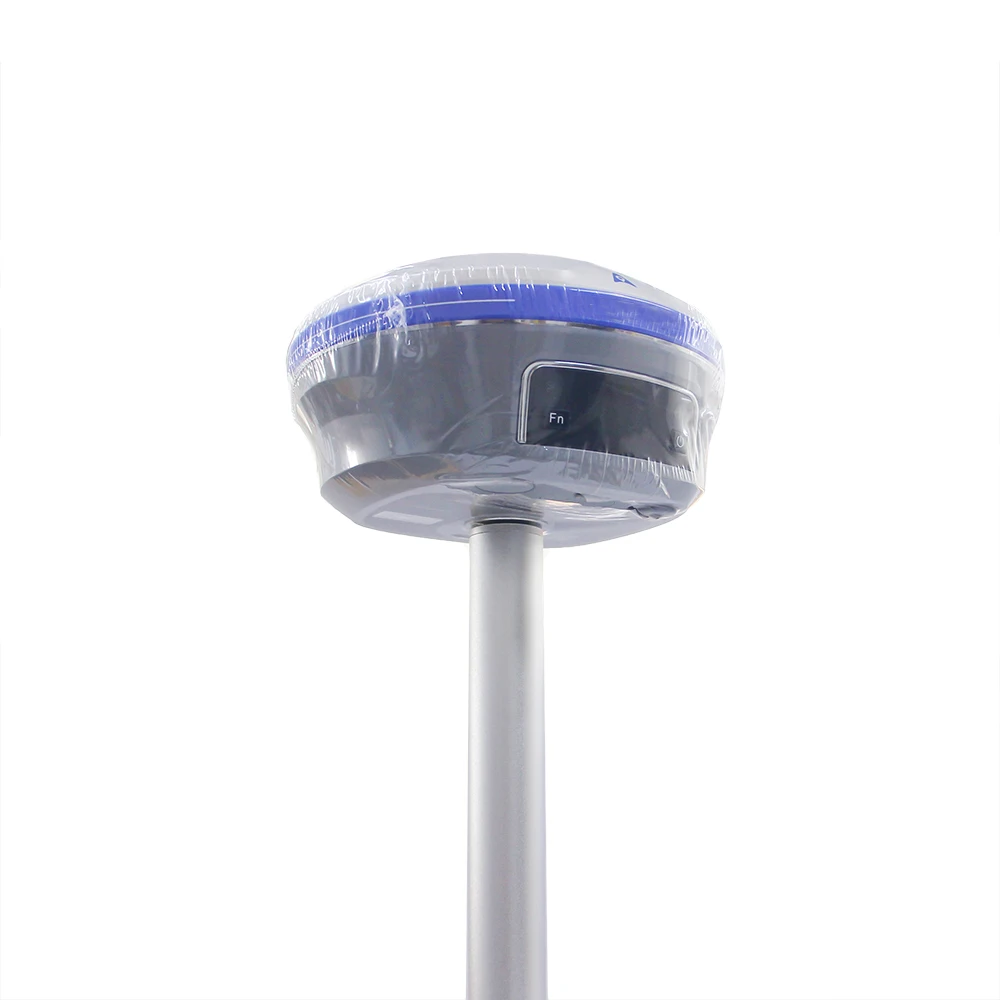

CHC I93/X16 Pro Cheap Rtk Handheld Land Surveying Gps Rtk Hot Sale Gnss Rtk Receiver
- Category: >>>
- Supplier: Shangrao Haodi Imp & Exp Trading Co. Ltd.
Share on (1601058893589):
Product Overview
Description
| Technical parameter | ||
| Satellite tracking | Satellite system | GPS+BDS+Glonass+Galileo+QZSS, Support the Beidou three generations, support Five Star 21 frequency point |
| Satellite tracking | BDS: B1I,B2I,B3I,B1C,B2a,B2b* GPS: L1C/A,L1C,L2C,L2P,L5 GLONASS: G1,G2,G3 Galileo: E1,E5a,E5b,E6* QZSS: L1C/A,L1C,L2C,L5 IRNSS: L5* SBAS: L1C/A* | |
| Number of channels | 1408 | |
| Initialization reliability | 99.99% | |
| Satellite-based differential (optional) | Can work without a network | |
| signal capture sensitivity | Typical value - 162dbm, stronger ability to capture weak signals | |
| No network continuous test | Support | |
| Accuracy | static precision | Plane accuracy: ±(2.5mm+0.5×10-6 ×D)mm Height accuracy: ±( 5mm+0.5×10 -6 ×D)mm |
| RTK accuracy | Plane accuracy: ±( 8mm+1×10 -6 ×D)mm Height accuracy: ±(15mm+1×10 -6 ×D)mm | |
| Tilt measurement accuracy | 8mm+0.3 mm/° tilt | |
| Real-world measurement accuracy | typically 2~4cm, measuring distance 2~15 meters | |
| GNSS+Inertial navigation | IMU update | 200Hz |
| rate tilt angle | 0-60° | |
| User interaction | LCD screen | Quasi-retina screen, color high-definition 1.1-inch OLED resolution: 126*294 can be seen clearly and brightly even under direct sunlight |

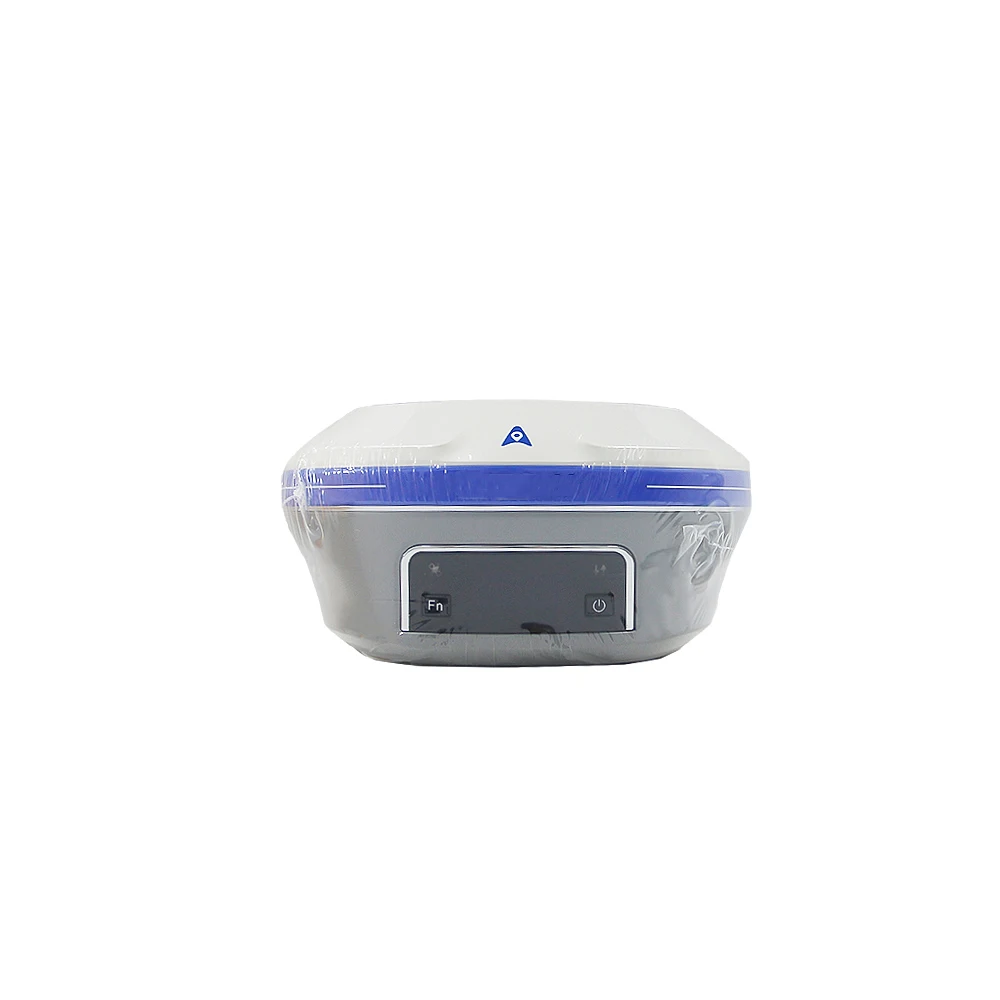

| LED | 1 satellite light + 1 differential data light | |
| button | Fn function key + power/confirmation key | |
| web page | supports PC/mobile web pages | |

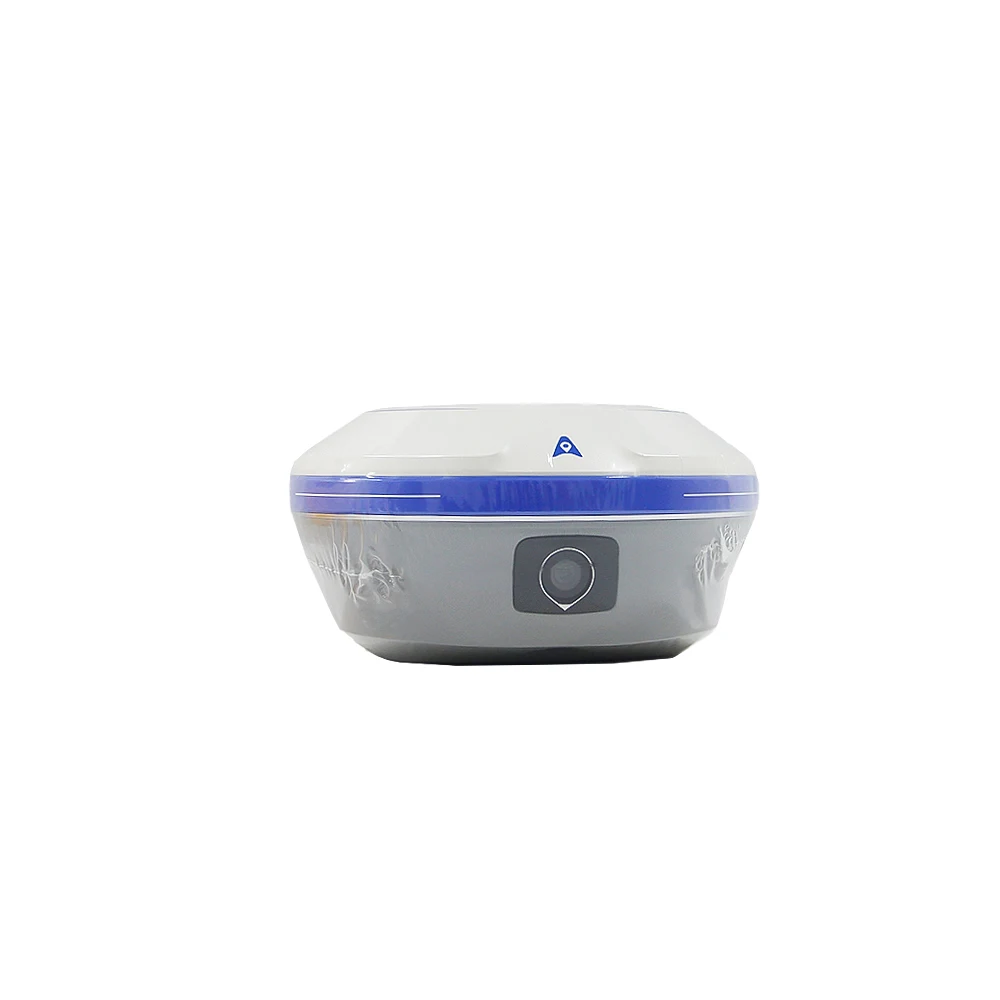

| Camera | Pixel | 2MP&5MP |
| Frame | 25Hz | |
| Rate Field of View | 75° | |
| Illumination | Starlight camera, OmniPixel3-GS technology to maintain full-color images under 0.01lux illumination | |
| Special feature | Video measurement, efficiency increased by 60% 3D modeling, internal and external efficiency doubled AR real-time navigation, put the point without getting lost, visual stakeout, put it in place with one shot | |
| Physical characteristics | Size | Φ152 mm*81 mm |
| Weight | 1.06Kg | |
| Material | Magnesium alloy | |
| Working temperature | -45℃~+75℃ | |
| Storage temperature | -55℃~+85℃ | |
| waterproof breathable membrane | Prevent water vapor from entering the device in harsh environments such as sun exposure and sudden heavy rain | |
| Waterproof and dustproof | IP68 | |
| Anti-collision | IK08 |
