GT DMTG VMC850 High Precision CNC Vertical Machining Center VMC Fresadora Cnc Para Metal Cnc Milling Machine
- Category: >>>
- Supplier: General Technology Group Dalian Machine Tool Import & Export Co. Ltd.
Share on (1601058896052):
Product Overview
Description
VR
PRODUCT DETAILS

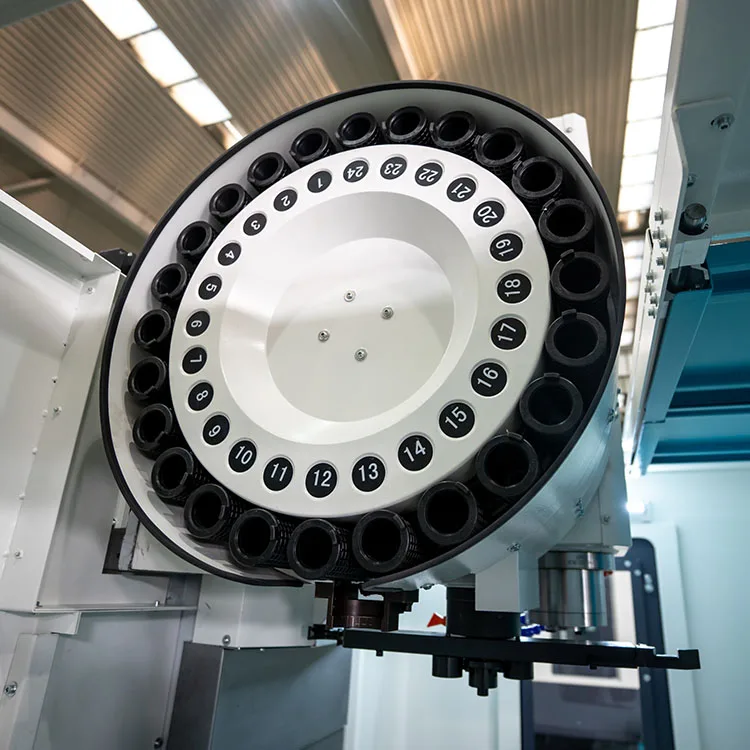

1.24Tarm-type ATC
2.Ball screw and linear guideway
3.Spindle oil chiller
4.Spindle coolant ring
5.Spindle air blow
6.Heat exchanger
7.Compact oi-water separator
6.Heat exchanger
7.Compact oi-water separator
8.Screw-type chip conveyor
9.Rigid tapping
10.Workpiece coolant system
11.Air gun
12.Automatic lubrication system
Model | VDLS850 | VDLS1000 | VDLS1300 |
Work table size | 1000X500mm | 1120X560mm | 1300X560mm |
Max. load | 500kg | 750kg | 750kg |
T slots(No.×W×P) | 5X18X100mm | 5X18X100mm | 5X18X100mm |
Distance from spindle center to column | 607mm | 666mm | 629mm |
Distance from spindle nose to table | 145-705mm | 125-745mm | 125-745mm |
Rapid traverse of X/Y/Z-axis | 36/36/30m/min | 36/36/30m/min | 36/36/30m/min |
Cutting federate | 0-10000mm/min | 0-10000mm/min | 0-10000mm/min |
X/Y/Z-axis travel | 860/510/560mm | 1040/580/620mm | 1290/580/620mm |
X/Y/Z-axis travel guide way type | Linear guideway | Linear guideway | X/Y-Linear guideway Z-box way |
Spindle motor power | 7.5/11kw | 11/15kw | 7.5/11kw |
Spindle speed | 12000r/min | 12000r/min | 12000r/min(Opt:10000) |
Spindle taper | No.40(7:24) | No.40(7:24) | No.40(7:24) |
X/Y/Z-axis positioning accuracy | 0.008/0.008/0.008mm | 0.016/0.008/0.008mm | 0.016/0.008/0.008mm |
X/Y/Z-axis repeatability accuracy | 0.005/0.005/0.005mm | 0.006/0.005/0.005mm | 0.006/0.005/0.005mm |
Tool magazine capacity | 24T/Arm type | 24T/Arm type | 24T/Arm type |
Tool shank type | BT40 | BT40 | BT40 |
Max. tool weight | 8kg | 8kg | 8kg |
Max. tool dia.(w/o adjacent tool) | ø78/155mm | ø78/155mm | ø78/155mm |
Tool change time (T-T) | 2.5s | 2.5s | 2.5s |
System | Fanuc/Siemens | Fanuc/Siemens | Fanuc/Siemens/Mitsubish/GSK |
Voltage | As customer required | As customer required | As customer required |
Machine dimensions(LxWxH) | 2496X2530X2679mm | 2800X2671X2760mm | 3100X2671X2760mm |
Machine weight | 5600kg | 7000kg | 7200kg |
COMPANY PROFILE
After-Sales Service
EXHIBITION
CUSTOMER
General Technology Group Dalian Machine Tool Co., Ltd. belongs to the central enterprise China General Technology Group, formerly known as DMTG, which was established in 1935.
Main products:Vertical Machining Center,Horizontal Machining Center,Gantry Machining Center,CNC Lathe,Turning center,Five Axis Machine,Manual Lathe,CNC Boring Machine,Automatic Lines etc.DMTG has 2590 employees worldwide,Including 500 technical engineers and 150 service engineers.DMTG is ready to serve the world!
We have 7 factories in China and 1 research center,158 agents of global network,15 global service centers,Local sales, Installation,Commissioning,Training,Maintenance And repair support.Quality You Can Trust!
Main products:Vertical Machining Center,Horizontal Machining Center,Gantry Machining Center,CNC Lathe,Turning center,Five Axis Machine,Manual Lathe,CNC Boring Machine,Automatic Lines etc.DMTG has 2590 employees worldwide,Including 500 technical engineers and 150 service engineers.DMTG is ready to serve the world!
We have 7 factories in China and 1 research center,158 agents of global network,15 global service centers,Local sales, Installation,Commissioning,Training,Maintenance And repair support.Quality You Can Trust!
PACKING&SHIPPING
CERTIFICATIONS
