Hot Sale 18.5 inch LCD IPS Panel LED Panel BOE MV185WHB N20
- Category: >>>
- Supplier: Shenzhen Top-Willing Technology Co. Limited
Share on (1601058896799):
Product Overview
Description

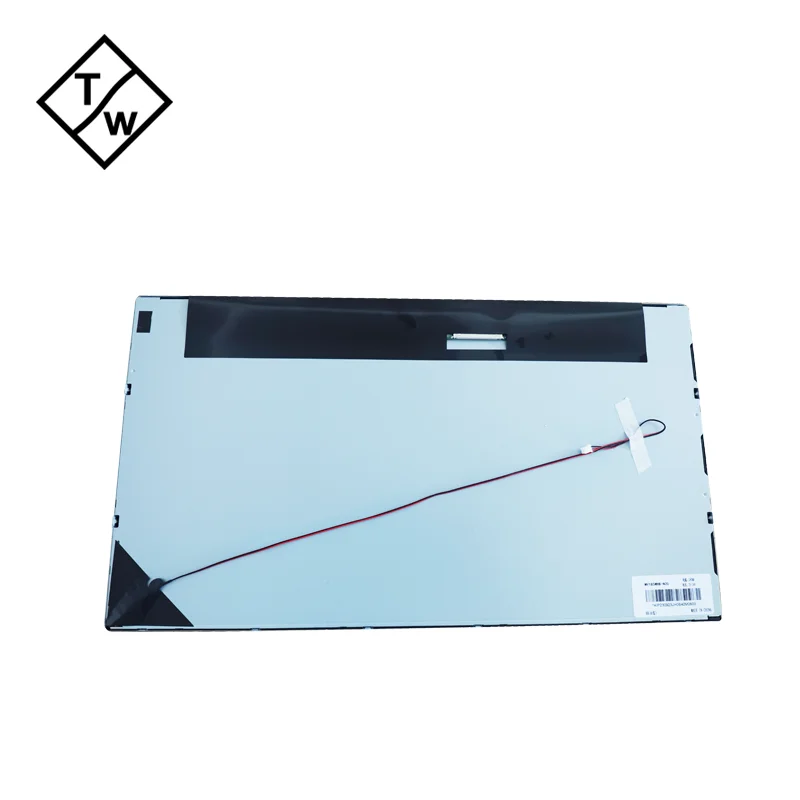

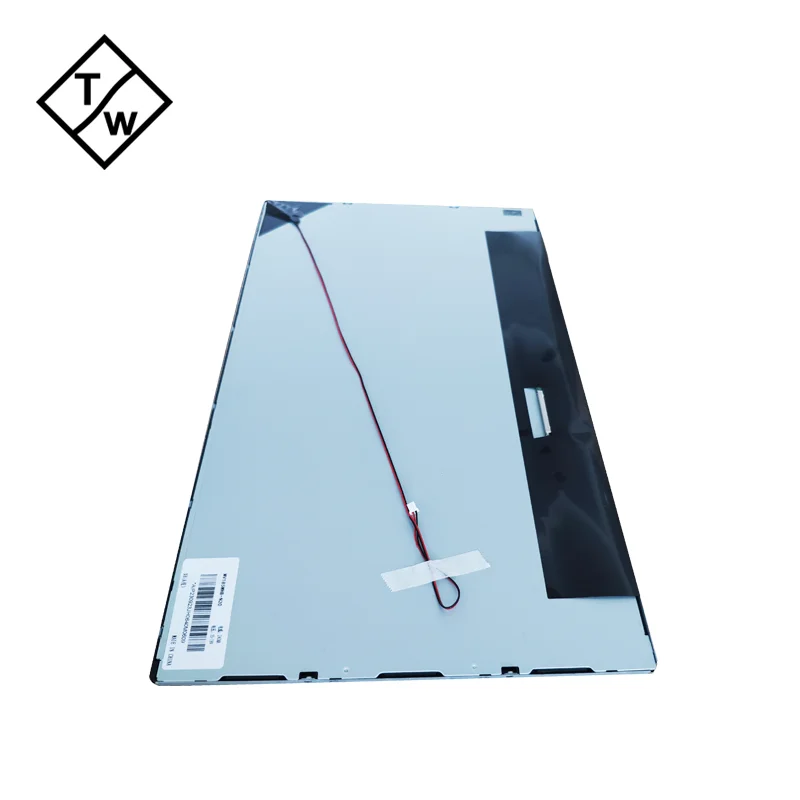

MV185WHB-N20 HD Panel 18.5 inch LCD Panel BOE 1366x768 IPS Display
Product Description
Model:MV185WHB-N20
Size from 7" to 32" panels are available,please contact us for details.
Specification:
| Brand | BOE | ||
| Model | MV185WHB-N20 | ||
| Panel Size | 18.5 inch | ||
| Panel Type | a-Si TFT-LCD | ||
| Resolution | 1366x768 | ||
| Pixel Format | RGB Vertical Stripe | ||
| Display Area | 409.8(W)x230.4(H) mm | ||
| Outline Size | 422.2(W)x244.1(H)mm | ||
| Surface | Antiglare (Haze 25%), Hard coating (3H) | ||
| Brightness | 250 cd/m² | ||
| Contrast Ratio | 1000:1 (Typ.) (TM) | ||
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | ||
| Display Mode | HADS, Normally Black, Transmissive | ||
| Response Time | 14 (Typ.)(G to G) | ||
| Display Colors | 16.7M 72% NTSC | ||
| Frequency | 60Hz | ||
| Touch Screen | Without | ||
| Panel Weight | 1.28Kgs | ||
| Interface Type | LVDS (1 ch, 8-bit) , 30 pins Connector | ||
| Input Voltage | 5.0V | ||
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C | ||

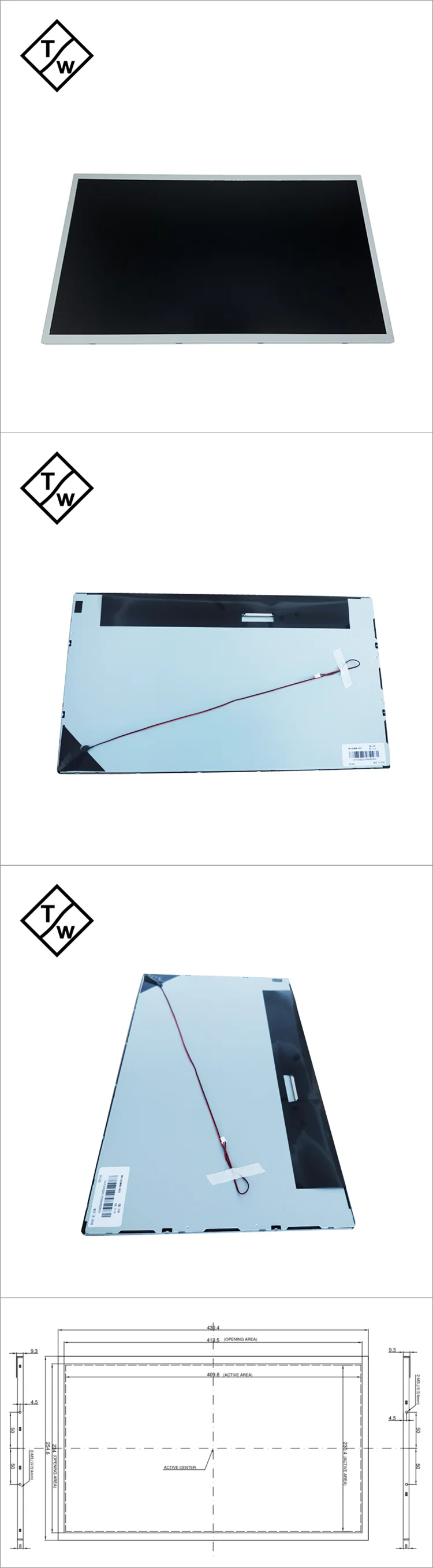

Pictures:
Packaging & Shipping
Neutral Package or OEM
