item | value |
Application | industry |
Port Size | NPT1/4 or PT1/4 |
Warranty | 1 year |
Place of Origin | Korea |

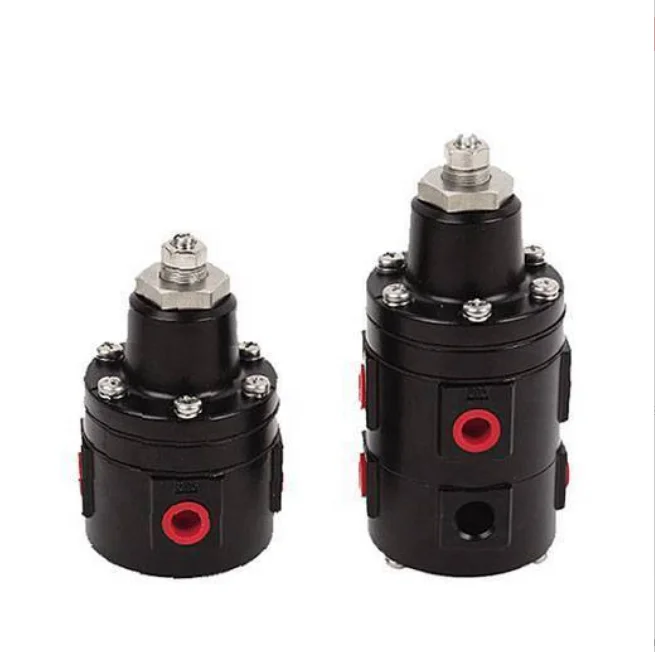

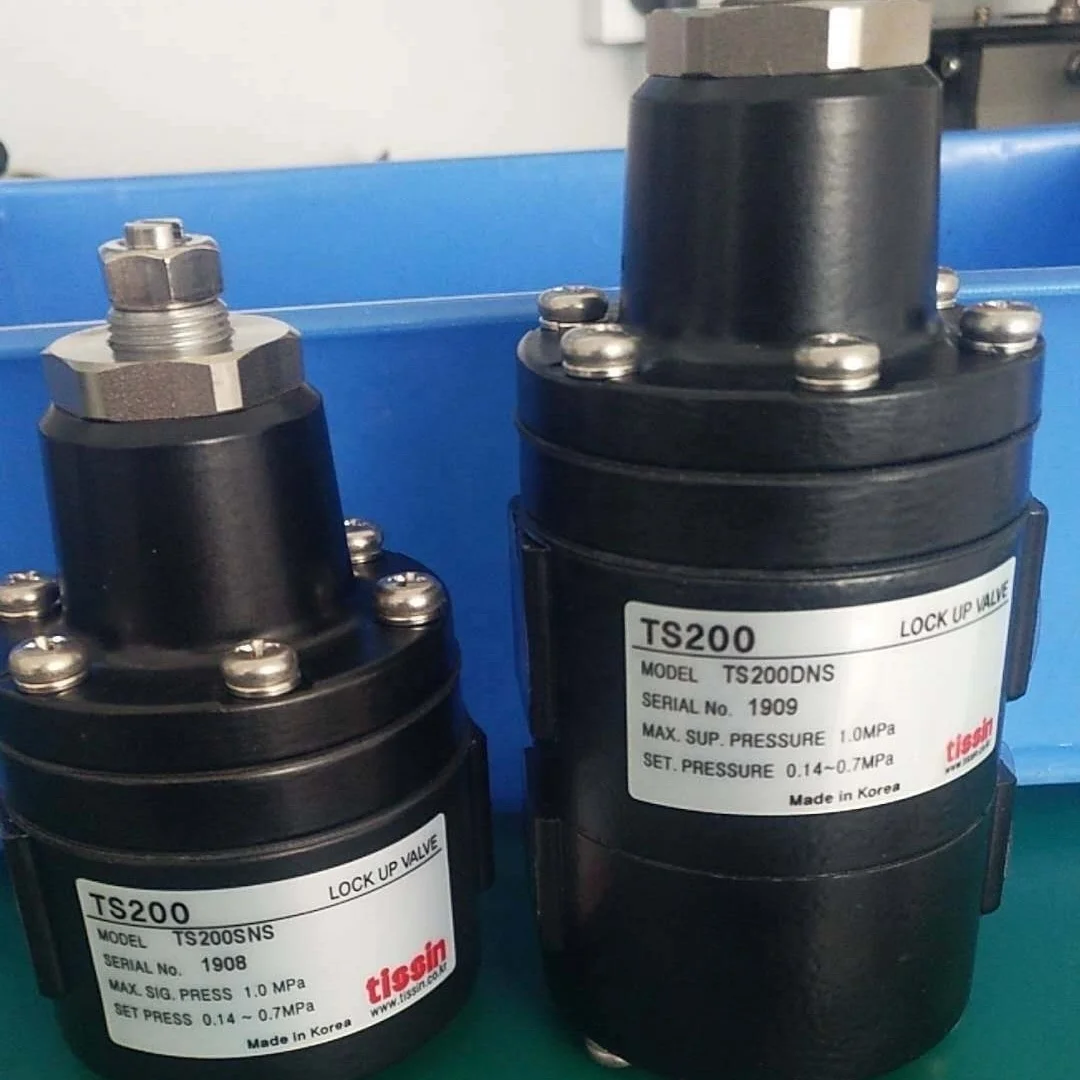

Model Number | TS200/TS205 |
Power | Pneumatic |
Temperature of Media | High Temperature, Low Temperature |
Type | Airlock valve |
Brand Name | tissin |
Structure | Control |
Media | Gas |
Customized support | OEM, ODM |
Signal interface | NPT1/4or PT1/4 |
Signal pressure range | 0.14~0.7MPa |
Maximum supply gas pressure | 1MPa |
Maximum atmospheric lock pressure | 0.7MPa |
Flow coefficient (CV) | 0.9 |
Operating temperature range | -20℃~70℃(standard type) |
