PA 2 stage professional 2 in 6 out digital processor dsp audio processor
- Category: >>>
- Supplier: Guangzhou Xinbaosheng Audio Equipment Company Limited
Share on (1601058928630):
Product Overview
Description

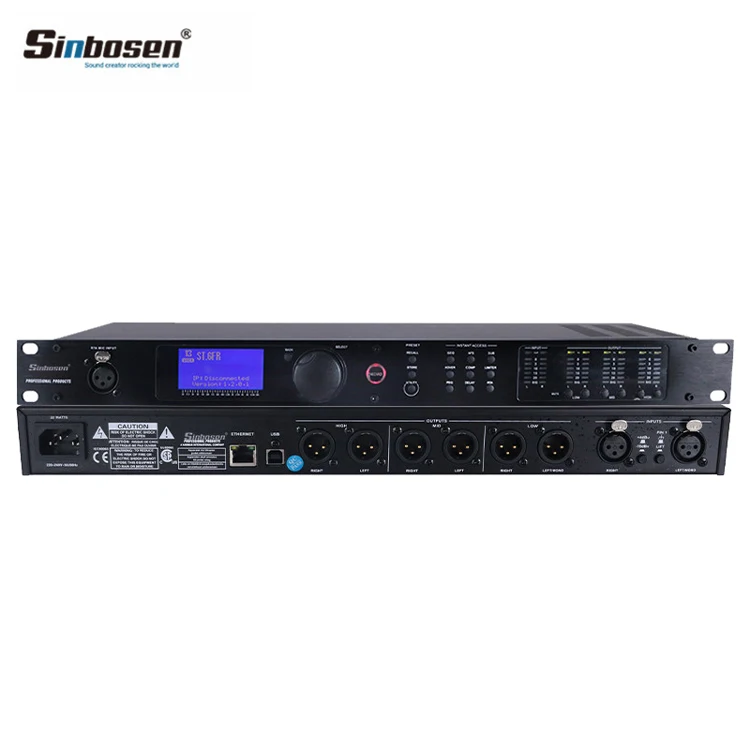

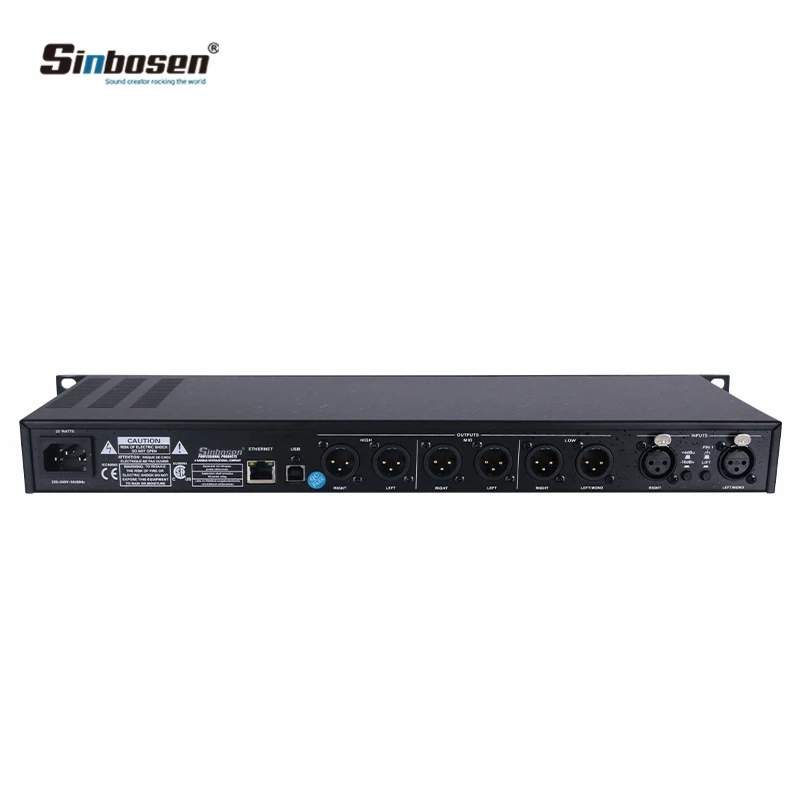

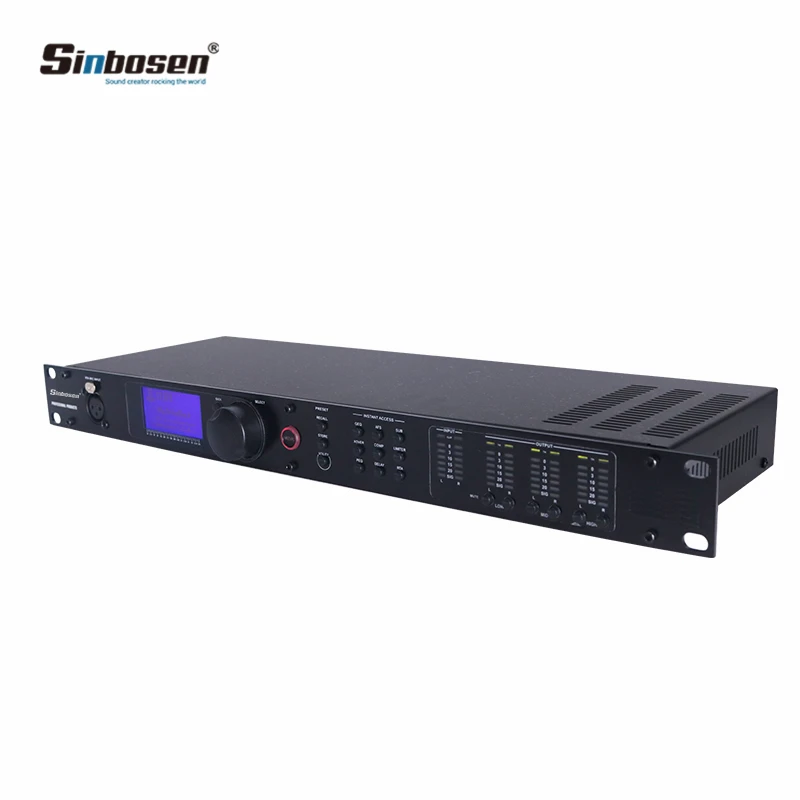

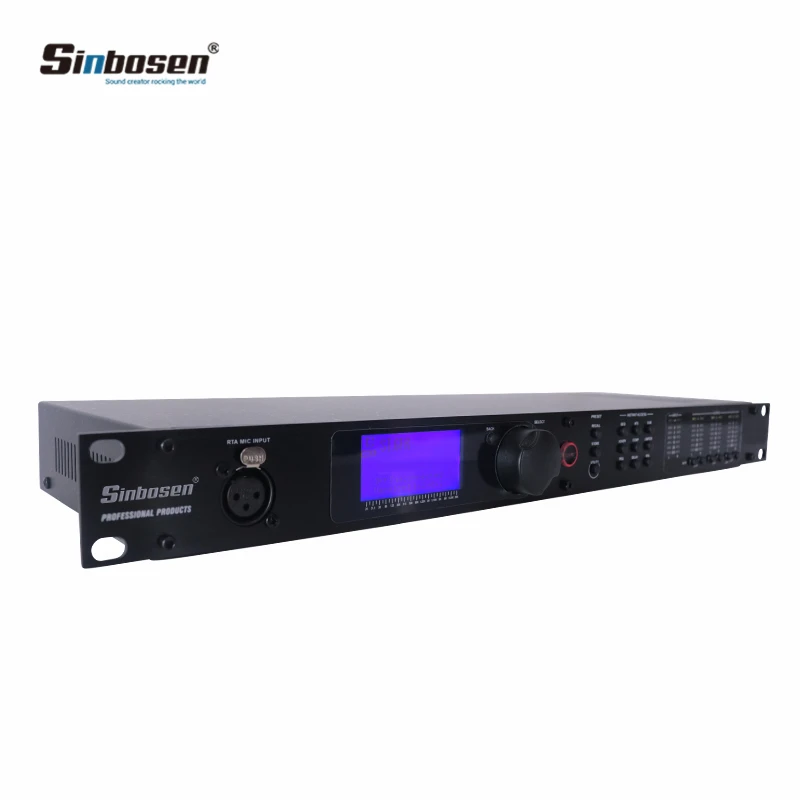

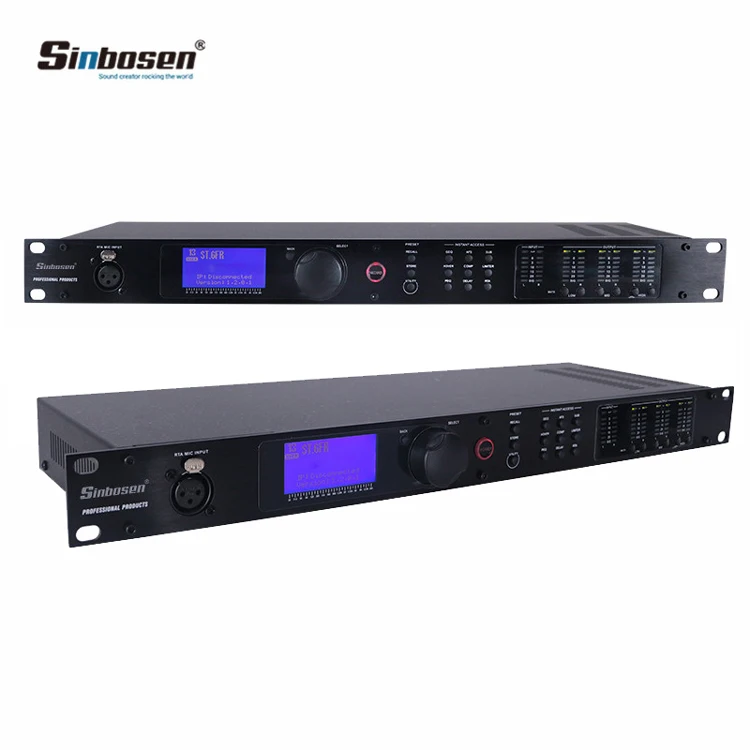

Professional Digital Processor 2 Input 6 Output Audio Processor
Product Description
| ANALOG INPUTS | |
| Number of Inputs | 2 line inputs, 1 RTA mic input |
| Connectors | 2 female XLR line inputs, 1 female XLR RTA mic input |
| Type | Electronically balanced/RF filtered |
| Impedance | > 50 kΩ |
| Max Input Level (line inputs) | > +20 dBu |
| CMRR | > 45 dB |
| RTA Mic Preamp Phantom Power | +15 VDC |
| ANALOG OUTPUTS | |
| Number of Outputs | 6 line outputs |
| Connectors | Male XLR |
| Type | Electronically balanced, RF filtered |
| Impedance | 120 Ω |
| Max Output Level | +20 dBu |
| Alignment Delay | Up to 10ms per output channel pair |
| A/D PERFORMANCE | |
| A/D Converter | 24-bit with Type IV™ Conversion System |
| A/D Dynamic Range | 112 dB A-weighted, 110 dB unweighted |
| Type IV Dynamic Range | 123 dB with transient material, A-weighted, 22kHz BW; |
| 121 dB with transient material, unweighted, 22kHz BW; | |
| 115 dB typical with program material, A-weighted, 22kHz BW | |
| D/A PERFORMANCE | |
| D/A Converter | 24-bit |
| D/A Dynamic Range | 112 dB A-weighted, 110 dB unweighted |
| SYSTEM PERFORMANCE | |
| Internal Processing Wordlength | 32-bit floating point |
| Sample Rate | 48 kHz |
| Dynamic Range | 110 dB A-weighted |
| 107 dB unweighted | |
| THD+Noise | 0.003% typical at +4 dBu, 1 kHz, 0 dB input gain |
| Frequency Response | 20 Hz - 20 kHz, +0 /- 0.5 dB |
| Interchannel Crosstalk | < -110 dB, -120 dB typical (input-to-output: < -100 dB) |
| Latency | Input to output: 1.847 ms |
| POWER SUPPLY | |
| Operating Voltage | 100-120 VAC 50/60 Hz or 220-240 VAC 50/60 Hz |
| Power Consumption | 22 Watts |
Processor Features:
Stereo feedback suppressor 2×12 group fast tracking notch filter.
Dual 28-segment graphic equalizer.
120A subharmonizer.
2×3, 2×4, 2×5, 2×6 crossover combination selection.
Stereo multi-parameter equalizer.
Stereo output limiter.
Speaker fine-tuning delay.
Pink noise generator.
Auto-EQ automatic room equalization compensation.
25 factory presets / 25 user settings program memory.
2 sets of inputs, 6 sets of outputs.
RTA-M real-time spectrum analysis microphone input is set on the panel with phantom power.
24-Bit A/D converter provides dynamic range greater than 110dB.
Graphic LCD display.
Front Panel Input and Output Meters.
AFS™ Wizard Helps Eliminate Feedback.
Stereo Feedback Elimination with 12 feedback notch filters
