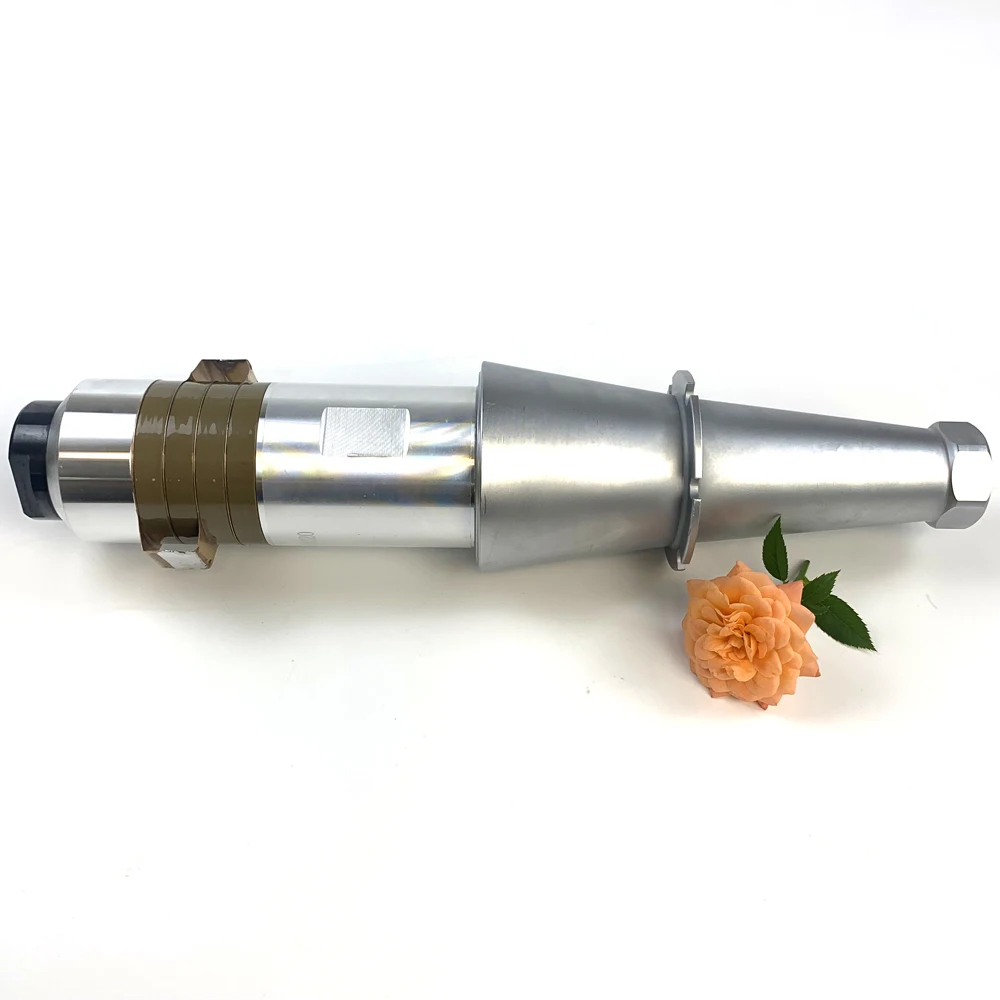

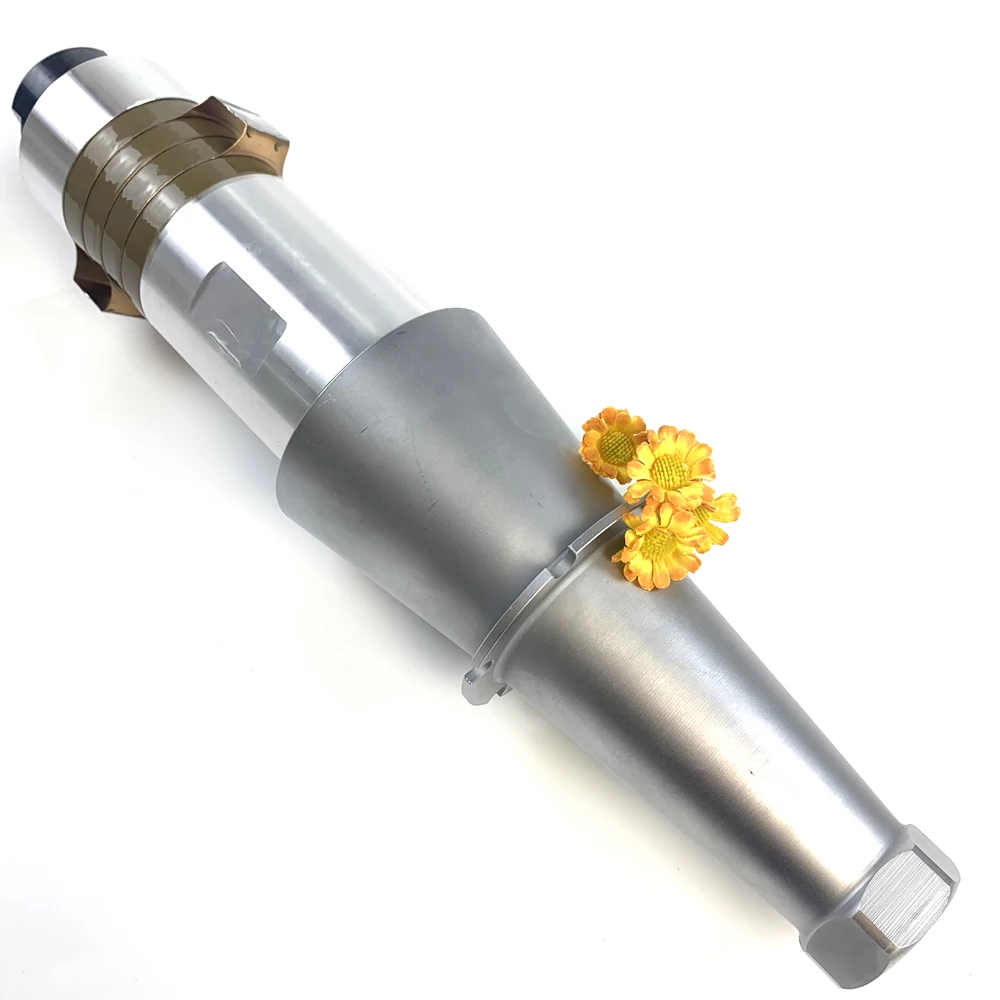

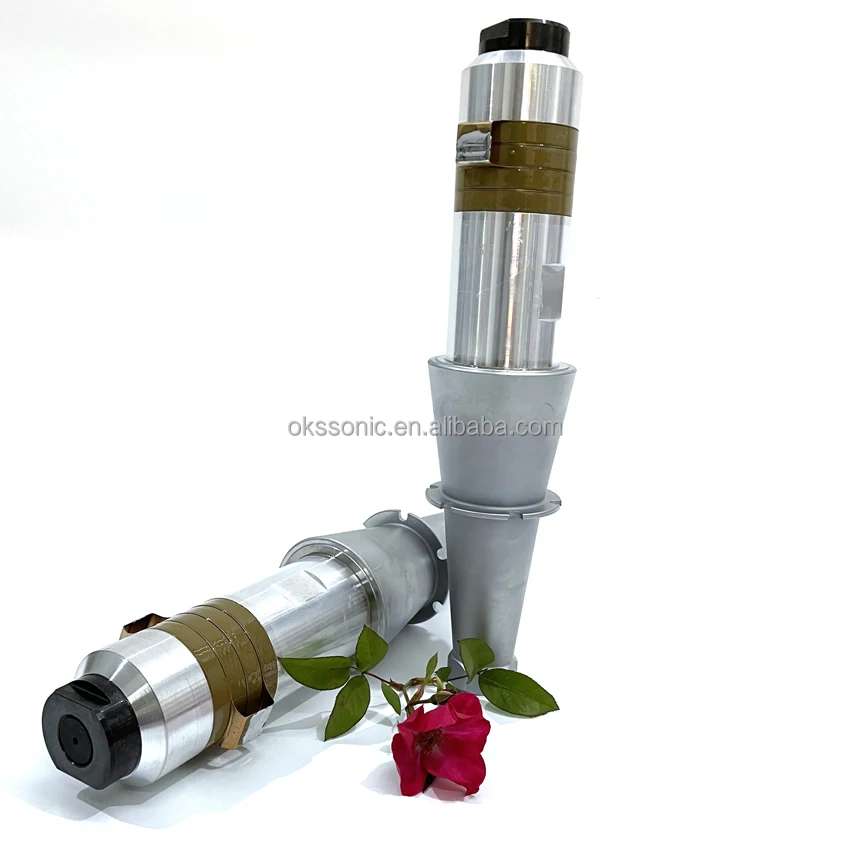

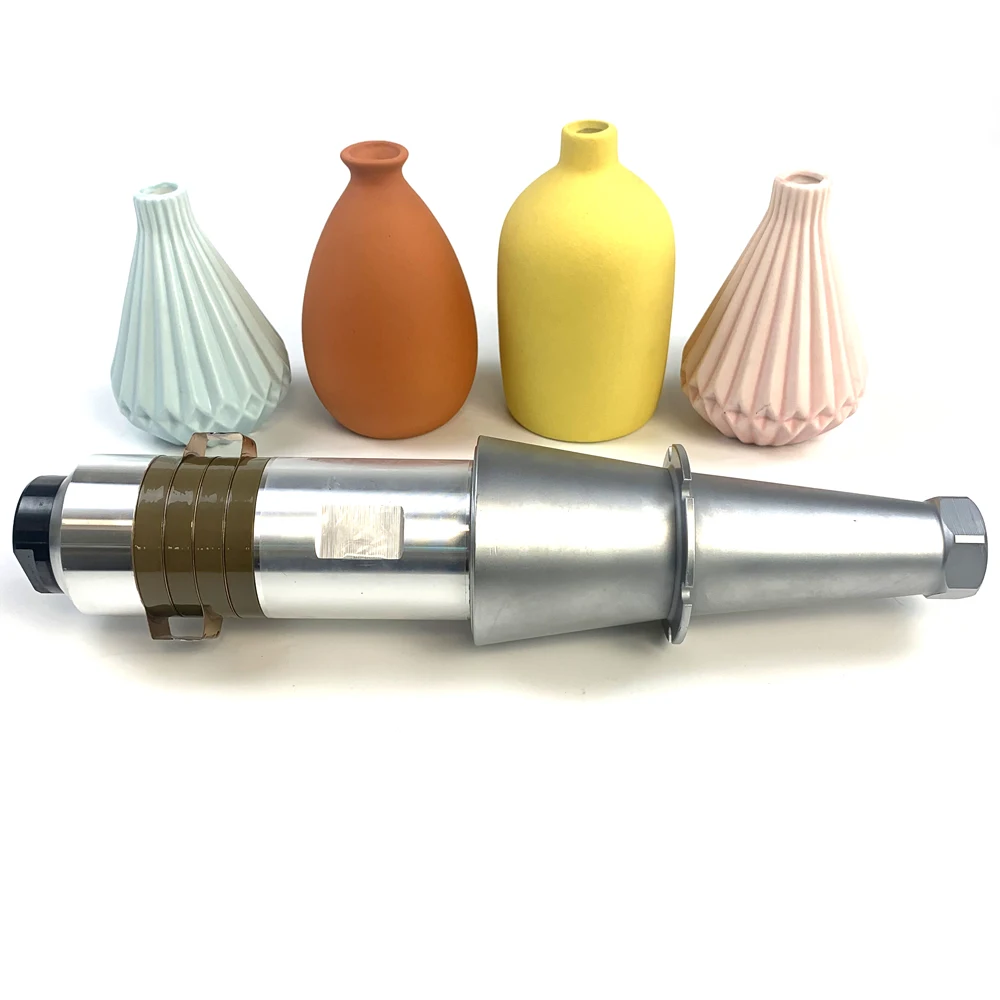

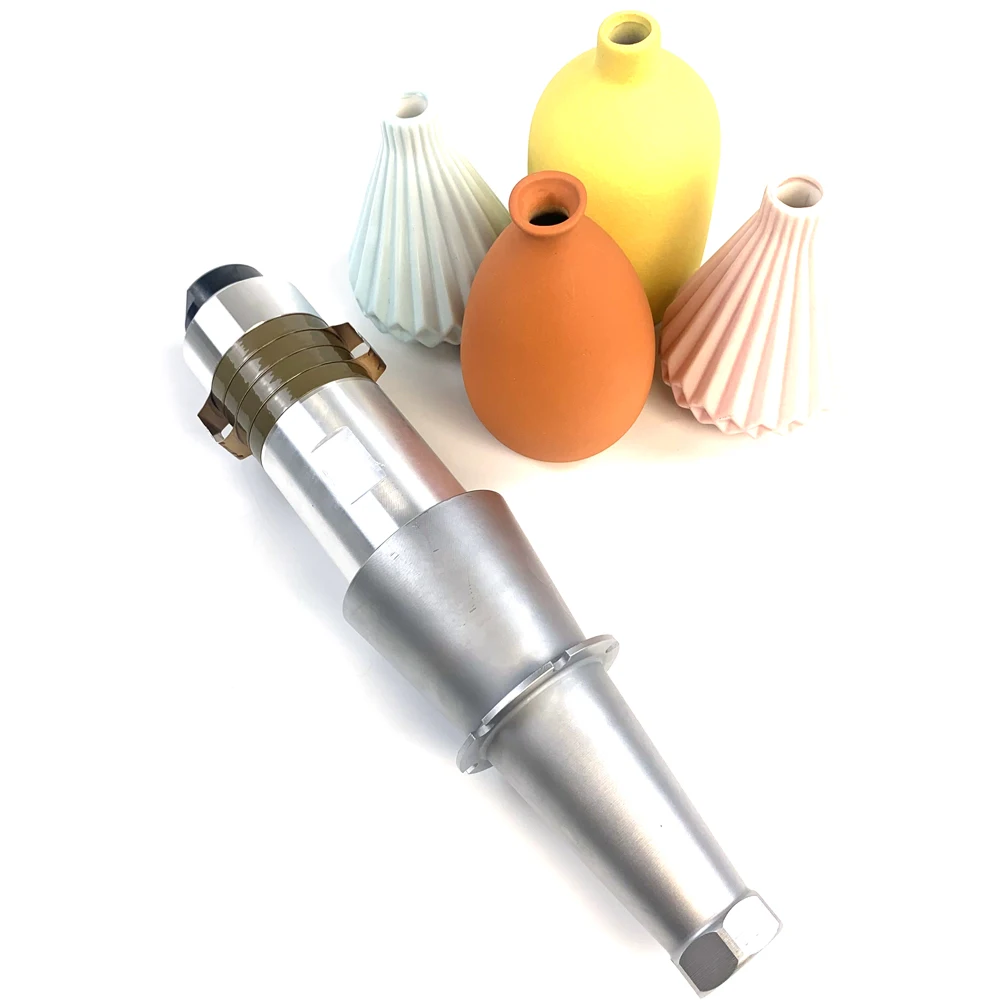

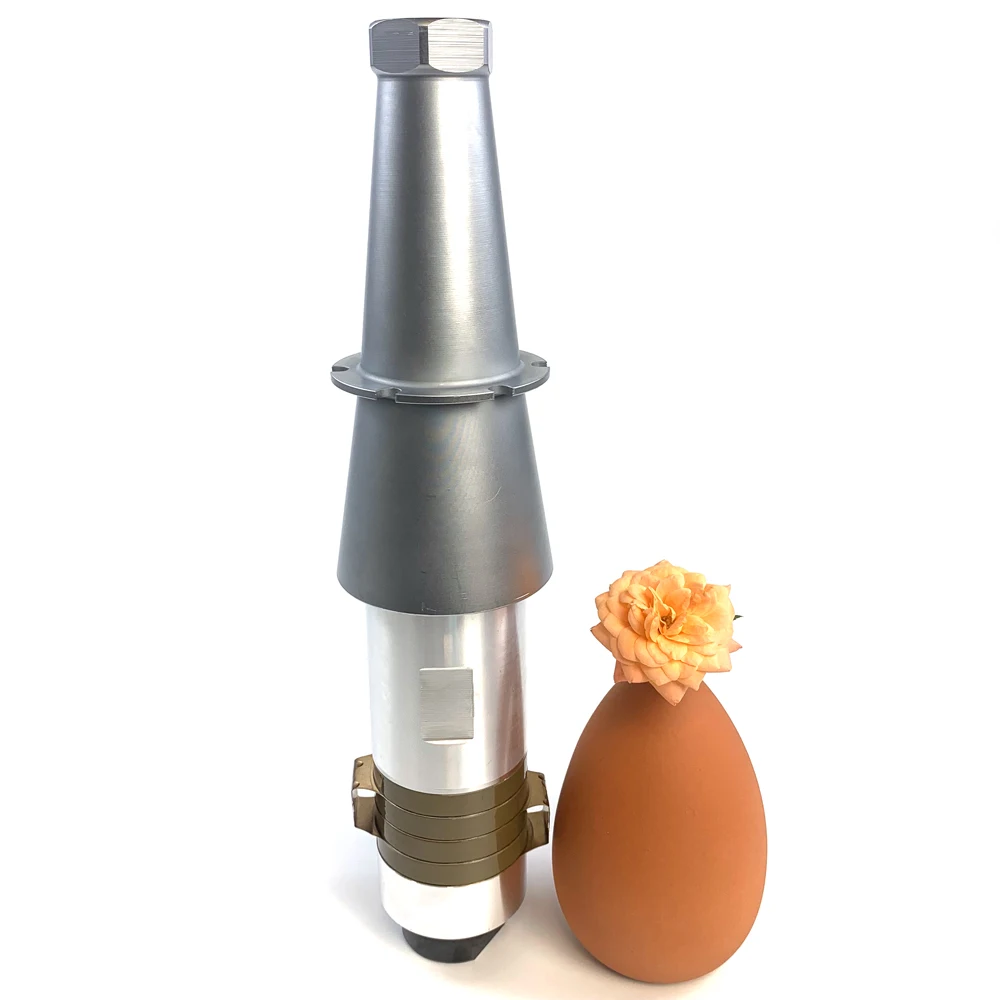

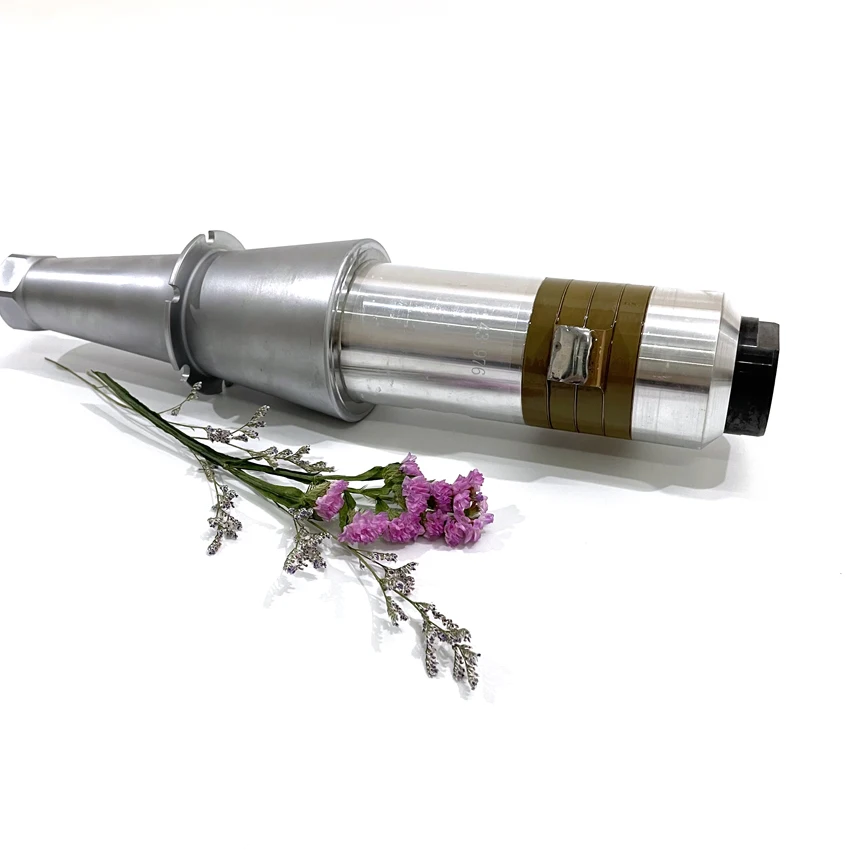

15khz 2600w Pzt 4/8 Ultrasonic Converter With Booster For Ultrasonic Plastic Pvc Fabric Welding Machine

Product Overview

Description

15khz 2600w Pzt 4/8  Ultrasonic Converter With Booster For Ultrasonic Plastic Pvc Fabric Welding Machine

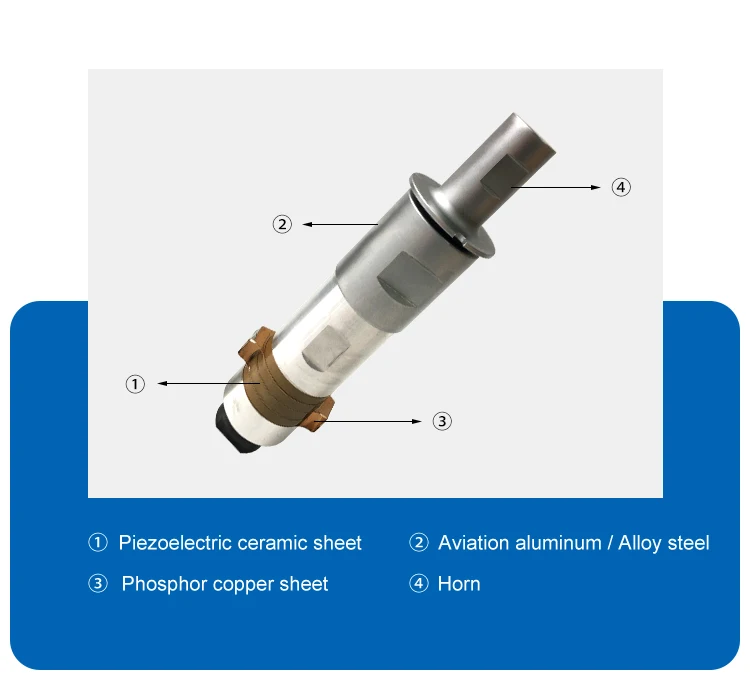

Ultrasonic welding transducer for ultrasonic welding machine

Our company specializes in the production of ultrasonic welding transducers. This product has high performance, long life, and good welding effect. The ultrasonic used in plastic processing, the existing working frequencies are 15KHZ,20KHZ,35KHZ,40KHZ.The principle is to use the peak position of the longitudinal wave to transmit the amplitude to the gap of the plastic part. Under pressure, the two plastics The molecules in the contact parts of the parts or other parts and the plastic parts collide with each other to melt, so that the plastic in the contact position is fused, and the processing purpose is achieved.



Ultrasonic transducers are used in conjunction with ultrasonic plastic welding machines to weld plastic products. Ultrasonic plastic welding machines have different welding sizes due to different use occasions and welding materials, and their specifications are also various. Its output power is from manual welding.

Fast-each welding time is 0.01-9.99 seconds.



	(external sizes)			(electeomachanical characteristic)
Specification	Connect Screw	(mm) Ceramic diameter	(pcs) Quantity of Ceramics	(kHz) Resonance Frequency	Resistance	Yellow Ceramic	Black Ceramic	Input Power	(um) Max Displacement
OKS-6015-4C-Si	M16*1.0	60	4	15	15	9500-10000	12000-12500	2200	11
OKS-6015-4C-Tr	M16*1.0	60	8	15	15	19500-20000		4200	11
OKS-6015-4C-Qu	M16*1.0	38	12	15	15	22500-23000	27500-28000	3200	11
OKS-5020-4C-Si	3/8-24UNF	50	4	20	15	11500-12000	13500-14000	2000	8
OKS-5020-6C-Si	3/8-24UNF	50	6	20	15	19000-21000		2600	8
OKS-5020-4C-Tr	M16*1.0	50	8	20	15	23000-24000		3200	8
OKS-5020-4C-Tr	M16*1.0	38	8	20	15		17500-18000	3200	8
OKS-3828-4C-Si	3/8-24UNF	38	4	28	15	8000-8500		1000	5
OKS-3035-4C-Si	M8.1.25	30	4	35	15	5200-5600		800	4
OKS-3040-4C-Si	M10*1.5	30	4	40	15	5200-5600		800	2
