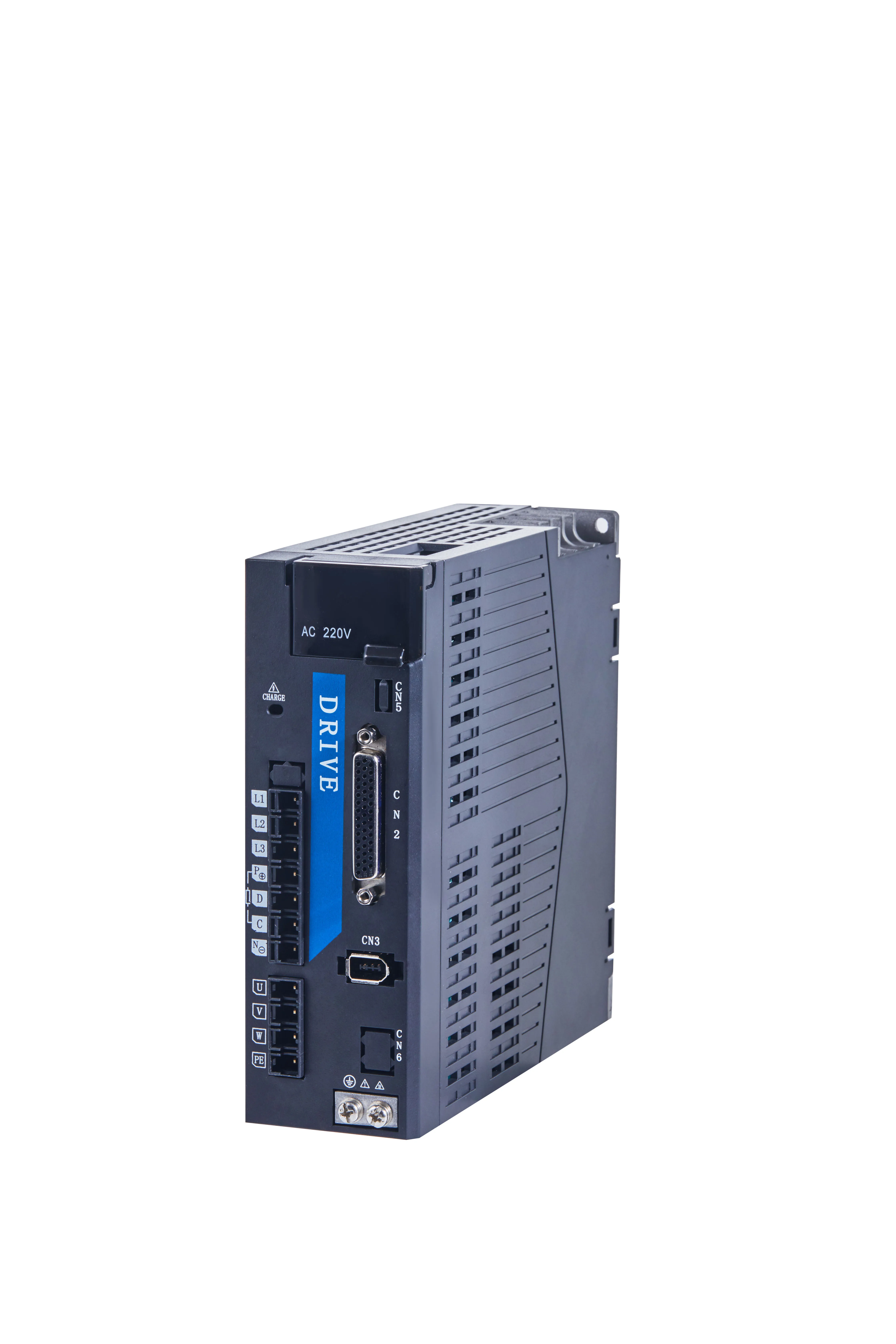

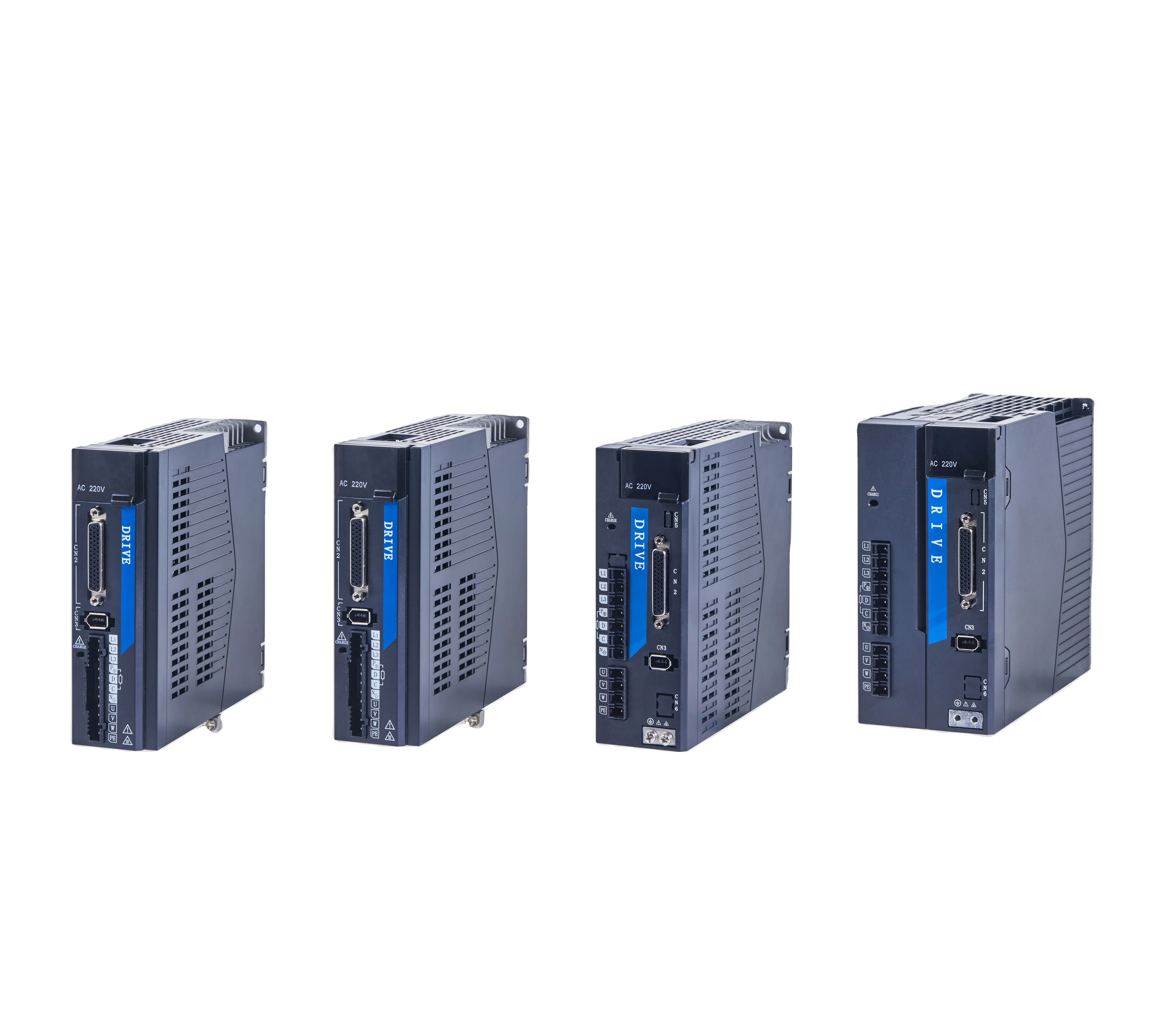

SD800 Ethercat Bus Servo Drive 2.7kw 4.5kw 5.5kw 7.5kw 380V ac servo motor with drive

Share on (1601058962264):


Price:$203.00 - $314.00

Quantity:


Product Overview

Description





Product Description




Certifications




Specification


item
value
Place of Origin
China
Jiangsu
Brand Name
RIQNO
Product Number
SD800 Ethercat Bus Servo
Warranty
18 months
Type
AC/DC/AC
Size
78*203*145 mm
Customized
Yes
Control Mode
V/F or Vector control
Rated Power
7.5kw
Nominal Voltage
380v
power phase number
3 phase
Motor Model
180-48015
Application
Industrial Equipment Ect
Color
Black
Package
Carton
OEM
Support
Motor
4-Pole Motor
Torque
48NM
Rated RPM
1500-1800
Encoder
17 Digit Absolute value encoder
MOQ
1 Piece

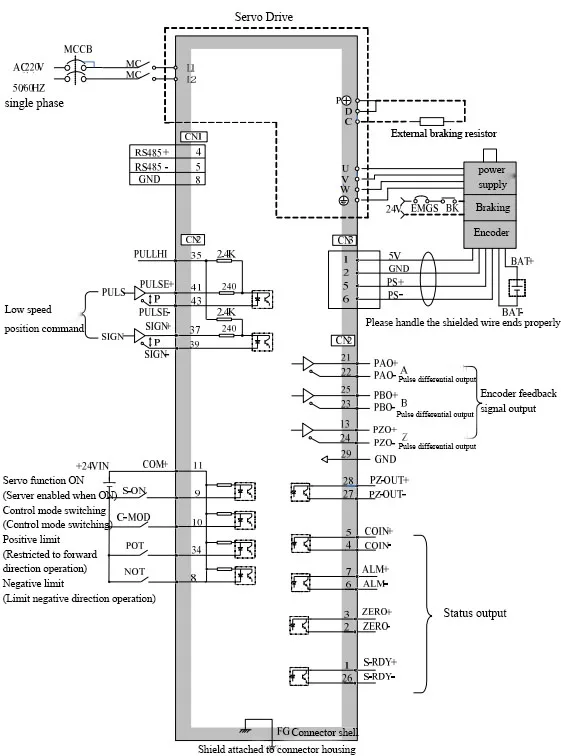

Wiring Diagram




Product Paramenters


SD800 High Performance Serov Dirve & Motor
Series
Power
Voltage
Motor Model
Torque
Rated RPM
Motor Description
SD800 Ethercat Bus Servo
400w
220V
60-01330
1.27NM
3000
5-Pole Motor
750w
220V
80-02430
2.37NM
3000
5-Pole Motor
1kw
220V
80-03330
3.3NM
3000
5-Pole Motor
850w
220V
130-C05415LB
5.4NM
1500-3000
5-Pole Motor
850w
380V
130-C05415HB
5.4NM
1500-3000
5-Pole Motor
1.3kw
220V/380V
130-C08415
8.4NM
1500-3000
5-Pole Motor
1.8kw
220V/380V
130-C11515
11.5NM
1500-3000
5-Pole Motor
2.2kw
220V/380V
130-C14615
14.6NM
1500-3000
5-Pole Motor
2.3kw
220V/380V
130-C14615
14.6NM
1500-3000
5-Pole Motor
3.8kw
220V/380V
130-C15025HB
14.33NM
2500-3000
4-Pole Moto
2.7kw
380V
180-17015
17.2NM
1500-1800
4-Pole Moto
4.5kw
380V
180-27015
27NM
1500-1800
4-Pole Moto
5.5kw
380V
180-35015
35NM
1500-1800
4-Pole Moto
7.5kw
380V
180-48015
48NM
1500-1800
4-Pole Moto
Series
Power
Voltage
Motor Model
Torque
Rated RPM
Motor Description
SD800 Pulse Servo
400w
220V
60-01330
1.27NM
3000

750w
220V
80-02430
2.37NM
3000
5-Pole Motor
1kw
220V
80-03330
3.3NM
3000
5-Pole Motor
850w
220V
130-C05415LB
5.4NM
1500-3000
5-Pole Motor
850w
380V
130-C05415HB
5.4NM
1500-3000
5-Pole Motor
1.3kw
220V/380V
130-C08415
8.4NM
1500-3000
5-Pole Motor
1.8kw
220V/380V
130-C11515
11.5NM
1500-3000
5-Pole Motor
2.2kw
220V/380V
130-C14615
14.6NM
1500-3000
5-Pole Motor
2.3kw
220V/380V
130-C14615
14.6NM
2500-3000
5-Pole Motor
3.8kw
220V/380V
130-C15025HB
14.33NM
1500-1800
4-Pole Motor
2.7kw
380V
180-17015
17.2NM
1500-1800
4-Pole Motor
4.5kw
380V
180-27015
27NM
1500-1800
4-Pole Motor
5.5kw
380V
180-35015
35NM
1500-1800
4-Pole Motor
7.5kw
380V
180-48015
48NM
1500-1800
4-Pole Motor




Packing & Delivery






Company Profile




COMPANY PROFILE
Jiangsu RIQNO Electric Co., Ltd. is one high-tech enterprise focusing on motor drive (frequency inverter), automation control, system solution integration and related technical services. The company's main products are high-performance vector frequency inverters, servo control systems, AC-to-magnetic synchronous motor drives and automation control system integration and so on. Our products are widely applied in petroleum, chemical, metallurgy, CNC machinery, packaging machinery, textile machinery, food machinery and various other electrical control fields.
At present, RIQNO has several key technologies that have obtained national patents, and have passed ISO9001 quality management system verification & intellectual property management system
verification with national high-tech enterprise certification. Powerful technical development capability
and mature production quality system are the guarantee for providing customers with high-quality
products and efficient technical support services. Our company has already mastered key technologies such as high-performance vector frequency inverter, servo drive and automation integration control. Meanwhile, RIQNO has one core R&D team to maintain continuous upgrading and improvement of our core technology.
Since its establishment, RIQNO has always been adhering to the business philosophy of "To seek the truth, To be pragmatic, To be pioneering, To keep innovating". Most of important, we promise to insist on working hard to provide customers with considerate and sustainable industrial automation solutions to achieve the common value. Our pursuit is to become the most trustworthy partner.


FAQ


1. who are we?
We are based in Jiangsu, China, start from 2021,sell to South Asia(30.00%),Eastern Asia(20.00%),Africa(20.00%),Mid East(15.00%),North America(10.00%),Eastern Europe(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Frequency Inverter,Automation Contro,System Solution Integration,Related Technical Services

4. why should you buy from us not from other suppliers?
Our products are widely applied in petroleum, chemical, metallurgy, CNC machinery, packaging machinery, textile machinery, food machinery and various other electrical control fields.

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,FCA,CPT;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
