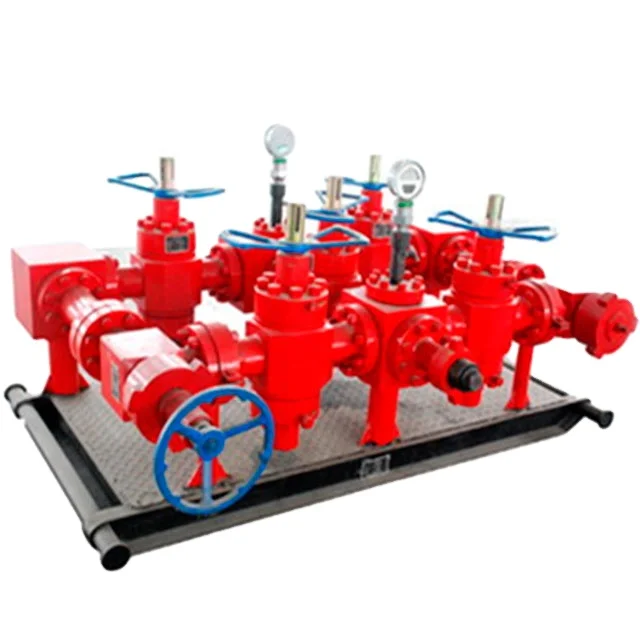

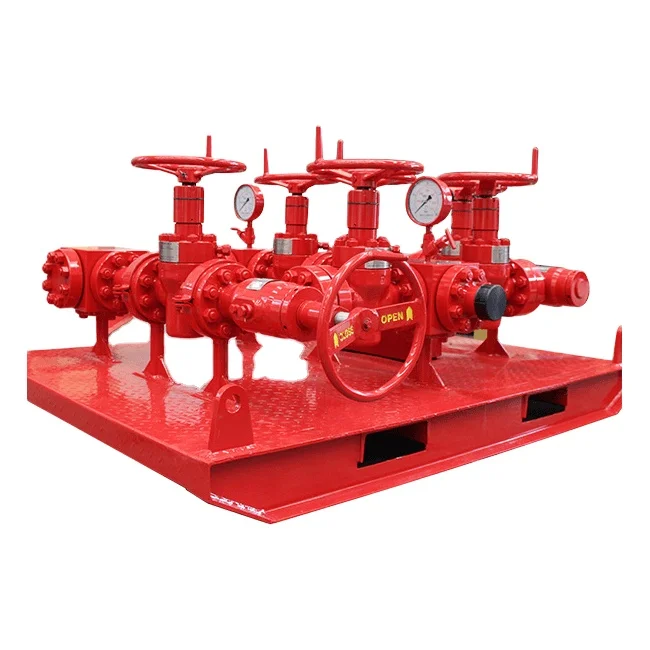

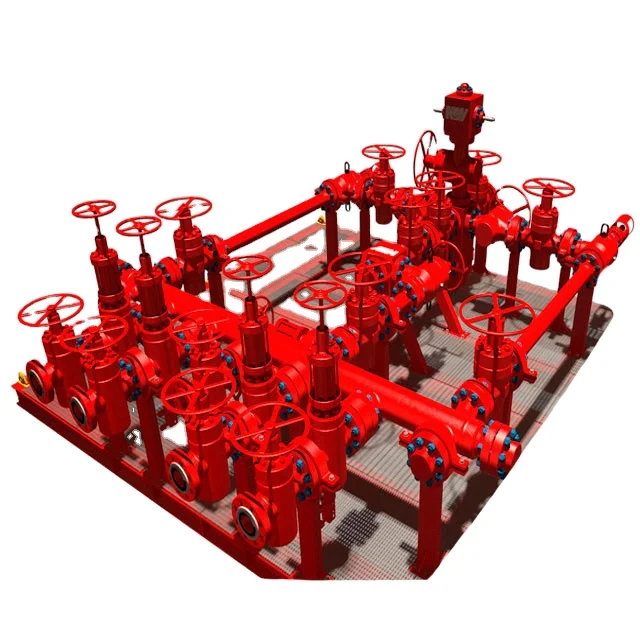

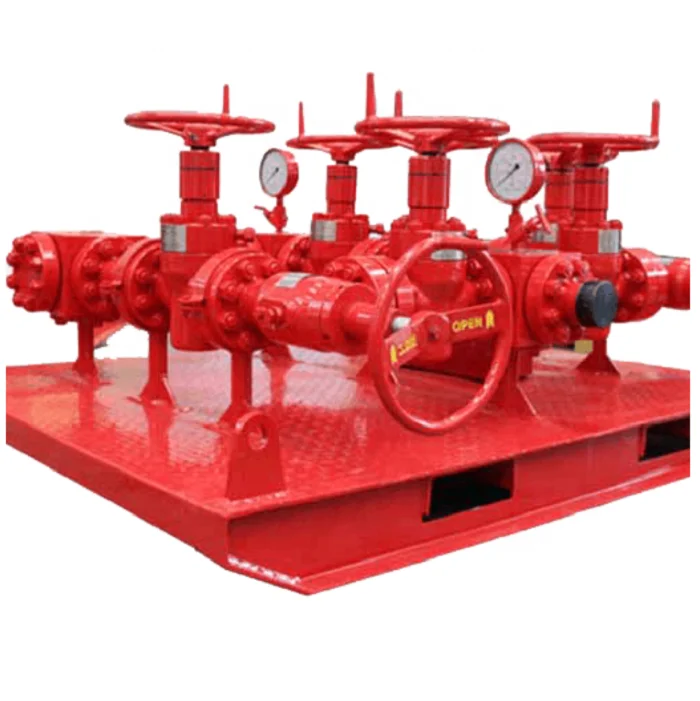

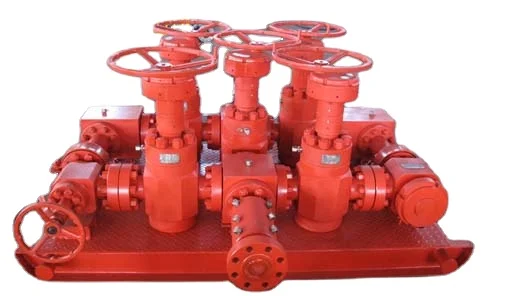

Api 16C Oilfield Wellhead Kill Manifold Choke Manifold
- Category: >>>
- Supplier: Yantai Sanmon Machinery Equipments Co. Ltd.
Share on (1601059011682):
Product Overview
Description
PRODUCTS DESCRIPTION
item | value |
Usage | Oil Well |
Warranty | 1 year |
After-sales Service Provided | Overseas third-party support available |
Place of Origin | Shandong, China (Mainland) |
Machine type | Drilling Equipment |
Type | Choke manifold |
Working Temperature | -29~121°C |
Processing Type | Forging |
Material | Carbon Steel |
1.Configuration
The choke manifold consists of choke valves, gate valves, line pipes, fittings, pressure gauges and other components.
The choke manifold consists of choke valves, gate valves, line pipes, fittings, pressure gauges and other components.
2.Application
Choke manifold is necessary device to control the well kick successfully and execute the pressure control technology on
oil/gas well in the course of drilling, as it is, the device is adopted to execute new drilling-well’s technique of balance pressure, which can avoid pollution of oil-layer, improve the speed of drilling and control blowout effectively. One end of the device connects with the side flange of BOP spool. When BOP closes, it can control the finite pressure from casing by adjusting the choke valve’s opening, so balanced drilling can work under minimum pressure-difference.
Choke manifold is necessary device to control the well kick successfully and execute the pressure control technology on
oil/gas well in the course of drilling, as it is, the device is adopted to execute new drilling-well’s technique of balance pressure, which can avoid pollution of oil-layer, improve the speed of drilling and control blowout effectively. One end of the device connects with the side flange of BOP spool. When BOP closes, it can control the finite pressure from casing by adjusting the choke valve’s opening, so balanced drilling can work under minimum pressure-difference.
3.Working Principles
When the pressure inside the well rises, opening/closing the choke valves (including manual chokes, hydraulic chokes,
and positive chokes) on the choke manifold can allow the release of the fluid inside the well so as to control casing
pressure, which can be directly blown out through the gate valve if the casing pressure is quite high.
4.Pressure Ratings
The kill manifold is available in pressure ratings of 14MPa, 21MPa, 35MPa, 70MPa and 105MPa, and also can be available upon customer request.
5. Operating Instructions
(1) The working pressure of all components on the choke manifold shall be compatible with that of the BOP stack used.
(2) The choke manifold shall be installed at the place where the operator can reach it easily. The pressure test must be
performed prior to installation and the seat test pressure shall be equal to the rated working pressure.
(3) The line pipe shall be level and straight as much as it could. In case of the turn of the line pipe, the 120 degree steel
bent pipe shall be used. The bore of the line pipe shall be large enough.
(4) The pressure gauge must be installed.
(5) In winter, the choke manifold can work under a low temperature condition
When the pressure inside the well rises, opening/closing the choke valves (including manual chokes, hydraulic chokes,
and positive chokes) on the choke manifold can allow the release of the fluid inside the well so as to control casing
pressure, which can be directly blown out through the gate valve if the casing pressure is quite high.
4.Pressure Ratings
The kill manifold is available in pressure ratings of 14MPa, 21MPa, 35MPa, 70MPa and 105MPa, and also can be available upon customer request.
5. Operating Instructions
(1) The working pressure of all components on the choke manifold shall be compatible with that of the BOP stack used.
(2) The choke manifold shall be installed at the place where the operator can reach it easily. The pressure test must be
performed prior to installation and the seat test pressure shall be equal to the rated working pressure.
(3) The line pipe shall be level and straight as much as it could. In case of the turn of the line pipe, the 120 degree steel
bent pipe shall be used. The bore of the line pipe shall be large enough.
(4) The pressure gauge must be installed.
(5) In winter, the choke manifold can work under a low temperature condition
PRODUCT DISPLAY
COMPANY PROFILE
EXHIBITION PICTURES

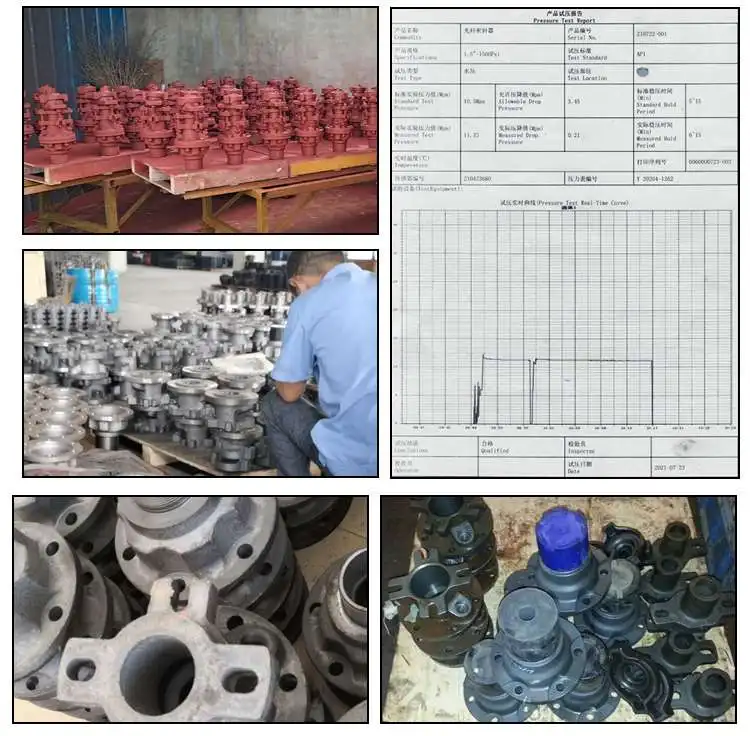

PRODUCTION INSPECTION PROCESS
PACKAGING AND DELIVERY
