Zkong Factory Electronic Shelf Label 2.66 Inch Price Label E ink display for retail store
- Category: >>>
- Supplier: Zhejiang Sunparl Information Technology Co. Ltd.
Share on (1601059014802):
Product Overview
Description
Zkong Bluetooth 5.0 Display ESL Electric Shelf Label
The Cloud Electronic Shelf Label
We designed the ESL with China leading retailers Alibaba. It is truly enterprise-class solution using bluetooth, Wi-Fi, and cloud computing technology, offering the lowest total cost and best performance of any ESL vendor. The ESL are truely scalable and central managed up to unlimited volume, no server are needed in-store.
Product Description
Brand | Zkong |
Name | Blade Series Electronic Shelf Label |
Size | 1.8'', 2.13'',2.2'', 2.6'', 2.9'' , 3.5‘’, 4.2'', 4.3'', 5.8'', 7.5'', etc. |
Language | English, French, Thai, Arabic, Spanish, French, Portugues etc. |
Display Color | White Black,White Black Red |
Working Temperature | 0~40℃ |
Battery | 3-5 years life, Removable battery |
ZKC18B| 1.8'' Screen
Dot Matrix E-paper Black/White/Red (Yellow)
Size:54.2*36.9*9.9mm
Screen:36.06*27.05mm
Operate temperature:0~40℃
Battery: 600mA / 5 Years
ZKC21B| 2.13'' Screen
Dot Matrix E-paper Black/White/Red (Yellow)
Size:71*34.7*9.5mm
Size:71*34.7*9.5mm
Screen:48.55*23.7mm
Operate temperature:0~40℃
Battery:600 mAh / 5 years
Operate temperature:0~40℃
Battery:600 mAh / 5 years
ZKC26S | 2.6'' Screen
Dot Matrix E-paper Black/White/Red (Yellow)
Size:85*41*7.5mm
Dot Matrix E-paper Black/White/Red (Yellow)
Size:85*41*7.5mm
Screen:60.09*30.7mm
Operate temperature:0~40℃
Battery:600 mAh / 5 years
Operate temperature:0~40℃
Battery:600 mAh / 5 years

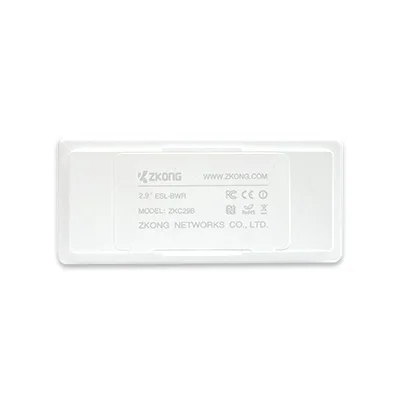

ZKC29B | 2.9'' Screen
Dot Matrix E-paper Black/White/Red (Yellow)
Size:92*41.5*7.5mm
LED Indicator
Operate temperature:0~40℃
Battery:600 mAh / 5 years
Dot Matrix E-paper Black/White/Red (Yellow)
Size:92*41.5*7.5mm
LED Indicator
Operate temperature:0~40℃
Battery:600 mAh / 5 years
ZKC42B | 4.2'' Screen
Dot Matrix E-paper Black/White/Red (Yellow)
Dot Matrix E-paper Black/White/Red (Yellow)
Size:103.6*87*10.3mm
Screen:84.8*63.6mm
Operate temperature:0~40℃
Battery:1200 mAh /5 years
ZKC43B | 4.3'' Screen
Dot Matrix E-paper Black/White/Red (Yellow)
Size:129.7*41.3*93mm
LED Indicator
Operate temperature:0~40℃
Operate temperature:0~40℃
Battery:1200 mAh / 5 years
How the ESL Working?
ESL Synchronize with Cloud Platform
Details Images

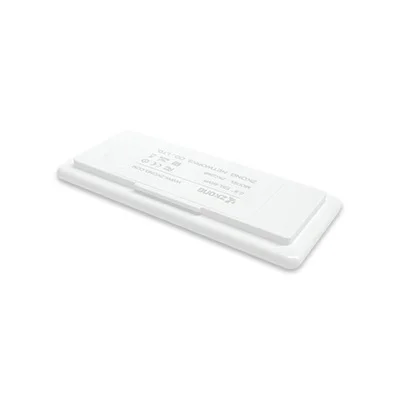

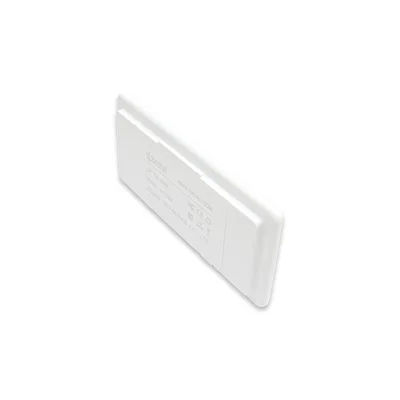

Detachable housing allows easy replacement of price tag batteries
Related Products

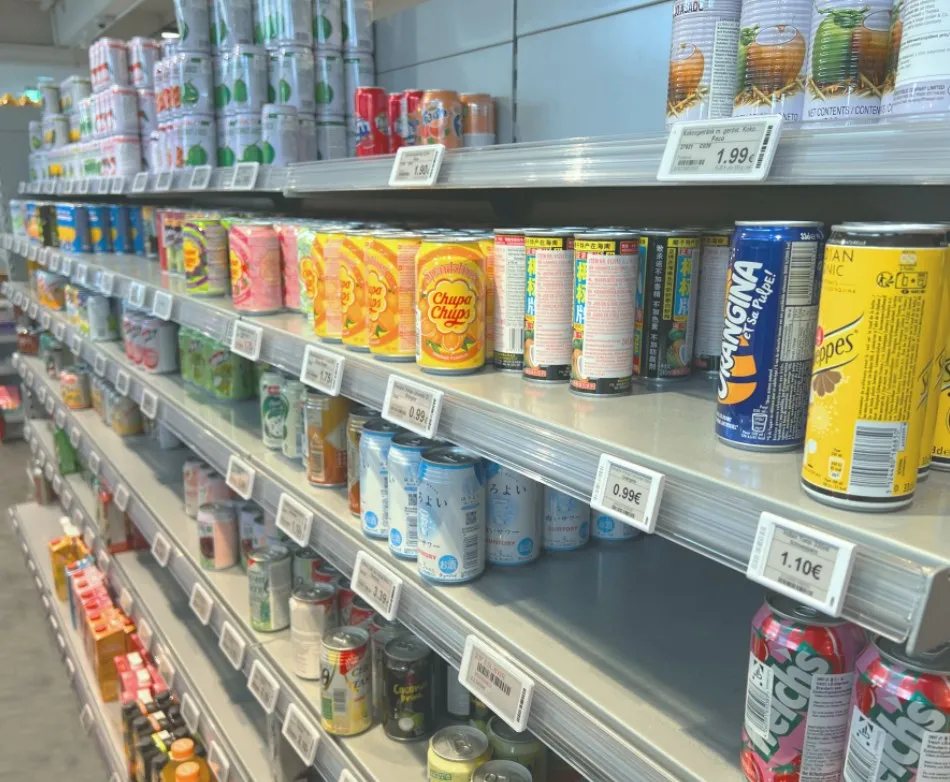

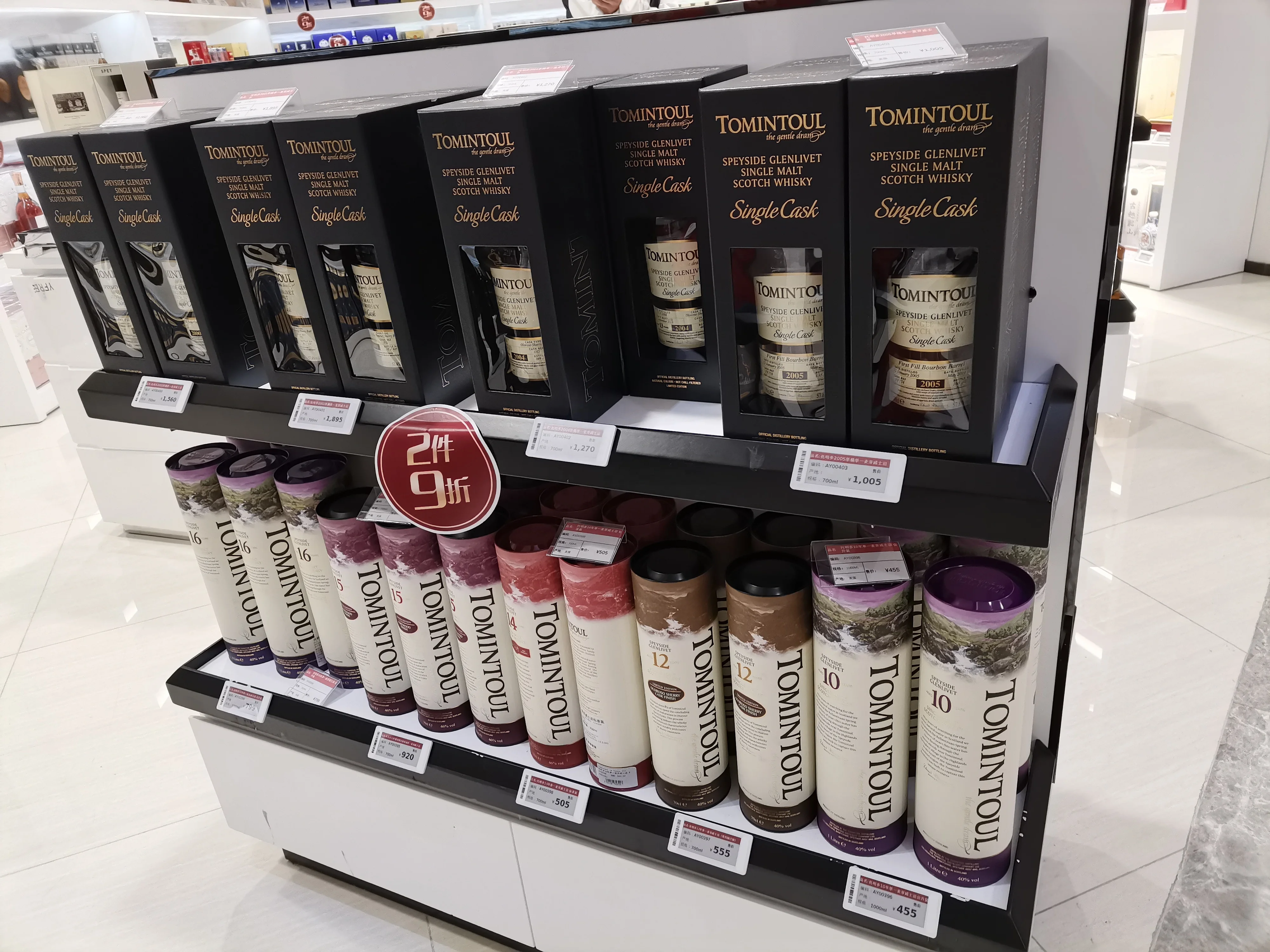

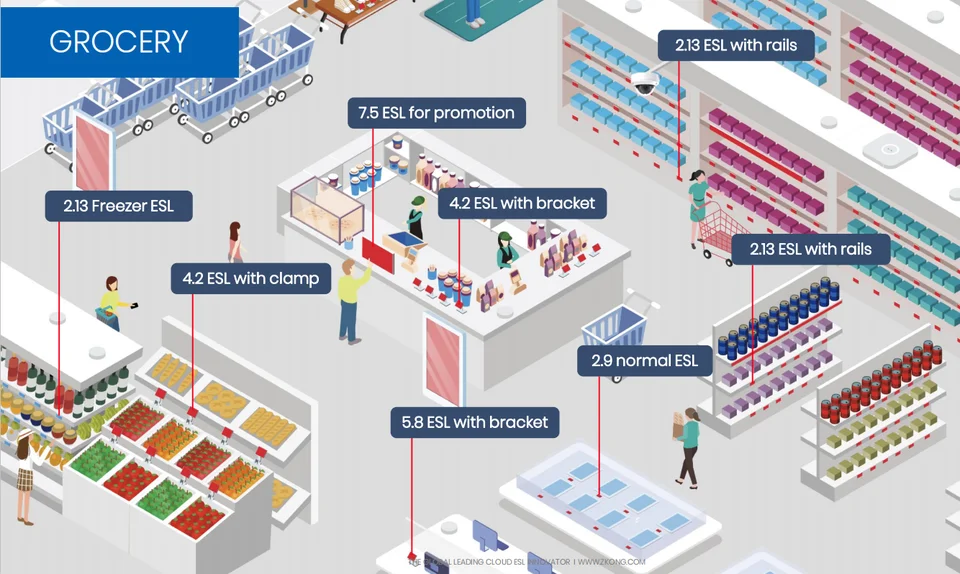

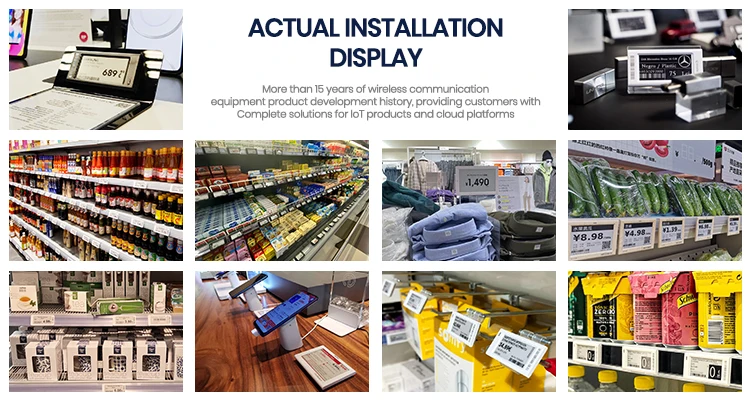

Actual Installation Display
Company Profile
Exhibition Display
End To End Manufacture
Company Certificate
Product Packaging
FAQ
1. What composed in the whole esl system?
It composed by ESL tags+base stations+PDA scanners+software+mounting kits
ESL tags: 1.54'' , 2.13'' , 2.66'' , 2.7'' , 2.9'' , 4.2'' , 5.8'' , 7.5'' , 11.6'' , 13.3 '', white-black-red color, battery removable,
Base station: connect the ESL tags to the whole system
PDA scanner: bind ESL tags and commodities
Software: managing ESL system and edit template
Mounting kits: help ESL tags installed in different places
2. What is display template?
Template defines what information will be displayed on the ESL screen and how.
Usually the information display is commodity name, price, origin, bar code, etc.
3. Template can be customized?
No need to customize. It is visual to edit the template, just similar to drawing and writing on blank paper. With our software, everyone is the designer.
4. If I buy samples for test, what should I pay attention to?
There are two options for your reference.
a. Basic type: 1*Base station +several ESL tags+software
b. Standard one: 1 demo kit box (all kinds of ESL tags+1*base station+software+1*PDA scanner+1 set of mounting kits+ 1*box)
*Please note the base station is necessary for test. Our ESL tags can only work with our base station.
5. How to purchase?
Firstly tell us about your requirements or application
Secondly we will quote you according to your information
Thirdly please make the deposit according the quotation and send us the bank bill
Fourthly the production and packing will be arranged
Lastly ship the goods to you
6. lead time?
Sample order is usually 3-10 days
Formal order is 1-3 weeks
7.How about guarantee?
1 year for ESL
8. Do you supply ESL demo kit for testing?
Yes. ESL demo kit is available, which includes all sizes of ESL price tags, base station, software and some accessories.
It composed by ESL tags+base stations+PDA scanners+software+mounting kits
ESL tags: 1.54'' , 2.13'' , 2.66'' , 2.7'' , 2.9'' , 4.2'' , 5.8'' , 7.5'' , 11.6'' , 13.3 '', white-black-red color, battery removable,
Base station: connect the ESL tags to the whole system
PDA scanner: bind ESL tags and commodities
Software: managing ESL system and edit template
Mounting kits: help ESL tags installed in different places
2. What is display template?
Template defines what information will be displayed on the ESL screen and how.
Usually the information display is commodity name, price, origin, bar code, etc.
3. Template can be customized?
No need to customize. It is visual to edit the template, just similar to drawing and writing on blank paper. With our software, everyone is the designer.
4. If I buy samples for test, what should I pay attention to?
There are two options for your reference.
a. Basic type: 1*Base station +several ESL tags+software
b. Standard one: 1 demo kit box (all kinds of ESL tags+1*base station+software+1*PDA scanner+1 set of mounting kits+ 1*box)
*Please note the base station is necessary for test. Our ESL tags can only work with our base station.
5. How to purchase?
Firstly tell us about your requirements or application
Secondly we will quote you according to your information
Thirdly please make the deposit according the quotation and send us the bank bill
Fourthly the production and packing will be arranged
Lastly ship the goods to you
6. lead time?
Sample order is usually 3-10 days
Formal order is 1-3 weeks
7.How about guarantee?
1 year for ESL
8. Do you supply ESL demo kit for testing?
Yes. ESL demo kit is available, which includes all sizes of ESL price tags, base station, software and some accessories.
