Guide TK611 Handheld Thermal Imaging Monocular For Hunting
- Category: >>>
- Supplier: Guangzhou Specprecision Optics Products Co. Ltd
Share on (1601059035861):
Product Overview
Description
Specification
Infrared Detector | |
IR Resolution | 640×480@12μm |
Spectral Range | 8～14μm |
NETD | ≤50mk @ F1 25℃ |
Lens | |
Focal Length | 19mm F1.0 |
Focus | Manual focusing |
FOV | 22.9×17.2 |
Frame Rate | |
Output Frame Frequency | 50HZ |
Zoom | |
Optical Zoom | 1.1X |
Digital Zoom | 1x—8x |
Visual Effect | It's like viewing at a 22’‘ screen at a distance of 1m |
Power Supply | |
Battery Type | Built-in 2*18650 batteries with a capacity of 6,000mah |
Battery Operating Time | Battery continuous working time ≥ 4.5 hours @ 25 ℃ (only observe the state) |
Interface | |
USB | Type C (USB 2.0 standard) interface, chargeable and data access |
Video Interface | Micro HDMI |
WIFI | Transmission of real-time video via WIFI, 2.4G frequency, distance up to 15m |
External Extension | External display and external Bluetooth remote control |
Mechanical Interface | 1/4'' tripod base port |
Display | |
Display | 0.4'', color LCOS screen |
Resolution Ratio | 1280×960 |
Monocular Eyepiece | Monocular, exit pupil distance ≥ 10mm, adjustable diopter -4~＋2 |
Eyepiece Zoom | 13.8x |
Video Output | HDMI |
Button | |
Button | Switch/Up/Menu/Down/Photo/video |
Functions | |
Smooth Zoom | Available |
Screen Brightness Adjustment | 10 levels |
Detector Brightness Adjustment | 10 levels |
Detector Contrast Adjustment | 10 levels |
Image Enhancement | Available |

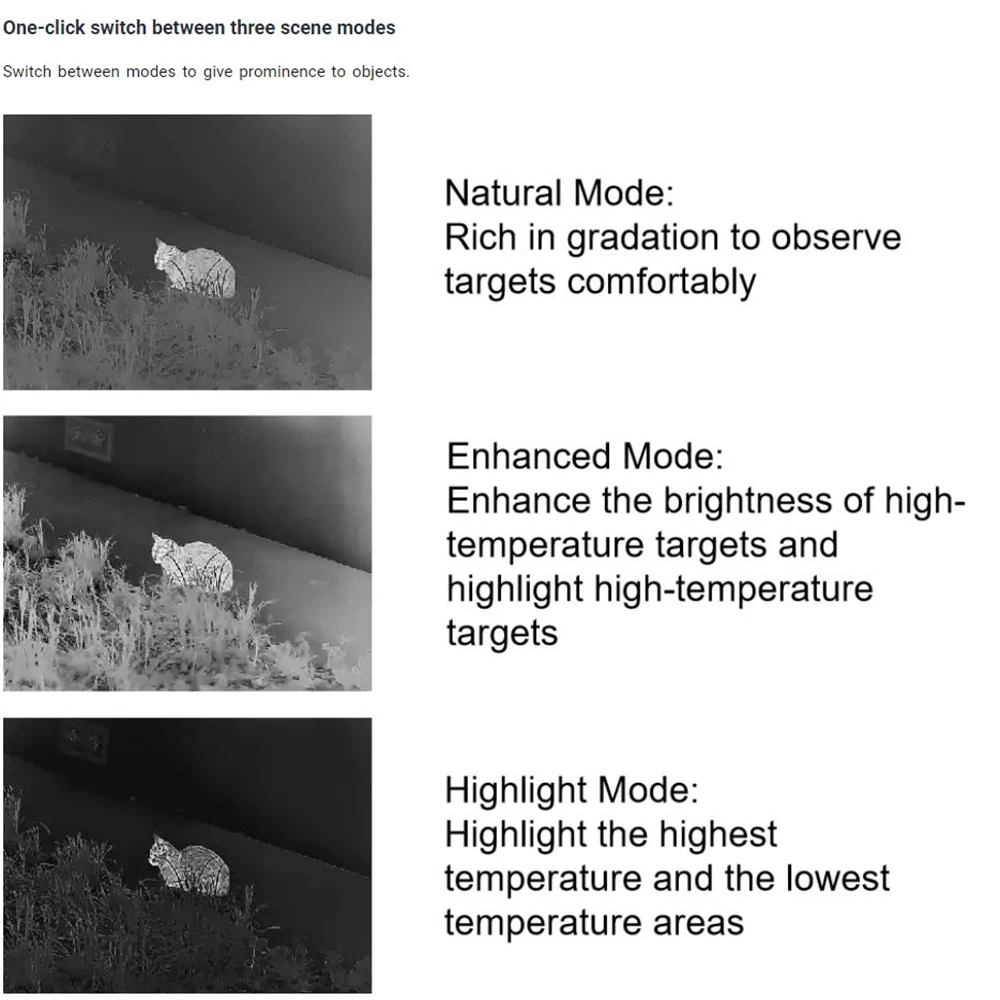

Scene Mode Adjustment | Three modes: Default, Enhanced, Highlight |
Super Power Saving | Available |
Images | Available |
Videos | Available |
WIFI | Transmission of real-time video via WIFI for remote control, 2.4G frequency band, distance up to 15m |

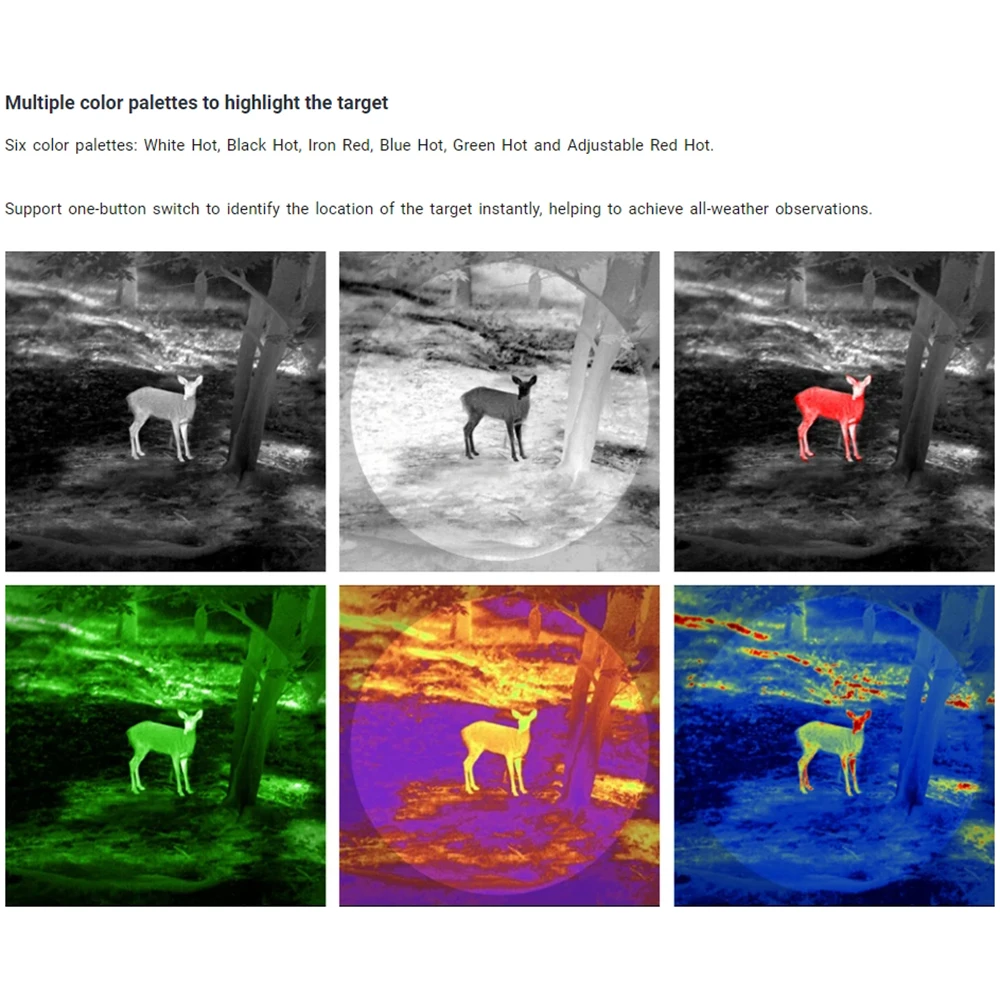

Color Palettes | White Hot/ Black Hot/ Iron Red/ Blue Hot/ Green Hot/ Adjustable Red Hot |
Hot Spot Tracking | Available |
Working Indicator | Switch |
Charging Indicator | Switch |
Compensation Mode | Automatic compensation, shutter compensation and scene compensation |
Rough Ranging | Available |
Automatic Shutdown | Adjustable shutdown time from 15min, 30min to 60min |
Auto Sleep | Adjustable shutdown time from 5 min, 10 min to 15 min |
Language Settings | Chinese/English/Russian/German/French |

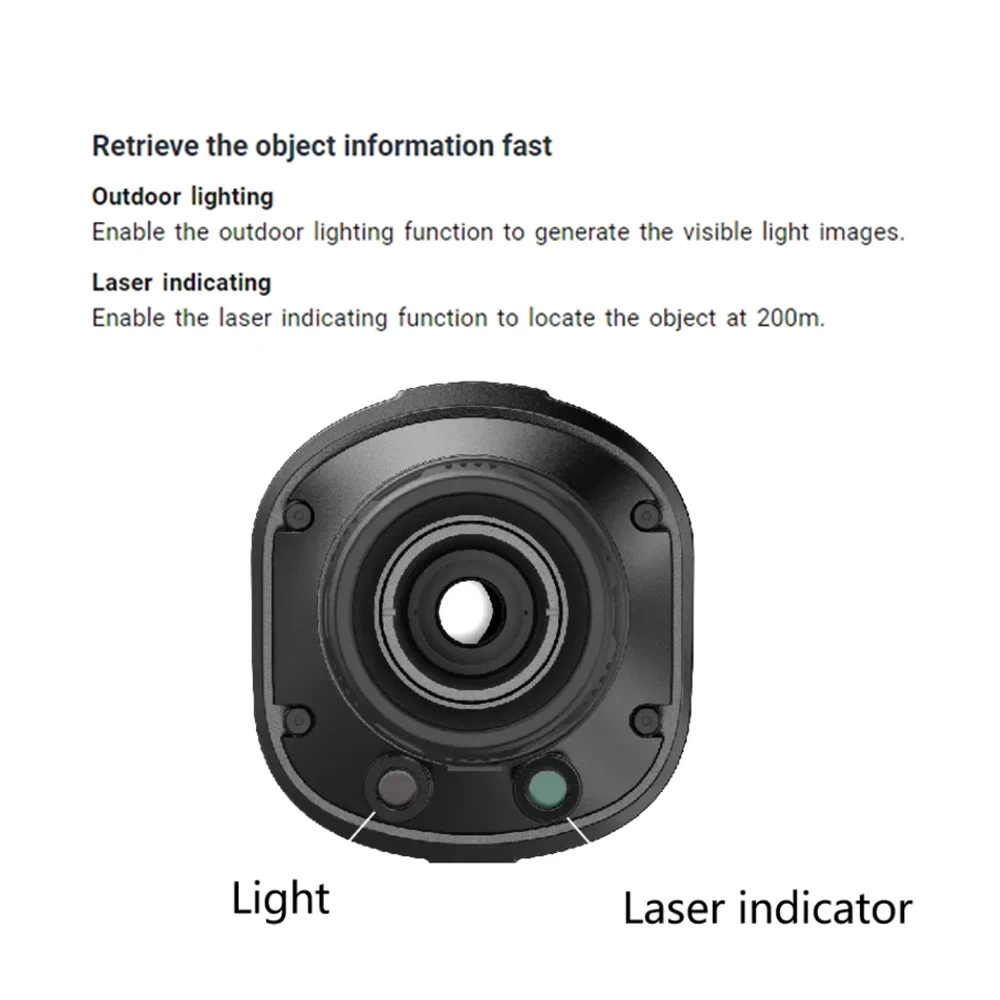

Laser indicator | Up to 200m, Red/Yellow/Green |
Floodlight | Switch |
System | |
Time Setting | Available |
Watermark Settings | Closure, and setting of date or date and location |
PIP | Capable to swipe left and up, or pause in the middle and swipe up; or swipe right and up to close |
Restore to Default | Available |
Startup Time | 15s (turn on to live image) @25℃ |
Internal Storage | 16GB |
Environmental | |
Working temperature | -10℃~50℃ |
Storage Temperature | -30℃~60℃ |
Humidity | 10%~95%, non-condensing |
Impact | 30G/1ms semi-sinosoidal IEC60068-2-27 |
Vibration | 10Hz~150Hz~10Hz 0.15mm as per IEC60068-2-6 |
Drop Test Rating | 1m |

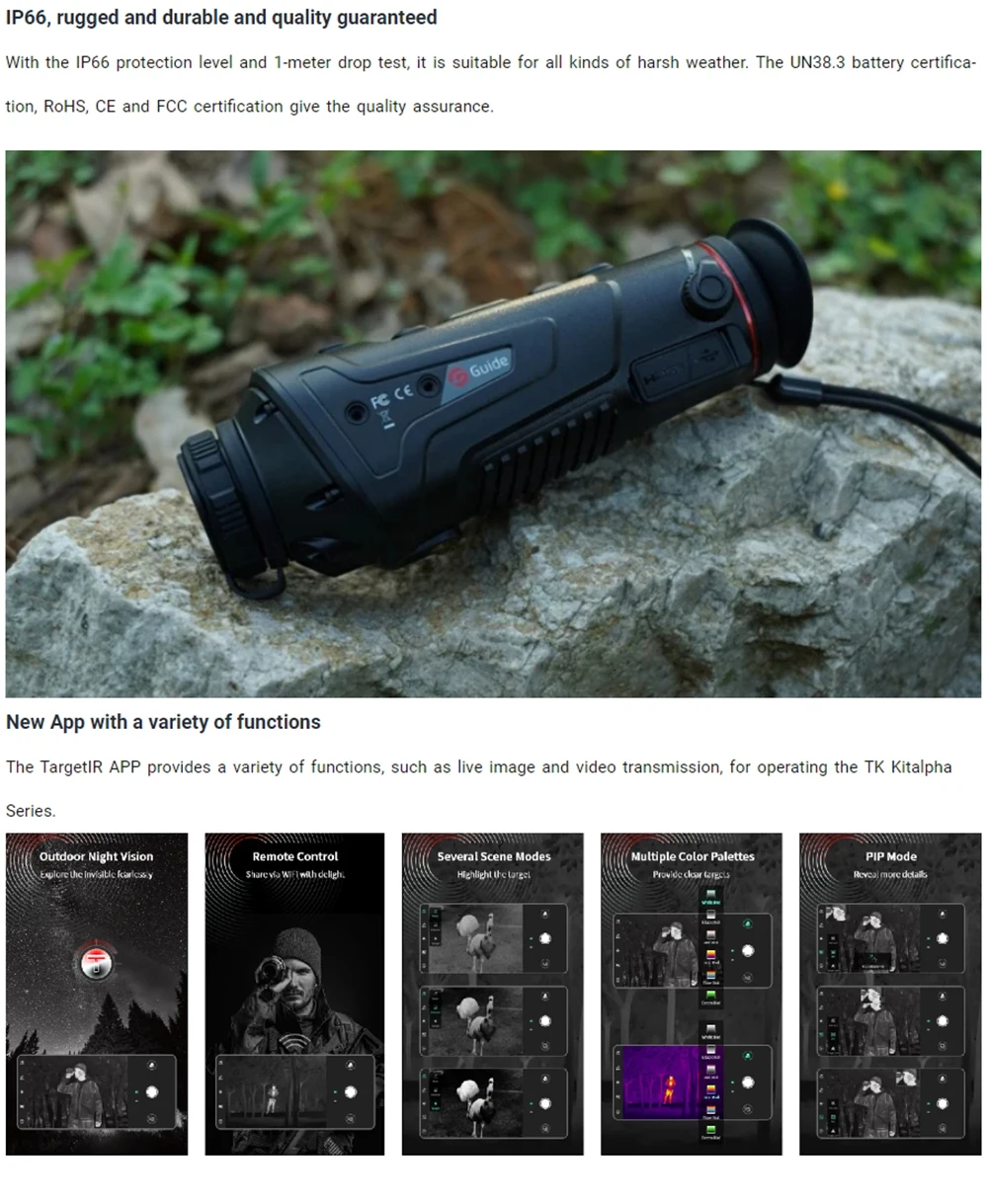

IP Rating | IP66 |
Certifications | IP66/FCC/CE/Rohs/EAC/un38.3 |
Physical parameters | |
Weight | ≤490g |
Size | 214*65*71mm |
Standard | Equipped with a power adapter, a USB cable (Type C), a micro HDMI cable, a lens cover; a wrist strap, an inner bag, a shoulder strap, a Quick User Guide |
Recognition Range/Detection Range | |
Vehicle (2.3m×2.3m) | Detection Range: 1850 Recognition Range: 800 |
Human (1.8m×0.5m） | Detection Range: 800 Recognition Range: 400 |
Deer (1.5m×0.5m） | Detection Range: 630 Recognition Range: 320 |
Boar (0.9m×0.7m） | Detection Range: 480 Recognition Range: 250 |
