Energy Storage Connector 8MM 150A 1000VDC Lithium Battery Busbar Terminal Connector
- Category: >>>
- Supplier: Renhao Weiye Technology (wuhan) Co. Ltd.
Share on (1601059068629):
Product Overview
Description
Products Description
Manufacturer | Renhotec |
Type | Plug / Socket |
Orientation | Straight / Right Angled |
Contact Size | 6mm / 8mm / 12mm / 14mm |
Rated Current | 60A / 100A / 120A / 150A / 200A / 250A / 300A / 350A |
Wire Range | 10mm² / 16mm² / 25mm² |
Socket Type | With Hole / External Thread / Internal Thread |
Termination Style | Crimp |
IP Rating | Non / IP67 |
Color Option | Orange / Red / Black |
Contact Material | Cooper Alloy |
Temperature Range | -40°C~ +125°C |
Suitable for Installation Environment, Three Colors Available
In order to be more adaptable to more installation scenarios, energy storage connector plugs are generally curved, we can also make straight plugs according to your needs.

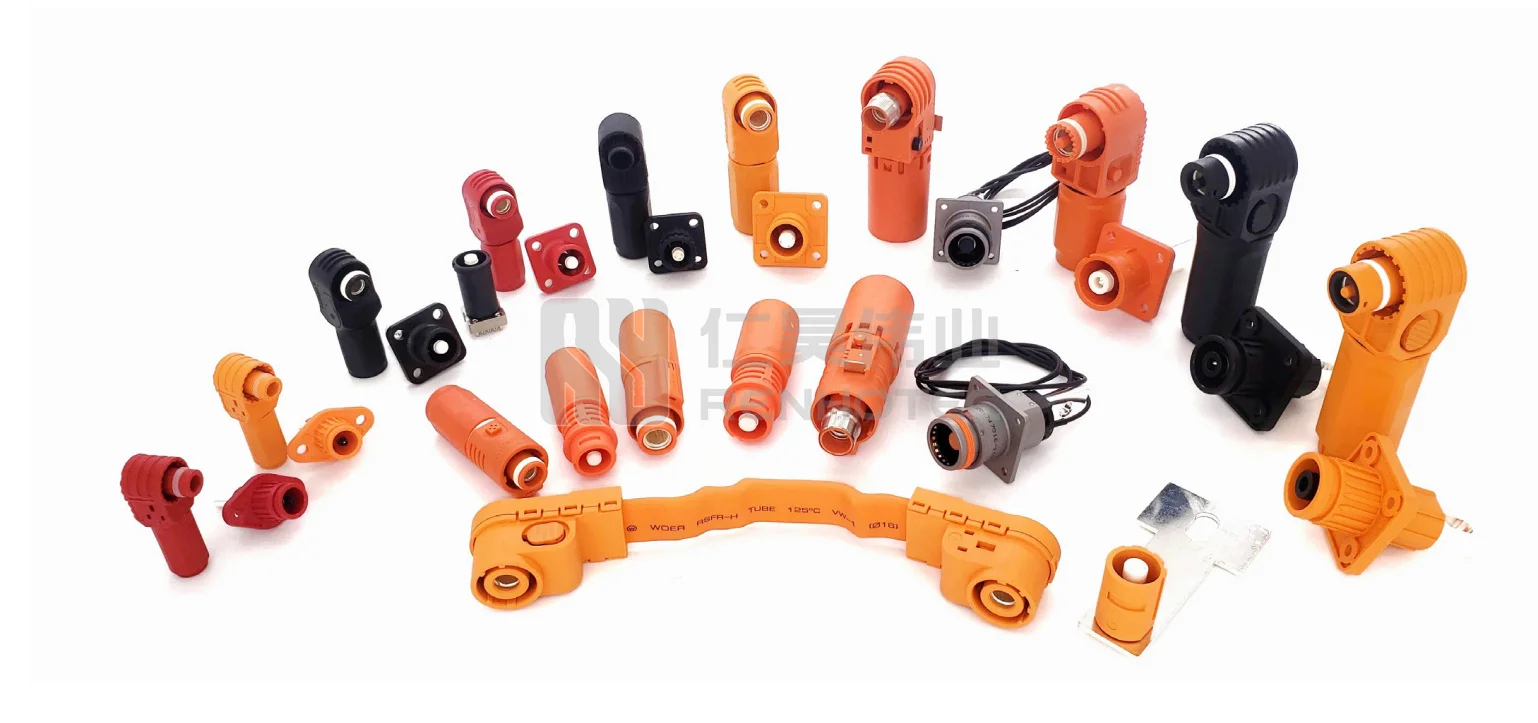

The connectors are available in orange, red and black colors.
Custom Wire Harnesses
In addition to connectors, we can customize various energy storage connector harnesses to suit your needs.
Energy storage connector harnesses can be adapted to 60A~350A rated current and 10mm²~95mm².

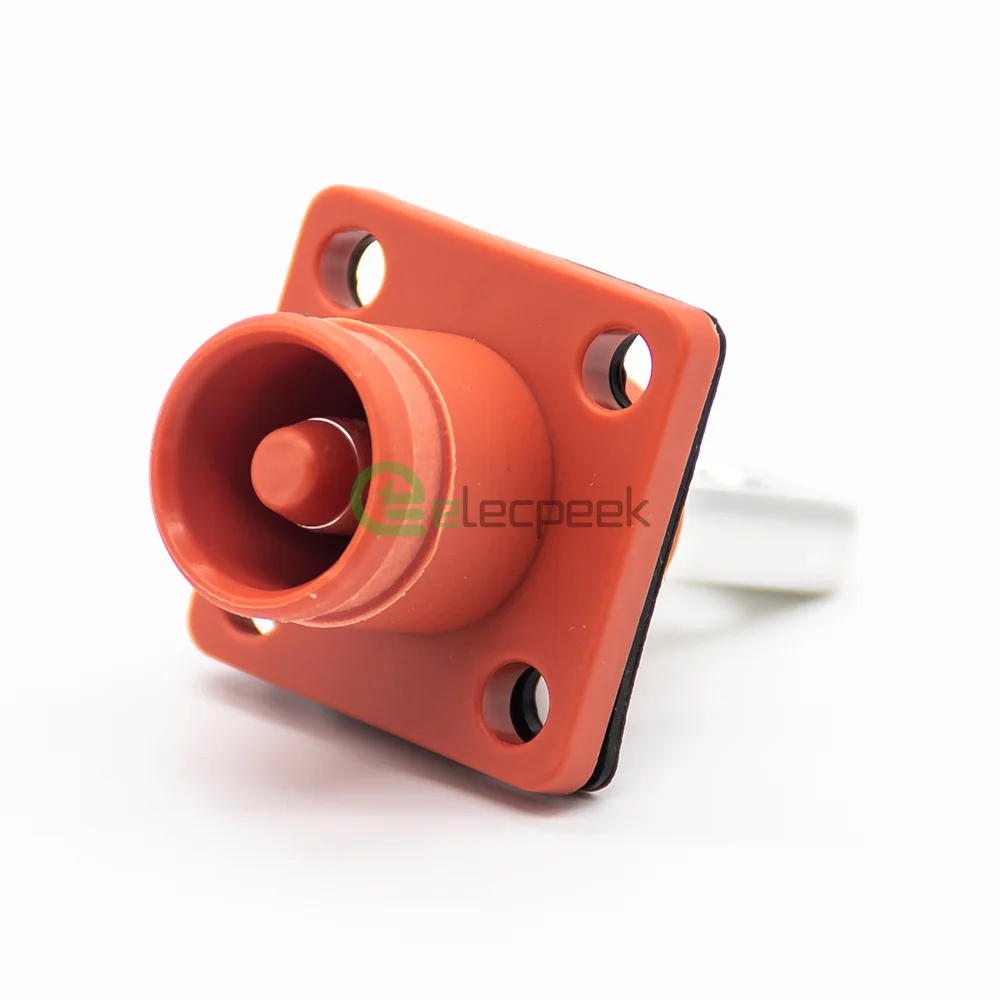

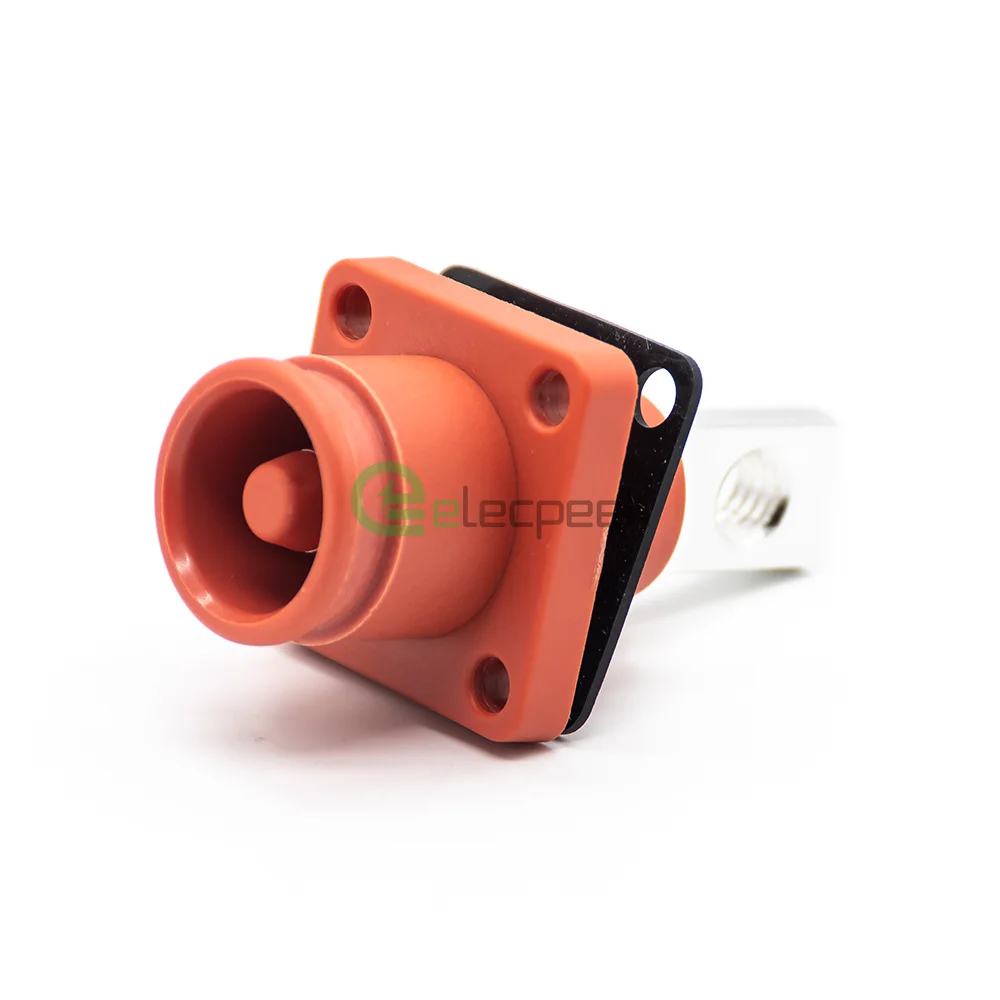

The receptacles of energy storage connectors are available with three types of terminals: copper plate thread, female thread, and male thread.
You can choose the socket with the correct terminal block according to your specific installation environment.
Support Customization
Customized Production
Tailored manufacturing to meet specific requirements and needs.
Diversified Product lines
A wide range of product offerings across various categories.
Technological Innovation
Cutting-edge advancements paired with consistent dependability.
Applications
Energy Storage Cabinet
New Energy Vehicles
Household Energy Storage
Wind and Photovoltaic Power
Electric Energy Storage
Industrial Automation
Company Profile
- Acquired ISO9001, ISO14001, QC080000 and TS16949 certification.
- All items are in line with EU ROHS and REACH environmental requirements.
- Markets supported include automotive, medical, instrumentation, telecom and wireless etc.
- All items are in line with EU ROHS and REACH environmental requirements.
- Markets supported include automotive, medical, instrumentation, telecom and wireless etc.
FAQ
Q: I am looking for a battery connector for positive and negative use,please recommend.
A: Our battery storage connectors are widely used in connecting battery packs.Q: My required current is xxxA, can you do it?
A: Yes, our connector can meet the rated current from 60A to 500A.
Q: I will use for xxmm2 cable, can you do it?
A: Yes, our connector can be used for a 10mm2 to 150mm2 wire range.
