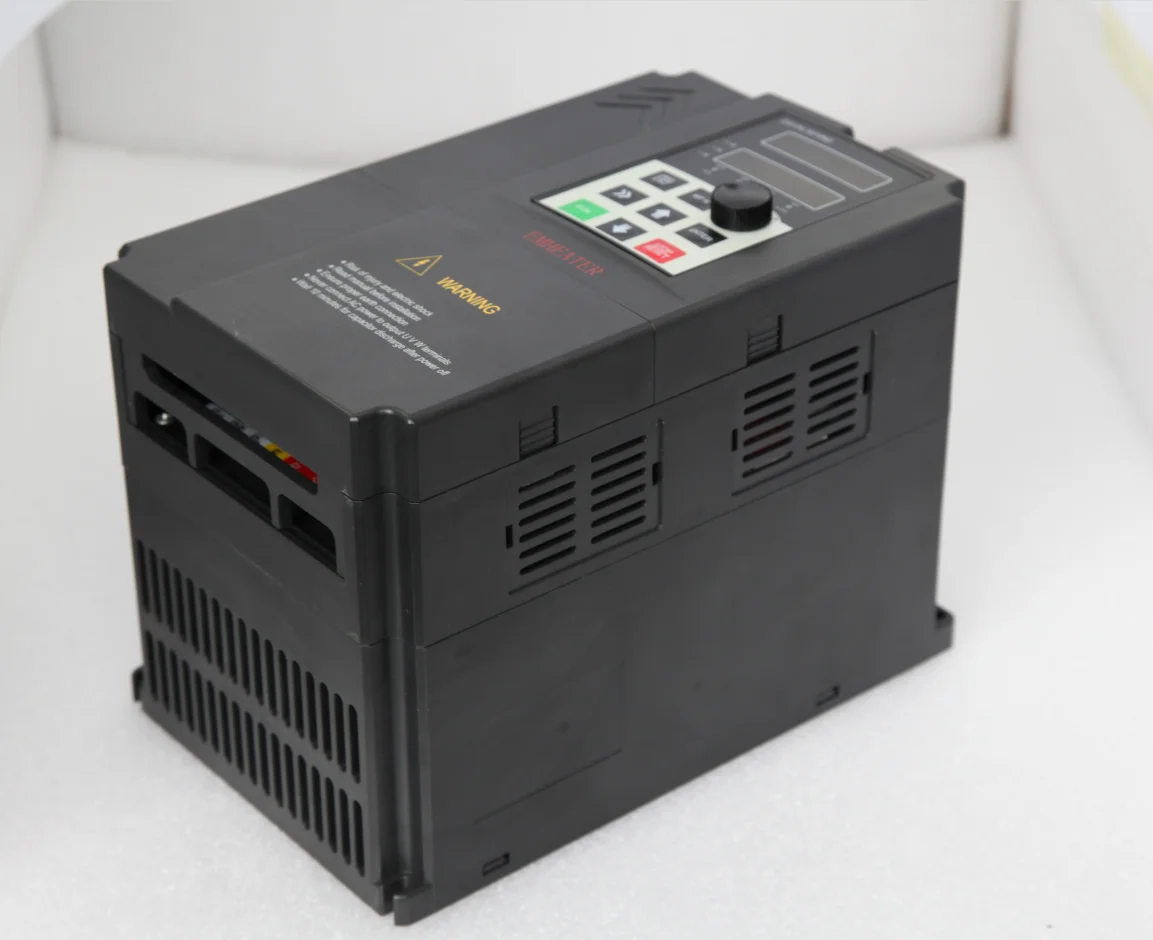

DC to AC 3 Phase 380V/220V MPPT Solar Water Pump Central Inverter/VFD for Hybrid Solar System with Variable Frequency
DC to AC 3-Phase 380V/220V MPPT Solar Water Pump Central Inverter/VFD for Hybrid Solar System with Variable Frequency
DC to AC 3-Phase 380V/220V MPPT Solar Water Pump Central Inverter/VFD for Hybrid Solar System with Variable Frequency
DC to AC 3-Phase 380V/220V MPPT Solar Water Pump Central Inverter/VFD for Hybrid Solar System with Variable Frequency
DC to AC 3-Phase 380V/220V MPPT Solar Water Pump Central Inverter/VFD for Hybrid Solar System with Variable Frequency
DC to AC 3-Phase 380V/220V MPPT Solar Water Pump Central Inverter/VFD for Hybrid Solar System with Variable Frequency
DC to AC 3-Phase 380V/220V MPPT Solar Water Pump Central Inverter/VFD for Hybrid Solar System with Variable Frequency

DC to AC 3 Phase 380V/220V MPPT Solar Water Pump Central Inverter/VFD for Hybrid Solar System with Variable Frequency

Share on (1601059102345):


Price:$160.00 - $180.00

Quantity:


Product Overview

Description



DC to AC 3phase 380V 220V MPPT solar water pump inverter/VFD with variable frequency


solar pump drive












automatically MPPT control 69KVA 50HZ 60HZ DC 450V AC 380V 3 phase output 55KW 75HP solar inverter drive

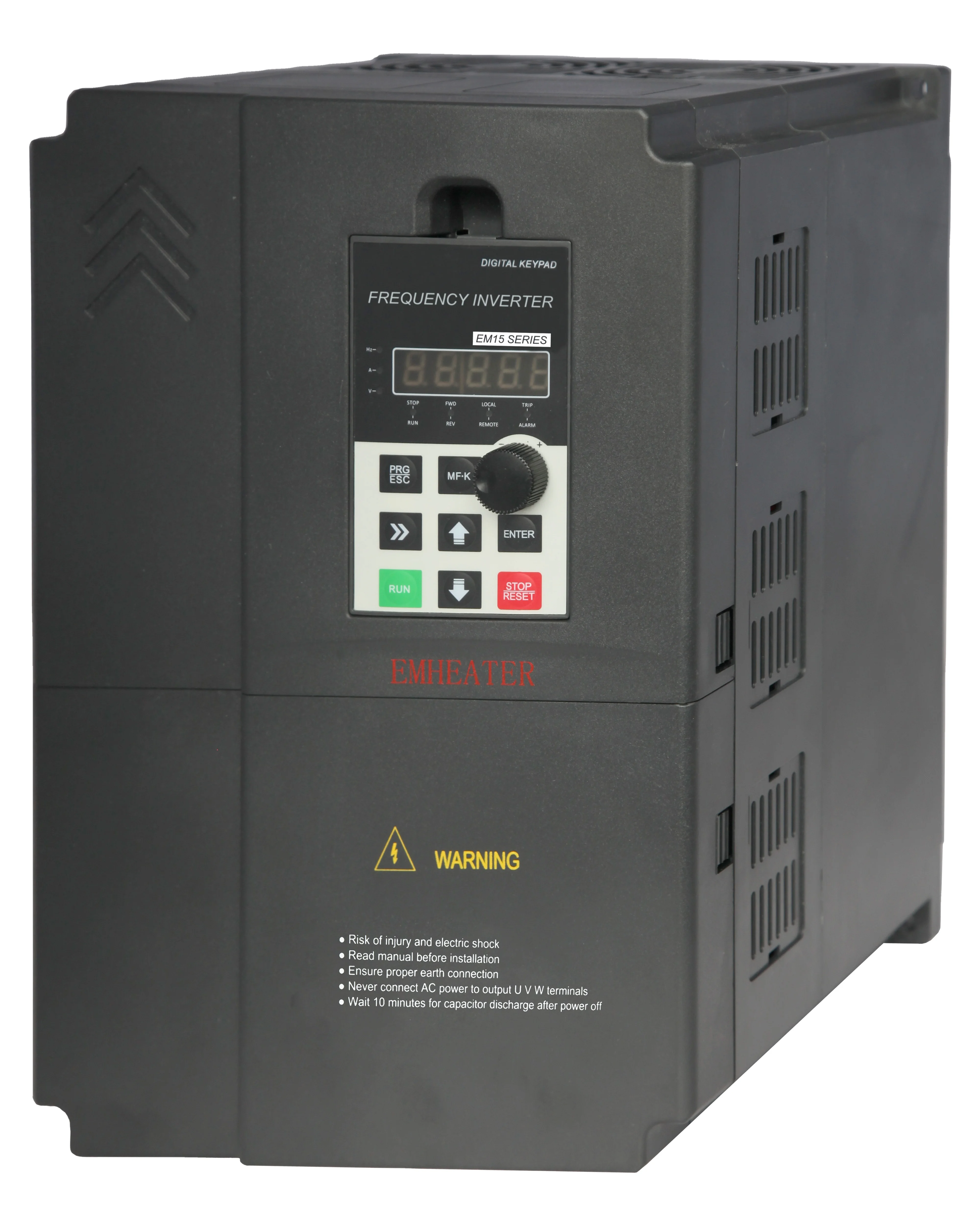

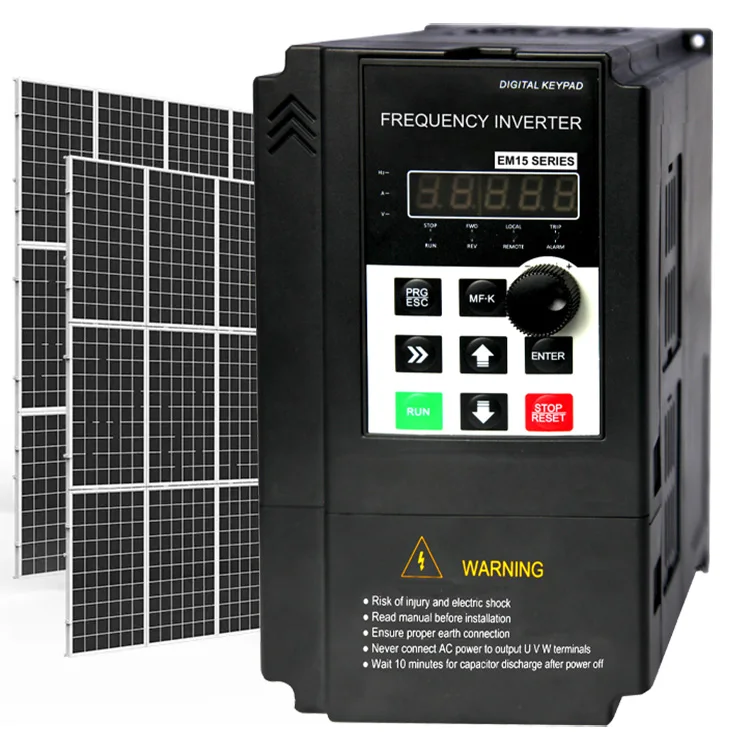

EM15-SP series solar pump inverter rate

1.: 300VDC to 480VDC Single Phase Input and 220VAC three Phase Output, 0.75KW to 400KW

2.: 300VDC to 480VDC Single Phase Input and 220VAC single Phase Output, 0.75KW to 400KW

3.: 450VDC to 750VDC Three Phase Input and 380V three Phase Output, 0.75KW to 600KW


Input Voltage range: DC300/540V±20% or AC220/380V±15%.

Output Voltage Range:3phase AC220/380V±15%. Power range: 0.75KW to 630KW

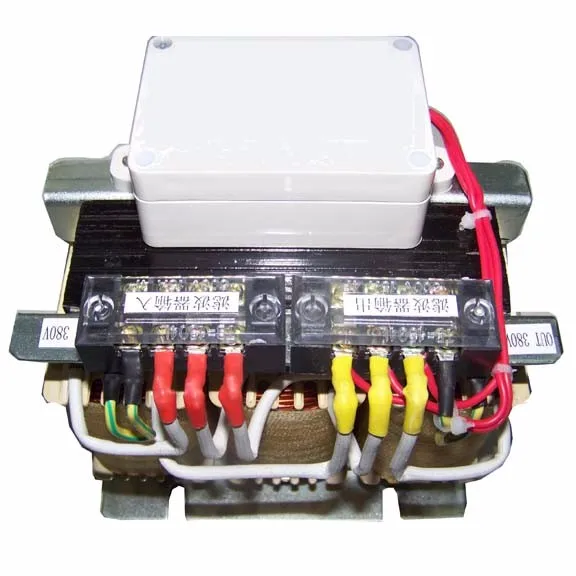

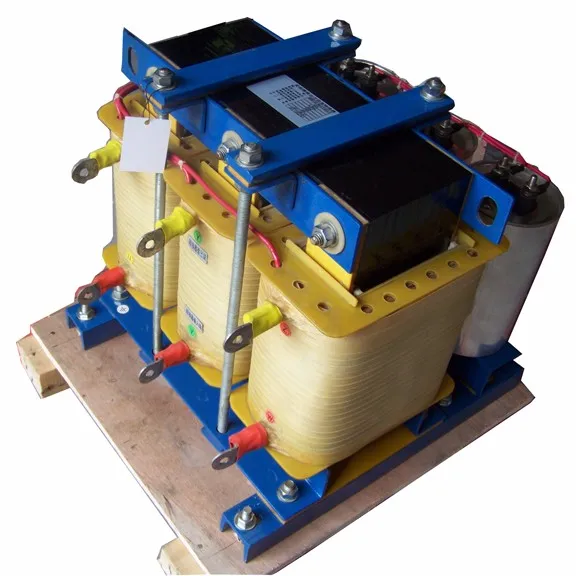

If Cable between solar pump and solar pump inverter is extending to 500 meters, our below sine wave filter EM-SWF could good optimize the inverter's working.Protect motor insulation system, reduce bearing current, prolong service life, reduce motor noise. And to coverse SPWM voltage current waveform of frequency inverter to approximate sine wave waveform (For the line load feature, the COS is greater than 0. 3 and THD is less than 5%)





Product Introduction




Foreward for EM15-SP MPPT solar pump drive

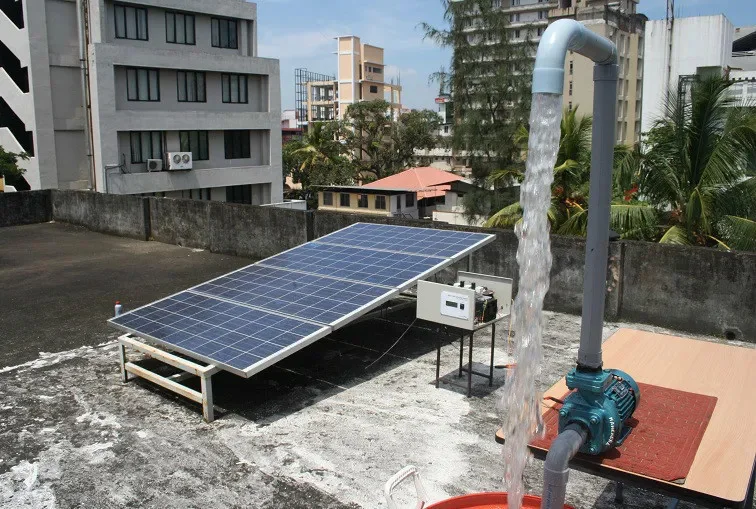

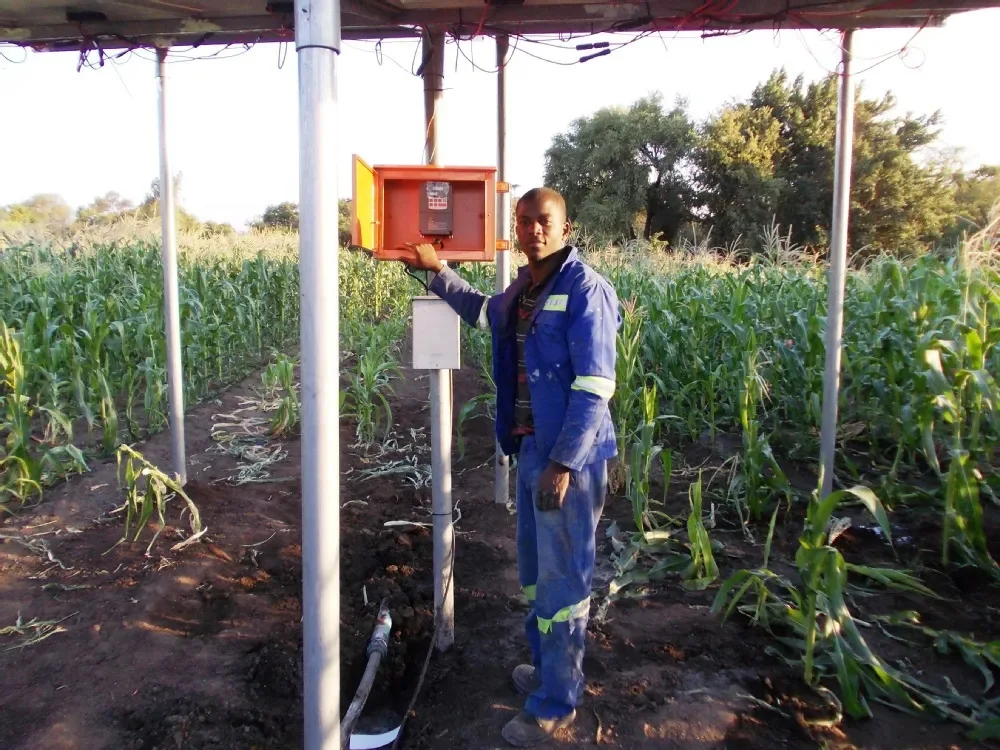

Water is essential to all forms of life. In many remote locations around the world, traditional power is unavailable or unreliable to power a submersible pump and motor.


EMHEATER is committed to quality, availability, service, innovation and value by developing new systems for renewable energy while using our proven EM15-SP series solar pump inverter



Product Details Show




Product Parameters


Name
Models
rated current
DC input range (VDC)
Output voltage

Applicable for pumps

Installation size (mm)

Remarks
EM15-SP1 S series: 310V DC input, 1 phase 220V output, Or 1 phase 220v AC input,1 phase 0- 220V AC output
Solar pump drive

EM15-SP1S-d75

7A

310V DC
220V/240VAC

0.75KW
235*175*214

igbt module

Solar pump drive
EM15-SP1S-1d5

9.6A
310V DC
220V/240VAC

1.5KW
235*175*214
igbt module
EM15-SP1 series: 310V DC input, 3 phase 220V output, Or 1 phase 220v AC input,3 phase 0- 220V AC output
Solar pump drive
EM15-SP1-d75
4A
310V DC
220V/240VAC
0.75KW
235*175*214
igbt module
Solar pump drive
EM15-SP1S-1d5
7A
310V DC
220V/240VAC
1.5KW
235*175*214
igbt module
Solar pump drive
EM15-SP1-2d2

9.6A
310V DC
220V/240VAC
2.2KW
320*230*230

igbt module
Solar pump drive
EM15-SP1-004

17A
310V DC
220V/240VAC
4KW
320*230*230

igbt module
Solar pump drive
EM15-SP1-5d5

25A
310V DC
220V/240VAC
5.5KW
320*230*230

igbt module
General type EM15-SP3 series : 540 V DC input, 3 phase 380V output, Or 3 phase 380v AC input,3 phase 380V AC output

Solar pump drive
EM15-SP3-d75


2.5A
540V DC

380VAC
0.75kw
235*175*214
igbt module
Solar pump drive
EM15-SP3-1d5

3.8A
540V DC
380VAC
1.5kw
235*175*214
igbt module
Solar pump drive
EM15-SP3-2d2
5.1A
540V DC
380VAC
2.2kw
235*175*214
igbt module
Solar pump drive
EM12-SP3-004

9A
540V DC
380VAC
4kw
320*230*230
igbt module
Solar pump drive
EM15-SP3-5d5

13A
540V DC
380VAC
5.5ke
320*230*230
igbt module
Solar pump drive
EM15-SP3-7d5

17A
540V DC
380VAC
7.5kw
320*230*230
igbt module
Solar pump drive
EM15-SP3-011

252A
540V DC
380VAC
11kw
390*300*270

igbt module
Solar pump drive
EM15-SP3-015
32A
540V DC
380VAC
15kw
390*300*270

igbt module
Solar pump drive
EM15-SP3-018

37A
540V DC
380VAC
18.5kw
390*300*270

igbt module
Solar pump drive
EM15-SP3-022
45A
540V DC
380VAC
22kw
390*300*270

igbt module
Solar pump drive
EM15-SP3-030
60A
540V DC
380VAC
30kw
390*300*270

igbt module
Solar pump drive
EM15-SP3-037
75A
540V DC
380VAC
37kw
465*302*241


igbt module
Solar pump drive
EM15-SP3-045
91A
540V DC
380VAC
45kw
465*302*241

igbt module


EM15-SP solar inverter features:

MPPT algorithm of fast tracking of maximum power point of PV cells, efficiency >99%.

Solar battery working point voltage can be manually or automatically MPPT tracking.

All weather automatic operation,can also be manually or automatically,

Realize"sunrise work and sunset sleep".

35 kinds protection function. including auto detecting short circuit after power on.

Auto sleep function/pump dry protect/low frequency protection/over load protection and etc.

Full protections:overload,over current, overvoltage,under voltage,short circuit, dry pumping etc.

Output frequency range: V/F(0~3000hz); vector control(0~300HZ).

Overload capacity:60s with 150% of rated current,3s with 180% of rated current.

Speed accuracy:±0.5%(SVC);±0.02%(VC).

Pulse setting input:0Khz~100Khz.

Remote control, support RS232/RS485 protocol, terminal control, analog control.




Why Choose Us


About us

1• We have 6 factories and more than 820 staff. As a professional manufacturer of industrial automation products, we are always dedicated to soft starter, frequency inverter, servo motor and drive, EMI filters, harmonic wave AC choke, sine wave filter, brake units and resistor. In the year of 2008, EMHEATER Group does have established "China EM Technology Limited" to cultivate oversea market.

Equipment & technology

2, We have following mature series products:

• EM-GS,GW series soft starter, (220V/380V~690V; 5.5KW~ 600KW).
• EM15 series vector control inverter. (220V~690V; 0.75KW~630KW).
• EM15-SP series solar pump inverter. (220V~690V; 0.75KW~630KW).
• EMA to EMD series servo motor drive system, (220~380V;0.2~22KW).
• And relative accessories(filter; choke; resistor).

Service

3, stable product quality , supply, the good faith management.We provide 18 months warranty period for all products. Caused by products quality fault within warranty period, we provide free charge components and load shipping cost or deliver components with next order. After warranty period, we still provide replacing components with material cost.



Wiring




Product Packing




Main Products



EM15 series vector control inverter. (220V~690V; 0.75KW~630KW).


EM-SWF series sine wave filter for solar pump and solar inverter(220V/380V

480V  5.5KW~ 600KW).


EM-GW series online soft starter, (220V/380V~480/690V; 5.5KW~ 600KW).
