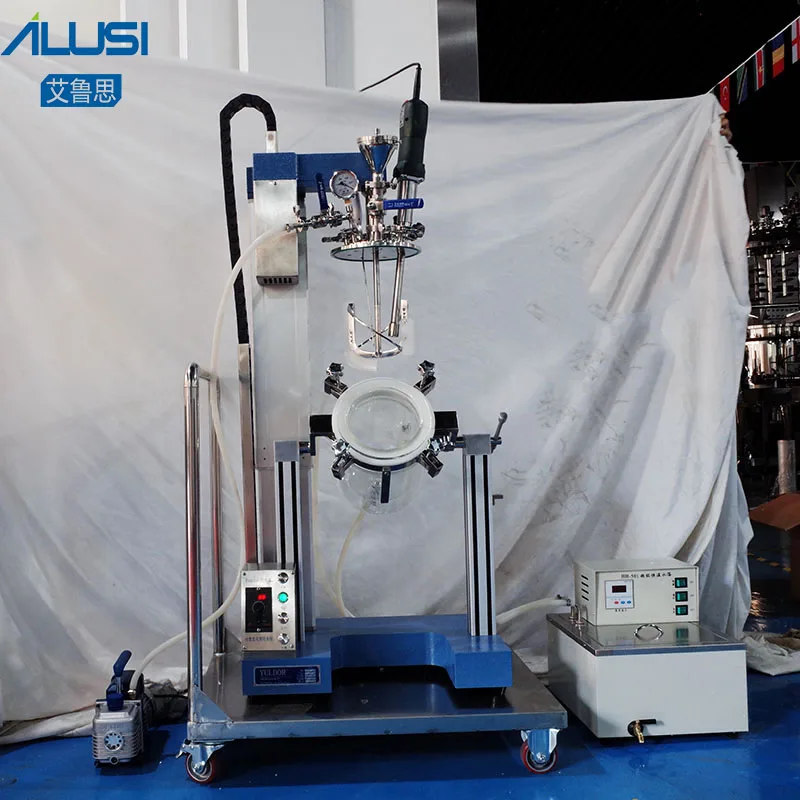

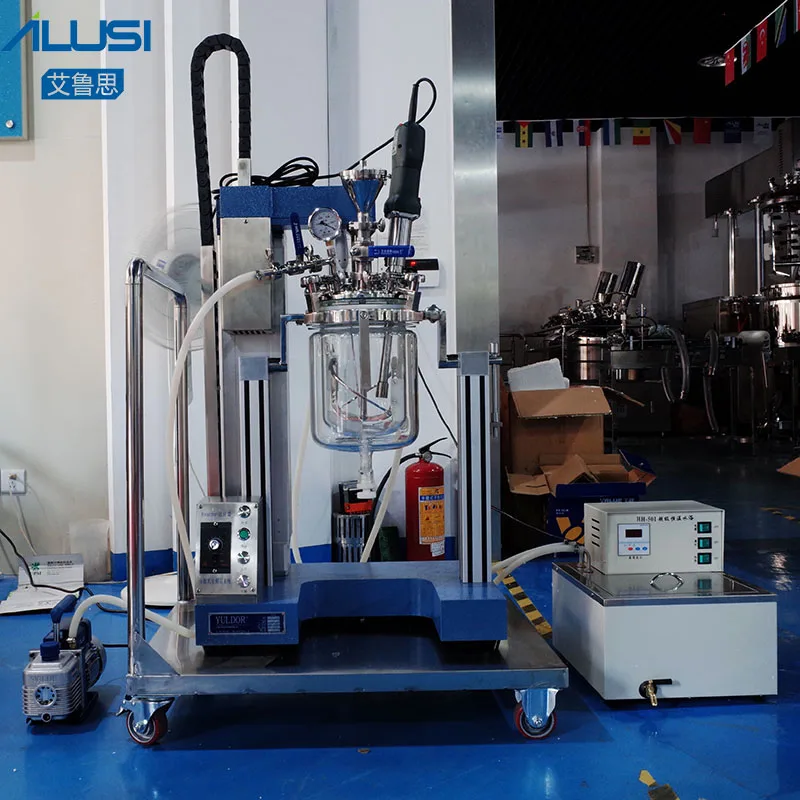

Upgradable Laboratory oil heating homogenizer paste vacuum emulsion mixer washing cosmetics face cream vacuum mixing equipment
- Category: >>>
- Supplier: Yangzhou Ailusi Chemical Machinery Factory
Share on (1601059147257):
Product Overview
Description
AILUSI Machinery
Manufacturer of Cosmetic | Pharmaceutical | Food | Daily Chemical industrial | GMP Standard
Product Overview

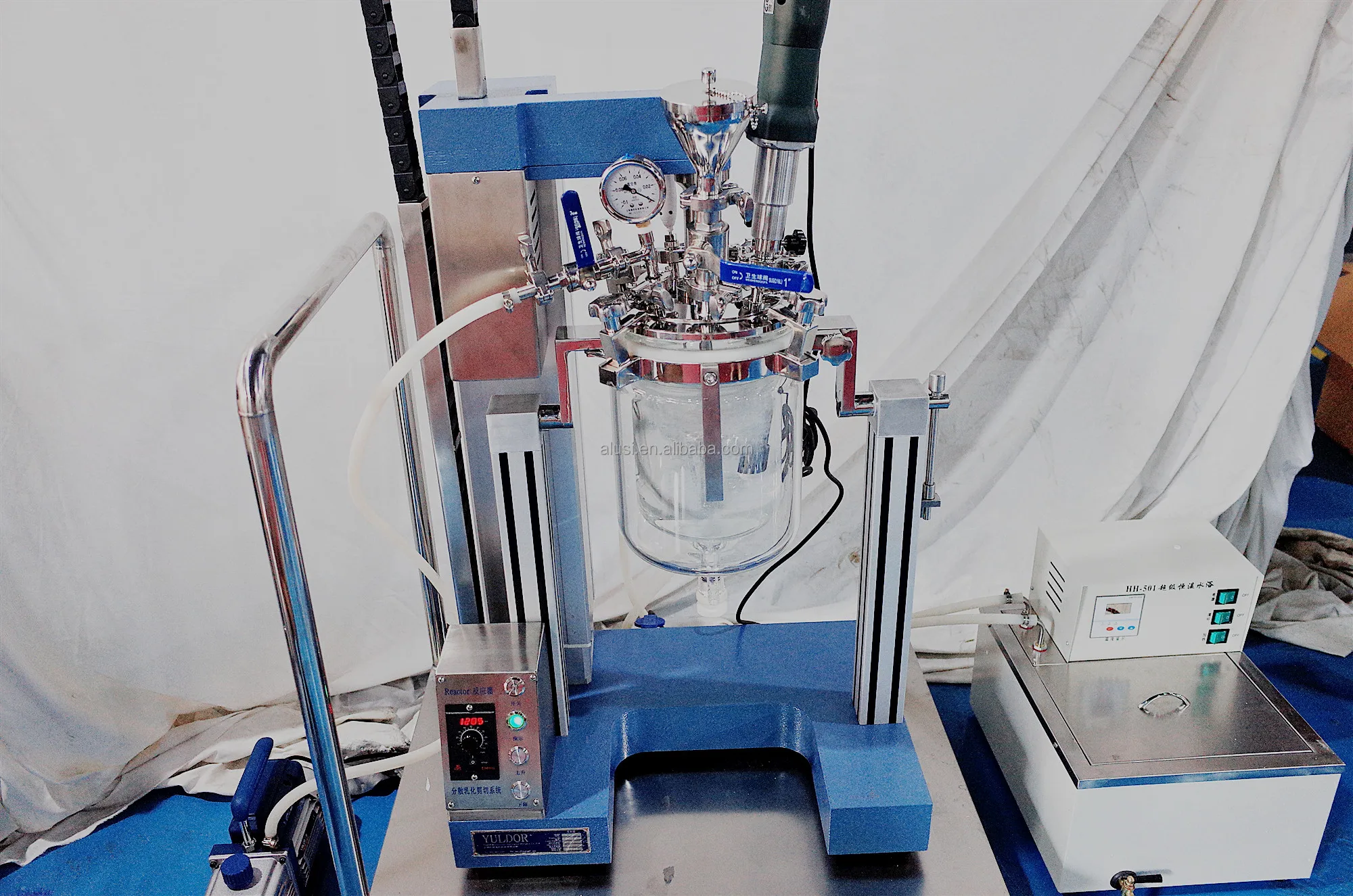

5L small lab high shear lab vacuum heating mixing equipment emulsifying mixer machine laboratory homogenizer
High-speed motor, can be equipped with a variety of working heads, the maximum speed can reach 28000rpm, and the linear speed can reach up to 30m/s.
Feature
It integrates dexterity, convenience, and high scalability. The whole machine has a modular structure and is easy to operate. It can run for a long time. It can easily meet a variety of high-demand dispersion and emulsification experiments and enjoy the fun of dispersion and emulsification in the laboratory.
Applicable process
According to different working heads, it can complete a variety of different processes, including dispersion, emulsification, homogenization, grinding, mixing, dispersion, homogenization of high-viscosity materials, animal and plant tissue breaking, homogenization, etc.
FEATURES AT A GLANCE
1. High-speed motor, long-life design, stable operation
2. Lightweight design of the whole system, integrated small lifting system
3. Stepless speed regulation, the speed can reach 30000rpm, providing you with a cutting line speed of 27m/s
4. Meet your different working environments (closed, open, normal pressure, vacuum, gas protection, high temperature, low temperature)
5. The working head is made of stainless steel, which can be reused and meets sanitary standards
6. The modular design of the equipment allows any system to be flexibly combined. Add any other customized functions you need
2. Lightweight design of the whole system, integrated small lifting system
3. Stepless speed regulation, the speed can reach 30000rpm, providing you with a cutting line speed of 27m/s
4. Meet your different working environments (closed, open, normal pressure, vacuum, gas protection, high temperature, low temperature)
5. The working head is made of stainless steel, which can be reused and meets sanitary standards
6. The modular design of the equipment allows any system to be flexibly combined. Add any other customized functions you need

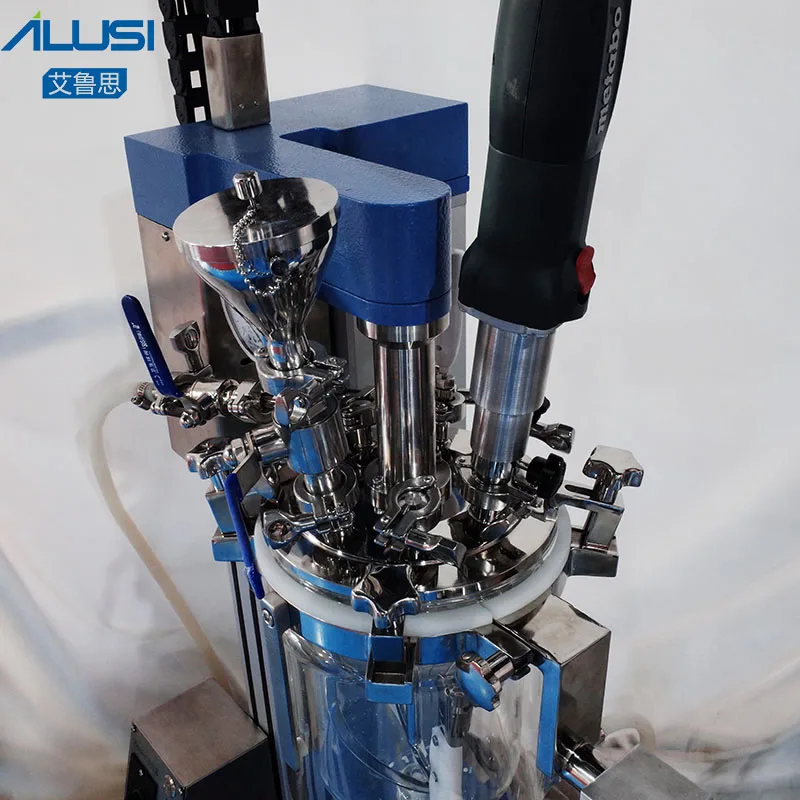

Pot body
Vacuum system: -0.097Mpa.
Material: Glass or stainless steel
Jacket for hot water heating.
Speed adjust
Adopt frequency conversion speed regulation
Meet the needs of different production processes
Stirring and homogenizing are more convenient
Meet the needs of different production processes
Stirring and homogenizing are more convenient
Temperature meter
This machine has a thermometer
Experiment is more accurate
Experiment is more accurate

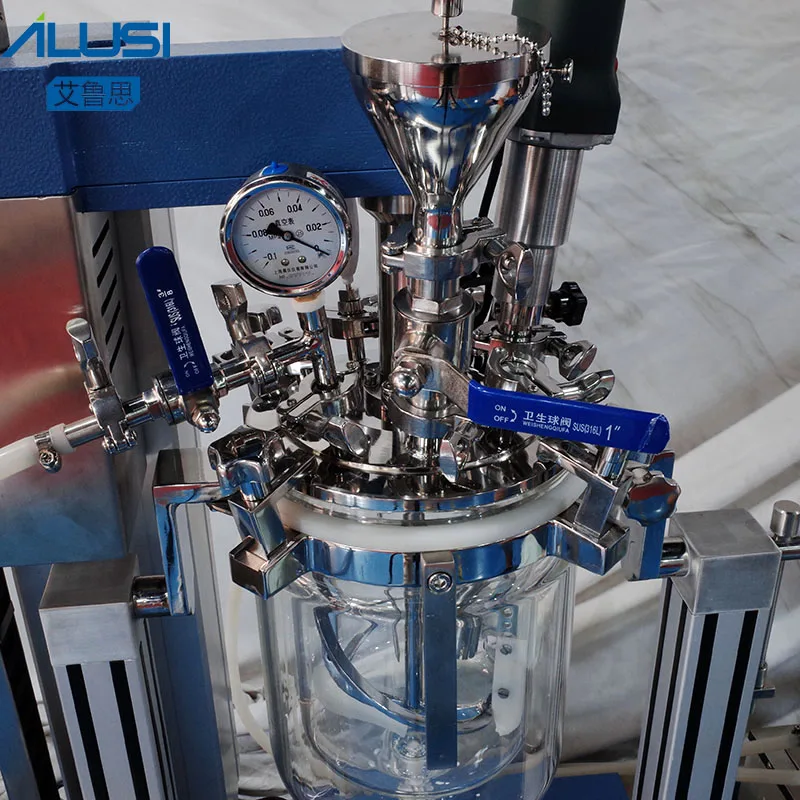

Vacuum meter
This machine has a pressure vacuum gauge
Observation is more convenient, experiment operation is easy
Observation is more convenient, experiment operation is easy

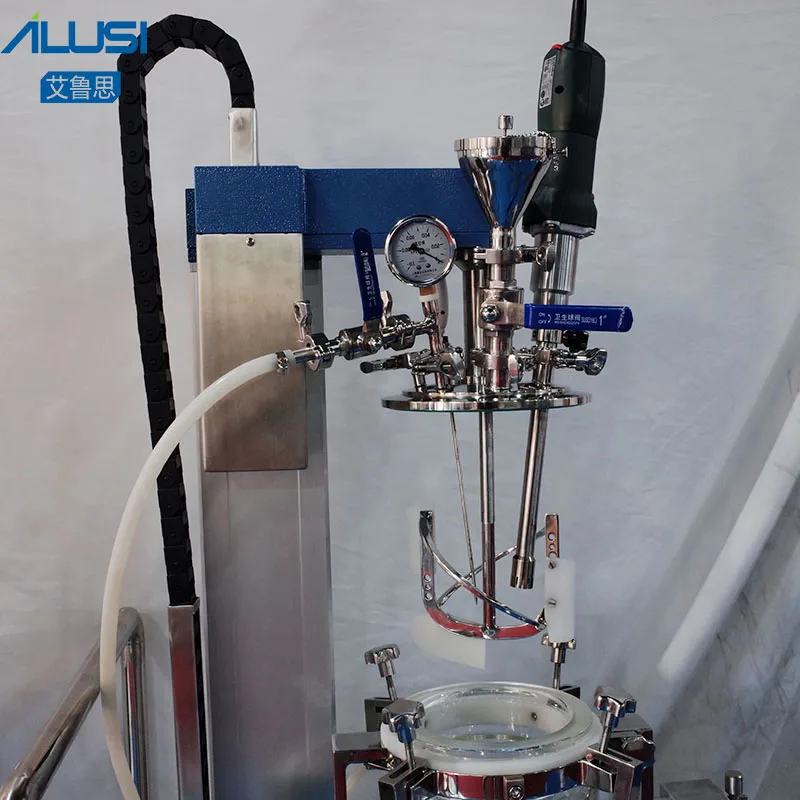

Agitator system
Wall scrapping mixing agitator and high shear speed homogenizer head
Homogenizer motor
Motor imported from Germany, continuously viable.8000-30000 rpm
Water tank
Provide hot water and cycle in pot jack to heat.
Vacuum pump
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Application | Cream, lotion, essence, gel, paste, nail polish etc. for making sample products |
2 | Viscosity | Max. 100,000cp |
3 | Temperature | Working temperature: 0~90℃ |
4 | Main design | Vacuum, temperature control, mixing, high speed shearing emulsifier for product design. |
5 | Jacket layer | Pot: Glass or stainless steel |
6 | Medium: water, oil | |
7 | Tap-water cooling, lower-upper flow path | |
6 | Stirrer paddle & scraper blade | Anchor-wall scrapping mixing, screw paddle |
Stirrer paddle: SUS316L | ||
Scraper blade: Ptfe material | ||
7 | Homogenizer | Speed: 8000-28000rpm |
German Motor, continuously viable | ||
8 | Lift system | Pneumatic lift system |
9 | Voltage | 220V/50Hz |
10 | Dimension | 450*530*900mm |
11 | Weight | 45KG |
2L Stainless steel pot
5L Glass pot
2L Glass
Packing & Delivery
Packing
In strong wooden case(s), suitable for long-distance ocean/parcel post/air freight or land transportation and to change of climate, well protected against moisture and shocks.
Certifications
Project
Company Profile
Yangzhou Ailusi Chemical Machinery factory is located in Gaoyou City, Jiangsu Province, China. We have more than 16 years of experience and 9800 square meters factory. Mainly apply to Cosmetic, Chemical, Food, Pharmaceutical industry etc., we could provide superior quality and customer trusted products to clients are based on advanced production equipment, perfect technical process, strong technology and strict quality control.
Our factory have been adhering to the business philosophy of "sincerity, quality and service" and strictly implementing the ISO9001 international quality management system. We regard quality as the life of our enterprise to be permanently vigorous, provide high-quality products and good services to customers at home and abroad.
