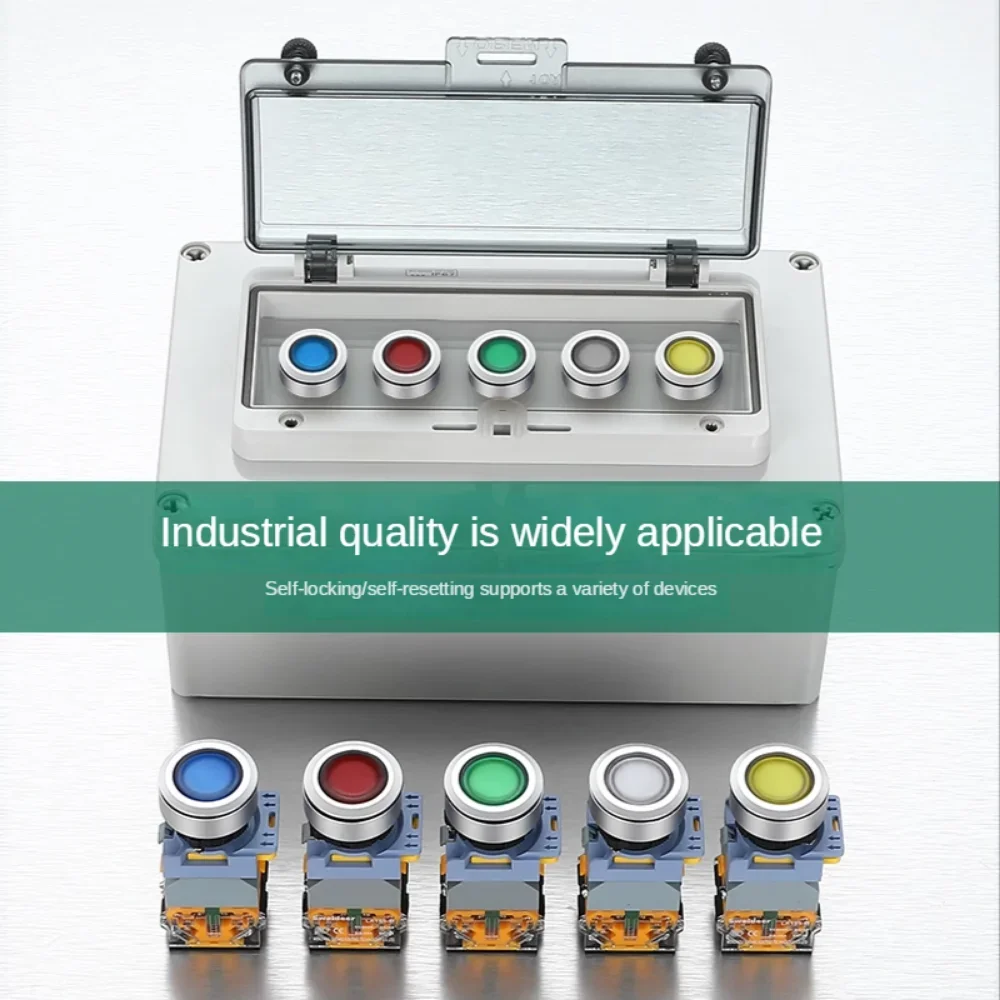

10a Flat Waterproof momentary Self Reset Locking 30mm 380V Push button switches with light industrial 1NO1NC 2NO 2NO2NC
- Category: >>>
- Supplier: Suowei Electrical Appliances (Zhejiang) Co. Ltd.
Share on (1601059189346):
Product Overview
Description
Due to the limitation of the specification page.
If you need to choose the Other voltages,please contact us, thank you!
If you need to choose the Other voltages,please contact us, thank you!
Product Specification

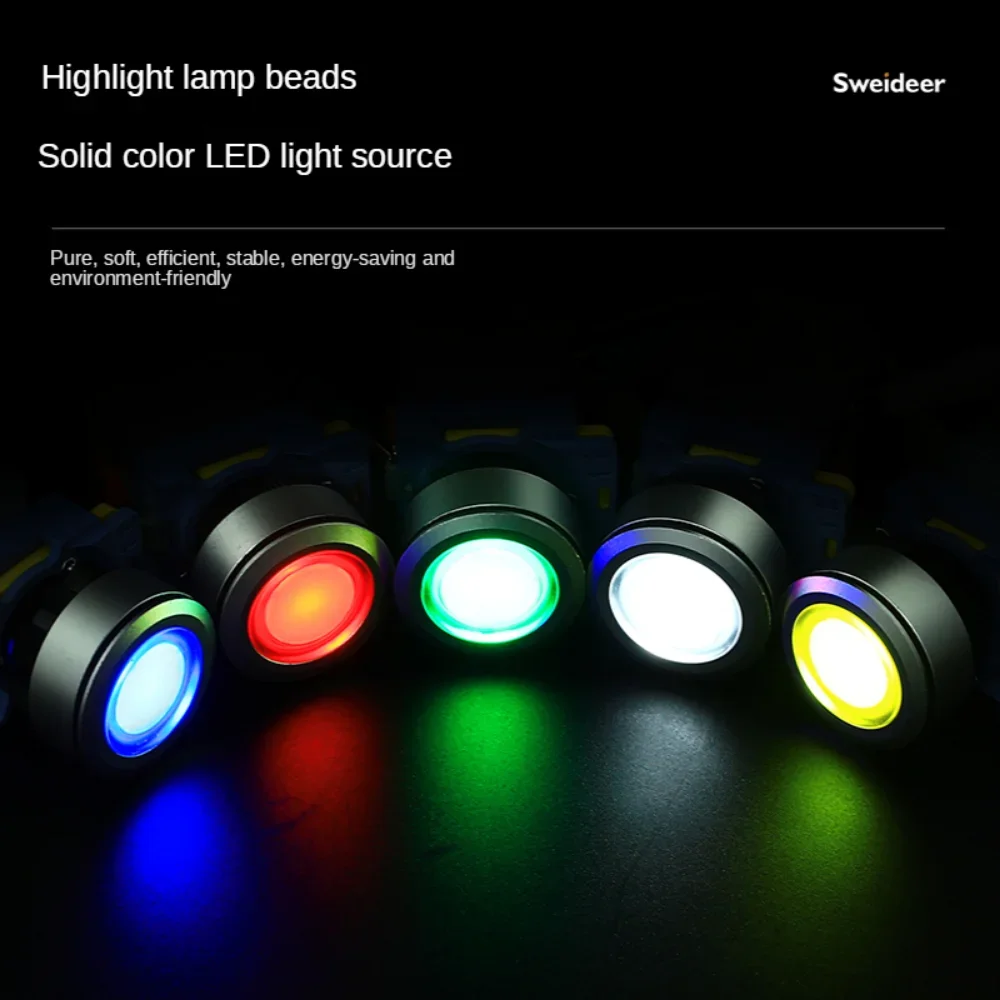

Product name | Push Button Switch with Light |

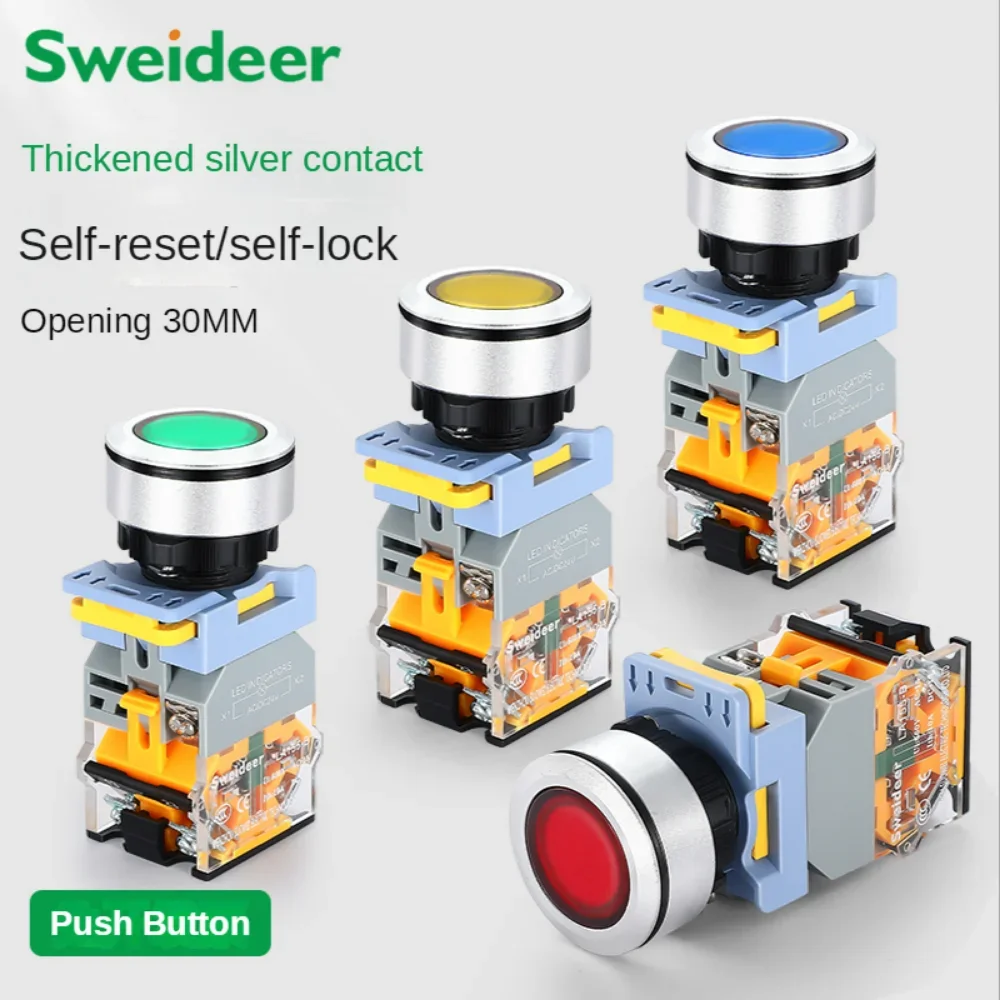

Contact material | Silver contact |
Rated current | 10A |
Opening diameter | 30MM |
Button contact | 1NO1NC/2NO/2NO2NC |
Operation mode | Momentary self-reset / fixed self-locking |
Button color | Red Yellow Blue Green White |
Product model | LA155-B1 |
Voltage Available | 380V |

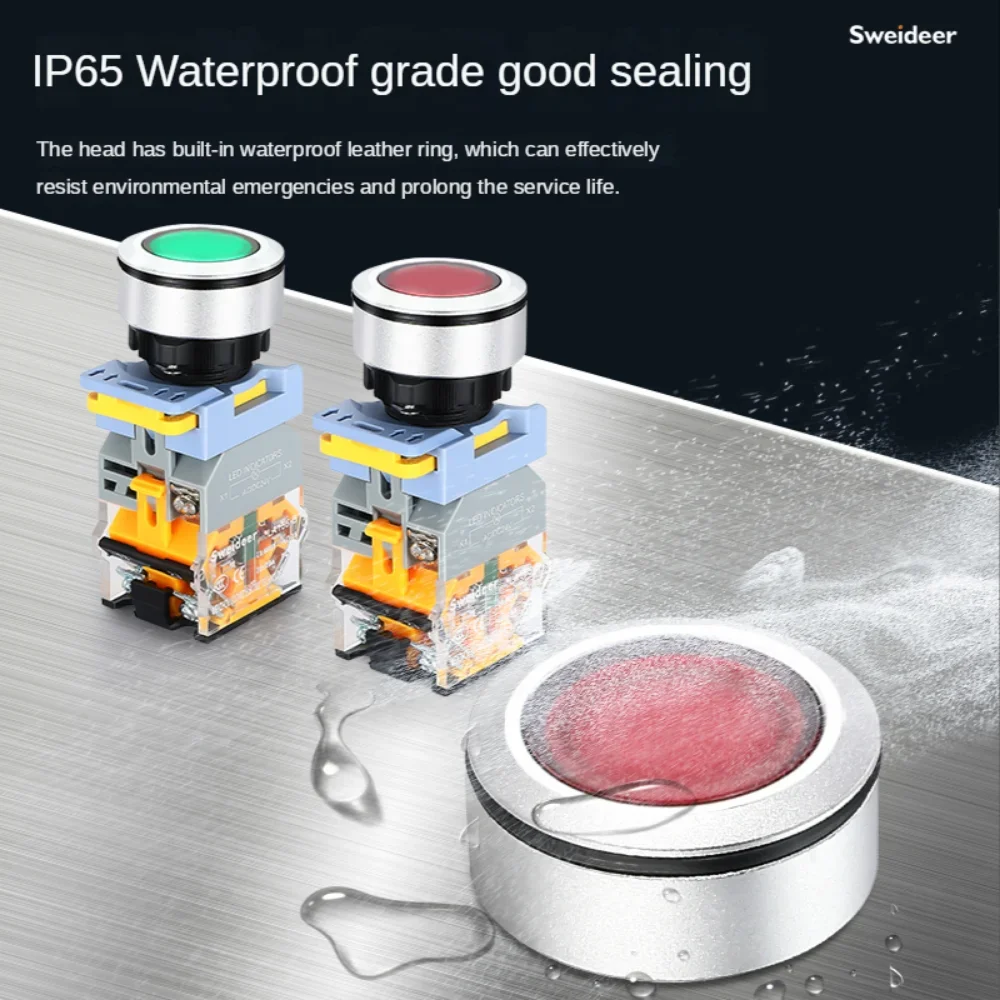

Waterproof Grade | IP65 |
Package Content
1pc Push Button Switch with Light
1pc Push Button Switch with Light

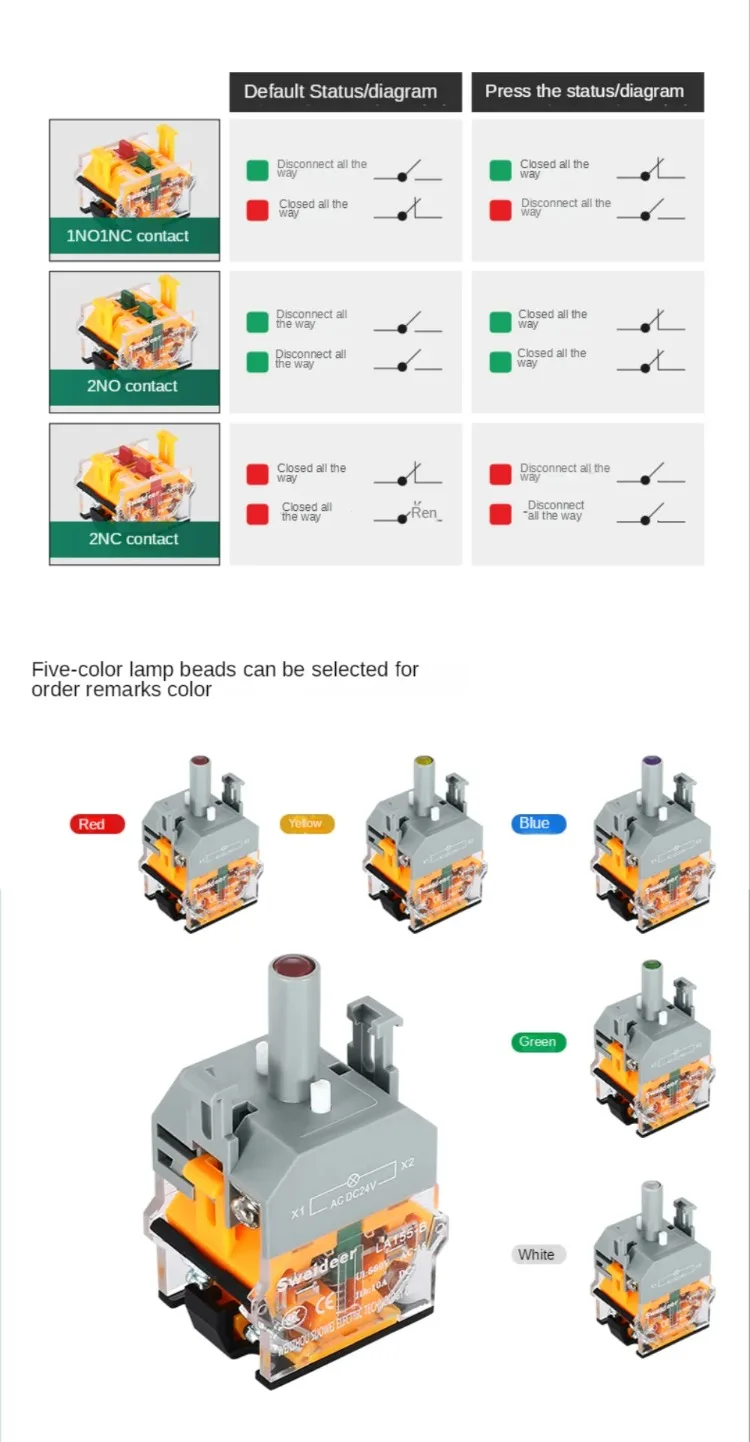

Contact modular combination
NO(normally open) and NC(normally closed ) contact can replace and add at any time .It can hold 1-6 pcs Contact modules at most.
NO(normally open) and NC(normally closed ) contact can replace and add at any time .It can hold 1-6 pcs Contact modules at most.
NO(Normally open contact ): Normally in off state, press to power on.
NC(Normally closed contact): Normally in on state, press power off.
Self reset: Once pressed, the button will reset and spring back as soon as the hand is released.
Self locking: When pressed, the button locks;when pressed again, the button bounces back.
NC(Normally closed contact): Normally in on state, press power off.
Self reset: Once pressed, the button will reset and spring back as soon as the hand is released.
Self locking: When pressed, the button locks;when pressed again, the button bounces back.
Q1: How could I get a sample?
A: Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
Q2: Sample time?
A: Existing items: Within 5 days.
Q3: Whether you could make our brand on your products?
A: Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
Q4: Whether you could make your products by our color?
A: Yes, The color of products can be customized if you can meet our MOQ.
Q5: What products does your company mainly sell?
A: Our company main products include LED indicator lights, button switches, buzzers, warning lights and LED components etc.
Q6: How long I can get the goods?
A: Most goods we have stock for it, delivery time about 1-5 days after received payment.For customzied requirement switch, time
will be a longer.
Q7: What kind of logistics do you use for delivery?
A: We mainly deliver goods by DHL, UPS,FEDEX,EMS and other express delivery. we will choose the most cost-effective logistics for
customers.Also supported goods picked by your forwarder.
Q8: What certificates have you obtained for your products?
A: Most of the products have passed CE RoHS and IP65.
Q9: How to guarantee the quality of your products?
A: 1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
A: Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
Q2: Sample time?
A: Existing items: Within 5 days.
Q3: Whether you could make our brand on your products?
A: Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
Q4: Whether you could make your products by our color?
A: Yes, The color of products can be customized if you can meet our MOQ.
Q5: What products does your company mainly sell?
A: Our company main products include LED indicator lights, button switches, buzzers, warning lights and LED components etc.
Q6: How long I can get the goods?
A: Most goods we have stock for it, delivery time about 1-5 days after received payment.For customzied requirement switch, time
will be a longer.
Q7: What kind of logistics do you use for delivery?
A: We mainly deliver goods by DHL, UPS,FEDEX,EMS and other express delivery. we will choose the most cost-effective logistics for
customers.Also supported goods picked by your forwarder.
Q8: What certificates have you obtained for your products?
A: Most of the products have passed CE RoHS and IP65.
Q9: How to guarantee the quality of your products?
A: 1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
