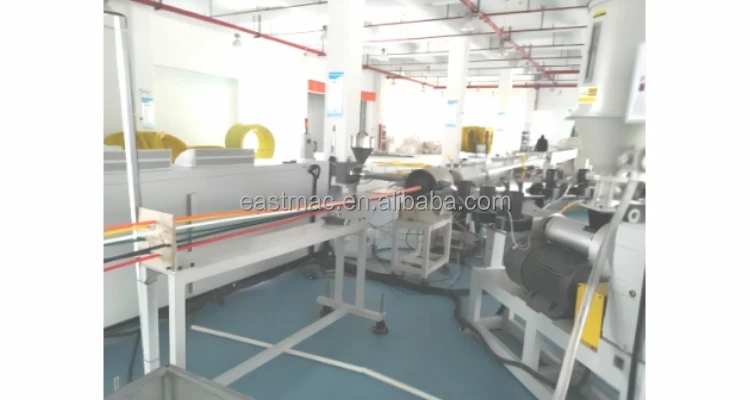

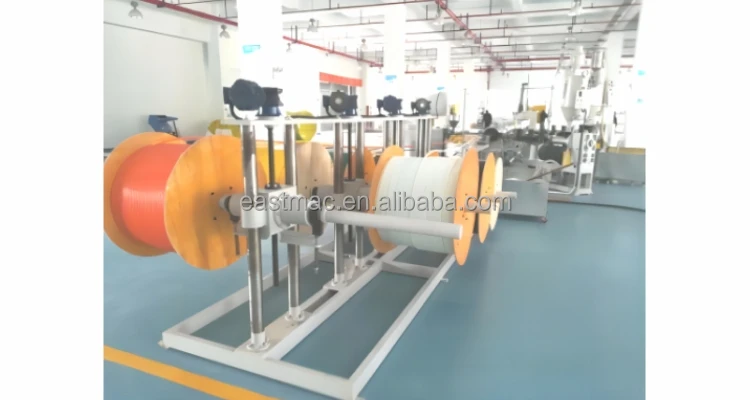

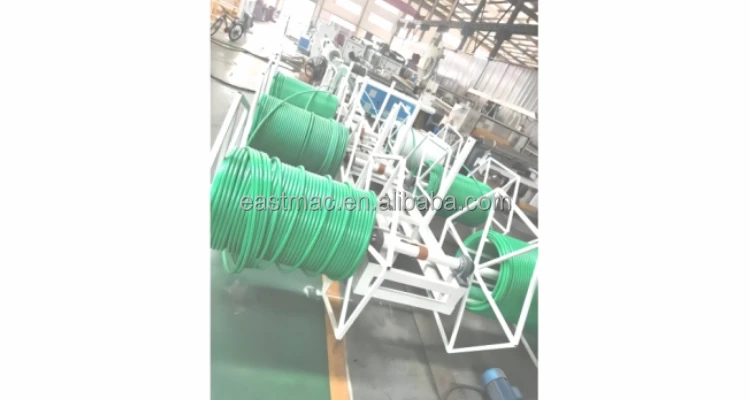

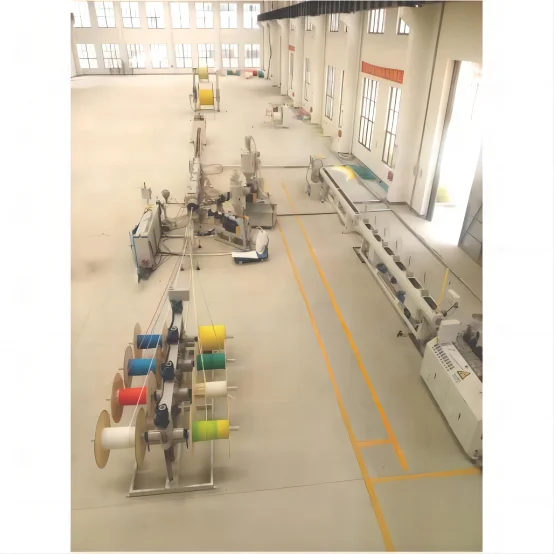

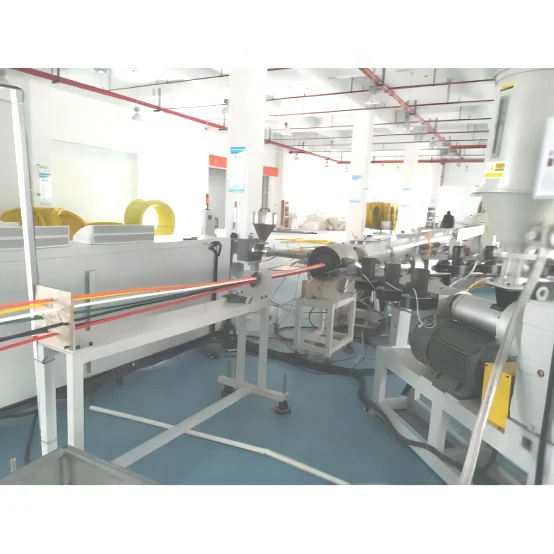

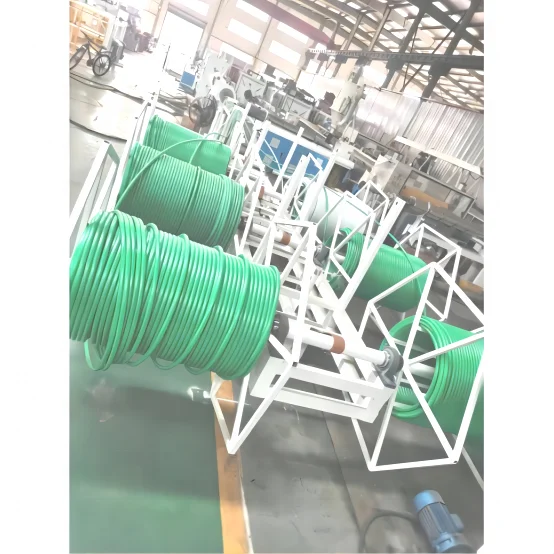

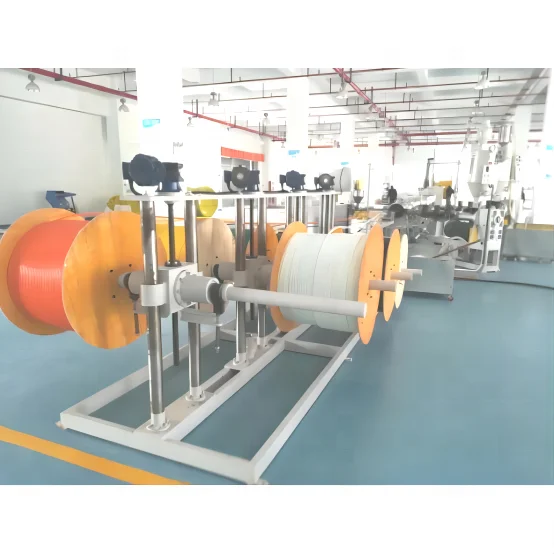

PE LLDPE HDPE Two Layer micro pipe production line
- Category: >>>
- Supplier: Eastmac Machinery Inc.
Share on (1601059333303):
Product Overview
Description
Product Description
Application:

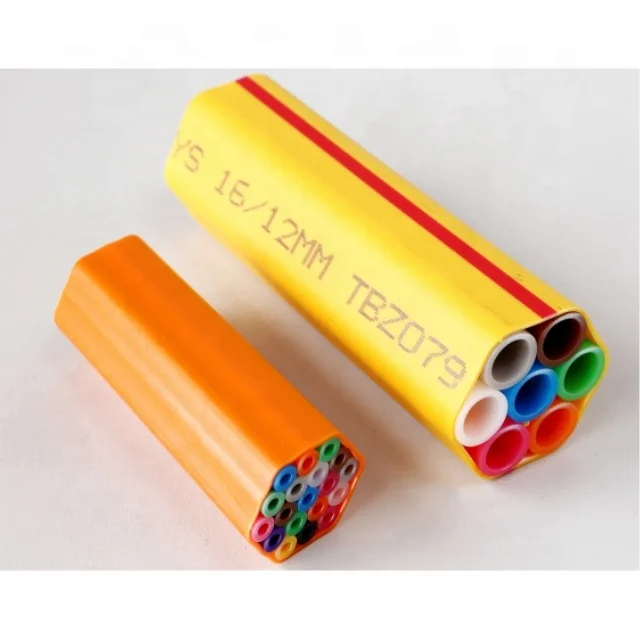

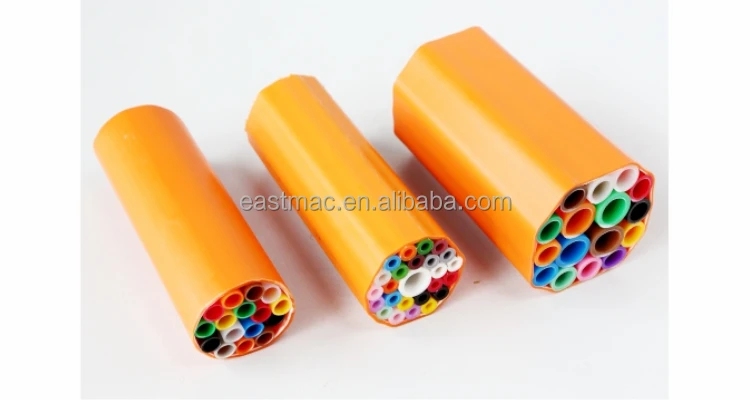

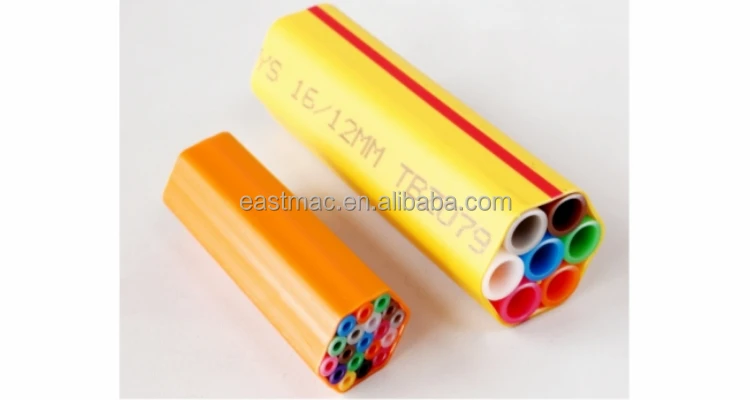

The equipment uses the extrusion method to produce HDPE A/B two-layer structure composite pipe with marking line.Adopts the double machine co-extrusion can increase the output, but also can produce the multicolor pipe, reduces the cost, produces the small pipe can open an extruder,but also can produce the multilayer compound co-extrusion special purpose pipe,and the wall thickness and the flow of each layer can be adjusted,can produce the multifunctional composite pipe.
Main technical data:
| Product specifications | Ø20X2,Ø 16X2,Ø7X3.5 mm |
| Resin used | PE,UHMW-PE&PE,LLDPE,HDPE |
| Extrusion amount | EMSJ—60×38D,PE,50~450kg/h,PE pipe outer layer |
| Rroduction line speed | 1-50m /min |
| Extruder center height | 1000±50 mm |
| Total production length | about 89meters |
| Operation direction | as per user's request |
Main Parts:
No | Model | Item | Qty |
1 | Meter weight control system | 63 | 1set |
2 | Color masterbatch | 63 | 1set |
3 | SML-7.5HP | Vacuum feeder | 1set |
4 | SML-200 | Energy saving dryer | 1set |
5 | EMSJ60X38 | 60/38 single screw high efficiency extruder | 1set |
6 | S200 | Microcomputer control system | 1set |
7 | EMSJ45X33 | single screw high efficiency extruder | 1set |
8 | SML-3HP | feeder | 1set |
9 | SML-25L | dryer | 1set |
10 | EMSJ25/25 | Extruder fot marking line | 1set |
11 | EMPE63 | 63spiral extrusion die head | 1set |
12 | EMPE63 | Bush | 4Pcs |
13 | EMPE63 | Pin SDR11 | 4Pcs |
14 | EMPE63 | Fast Calibrator Unit | 9Pcs |
15 | EMPE63 | 63 vacuum tank | 1set |
16 | 20-63 | Vacuum seal | 2sets |
17 | EMZY63 | 5-63 nylon roller | 1set |
18 | EMPL63 | 63 Bathing cooling tank | 3sets |
19 | 5-63 | Spray sealing device | 1set |
20 | JLSW10HP | Fan cooling chiller | 1set |
Packaging & Shipping
Pallet Packing, Wooden Packing, Vaccum Packing are all avaible as per your request.
Our Services
Warranty Period - 12Months:
Complete After Service Support:
Factory Visit Available:
Strongger commissioning:
we understand that onsite support for commissioning is a crucial activity and hence we provide a skillful team of experienced engineers to ensure that the start-up and commissioning of our system at your plant is smooth.
Our start-up team is capable to manage and reduce unforeseen risks of performance problems and equipment failures. Our team follows standard processes to ensure that the necessary electrical, mechanical and environmental criteria have been met before commissioning.
During special period, our team can provide powerful Remote Commissioning.
Company Information
FAQ
Q: What can you offer me?
A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.
Q:Could we appoint the parts brand?
A: Yes, ABB, SIEMENS, Danfoss, or theirs that you like.
Q: How long is the machine warranty?
A: Warranty period of one year (since the completion of mechanical successful commissioning at the buyer's factory)
Q: This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A: We are Alibaba legitimate certification company (VIP),and we support payment L/C,T/T and so on to ensure your safety.
Q: Why do I choose your company?
A: We have more than 15 years of professional experience in the area of cable machinery, providing high-quality, high-security products.
We have an experienced team of skilled workers and engineers.
We can support overseas training engineers.
We can customize the design, to accept the customer's sample design.
We can provide customers with after-sales service.
