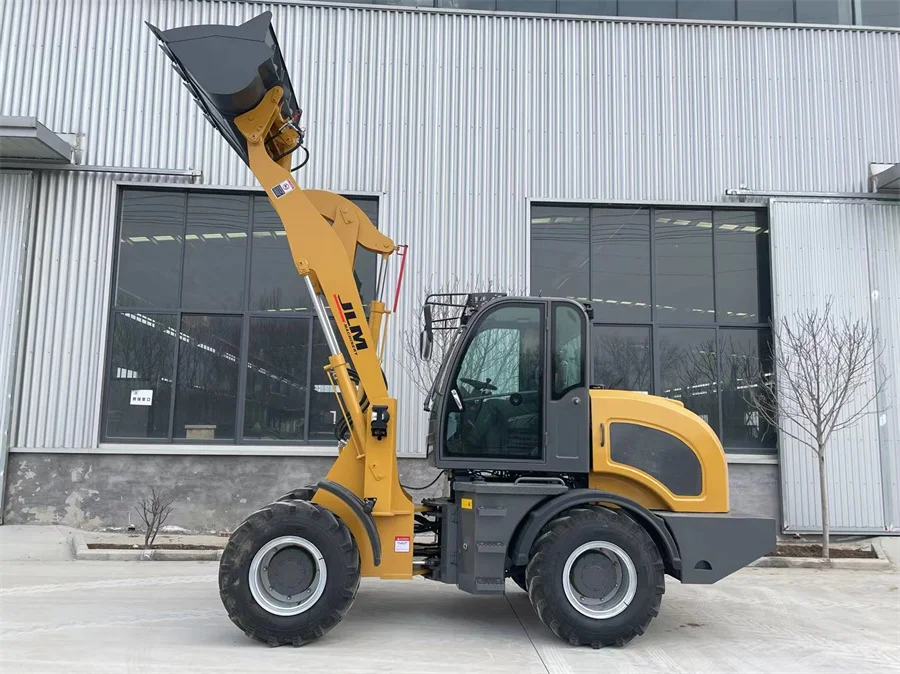

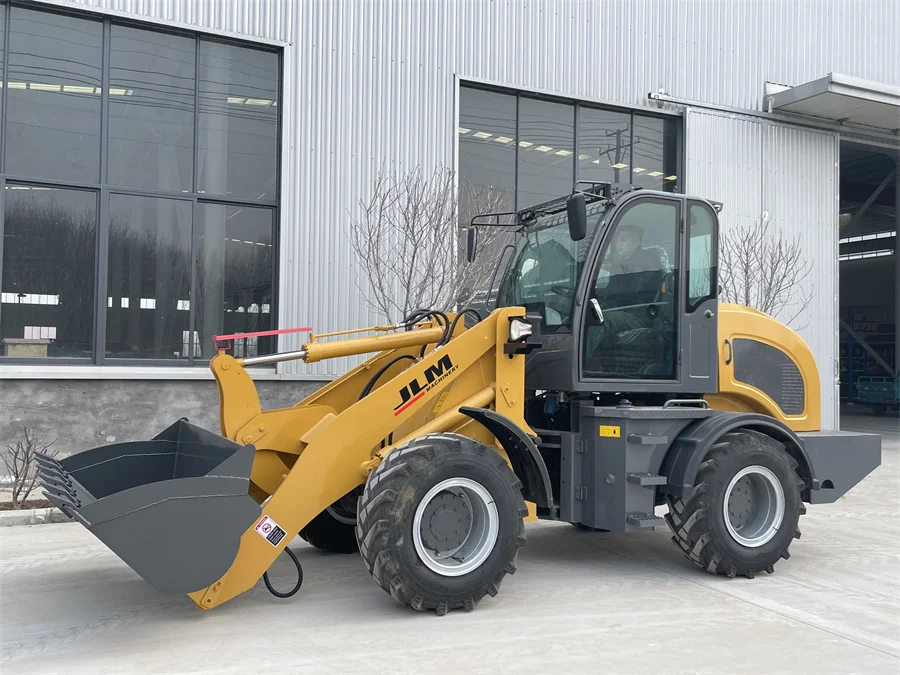

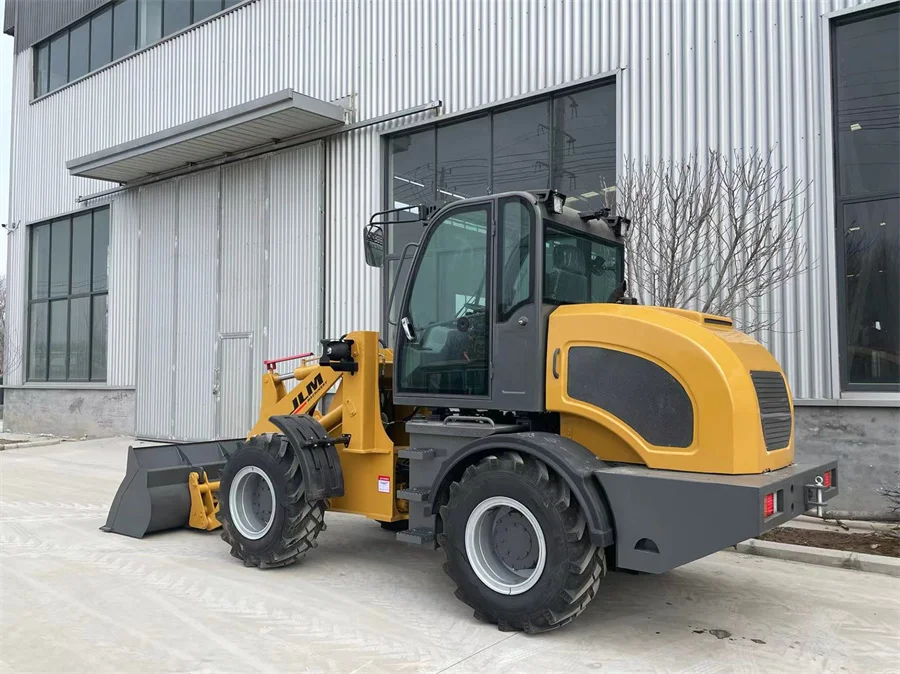

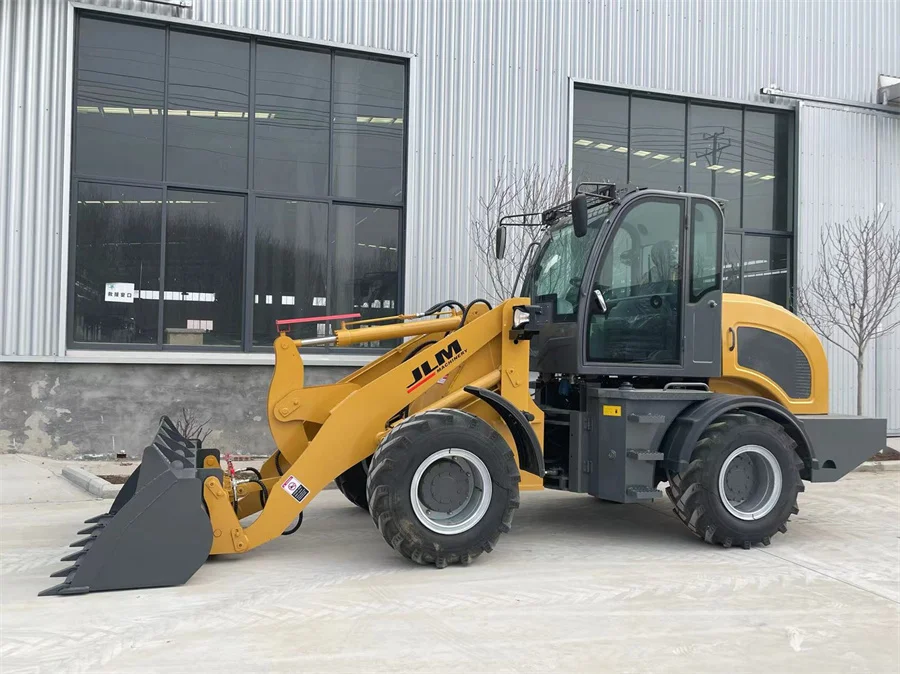

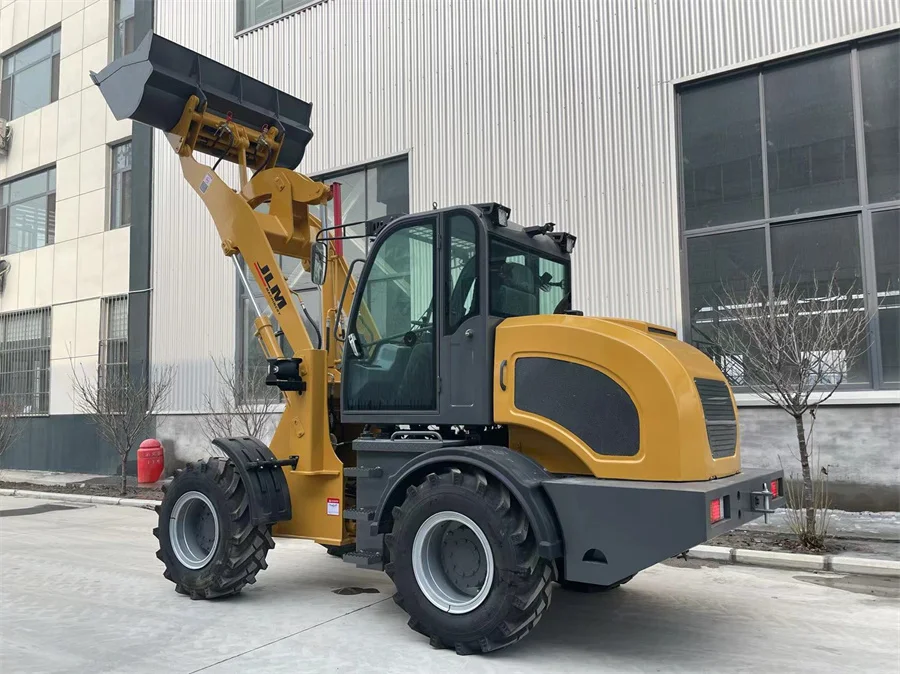

Multi function farm 2 ton small scale compact wheel loader with quick hitch for various attachments

Performance

1

rated loading

2000kg

2

Operation weight

5800kg

3

rated bucket capacity

1.1-1.3m³

4

maximum tractive force

≥54KN

5

maximum breakout force

≥45.4KN

6

maximum grade ability

30

7

maximum dump height

3100mm/3500mm

8

dump distance

752mm

9

overall dimension (L×W×H)

5850×2000×2860mm

10

minimum turning radius

5251mm

Engine

11

model

YTO 4108//Yuchai 4105/Cummins

12

type

Vertical, in-line, water cooled, 4-stroke diesel engine

13

Power

60kw/62kw/75kw

14

No. of cylinder-bore/stroke

4—105×125mm

15

rated power

60kw—2200r/min

16

maximum torque

270N.m

17

min fuel-consume ratio

≤243g/kw.h

Transmission system

18

torque converter

YJ—280A

19

gearbox mode

Countershaft power-shift

20

gear shift

2 forward shift  2 reverse shift

4 forward shift  4 reverse shift

21

maximum speed

24km/h,36km/h

Drive axles

22

main reducing spiral

Circular Arc Bevel gear, single stage

23

decelerating mode

Single stage planetary type

24

wheel base (mm)

2400mm

25

Track base(mm)

1640mm

26

Mini base to the ground

310mm
