SJ120 PP PC Hollow Grid Sheet Production Line
- Category: >>>
- Supplier: Qingdao Jinfuxin Plastic Machinery Co. Ltd.
Share on (1601059601867):
Product Overview
Description
Machine Description
Plastic PP Hollow Grid Sheet Extrusion Line
I. Brief Introduction of PP Hollow Sheet Extrusion Line
PP hollow corrugated sheet making machine production line realizes continuous production of PC/PE/PP hollow grid plate, which is applicable to package board, construction decoration, advertisement collocation, refrigerator board, barrier board and noise insulation of highway. PE/PP hollow grid plate is an ideal substitute for paper box in making packaging box.

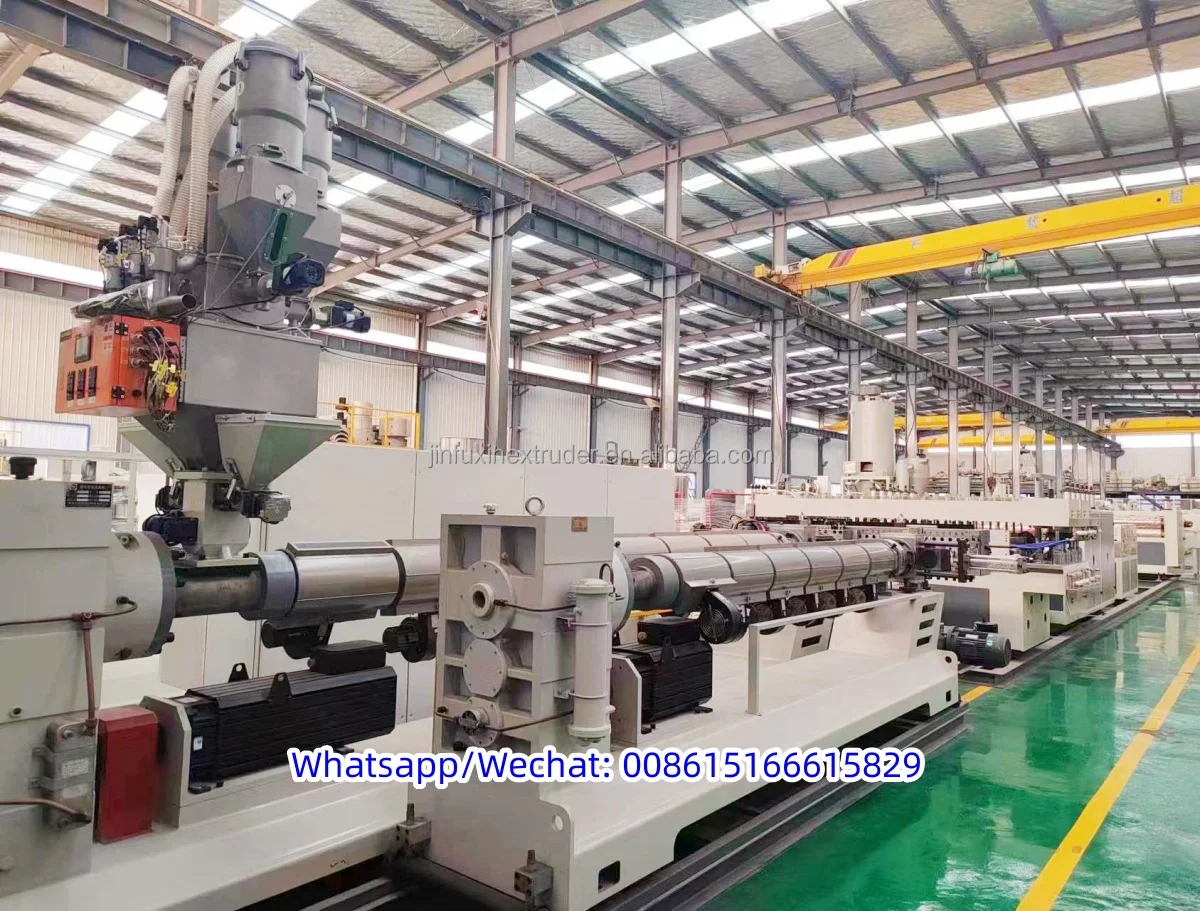

Extrusion line picture
II. Main Technical Parameters
Sheet Width | Sheet Thickness | Extruder Model | Motor Power |
1250mm | 2-6, 8-12mm | 100/36 | 55-75kw |
1700mm | 2-6, 8-12mm | 120/36 | 75-90kw |
2150mm | 2-6, 8-12mm | 120/36 | 90-110kw |
2450mm | 2-6, 8-12mm | 120/36 | 90-110kw |
2800mm | 2-6, 8-12mm | 150/36 | 132kw |
Machine Pictures & Details

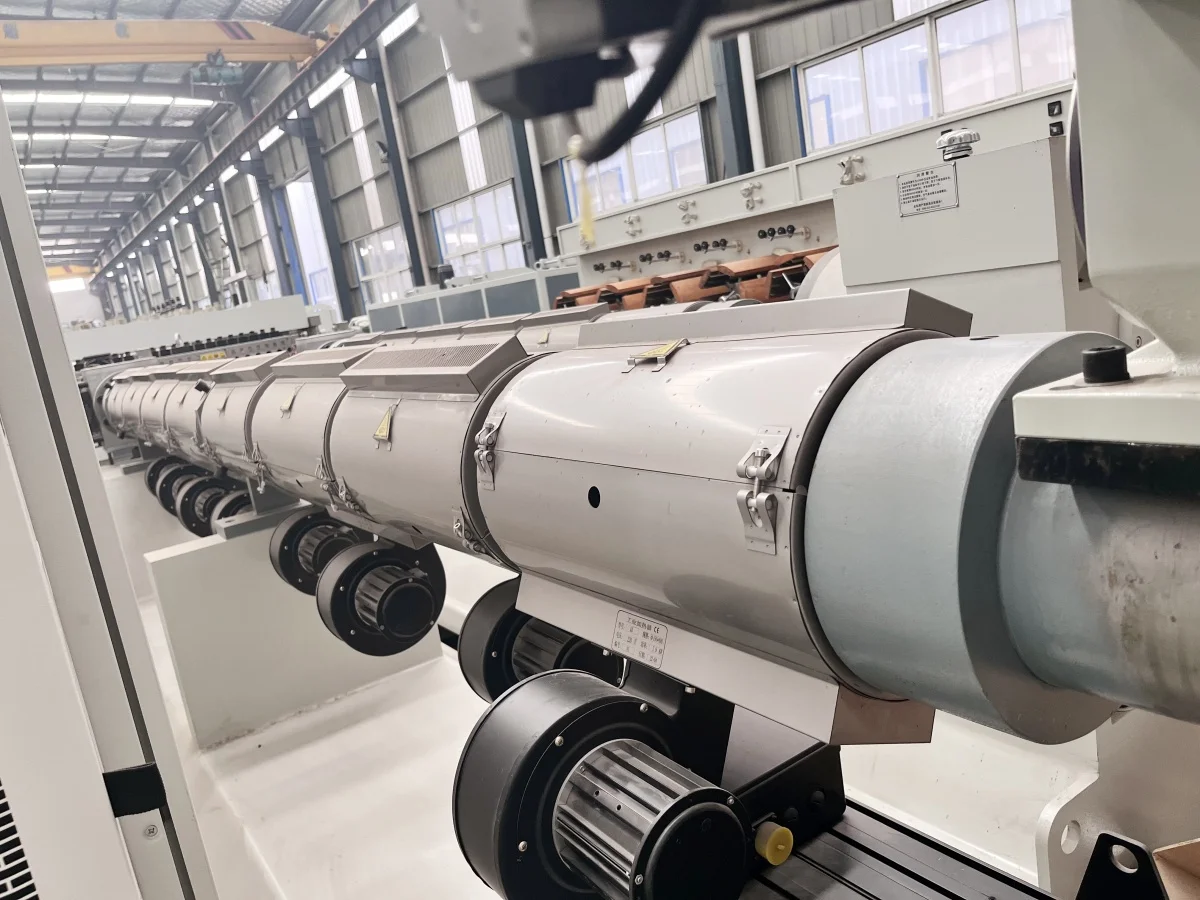

1. Single screw extruder
----optional material drying and loading system for different material
2. Material Filter, Melt pump
----Close--loop control system from extruder to melt pump, by which extrusion can be automatically controlled by melt pump.
----Melt pump ensures stable extrusion
----Melt pump ensures stable extrusion

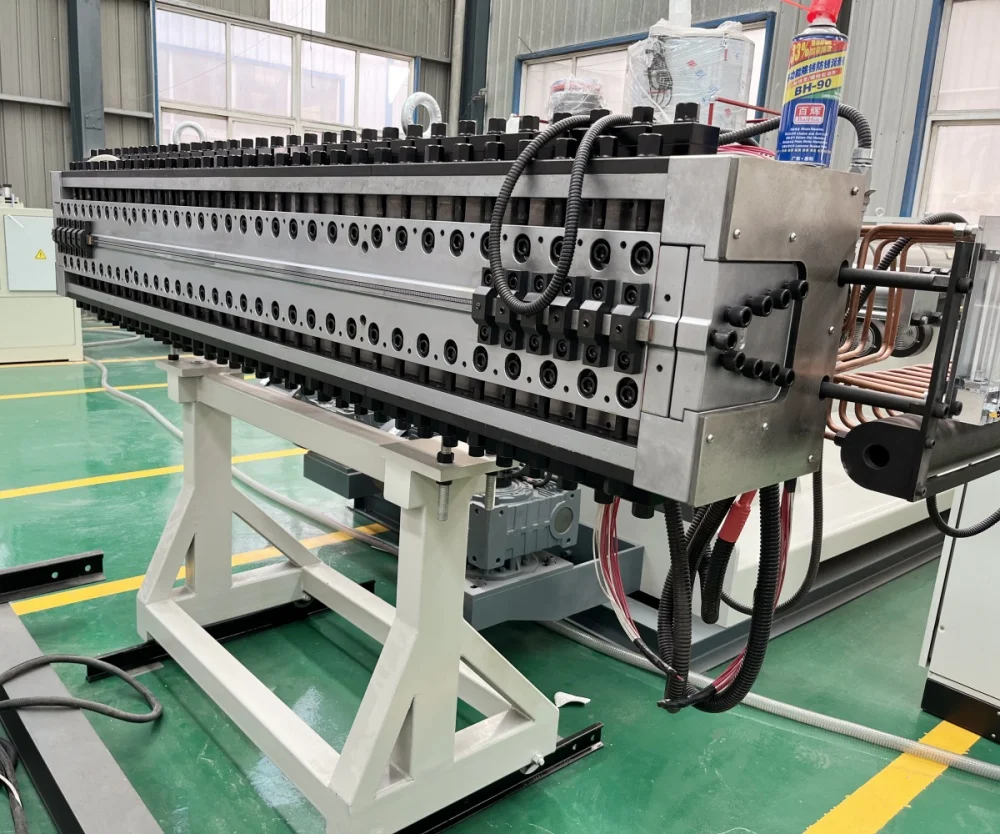

3. Extrusion Mould
---different mould for different thickness and width

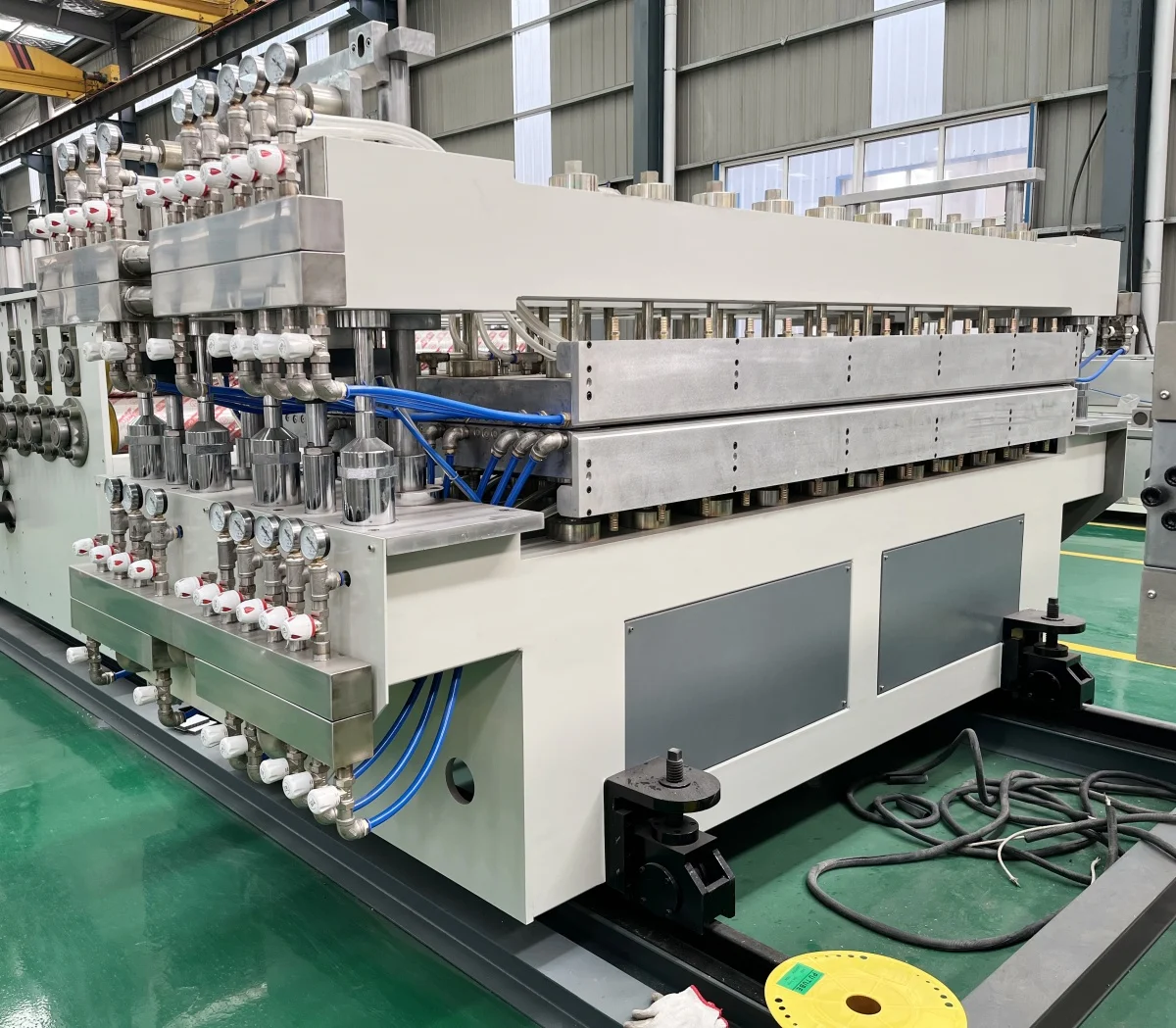

4. Vacuum Calibration Table
---good calibration effect

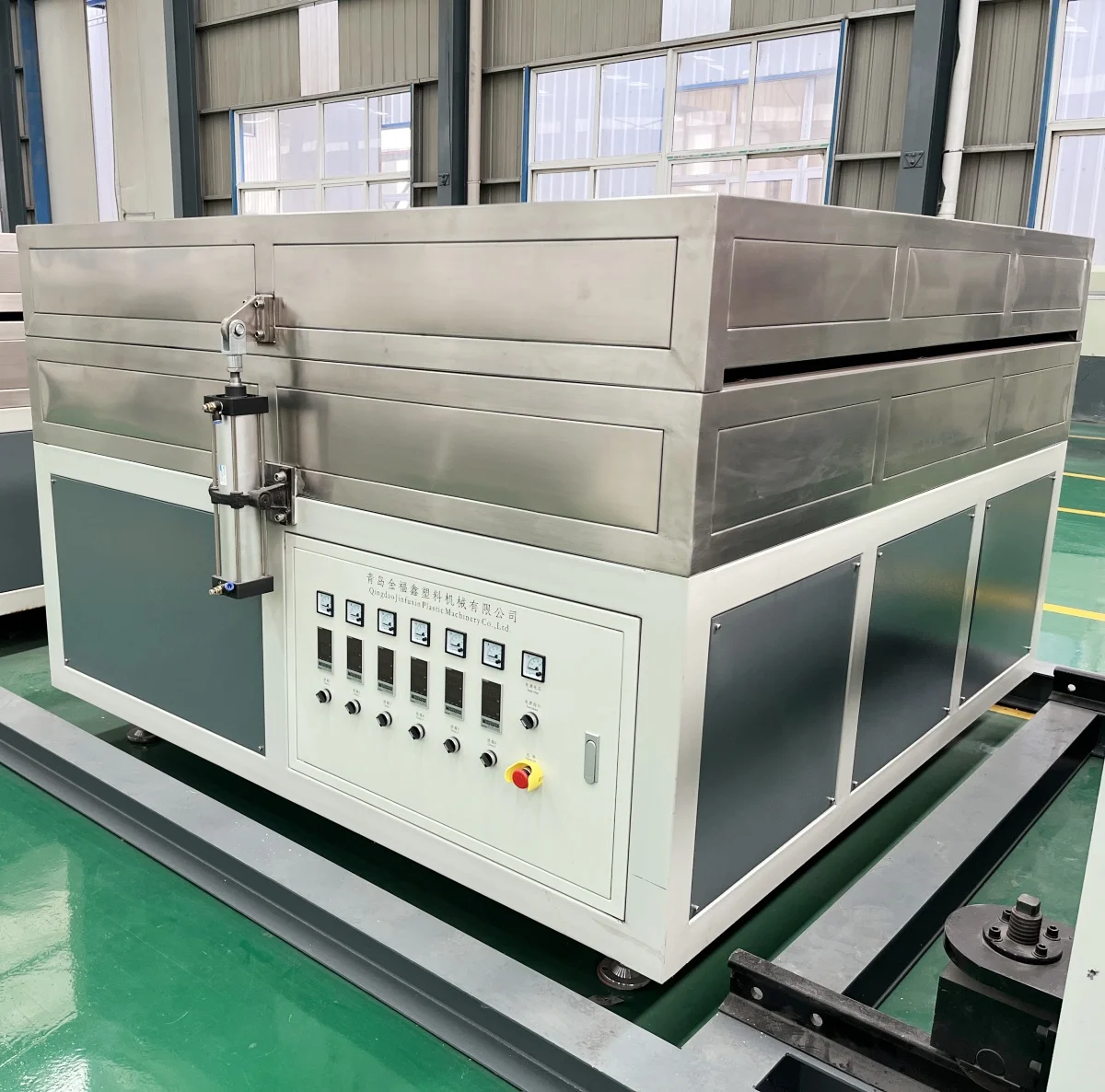

5. Oven

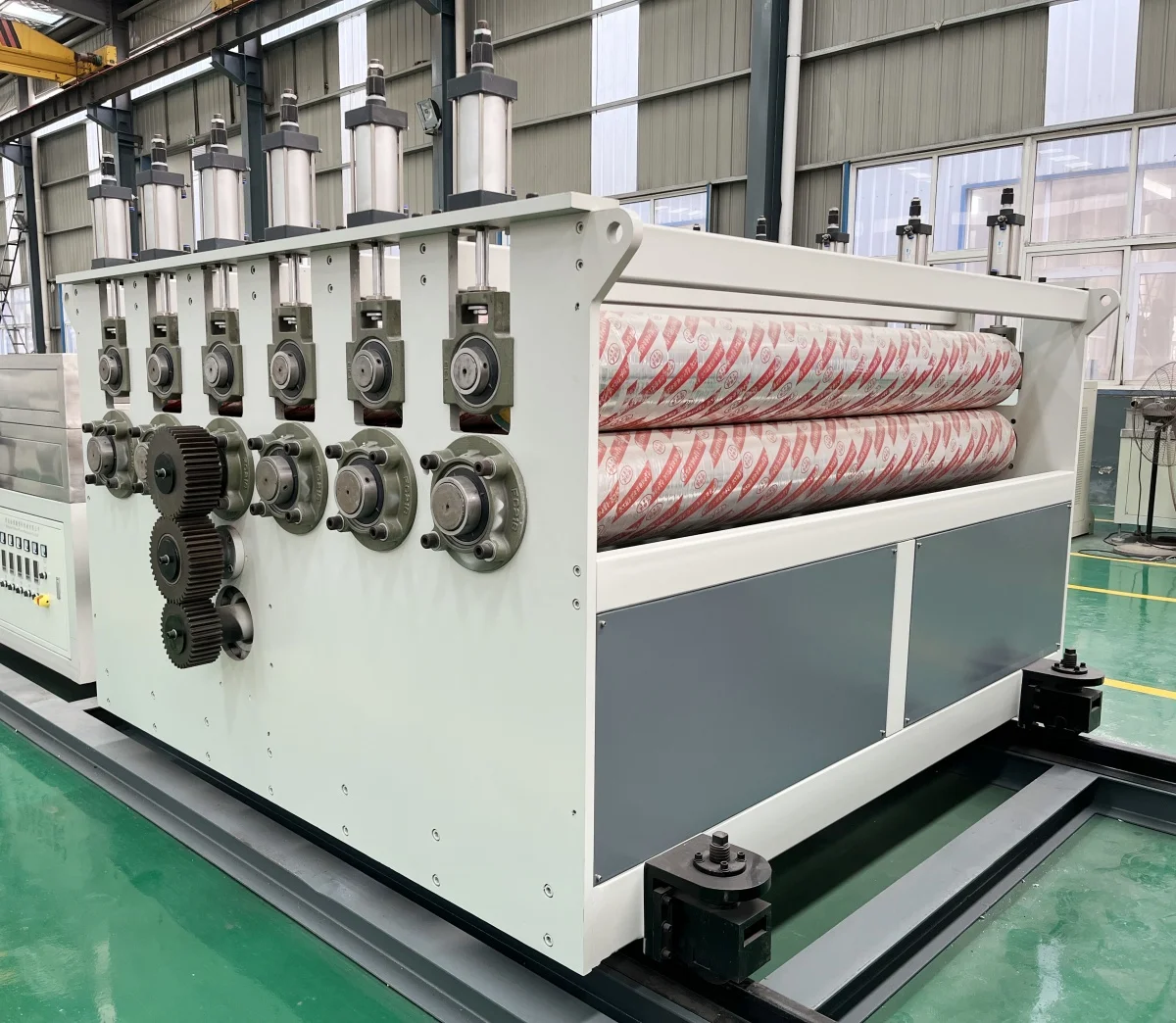

6. Haul-off Machine

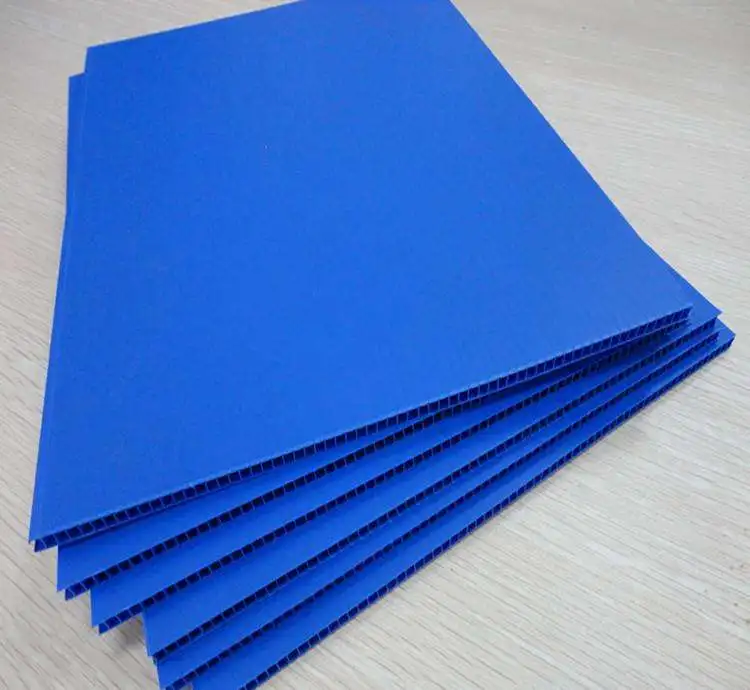

IV. PP Hollow Sheet

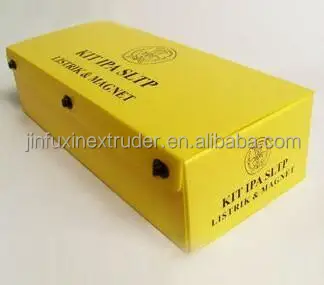

PP/PE hollow sheet is light and high strength, moisture-proof, good environmental protection and re-fabrication performance and can be used into the reusable container, packing case, clapboard, backing plate.
Machine packaging & Delivery
Company Profile
Qingdao Jinfuxin Plastic Machinery Co., Ltd is one professional plastic strap & plastic monofilament extrusion machinery facotry in QINGDAO, CHINA. It was founded in 2002, covers an area of 15000 square meters.
QINGDAO JINFUXIN PLASTIC MACHINERY CO., LTD is engaged in Plastic Extrusion Machinery design, research and production. The main products are PP Hollow Sheet Extrusion Line, Plastic PET/PP/HDPE/PVC Monofilament Extrusion Line, Plastic PET/PP Strap Extrusion Line, Plastic Sheet Extrusion Line, Plastic Profile Extrusion Line, etc. 80% of machines are for exportation, including USA, Mexico, Brazil, India, Russia, South Africa, South Korea, etc.
QINGDAO JINFUXIN PLASTIC MACHINERY CO., LTD is engaged in Plastic Extrusion Machinery design, research and production. The main products are PP Hollow Sheet Extrusion Line, Plastic PET/PP/HDPE/PVC Monofilament Extrusion Line, Plastic PET/PP Strap Extrusion Line, Plastic Sheet Extrusion Line, Plastic Profile Extrusion Line, etc. 80% of machines are for exportation, including USA, Mexico, Brazil, India, Russia, South Africa, South Korea, etc.
