New Heavy Duty Precision Milling Machine Grinder Cross Pneumatic Plain Accurate Flat End Pliers Reliable Manual Bearing Gear
- Category: >>>
- Supplier: Zhangjiagang Ruiwote Machinery Co. Ltd.
Share on (1601059986992):
Product Overview
Description
Products Description
Adopting high-quality alloy steel forging and forming, each product is carefully inspected layer by layer to ensure that each product delivered to customers meets international standards. We provide products with higher precision, hardness, and superior quality according to customer needs. During work, high precision can be maintained regardless of horizontal, vertical, or horizontal placement. The product has a simple structure, convenient operation, high clamping force, and high accuracy.
Product Paramenters
QGG precision flat nose pliers | ||||||||||
model | B mm | H mm | Smax mm | L mm | weight kg | |||||
QGG50 | 50 | 25 | 65 | 155 | 3.0 | |||||
QGG60 | 60 | 25 | 55 | 110 | 2.4 | |||||
QGG63 | 63 | 32 | 85 | 190 | 3.8 | |||||
QGG73 | 73 | 35 | 100 | 210 | 5.0 | |||||
QGG80 | 80 | 40 | 100 | 220 | 6.5 | |||||
QGG88 | 88 | 40 | 125 | 250 | 11.0 | |||||
QGG100 | 100 | 45 | 125 | 260 | 13.0 | |||||
QGG125 | 125 | 50 | 160 | 300 | 19.5 | |||||
QGG125A | 125 | 50 | 210 | 350 | 23.0 | |||||
QGG150 | 150 | 50 | 175 | 315 | 23.8 | |||||
Installation Instructions
Instructions and precautions for use
1. Clean the precision flat nose pliers before use, and then place them on the suction cup of the machine tool magnetic table or fasten them to the workbench.
2. The suction cups of the machine tool magnetic table must be parallel. If they are fastened to the workbench, the precision flat pliers must also be manually turned to the benchmark for leveling.

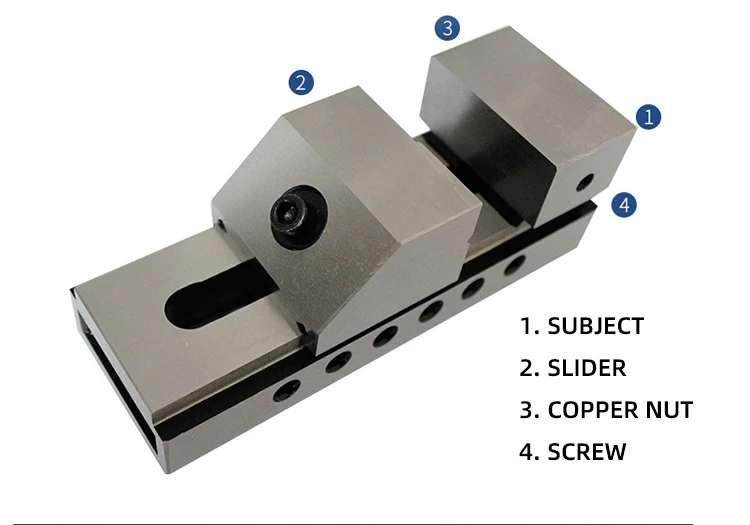

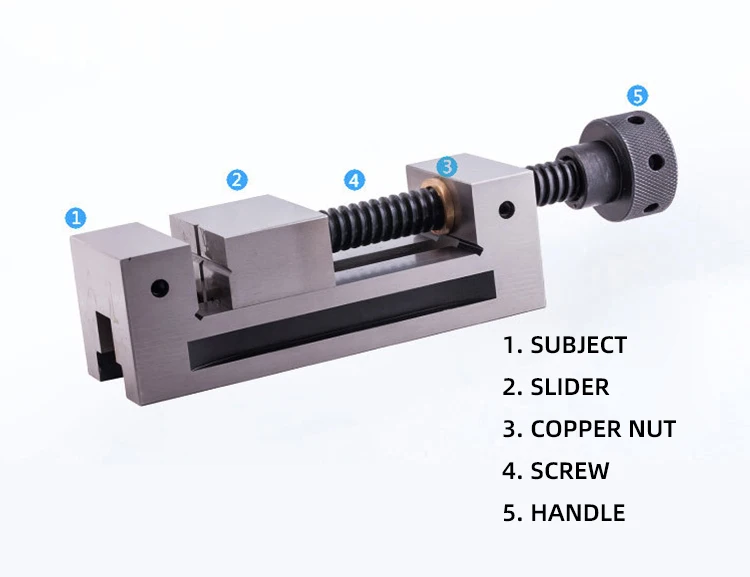

3. Before grinding, it is necessary to ensure the removal of burrs from the work. Only then can its grinding accuracy be ensured and damage to the suction cup surface be avoided. When using the slider (Figure 2) to clamp the workpiece, the rotation force (Figure 5) should be moderate, ensuring around 50KG/CM2.
5. After use, in order to ensure the normal operation and accuracy of the OGG precision flat nose pliers, please remove dirt and apply rust proof oil for maintenance to avoid rusting. Remember to collide and damage during operation.
2. The suction cups of the machine tool magnetic table must be parallel. If they are fastened to the workbench, the precision flat pliers must also be manually turned to the benchmark for leveling.
3. Before grinding, it is necessary to ensure the removal of burrs from the work. Only then can its grinding accuracy be ensured and damage to the suction cup surface be avoided. When using the slider (Figure 2) to clamp the workpiece, the rotation force (Figure 5) should be moderate, ensuring around 50KG/CM2.
5. After use, in order to ensure the normal operation and accuracy of the OGG precision flat nose pliers, please remove dirt and apply rust proof oil for maintenance to avoid rusting. Remember to collide and damage during operation.
Operation and usage methods
Step 1: Clean the workpiece thoroughly and place it on the tiger mouth surface of the hand rotating precision flat nose pliers

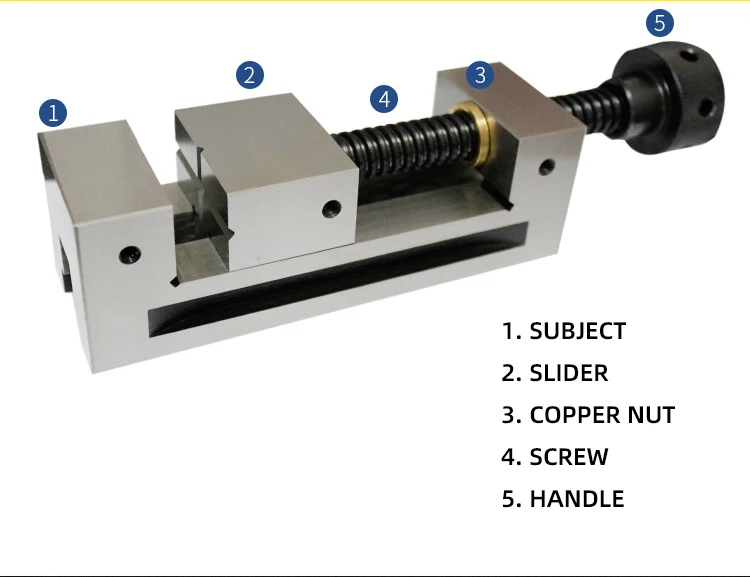

Step 2: Rotate icon (5) clockwise to lock the workpiece before proceeding with grinding operations. (Note: QG precision flat nose pliers can be placed in an appropriate position on the grinding machine in advance)
Step 3: When the clamping force is insufficient when turning the icon (5) by hand, please use a cylindrical pin to place pressure in the handle hole shown in the diagram (5).
Step 4: When the work is finished and removed, the dust on the precision flat nose pliers must be removed before placing the next workpiece to ensure accuracy.
Step 2: Rotate icon (5) clockwise to lock the workpiece before proceeding with grinding operations. (Note: QG precision flat nose pliers can be placed in an appropriate position on the grinding machine in advance)
Step 3: When the clamping force is insufficient when turning the icon (5) by hand, please use a cylindrical pin to place pressure in the handle hole shown in the diagram (5).
Step 4: When the work is finished and removed, the dust on the precision flat nose pliers must be removed before placing the next workpiece to ensure accuracy.
