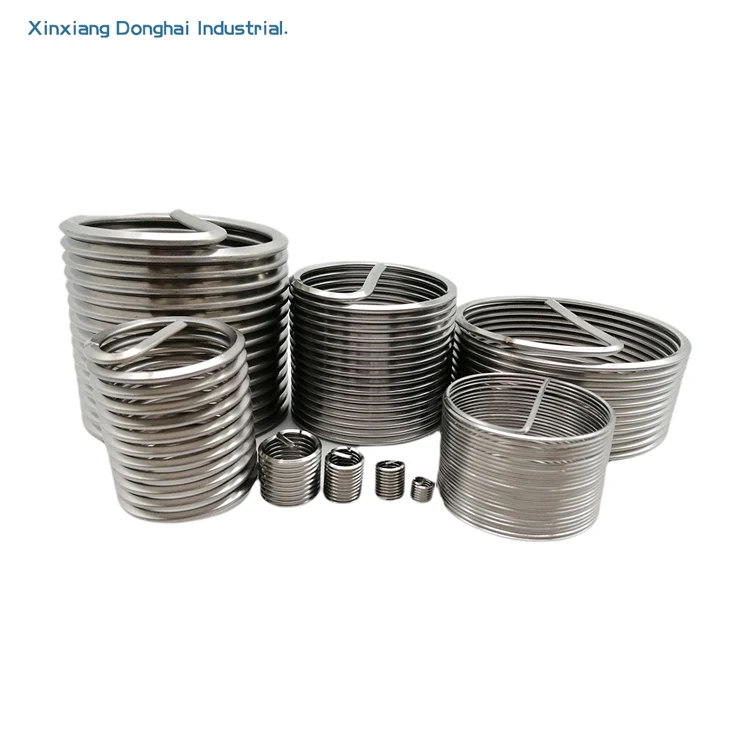

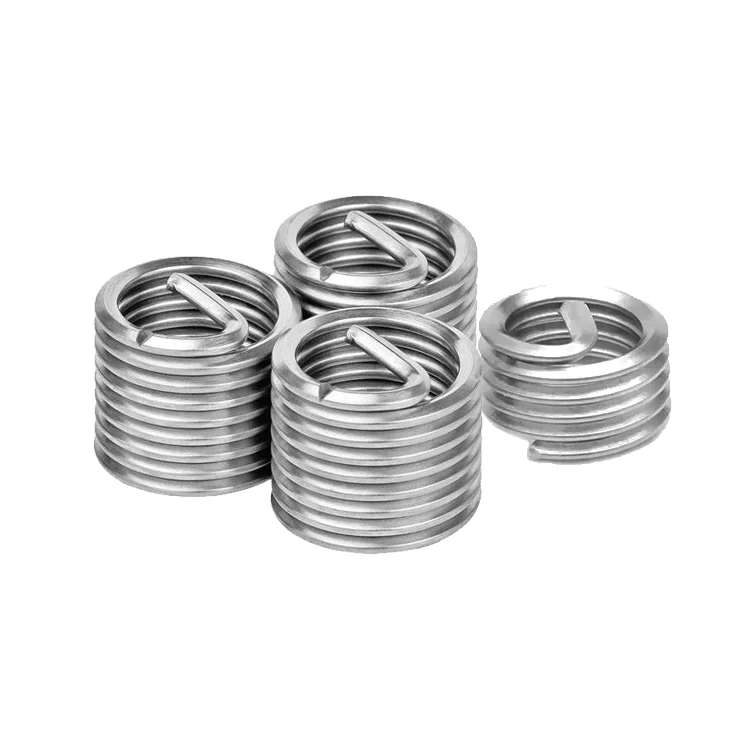

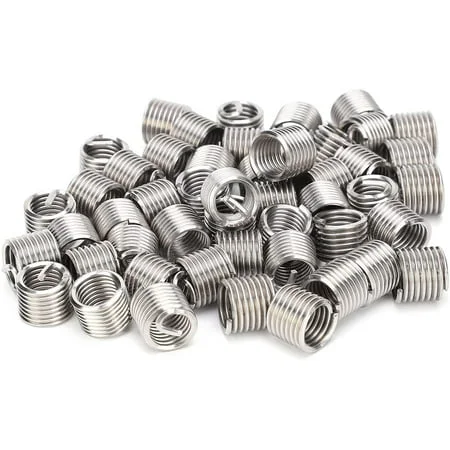

Factory direct sales steel wire thread sleeve 304 stainless steel thread sleeve steel wire tooth sleeve M2 M60
- Category: >>>
- Supplier: Xinxiang Donghai Industrial Co. Ltd.
Share on (1601060016154):
Product Overview
Description
Wire Thread Insert, also known as threaded wire sleeve, wire screw sleeve, is a new type of internal thread fastener.Wire thread Inserts provide a durable and permanent screw thread when inserted into pre-tapped holes.They enable you to produce strong, permanent threads in metals and plastics but are particularly useful for creating strong threads in softer materials such as aluminium, titanium and magnesium alloys.Thaishell® wire thread inserts are made from a range of materials and with various coatings to suit virtually any type of equipment manufacturing.
1. Lighter and Cheaper than any other equivalent type of thread insert
2. Can generally be introduced into existing designs where no previous provision has been made
3. Increase quality and performance whilst reducing overall product cost
4. Their introduction may result in the use of thinner sections or lighter parent materials without sacrificing thread strength
5. Create internal threads with greatly improved distribution of residual stress loading
6. Compensate for pitch and flank angle errors
7. Create internal threads in which wear due to thread friction is virtually eliminated with corrosion and heat resistance
8. Providing high‑strength, wear‑resistant, vibration resistant threads that stay tight
Features & Benefits:
1. Lighter and Cheaper than any other equivalent type of thread insert
2. Can generally be introduced into existing designs where no previous provision has been made
3. Increase quality and performance whilst reducing overall product cost
4. Their introduction may result in the use of thinner sections or lighter parent materials without sacrificing thread strength
5. Create internal threads with greatly improved distribution of residual stress loading
6. Compensate for pitch and flank angle errors
7. Create internal threads in which wear due to thread friction is virtually eliminated with corrosion and heat resistance
8. Providing high‑strength, wear‑resistant, vibration resistant threads that stay tight
Types:
There are two basic types of Thaishell inserts available:
• Free Running inserts which provide a smooth Free Running standard female thread.
• Screw Locking inserts which provide self-locking torque on the male member by a series of "chords" on one or more of the insert coils, so achieve a locking function for the female thread when the fasteners installed.
• Screw Locking inserts which provide self-locking torque on the male member by a series of "chords" on one or more of the insert coils, so achieve a locking function for the female thread when the fasteners installed.
Free Running Wire Thread Insert
Screw Locking Wire Thread Insert

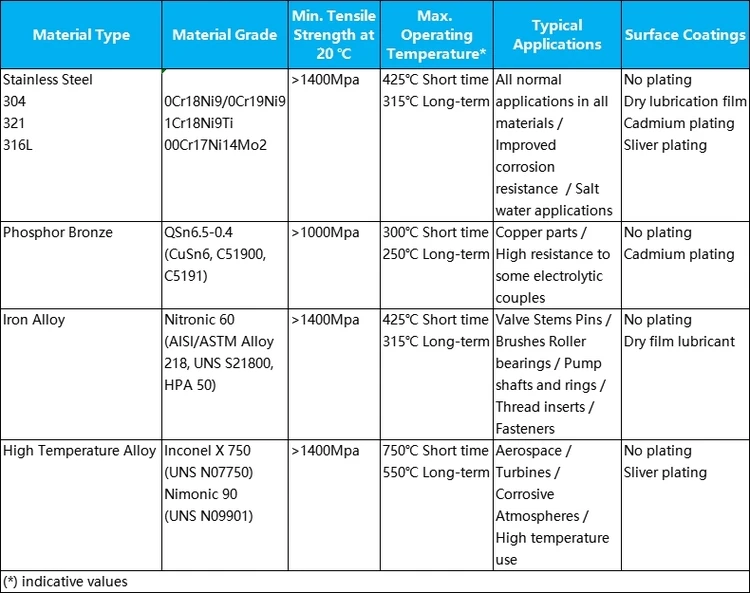

Material & Surface Treatment:
Available from stock in a huge range of sizes, thread forms, and alternative materials.
Inserts are also available in 316 Stainless Steel (AISI316), Phosphor Bronze (DIN17677 or BS2783 PB102), Inconel X-750 (AS7246).
Phosphor Bronze (CuSn6, C51900, C5191); Nitronic 60 (AISI/ASTM Alloy 218, UNS S21800, HPA 50); Inconel X 750 (UNS N07750); Nimonic 90 (UNS N09901).
Phosphor Bronze (CuSn6, C51900, C5191); Nitronic 60 (AISI/ASTM Alloy 218, UNS S21800, HPA 50); Inconel X 750 (UNS N07750); Nimonic 90 (UNS N09901).
Product characteristics: anti-corrosion, acid and alkali resistance, and high temperature resistance |
Temperature Resistance：-195°c low temp.425°c short-time.315°c long-time |

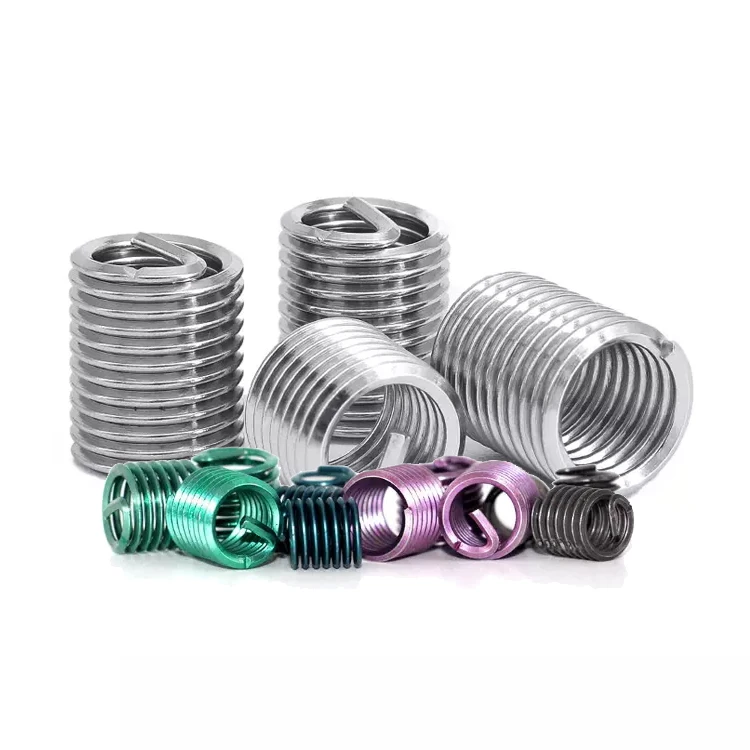

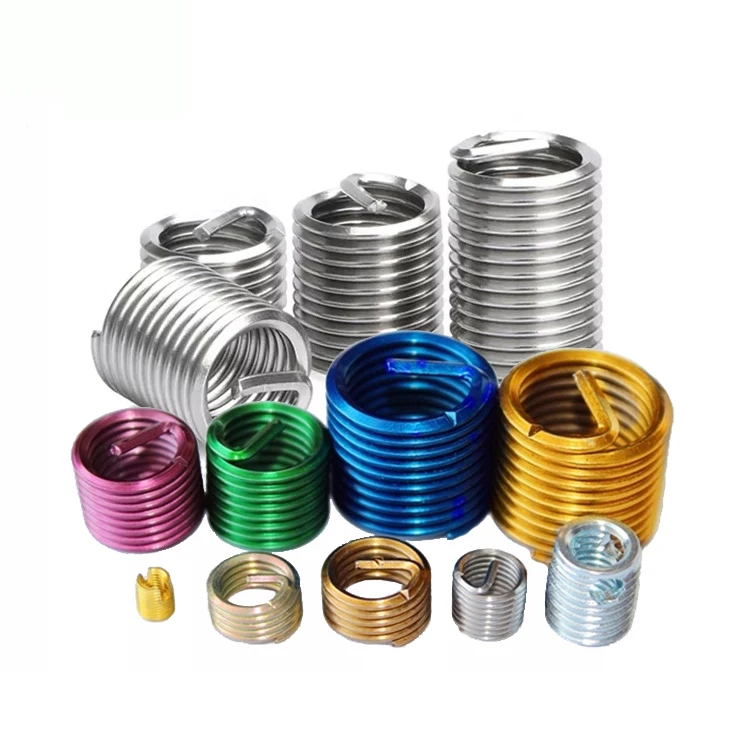

Surface treatment：Silver plating, cadmium plating, nickel plating, dry film lubrication, coloring, other non-standard customization |
Material：304 stainless steel, copper alloy, high temperature alloy, non-standard order |
Application Fields:
1. Original Equipment Manufacturing Thaishell™ inserts are widely used by manufacturers in a variety of markets as following:
• Automotive
• Electronic
• Aerospace – Avionics, Engines, Airframe
• Ship Building
• Defence
• Power Generation
• Transport
• Manufacturing Equipment
2. Thread Repair Wherever you encounter a damaged thread Thaishell™ thread insert provides:
• The quickest and simplest method of repair to stripped or damaged threads.
• A quality thread with superior holding power.
• The most cost-effective method of repair.
• A new thread in the original size.
• A thread generally stronger than the original.
Product Parameter
Installation Instructions
How To Install Wire Thread Inserts
Installation process:
Drilling→Tapping→Installing→Breaking off tang
Tools:
1.Drill: used for drilling the base holes
2.Taps: used for the processing special internal thread of the base holes.
3.Installation tools: put sets into the threaded hole.
4.Break-off tools: break off the tang of thread insert.
5.Extraction tools: used for removing the damaged thread insert from the threaded hole.
Drilling→Tapping→Installing→Breaking off tang
Tools:
1.Drill: used for drilling the base holes
2.Taps: used for the processing special internal thread of the base holes.
3.Installation tools: put sets into the threaded hole.
4.Break-off tools: break off the tang of thread insert.
5.Extraction tools: used for removing the damaged thread insert from the threaded hole.
How To Remove Wire Thread Inserts
When removing Thread Inserts, press an Insert Removal Tool onto the insert, and slowly turn counterclockwise to remove it. When reinserting the Thread Insert into the removed hole, use special tap again before inserting.
Product Range
Packing & Delivery
FAQ
Q: Are you a trading company or a manufacturer?
A: We are a manufacturer, with 23 years of experience, the leading manufacturer of military and industrial thread inserts & tools from China.
Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. or it is 7 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we can provide samples for free, but no shipping fee.
Q: What are your payment terms?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Welcome to other terms.
Q: What are your price terms?
A: EXW/FOB/CIF/CFR/FCA/CPT/CIP etc.
Q: What is your product range?
A: Our product range includes wire thread insert, self taping thread insert, key insert, STI tap, heavy duty keensert, etc. We strictly implement various quality standards such as GB, ISO, DIN, JIS, AISI NFE, BSW, etc., and also accept non-standard products.
Q: Why should I choose you? What are your advantages? What industry do you serve?
A: We are a professional manufacturer with many years of production and management experience in the field of fasteners. We hold the tight end quality controlling from very beginning to the end and aim at 99.99% error free. We can provide our customers with good solutions in terms of production design, production technology, packaging and after-sales service. Customer satisfaction is our only pursuit.
Thank you for your time! Your satisfaction and good feedback are our eternal pursuit!
If you have another question, pls feel free to contact us via below ways.
A: We are a manufacturer, with 23 years of experience, the leading manufacturer of military and industrial thread inserts & tools from China.
Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. or it is 7 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we can provide samples for free, but no shipping fee.
Q: What are your payment terms?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Welcome to other terms.
Q: What are your price terms?
A: EXW/FOB/CIF/CFR/FCA/CPT/CIP etc.
Q: What is your product range?
A: Our product range includes wire thread insert, self taping thread insert, key insert, STI tap, heavy duty keensert, etc. We strictly implement various quality standards such as GB, ISO, DIN, JIS, AISI NFE, BSW, etc., and also accept non-standard products.
Q: Why should I choose you? What are your advantages? What industry do you serve?
A: We are a professional manufacturer with many years of production and management experience in the field of fasteners. We hold the tight end quality controlling from very beginning to the end and aim at 99.99% error free. We can provide our customers with good solutions in terms of production design, production technology, packaging and after-sales service. Customer satisfaction is our only pursuit.
Q: How to get an accurate quote?
A: Pls send us an inquiry with detailed specifications, if you have a sample or technical drawing, it is much better.
A: Pls send us an inquiry with detailed specifications, if you have a sample or technical drawing, it is much better.
Thank you for your time! Your satisfaction and good feedback are our eternal pursuit!
If you have another question, pls feel free to contact us via below ways.
