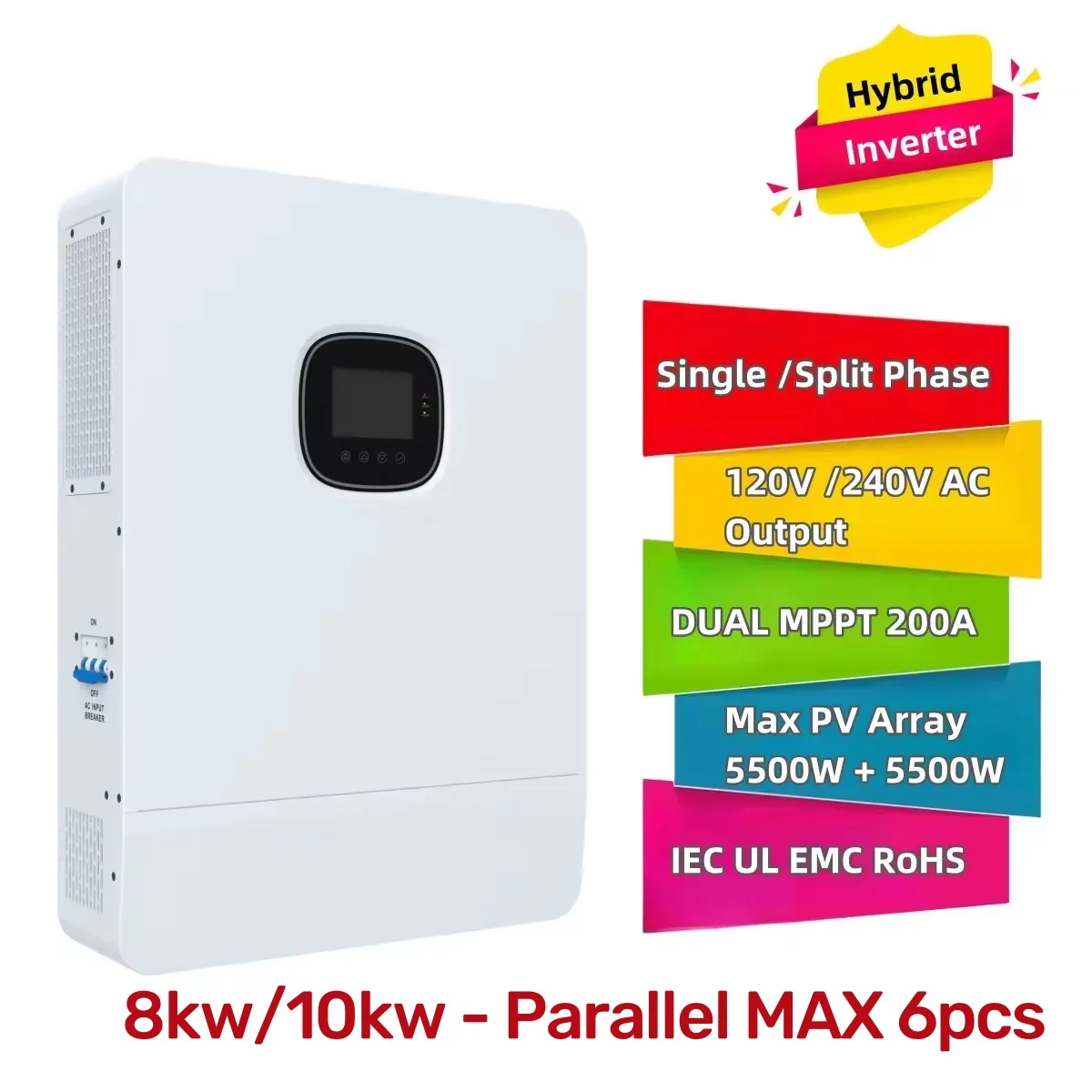

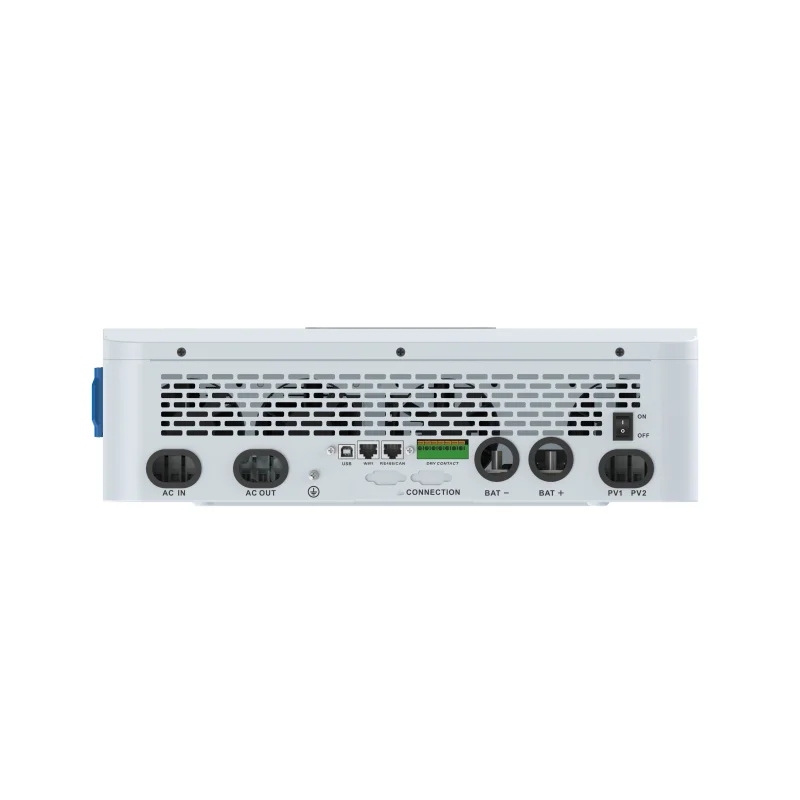

New 48v 10kw US Model 120V 240V 50HZ 60HZ Pure Sine Wave Off grid 200A MPPT Split Phase Solar Hybrid Inverter Parallel Kit
- Category: >>>
- Supplier: Harbin Shinenovo Technology Development Co. Ltd.
Share on (1601060021522):
Product Overview
Description
Product Description
New 48v 10kw US Model 120V 240V 50HZ 60HZ Pure Sine Wave Off grid 200A
MPPT Split Phase Solar Hybrid Inverter Parallel Kit
Feature
Support split-phase/single-phase pure sine wave output .
Support adjusting the voltage of each phase within the range of 100 VAC, 105 VAC, 110 VAC, and 120 VAC .
Support two-channel PV input and have the function of simultaneous two-channel maximum power point tracking (MPPT) for charging/carrying capacity .
Support two-channel MPPT, with an efficiency of up to 99.9% and a maximum single-channel current of 22 A, perfectly fitting high-power modules .
Provide four charge modes: only PV, mains first, PV first, and mains + PV.
single-phase parallel connection
Two parallel-connection
Three parallel-connection
two-phase parallel connection

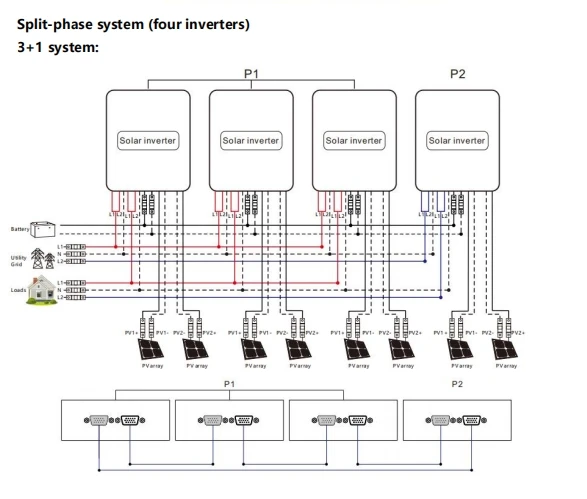

Split-phase system (four inverters)

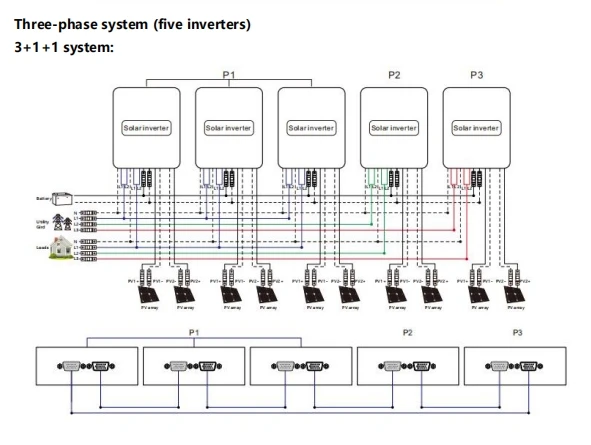

Three-phase system (five inverters)
New 48v 10kw US Model 120V 240V 50HZ 60HZ Pure Sine Wave Off grid 200A
MPPT Split Phase Solar Hybrid Inverter Parallel Kit
MPPT Split Phase Solar Hybrid Inverter Parallel Kit
Specification
Model | SPI-8K-UP | SPI-10K-UP | Can be set | |||
INVERTER OUTPUT | ||||||
Rated Output Power | 8000W | 10000W | ||||
Max.Peak Power | 16000W | 20000W | ||||
Rated Output Voltage | 120/240Vac（split phase / single phase） | ✔ | ||||
Load Capacity of Motors | 5HP | 6HP | ||||
Rated AC Frequency | 50/60HZ | ✔ | ||||
Waveform | Pure Sine Wave | |||||
Switch Time | 10ms(typical) | |||||
Parallel number | 6 | 6 | ||||
Overload protection | After overload protection is enabled, the inverter output will be restored after 3 min, and after 5 times of overload, the output will be off until the inverter is restarted. (102%< load <110%): An error will be reported, and the output will be turned off after 5 min. (110%< load <125%): An error will be reported, and the output will be turned off after 10s. Load >125%: An error will be reported, and the output will be turned off after 5s. | |||||
BATTERY | ||||||
Battery Type | Lithium-ion battery/lead-acid battery/user-defined battery | ✔ | ||||
Rated Battery Voltage | 48Vdc | |||||
Voltage Range | 40-60Vdc | ✔ | ||||
Max.MPPT Charging Current | 180A | 200A | ✔ | |||
Max.Mains/Generator Charging Current | 100A | 120A | ✔ | |||
Max.Hybrid Charging Current | 180A | 200A | ✔ | |||
PV INPUT | ||||||
Num. of MPPT Trackers | 2 | |||||
Max.PV array power | 11000W | |||||
Max.input current | 22/22A | |||||
Max.Voltage of Open Circuit | 500Vdc | |||||
MPPT Voltage Range | 125-425Vdc | |||||
MAINS / GENERATOR INPUT | ||||||
Input Voltage Range | 90-140Vac | |||||
Frequency Range | 50/60Hz | |||||
Bypass Overload Current | 63A | |||||
EFFICIENCY | ||||||
MPPT Tracking Efficiency | 99.9% | |||||
Max. Battery Inverter Efficiency | 92% | |||||
GENERAL | ||||||
Dimensions | 620*445*130mm | |||||
Weight | 27kg | 21kg | ||||
Protection Degree | IP20, for indoor use only | |||||
Operating Temperature Range | −10°C−55°C, >45°C derating | |||||
Noise | <60dB | |||||
Cooling Method | Internal Fan | |||||
Warranty | 18 months | |||||
COMMUNICATION | ||||||

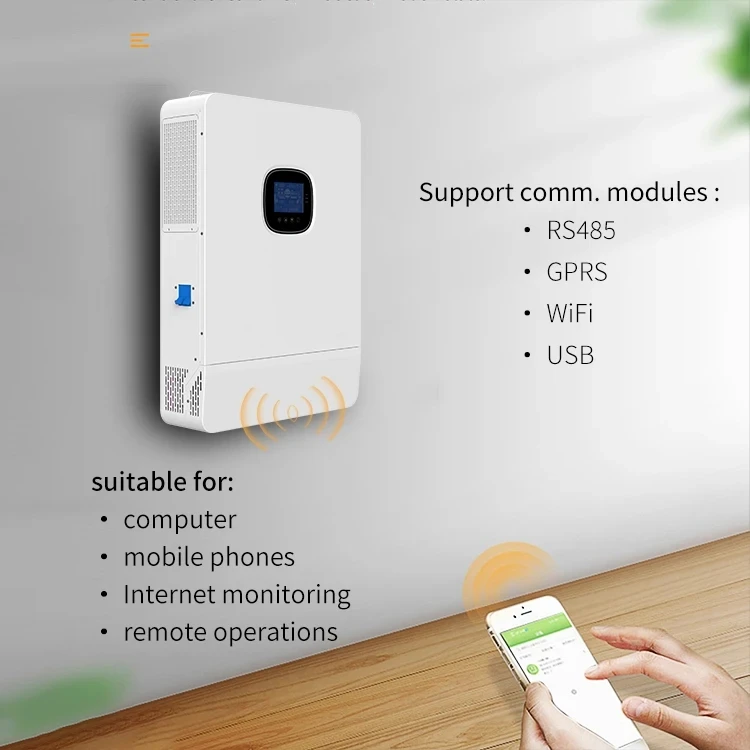

Embedded Interfaces | RS485 / CAN / USB / Dry contact | ✔ | ||||
External Modules （Optional） | Wi-Fi / GPRS | ✔ | ||||

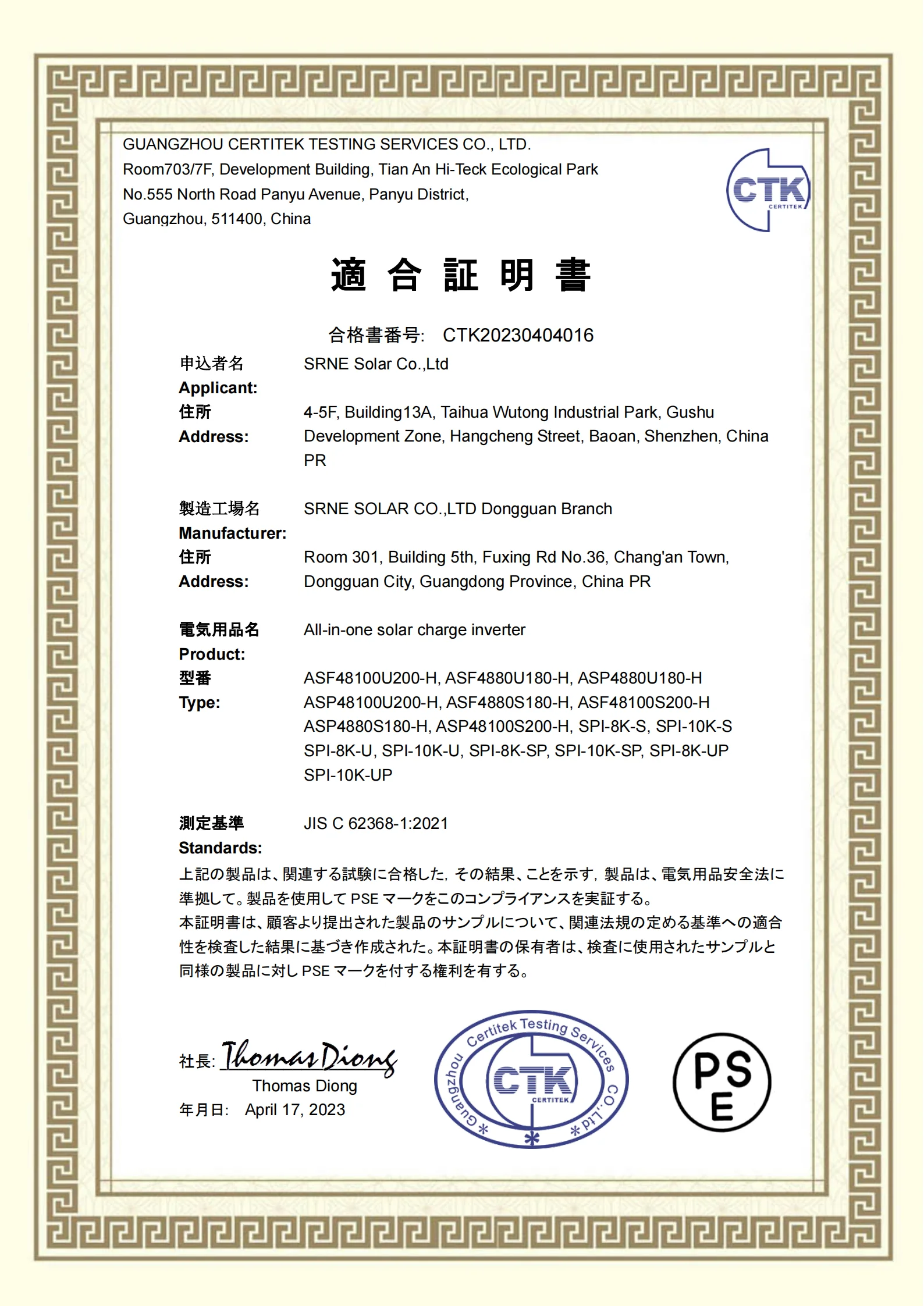

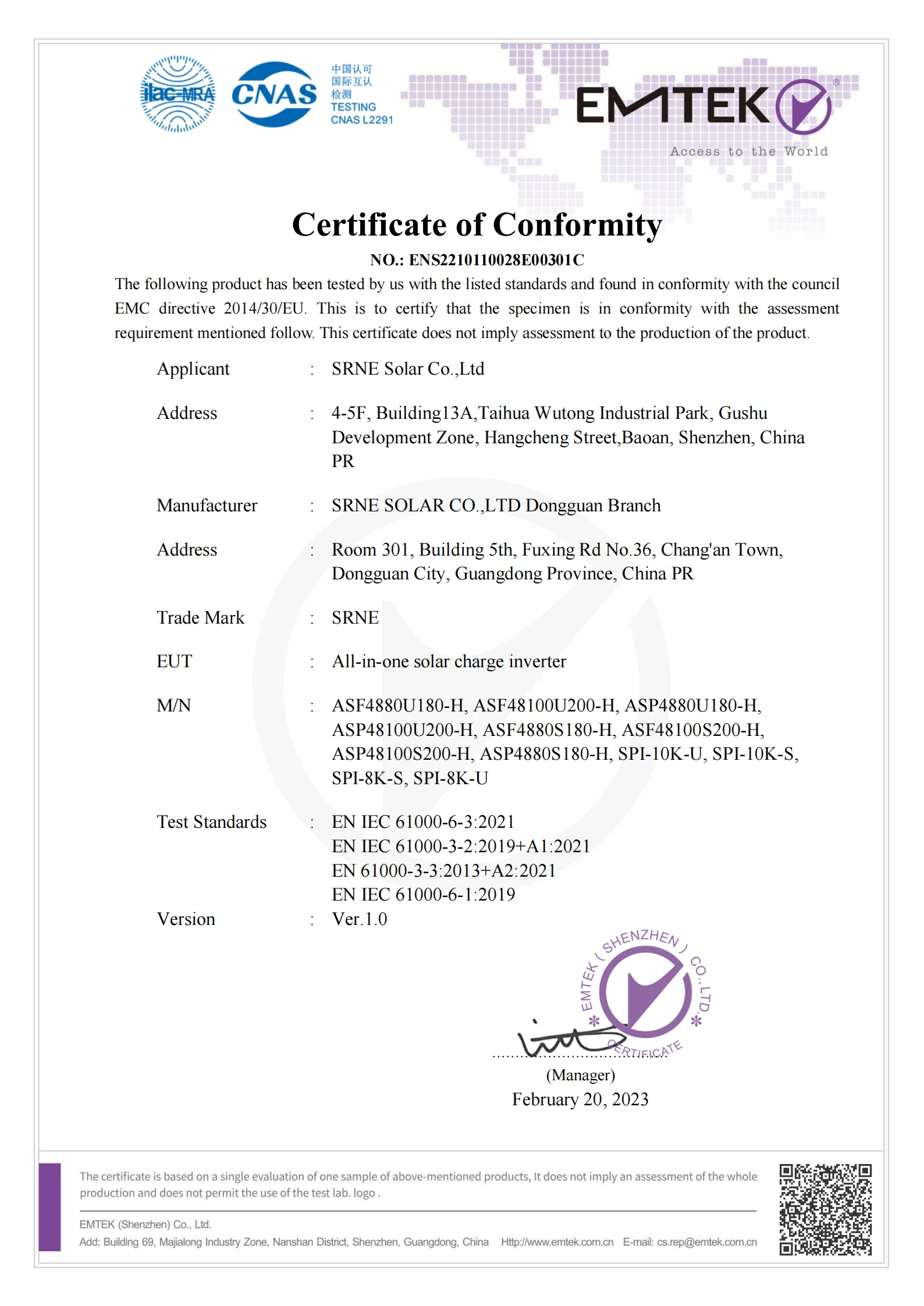

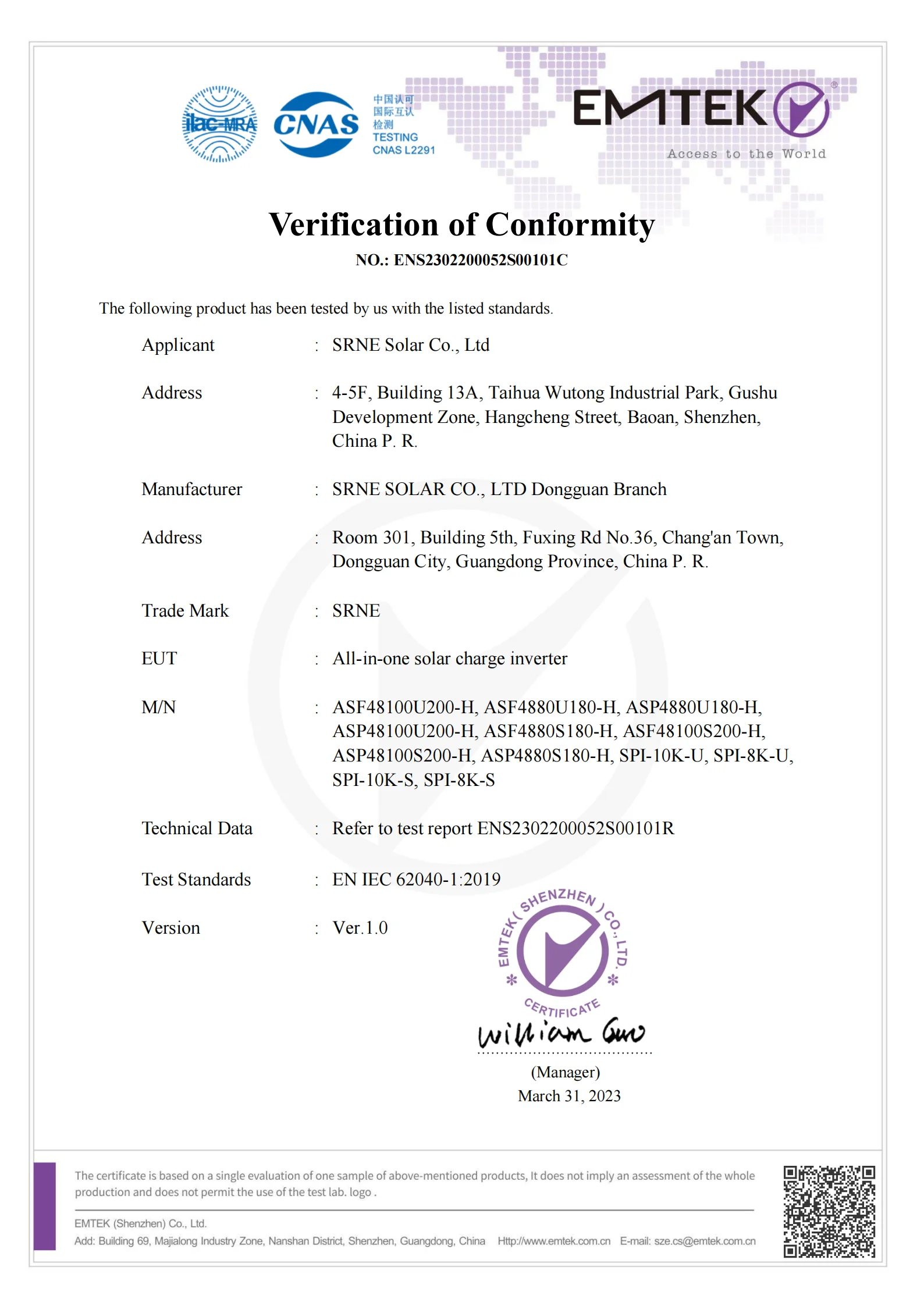

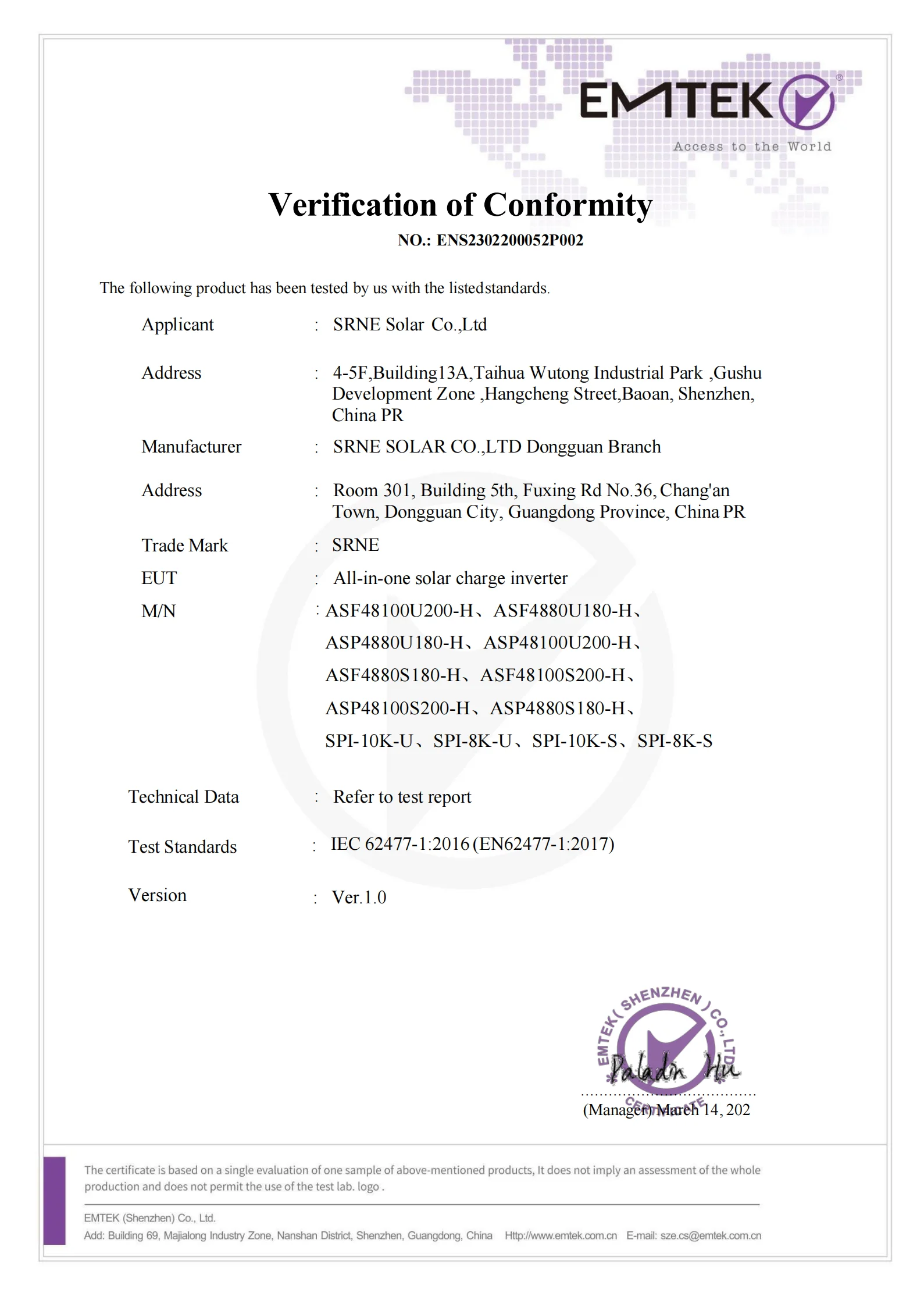

CERIFICATION | ||||||
Safety | IEC62109-1, IEC62109-2, and UL1741 | |||||
EMC | EN61000-6-1, EN61000-6-3, and FCC 15 class B | |||||
RoHS | YES | |||||
New 48v 10kw US Model 120V 240V 50HZ 60HZ Pure Sine Wave Off grid 200A
MPPT Split Phase Solar Hybrid Inverter Parallel Kit
MPPT Split Phase Solar Hybrid Inverter Parallel Kit
Product Details

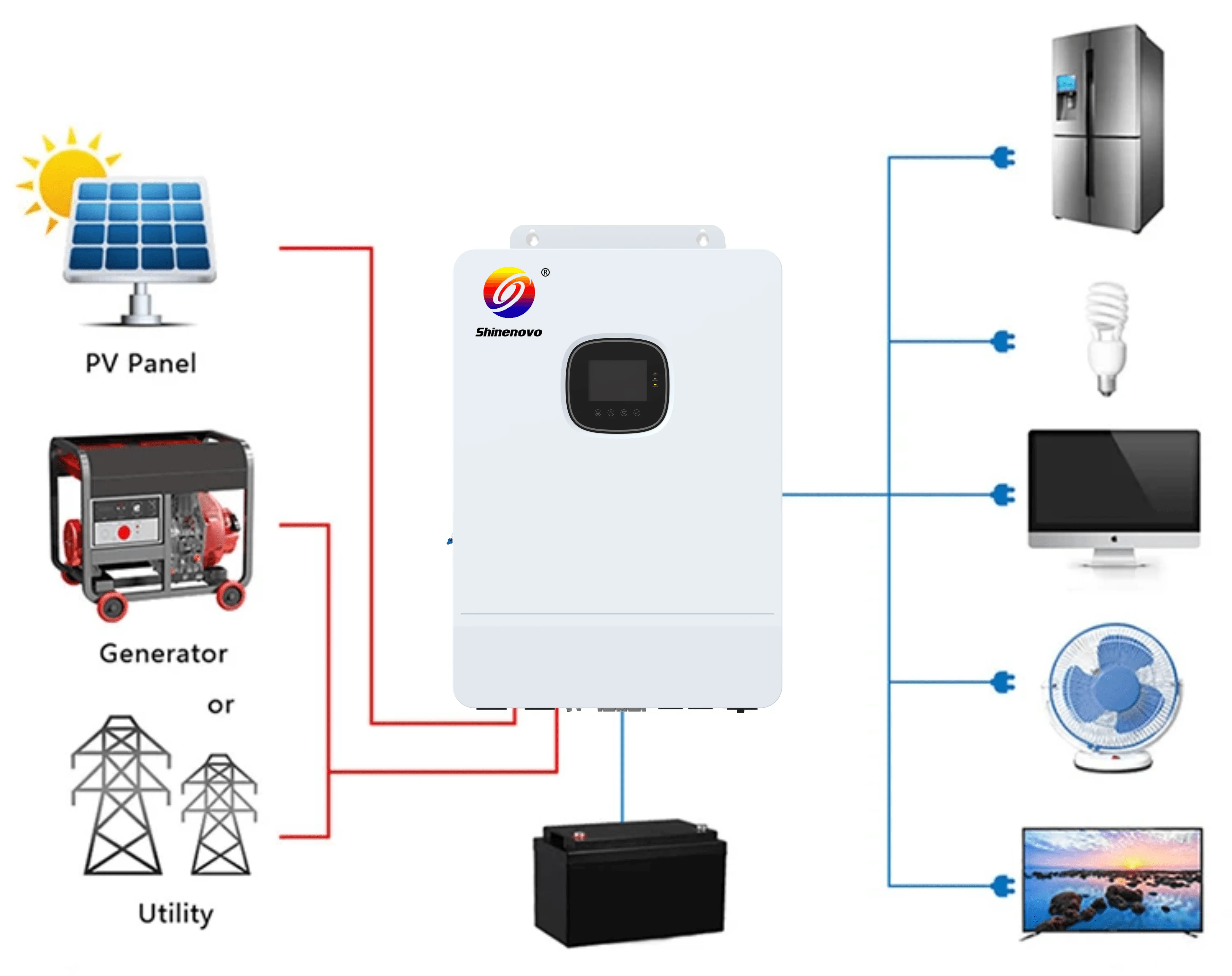

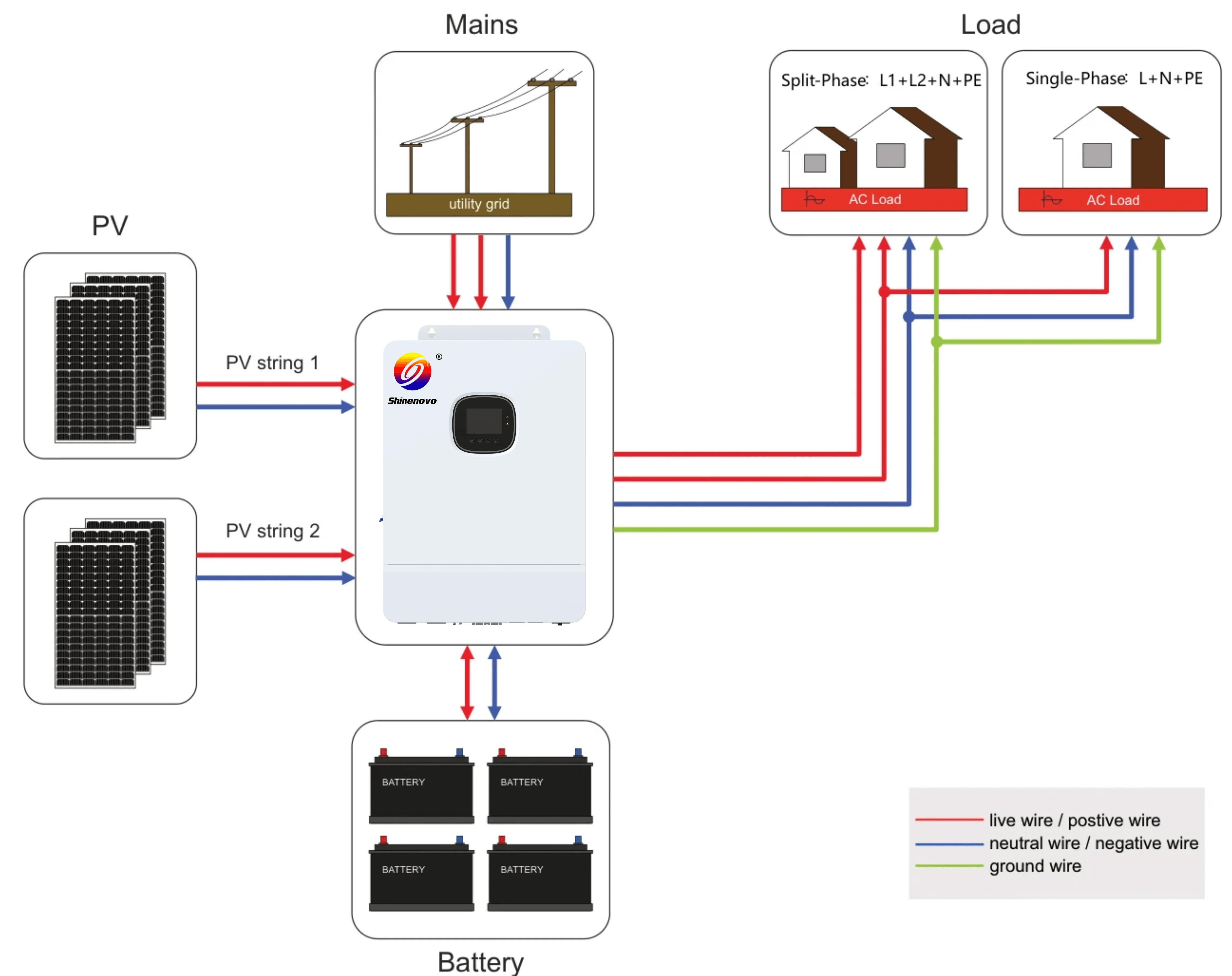

Application
New 48v 10kw US Model 120V 240V 50HZ 60HZ Pure Sine Wave Off grid 200A
MPPT Split Phase Solar Hybrid Inverter Parallel Kit
MPPT Split Phase Solar Hybrid Inverter Parallel Kit
Our Company
We, Harbin Shinenovo Technology Development Co., Ltd., are exporter and service provider, specializing in exporting solar power products, designing solar systems and providing solar engineering services. We have a wide range of solar products, includingsolar panel, solar inverter, solar controller, portable solar lighting system, solar garden light and DC & AC solar system. All of our products have been passed CE, TUV, ISO, CQC and other certifications. Our service team provides customers with professional, patient and high-quality services and technical support, including solar power design, fault clearance and after service. We aim at continuously expanding variety of products and improving quality standards to offer an overall understanding to the customers and make them buy various related products. If you have any questions about our products, please contact us timely. We arestriving for our common sustainably developing future and advanced technology. In order to solve climate and resources problems,we are willing to achieve our common dream toghther with you.
