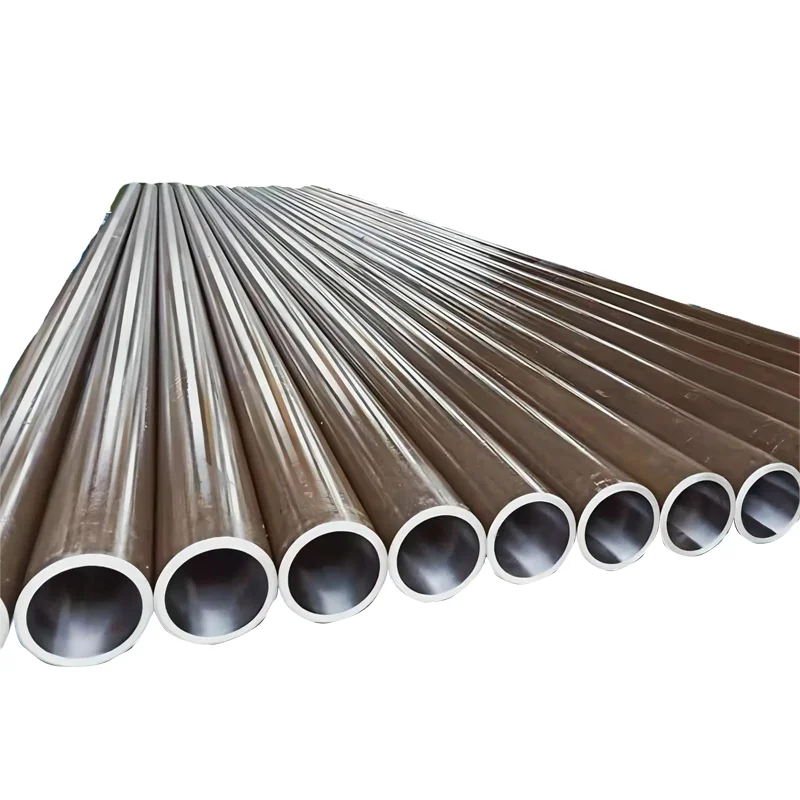

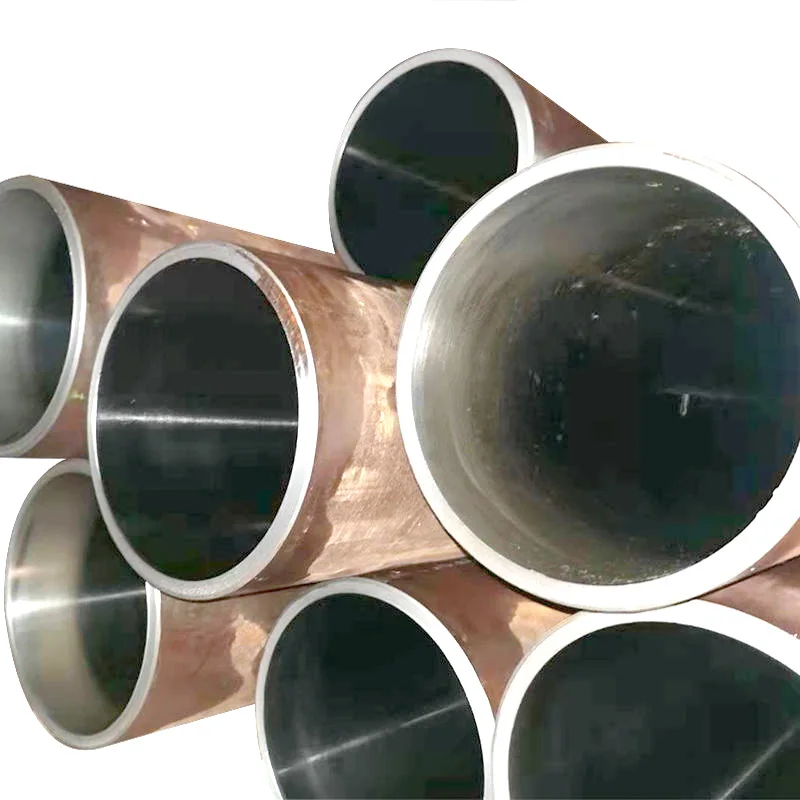

Hone tube seamless pipe Round seamless carbon galvanized steel pipe Hone tube
- Category: >>>
- Supplier: WUXI EAST AI MACHINERY CO. LTD
Share on (1601060050164):
Product Overview
Description
Product Overview
DESCRIPTION
Standard | DIN2391, EN10305, ASTM A519, GB/T 3639-200 | ||||||
Material | Q355B Q355D C20,ST52,E355 SAE1026.CK45 4130 4140 STKM 13C | ||||||
Heat treatment | BK+S | ||||||
Specification | Outer diameter(mm) : 40-480mm | ||||||

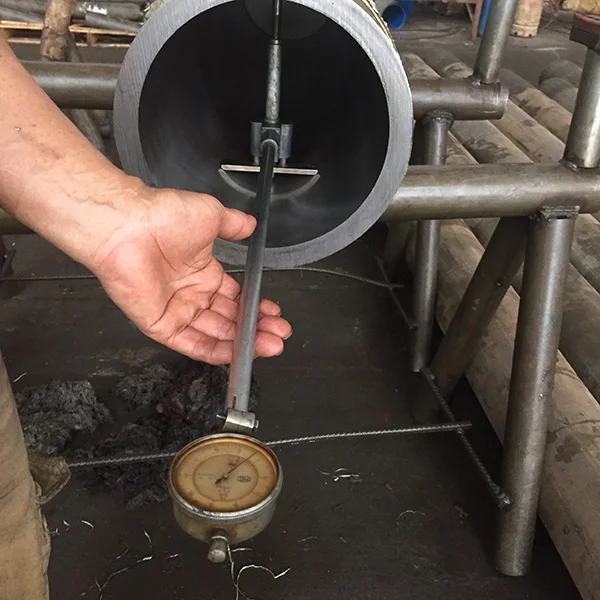

I.D Tolerance | H8-H9 | ||||||
Length | Fixed Length, Random Length(3--9m)or as requests of customers | ||||||
Straightness | 0.5-1/1000 | ||||||

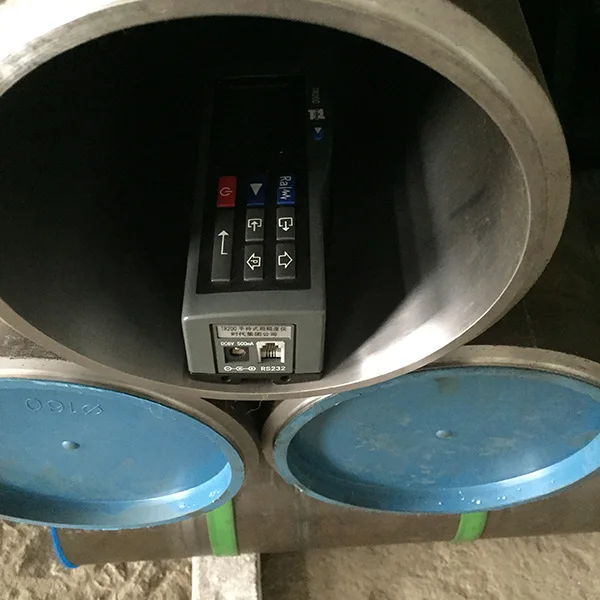

ID roughness | RA 0.1-0.8micron(max) | ||||||
Payment term | FOB, CFR, CIF ,EXW, FCA and so on | ||||||
MOQ | 3 tons | ||||||
Technology | Honed & SRB(SKIVED AND ROLLER BURNISHED ) | ||||||
Application: | hydraulic cylinder, swivel crane, injection machine and so on | ||||||

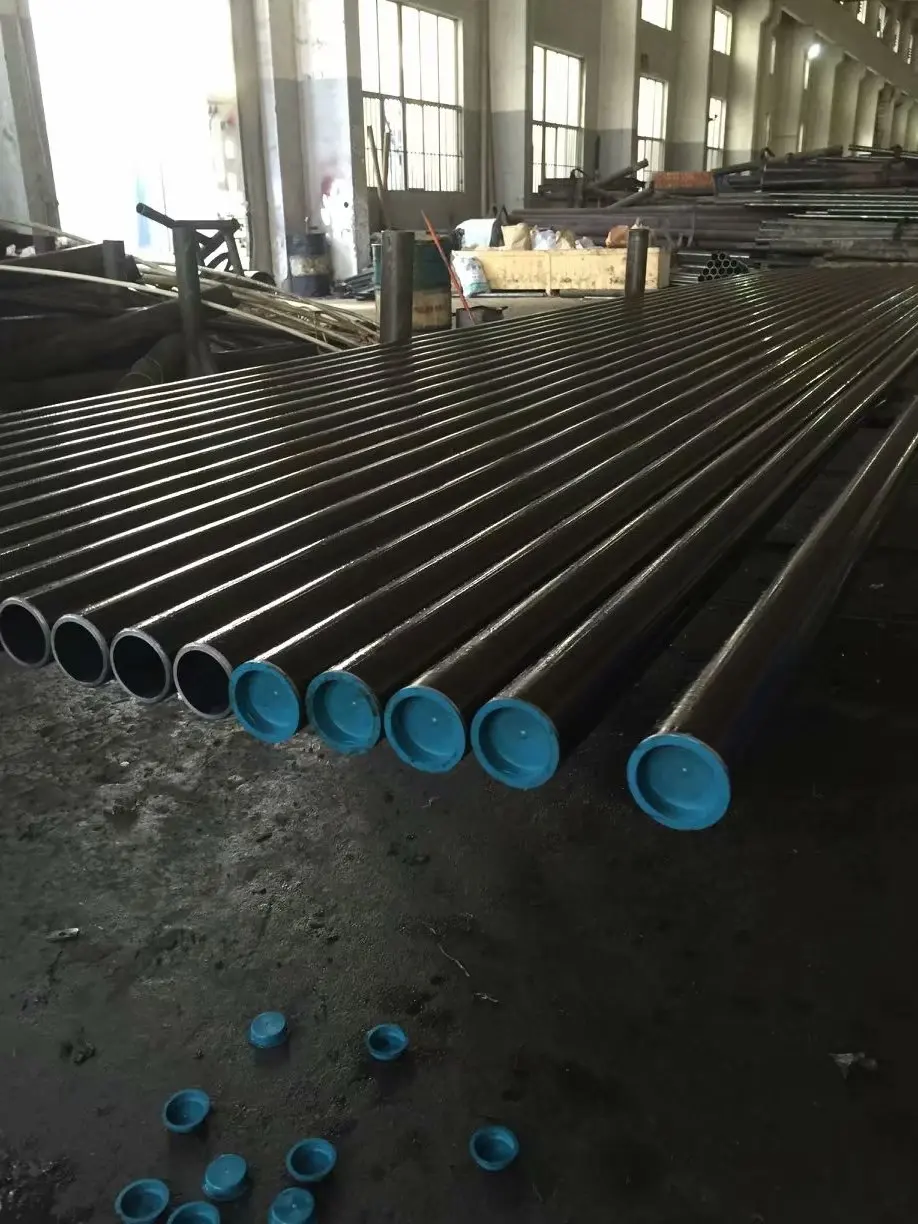

Conservation | anti rust oiled inside and outside surface, plastic caps in both ends | ||||||
Package | bundle with steel strip and knitting strip, or wooden case | ||||||
Steel Grade | C | SI | Mn | P | S | Cr | Ni | Cu |
20# | 0.17-0.24 | 0.17-0.37 | 0.35-0.65 | 0.035 | 0.035 | 0.250 | 0.250 | |
45# | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 | 0.035 | 0.035 | 0.250 | 0.250 | |
Q345B | ≤0.2 | ≤0.5 | 1.00-1.60 | 0.030 | 0.030 | 0.030 | 0.250 | 0.08 |
Q345D | ≤0.2 | ≤0.5 | 1.00-1.60 | 0.030 | 0.030 | 0.250 | 0.250 | 0.15 |
25Mn | 0.22-0.29 | 0.17-0.37 | 0.70-1.00 | 0.035 | 0.035 | |||
27SiMn | 0.22-0.32 | 1.10-1.40 | 1.10-1.40 | 0.035 | 0.035 | 0.300 | 0.300 | |
E355 | ≤0.2 | ≤0.55 | ≤1.6 | 0.025 | 0.025 | |||
SAE1026 | 0.22-0.28 | 0.15-0.35 | 0.60-0.90 | 0.040 | 0.050 |
Steel Grade | Rm Mpa | ReH Mpa | Elonggation | cold finished Rm Mpa | cold finished Elonggation |
20# | ≥520 | ≥375 | ≥15 | ≥550 | ≥8 |
45# | ≥600 | ≥520 | ≥10 | ≥640 | ≥5 |
16Mn(Q345B /D) | ≥600 | ≥520 | ≥14 | ≥640 | ≥5 |
25Mn | ≥600 | ≥510 | ≥15 | ≥640 | ≥5 |
27SiMn | ≥760 | ≥610 | ≥10 | ≥800 | ≥5 |
St45 | ≥520 | ≥375 | ≥15 | ≥550 | ≥5 |
E355(st52) | ≥600 | ≥520 | ≥14 | ≥640 | ≥5 |
SAE1026 | ≥600 | ≥510 | ≥15 | ≥640 | ≥5 |
Working method | range | ID | H8 | H9 | H10 |
cold drawn | 25-250 | 30-50 | +0.0390 | +0.0620 | +0.1000 |
cold rolling | 25-150 | 50-80 | +0.0460 | +0.0740 | +0.1200 |
cold drawn-honed | 40-250 | 80-120 | +0.0540 | +0.0870 | +0.1400 |
cold drawn-SRB | 50-250 | 120-180 | +0.0630 | +0.1000 | +0.1600 |
cold drawn -polished | 40-250 | 180-250 | +0.0720 | +0.1150 | +0.1850 |
cold drawn-polish-SRB | 50-250 | as required | as required | as required | as required |
1. Select excellent steel, precise chemical composition, uniform material, not easy to corrosion.
2. Strict size, uniform diameter, good straightness.
3. Can be customized according to customer requirements production, cutting and processing.
4. Do a good job of quality problems from the source, choose good materials.
5. Fast delivery and transportation
2. Strict size, uniform diameter, good straightness.
3. Can be customized according to customer requirements production, cutting and processing.
4. Do a good job of quality problems from the source, choose good materials.
5. Fast delivery and transportation
DETAILS
PRODUCT APPLICATIONS

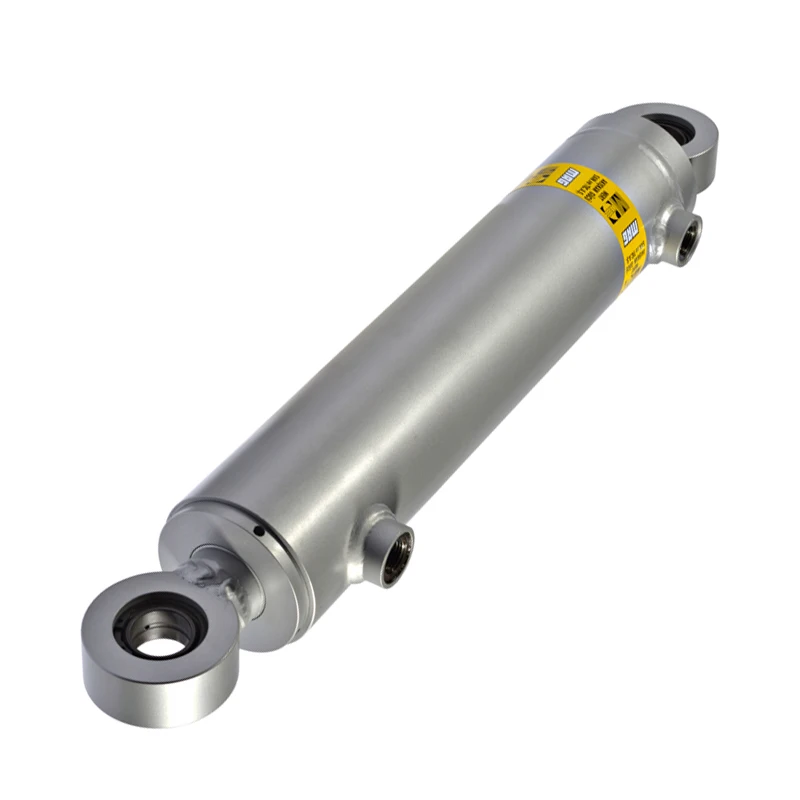

1. Hydraulic and Pneumatic Cylinders: Due to their highly smooth inner surface and precision, honed tubes are ideal for
manufacturing hydraulic and pneumatic cylinders. These cylinders are used in various machines and vehicles for motion control.
2. Hydraulic Equipment: In various hydraulic systems, such as excavators, cranes, and hydraulic presses, honed tubes are used to construct key components of hydraulic equipment.
3. Automotive Industry: In the automotive industry, honed tubes can be used to make critical components like suspension systems and steering systems.
4. Heavy Machinery: Heavy machinery used in construction and mining industries, like bulldozers and loaders, often use honed tubes as one of their primary construction materials.
5. Precision Machinery Manufacturing: In precision machinery that requires accurate control and high reliability, honed tubes are widely used due to their precise dimensions and surface smoothness.
manufacturing hydraulic and pneumatic cylinders. These cylinders are used in various machines and vehicles for motion control.
2. Hydraulic Equipment: In various hydraulic systems, such as excavators, cranes, and hydraulic presses, honed tubes are used to construct key components of hydraulic equipment.
3. Automotive Industry: In the automotive industry, honed tubes can be used to make critical components like suspension systems and steering systems.
4. Heavy Machinery: Heavy machinery used in construction and mining industries, like bulldozers and loaders, often use honed tubes as one of their primary construction materials.
5. Precision Machinery Manufacturing: In precision machinery that requires accurate control and high reliability, honed tubes are widely used due to their precise dimensions and surface smoothness.

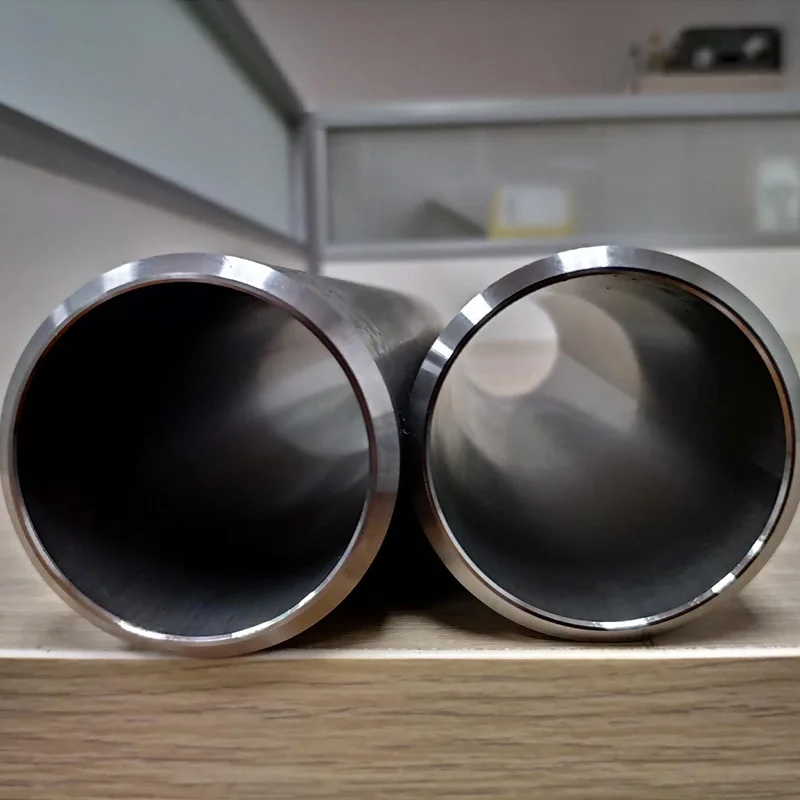

The inner and outer walls of the precision bright steel pipe are of high precision and high finish. After heat treatment, the steel pipe has no oxide layer, and the inner wall has high cleanliness. The steel pipe bears high pressure, does not deform during cold bending, and has no cracks during flaring and flattening. Therefore, the precision steel pipe can be processed for various complex deformation and machining.
Main standards: GB / t3639, din2391-94 / C, din2445, en10305, din1630, DIN1629, ASTM A106, ASTM A179, JIS G3445
Main materials: 10#, 20#, 35,45,40cr, 25mn.37mn5, ST35 (E235), st37.4, ST45 (e255), ST52 (E355)
Main delivery status: NBK (+ n), GBK (+ a), BK (+ C), BKW (+ LC), BKS (+ Sr)
Main materials: 10#, 20#, 35,45,40cr, 25mn.37mn5, ST35 (E235), st37.4, ST45 (e255), ST52 (E355)
Main delivery status: NBK (+ n), GBK (+ a), BK (+ C), BKW (+ LC), BKS (+ Sr)

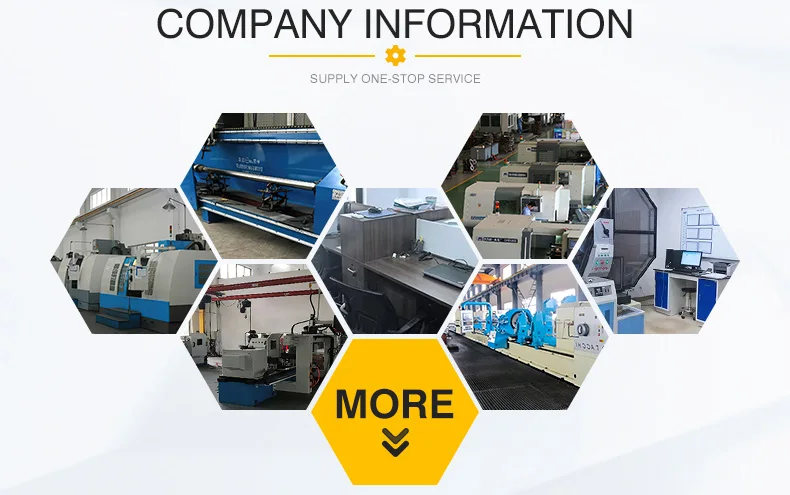

COMPANY PROFILE
Wuxi EAST AI Co., Ltd. is located in Wuxi City, Jiangsu Province, with a registered capital of 60 million yuan. It is a professional steel company integrating domestic trade, foreign trade and industrial trade. Our hot products include honed tubes, chrome plated bars, stainless steel tubes, hydraulic cylinders, hydraulic stations and other transmission products.
The company has a team of more than 50 people in Wuxi, and the foreign trade department has more than 20 people at present. The company has an annual sales of nearly 100 million yuan and an annual output of millions of tonnes of steel, with customers all over the world.
The company has a team of more than 50 people in Wuxi, and the foreign trade department has more than 20 people at present. The company has an annual sales of nearly 100 million yuan and an annual output of millions of tonnes of steel, with customers all over the world.
Mechanical Property
Condition | Materail Grade | T.S (MPa) | Y.S (MPa) | Elongation(%) |
BKS | ST35 (10#) | ≥420 | ≥315 | ≥14 |
BKS | ST45(20#) | ≥520 | ≥375 | ≥12 |
BKS | ST52(16Mn) | ≥580 | ≥420 | ≥10 |
GBK | ST35 (10#) | ≥315 | ≥35 | |
GBK | ST45(20#) | ≥390 | ≥32 | |
GBK | ST52(16Mn) | ≥490 | ≥30 | |
NBK | ST35 (10#) | 340-470 | ≥235 | ≥32 |
NBK | ST45(20#) | 440-570 | ≥255 | ≥30 |
NBK | ST52(16Mn) | 490-630 | ≥335 | ≥28 |
EXHIBITION
FEEDBACK
PACKAGING & SHIPPING
Package | Standard export seaworthy package,suit for all kinds of transport, or as required. |
Water-proof Paper + Edge protection + Wooden Pallets | |
Bulk Size | Any size |
Loading Port | Shanghai Port or any China Seaport |
Container | 1*20ft container load Max. 25 Ton, Max. length 5.8m |
1*40ft container load Max. 25 Ton, Max. Length 11.8m | |
Delivery Time | 7-15 days or according to the order's quantity |
FAQs
Q1: What are Honed Tubes and Their Applications?
A1: Honed tubes are precision tubes with a smooth inside surface and are primarily used in hydraulic and pneumatic cylinder applications. They are known for their high accuracy and smooth surface finish, enhancing the lifespan of seals and minimizing wear.
Q2: How Do Galvanized Tubes Differ from Other Tubes?
A2: Galvanized tubes are steel tubes coated with a protective layer of zinc to prevent corrosion. They are ideal for outdoor applications or in environments where the tube may be exposed to moisture or corrosive elements.
Q3: What are Seamless Tubes and Their Advantages?
A3: Seamless tubes are made without a welded seam, offering a high level of strength and uniformity in structure. They are widely used in high-pressure applications, like hydraulic systems, and are known for their ability to withstand high pressures and temperatures.
Q4: Can You Customize Tube Sizes and Specifications?
A4: Yes, we offer custom manufacturing services to meet specific size and specification requirements. Our state-of-the-art equipment and experienced team can produce tubes tailored to your unique needs.
Q5: What Quality Control Measures Do You Have in Place?
A5: We adhere to stringent quality control measures at every step of the manufacturing process. This includes regular material testing, dimensional checks, and ensuring compliance with industry
standards.
Q6: What is Your Lead Time for Bulk Orders?
A6: The lead time for bulk orders varies depending on the order size and specifications. We strive to fulfill orders as quickly as possible without compromising on quality. Please contact us for a more specific timeline
based on your order.
Q7: Do You Provide Technical Support and After-Sales Service?
A7: Absolutely. We offer comprehensive technical support and after-sales service. Our team of experts is available to assist with any technical queries or issues that may arise.
Q8: How Do You Ensure the Sustainability of Your Manufacturing Processes?
A8: We are committed to sustainable manufacturing practices. This includes efficient use of resources, minimizing waste, and adhering to environmental regulations to reduce our carbon footprint.
Q9: Can You Ship Products Internationally?
A9: Yes, we have the capability to ship our products globally. We work with reliable
logistics partners to ensure safe and timely delivery of our products worldwide.
Q10: How Can Clients Place an Order or Get a Quote?
A10: Clients can place an order or request a quote by contacting our sales team via email, phone, or through our website. We are ready to assist with any inquiries and provide detailed information and pricing.
