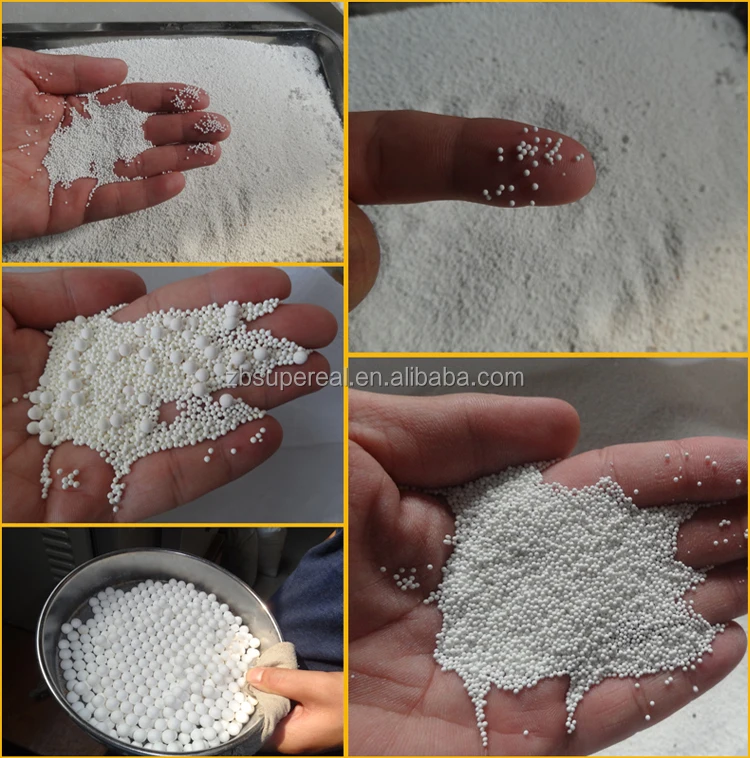

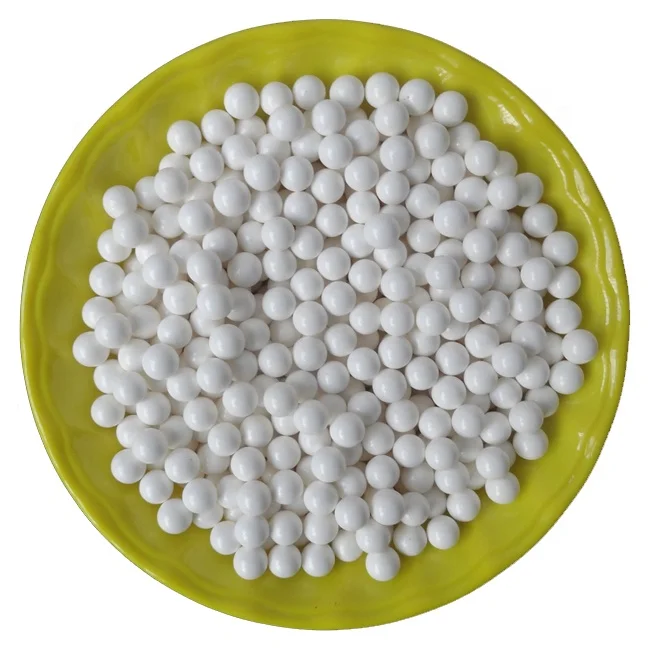

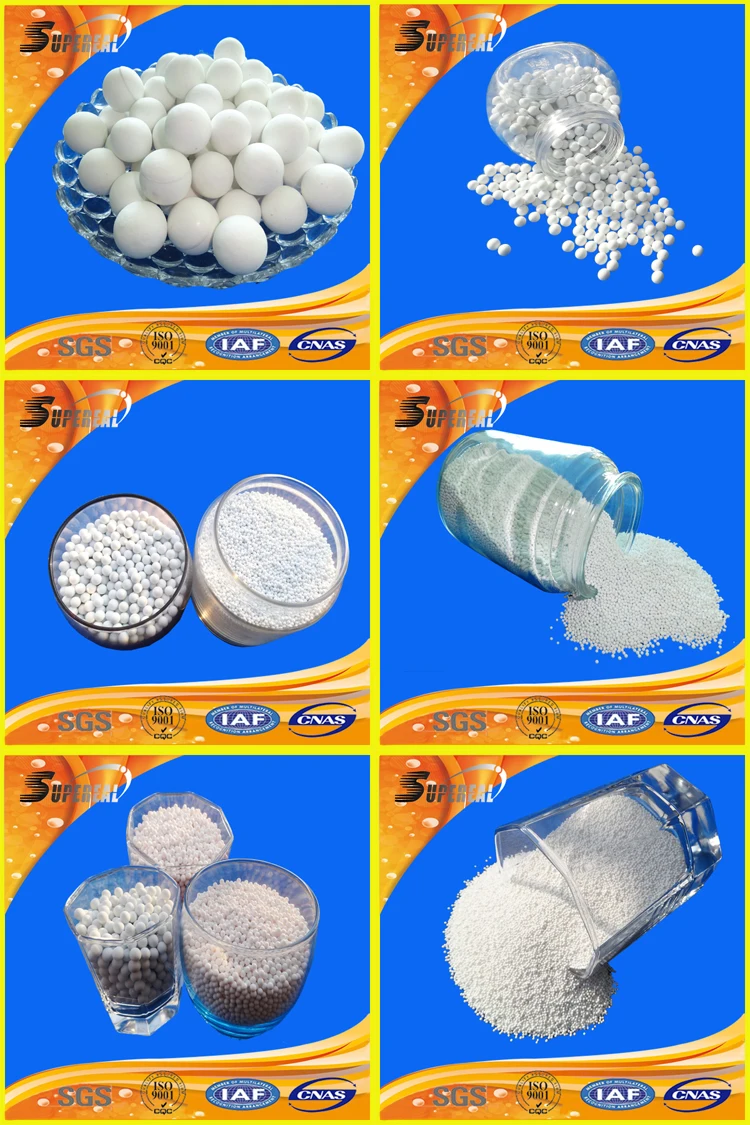

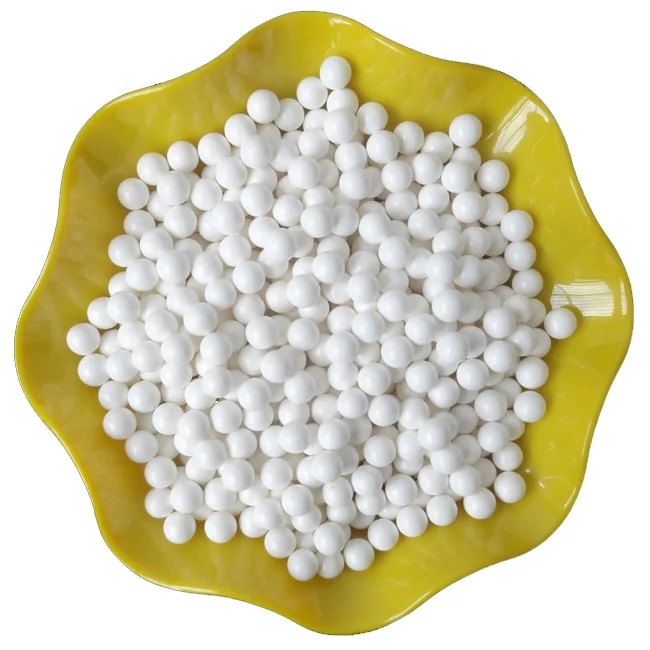

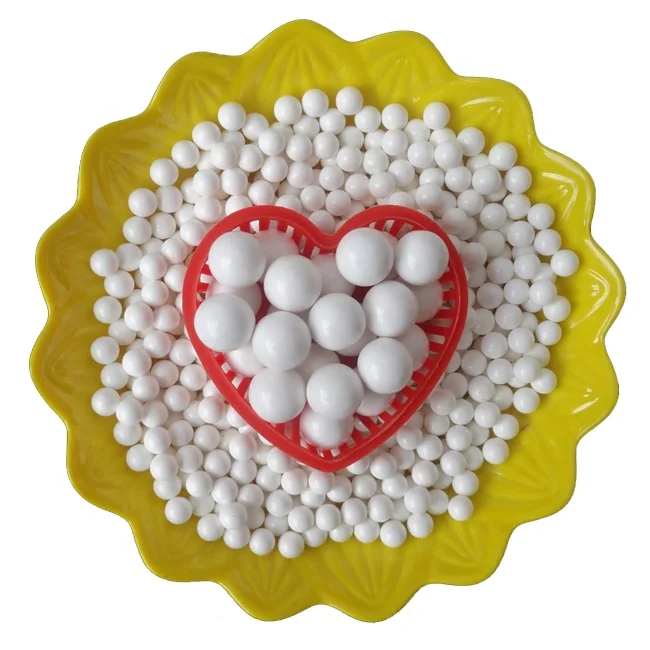

95% High Alumina Content Ceramic Grinding Beads as Grinding Media Used in Ball Mill

1. Brief Introduction:

With overwhelming merits in higher density, more regular shape, easily classifying and assorting, superior grinding efficiency and competitive price prior to natural cobble stones and conventional grinding media, 95% High Alumina Content Ceramic Grinding Beads as Grinding Media Used in Ball Mill are excellent for grinding processing of many industries.

95% High Alumina Content Ceramic Grinding Beads as Grinding Media Used in Ball Mill has the following properties:

♦   High hardness second only to Diamond

♦   Lower wear lost

♦   Good normalization

♦   Good corrosion resistance

♦   Higher grinding efficiency

♦   Contamination-free

♦   Longer service life

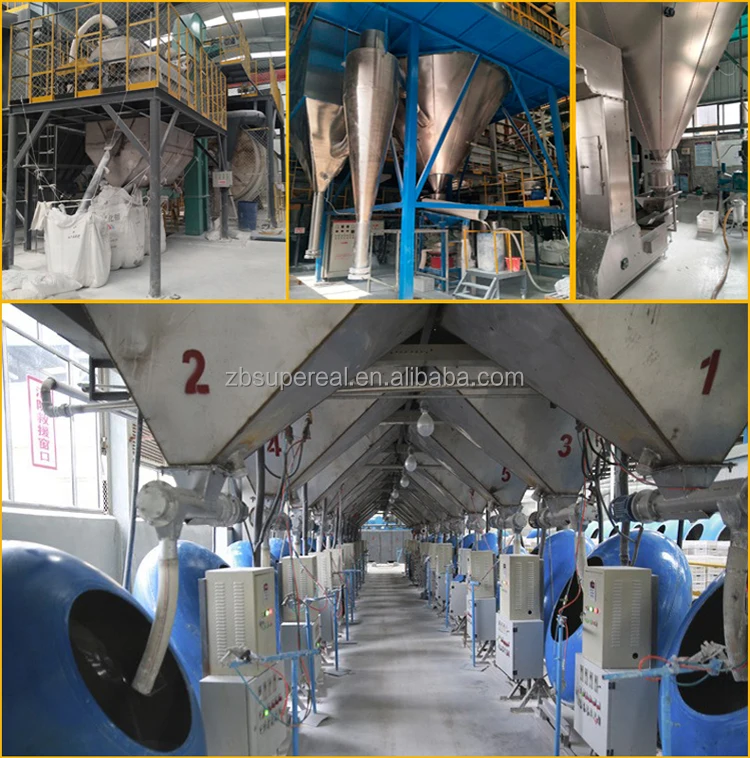

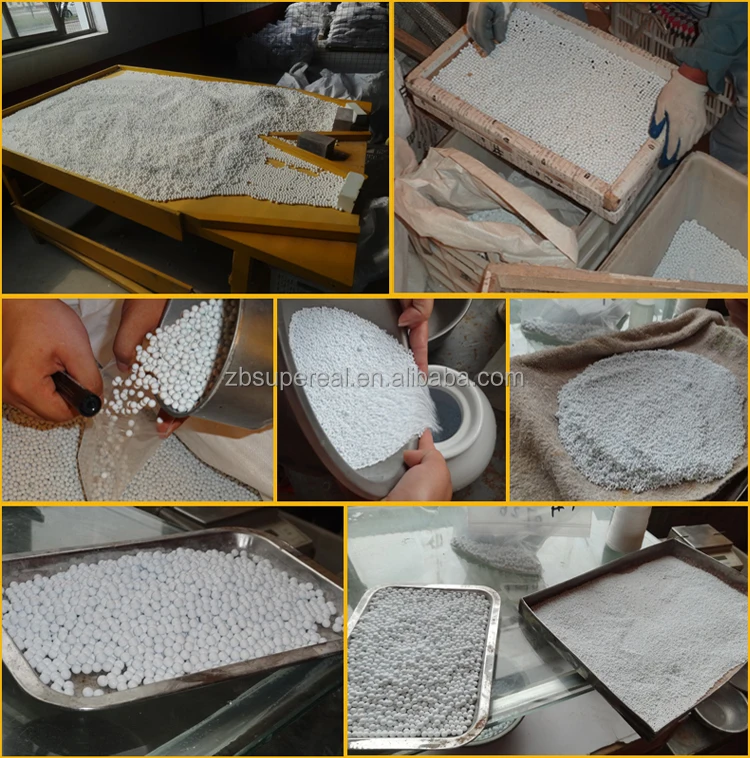

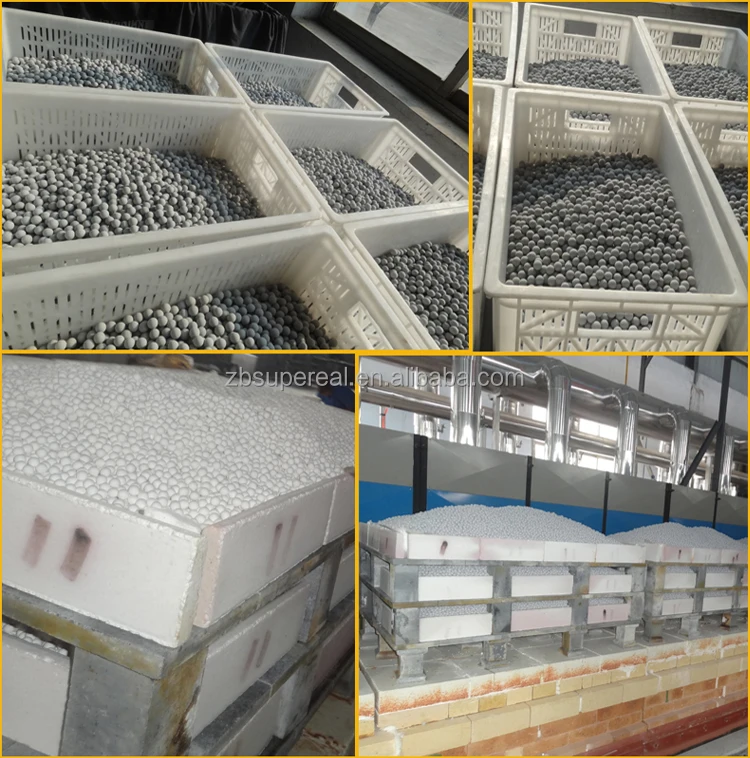

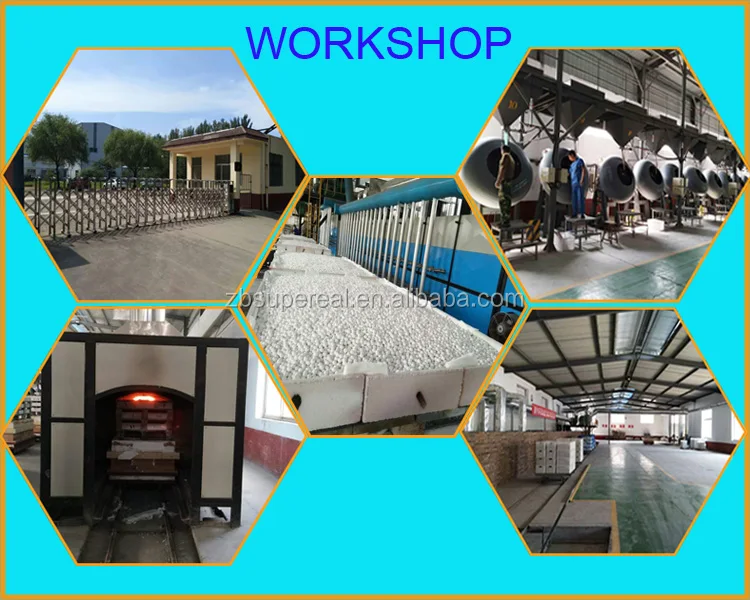

 2. Production Process of 95% High Alumina Content Ceramic Grinding Beads as Grinding Media Used in Ball Mill:

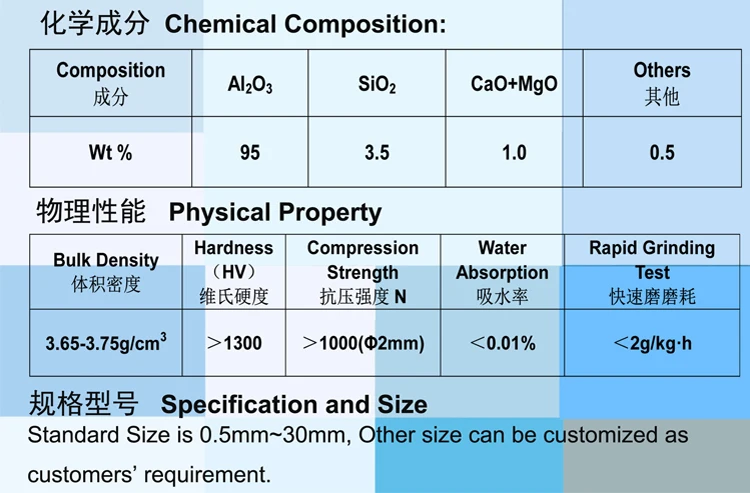

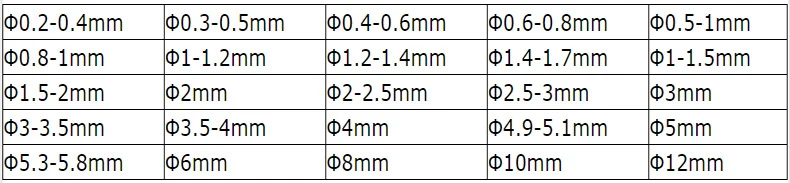

3. Technical data:

Technical Index of 95% High Alumina Content Ceramic Grinding Beads as Grinding Media Used in Ball Mill

95% High Alumina Content Ceramic Grinding Beads as Grinding Media Used in Ball Mill:

Alumina ceramic grinding cylinder:

Note: As the 95% High Alumina Content Ceramic Grinding Beads as Grinding Media Used in Ball Mill, at a comparable weight with grinding balls, alumina ceramic cylinders have an approx.14% greater surface than alumina ceramic grinding ball.

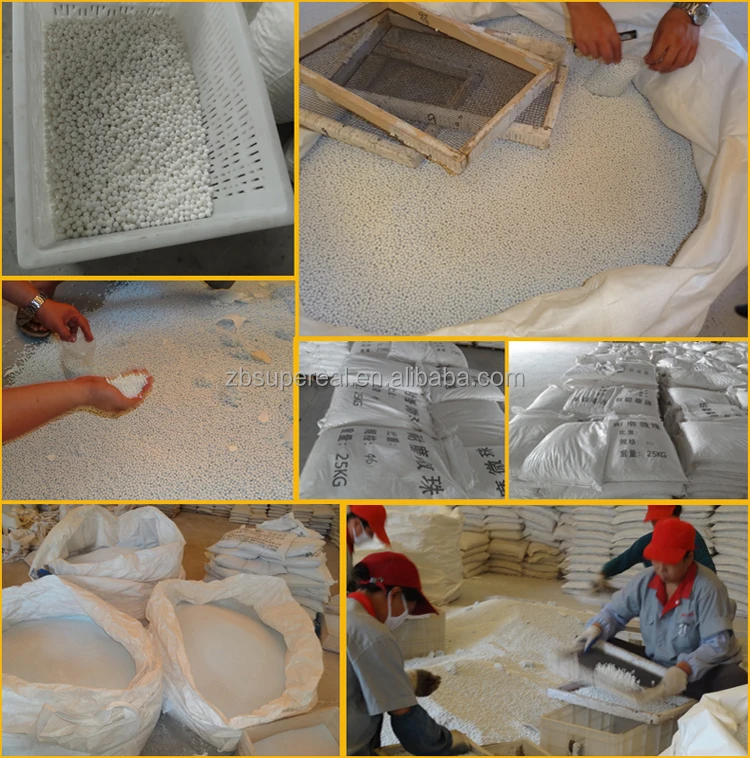

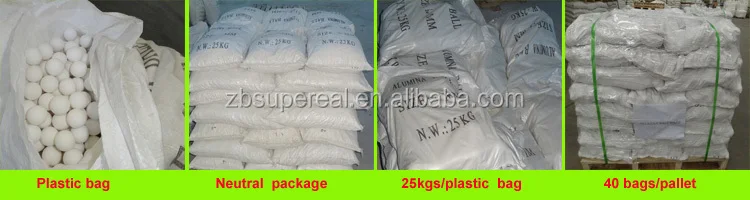

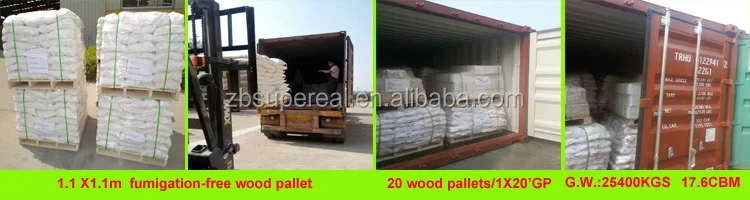

4. Packing and shipping for 95% High Alumina Content Ceramic Grinding Beads as Grinding Media Used in Ball Mill

5. Application

95% High Alumina Content Ceramic Grinding Beads as Grinding Media Used in Ball Mill are mainly used in ceramic, glaze, paint,zirconia silicate, aluminum oxide, quartz, silicon carbide, talc, building material, chemical, inks, kaolin, cosmetics,cement,and other materials grinding.

Remarks:

Grinding ways of 95% High Alumina Content Ceramic Grinding Beads as Grinding Media Used in Ball Mill involve two types: Wet grinding and Dry grinding

Wet Grinding Instruction (Ceramic industry)
For wet grinding process,when charge of ball is up to 55% of net volume of the mill,the best status can be realized.
The volume of ball within the mill can be estimated with formula:
W=3.14×R×D×L×25%/1000
Notes:
W—weight of ball(Kg)
R—radius of mill(cm)
D—bulk density of ball(g/cm3)
L—length of mill(cm)

For glaze grinding—raw material: ball=1:(1.8~2.0)

Special Note:Ball-Washing

While grinding glaze,in the case of charging the whole Ball Mill with new alumina balls,you are strongly recommended to complete the procedure namend Ball-Washing.It means you should let the whole batch of new alumina balls grinding themselves with water for more than 2 hours, then drain the water and the impurity from the Ball Mill.This is the preparative process recommended before grinding glaze by new balls.

For body material grinding—raw material: ball=1:(1.0~1.2)

Dry Grinding Instruction

The volume of raw materials=Effect capacity of mill×35%
The volume of ball=Effect capacity of mill×50%

♦ One-Stop Shop for 95% High Alumina Content Ceramic Grinding Beads as Grinding Media Used in Ball Mill♦

 Zibo Supereal Industrial Co., Ltd, located in Zhangdian Economic Development Zone in Zibo city is focusing on high alumina ceramic products ( such as high alumina ceramic plates, rubber backed ceramic plates, wear resistant alumina tiles, 95% High Alumina Content Ceramic Grinding Beads as Grinding Media Used in Ball Mill, and so on), here you can realize an one-stop shopping for complete wear and erosion protection solutions in wide range of industries including Power Sector, Mining, Cement, Metallurgy, Coal Washing, Steel& Iron Plant, Railway, Port and so on.

As a professional supplier we can promptly supply tailor-made wear protection solutions according to the actual working conditions and requirements to solve the customer’s common problems or particular problems in bulk materials handling or conveying, including to choose the appropriate wear resistant materials, connection method, reasonable and optimum design, stable hand high quality manufactured and perfect after-sales service, all of which are aimed to help users to improve the operational efficiency and service life of devices or equipments.

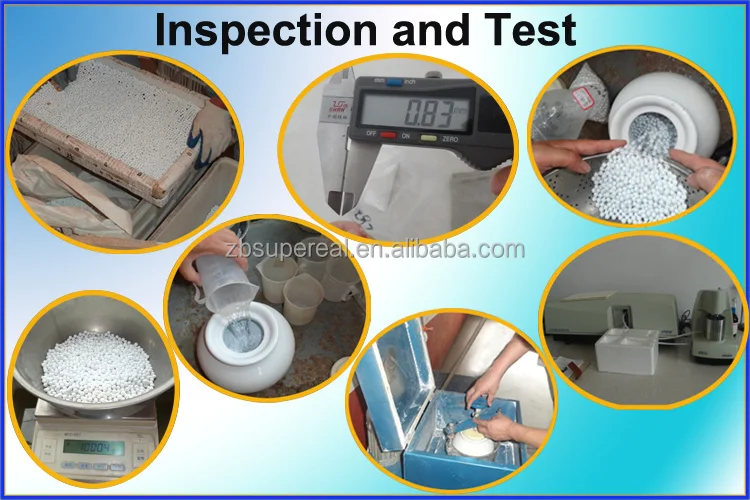

Our company has a rigorous quality control system to guarantee stable performance and proven quality, our professional inspection team will carry out full course tracking from raw material selection, batching, production process management to semi and finished products test. Based on the strict adherence to ISO9001-2008 or Industry Standard or other International Standard, our products have been approved and accepted by clients and users from Australia, South Korea, India, Russia, South Africa, Turkey, USA, France and etc.

Besides the superior quality, Zibo Supereal Industrial Co., Ltd also earned a good reputation for fast deliveries, competitive pricing and outstanding customer service.

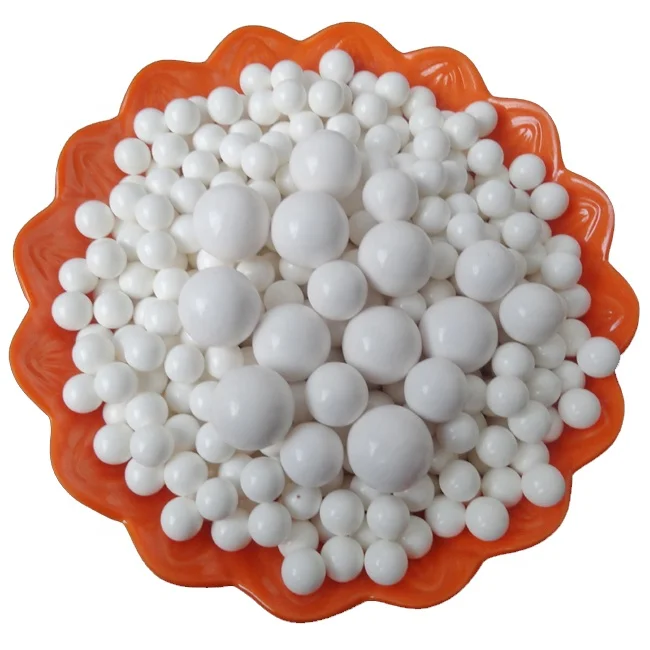

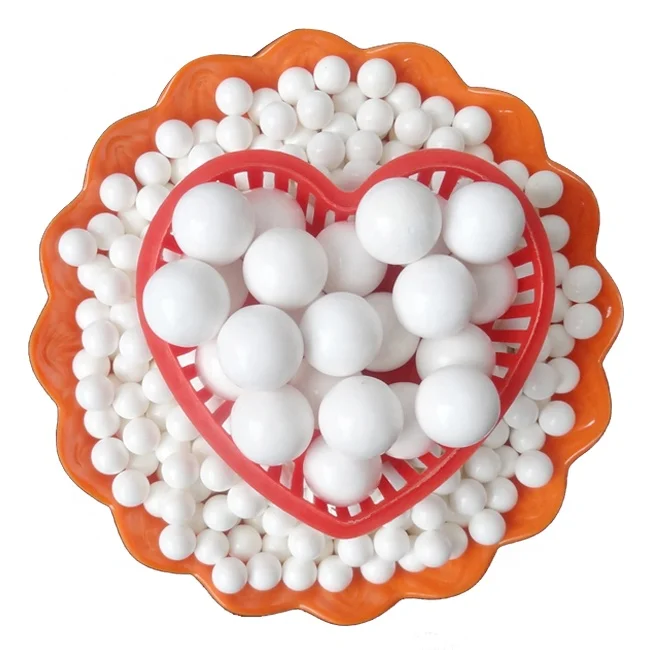

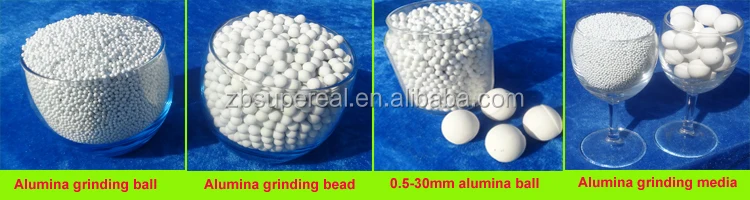

More 95% High Alumina Content Ceramic Grinding Beads as Grinding Media Used in Ball Mill Show:

 ◊ Professional:  More than ten years of experience in production, more than 5 years of experience in foreign trade export, we will supply prompt technical support on pre- and after sales.

 ◊ High Quality:Based on the strict adherence to ISO9001-2008 or Industry Standard or other International Standard, our inspection engineers carry out full course tracking in the whole production.

 ◊ Focus on Details: No matter how small questions or problems shall be replied and help to solve by our members, even for the small orders.

◊ Price &Discount: We can provide competitive price and discount for large quantity.

◊ OEM : Customized designs, sizes and logos are acceptable.

 Contact me for more information of 95% High Alumina Content Ceramic Grinding Beads as Grinding Media Used in Ball Mill
