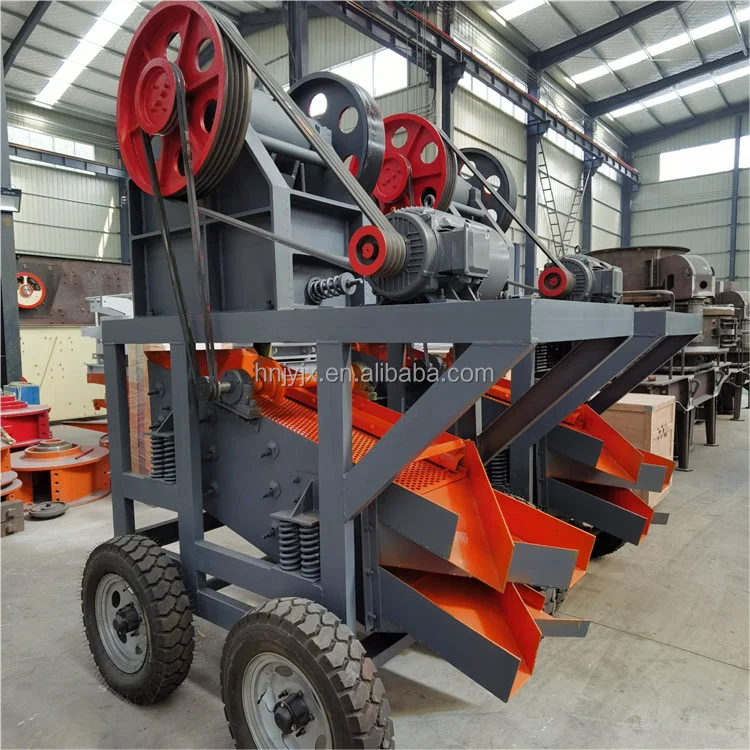

Efficient 20tph Portable River Stone Crushing Machine PE250x400 Mobile Diesel Engine Jaw Crusher With Vibrating Screen For Sale
- Category: >>>
- Supplier: Gongyi City Jingying Machinery Manufacturing Factory
Share on (1601060077375):
Product Overview
Description
Products Description

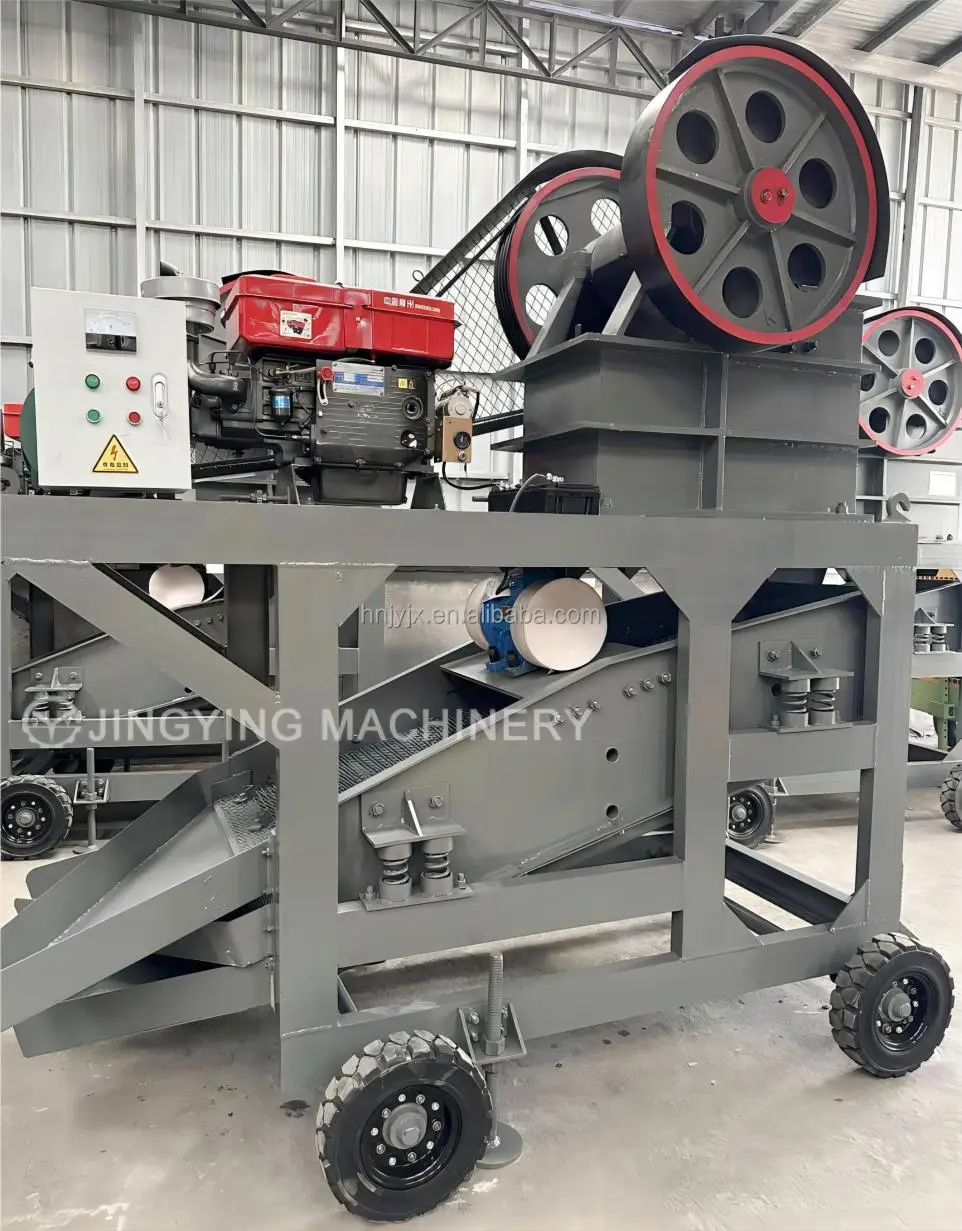

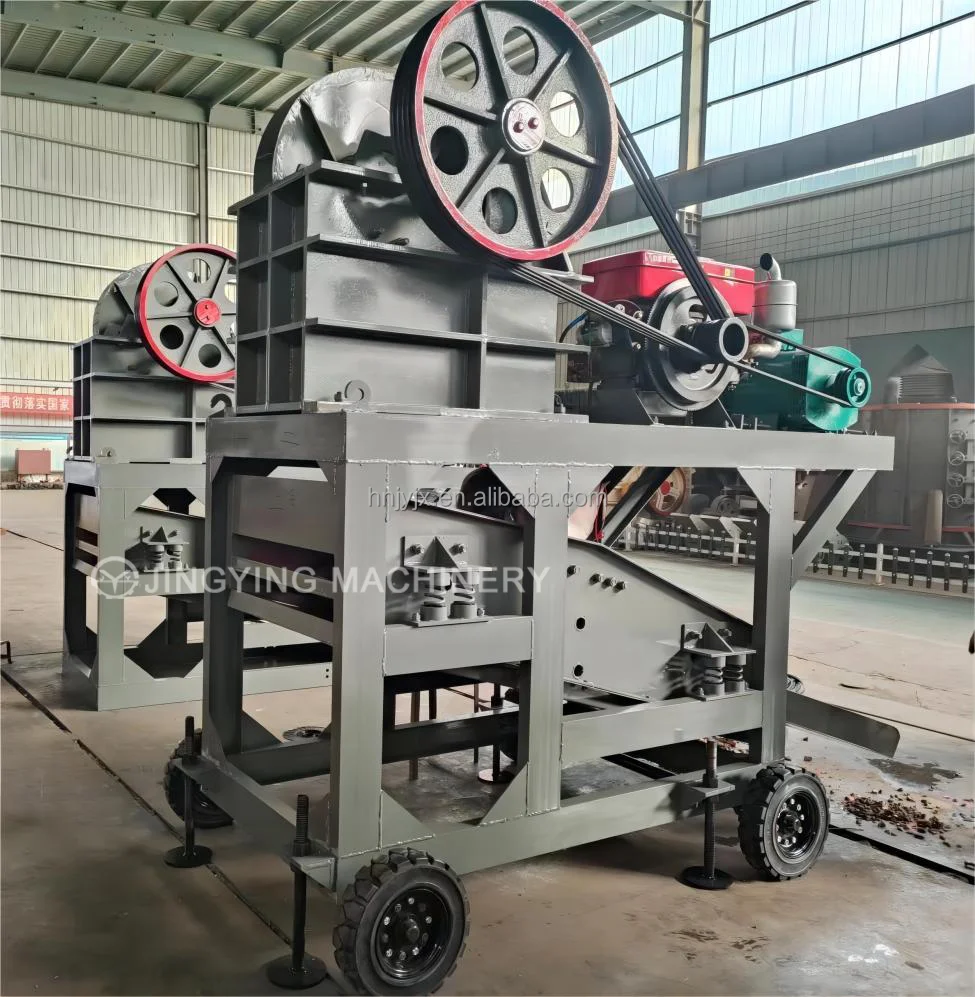

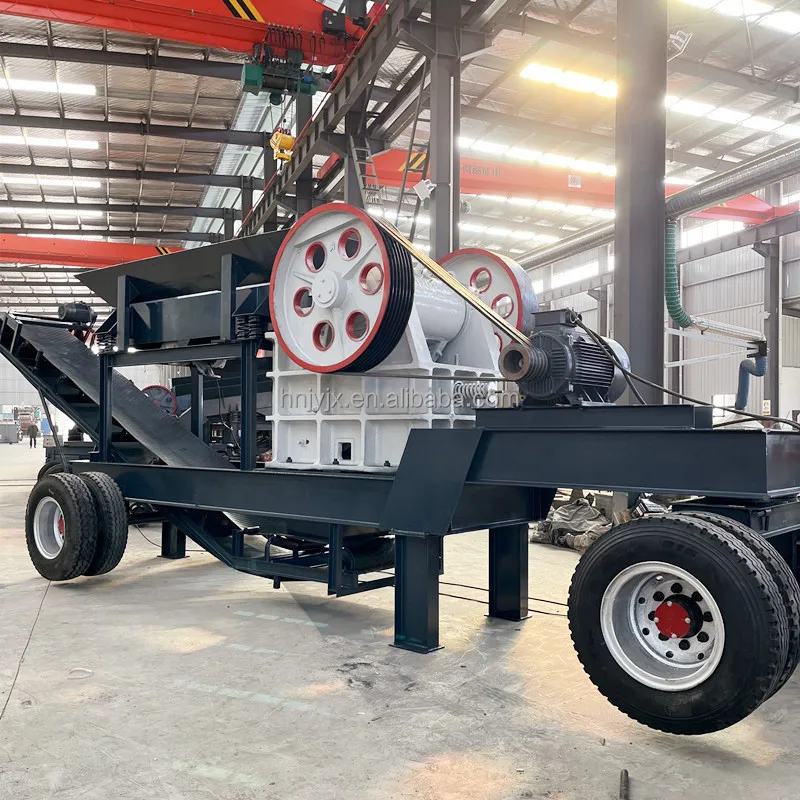

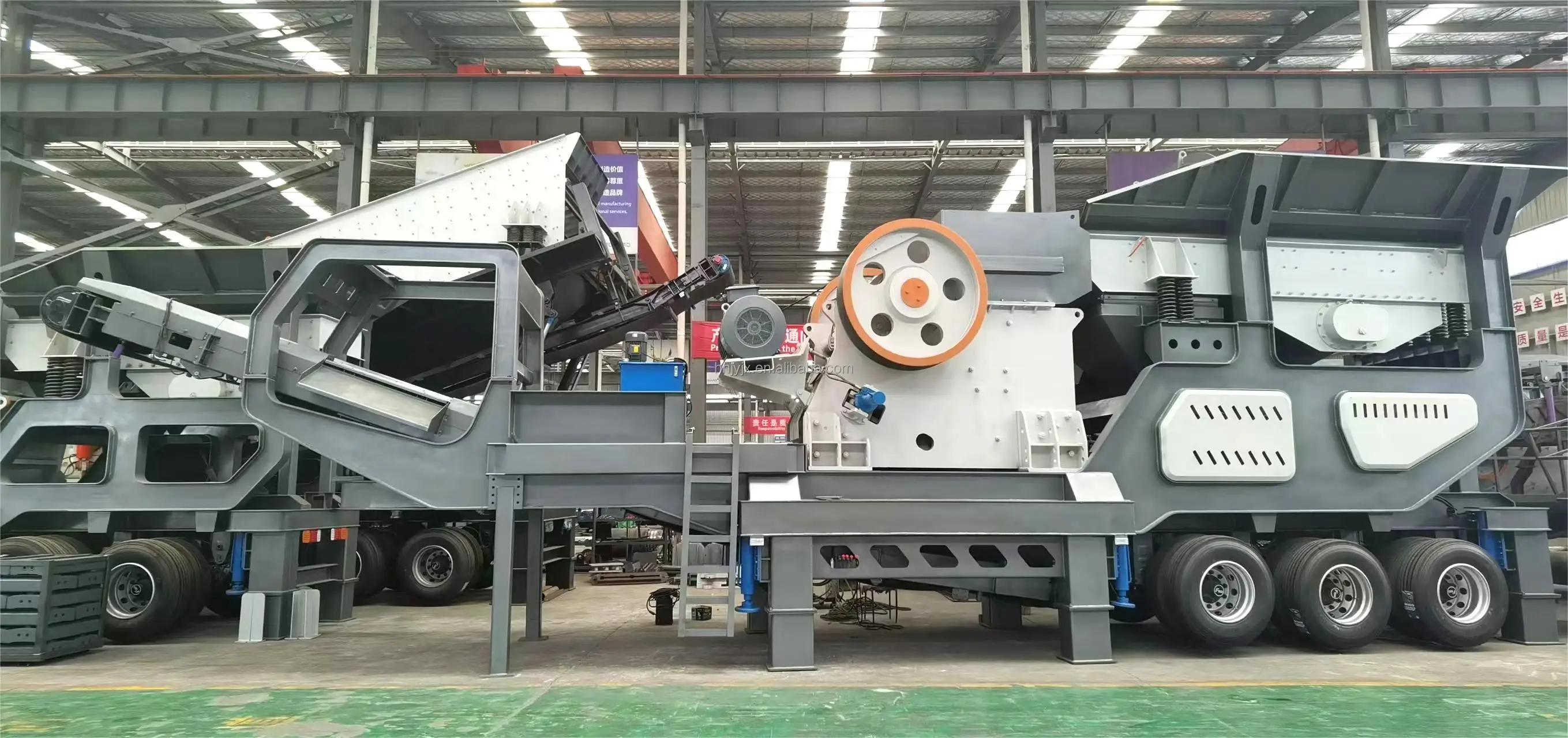

Mobile Jaw Crusher
Diesel mobile jaw crusher is widely used for crushing various materials like limestone, quartzite, granite, basalt, river gravel, trap rock, coke, manganese ore, iron ore, emery, fused aluminum, oxide, fused calcium carbide, alloys, etc. The application of tires makes the machine more convenient to move and adapt to various application, especially when your place lack of electricity or you need to move machines frequently.
Jaw crusher is applied to fine crushing of various material of which compressive strength is less than or equal to 320 Mpa. It is applied to primary crushing stage of the rock stone crushing project.
Product Parameter
Model | Feed opening size (mm) | Max. feeding Size (mm) | Adjustable range of output size (mm) | Capacity (t/h) | Motor power (kw) | Weight (t) |
PE-150×250 | 200×300 | 125 | 15-45 | 1-5 | 5.5 | 1 |
PE-200×300 | 200×300 | 180 | 20-50 | 3-13 | 11 | 1.5 |
PE-250×400 | 250×400 | 210 | 20-60 | 5-22 | 15 | 2.8 |
PE-300×500 | 300×500 | 290 | 20-80 | 15-40 | 18.5 | 3.5 |
PE-400×600 | 400×600 | 340 | 40-100 | 18-64 | 30 | 6.8 |
PE-500×750 | 500×750 | 425 | 50-100 | 43-102 | 55 | 13.5 |
PE-600×900 | 600×900 | 500 | 65-180 | 51-145 | 75 | 19.2 |
PE-750×1060 | 750×1060 | 630 | 80-180 | 122-223 | 110 | 29 |
PE-900×1200 | 900×1200 | 780 | 95-180 | 285-430 | 132 | 45 |
PE-1200×1500 | 1200×1500 | 1020 | 150-300 | 400-800 | 160 | 99 |
PEX-100×600 | 100×600 | 80 | 10-40 | 1-8 | 7.5 | 0.9 |
PEX-200×600 | 200×600 | 170 | 10-40 | 5-15 | 11 | 1.5 |
PEX-150×750 | 150×750 | 120 | 10-40 | 6-20 | 15 | 2.8 |
PEX-250×750 | 250×750 | 210 | 15-50 | 15-40 | 22-30 | 5.5 |
PEX-250×1000 | 250×1000 | 210 | 15-50 | 20-50 | 30-37 | 6.5 |
PEX-250×1200 | 250×1200 | 210 | 15-50 | 25-70 | 37-45 | 8.5 |
PEX-300×1300 | 300×1300 | 250 | 15-60 | 45-110 | 75 | 12 |
Product Features

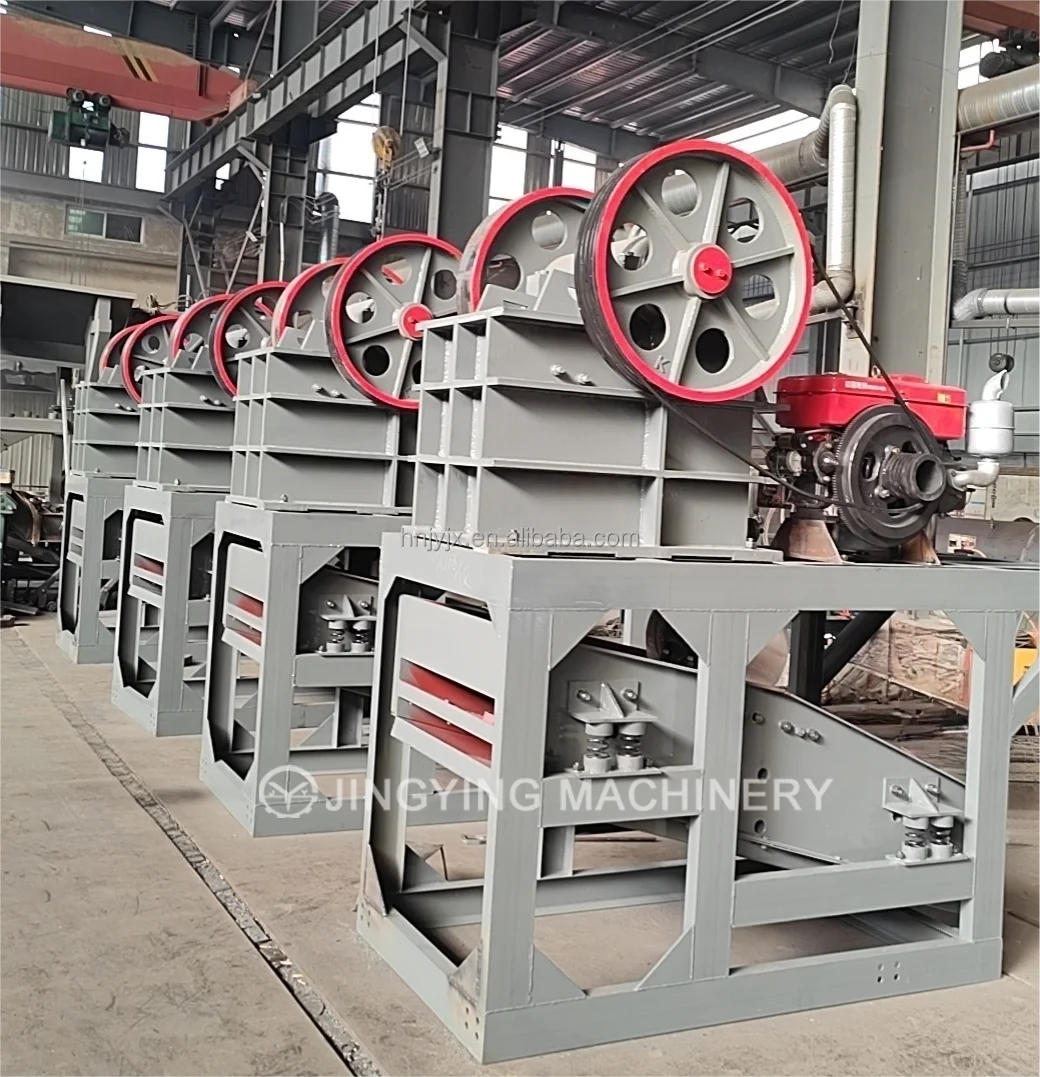

No concrete base Jaw crusher line
We supply steel base jaw crusher for your line

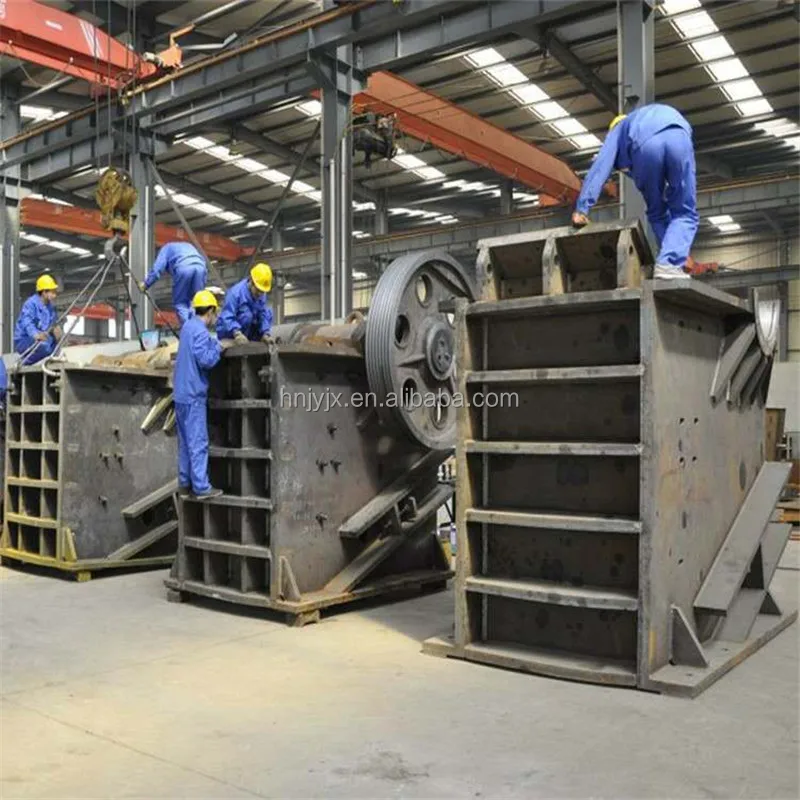

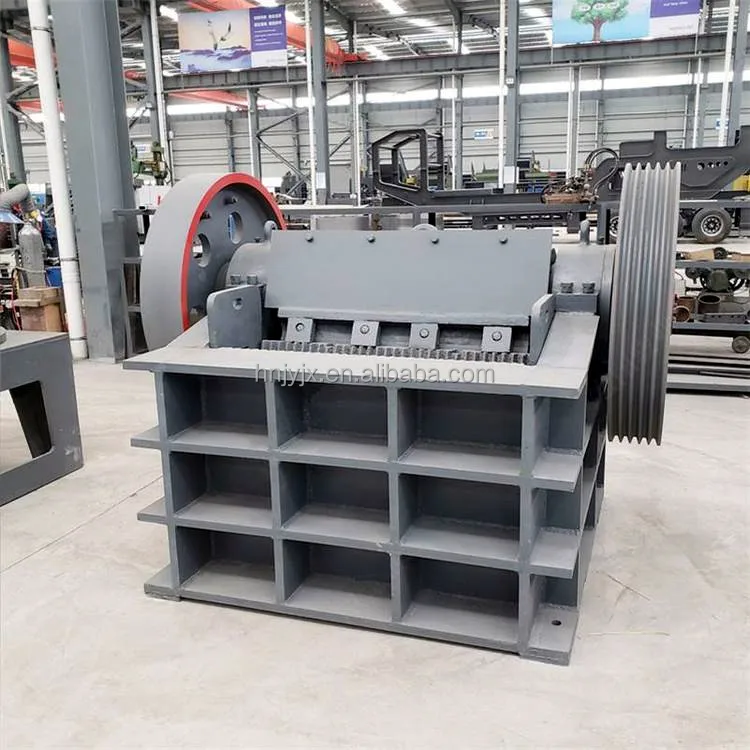

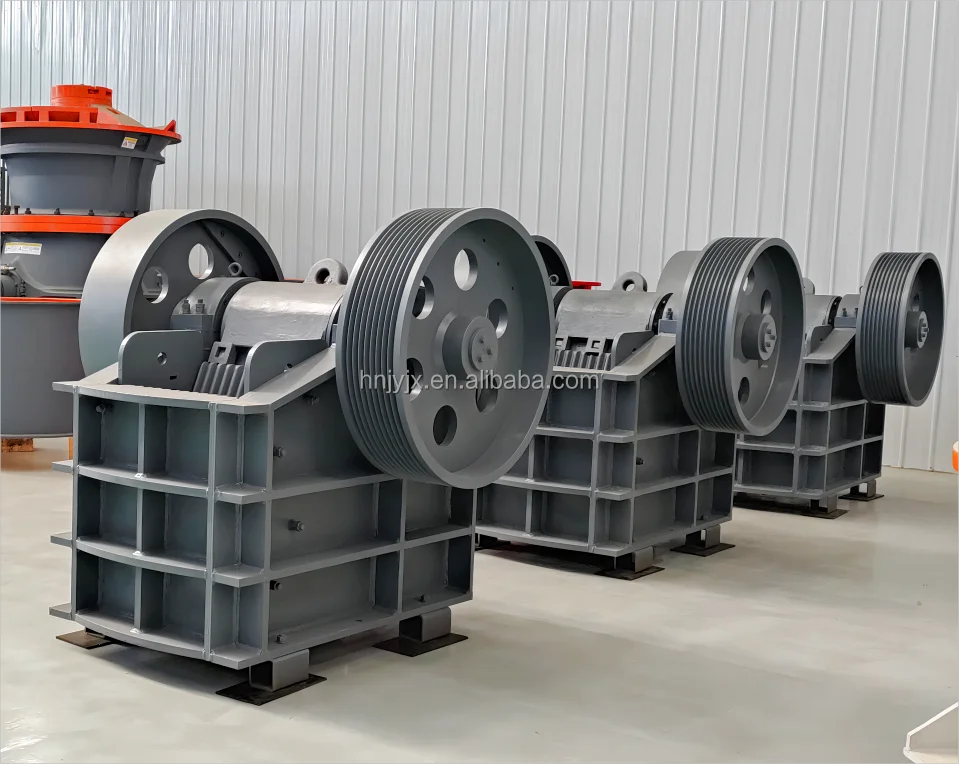

Jingying Machinery--Jaw crusher

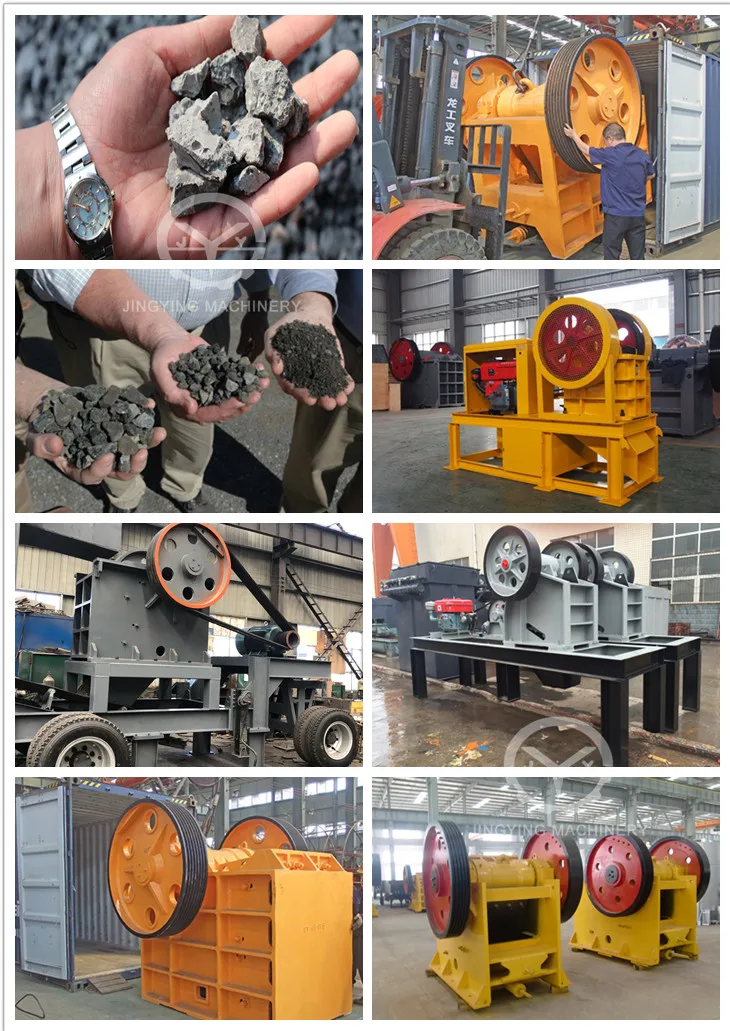

Mining crusher crushing materials including granite, basalt, limestone, river stone, sandstone, shale, iron ore, copper ore, building construction, construction wastes etc.
Production Line

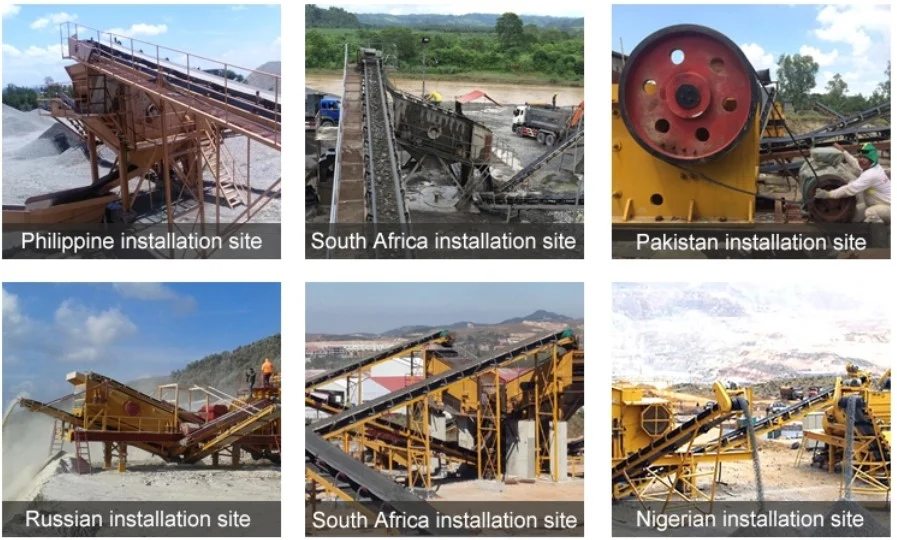

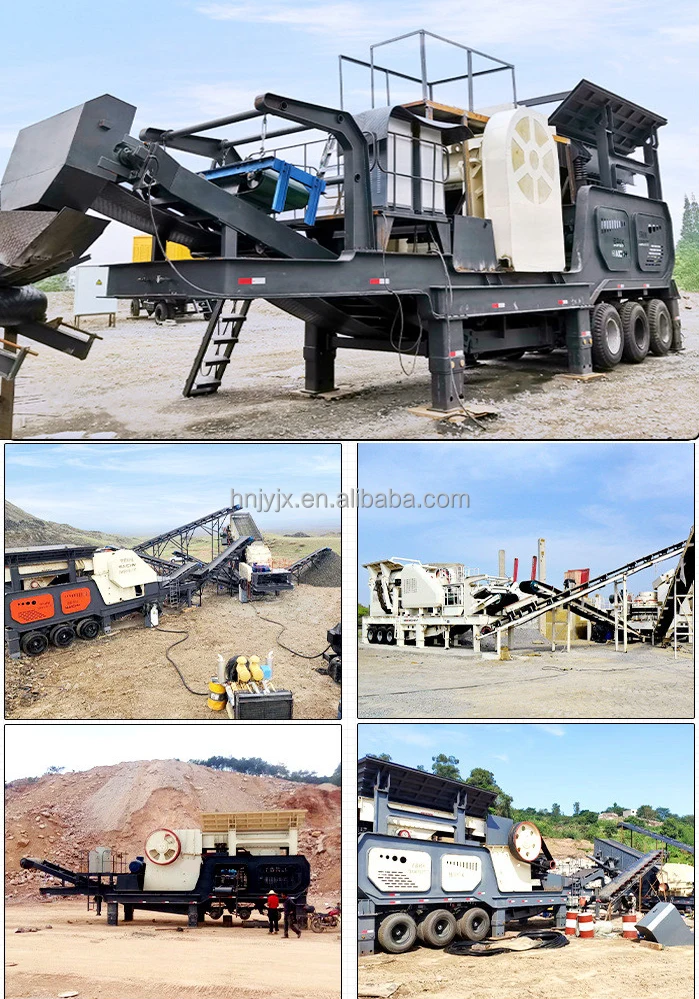

Customer Site
For Stone Crushers, Contact Us
