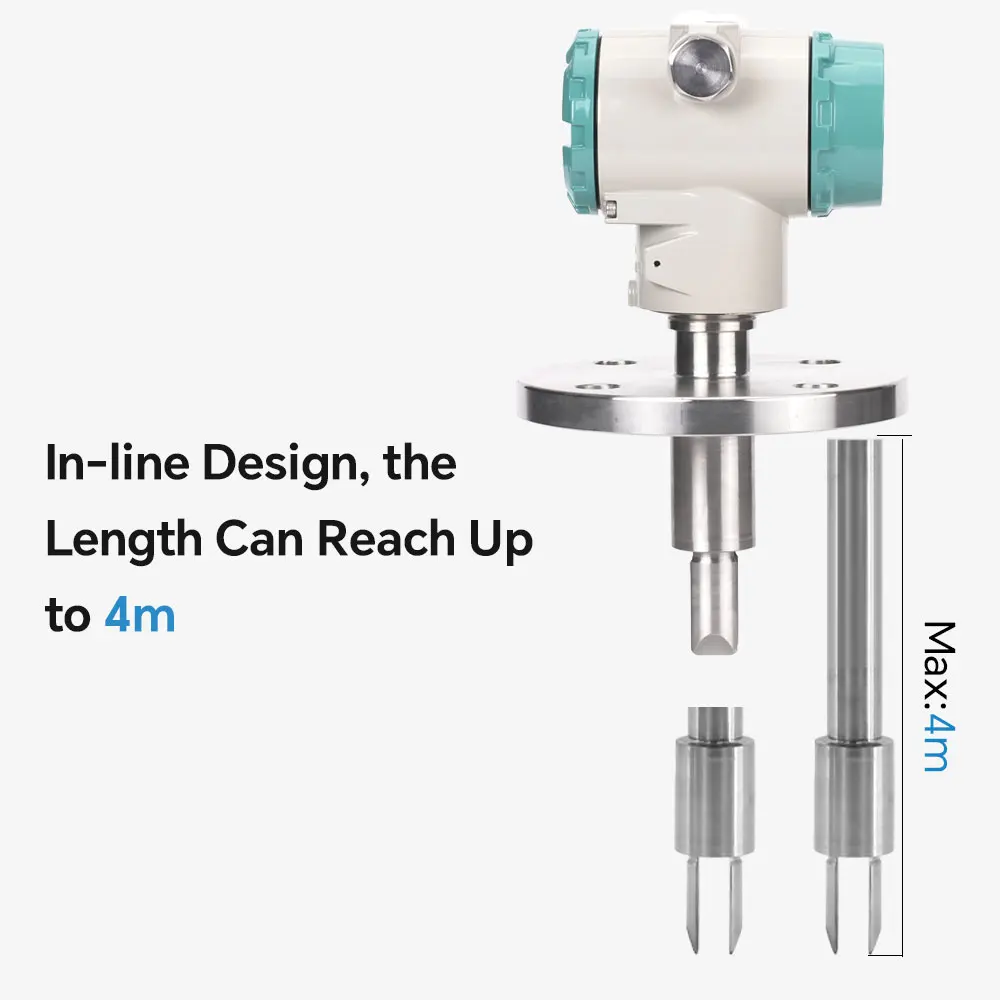

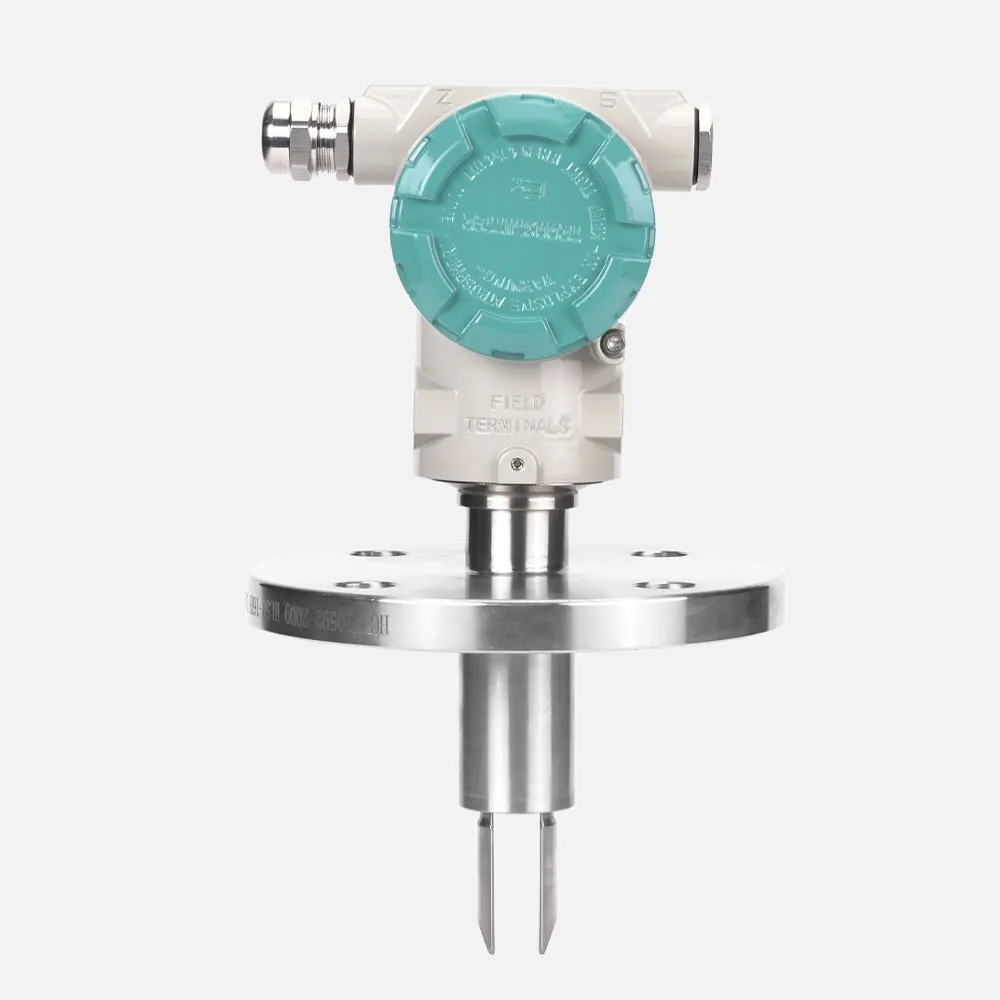

ZHYQ digital fork densitometer in line liquid hydrometer density meter for slurry, alcohol, methanol, ethanol, chemical liquid
- Category: >>>
- Supplier: Shanghai Zhaohui Pressure Apparatus Co. Ltd.
Share on (1601060096167):
Product Overview
Description
MODEL:PT124B-604
Tuning fork densitometer uses acoustic frequency signal souce to excite the metal tuning fork,and makes the tuning fork vibrate freely at the center frequency.

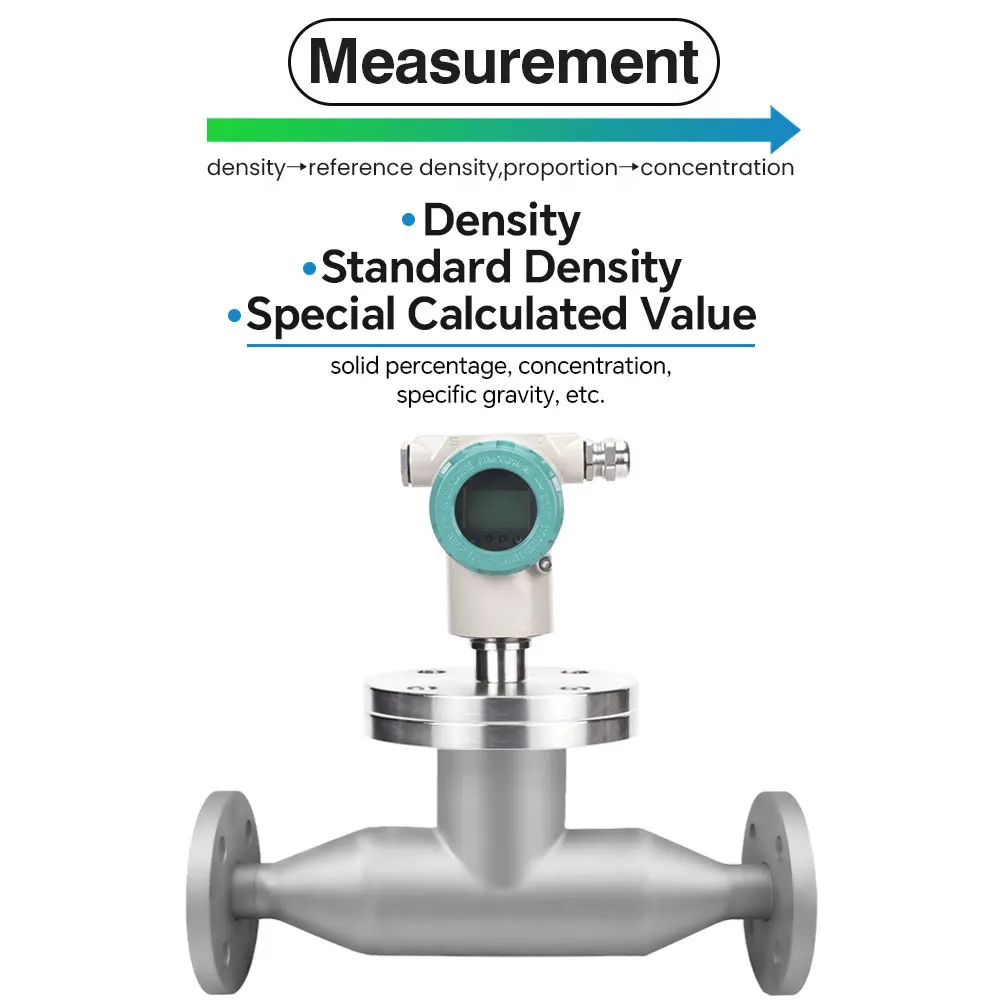

This frequency has a corresponding relationship with the density of liquid, therefore, the density or concentration of liquid can be measured by analyzing the frequency.
Features
Product Paramenters

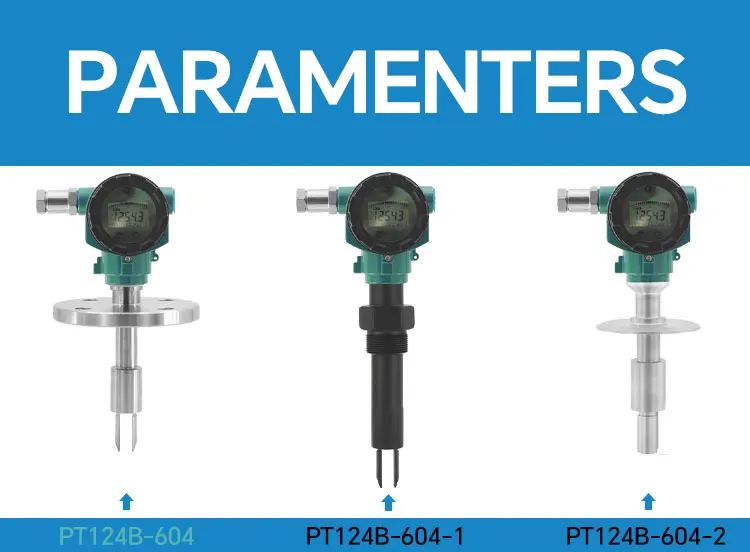

Model | PT124B-604 | PT124B-604-1 | PT124B-604-2 | ||
Measuring Range(500 - 2500 KG/M3) | 0.5 - 3.0 G /CC | 0.5 - 2.5 G /CC | |||
Precision | ±0.001G/CC(±1KG/M3) | ±0.001G/CC(±lKG/M3) | ±0.001G/CC(±lKG/M3) | ||
Repeatability | ±0.0001G/CC(±0.1KG/M3) | ±0.0001G/CC(±0.1KG/M3) | ±0.0001G/CC(±0.1KG/M3) | ||
Working Temperature | -50°C~+150°C | -20°C 〜+80°C | -50°C~+150°C | ||
Working Pressure | 207 BAR (3000 PSI) | 20 BAR (2MPa) | 10 BAR (1MPa) | ||
Fluid Viscosity Range | 0-10000 CP | 0-2000 CP | 0-20000 CP | ||
Temperature Coefficient | ≤0.1 KG/M3/°C | ≤0.1 KG/M3/°C | ≤0.1 KG/M3/°C | ||
Pressure Effect | Negligible | Negligible | Negligible | ||
Built-in Temperature Sensor | Digital sensor | Digital sensor | Digital sensor | ||
Wetted Material | 316L Stainless Steel Hastelloy | 316L | 316L Stainless Steel Hastelloy | ||
Fork Coating | Standard or PTFE or Electrolytic Polishing | Standard | Standard or PTFE or Electrolytic Polishing | ||
Power Supply | 24VDC, >50 MA | 24VDC, >50 MA | 24VDC, >50 MA | ||
Analog Signal Output | 4-20 MA 0-1000HZ RS485 Modbus RTU | 4-20 MA RS485 Modbus RTU | 4-20 MA 0-1000HZ RS485 Modbus RTU | ||
Output Accuracy (20°C) | ± 0.1% of reading or ± 0.05% FS | ||||
Output Repeatability (- 40~+85°C) | ± 0.05% FS | ||||
Process Connection | ANSI 150 〜1500 RF DIN50PN16 DIN50PN40 | IDF and RJT sanitary | |||
Protection Grade | IP65 | ||||
Housing Material | Aluminium Alloy | ||||

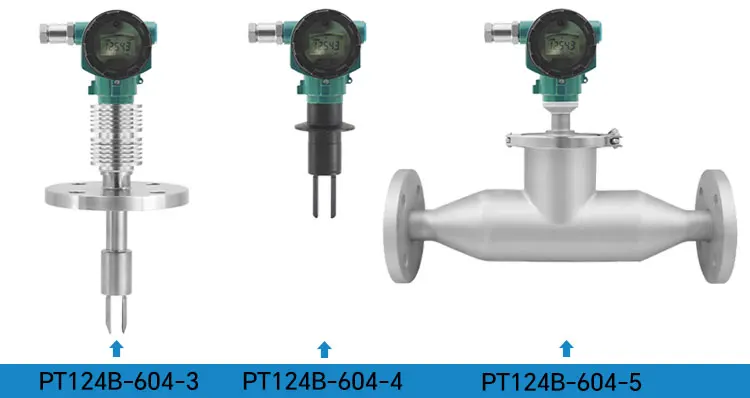

Model | PT124B-604-3 | PT124B-604-4 | PT124B-604-5 | ||
Measuring Range(500 - 2500 KG/M3) | 0.5 - 3.0 G /CC (500 - 3000 KG/M3) | 0.5 - 3.0 G /CC | 0.5 - 2.5 G /CC | ||
Precision | ±0.001G/CC(±1KG/M3) | ±0.001G/CC(±lKG/M3) | ±0.001G/CC(±lKG/M3) | ||
Repeatability | ±0.0001G/CC(±0.1KG/M3) | ±0.0001G/CC(±0.1KG/M3) | ±0.0001G/CC(±0.1KG/M3) | ||
Working Temperature | -50°C ~ +180°C | -50°C ~ +150°C | -50°C~+80°C | ||
Working Pressure | 10 BAR (1MPa) | 207 BAR (3000 PSI) | 10 BAR (1MPa) | ||
Fluid Viscosity Range | 0-10000 CP | 0-5000 CP | 0-20000 CP | ||
Temperature Coefficient | ≤0.1 KG/M3/°C | ≤0.1 KG/M3/°C | ≤0.1 KG/M3/°C | ||
Pressure Effect | Negligible | Negligible | Negligible | ||
Built-in Temperature Sensor | Digital sensor | Digital sensor | Digital sensor | ||
Wetted Material | 316L Stainless Steel Hastelloy | 316L Stainless Steel Hastelloy | |||
Fork Coating | Standard or PTFE or Electrolytic Polishing | Standard or PTFE or Electrolytic Polishing | |||
Power Supply | 24VDC, >50 MA | 24VDC, >50 MA | |||
Analog Signal Output | 4-20 MA 0-1000HZ RS485 Modbus RTU | 4-20 MA 0-1000HZ RS485 Modbus RTU | |||
Output Accuracy (20°C) | ± 0.1% of reading or ± 0.05% FS | ||||
Output Repeatability (- 40~+85°C) | ± 0.05% FS | ||||
Process Connection | ANSI 150 〜1500 RF DIN50PN16 DIN50PN40 IDF and RJT sanitary | IDF and RJT sanitary | |||
Protection Grade | IP65 | ||||
Housing Material | Aluminium Alloy | ||||

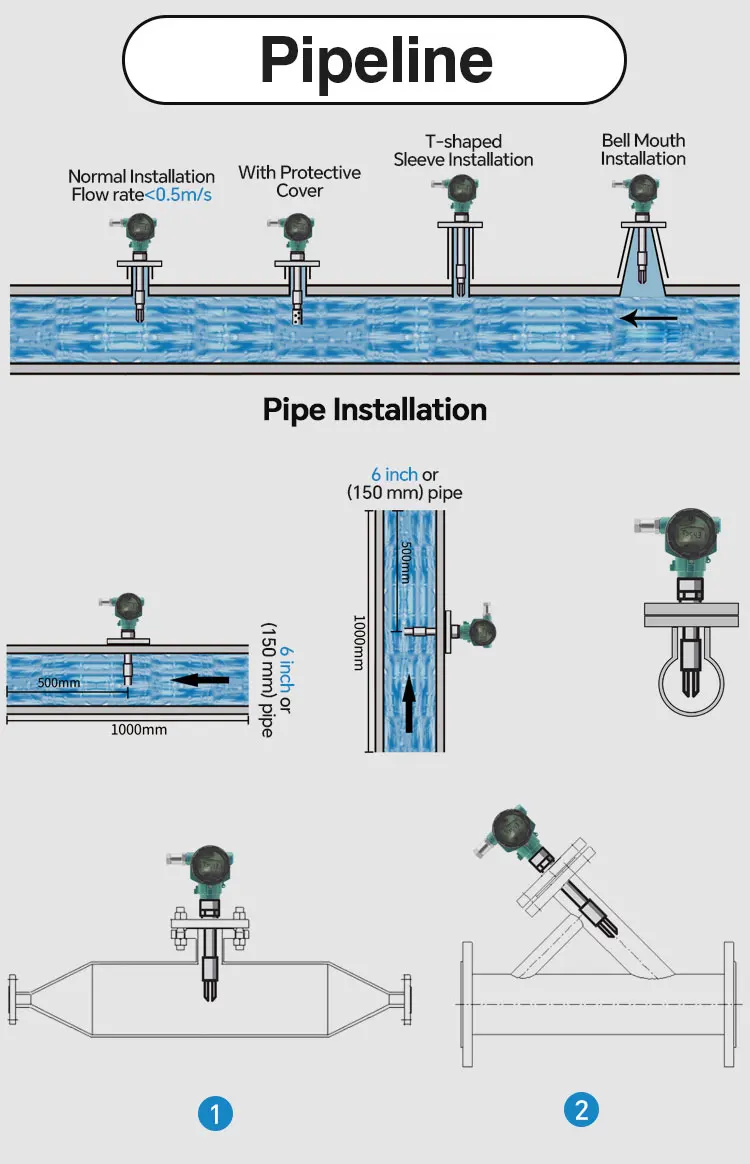

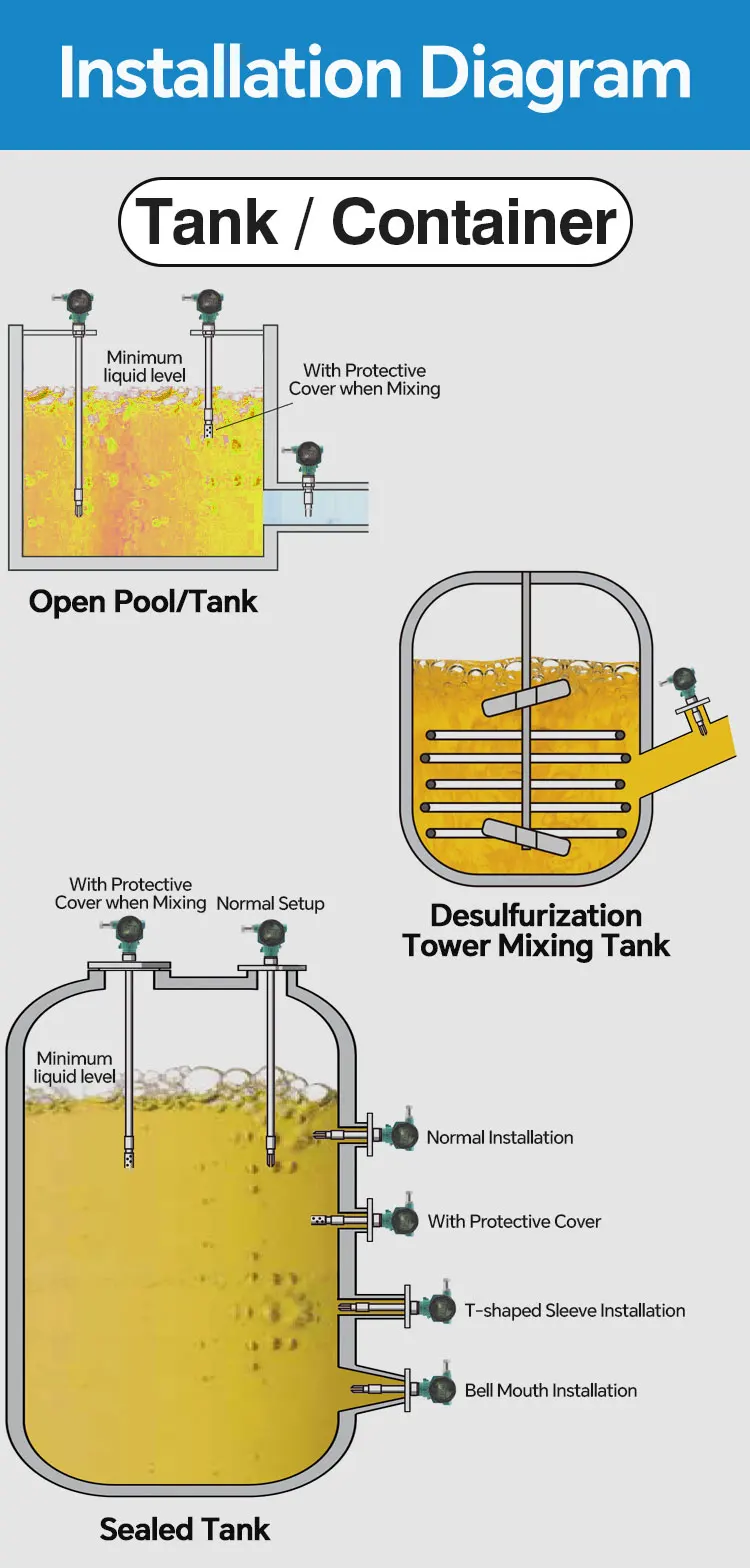

Installation Diagram
Applications
MORE
1. Density measurement of lime slurry and gypsum slurry in desulfurization industry
2. Density measurement of ammonia and urea solution in denitration industry
3. Density measurement of sulfuric acid, hydrochloric acid and nitric acid in chemical industry
4. Density measurement of slurry, slime, oil and product oil
5. Density measurement of syrup, starch, lotion and fructose
6. Density measurement of pharmaceutical solution and concentrate in the pharmaceutical industry
7. Density measurement of alcohol, methanol, ethanol, glycol and other chemical reagents and chemical liquids.
