Factory Price Rotary feeder GZ Electromagnetic Vibrating Feeder apron feeder For Mining
- Category: >>>
- Supplier: Jiangxi Hengcheng Mining Equipment Co. Ltd.
Share on (1601060126013):
Product Overview
Description
Product Overview

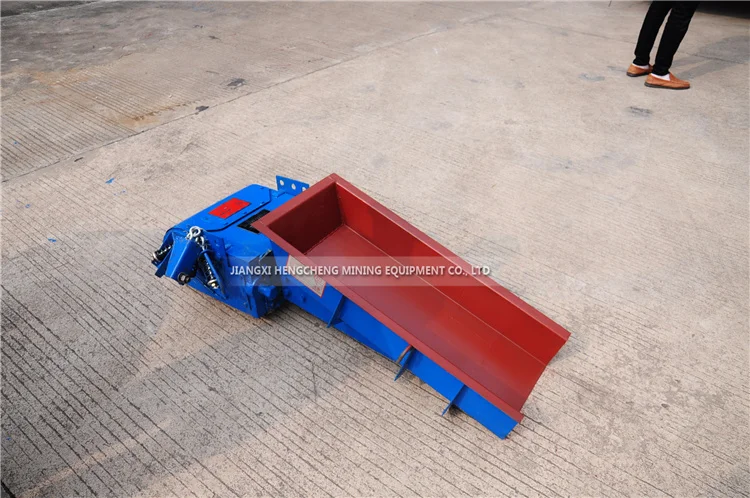

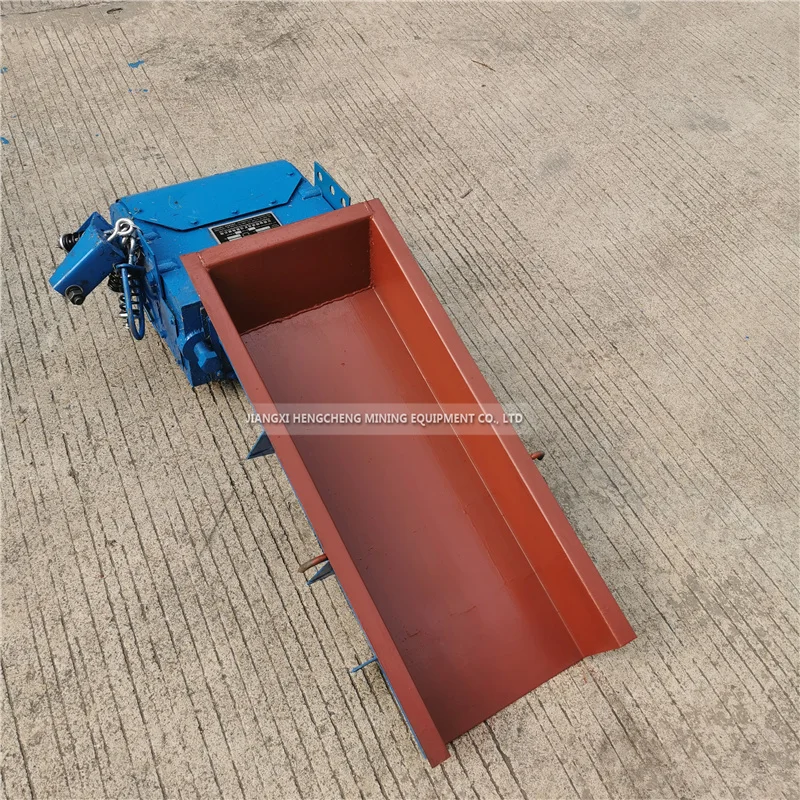

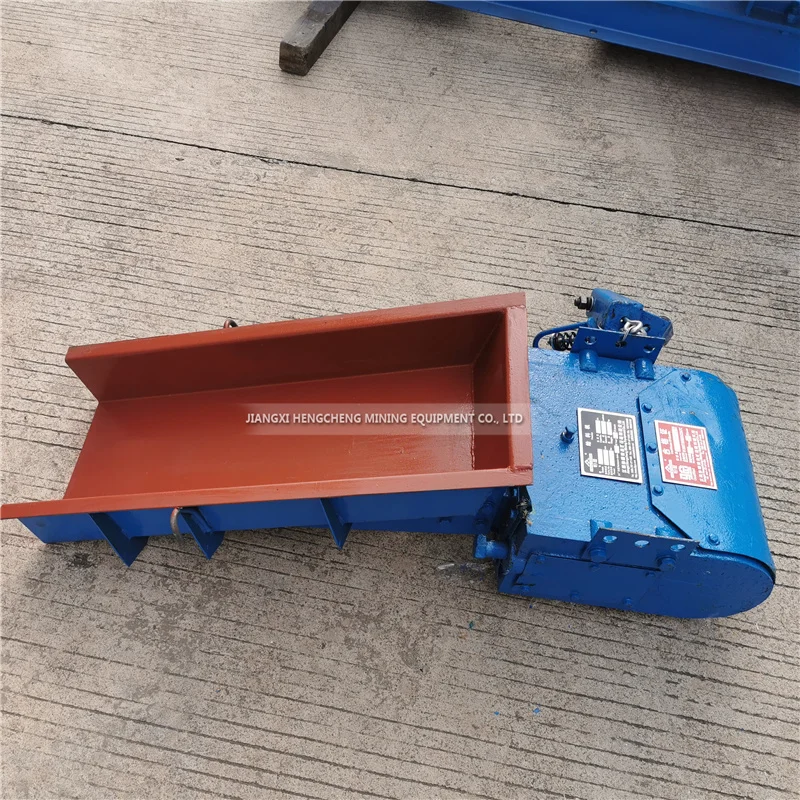

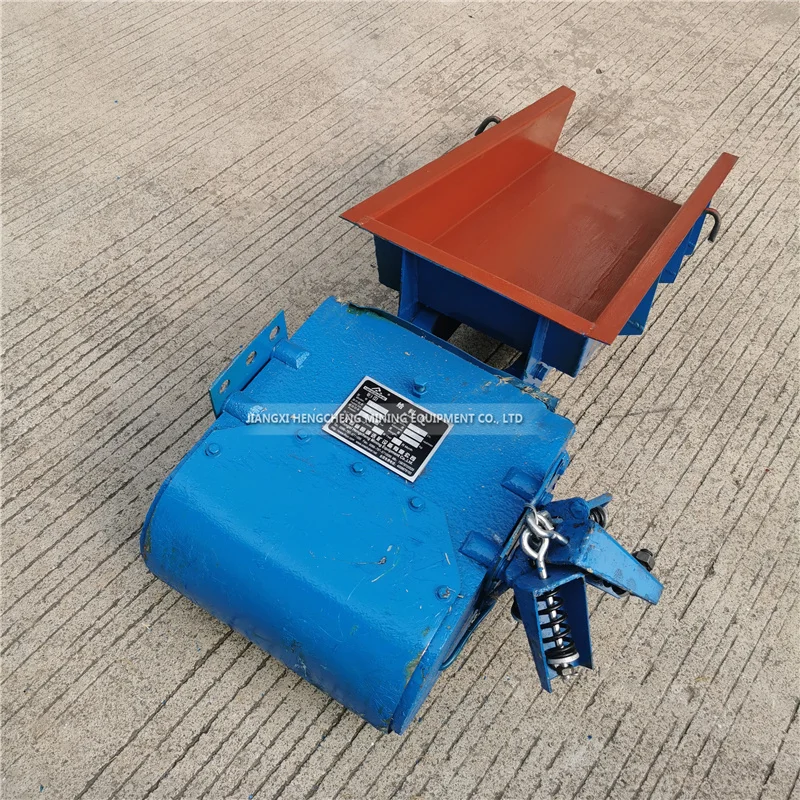

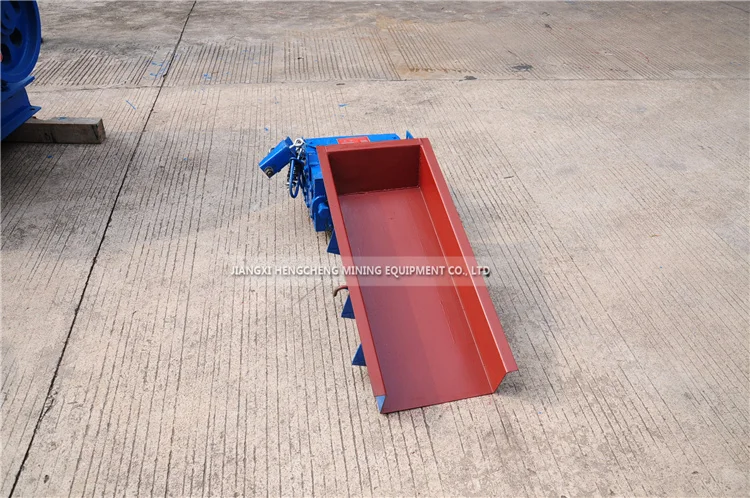

GZ electromagnetic vibrating feeder
GZ electromagnetic vibrating feeder is a device, which could feed those lump, granular and powder material into affected device from storage silo or hooper.
It could speedless adjust the feeding amount, and realized that production lines centralized & automatic controlled. It is widely applied in mine, metallurgy, coal, light industry, power industry, machinery, food industry,etc. This machine has small amplitude, those sticky or wet powder material is not suitable to use it.
It could speedless adjust the feeding amount, and realized that production lines centralized & automatic controlled. It is widely applied in mine, metallurgy, coal, light industry, power industry, machinery, food industry,etc. This machine has small amplitude, those sticky or wet powder material is not suitable to use it.
FEATURES AT A GLANCE
Features of GZ vibrating feeder
Small body , light weight,
Easy installation, no moving parts,
No need to moisture, easy maintanence,
High operating frequency, low power consumption.
Small body , light weight,
Easy installation, no moving parts,
No need to moisture, easy maintanence,
High operating frequency, low power consumption.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Model | Capacity (t/h) | Feed size (≤mm) | Double amplitude mm | Voltage （V） | Power kw | Weight (Kg) | ||
0° | －10º | |||||||
GZ0 | 5 | 7 | 50 | 1.75 | 220 | 0.06 | 75 | |
GZ1 | 10 | 14 | 50 | 1.75 | 220 | 0.15 | 146 | |
GZ2 | 25 | 35 | 75 | 1.75 | 220 | 0.25 | 217 | |
GZ3 | 35 | 50 | 85 | 1.75 | 220 | 0.35 | 300 | |
GZ4 | 50 | 70 | 100 | 1.75 | 220 | 0.45 | 412 | |
GZ5 | 100 | 140 | 150 | 1.75 | 220 | 0.65 | 656 | |
PRODUCT CONFIGURATION
SIMILAR PRODUCTS

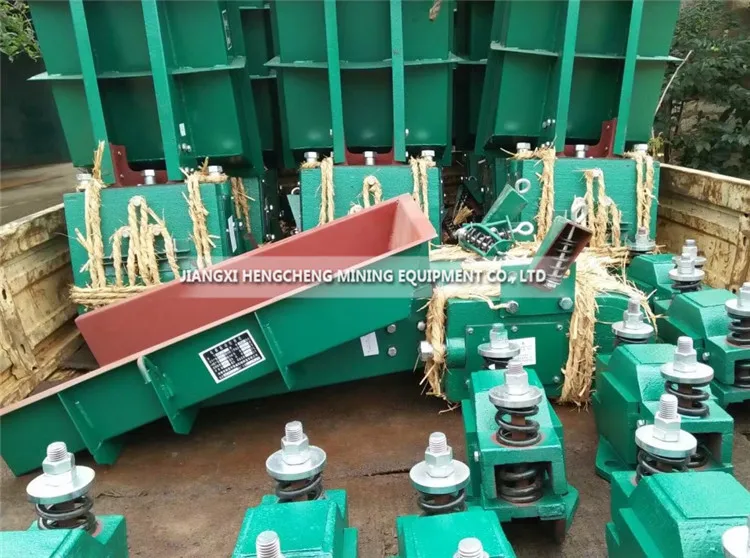

Packing & Shipment
Packing and Delivery
1. All the goods will be delivered in 15-30 working days after receiving payment.
2. The machine will be packed in an export container.
3. Motors and small parts will be packed in new strong wooden cases that are suitable for long-distance ocean transportation.
4. We promise that your goods will be shipped to your destination timely and safely.
2. The machine will be packed in an export container.
3. Motors and small parts will be packed in new strong wooden cases that are suitable for long-distance ocean transportation.
4. We promise that your goods will be shipped to your destination timely and safely.
Company Profile
Jiangxi Hengcheng Mining Equipment Co., Ltd
Jiangxi Hengcheng Mining Equipment Co., Ltd is a well-known manufacturer and supplier of mineral ore mining equipment in Jiangxi Province, China. We have more than 20 years of equipment-producing experience.
Our factory owns an area of more than 30000m², self-contained with modernized processing machines. Our equipment has already been exported to more than 23 countries, like South Africa, Togo, Sudan, Zimbabwe, Tanzania, Kenya, Mali, Vietnam, Indonesia, Philippines, Bolivia, USA, Singapore, Mongolia, etc.
Currently, we are good at alluvial/soil gold ore, hard rock gold ore, manganese ore, chrome ore, tin ore, copper ore,
tantalum-niobium(coltan) ore processing, etc. Therefore, we have gained lots of knowledge of mining technology and project running experiences.
Our factory owns an area of more than 30000m², self-contained with modernized processing machines. Our equipment has already been exported to more than 23 countries, like South Africa, Togo, Sudan, Zimbabwe, Tanzania, Kenya, Mali, Vietnam, Indonesia, Philippines, Bolivia, USA, Singapore, Mongolia, etc.
Currently, we are good at alluvial/soil gold ore, hard rock gold ore, manganese ore, chrome ore, tin ore, copper ore,
tantalum-niobium(coltan) ore processing, etc. Therefore, we have gained lots of knowledge of mining technology and project running experiences.
Exhibitions
Our company had attended international exhibitions two times in South Africa and Kenya. Both of them are for the mining industry. During the two exhibitions, we obtained a large number of customers and orders. At the same time, through such close communication with customers, we had a clearer understanding of customers' needs, and we also achieved significant improvement in production.
Contact US
All of our equipment can be customized according to your requirements. If you are interested in our products, please
don't hesitate to contact us. You can tell me the following questions so that we can send you an accurate quotation
don't hesitate to contact us. You can tell me the following questions so that we can send you an accurate quotation
soon, including extra discounts!
1. Which machine do you need like gold washing machine, spiral chute, vibrating screen, jig separator, Shaking table, stone crusher, jaw crusher, impact crusher, etc.
2. What is your raw material plan to process like gold ore, diamond ore, copper ore or iron ore, etc.
3. The capacity you need is Like 100 tons per hour or 2000 tons per day.
4. Your contact information both email and phone number are essential, we can contact you easier.
2. What is your raw material plan to process like gold ore, diamond ore, copper ore or iron ore, etc.
3. The capacity you need is Like 100 tons per hour or 2000 tons per day.
4. Your contact information both email and phone number are essential, we can contact you easier.
