Prima Power Genius Laser Cutting Machine 4020
$13,550.00-15,800.00

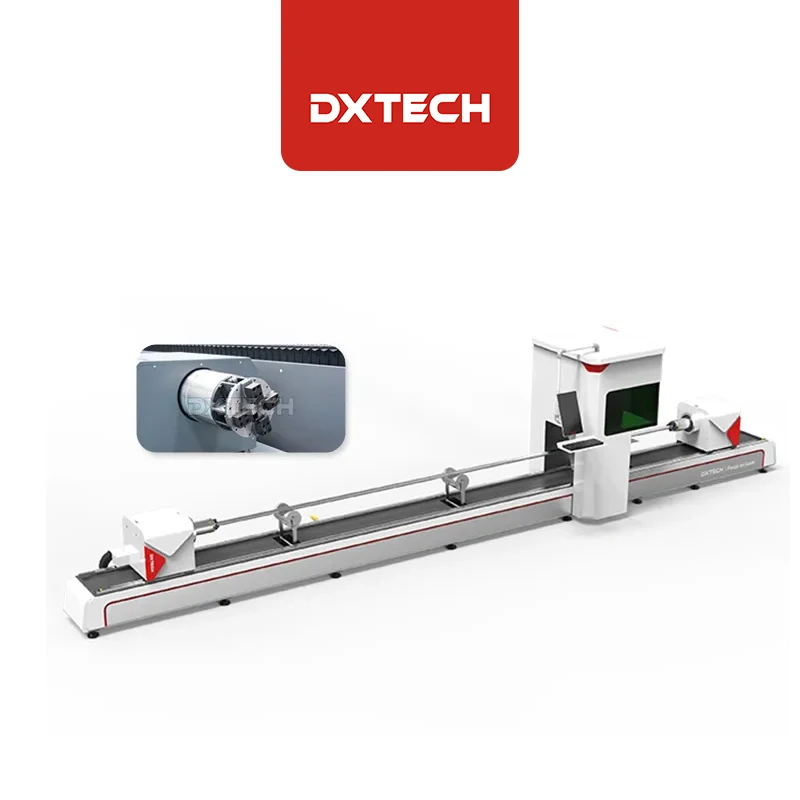

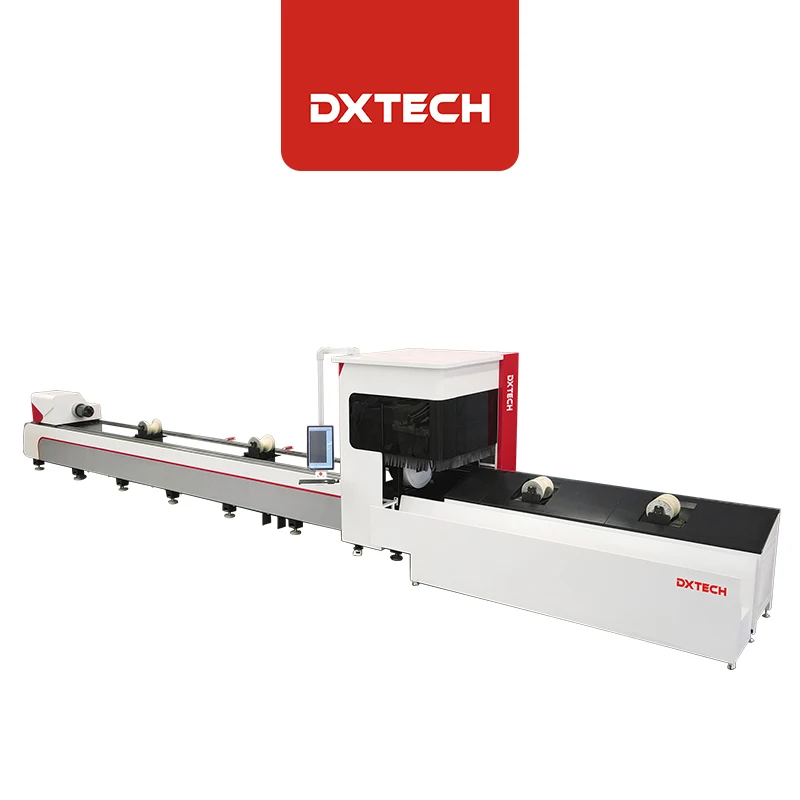

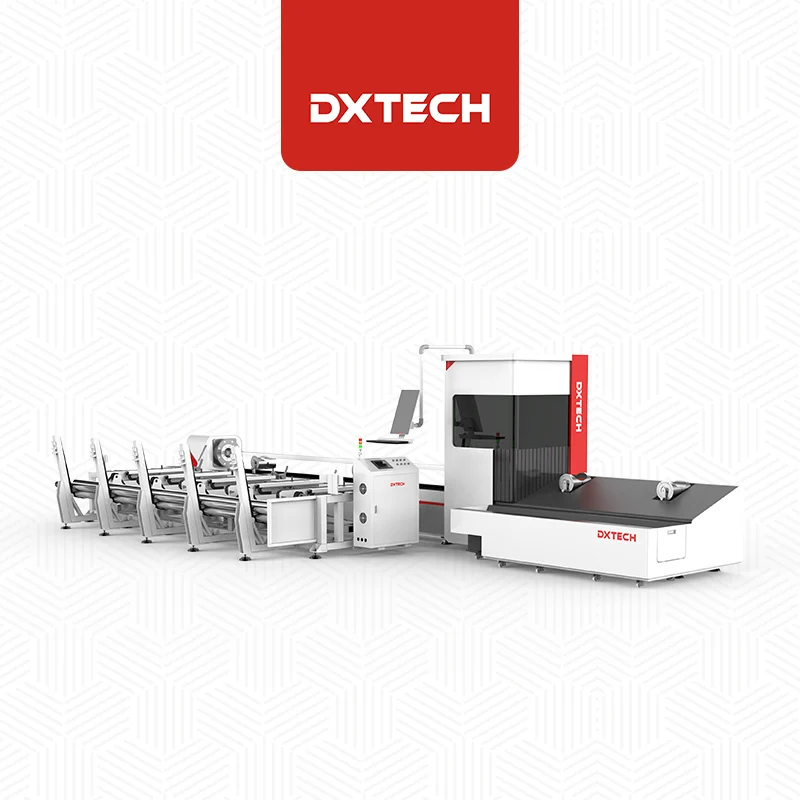

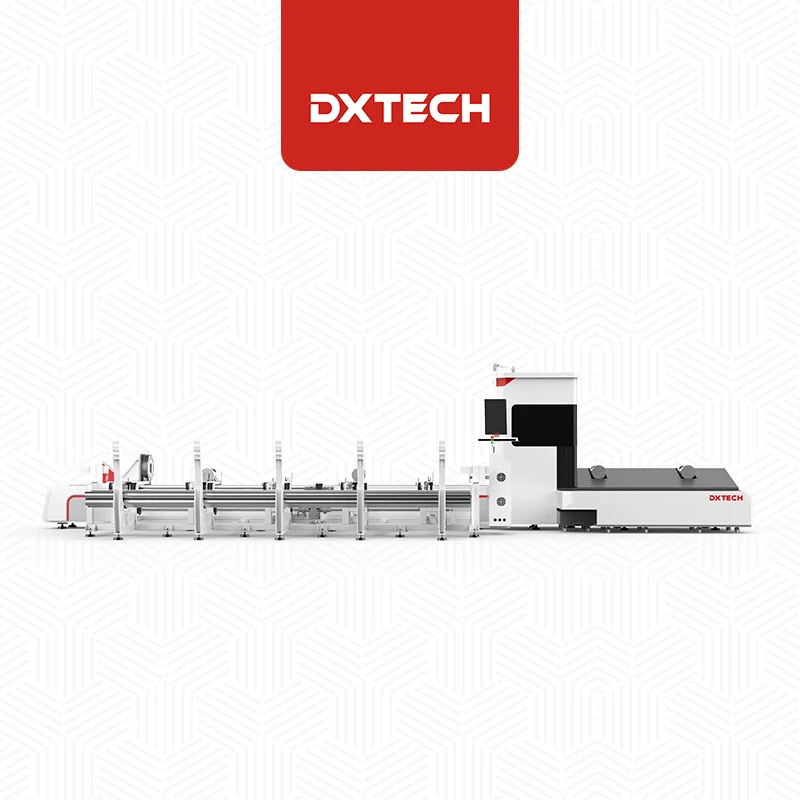

Professional pipe laser cutting machine round tube and square tube pipe cutting machine for stainless steel carbon and aluminum
- Category: >>>
- Supplier: Jinan Dxtech CNC Machine Co. Ltd.
Share on (1601060199894):
Product Overview
Description
1500-6000W Economical CNC Fiber Laser Pipe Cutting Machine IPG/Raycus Laser Source Price
Product Description
Product Introduction
——

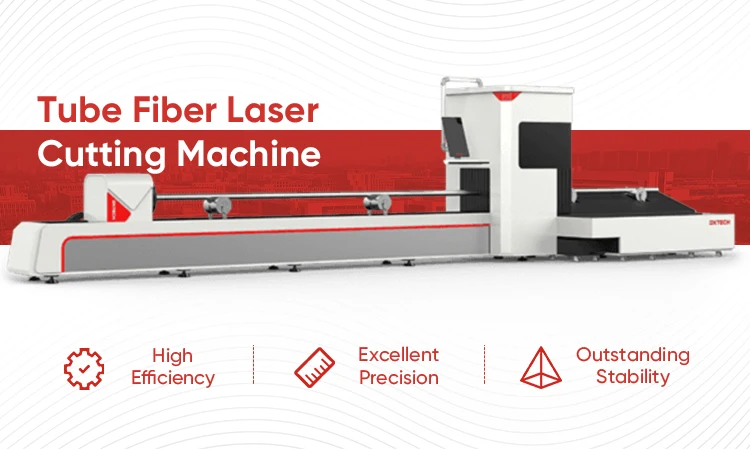

Tube fiber laser cutting machine is specially designed for pipes, easy to operate. This fiber laser cutting machine improves cutting quality and cutting efficiency. The fiber laser cutter is widely used in sports equipment, various types of pipe, water pipes, oil pipelines and other industries.
Features
——
(1) Heavy-duty mechanical structureAdopting high-quality carbon steel welding bed, it is more stable and durable. The high-strength machine tool adopts 600 ℃ stress relief annealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy.

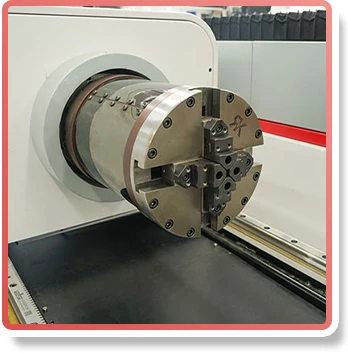

(2)Pneumatic self-centering chuck
It has the advantages of high clamping accuracy, fast speed, self-centering gear linkage, and strong pipe loading capability of 120kg.
(3)Split automatic support device
The intelligent tube rack solves the deformation problem during the cutting of long metal pipes.
(4)Autofocus
Without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.
Product Details
1) One-click chuck opening and automatic centering will reduce the waiting time for loading and unloading.
2) Pneumatic open clamp: with large and constant clamping force, the heavy pipe is not loose or slipped, which guarantees the cutting accuracy.
3) The special support frame can avoid the sagging deformation of the pipe, improve the cutting accuracy, and prolong the service life of the chuck.

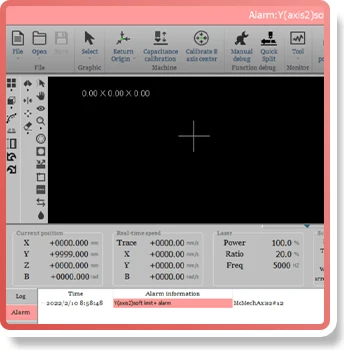

Tube cutting system：
It is a professional tube cutting system, which can realize automatic centering and eccentric compensation of metal pipes to ensure cutting accuracy.
Common edge cutting:
It can reduce the residual material and save the production cost.
Corner cutting process:
The corners are not burnt, and the section quality is good.

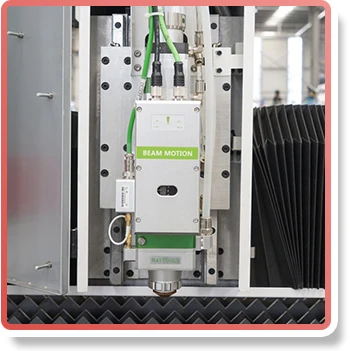

Intelligent focusing laser head
Cooling:
both the collimating lens and the focusing lens group are cooling accessories. Besides, the cooling airflow nozzle is added, which effectively protects the nozzle and the ceramics and prolongs the working time.
Chasing aperture:
through the 35 mm aperture, the interference of stray light is effectively reduced.
Autofocus:
without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.
Cooling:
both the collimating lens and the focusing lens group are cooling accessories. Besides, the cooling airflow nozzle is added, which effectively protects the nozzle and the ceramics and prolongs the working time.
Chasing aperture:
through the 35 mm aperture, the interference of stray light is effectively reduced.
Autofocus:
without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.
Model | DXTECH-T6160/T9160 | DXTECH-T6220/T9220 | DXTECH-T6350/T9350 |
Max. tube length | 6.5/9.2m | 6.5/9.2m | 6.5/9.2m |
Tube shape | Round/square/rectangular | Round/square/rectangular | Round/square/rectangular |
Max. tube weight | 100kg 16kg/m | 200kg 30kg/m | 500kg 83kg/m |
Positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
Repositioning accuracy | ±0.02mm | ±0.02mm | ±0.02mm |
Chuck | Two pneumatic chucks | Two pneumatic chucks | Two pneumatic chucks |
Max. chuck rotating speed | 130r/min | 130r/min | 140r/min |
Laser power | 1kW – 4kW | 1kW – 4kW | 1kW – 4kW |
Laser | Multiple options | Multiple options | Multiple options |
Clamping range | Φ10-Φ160mm | Φ20-Φ220mm | Φ20-Φ350mm |

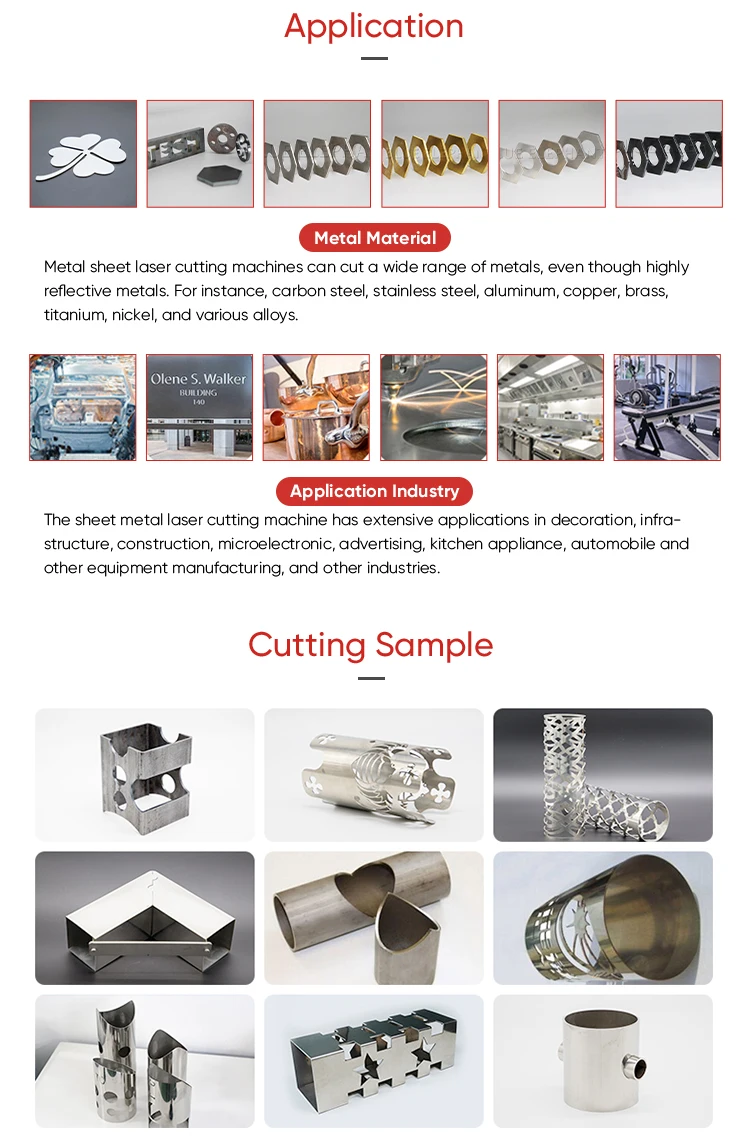

Application

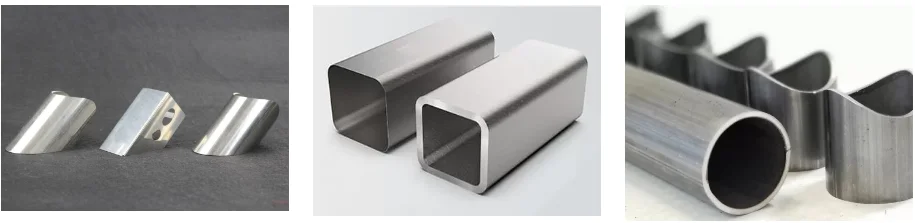

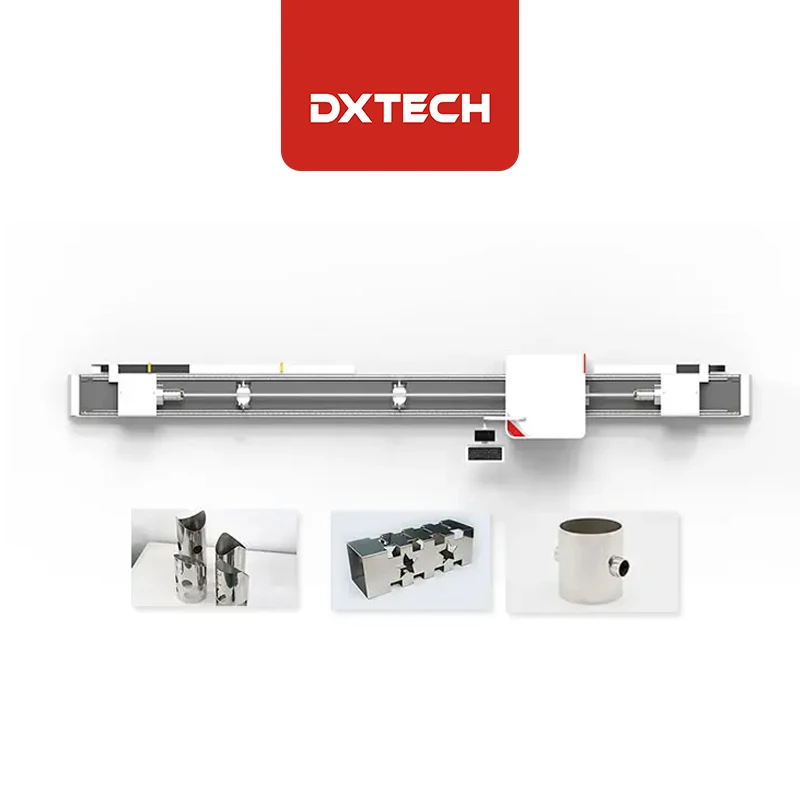

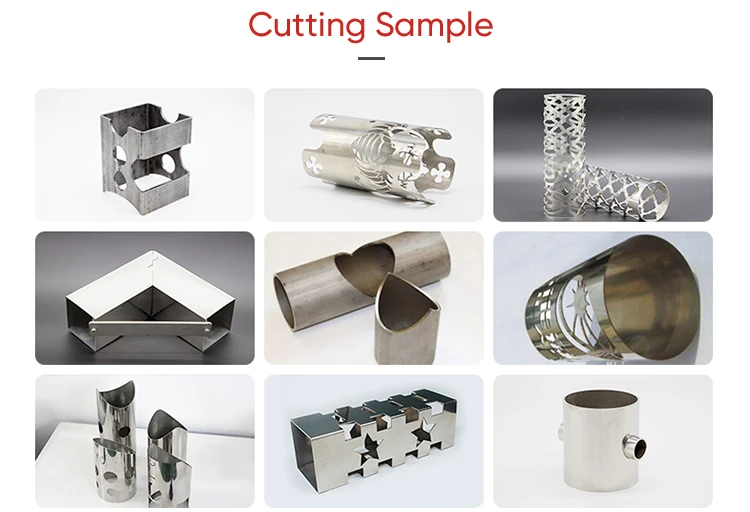

Cutting Sample
More products
3D Bevel Professional Tube Fiber Laser CuttingMachine
TL – Series 6m Metal Pipe Laser Cutting Machine for Sale
TG-Series Bevel Tube Laser Cutting Machine
TK-Series Double Chuck Metal Tube Cutting Machine with Automatic Feeding
TM-Series Three Chuck Metal Tube Cutting Machine with Automatic Feeding
Economical Metal Tube Fiber Laser Cutting Machine
Product category
Company Profile

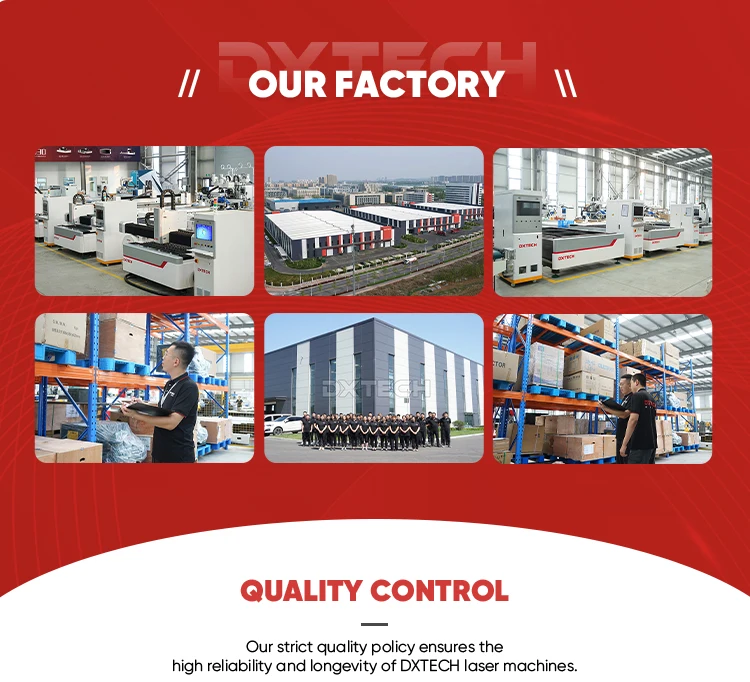

Our factory
Our strict quality policy ensures thehigh reliability and longevity of DXTECH laser machines.
Quality control in the production process.
Random sample testing by Quality Control.
Traceability for DXTECH laser machines.
Reliable laser machines with long service life.
Laser machine spare parts availability exceeds 96%.
Our Certificate and Exhibition
FAQ
01What is fiber laser cutting machine?
A:Fiber laser is a special type of solid state laser. Generally, fiber lasers are optically pumped.This is done by coupling the radiation of diode laseers or other fiber lasers into the cladding or the core itself in a direction parallel to the fiber core. In many cases, double clad fibers are used in order to achieve higher output power. What's material can fiber laser cut? All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum,
copper, etc.
copper, etc.
02What's the max. cutting thickness?
A:Cutting thickness is related to laser power.Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass and other high reflectionsheet metal.
03Do you have CE document and other documents for customs clearance?
A:Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial
Invoice/Sales contract for customs clearance.
Invoice/Sales contract for customs clearance.
04 Payment terms?
A:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
05 I don't know how to use after i receive Or i have problem during use, how to do?
A:We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.
06 I don't know which one is suitable for me?
A:just tell us below information1) Max work size:choose most suitable model.2) Materials and Cutting thickness:Power of laser generator.3) Business industries:We sell a lot and give advice on this business line.also provide Door service if you need.
