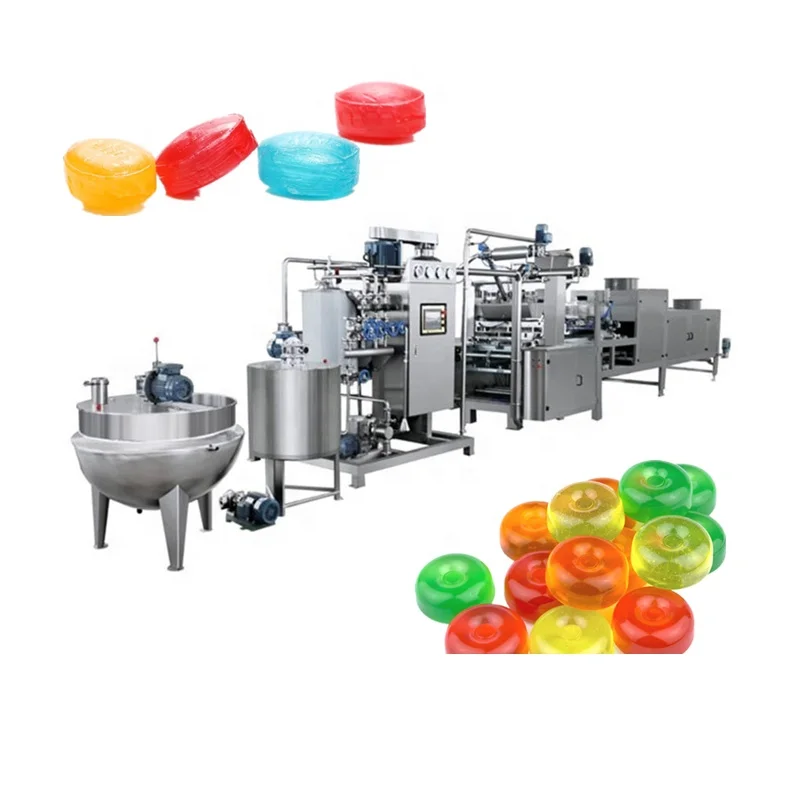

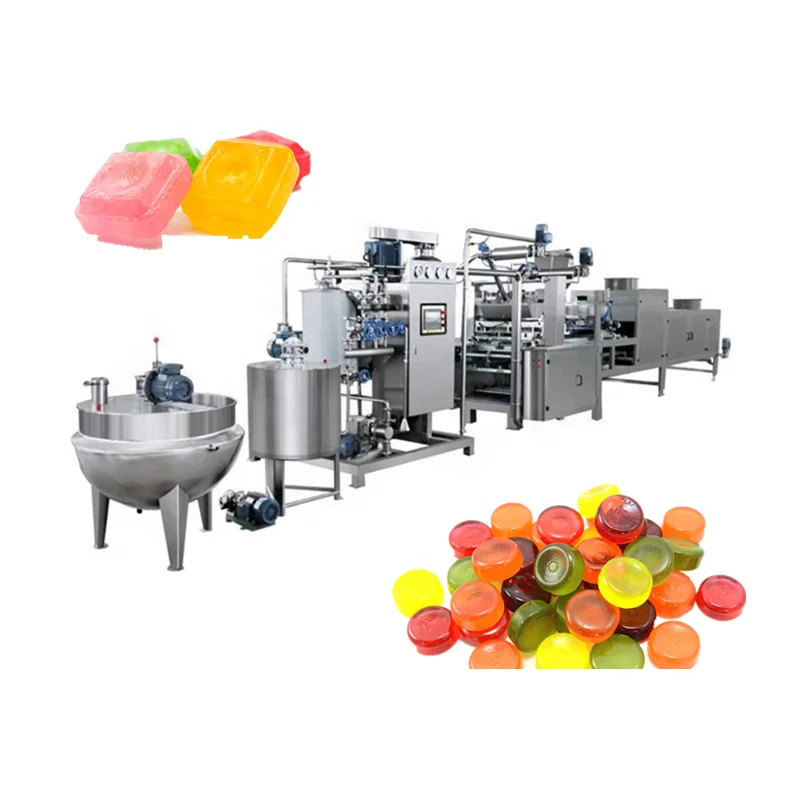

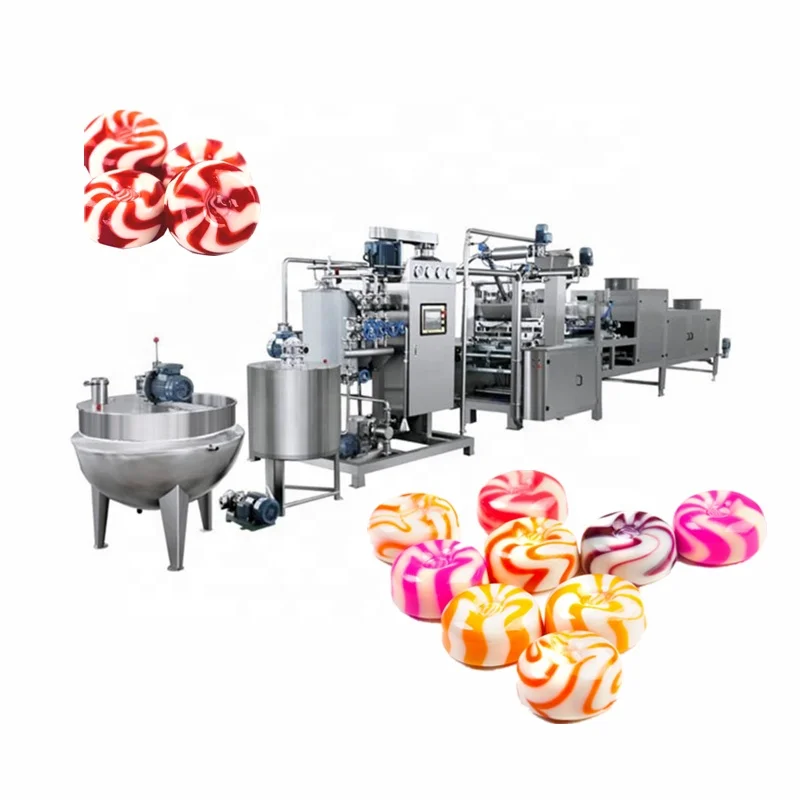

2024 Automatic large capacity hard candy making machine Gelatin pectin soft candy deposition production line Candy production
- Category: >>>
- Supplier: Shanghai Sien Food Machinery Manufacturing Co. Ltd.
Share on (1601060219905):
Product Overview
Description
Products Description

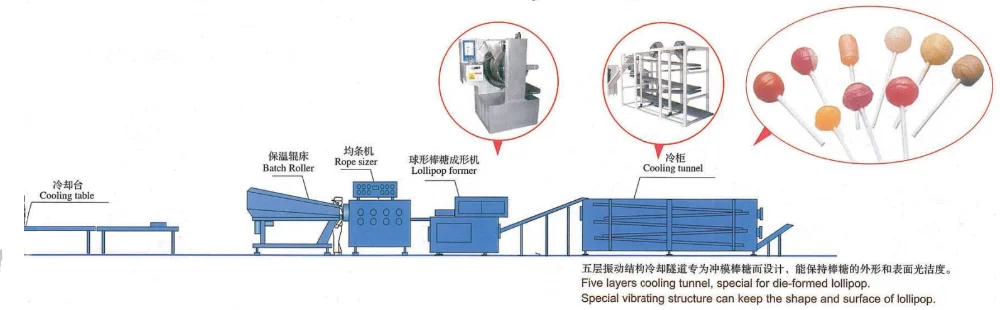

Automatic Lollipop depositing line
The lollipop depositing line
is designed based on the hard candy depositing line.With more than 20 years candy depositor fabricating experience,the 4th generation SE series lollipop depositing line is developed on the base of the 3rd generation machine.It is an advanced equipment which can continuously produce various kinds of lollipop under a strict sanitary condition.It is not only an ideal equipment which can produce products of good quality with the cutting down of labor and the space needed,but also helps to pass the GMP,HACCP
Mode | SE150 | SE300 | SE450 | SE600 | |||
Capacity | 150kg/h | 300kg/h | 450kg/h | 600kg/h | |||
Max candy weight | As per the candy size | ||||||
Depositing speed | 55-70n/min | 55-70n/min | 55-70n/min | 55-70n/min | |||
Steam requirement | 250kg/h 0.5-0.8MPa | 300kg/h 0.5-0.8MPa | 450kg/h 0.5-0.8MPa | 600kg/h 0.5-0.8MPa | |||
Compressed air requirement | 0.6m3/min 0.4-0.6MPa | 0.6m3/min 0.4-0.6MPa | 0.6m3/min 0.4-0.6MPa | 0.6m3/min 0.4-0.6MPa | |||
Working condition | Temp:20-25 Humidity:55% | Temp:20-25 Humidity:55% | Temp:20-25 Humidity:55% | Temp:20-25 Humidity:55% | |||
Total power | 18KW/380V | 27KW/380V | 34KW/380V | 38KW/380V | |||
Total length | 15m | 15m | 17m | 17m | |||
Gross weight | 3500kg | 4000kg | 4500kg | 5000kg | |||
With more than 20 years candy depositor fabricating experience,the 4th generation GD series lollipop depositing line is developed on the basis of the 3nd generation machine.It is an advanced equipment which can continuously produce various kinds of lollipop under a strict sanitary condition.

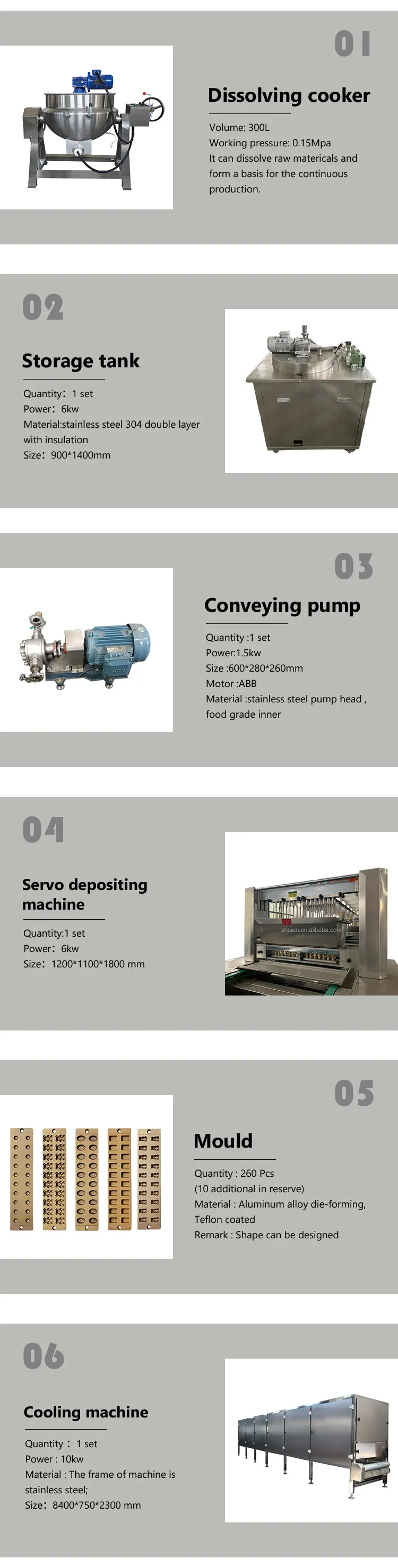

Sugar Melting Pot: For melting sugar material and keeping temperature.
Sugar Melting Pot: For melting sugar material and keeping temperature.
Gear Pump: To transfer the mixed materials into syrup storage tank.
Syrup Storage Tank: For Storing syrup and Filtering pure syrup

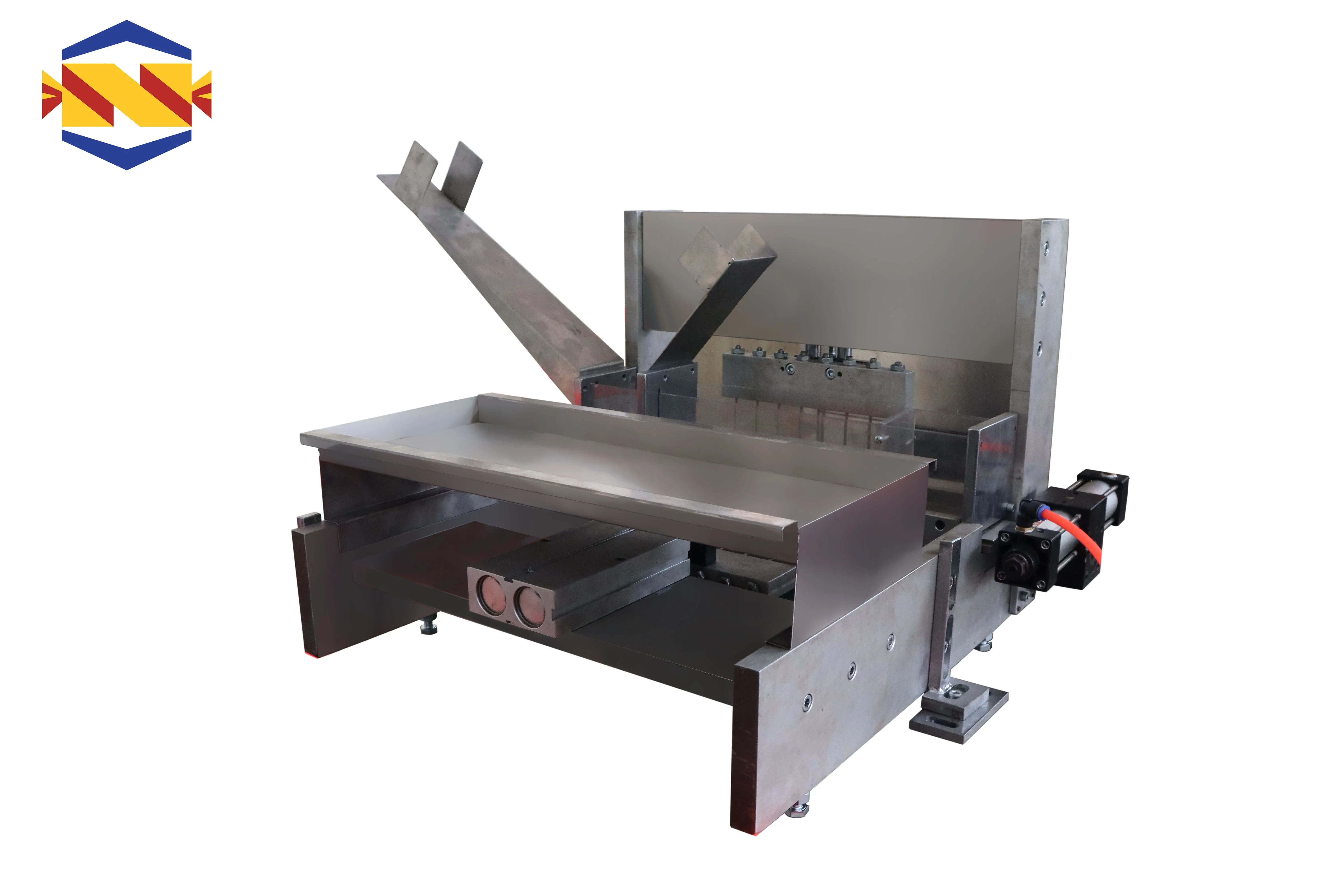

Lollipop stick inserting machine
Quantity:1 set
Power:8 kw
Material: The frame of casting machine is stainless steel, door is stainless steel; hopper is stainless steel ,depositing column of stainless steel or copper
Remark: PLC controlled, servo depositing speed :lollipop 25-45n/min. Hard candy 55-75n/min
The advantage of the line is as following
The machine is equipped with the automatic rod system developed by thunk machine, which can realize full automatic operation. The
whole production line is manufactured according to the food GMP standard, which meets the food hygiene requirements Replace the
mold and parts of the lollipop and hard sugar pouring production line,it can produce both hard and lollipop candies.

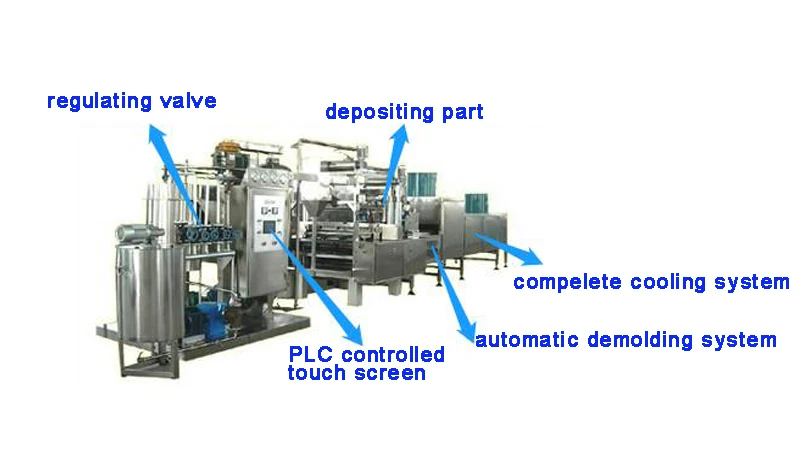

Deposited hard candy machine flowchart
Raw material dissolving→Transporting→Storage→Preheating→Microfilm cooking→Discharging→Mixing with flavor and color→Depositing
→Cooling→Demolding→Conveying→Packing→Final product
Main Features
1. Automatic control for alternated process of vacuum cooking and mixing;
2. An unique design of mixing system guarantees a high quality product;
3. The production capacity can reach 300 kg / h;
4. Sanitary structure;
5. Automatic process control synchronized with central-filling /extruding/rope sizing;
6. Chain style die-forming for different shapes of candy;
7. Stainless steel net conveyor and cooling system guarantees the quality of the final product;
8. Soft candy,central-filling soft candy,toffee candy and etc can be made
Application
Certifications
Cooperative Country
Company Profile
Main Electric Suppliers
Packaging & Delivery
FAQ
Q:Are you a factory or trading company?
A:We are a factory and have more than 10 years manufacture and sales experience.
Q:What’s your MOQ?
A: 1set.
Q:How should i do if meet some trouble while using?
A:We can help you resolve the problems online or dispatch our worker to you factory.
Q:How can I contact with you?
A:You can send inquiry to me. Also can contact with me by wechat/cellphone.
