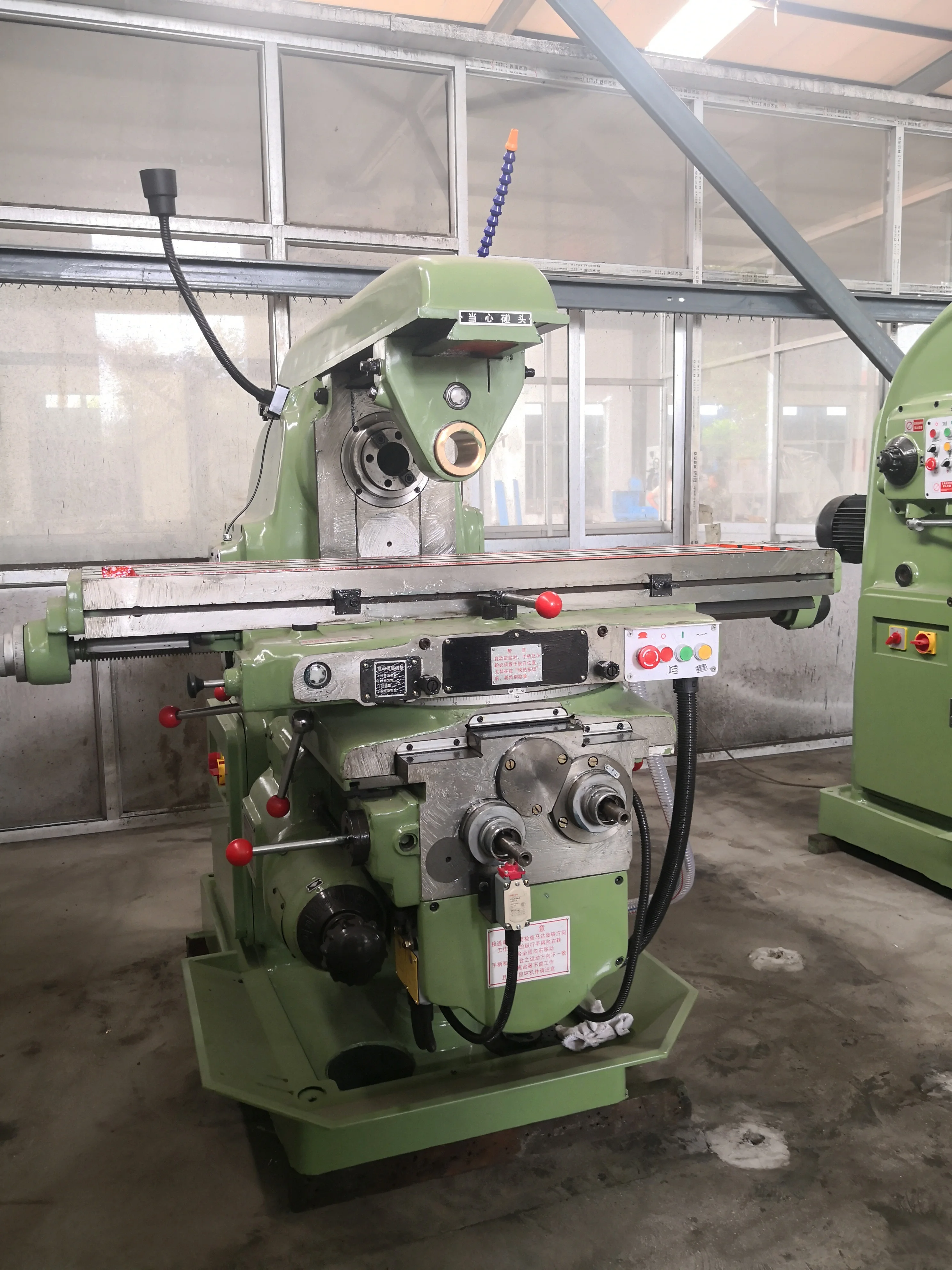

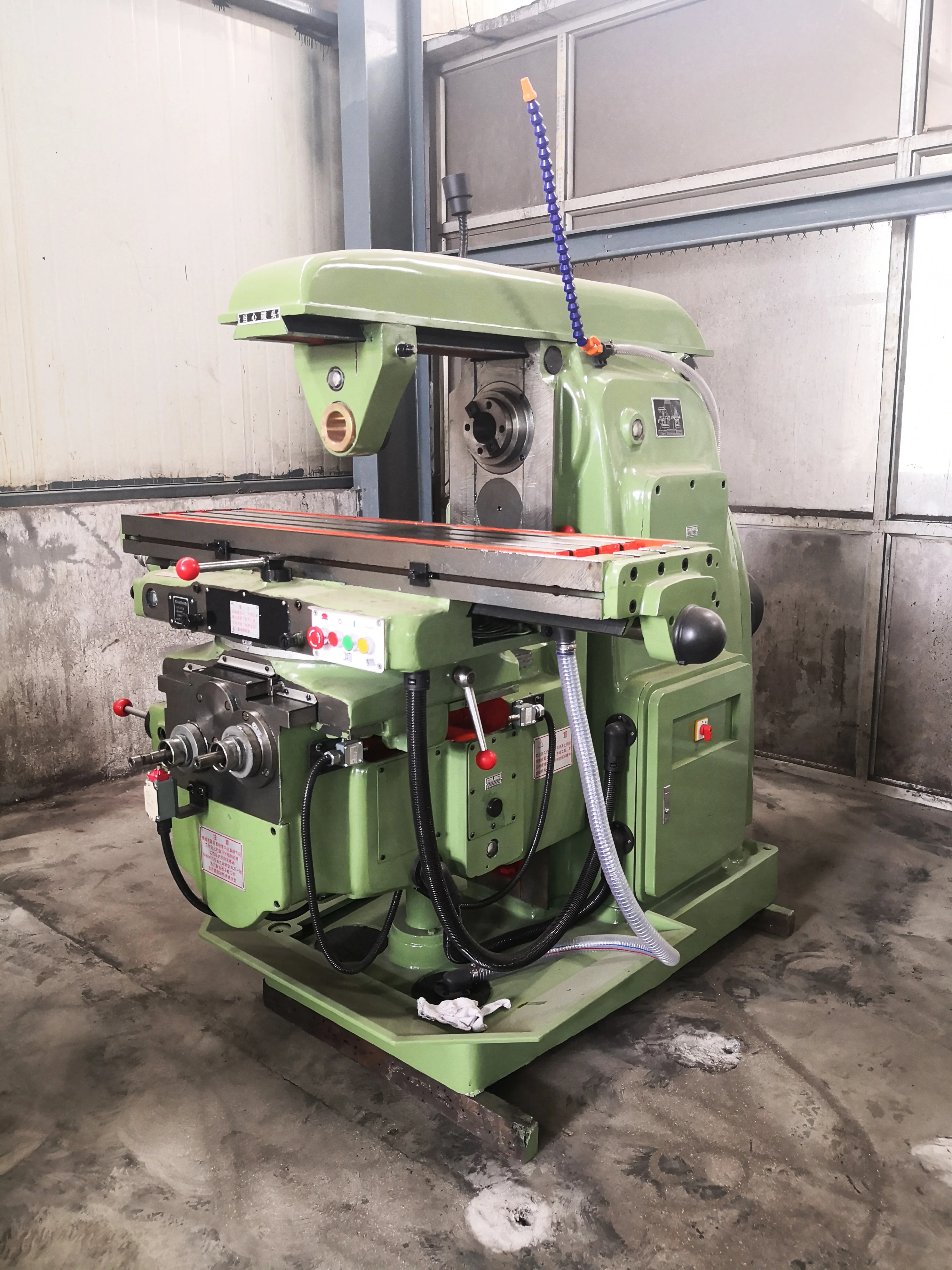

High Quality Universal Milling Machine Used Milling Machine
- Category: >>>
- Supplier: Shandong Weste Cnc Machine Tool Co. Ltd.
Share on (1601060252425):
Product Overview
Description
The main performance characteristics :
1.Using rectangular guide machine is Rigid good,
2.Work table and guide rail through the ultra audio spark quenching.
3.Work bench X YZ are gear drive automatic feed and manual operation
4.Milling head can be rotated 45 degrees,
2.Work table and guide rail through the ultra audio spark quenching.
3.Work bench X YZ are gear drive automatic feed and manual operation
4.Milling head can be rotated 45 degrees,
Application :
1. Vertical lifting platform miling machine is a kind of general metal cutting machine tool.
2. Spindle taper hole of the machine can be directly or through the atachment installed all cylindrical miling cutterdisc cutter, molding cutter, end miling cutter tool, suitable for processing a variety of small parts of plane, inclinedplane,grooves, holes, and other gear. ls a mechanical manufacturing, mold, equipment, instruments, automobilesmotorcycles and other industries of the ideal processing equipment.
Specifications | Unit | X6132 |
Table size(W*L) | mm | 320*1325 |
T-slots(NO./width/pitch) | mm | 3/18/70 |
Maximum manual stroke of workbench (X/Y/Z) | mm | 700/255/320 |
Maximum mobile travel of the workbench(X/Y/Z) | mm | 680/240/300 |
Maximum rotation angle of the workbench | ° | ±45° |
Spindle taper | - | ISO50（7：24） |
Spindle aperture | mm | 29 |
Knife diameter | mm | 27、32 |
Distance from spindle centerline to workbench surface | mm | 30-350 |
Distance from spindle centerline to suspension beam | mm | 155 |
Distance from guide rail to center of workbench | mm | 470-215 |
Spindle speed level | 18 | |
Longitudinal feed rate range of workbench | mm/min | 23.5-1180 |
Horizontal feed rate range of workbench | mm/min | 23.5-1180 |
Range of feed rate for worktable lifting and lowering | mm/min | 8-394 |
Table rapid speed | - | 2200/2200/1100 |
Range of spindle speed | r.p.m | 30-1500 |
Main motor power | kw | 7.5 |
Feed motor | kw | 1.5 |

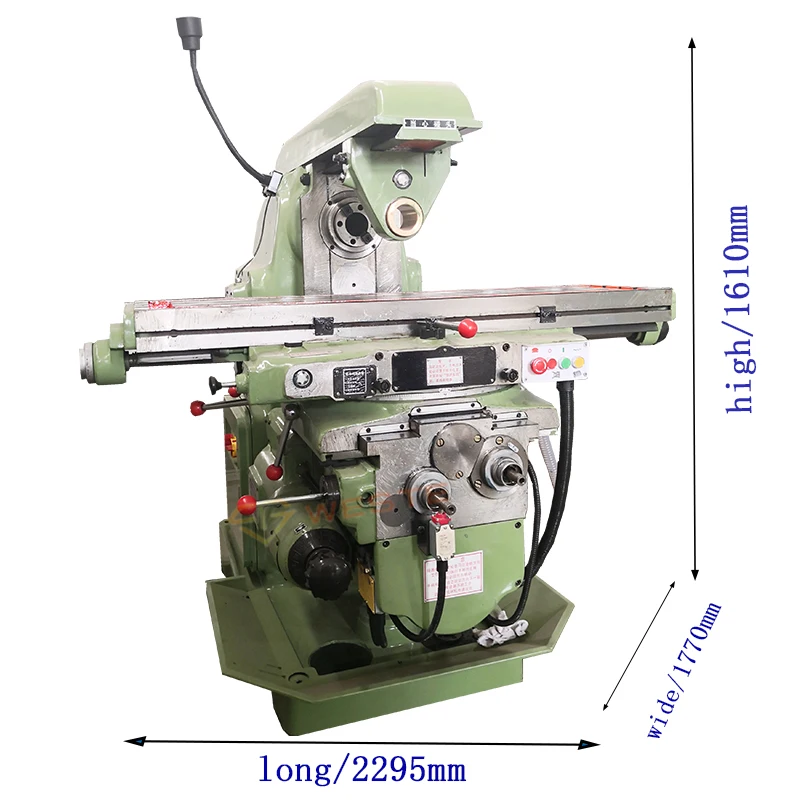

Overall size | mm | 2294*1770*1610 |
Machine weight (N.W/G.W) | kg | 2650/2950 |

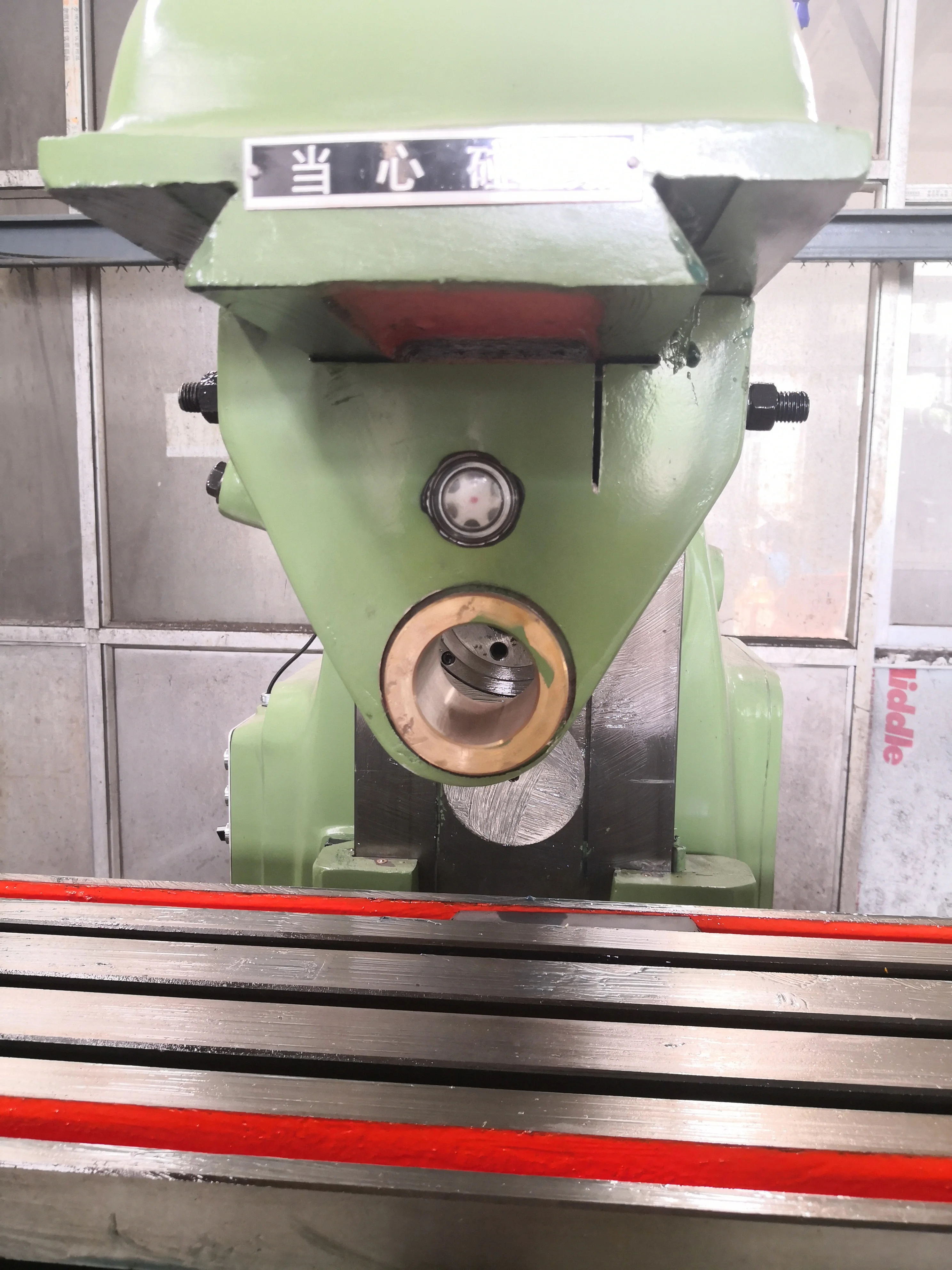

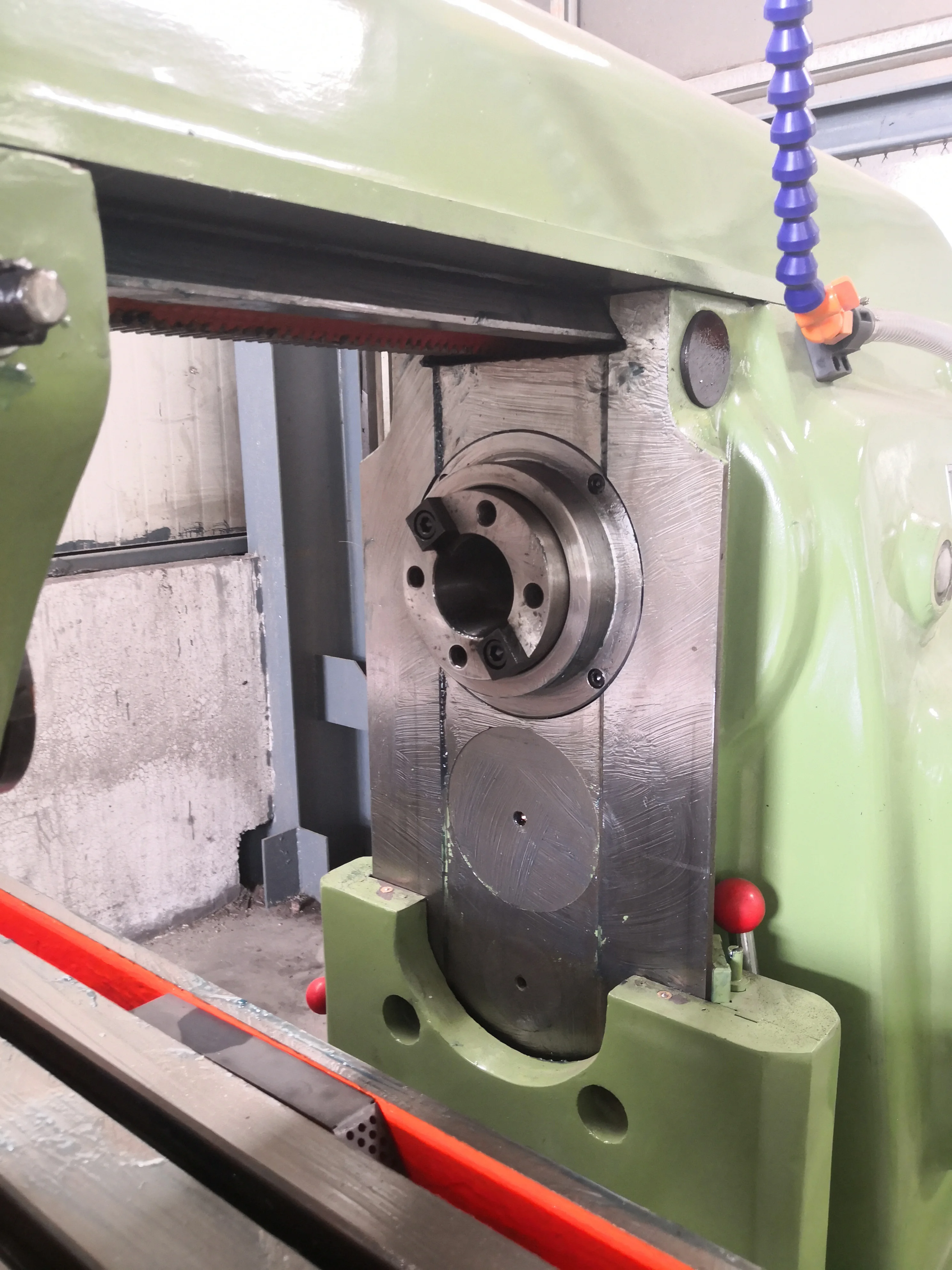

HORIZONTAL MILLING HEAD
Horizontal spindle taper ISO50 7:24,Spindle speed 30-1500rpm.
WORKTABLE
Ultra-auto quenching. worktabkeX/Y/Z axis have rapid speedSwivel angle of table ±45°
ALL GEAR LIFTING PLATFORM
X/Y/Z axis manual feed,motor feed and maneuverfast forward.

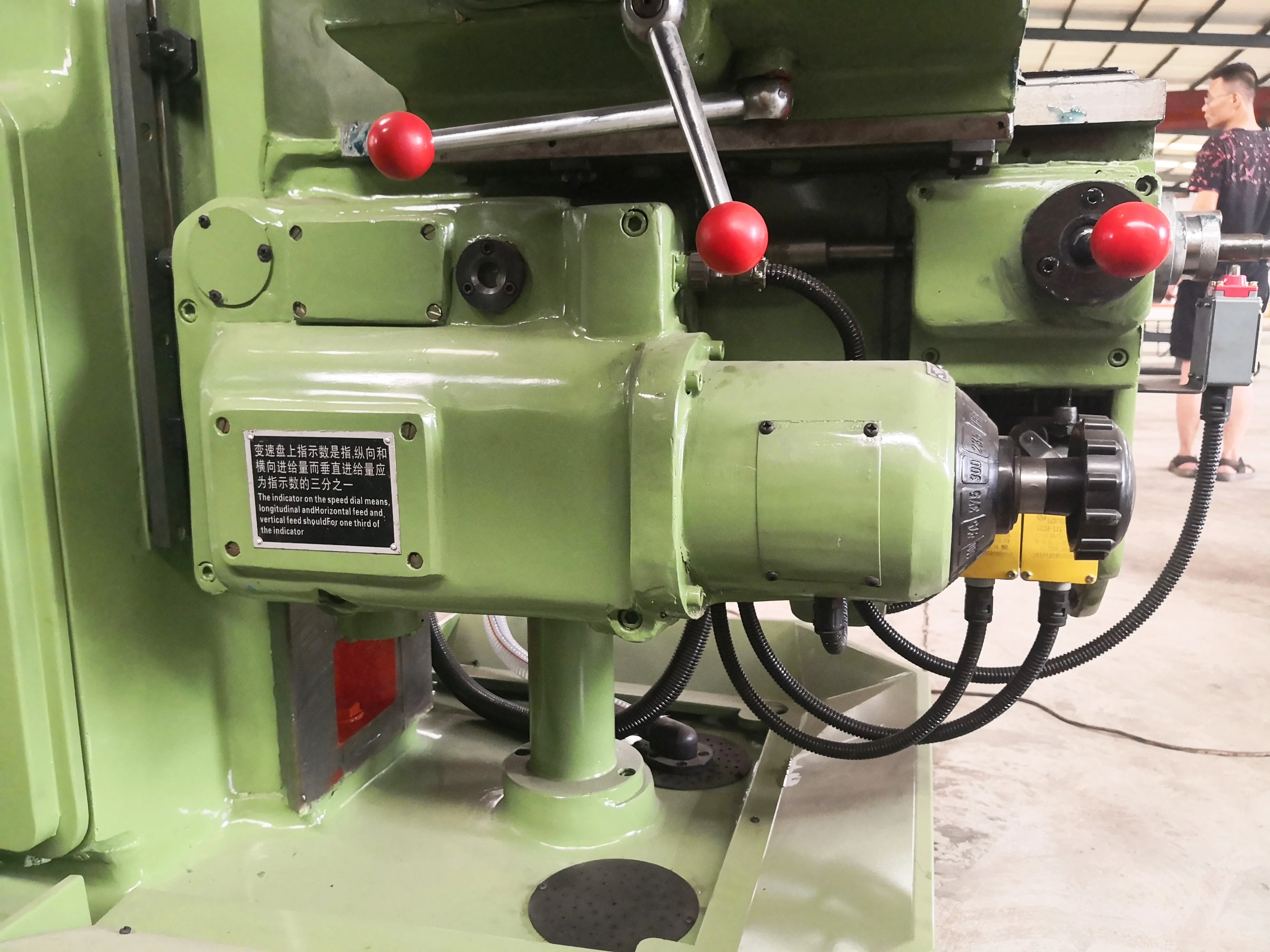

X/Y/Z AXISAUTO FEED
The spindle adopts energy-consuming braking,with large starting torque, rapid stop andreliable.
Operation panel
Three axis digital display can be selected for more accurate processing.
Shandong Weste CNC Machine Tool Co., Ltd. is a CNC machine tool manufacturing company that integrates design,manufacturing, sales,and service, covering an area of more than 5000 square meters. The company has been developing for five years, and its main products include vertical machining centers, horizontal machining centers, gantry machining centers, five axis machining centers,CNC inclined bed lathes, CNC milling machines, ordinary milling machines, drilling machine series, and other CNC equipment.
After more than five years of development, the company has a stable supply chain to provide guarantees for the supply of raw materials. The precise quality inspection equipment and modern management mode have laid a solid foundation for producing high-quality products. All factory equipment will go through strict quality control processes such as quality inspection, copying, and re inspection, ensuring that each equipment is of high quality. At the same time, each machine tool has complete quality control records, a comprehensive after-sales service system, and experienced engineers to ensure fast after-sales service.
Adhering to the "Best Machine by WESTE" purposes, We provides better quality machines.more efficient and thoughtful after -sales services to customers. Sincerely hope to communi-cate with friends from various countries, and get win-win cooperation.
Transportation
Packing: standard export packing, or customizedpacking as your request.
Professional goods shipping forwarder.
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
