sand desliming machine sand dewatering machine factory best price
- Category: >>>
- Supplier: Luoyang Longzhong Heavy Machinery Co. Ltd.
Share on (1601060296991):
Product Overview
Description
LZZG Dewatering Screen Is The Best Product In China!
Welcome To Our Company !
Products Description
TS Dewatering Screen
ZSD Dewatering Screen
TS Dewatering screen adopts dual-motor self-synchronization technology. The motors coordinate with universal eccentric and adjustable amplitude vibrator. When the two motors start to work, the vibrators move reversely at the same time. The centrifugal forces is generated by the eccentric blocks will superpose themselves and form a single direction vibration. The high frequency vibration drives the screen move back and forth in line repeatedly. So the sand can be dehydrated and filtered.
ZSD Dewatering screen adopts two mutually unconnected vibrators that driven by the tape coupling shaft for synchronous reverse operation, and the centrifugal forces generated by the two sets of eccentric mass are superimposed along the component of vibration direction, and reverse centrifugally canceled, thereby forming a single excitation vibration to make the dewatering vibrating screen as a reciprocating linear motion.
Technical Parameters
TS Dewatering Screen
Model | Feed Size (mm) | Capacity (t/h) | Screen Panel (mm) | Screen Area (m²) | Power (kw) | Weight (kg) | Overall Size (mm) |
TS0918 | ≤10 | 10-20 | 900*1800 | 1.62 | 0.75*2 | 590 | 1890*1290*1080 |
TS0924 | ≤10 | 10-20 | 900*2400 | 2.16 | 1.1*2 | 750 | 2480*1290*1220 |
TS1224 | ≤10 | 20-40 | 1200*2400 | 2.88 | 2.2*2 | 1080 | 2480*1590*1430 |
TS1230 | ≤10 | 20-40 | 1200*3000 | 3.6 | 2.2*2 | 1230 | 3080*1590*1500 |
TS1530 | ≤10 | 30-60 | 1500*3000 | 4.5 | 3.0*2 | 1360 | 3080*1890*1440 |
TS1536 | ≤10 | 30-60 | 1500*3600 | 5.4 | 3.0*2 | 2180 | 3680*1890*1450 |
TS1836 | ≤10 | 60-80 | 1800*3600 | 6.48 | 5.5*2 | 3350 | 3720*2420*1930 |
TS1842 | ≤10 | 60-80 | 1800*4200 | 7.56 | 5.5*2 | 3720 | 4370*2420*2100 |
ZSD Dewatering Screen
Model | Feed Size (mm) | Capacity (t/h) | Screen Panel (mm) | Screen Area (m²) | Power (kw) | Weight (kg) | Overall Size (mm) |
ZSD1530 | ≤10 | 30-60 | 1500*3000 | 4.5 | 5.5*2 | 1850 | 3080*2500*1600 |
ZSD1842 | ≤10 | 60-100 | 1800*4200 | 7.56 | 7.5*2 | 3900 | 4370*3080*2000 |
ZSD1848 | ≤10 | 60-100 | 1800*4800 | 8.64 | 7.5*2 | 4220 | 4790*3065*1960 |
ZSD2442 | ≤10 | 80-150 | 2400*4200 | 10.08 | 11*2 | 4850 | 4400*3740*1930 |
ZSD2448 | ≤10 | 80-150 | 2400*4800 | 11.52 | 11*2 | 5080 | 5000*3740*1980 |
ZSD3048 | ≤10 | 120-200 | 3000*4800 | 14.4 | 15*2 | 7470 | 4960*4520*2220 |
ZSD3060 | ≤10 | 120-200 | 3000*6000 | 18 | 18.5*2 | 9100 | 6160*4520*2220 |
ZSD3660 | ≤10 | 150-250 | 3600*6000 | 21.6 | 22*2 | 12200 | 6160*5120*2280 |

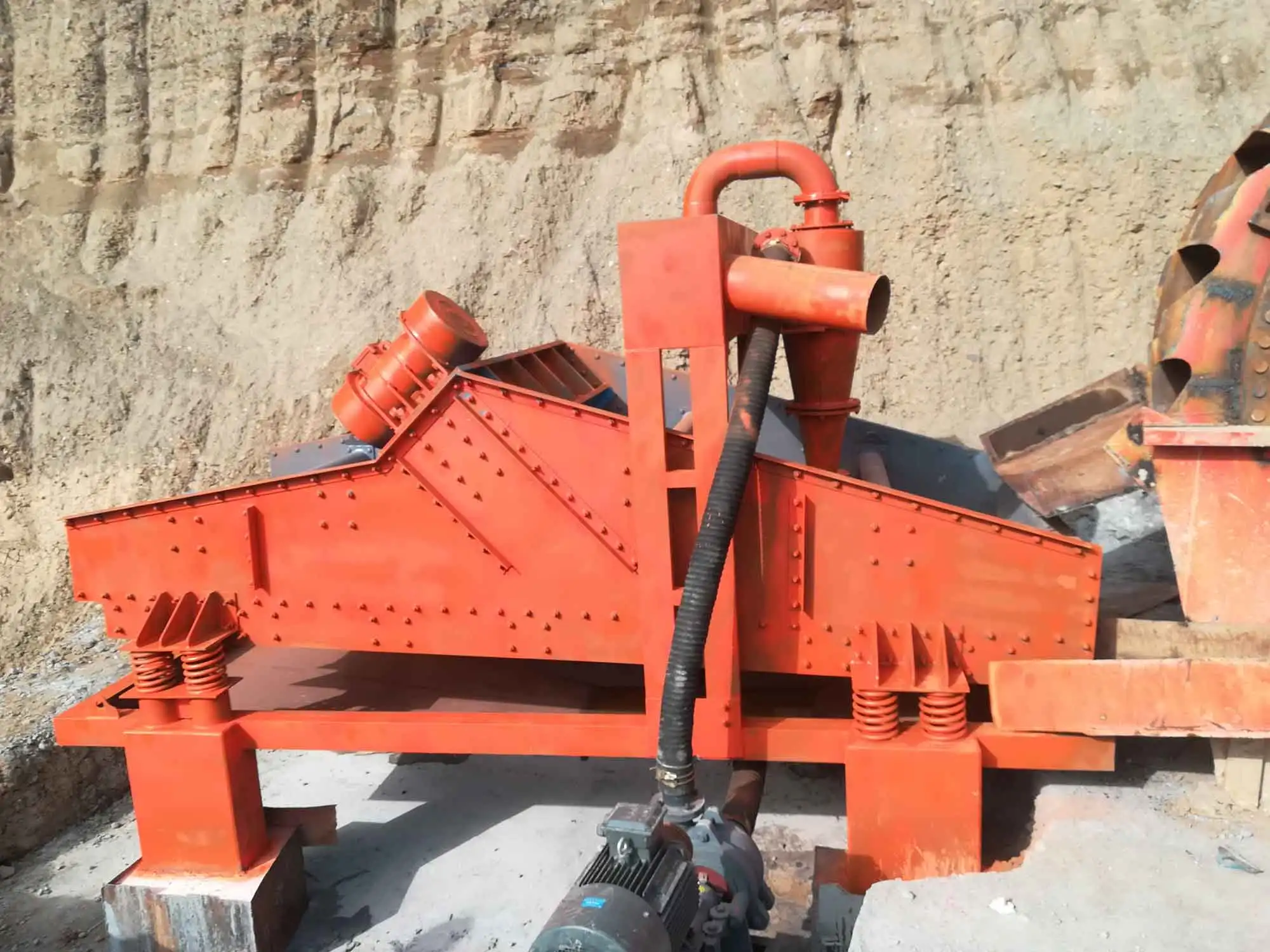

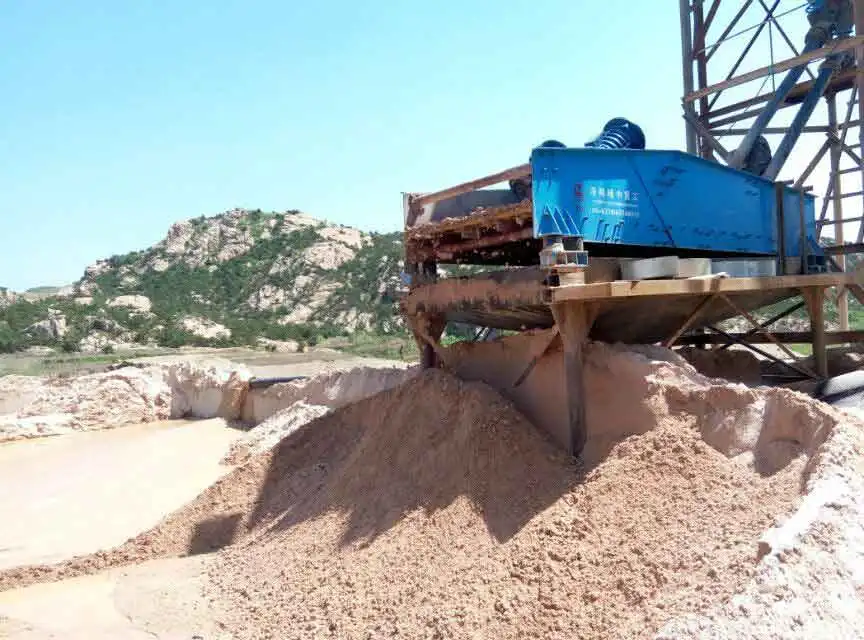

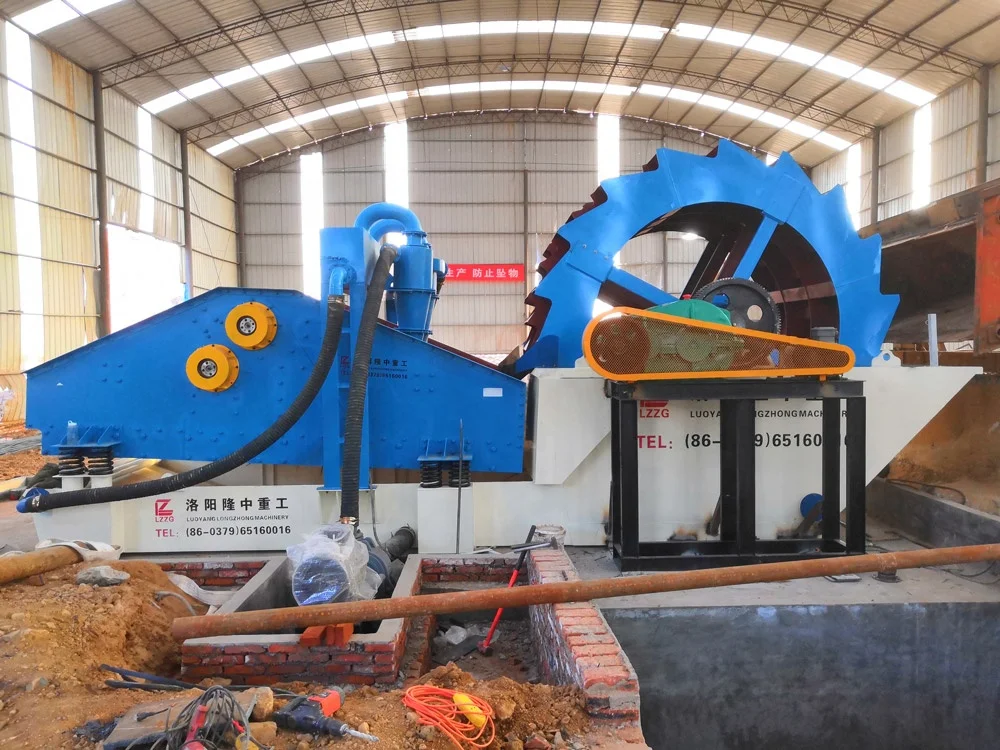

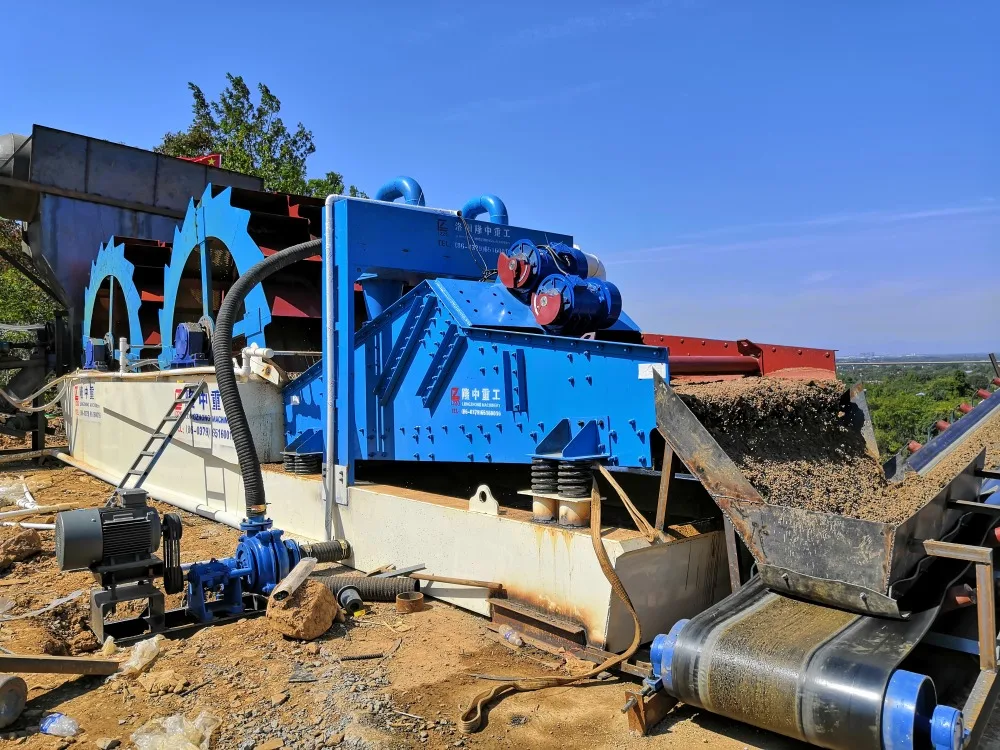

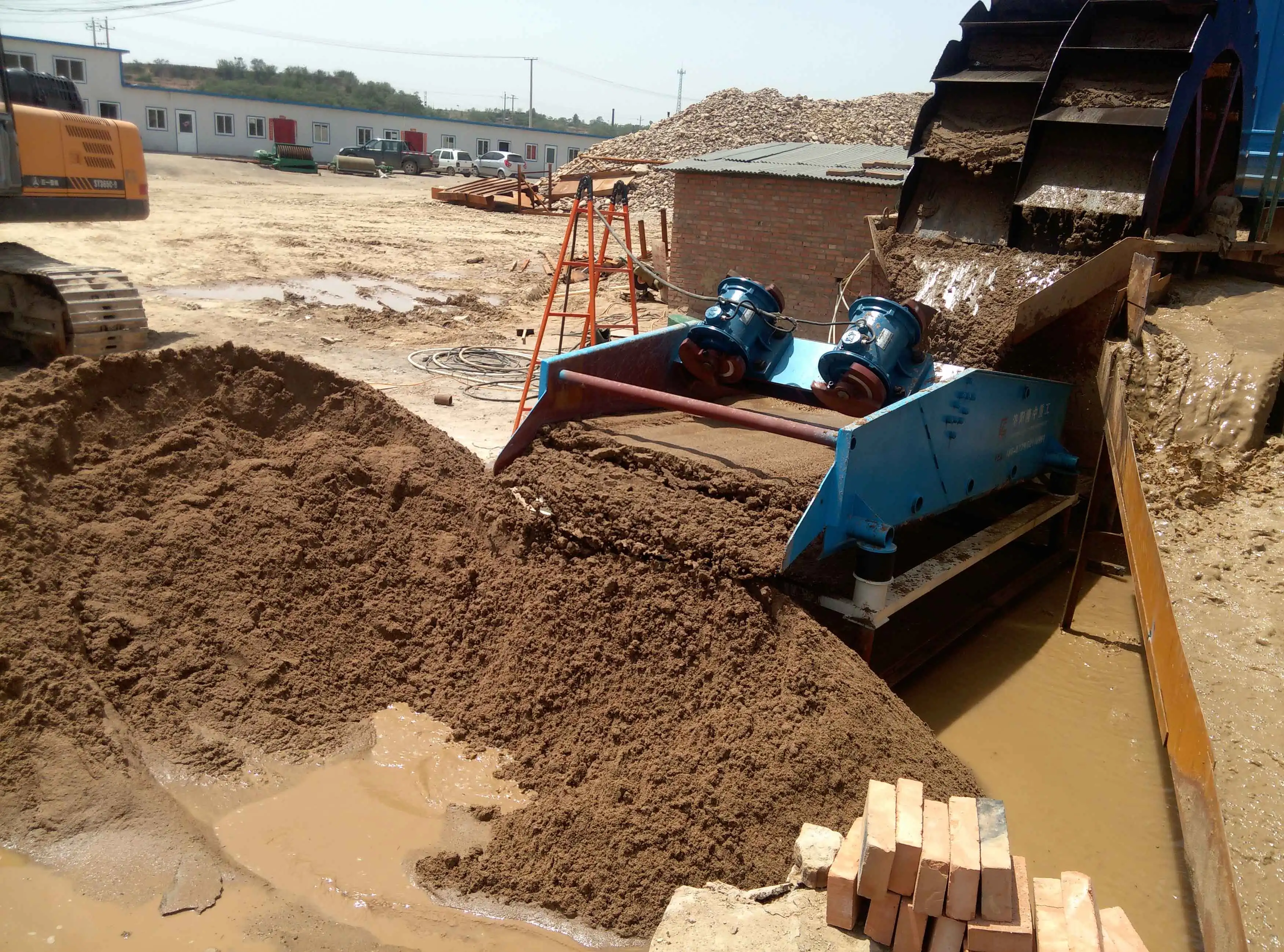

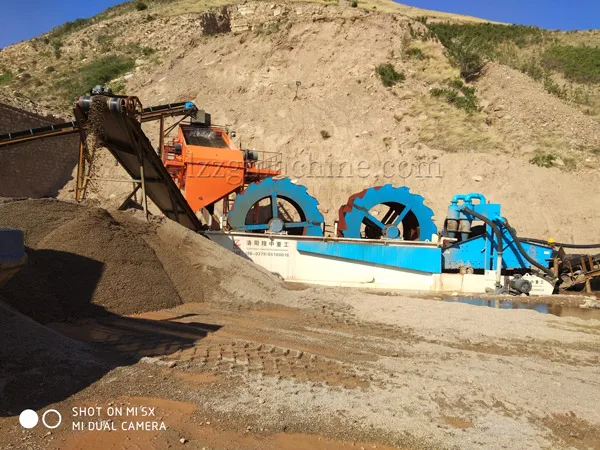

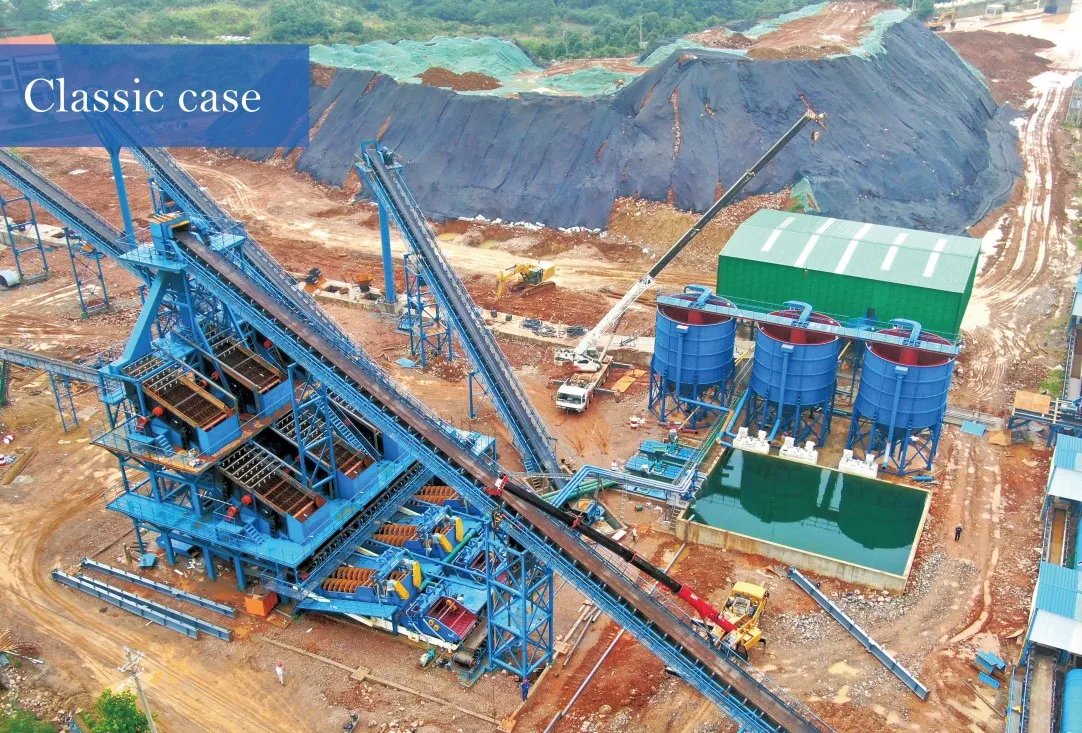

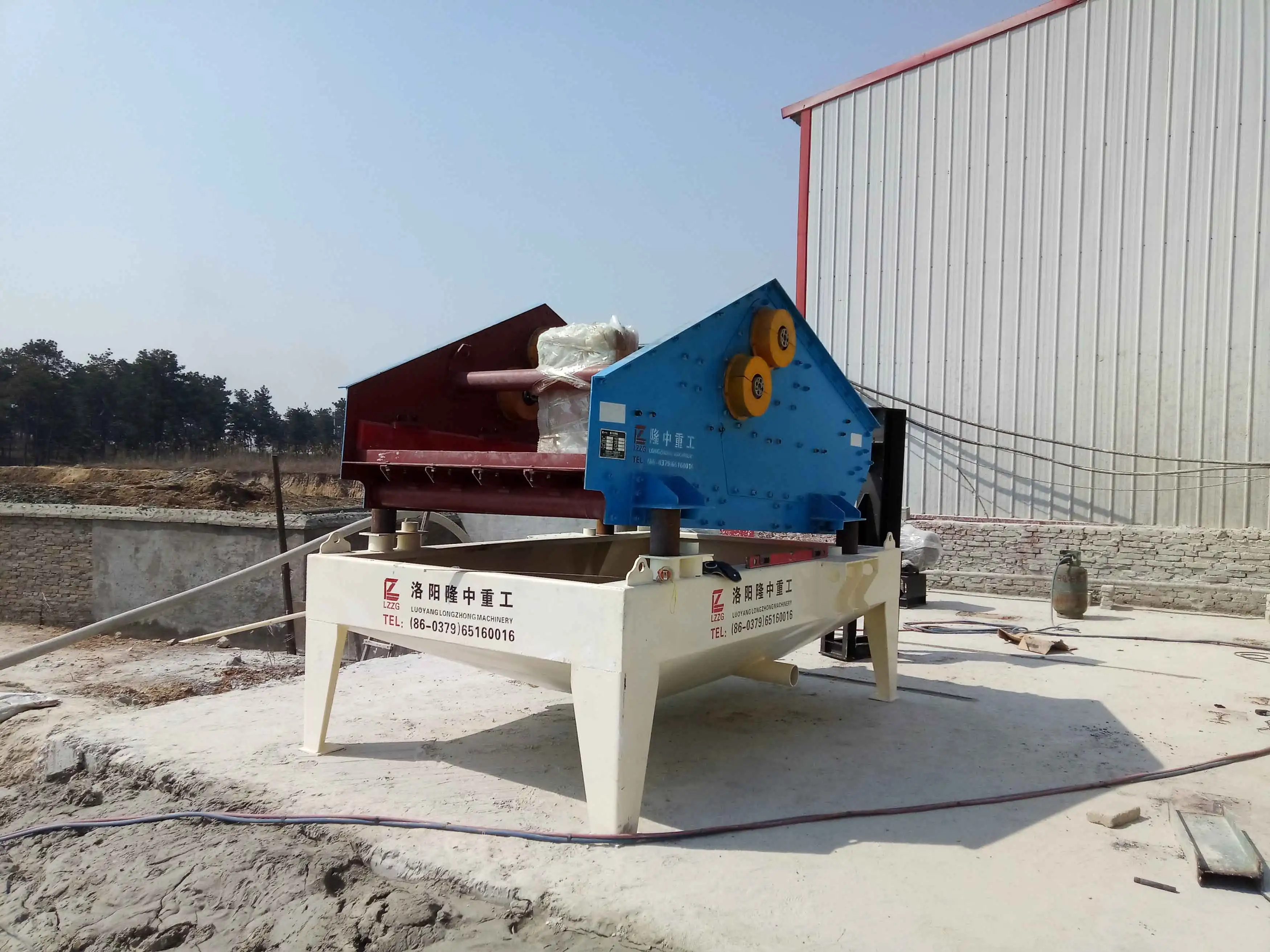

Working Site
Features & Benefits
TS Dewatering screen
1. Advanced structure, light weight, high dehydrating ratio with new type vibrating motors.
2. Simple structure, easy maintenance.
3. Cross beam and screen body connect with high strength bolts, no welding and easy to remove and maintenance.
4. Polyurethane screen (PU)panels with high screening ratio, big capacity,long service life and no blocking.
5. Widely used, less replacement parts.
2. Simple structure, easy maintenance.
3. Cross beam and screen body connect with high strength bolts, no welding and easy to remove and maintenance.
4. Polyurethane screen (PU)panels with high screening ratio, big capacity,long service life and no blocking.
5. Widely used, less replacement parts.
ZSD Dewatering screen
1.Effectively separate several different size particles.
2.Water content of final products as low as 12%-15%.
3.Torsional shear type high strength bolts are used between side plates and beam.
4.Polyurethane screen with better elasticity and less blocks. The PU side push plates protect the equipment from the rushing
material and guard the long life of the whole device.
2.Water content of final products as low as 12%-15%.
3.Torsional shear type high strength bolts are used between side plates and beam.
4.Polyurethane screen with better elasticity and less blocks. The PU side push plates protect the equipment from the rushing
material and guard the long life of the whole device.
Packing & Delivery
Company Profile
LZZG has a proud history of serving the sandstone and aggregates equipment industries since 2010. We provide a wide range of rugged and reliable washing, screening, dewatering, recycling & waste management equipment along with all kinds of mobile, fixed, and compact sand plants. We aims to improve our equipment quality, designs and solutions with the latest technologies. We strive to utilize our experience help our customers be more efficient and profitable.
Certifications
Exhibition
Our Service
Pre-sale Service:
1. Choice of model
2. Designing and manufacturing product according to customer's special requirement
3. Company will arrange engineer to customer's site,designing site and discussing project
On service:
1. Product inspection
2. Help customer to formulate the construction plan
After-sale Service:
1. Assign special after sale service team to site guiding customer to install and adjust machines
2. Training operator on site
1. Choice of model
2. Designing and manufacturing product according to customer's special requirement
3. Company will arrange engineer to customer's site,designing site and discussing project
On service:
1. Product inspection
2. Help customer to formulate the construction plan
After-sale Service:
1. Assign special after sale service team to site guiding customer to install and adjust machines
2. Training operator on site
FAQ
1.Does your product in stock?
Yes,once you place the order,the delivery will be done within one week.
2.Can the machine parts be replaced?
Yes,You can get them directly from us in a low price, and we make sure the easy maintainence and replacement .
3.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every product before delivery.Please check our working site. If our quality is not good, i don't think we can sell so well.
4.Guaranteed?
Yes. If products'quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
5.How about price?
Yes, we are factory and be able to give you the lowest price than market one, and we have a policy that " for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity".
Yes,once you place the order,the delivery will be done within one week.
2.Can the machine parts be replaced?
Yes,You can get them directly from us in a low price, and we make sure the easy maintainence and replacement .
3.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every product before delivery.Please check our working site. If our quality is not good, i don't think we can sell so well.
4.Guaranteed?
Yes. If products'quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
5.How about price?
Yes, we are factory and be able to give you the lowest price than market one, and we have a policy that " for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity".
