PowMr Stacked 51.2V 100AH 200AH 300AH 400AH Lithium iron Phosphate Battery 20KWh Lithium iron LiFeP04 Battery
- Category: >>>
- Supplier: Shenzhen Hehe Jin Industrial Co. Ltd.
Share on (1601060303645):
Product Overview
Description
Product Description
POW-LIO51400-16S
Product Introduction

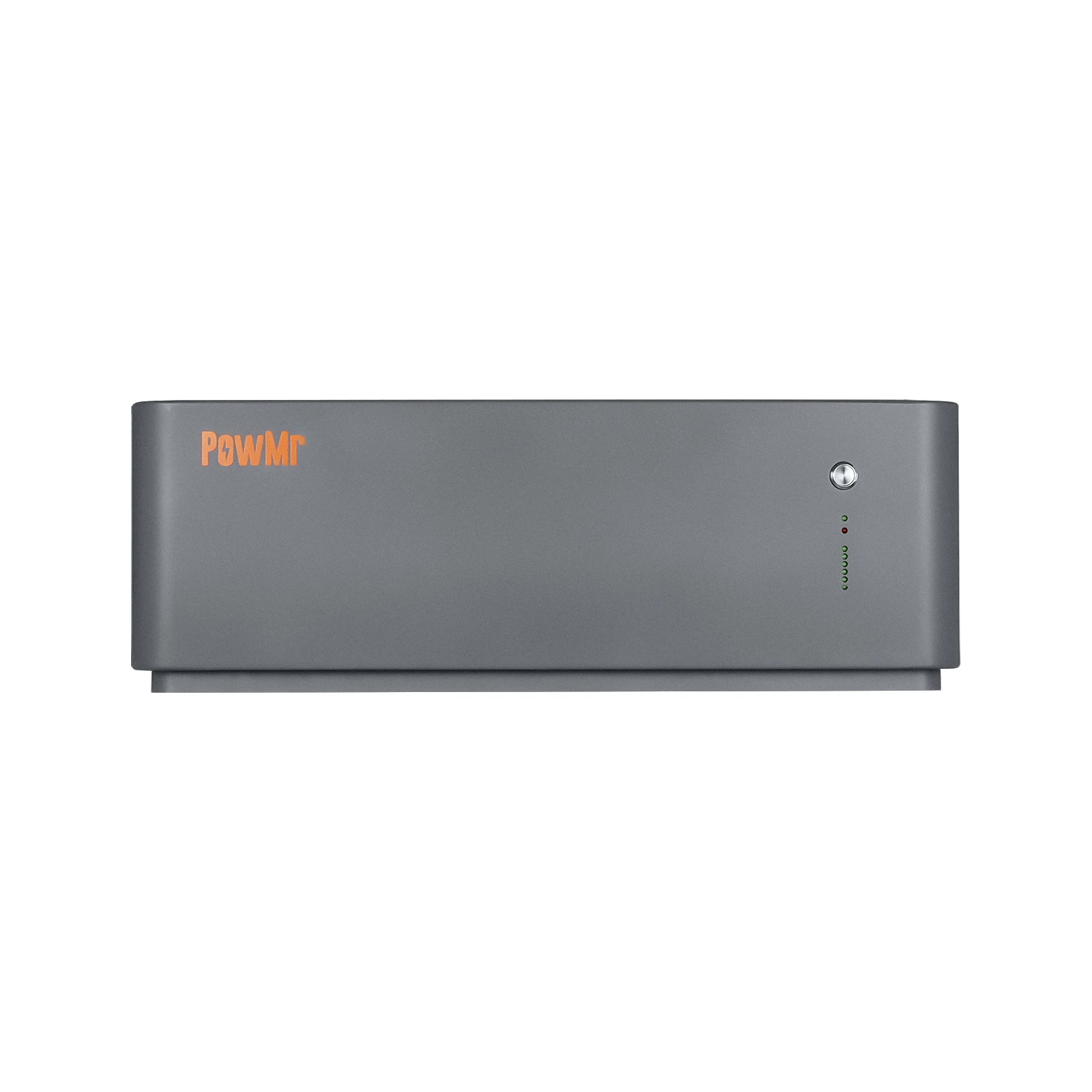

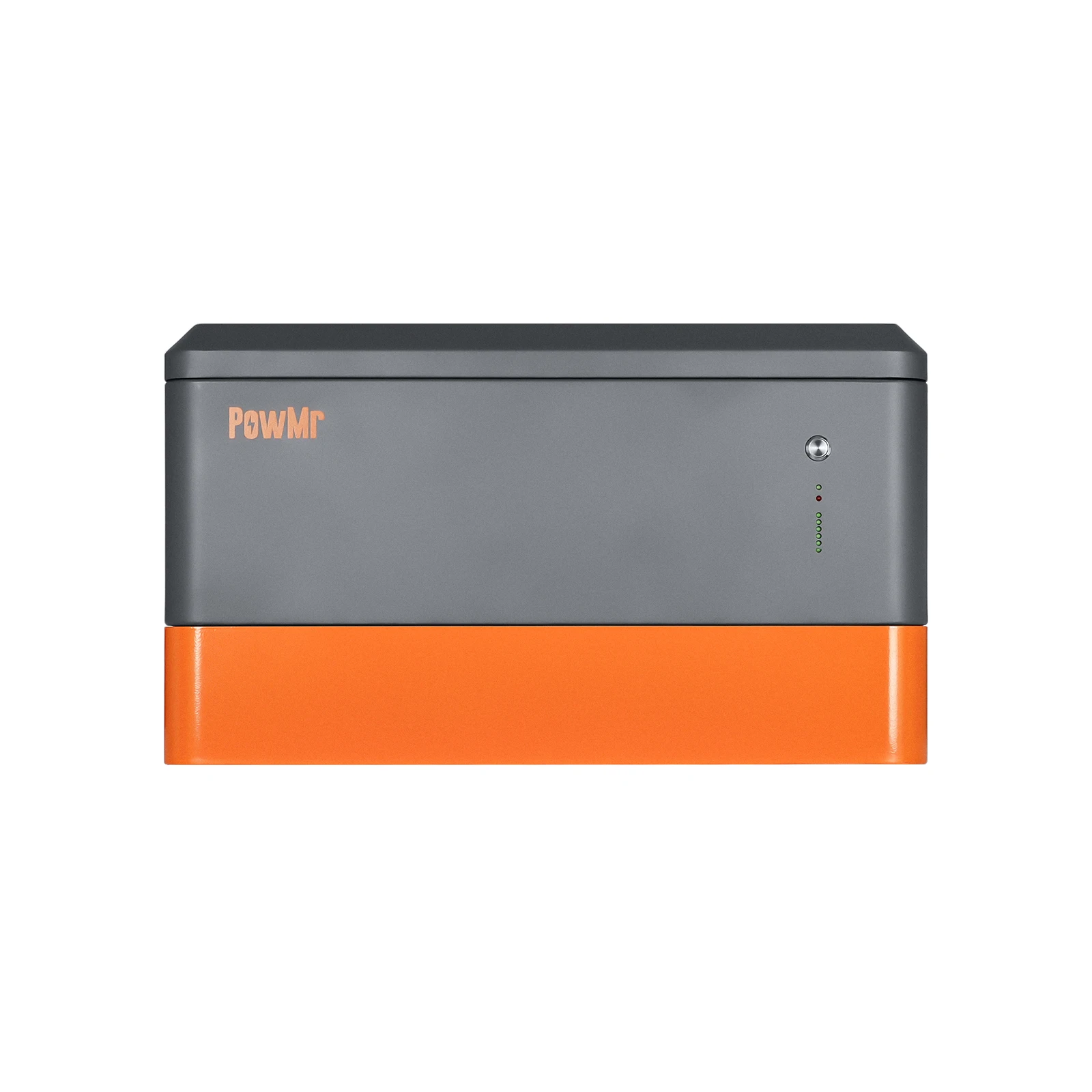

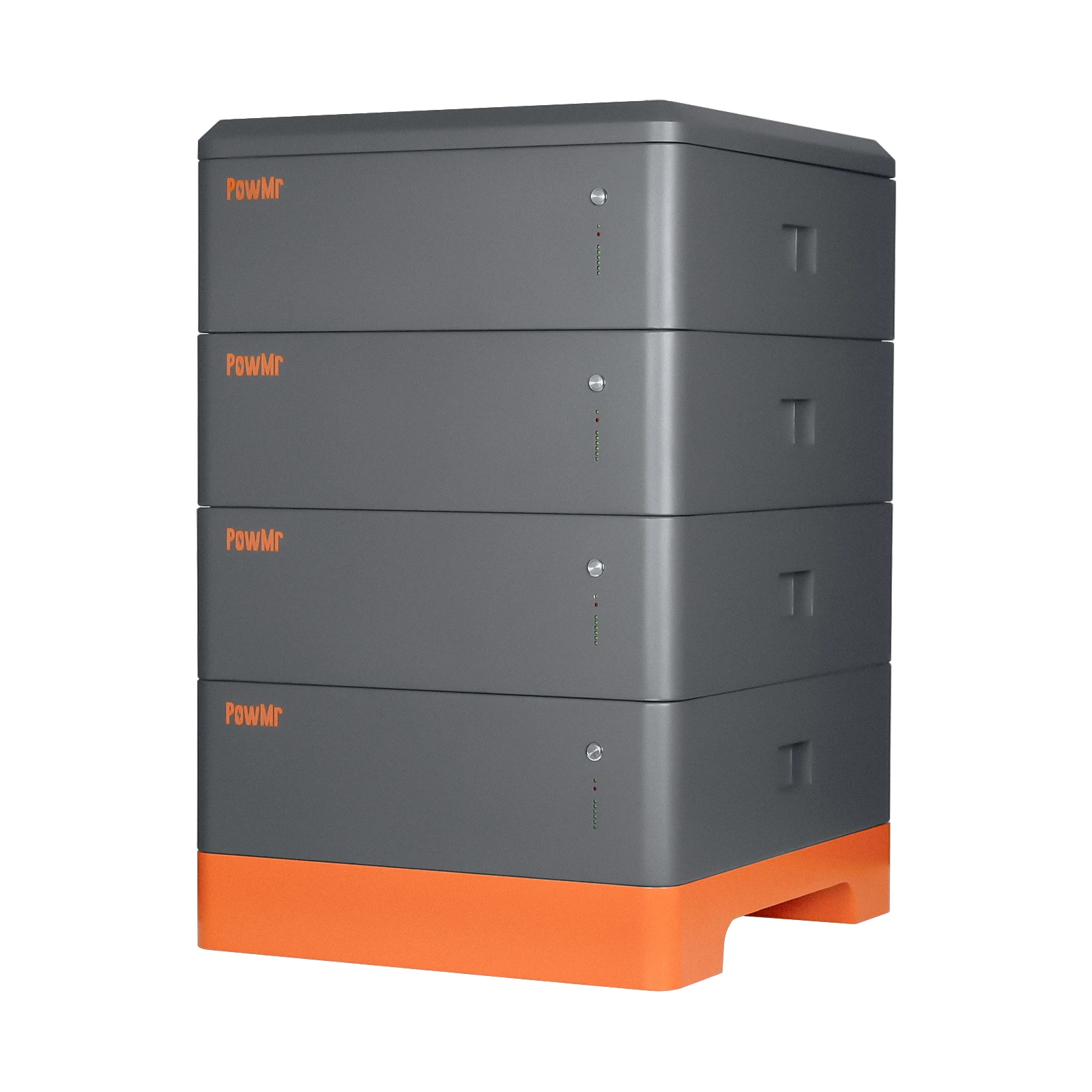

The POW-LIO household energy storage series lithium battery module integrates PowMr's high-capacity, high-safety lithium iron phosphate battery cells. It adopts a stacked design with advantages in footprint and vertical space utilization. The module incorporates a high-precision Battery Management System (BMS) unit, monitoring and collecting real-time data on voltage and temperature inside the module. This enables intelligent temperature control at the cell level and smart cell balancing, enhancing
system efficiency and battery cycle life. The module features a shock-resistant structure within a cold-rolled sheet metal shell for high safety and reliability, meeting household standards. Additionally, the module is designed for high stability and disturbance resistance, ensuring the safe and reliable operation of the battery system.
system efficiency and battery cycle life. The module features a shock-resistant structure within a cold-rolled sheet metal shell for high safety and reliability, meeting household standards. Additionally, the module is designed for high stability and disturbance resistance, ensuring the safe and reliable operation of the battery system.
Product Advantages
※ The POW-LIO51 residential energy storage series is a battery module developed by PowMr Energy designed for low-voltage lithium battery systems, primarily applied in the home energy storage sector. It achieves high-precision multi-cell voltage and temperature acquisition.
※ The module employs passive balancing, with a maximum balancing current of 300mA, enhancing the overall lifespan of the battery pack.
※ The communication interfaces include CAN, RS485, and dry contact communication methods, enabling parallel communication for up to 16 batteries.
※ Featuring an embedded BMS system, it effectively monitors battery over-temperature, over-voltage, over-current, and other conditions, reducing the risk of battery damage or even fire, thereby ensuring personal and property safety.
※ The module employs passive balancing, with a maximum balancing current of 300mA, enhancing the overall lifespan of the battery pack.
※ The communication interfaces include CAN, RS485, and dry contact communication methods, enabling parallel communication for up to 16 batteries.
※ Featuring an embedded BMS system, it effectively monitors battery over-temperature, over-voltage, over-current, and other conditions, reducing the risk of battery damage or even fire, thereby ensuring personal and property safety.
Specification
Battery Model | POW-LIO51400-16S |
Constant Voltage Charging Voltage | 56.8V |
Float Charging Voltage | 56V |
Max. Discharge Cutoff Voltage | 43.2V |
Recommended Discharge Cutoff Voltage | 46.4V |
Max. Charging Current | 100A |
Recommended Charging Current | 20A |
Max. Discharge Current | 100A |
Recommended Discharge Current | 50A |
Max. Parallel Connection of Batteries | 16 |
Communication Interface | RS232/RS485/CAN |
Cycle Life | ≥6000 Times @80%DOD, 25°C |
Operating Temp | Charging: 0~60°C; Discharging: -10°C~65°C |
Nominal Operation Altitude | ＜3000m |
Recommended Operation Environment | Indoor |
Single Battery Dimensions (LxWxH) | 635x500x155mm |
Top Cover Dimensions (LxWxH) | 635x500x80mm |
Base Dimensions (LxWxH) | 635x500x100mm |
Single Battery Net Weight | 47kg |
Top Cover Net Weight | 8kg |
Base Net Weight | 10kg |
