GT DMTG VMC650 5 Axis CNC Milling Machine For Metal Manufacturer 5 Axis Machining Center VMC Center Centro Deusinagens 5 Eixos
- Category: >>>
- Supplier: General Technology Group Dalian Machine Tool Import & Export Co. Ltd.
Share on (1601060322381):
Product Overview
Description
VR
PRODUCT DETAILS

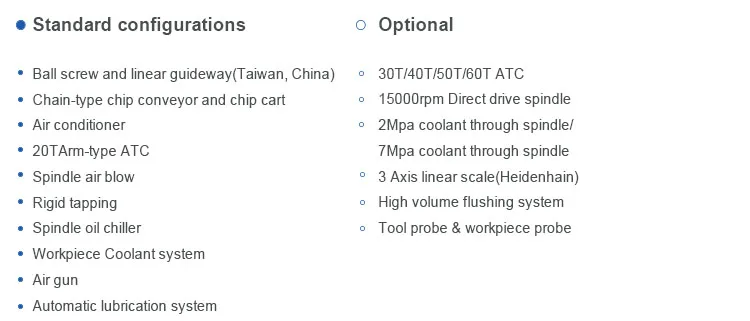

Standard Configurations
1.Ball screw and linear guideway(Taiwan, China
2.Chain-type chip conveyor and chip cart
3.Air conditioner
4.20TArm-type ATC
4.20TArm-type ATC
5.Spindle air blow
6.Rigid tapping
7.Spindle oil chiller
8.Workpiece Coolant system
9.Air gun
10.Automatic lubrication system
Specification | Unit | VDU650 |
Work table size | mm | Φ650 |
Max.load | Kg | 600 |
Clamping area | mm | Φ800X500 |
T-slots (numbers*width* centre distance) | 5X18X45° | |

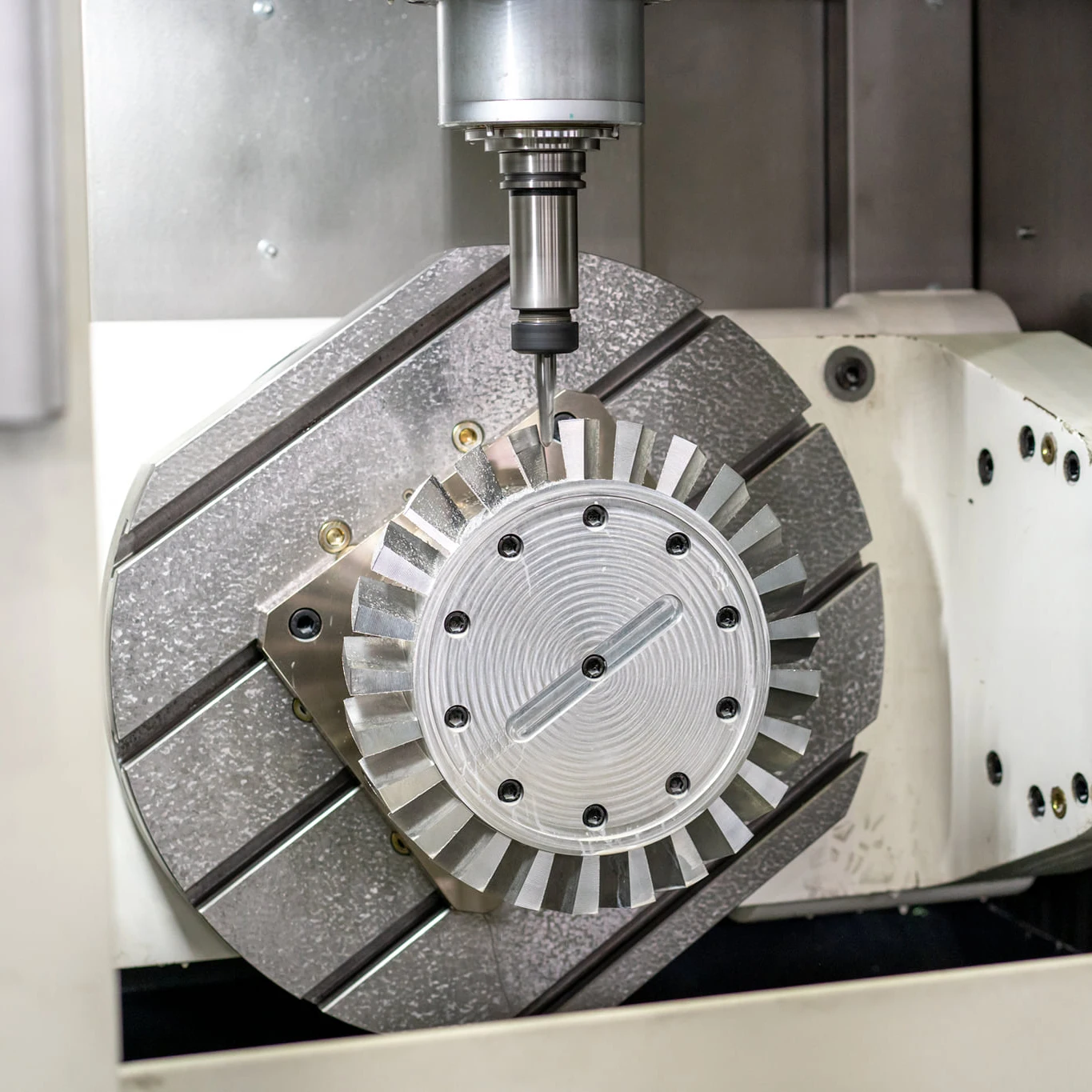

Table indexing (A axis x C axis) | 士130°X360° | |
Rotating speed(A/C axis) | rpm | 15/30 |
X/Y/Z axis travel | mm | 650/650/500 |
X/Y/Z axis guideway type | Linear roller guideway | |
Distance from spindle nose to table | mm | 150 ~ 650 |
X/Y/Z axis rapid traverse | m/min | 45/45/45(OP:60/60/60) |
Max. Cutting feedrate | m/min | 30 |
Spindle type | Direct drive spindle | |
Spindle motor power | kw | 8 |
Spindle motor torque | N.m | 44 |
Max. spindle speed | rpm | 12000(Opt:15000) |
Tool magazine capacity | 20T Spindle direct take type Opt:30T/40T/50T/60T | |
Tool shank type | HSK-A63 | |
Max.tool weight | kg | 8 |
Maxtool diameter(w/o adjacent tools) | mm | Φ76 (Φ125) |
Maxtool length | mm | 300 |
X/Y/Z axis positioning accuracy | mm | 0.008 |
XY/Z axis repeatability accuracy | mm | 0.005 |
A/C axis positioning accuracy | inch | 10"(A)、8"(C) |
A/C axis repeatability accuracy | inch | 4"(A)、3"(C) |

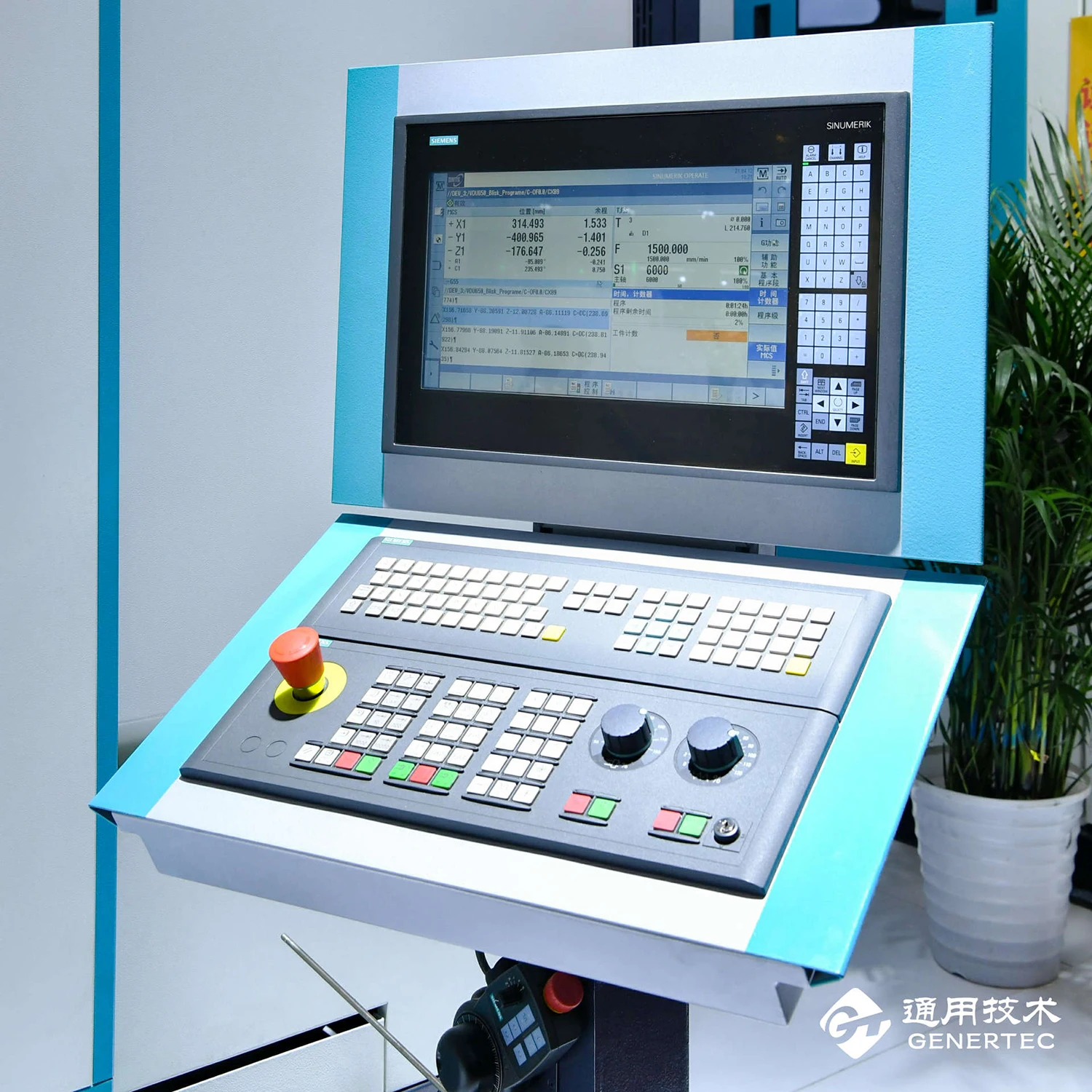

CNC controller | SIEMENS ONE | |

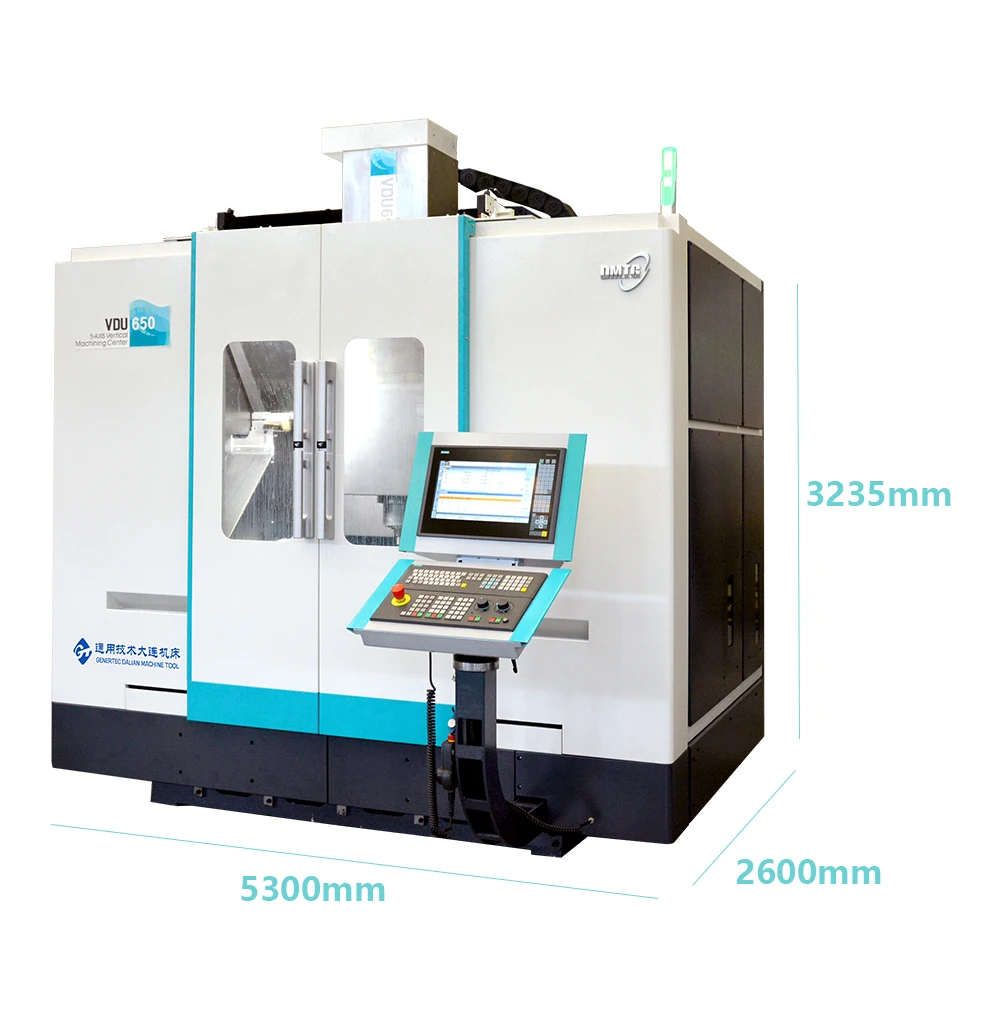

Machine dimensions(L×W×H) | mm | 5300×2600×3235 |
Machine weight | kg | 15000 |
COMPANY PROFILE
After-Sales Service

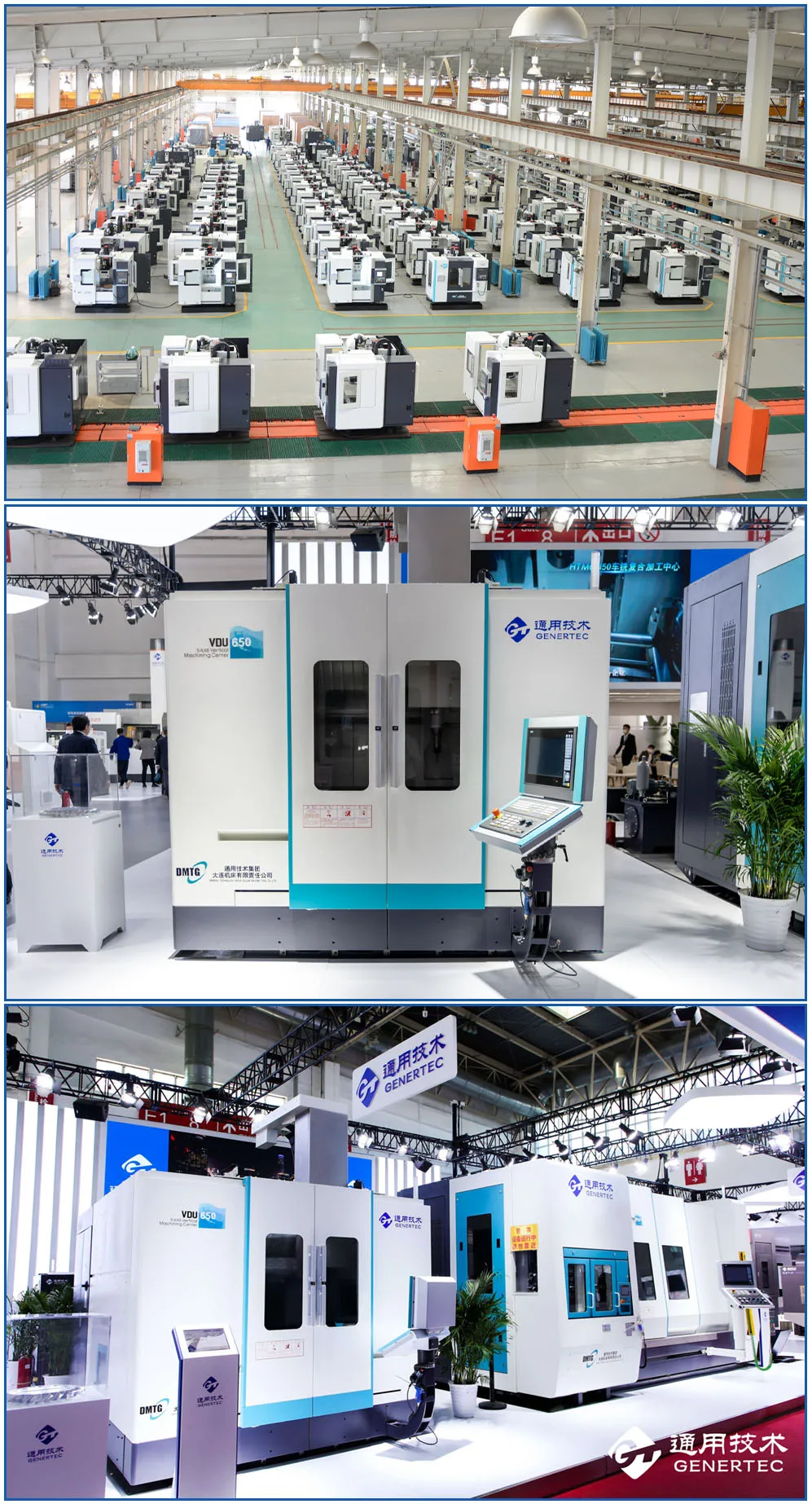

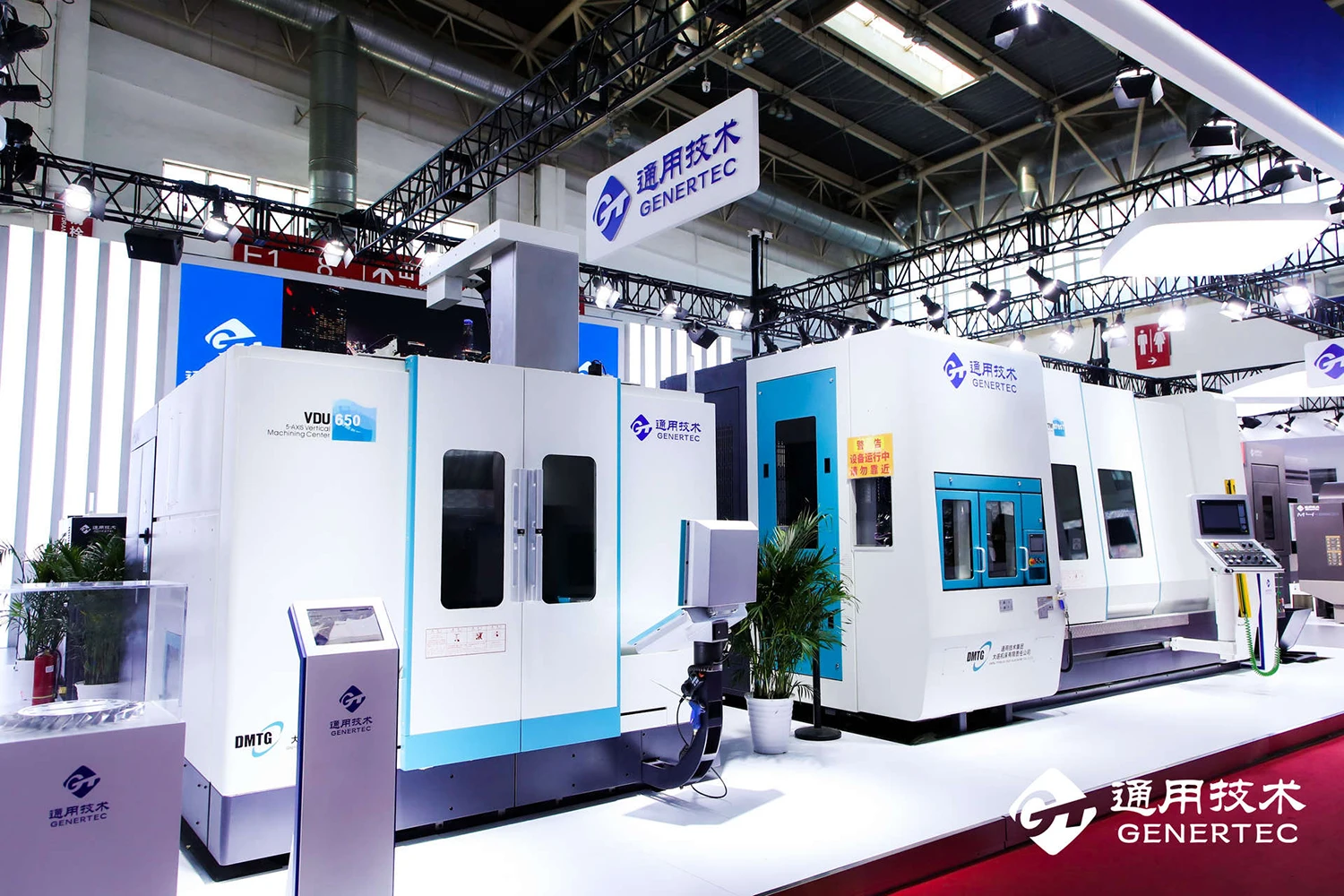

EXHIBITION
CUSTOMER

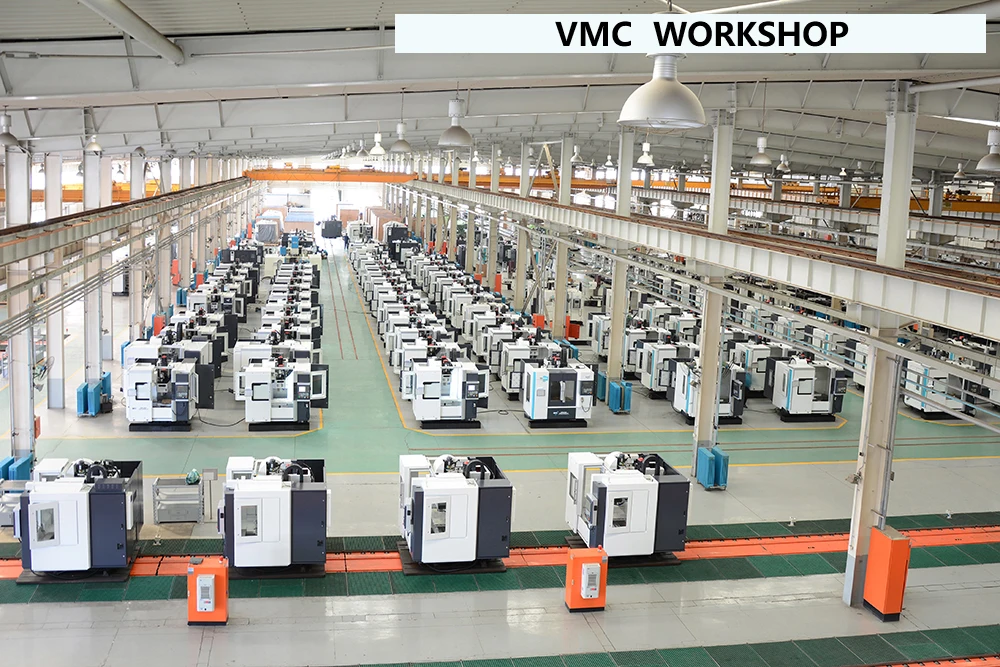

DMTG’s main products are: Conventional lathes, Flat and slant Bed CNC Lathes, Vertical Milling Machines, Vertical Machining Center 5-axis Vertical Machining Centers, Horizontal Machining Centers, Gantry Machining Centers and Automatic lines, etc.
General Technology Group Dalian Machine Tool Co., Ltd. belongs to the central enterprise China General Technology Group, formerly known as DMTG, which was established in 1935. In 1995, the major state-owned machine tool enterprises in Dalian were merged together to be DMTG. Since 2002, it has successively merged three famous machine tool factories, which were Ingersoll Production Systems, Ingersoll CM System from America, and Zimmermann in Germany. Also established eight joint ventures with the company from America, Germany, Japan, Switzerland, Israel, South Korea and other countries. In April. 2019, China General Technology Group strategically reorganized DMTG and established General Technology Group Dalian Machine Tool Co., Ltd.
PACKING&SHIPPING
CERTIFICATIONS
FAQ
1. Is your company a factory or trading company ? |
We are factory and DMTG was founded in 1935. |
2. Can we pay by L/C or others ？ |
Yes ,you can make the payment by T/T , l/C etc. |
3. What is your payment terms ? |
30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation. |
4. What is your delivery time ? |
The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not. |
5. Do you have CE certificate? |
Yes , we have CE certification, machine quality is guaranteed. |
6. What is the warranty period ? |
The warranty period is general 13 monthes after B/L date. During the warranty period, we will provide free replacement parts (EXW) which are easy damaged. |
7. Can you send the service engineer to our company ? |
When the machine arrive the destination, we timely send service engineers to install machine according to buyer's schedule, the buyer shall bear all expenses. |
