Zunsia Z3.5 inch Embedded Industrial Motherboard 2LAN Intel 12th 13th Gen I3 I5 I7 6COM 2*DDR5 64GB SSD X86 Computer Mainboard
- Category: >>>
- Supplier: Shenzhen Zunsia Intelligent Technology Co. Ltd.
Share on (1601060383370):
Product Overview
Description
Products Description

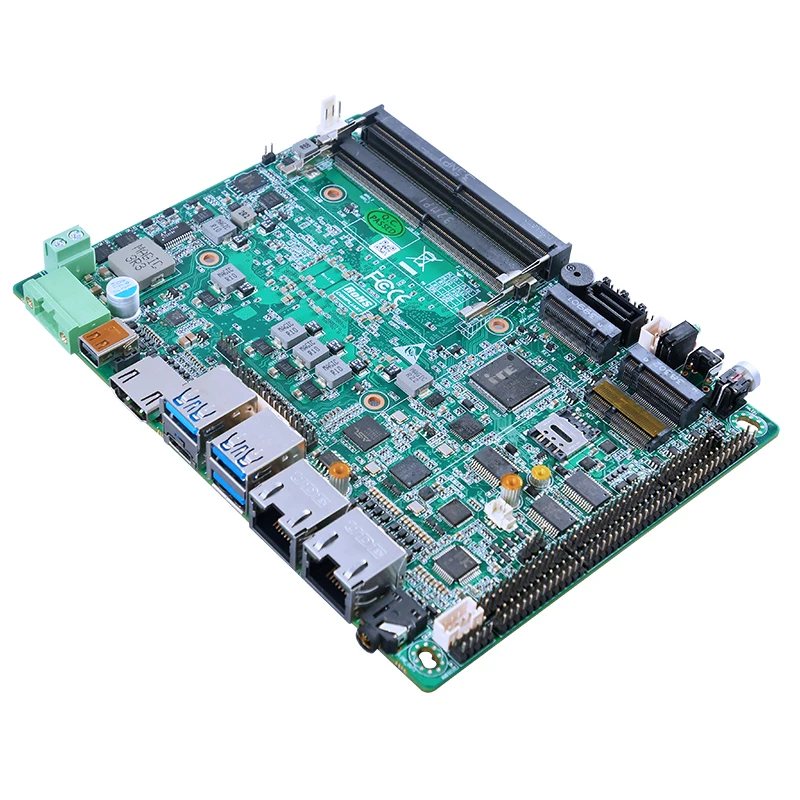

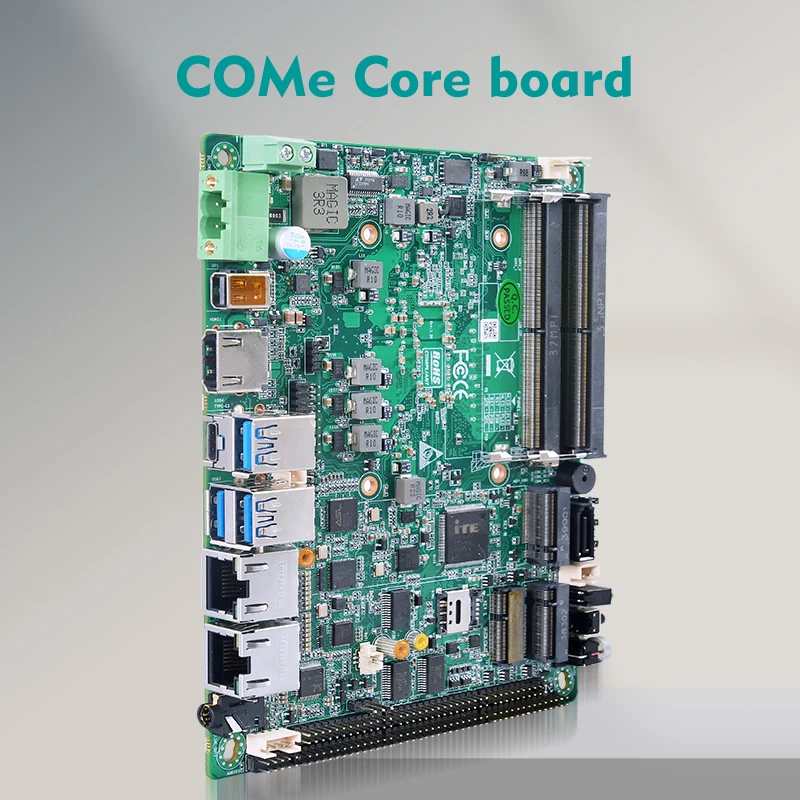

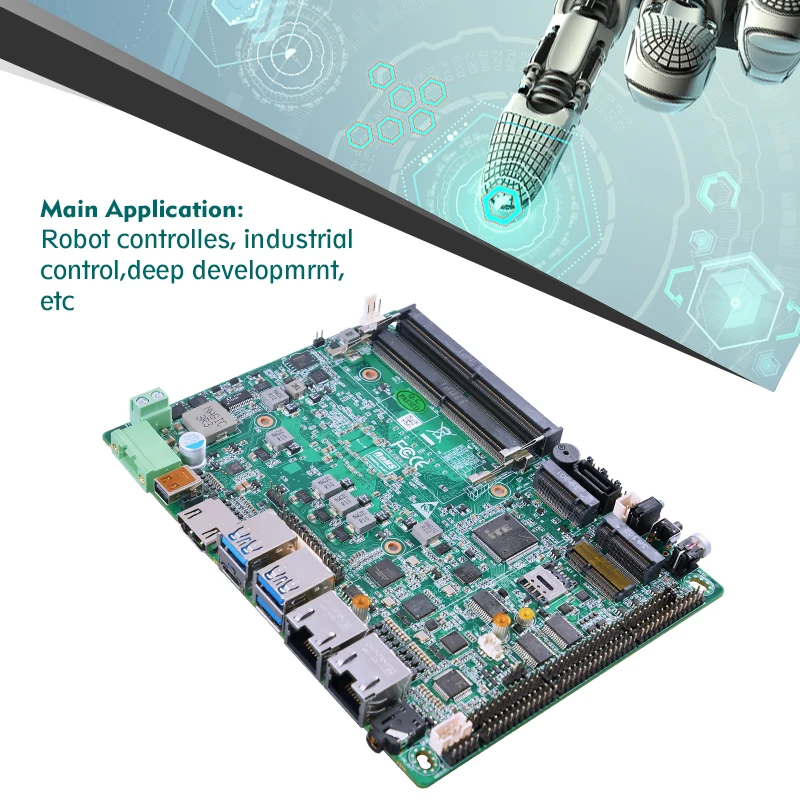

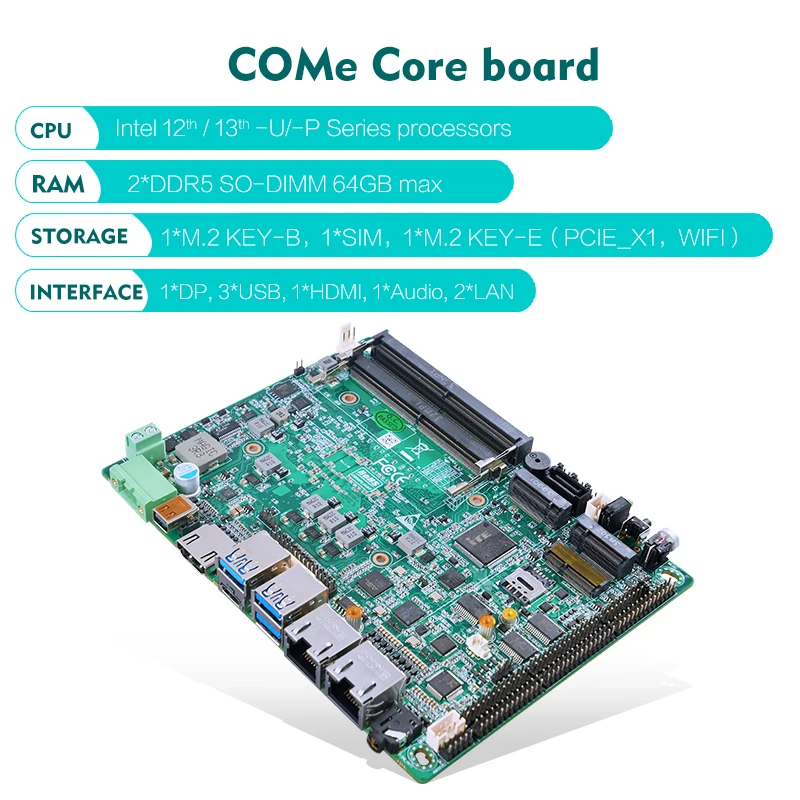

Zunsia Z-3.5 inch Motherboard
Features:
◆Intel 12th generation Alder Lake -U/-P series processors
◆2 DDR5 SO-DIMM, maximum 64GB
◆TPM2.0 optional, 1TPYE-C (supports 4K display), 1DP, 1HDMI,1EDP/LVDS pick one of two/3M.2 (SSD/WIFI/4G/5G)
◆2LAN/6COM/8USB/8GPIO/1CAN
◆DC9-36V wide voltage
◆155x117mm
◆Intel 12th generation Alder Lake -U/-P series processors
◆2 DDR5 SO-DIMM, maximum 64GB
◆TPM2.0 optional, 1TPYE-C (supports 4K display), 1DP, 1HDMI,1EDP/LVDS pick one of two/3M.2 (SSD/WIFI/4G/5G)
◆2LAN/6COM/8USB/8GPIO/1CAN
◆DC9-36V wide voltage
◆155x117mm
processor | Intel 12 generation Alder Lake -U/-P series processors |
EFI BIOS | |
Memory | 2 DDR5 SO-DIMM, maximum 64GB |
Display | 1xHDMI1.4；1x24-bit LVDS (choose one from LVDS/EDP)；1xMiniDP1.4;USB TPYE-C 4K |

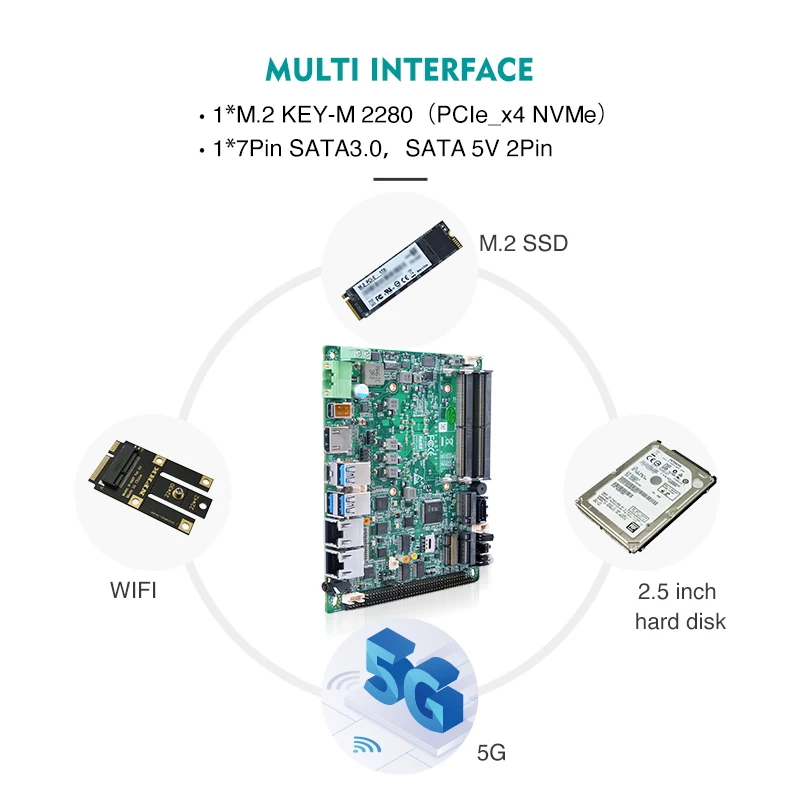

Storage | 1xM.2 KEY-M 2280（PCIe_x4 NVMe） |
1x7Pin SATA3.0，SATA Power 5V 2Pin | |
Board edge I/O interface | 1xPhoenix terminal，1xMiniDP，1xHDMI1.4，3xUSB3，2xRJ45 port（1xi226-LM，support AMT），1x2-in-1 audio,USB TPYE-C 4K |
Front panel:POWER LED，HDD LED，reset button, power on button | |
Extended interface/function | 1xTPM2.0(Chip optional, not included by default) |
1xM.2 KEY-B（PCIe+USB3.0，4G/5G module），1xSIM card slot | |
1xM.2 KEY-E（PCIE_X1，WIFI module） | |
1x CAN port 2x3PIN，spacing 2.0 | |
6xCOM pin，2x5Pin，spacing2.0（1xRS485/RS422，3xRS485/RS232，2xRS232） | |
1xSPK 1x4 spacing1.25 | |
1xCL_CMOS 1x2Pin spacing 2.0 | |
2xUSB2.0 pin，2x5Pin，spacing2.0 | |
1xCPU Smart FAN，4Pin；1 system fan, 3Pin pitch 2.54 | |
1x F_Panel，2x5Pin，spacing 2.0mm | |
1xLPTPrint port pin layout，2x13Pin，spacing2.0 | |
1 8-bit GPIO pin, 2x5Pin, pitch 2.0; 1 DEBUG pin, 2x5Pin, pitch 2.0; | |
1 PS/2, 2x4Pin, pitch 2.0; 1 SPDIF pin, 3Pin, pitch 2.54 | |
1 AT/ATX 1x2Pin pitch 2.0 | |
power supply | DC9-36V wide voltage |
working environment | Working temperature: -20℃ ~ +60℃; Working humidity: 0% ~ 90% relative humidity, no condensation |
Storage temperature: -40℃ ~ +85℃; Storage humidity: 0% ~ 90% relative humidity, no condensation | |
Operating system support | Windows10，windows11，Linux |

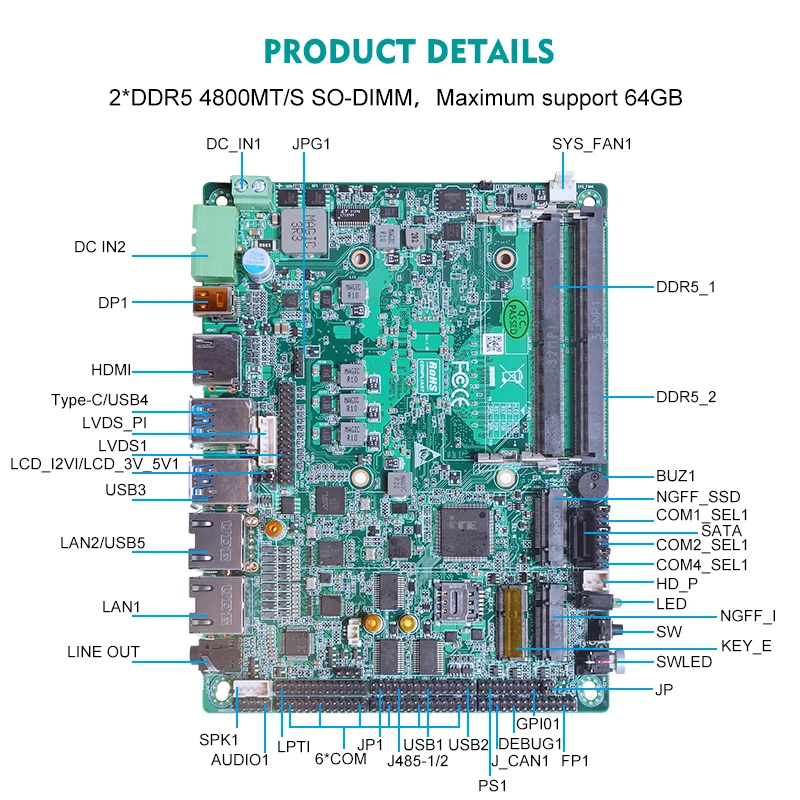

Details Images
