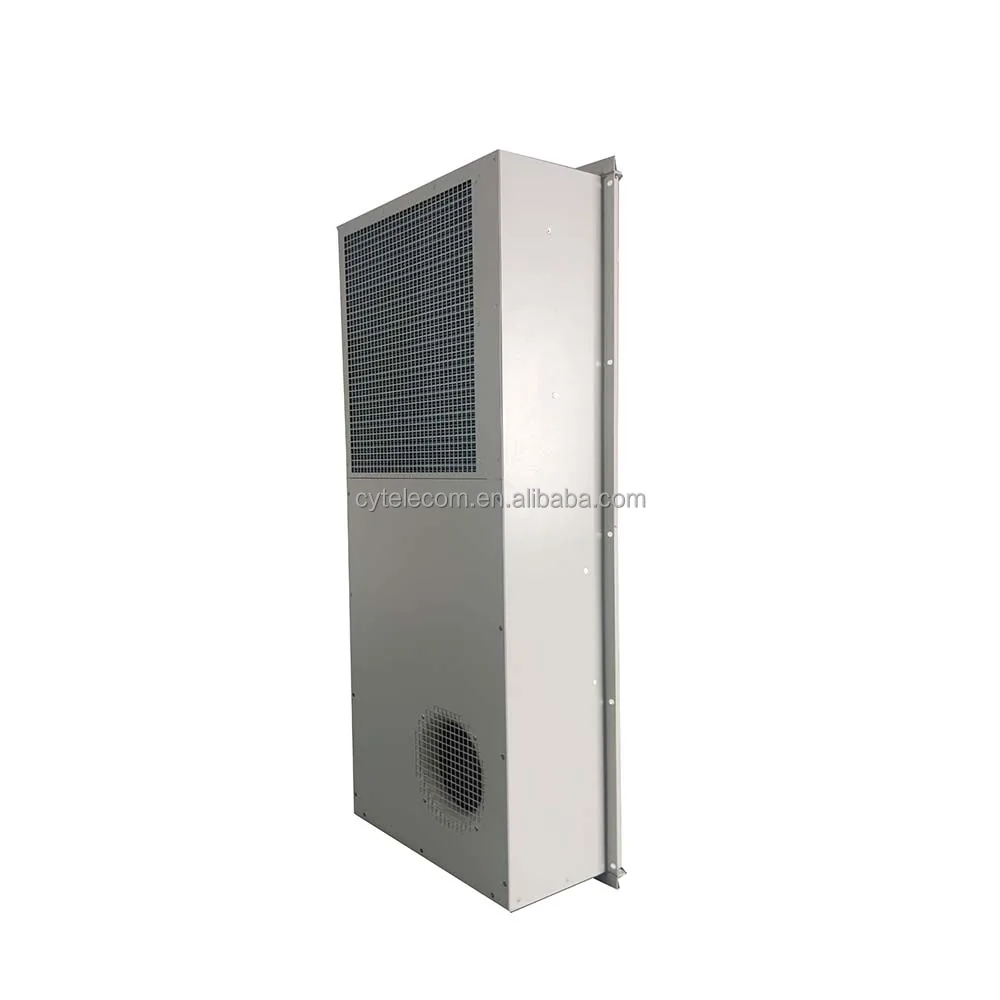

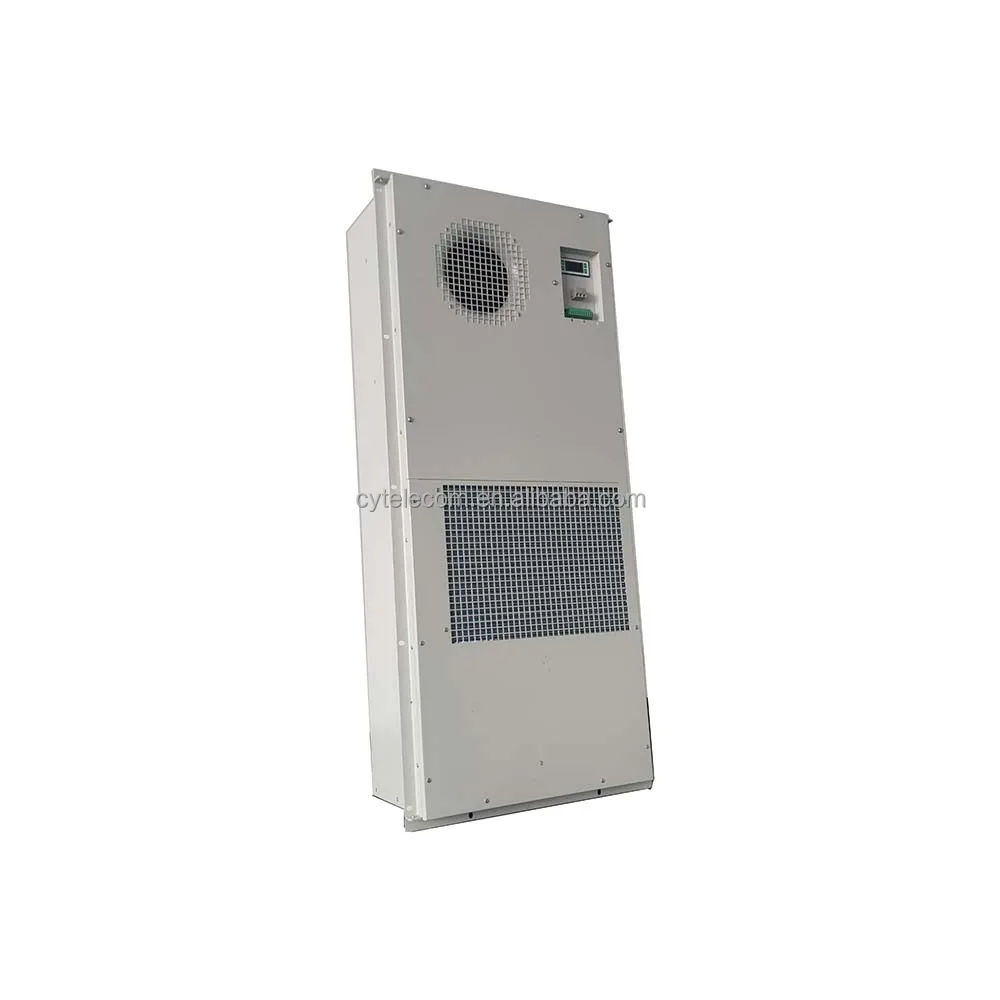

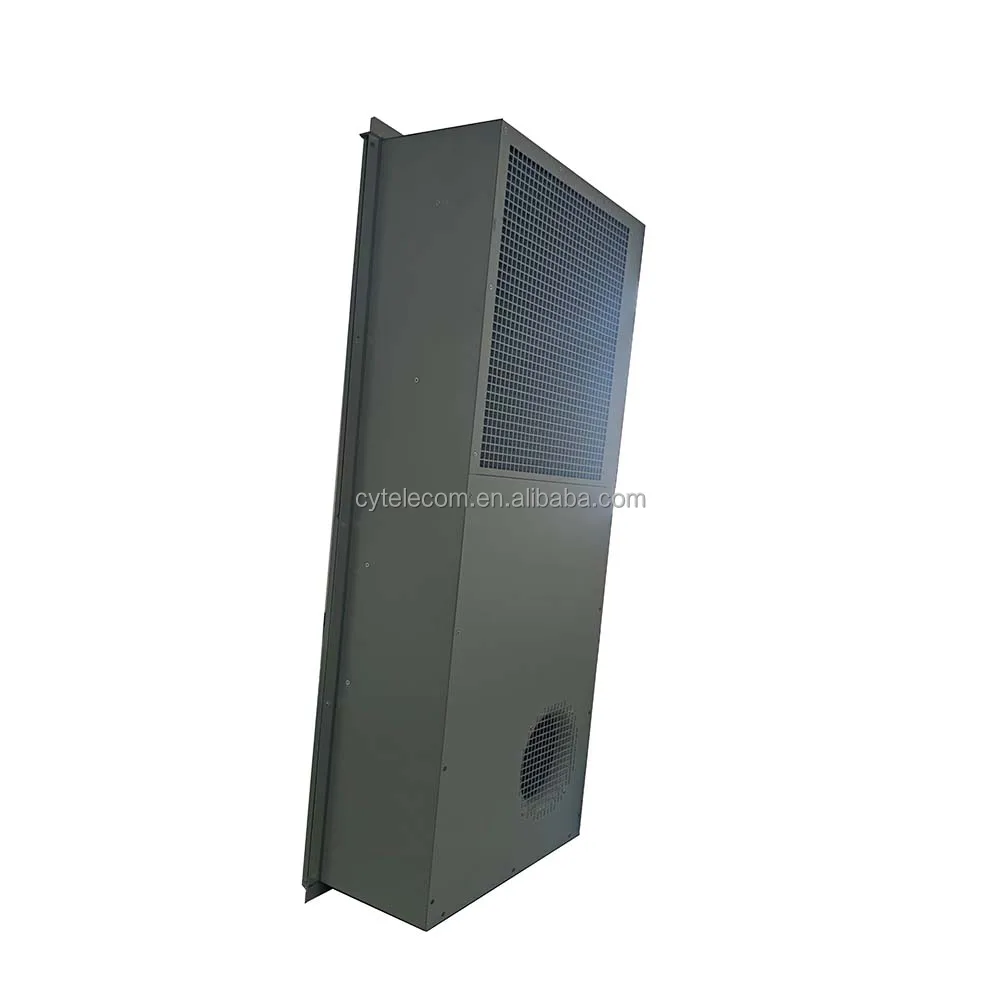

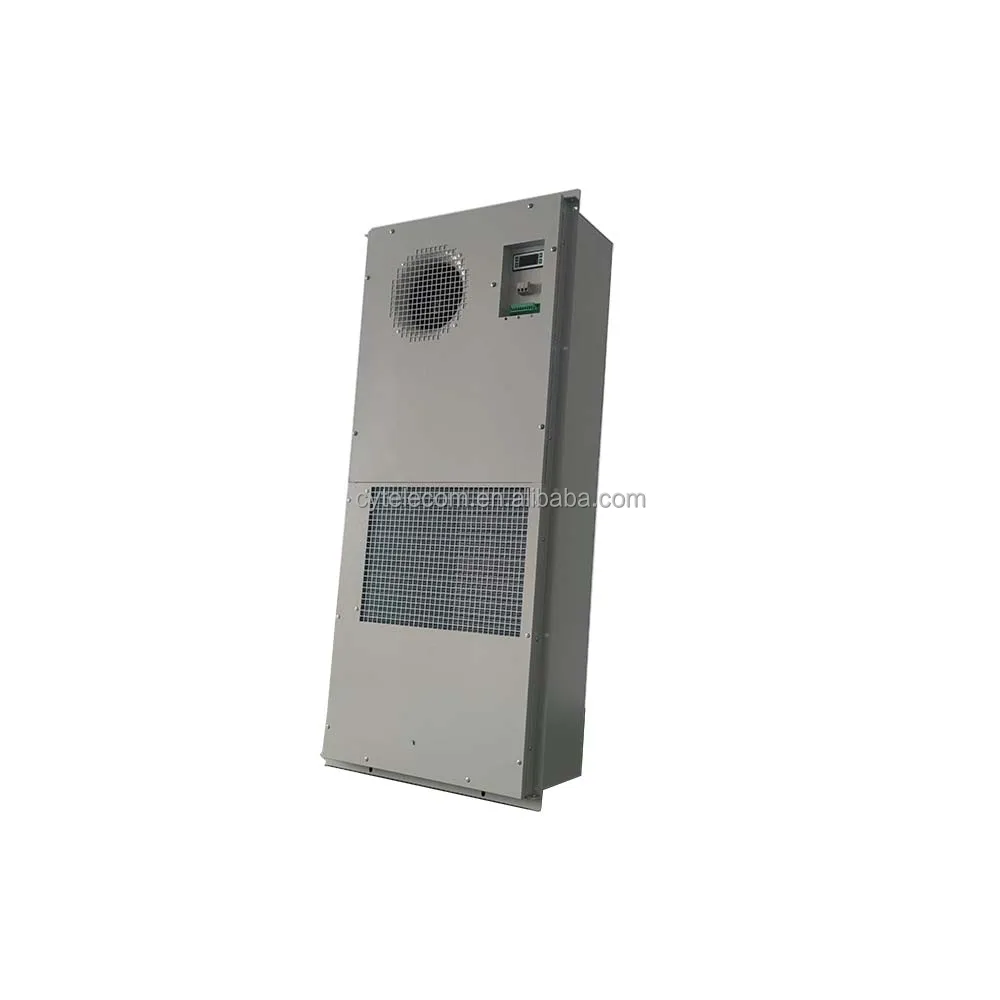

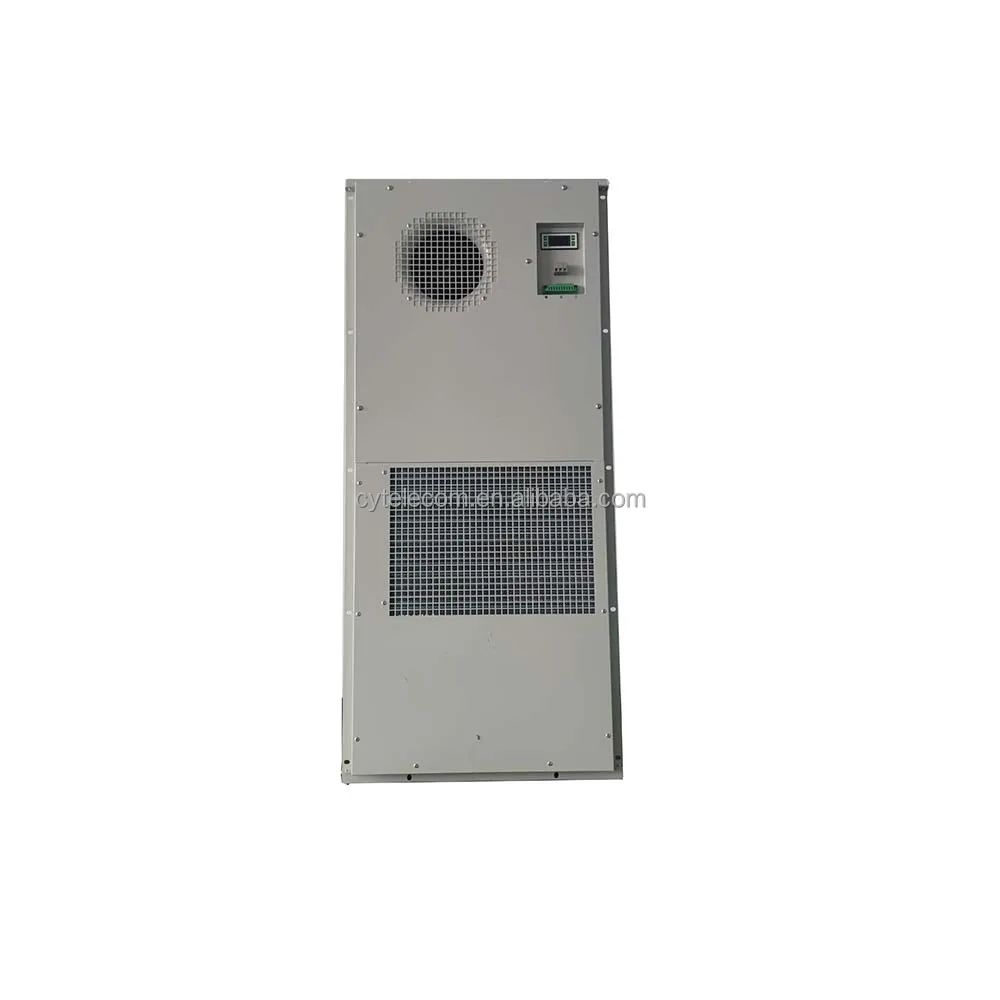

2500W CE AC power Industrial Air Conditioners Electric Telecom Cabinet Type Air Conditioner
- Category: >>>
- Supplier: Changzhou Chen Tong Yuan Communication Equipment Co. Ltd.
Share on (1601060413304):
Product Overview
Description
Product Description
1000W CE AC power Industrial Air Conditioners Electric Telecom Cabinet Type Air Conditioner
Electric cabinet air conditioner is actively cooling with compressor, and it will remove the heat inside the cabinet to outside. It also can keep the dust and heat outside the cabinet, avoiding problems from using fan. The inside cabinet can be maintained at an ideal temperature for electrical components which effectively guarantees the stability of the electronic equipment and improves the reliability of the whole system.
Product Feature
1. Electric cabinet air conditioners can be widely used for outdoor communication cabinets, battery cabinets, electric cabinets and industry control cabinets etc.
2. The protective level of internal and external circulation is IP55, which can protect cabinet to avoid moisture, dust, water. The air conditioner can also be indoor or outdoor installed.
3. Digital temperature controller and high precision of temperature control.
2. The protective level of internal and external circulation is IP55, which can protect cabinet to avoid moisture, dust, water. The air conditioner can also be indoor or outdoor installed.
3. Digital temperature controller and high precision of temperature control.
Product Paramenters
Name | Electric cabinet air conditioners |
Model | AC125-2/A25NA1E |
Mounting Method | Semi-embedded Mounting |
Power Supply | AC220V 50HZ |
Cooling capacity | 2500W@L35/35 |
Power capacity | 870W@L35/35 |
Cooling capacity | 1200W@L35/55 |
Power capacity | 1090W@L35/55 |
Max Noise Level | 65dB（A） |
IP Grade | IP55 |
Net Weight | 40kg |
Refrigerant | R134a |
Installation Instructions
Installation of electric cabinet air conditioner
•Please do not use electric cabinet air conditioner in hot、dusty、moist or corrosive environment. The ambient temperature should not be high than 55℃ and also should not be less than -40℃. The humidity should not be more than 85%. Starting voltage should not be higher or lower than 10% of the rated voltage. • Place the air conditioner on the cabin and screw the air conditioner on the edge of the cabinet.
•Make sure that the electric cabinet air conditioner drainage is smooth and that the pipe exposed outside the wall should not be raised or bent to avoid affecting the drainage.
•Make sure that the electric cabinet air conditioner drainage is smooth and that the pipe exposed outside the wall should not be raised or bent to avoid affecting the drainage.
•Do not upside-down, over-tilt and collision when handling or moving the electric cabinet air conditioner
•Installation and electrical wiring of the equipment must be operated strictly by professionals in accordance with the relevant provisions of this manual
•Installation and electrical wiring of the equipment must be operated strictly by professionals in accordance with the relevant provisions of this manual

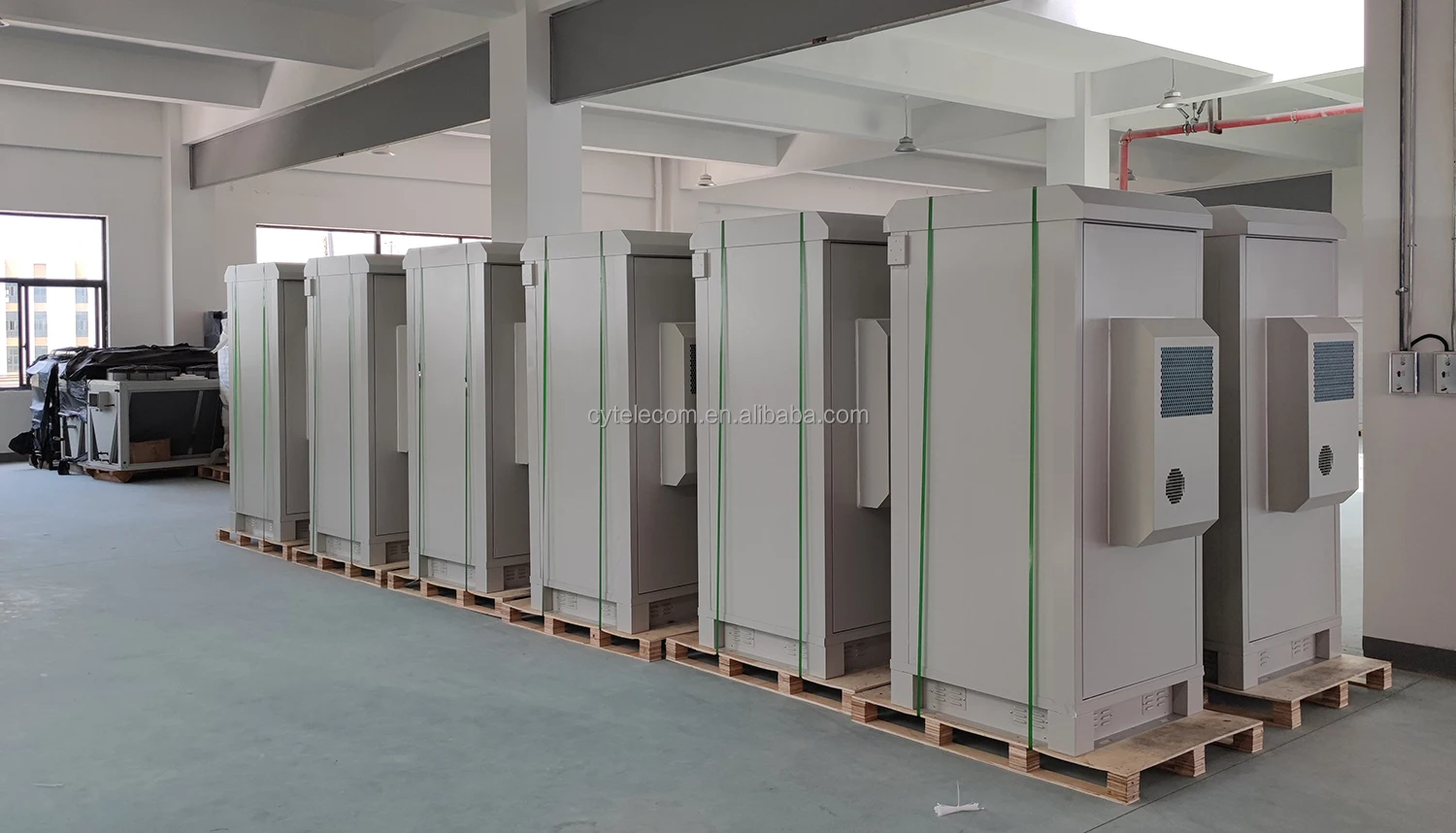

Outdoor Enclosure air conditioner Flexibility
Electric cabinet air conditioner cooling capacity ranges from 300w to 5000w;
Voltage range :AC220V 50HZ,AC220V 60HZ,60HZ , AC110V60HZ ,DC48V;
Widely used for outdoor telecom cabinets ,battery cabinets,elecric cabinets and industry control cabinets etc;
Remote monitoring system supported, communication protocol is RS485.
Voltage range :AC220V 50HZ,AC220V 60HZ,60HZ , AC110V60HZ ,DC48V;
Widely used for outdoor telecom cabinets ,battery cabinets,elecric cabinets and industry control cabinets etc;
Remote monitoring system supported, communication protocol is RS485.

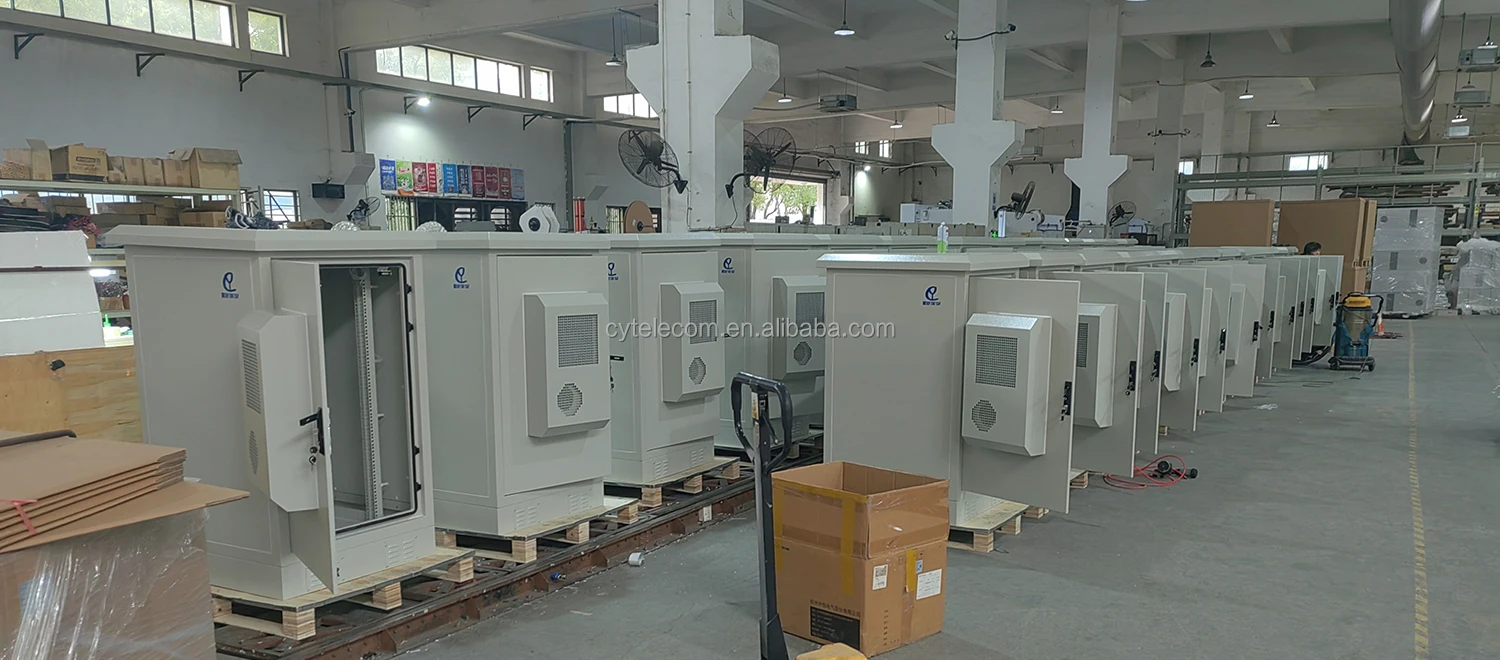

Company Profile

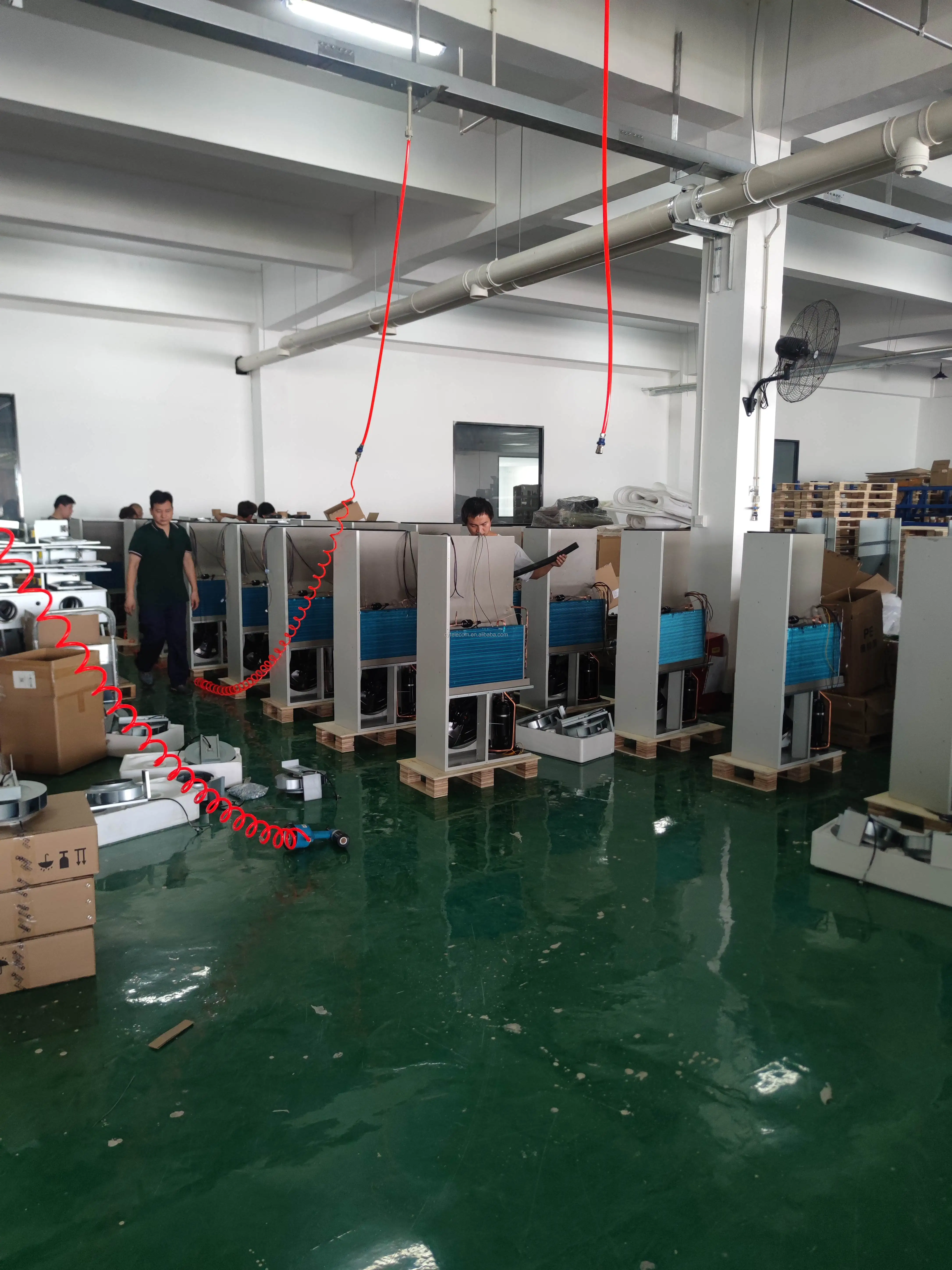

Chen Tong Yuan a high-tech enterprise integrating R & D, production and sales. The total area of the factory is 5000 square
meters, the total number of employees is about 200, and the annual output sales are nearly 100 million RMB. Since its
establishment, the company has been focusing on electric cabinet air conditioner, network cabinet 48v air conditioner, electric cabinet air conditioning, heat exchanger, Thermal energy equipment，embedded switching power supply, power environment monitoring system,distribution cabinet research and development, production and sales.
meters, the total number of employees is about 200, and the annual output sales are nearly 100 million RMB. Since its
establishment, the company has been focusing on electric cabinet air conditioner, network cabinet 48v air conditioner, electric cabinet air conditioning, heat exchanger, Thermal energy equipment，embedded switching power supply, power environment monitoring system,distribution cabinet research and development, production and sales.
Why Choose Us
Q1.Do you have any MOQ limit for electric cabinet air conditioner?
A: Low MOQ, 1pc for sample checking is available.
Q2.What is your payment terms?
A: Normally our payment term is 50% advanced by T/T, Balance before shipment.
Q3.Are your electric cabinet air conditioner can be customized?
A: Yes,We can customize products according to customer needs.
Q4.Do you offer guarantee ?
A: Yes,we offer 1 year warranty for our products. If any problem happen in warranty period, we will reply your technical questions in 24 hours, and remote video support is available.
Q5: Where the application of electric cabinet air conditioner?
A: Our products have been widely used in many industries, like data processing, indoor/outdoor telecommunications, base station,steel, metallurgy, petrification, cars and war industry etc.
A: Low MOQ, 1pc for sample checking is available.
Q2.What is your payment terms?
A: Normally our payment term is 50% advanced by T/T, Balance before shipment.
Q3.Are your electric cabinet air conditioner can be customized?
A: Yes,We can customize products according to customer needs.
Q4.Do you offer guarantee ?
A: Yes,we offer 1 year warranty for our products. If any problem happen in warranty period, we will reply your technical questions in 24 hours, and remote video support is available.
Q5: Where the application of electric cabinet air conditioner?
A: Our products have been widely used in many industries, like data processing, indoor/outdoor telecommunications, base station,steel, metallurgy, petrification, cars and war industry etc.
Welcome your inquiry for further discussion regarding on our electric cabinet air conditioner
