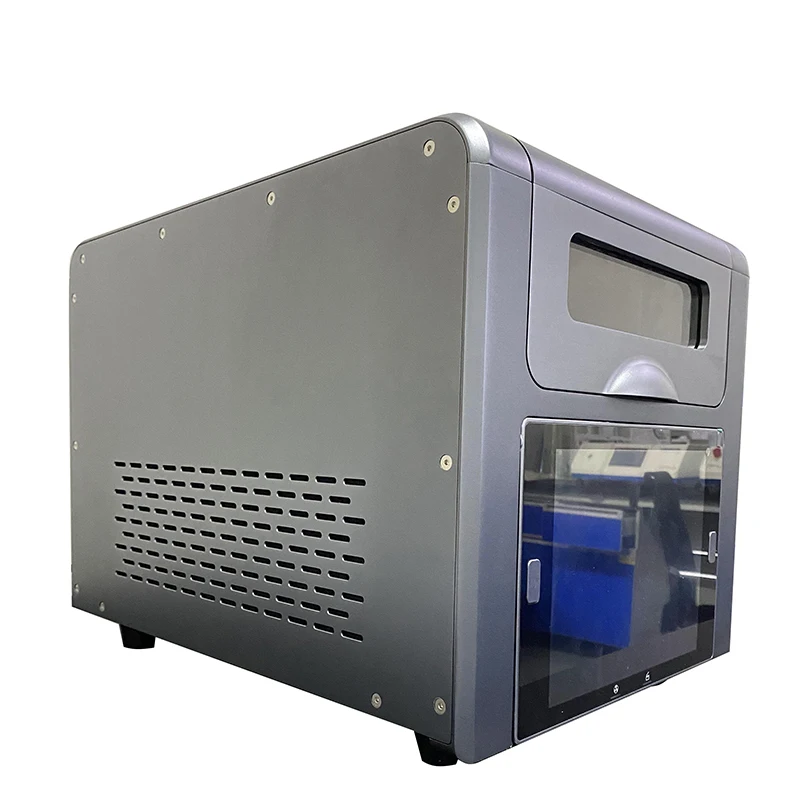

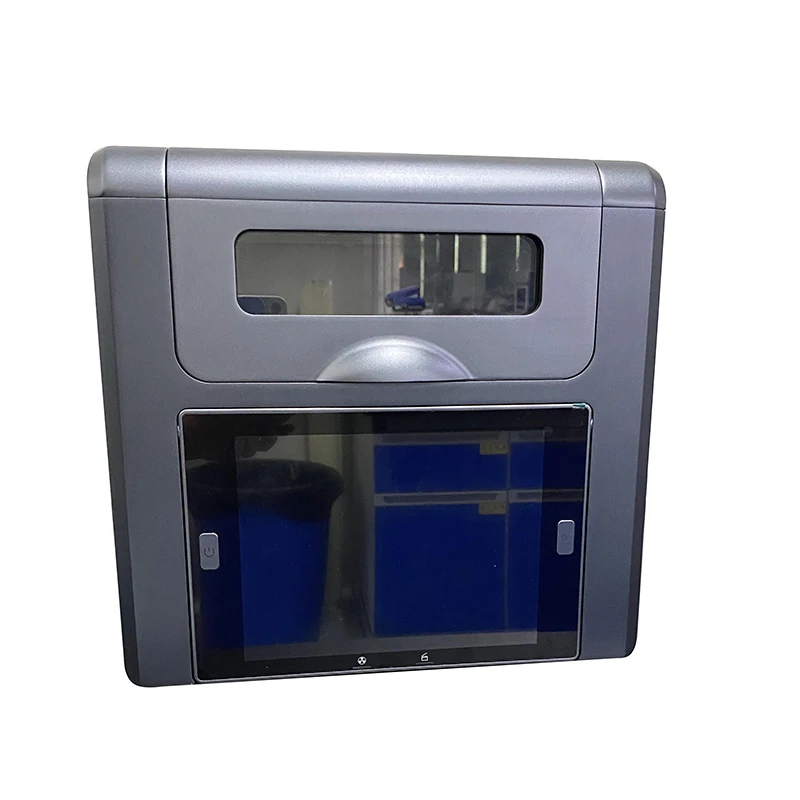

Silicon oil coating analyzer Instruments for quantitative optical analysis of elements

Uses:

Widely used in silicon oil coating industry product process and cost management. The product can not only analyze PET film, but also analysis of gelatine, film paper and kraft paper and other silicone coating amount. The product also supports the optional installation of multiple turntable, after loading the sample, can be tested 10 samples at a time. Fast detection speed, good stability and high accuracy.

Product function:

1,Detection accuracy: ±0.01g/m².

2,Test samples: PET release film/all kinds of release paper..

3,The whole A4 paper size samples directly tested, no cutting sampling.

4,A film or paper multi-point continuous test, high test efficiency.

5,Customized TCP/IP API interface to support module control, state monitoring and data collection

6,Support optional accessories: automatic turntable detection (10)

Product features:

Element detection range: Aluminum (No.13) ~ Titanium (No.22)

Analysis range: 0.01g/m²~50g/m²

Specification:

Detector: AMPTEK custom version Fast-SDD detector

Built-in industrial computer: NXP IMX8 quad-core A53 industrial computer

High voltage power supply: 50KV/1mA digital high voltage power supply

X-ray tube: 20KV/1mA

Window material: beryllium window

Target material: Silver/Rhodium  Focus: 1.0mm Collimation: 8mm

Input voltage: AC100 ~ 240V, 50Hz Package size: 800mm x 535mm x 450mm

Product size: 467mm x 345mm x 336mm Sample chamber size: 306mm

x 248mm x 124mm

Rated power: <150W

Gross weight: 50 kg

Net weight: 32 kg

Noise: 50 dB

Use environment:

Temperature: 15℃ ~ 31℃

Humidity: <70% (no dew)

Linux kernel version: 4.14.98

XRF software version: V1.2.0

RTM version: R10101570001-210218

System firmware version: V8.03(B02)

DSP firmware version: V6.10
