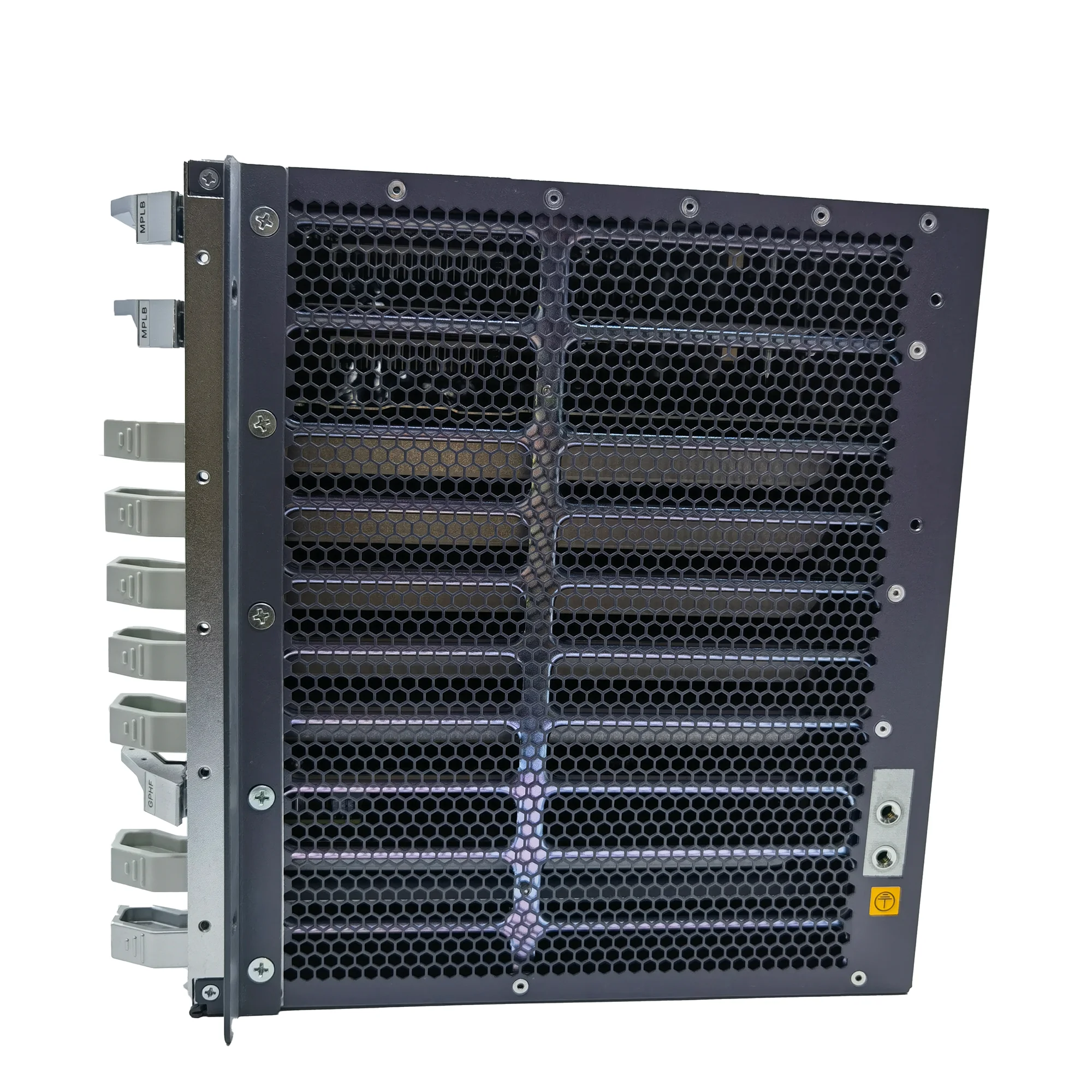

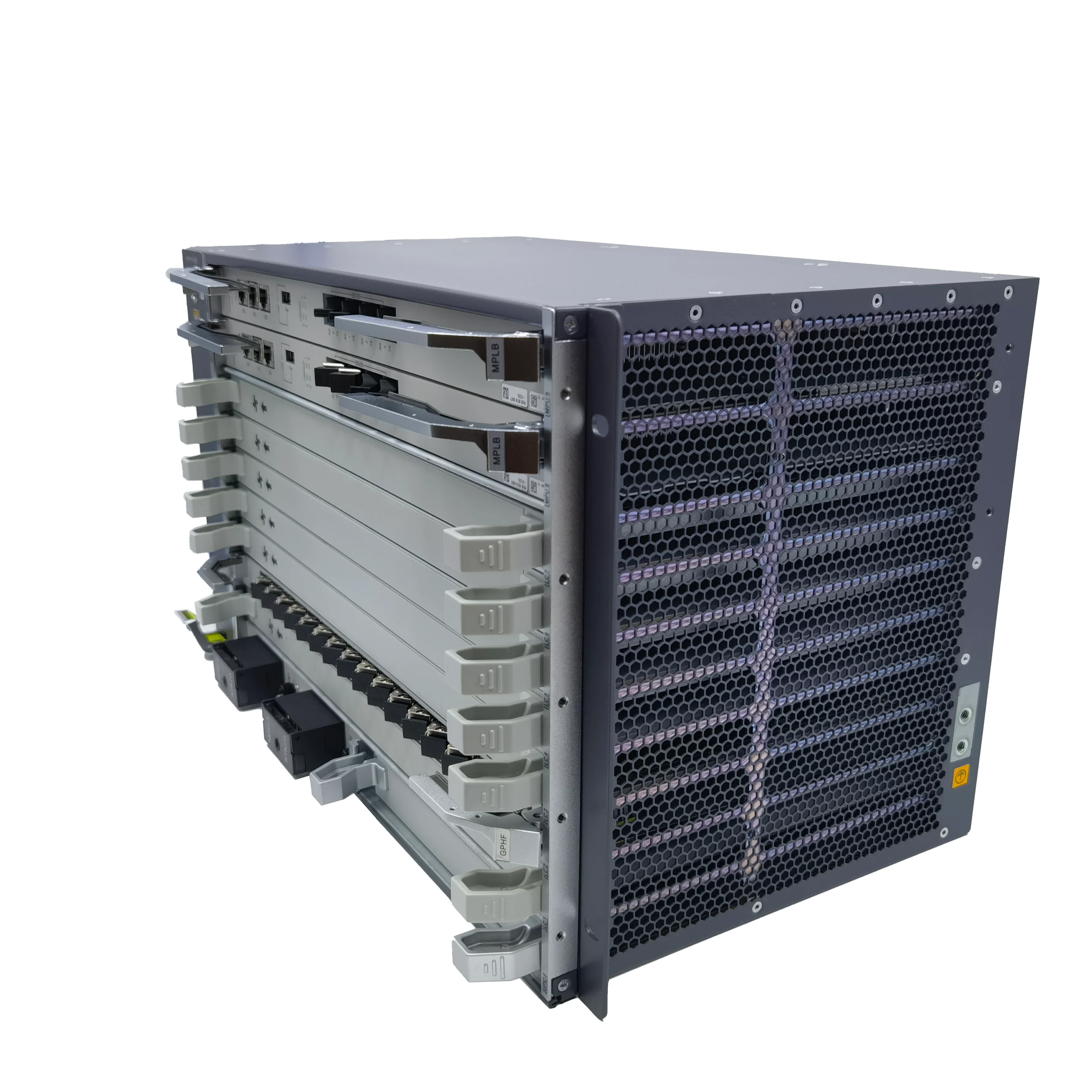

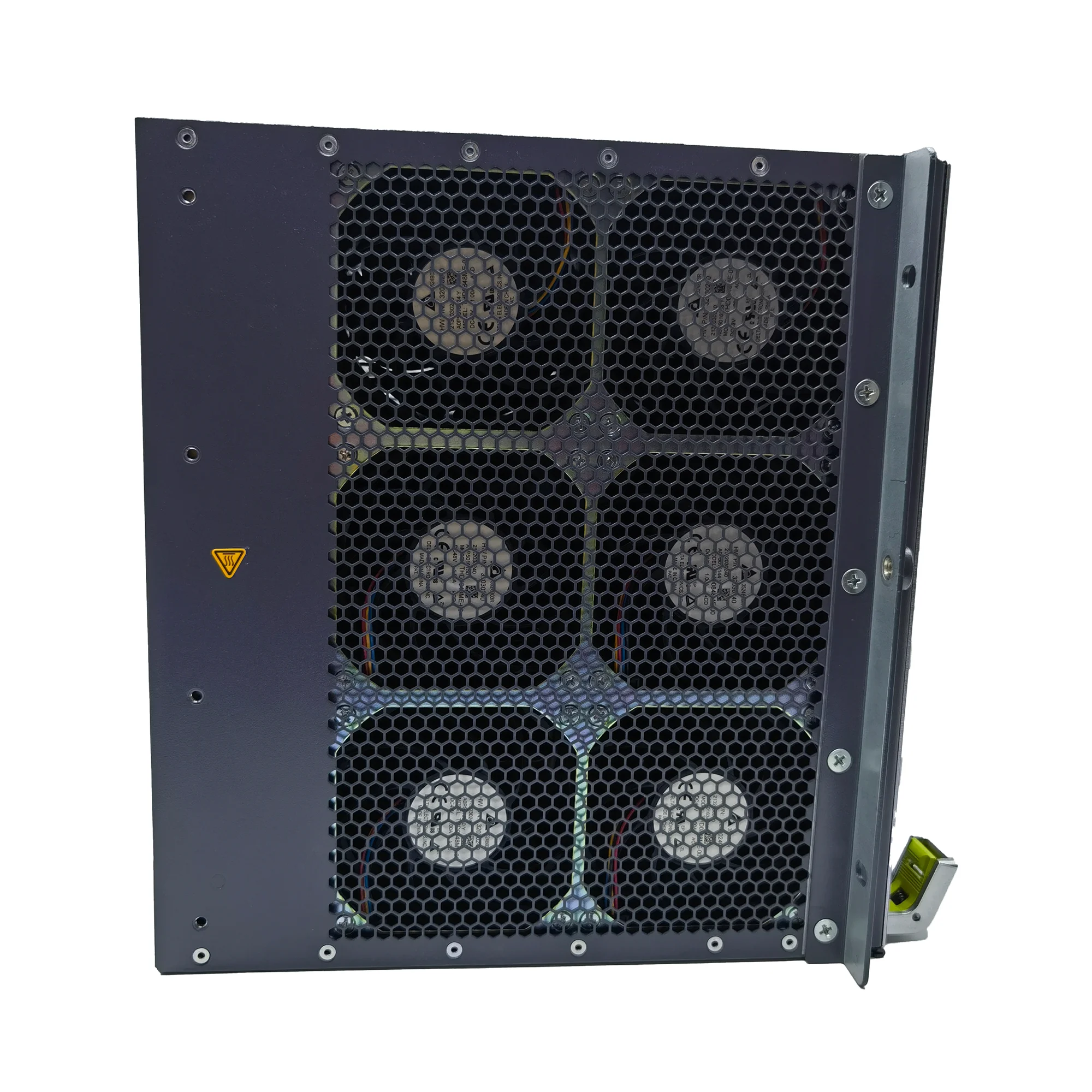

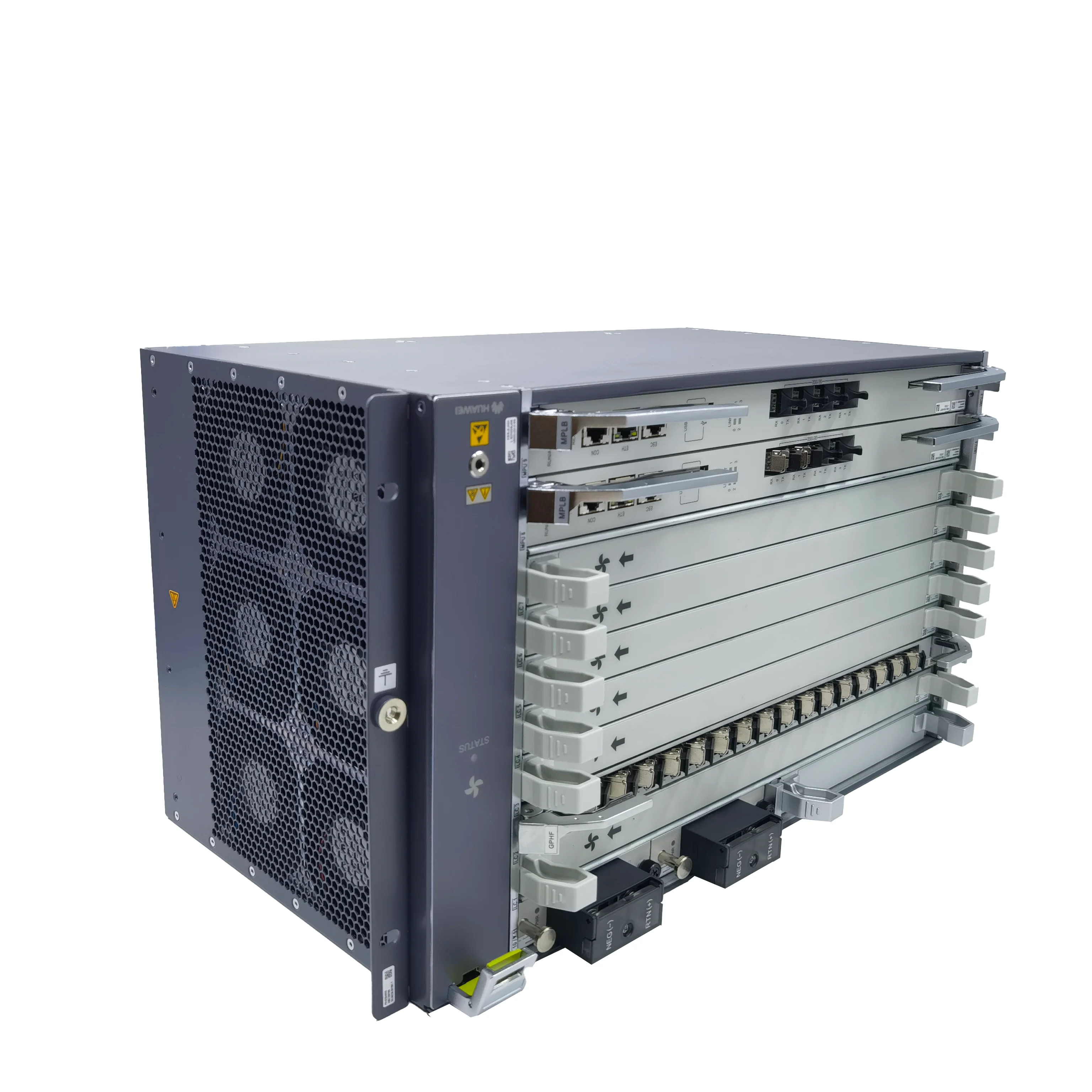

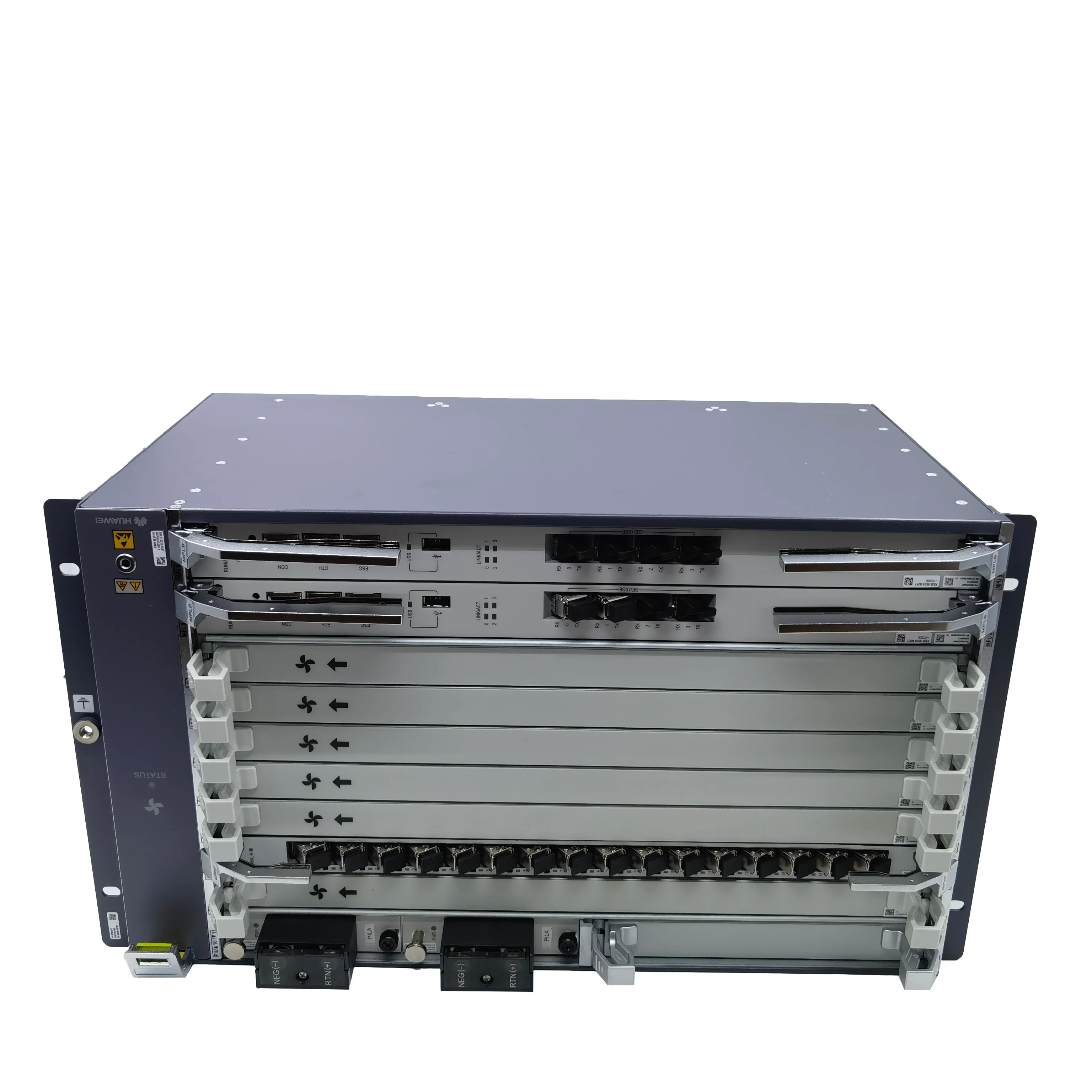

High Quality Gpon OLT Smartmax MA5800x7 Optical Line Terminal MA5800 x7

Share on (1601060427706):


Price:

Quantity:


Product Overview

Description



Product Description


MA5800's programmable Network Processor (NP) chip set accelerates the roll-out of new services, catering to the demand for differentiated services, including partitioning of wholesale and retail service providers.





































































Item


MA5800-X17


MA5800-X15


MA5800-X7


MA5800-X2


Dimensions (W x D x H)


493 mm x 287 mm x 486 mm


442 mm x 287 mm x 486 mm


442 mm x 268.7 mm x 263.9 mm


442 mm x 268.7 mm x 88.1 mm


Maximum Number of Ports in a Subrack


272 x GPON/EPON
816 x GE/FE
136 x 10G GPON/10G EPON
136 x 10G GE
544 x E1


240 x GPON/EPON
720 x GE/FE
120 x 10G GPON/10G EPON
120 x 10G GE
480 x E1


112 x GPON/EPON
336 x GE/FE
56 x 10G GPON/10G EPON
56 x 10G GE
224 x E1


32 x GPON/EPON
96 x GE/FE
16 x 10G GPON/10G EPON
16 x 10G GE
64 x E1


Switching Capacity of the System


7 Tbit/s


480 Gbit/s


Ambient Temperature


-40°C to 65°C*
*: The MA5800 can start up at a lowest temperature of -25°C and run at -40°C. The 65°C temperature refers to the highest
temperature measured at the air intake vent


Working Voltage Range


-38.4V DC to -72V DC


DC power supply:
-38.4V to -72V
AC power supply:
100V to 240V


Layer 2 Features


VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE+, and DHCP
option82



Layer 3 Features


Static route, RIP/RIPng, OSPF/OSPFv3, IS-IS, BGP/BGP4+, ARP, DHCP relay, and VRF


MPLS & PWE3


MPLS LDP, MPLS RSVP-TE, MPLS OAM, MPLS BGP IP VPN, tunnel protection switching, TDM/ETH PWE3, and PW protection switching


IPv6


IPv4/IPv6 dual stack, IPv6 L2 and L3 forwarding, and DHCPv6 relay


Multicast


IGMP v2/v3, IGMP proxy/snooping, MLD v1/v2, MLD Proxy/Snooping, and VLAN-based IPTV multicast


QoS


Traffic classification, priority processing, trTCM-based traffic policing, WRED, traffic shaping, HqoS, PQ/WRR/PQ + WRR, and ACL


System Reliability


GPON type B/type C protection, 10G GPON type B protection, BFD, ERPS (G.8032), MSTP, intra-board and inter-board LAG, In-Service Software Upgrade (ISSU) of the control board, 2 control boards and 2 power boards for redundancy protection, in-service board fault detection and rectification, and service overload control

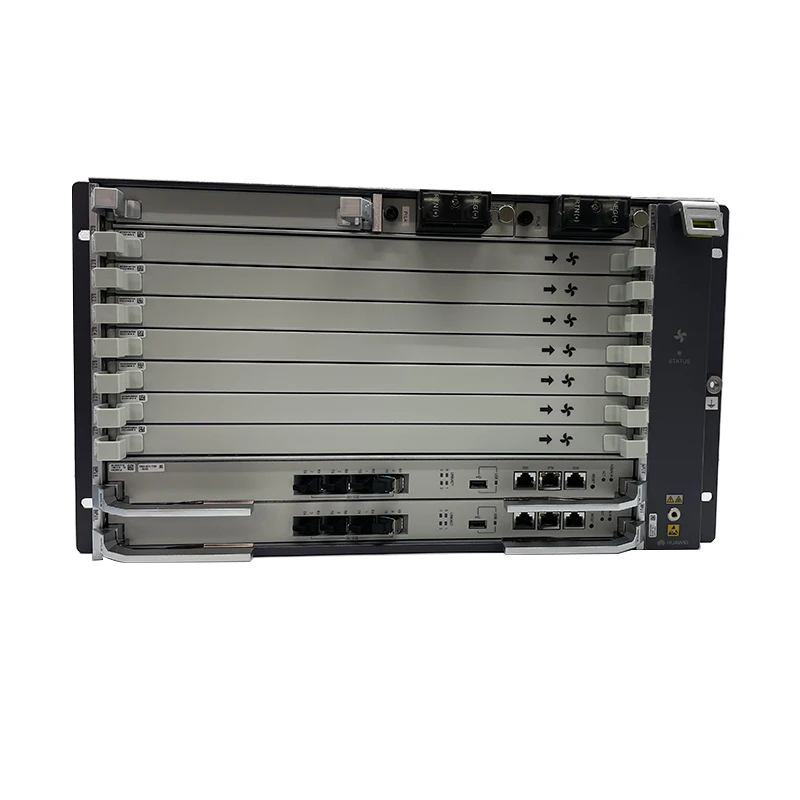

Huawei MA5800 (8)





Packaging & Shipping


Safe packing during shipment.


Express shipping or Sea shipping per your requirements


.png





Our Services


Pre-sale inquiry: To all aspects you concerned;


After sale serivce: warranty


OEM support

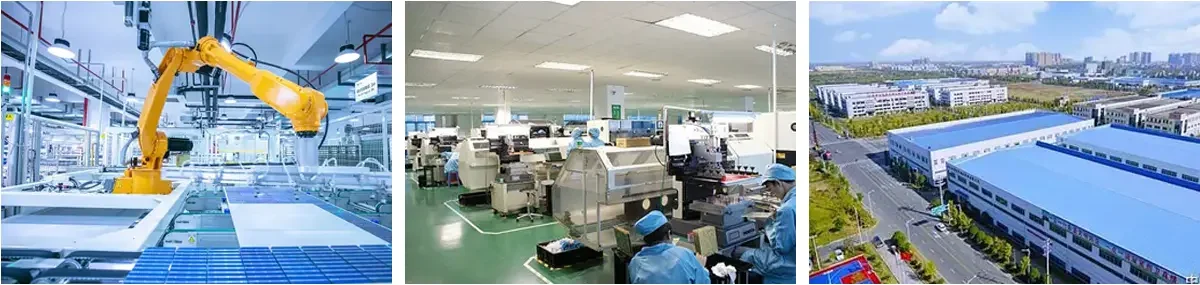

Company Information


 Hunan Xunkai Inelligent Engineering Co. ltd,established in 2017,is a supplier of Optical Line Terminals,Optical Network Units and other equipments related to Passive Optical Network. We have exported more than 50 countries and regions like Russia, BRAZIL and Southeast Asia etc. Our products provide the customers who are deeply engaged in the field of PON with exciting and peaceful using experience.To the customers' satisfaction,a per-fect quality control is needed,and we also provide highly competitive prices Furthermore,we have the best profession team on international trade,so customers can relieve your worriers.











FAQ


Q1:Who we are?
A1:We are based in Hunan, China, start from 2017,sell to Domestic Market(30.00%),South America(5.00%), Eastern Europe(5.00%). Our experience in this field helped customers got quality products.

Q2: How can we guarantee quality?
A2: Original products from famous brand factories, such as Huawei ZTE etc.

Q3: How much will the shipping charges be?
A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.

Q4: What is your payment terms?
A4: 30%prepaid, 70% balance is mostly applied.

Q5: Why choose us?
A5: Ready stock for fast delivery;
Rich experience in network technology;
Quality&stable products;
Good pre-sale, in-sale and after-sale service
