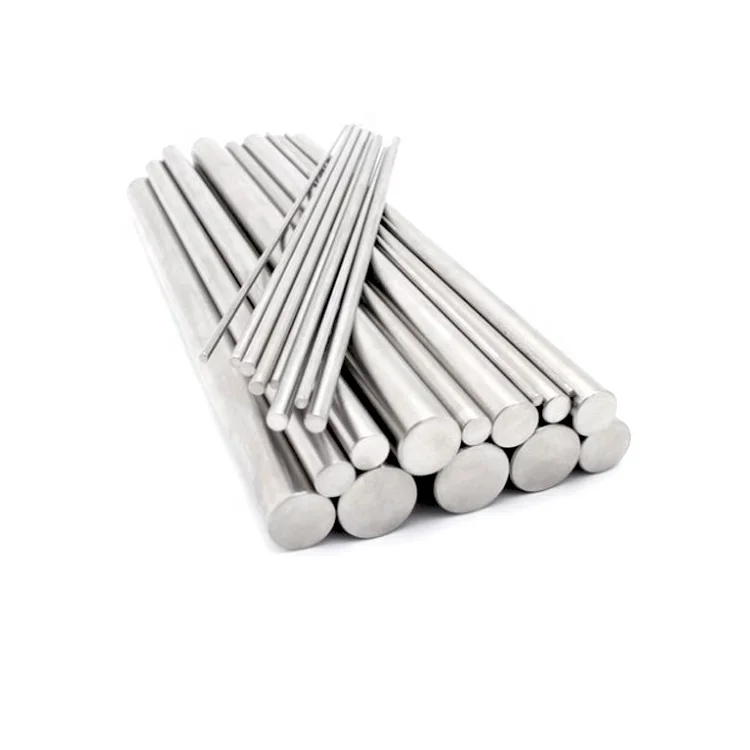

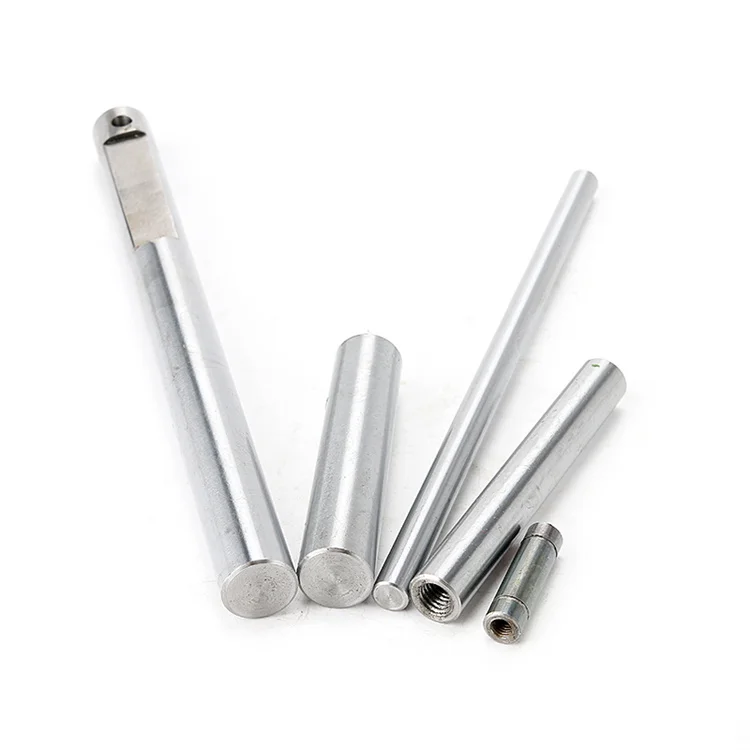

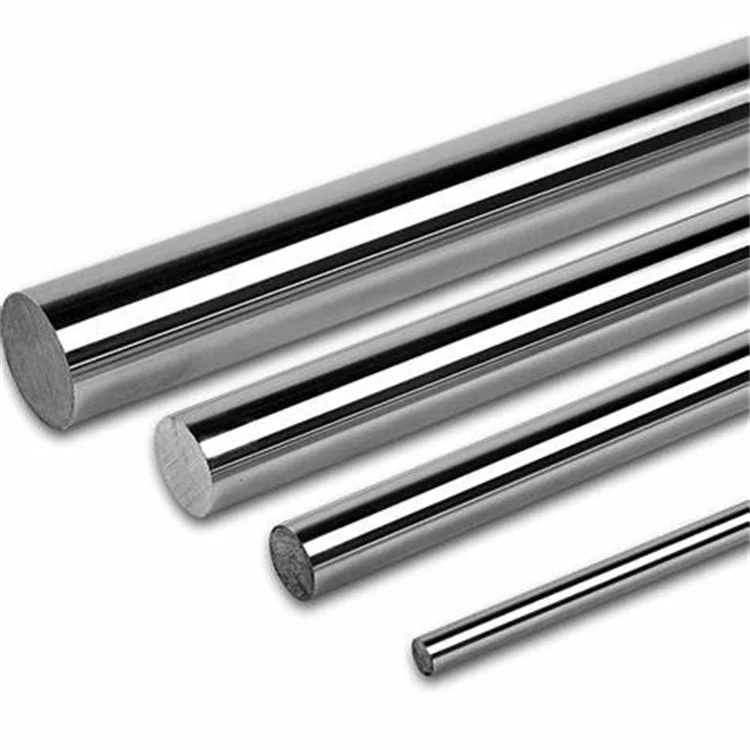

45# Piston rod solid optical shaft wear resistant piston rod processing custom chrome plated rod
- Category: >>>
- Supplier: Shandong Zhouyou Machinery Co. Ltd.
Share on (1601060429883):
Product Overview
Description
Products Description

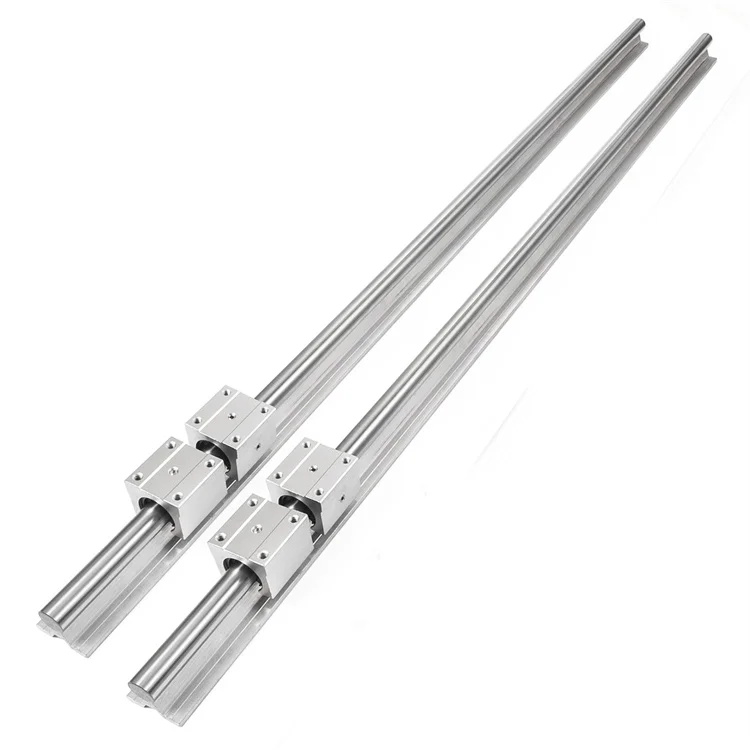

Optical axis classification:
1, ordinary linear optical axis (sf): because the ordinary linear optical axis and linear bearing point opposite contact, so the surface hardness of the ordinary linear optical axis is very high, so the material and heat treatment method is very important. Material :suj2(equivalent) GB gcr15 Hardness :hrc60±2; Hardening depth :0.8-3mm; Surface roughness :ra0.10m-ra0.35m; Straightness :70um/1000mm below; Shaft outer diameter tolerance g6
2, chromium plating linear optical axis (sfc): chromium plating linear optical axis is on the basis of the ordinary linear optical axis plated with a layer of hard chromium, also known as the bearing rod, can be suitable for easy to long rust environment or bad environment this axis is widely used in industrial robots, automatic sliding system device of the moving part. Optical axis :suj2(equivalent) gcr15. Hardness :hrc60±2; Hardening depth :0.8-3mm; Surface roughness :ra0.10m-ra0.35m straightness material
2, chromium plating linear optical axis (sfc): chromium plating linear optical axis is on the basis of the ordinary linear optical axis plated with a layer of hard chromium, also known as the bearing rod, can be suitable for easy to long rust environment or bad environment this axis is widely used in industrial robots, automatic sliding system device of the moving part. Optical axis :suj2(equivalent) gcr15. Hardness :hrc60±2; Hardening depth :0.8-3mm; Surface roughness :ra0.10m-ra0.35m straightness material
3, chromium plated linear flexible shaft (rsfc): Chromium plated linear flexible shaft due to its thick chromium plating layer can be directly used for precision piston rod and some in the coordination of self-lubricating bearings. Because of its moderate hardness, it is used in many fields. Material :45# or 40cr or 2cr13; Hardness: hb220-260; Hardening depth :0.8-3mm; Straightness :0.15mm/1000mm below; Chromium plating thickness :0.02-0.05mm
4, stainless steel straight shaft: stainless steel straight shaft has high corrosion resistance, high strength and wear resistance to maintain its efficient operation performance. Therefore, it can be used in situations where oxidation is easy to occur, such as water, chemicals, steam, seawater, etc. Material :sus404c, sus304 hardness :hrc60±2; Hardening depth :0.8-3mm; Surface roughness :ra0.10m-ra0.35m straightness
5, chrome hollow shaft: chrome hollow shaft due to the characteristics of its hollow structure, the hollow shaft reduces the weight to a great extent, and simplifies the structure, its interior is suitable for wearing the measuring wire, compressed air, add lubricating oil, or used for robotic arm.
4, stainless steel straight shaft: stainless steel straight shaft has high corrosion resistance, high strength and wear resistance to maintain its efficient operation performance. Therefore, it can be used in situations where oxidation is easy to occur, such as water, chemicals, steam, seawater, etc. Material :sus404c, sus304 hardness :hrc60±2; Hardening depth :0.8-3mm; Surface roughness :ra0.10m-ra0.35m straightness
5, chrome hollow shaft: chrome hollow shaft due to the characteristics of its hollow structure, the hollow shaft reduces the weight to a great extent, and simplifies the structure, its interior is suitable for wearing the measuring wire, compressed air, add lubricating oil, or used for robotic arm.
Products Show
Piston rod | piston rod processing | cylinder piston rod | hrome plated piston rod |
large piston rod | non-standard piston rod | cylinder piston rod | Hollow piston rod |
shock absorber piston rod | hydraulic piston rod | precision piston rod | bearing steel piston rod |
tempered piston rod | high-frequency piston rod | piston rod manufacturers | Shandong piston rod |
Wuxi piston rod | Changzhou piston rod | Extra long piston rod | extended piston rod |
piston rod cylinder | stainless steel piston rod | 42CrMo piston rod | 40Cr piston rod |
45# steel piston rod | 45# steel piston rod | Steel linear optical shaft | machining guide shaft |
stainless steel hollow roller shaft | precision machining shaft | bearing steel linear center | tempering grinding rod |
hollow guide rod | Optical shaft | precision optical shaft | High frequency shaft |
tempering shaft | stainless steel optical shaft | electroplated optical shaft | excavator shaft |
stainless steel hollow shaft | stainless steel hollow rod | mechanical guide column | solid chrome-plated rod |
hollow chrome-plated rod | Hollow shaft, hollow rod | hollow rod | hollow tube |
hollow chrome-plated optical shaft | hollow tempering piston rod | high frequency quenching rod | Chrome bar |
stainless steel | stainless steel straight shaft | Machining shaft | mechanical shaft |
column guide rod screw injection mandrel | shoe machine guide rod | mold locking piston rod | mold injection rod |
Golin column | guide column | injection molding machine Golin column | injection molding machine Green column |
Company Profile

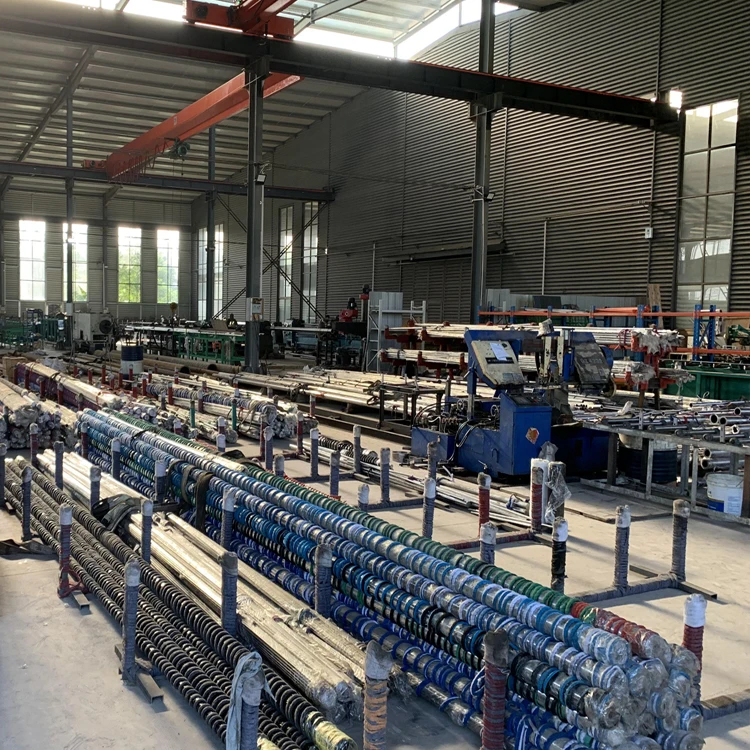

Shandong Zhouyou Machinery Co., Ltd. has more than 15 years experience In the machinery scope, congratulation we become a group company subsidiary in 2020. we own advanced production line and inspecting sets, we professional on ball bearing, roller bearings, joint bearings, linear guide , ball screw, linear motion series, shaft and support units, cnc machining. At the same time the production of hydraulic cylinder, automatic mechanical equipment. Experienced team, advanced production and precision inspect instrument let us sure the quality first. We are committed to long-term output business. we meet you in time. At present our products sale to Asia, Europe, the Americas, Africa and parts of the Middle East mainly. "stable quality and competitive price, good service, timely after-sale”we are sticking. honesty,sincere each other, what we can ,what we can’t, how we can offer, we show you real. Business long time. We are here. We are pleasure to meet you. Trust and honesty is the key to open our cooperation. Thanks very much for you believe and support. We give you hand, how about you..
Testing Equipment
Our Certificate
Product packaging
1.Single box: plastic bag+single box, OEM supply
2.Single wooden box: plastic bag+single wooden box
3.Carton: Standard export carton(30*108*38.1MM) or as your need.
4.Pallet: Wooden pallet with plastic film against moisture.
5.Pallet size: 1.2m*1m
6.Package as your requirement
2.Single wooden box: plastic bag+single wooden box
3.Carton: Standard export carton(30*108*38.1MM) or as your need.
4.Pallet: Wooden pallet with plastic film against moisture.
5.Pallet size: 1.2m*1m
6.Package as your requirement
